Scooter & More SM Sport User manual
Introduction
Thank you for choosing our vehicle.
Before driving, please read this manual to know your
vehicle well. It will help you to obtain the maximum
pleasure from your vehicle and decrease drive failures.
You should always keep them in the vehicle and pass them
on to the new owner if you sell the vehicle.
Our electric scooters represent an energy-efficient and
and eco-friendly alternative for people who need to
get around the city.
before operating your new scooter. As the operator,
you are solely responsible for the manner in which you
responsible for any damage or personal injury incurred
SM SPORT
operate and maintain your scooter.Scooters And More is not
through improper or unsafe usage of the SM Sport mobility
Scooter.
Please be sure to take time reading this manual thoroughly
Owner's manual
2
Safety
When operating the SM SPORT please make sure you adhere the following:
Always check your mirrors and blind spots when operating the vehicle.
Obey all laws of the road.
Turn on headlights when in need of additional visibility.
Periodically charge the unit when not in use for long periods of time
Make sure that your battery power is sufficient before you go out to ride
If you bring your charger avoid shaking / rattling charger while riding
Do not over charge the battery by leaving the charger in the charging port.
Once the battery is fully charged remove the charger immediately.
Do not let anyone under the age of 16 years old operate this vehicle.
Do not try to operate the unit while charging.
Do not operate under the influence of any use of drugs or alcohol
Do not operate in harsh weather conditions.
Do not make sharp / abrupt turns at high speeds to avoid tipping.
Do not operate this unit with additional passengers.
Do not completely submerge the unit in water
3
■This signal note the best way to use your vehicle.
This signal with warning information, please read it
carefully to avoid damaging vehicle and for your and your
family safety.
This signal is safety warning, means “can not”, “can not
do that...” or “can not make”.
Important note
4
Technical Specifications
5
一：Normal temperature
O : Stop
二：Warm wind
High beam & low beam
switch
Turn signal light and hazard light
Horn
Front reverse switch
Wiper switch
Headlight switch
Horn
Three-speed
shift switch
Parking switch
6
MP3/MP4&Radio . Bluetooth password : 0000
VIN Number
Battery
Speed
Range
7
NOTE
those risks. The manufacturer, distributor, and seller will assume
no liability for misuse or operator negligence. Thus, you need to
know and practice the rules of safe and responsible riding.
The Basics
Like any sport, bicycling involves the risks of injury and damage.
By choosing to ride this vehicule, you assume the responsibility for
▪v
▪
pedals. Never ride barefoot or wearing sandals.
everything from your spokes to your pedals. Most vulnerable to
jumping-related damages is your front fork. Riders who insist on
▪BKZNUXU[NR_LGSOROGX]OZNZNKIUTZXURYULZNOYvKNOI[RK.
▪DUT’Zj[SV]OZN_U[XvKNOI[RK.IZV[ZYOTIXKJOHRKYZXKYYUT
jumping their vehicule risk serious damage as well as to themselves.
General Instructions Before Riding
8
1. Inspection
to service center to inspect and replenish brake fluid.
in mouth by accident, seek medical advice immediately!
(1) Brake liquid
Timely check the brake fluid level between the highest mark(MAX)
and the lowest mark( MIN). If you need to replenish liquid, only
can use DOT4 synthetic brake fluid.
Note: The brake fluid will absorb moisture. Therefore, if the
vehicle is used in the humidity higher area most of the time, brake
fluid replacement frequency should be faster than usual, please go
Brake fluid is harmful to the human body and is corrosive, if
accidental contact, please wash related body parts with cleaning
water and neutral soap immediately, and repeatedly wash. If put
Clean and Maintenance
9
Charging your SM SPORT

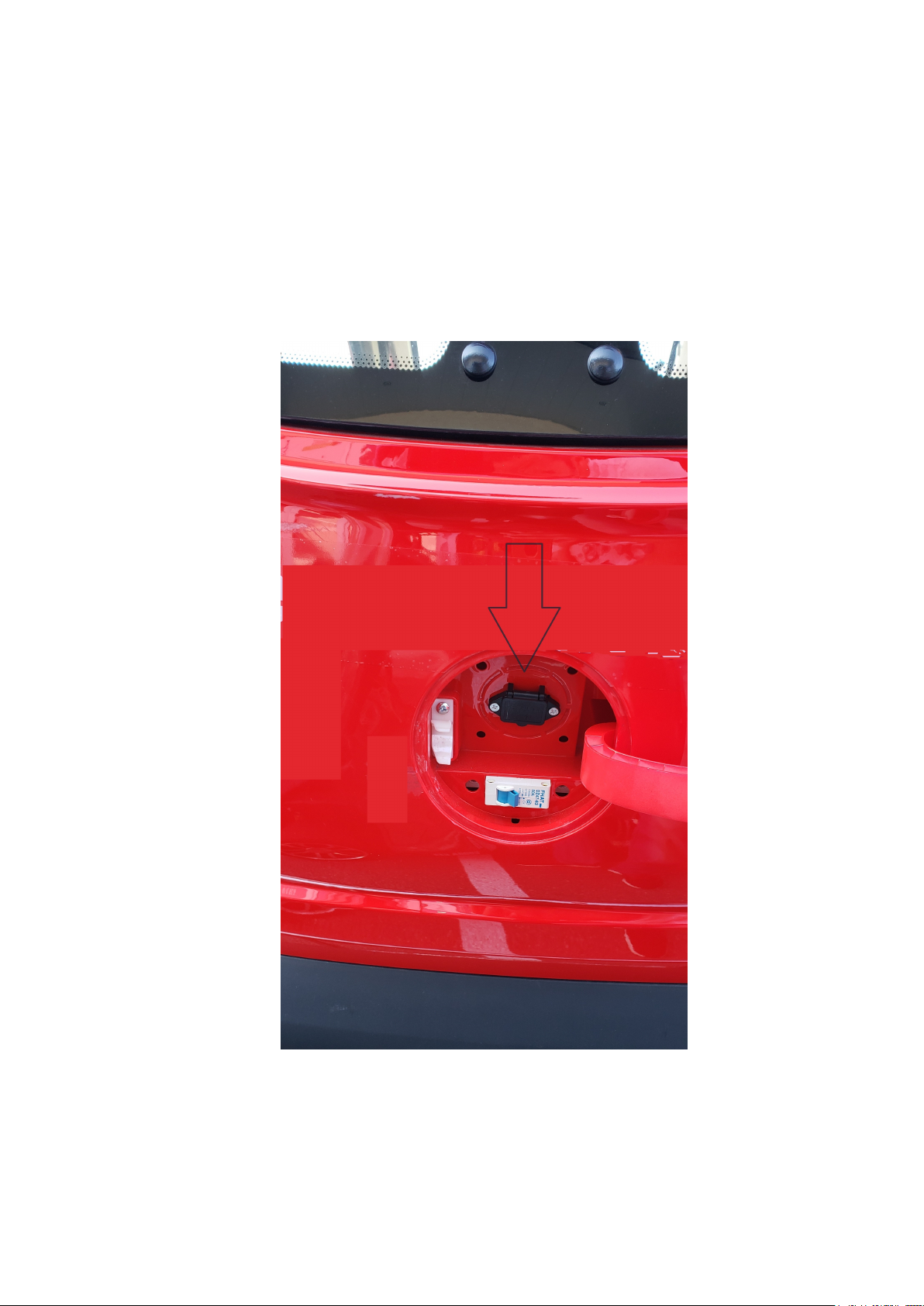

In the rear storage area behind the driving seat you will nd a charging port
where you plug in your SM SPORT to charge. Plug the charger.
Once it is finished charging unplug the charger and you are ready to go.
On your charger you will find an LED light.
If it is fully charged or not plugged into the machine it will glow green.
If it is charging this light will turn red.
**DO NOT leave the charger pluggedin for extensive periods of time.**
**Once the charger is finished charging unplug it as soon as possible**
10
Features
The SM SPORT comes with a built in rear view camera.
This camera only activates when the unit is put into reverse.
There are green yellow and red lines to help gauge how close you are
to whatever is behind you. When the object is in the red area be very
careful as you may bump or scratch your machine.
**ALWAYS check your surroundings while using your back up camera**
11
Important Note
12
13
14
15
16
17
Troubleshooting Chart
Phenomenon
Cause
Resolution
Speed out of
control
1. Low battery voltage
2. A wire from the throttle is
loose or disconnected
3. A spring,magnet,or sensor in
the throttle is locked or loose
1. Charge the battery
2. Solder or re-crimp
3. Replace throttle
Connect the
power,but the
motor doesn’t
work
1. A battery wire is loose
2. Apparent ”dead battery”
3. A wire in the throttle is loose
or disconnected
4. A brake sensor is defective
1. Reconnect
2. Solder or re-crimp
3. Replace brake handle
sensor
Mileage per
charge is not as
expected
1. Not enough air pressure in
tires
2. Not enough battery power or
a loose connection
3. The battery is damaged
4. Frequent braking and
acceleration, driving into
wind, with cargo, or up hill
1. Pump up the tires
2. Charge the battery
check connections
3. Replace battery
4. Use pedals to give the
tricycle additional
power
Many of the parts in this product are not user-serviceable and should
be repaired by trained professionals.This is especially true of the
electrical systems and the mechanical components. Alteration of these
components voids the warranty.
Before Riding
We recommend performing the 60 second check on your electric vehicle.
Troubleshooting checklist
If you are having trouble operating your scooter, please check the following:
- The unit is switched on
- All plugs and connectors are firmly fixed
- Battery is fully charged
- Parking break is off
18
19
Orlando, Florida, USA 32810
Phone: (855)-999-4777
www.scooterandmore.ca
