ScrapBox WORKBOX 3.0 Side Table User manual

Side Table Installation Instructions Made in the U.S.A.
UPDATED: JUNE 2019
oh happy day

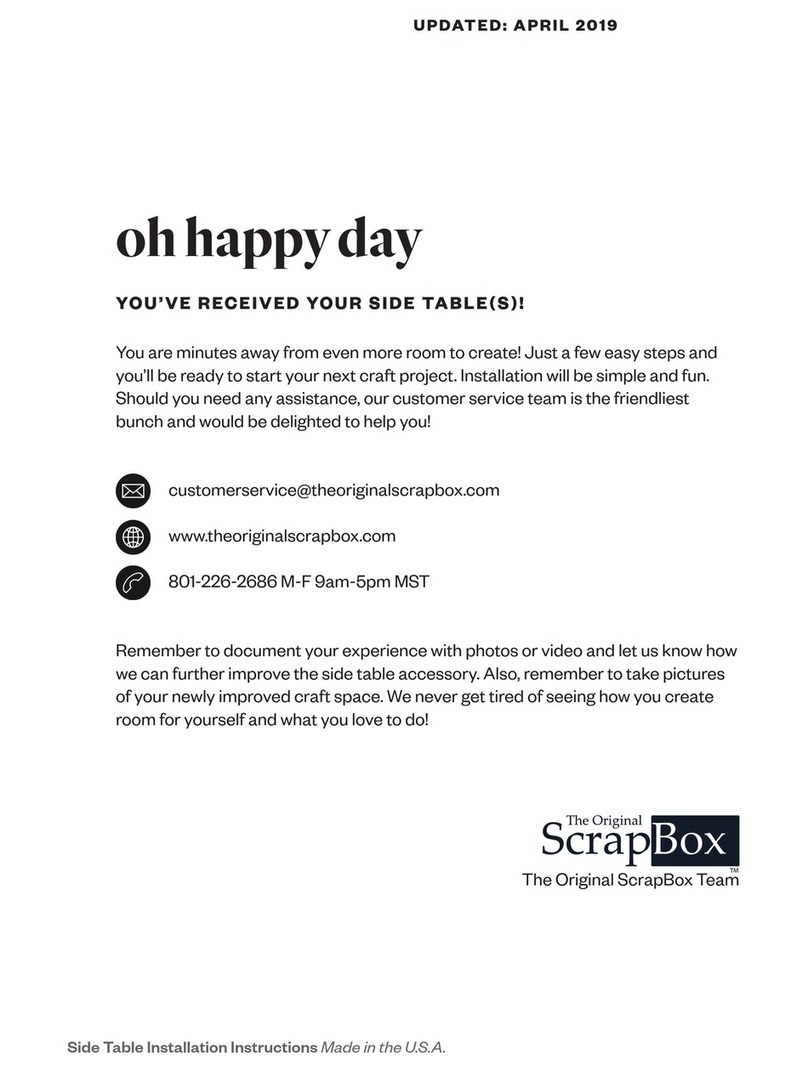

YOU’VE RECEIVED YOUR SIDE TABLE(S)!
You are minutes away from even more room to create! Installation will be simple
and fun. If you need any assistance, our customer service team is the friendliest
bunch and would be delighted to help you!
[e-mail]
www.theoriginalscrapbox.com
801-226-2686 M-F 9am-5pm MST
Remember to take pictures of your craft space. We never get tired of seeing how
you create room for yourself and what you love to do!
The Original ScrapBox Team

more space for everyone
04 Installing your Side Tables in the WorkBox 3.0
13 Installing your Side Tables in the DreamBox
22 Using the Shelf Peg Tool

04 Proprietary, patented product and instructions. Do not copy or distribute.
WORKBOX 3.0 Side Table Installation
** You may have noticed that your Hard-
ware Bag includes some extra hardware.
This is all the additional hardware you would
need to install your tables in a DreamBox, just
in case you ever decide to upgrade. You can
set it aside for now.
TOOLS YOU’LL NEED (NOT INCLUDED):
Manual phillips
screwdriver
Permanent
marker A friend to help you
HARDWARE YOU’LL NEED (INCLUDED):
x4 per side table
13mm Euro Screws
(for table tracks)
x1 per side table
Sash Lock
(3/4” screws included) x2 Clear Rubber Bumpers
x2 per side table
Plastic Table Tracks
x2
Left & Right Side
center box guide sticker
FRONT
LEFT
SIDE
OUTSIDE EDGE
FRONT
RIGHT
SIDE
OUTSIDE EDGE
Shelf Peg Tool
(see page 19 for use
instructions)
x1
Adjustable Table Leg
per Side Table
x4
14mm
Washer Screws
(for table legs)

06 Proprietary, patented product and instructions. Do not copy or distribute.
Count up 17 shelf peg holes from the bottom and remove all 13 x 13
shelves and shelf pegs from peg hole #17-18 in the left/right box. Also
remove notions-sized shelves and shelf pegs that share peg hole #18
in the narrow section(s) of the left/right box.
*You may have to rearrange some shelves/totes to make space for the
side tables. You may need to remove one or two totes entirely when
using the side tables. Use the included Shelf Peg Tool to make moving
shelf pegs easier (see page 22 for use instructions).
1

07Proprietary, patented product and instructions. Do not copy or distribute.
Hold one track up to the side panel on your left/right box to determine which column of
screw holes aligns with the hold pattern on your box. Correct column will vary between
boxes. Mark the correct column on both tracks with a permanent marker.
2
outer or inner column
outer or inner column
Lay both tracks on a hard, flat surface and use a manual
Phillips screwdriver to“start” (4) Euro screws into inner screw
holes of the marked columns of (2) table tracks. Insert screws
just enough to bite the plastic.
3
inner screw holes inner screw holes
inner screw holes inner screw holes

08 Proprietary, patented product and instructions. Do not copy or distribute.
With screw side down, position the table tracks
over shelf peg hole #18 on both sides of left and/or
right box. Use a manual screwdriver to secure
tracks.
4
16
20
21
22
19

09Proprietary, patented product and instructions. Do not copy or distribute.
Install (1) Sash Lock (hook side only) to the underside of the
Side Table using the pre-drilled pilot holes closest to the
cutaway end.
Left Side Table
Underside
Left Side Table
Underside
6
5
Cutaway end
Barrel Lock Catch
Pilot Holes
x4
14mm
Washer Screws
(for table legs)
Install (1) Side Table Leg to Side Table using (4) table leg screws into the pre-drilled
holes. If your table leg is already installed, lucky you! You can skip this step.
Fold out Side Table Leg and turn the table over.
*Please note that although there are Barrel Lock Catch Pilot Holes in your Side
Table(s) you will not need to use them with your WorkBox 3.0 Table.

10 Proprietary, patented product and instructions. Do not copy or distribute.
Apply Left and/or Right Side Guide Sticker to
UNDERSIDE of the WorkBox table in the left/right
corner. Be sure sticker is up against the front and
outside edges of the table.
7
FRONT
OUTSIDE EDGE
underside of
WorkBox Table
FRONT
OUTSIDE EDGE
underside of
WorkBox Table
side edge of WorkBox table
(near the outer end)
Use the provided screws to
attach (1) Sash Lock Catch
(per side) with the hook near
the edge of the table using
the sticker as a guide.
8
Press (1) adhesive rubber bumper firmly to each
side edge of WorkBox table near the outer end.
9

11Proprietary, patented product and instructions. Do not copy or distribute.
With Side Table Leg folded out, turn the table over.
Slide left/right side table(s) into tracks until table touches the back panel of the left/right box.
With Center Box table folded out, adjust the legs so your Side Tables are even with the
Center Table. Lock the sash lock on each side to secure tables together.
Most floors are not perfectly level. Use the threaded feet on the Side Table legs to adjust
your side tables up or down so they are even with the center table.
10

12 Proprietary, patented product and instructions. Do not copy or distribute.
Divider
Fit the wide, flat part of the shelf peg into the corresponding hole in
the included shelf peg tool. Use the tool to press shelf pegs firmly
into peg holes as shown.
*Shelf pegs will lock into each other when sharing the same peg
hole on opposite sides of divider (see below).
Pull shelf peg too to remove it from the insterted peg. Secure one
side of shelf into two shelf pegs on one side of panel or divider.
Snap other side of shelf into remaining 2 pegs located
on the opposite panel or divider.
For maximum storage capacity, you can follow the recommended shelf configuration on the next page .
Now you can customize your shelves to accomodate your new side tables, larger
bins or cutting machines We’ve included this nifty tool to make installing your shelf
pegs and shelves a bit easier. Here’s how to use it:
Divider & Installed Pegs
(view from above)
who says change isn’t easy?

13Proprietary, patented product and instructions. Do not copy or distribute.
TOOLS YOU’LL NEED (NOT INCLUDED)
Manual phillips
screwdriver
Permanent
marker A friend to help you
HARDWARE YOU’LL NEED (INCLUDED):
x10 per side table
13mm Euro Screws
(for table tracks)
x2 per side table
Sash Lock
(screws included)
Only two needed x2
Sash Lock Catch for
Center Box Table
(screws included)
x1 per side table
Barrel Lock Catch
(screws included)
x2 Clear Rubber Bumpers
x4 per side table
Plastic Table Tracks
x2
Left & Right Side
center box guide sticker
FRONT
LEFT
SIDE
OUTSIDE EDGE
FRONT
RIGHT
SIDE
OUTSIDE EDGE
Shelf Peg Tool
(see page 19 for use
instructions)
x1
Adjustable Table Leg
per Side Table
x4
14mm
Washer Screws
(for table legs)
DREAMBOX SIDE TABLE INSTALLATION INSTRUCTIONS

14 Proprietary, patented product and instructions. Do not copy or distribute.
LH
#19
#24
#19
#24
Count up 18 shelf peg holes from the bottom of the box and remove any 13 x 13 shev-
les and shelf pegs from peg hole #18 through #24 in the left/right box. Also remove
any notions-sized shelves and shelf pegs in peg holes #19 & 24 in the narrow sec-
tion(s) of the left/right box.
*You may have to rearrange some shelves to make space for the Side Tables. Use
the included Shelf Peg Tool to make moving shelf pegs easier (see page 22 for use
instructions).
1

15Proprietary, patented product and instructions. Do not copy or distribute.
Hold one track up to the side panel on your left/right box to determine which column of
screw holes aligns with the hold pattern on your box. Correct column will vary between
boxes. Mark the correct column on all four tracks with a permanent marker.
2
outer or inner column
outer or inner column
Lay (2) tracks on a hard, flat surface and use a manual Phillips
screwdriver to“start” (4) Euro screws into inner screw holes
of the marked columns of (2) table tracks. Insert screws just
enough to bite the plastic.
3
outer screw holes outer screw holes
outer screw holes outer screw holes

16 Proprietary, patented product and instructions. Do not copy or distribute.
LH
With screw sides up, position the table tracks
over shelf peg hole #18 on both sides of left/right
box. Use a manual screwdriver to secure tracks.
4
16
15
21
22
25
24
23
26
20
19

17Proprietary, patented product and instructions. Do not copy or distribute.
LH
Lay remaining (2) tracks on a hard, flat surface and use a
manual Phillips screwdriver, “start” (4) Euro screws into inner
holes of the remaining (2) table tracks. Insert screws just
enough to bite the plastic.
5
With screw sides up, position the table tracks
over shelf peg hole #24 on both sides of left/right
box. Use a manual screwdriver to secure tracks.
6
16
15
21
22
25
26
20
19
inner screw holes inner screw holes
inner screw holes inner screw holes

18 Proprietary, patented product and instructions. Do not copy or distribute.
Install (2) Sash Locks (hook side only) to the underside
of Side Table using the two sets of pre-drilled pilot holes
closest to the end of the Side Table as a guide. Install (1)
barrel lock catch in the pilot holes closest to the
cutaway edge.
7
Left Side Table
Underside
Cutaway end
Left Side Table
Underside
Install (1) Side Table Leg to Side Table using (4) table leg screws into the pre-drilled
holes. If your table leg is already installed, lucky you! You can skip this step.
Fold out Side Table Leg and turn the table over.
*Please note that the barrel lock catch installed on the underside of your Side Table(s)
is designed to receive the barrel lock already installed on your DreamBox side table.
This lock will help your Side Table fit flush with your Center Box Table.
8
Barrel Lock Catch
Pilot Holes
x4
14mm
Washer Screws
(for table legs)

19Proprietary, patented product and instructions. Do not copy or distribute.
Install (2) Sash Locks (hook side only) to the underside
of Side Table using the two sets of pre-drilled pilot holes
closest to the end of the Side Table as a guide. Install (1)
barrel lock catch in the pilot holes closest to the
cutaway edge.
7
Left Side Table
Underside
Cutaway end
Left Side Table
Underside
Install (1) Side Table Leg to Side Table using (4) table leg screws into the pre-drilled
holes. If your table leg is already installed, lucky you! You can skip this step.
Fold out Side Table Leg and turn the table over.
*Please note that the barrel lock catch installed on the underside of your Side Table(s)
is designed to receive the barrel lock already installed on your DreamBox side table.
This lock will help your Side Table fit flush with your Center Box Table.
8
Barrel Lock Catch
Pilot Holes
x4
14mm
Washer Screws
(for table legs)
LH
FRONT
OUTSIDEEDGE
Apply the Left and /or Right Side Guide Sticker to Left/Right
Corner of the DreamBox table. Be sure sticker is up against
the front outside edge of the table.
9
Use the provided screws to
attach (1) Sash Lock Catch
(per side) with the hook near
the edge of the table using
the sticker as a guide.
10
side edge of DreamBox table
(near the outer end)
Press (1) adhesive rubber bumper firmly to each
side edge of DreamBox table near the outer end.
11

20 Proprietary, patented product and instructions. Do not copy or distribute.
LH
With Side Table Leg folded out, turn the table over.
Slide left/right side table into tracks until table touches the back panel of the left/right box.
With Center Box table folded down to match the sitting height of the side table, (1) secure
the barrel lock at the back of the table, (2) adjust the feet on your Side Table legs so the
Side Tables are even with your Center Box table, and (3) lock the sash lock and barrel
lock to secure Side Tables to the Center Table.
12
Most floors are not perfectly level. Use the threaded feet on the Side Table legs to adjust
your Side Tables so they are even with the Center Box Table.

21Proprietary, patented product and instructions. Do not copy or distribute.
13 To change side tables to standing height:
1. Release sash lock and barrel lock underneath Side Tables
2. Adjust DreamBox table to standing height
3. Slide side table out of lower tracks
4. With Side Table laying on edge, extend side table legs to the top hole (standing height)
5. Slide side table into upper tracks
6. Secure with sash lock
LH
