Screen Int SCREEN WINCH SYSTEM User manual

1
SCREEN WINCH SYSTEM INSTALLATION MANUAL
FOR SCREENS FROM 300 cm. UP TO 450 cm. of width (MAR-2022)
Before installing the screen winch system, please read the following instructions carefully:
•The screen winch system must be used INDOORS ONLY.
•The screen winch system must be installed by qualied personnel only.
•AFTER UNPACKING THE SCREEN WINCH TAKE CARE THAT AFTER RELEASING
THE PACKAGING FOAM FROM THE TRACTION STEEL CABLES, YOU HAVE TO
MOUNT THE BEAM UNDER THE STEEL CABLES. THIS IN ORDER TO PREVENT
THAT THE STEEL CABLES RAVEL UP INSIDE THE WINCH HOUSING.
•NEVER CONNECT MORE THAN ONE MOTOR TO THE SAME SWITCHER. USE THE
SUPPLIED SWITCHER ONLY.
•NEVER CONNECT SCREEN WINCH MOTOR AND SCREEN MOTOR TO THE SAME
SWITCHER.
•IN CASE OF MAINTENANCE, UNPLUG THE POWER SUPPLY.
•In case the SCREEN is controlled via optional interfaces:
-The optional interfaces has to be supplied by ScreenInt or by a well-known tubular
motor manufacturer
-Take care that the control system is programmed so there i≤s no tension on the
interface output for at least 1 sec. during switching between rolling up and rolling
down operations and viceversa.
•IT IS FORBIDDEN TO OPERATE SCREEN WINCH SYSTEM AND PROJECTION
SCREEN SIMULTANEOUSLY (RISK OF PERMANENT DAMAGES TO BOTH MOTORS).
ACTIVATION OF SCREEN WINCH SYSTEM AND PROJECTION SCREEN:
A – ROLL DOWN
-ROLL DOWN FIRST THE SCREEN WINCH UNIT TILL THE DESIRED HEIGHT AND CUT
THE POWER TO THE SCREEN WINCH MOTOR.
-ROLL DOWN THE PROJECTION SCREEN TILL ITS BOTTOM END STOP AND THEN
CUT THE POWER TO THE SCREEN MOTOR.
B – ROLL UP
-ROLL UP FIRST THE PROJECTION SCREEN AND THEN CUT THE POWER TO THE
SCREEN MOTOR.
-THEN ROLL UP THE SCREEN WINCH UNIT TILL ITS CLOSED POSITION AND CUT
THE POWER TO THE SCREEN WINCH MOTOR.
•Incorrect use of the screen winch system, including exceeding the maximum
lifting weight of 60 kg., would be dangerous and invalidates the warranty.
•Do not try to disassemble the screen winch or to paint the housing, as these
operations will invalidate the warranty. In case you need a different housing colour,
please check with ScreenInt as we have this option available.
•Half-yearly and yearly the screen winch system has to be checked. Please see
check register at page 10 of this document.
•In addition to manufacturer inspection guidelines, we recommend you check your
countries own legal obligations for checking and testing of lifting equipment.
•It is forbidden to stay under the screen winch system.
•For any repairing, please contact directly the dealer you purchased the unit from.
The manufacturer and his agents do not take responsibility for any damage to property
or personal injury if the winch is installed/used outside of recommended specications.
This product uses a 230 V AC motor. DO NOT attempt to carry out repairs to
the motor, there are no user serviceable parts.
Incorrect servicing could lead to risk of electric shock. For any repairing, please contact
directly the dealer you purchased the unit from. In the event of a fault please contact
the dealer /supplier. Warranty is 24 months Return To Base.
The screen winch system is certied.

2
WARRANTY CONDITIONS
This screen winch system is guaranteed 2 years from the purchase date for manufacturing
defects and 5 years on motor defects.
Responsibility is limited to repairing or substitution of the defected components and without any
other charge at our expense.
Warranty is ofcially voided if the screen winch has been dismantled or it is returned with
collision damage or defective due to incorrect installation. Repairs must be carried out by an
Approved ScreenInt Certied Engineer.
Warranty is ofcially voided if (all the following cases are including but not limited):
1) defects not due to deciencies in the material or workmanship;
2) amendments, alterations, repairs or disassembling of the Product not previously
authorized in writing by Screenint;
3) installation, use or maintenance of the Product not in compliance with Screenint ‘s
instructions as set forth in this Installation Manual and/or in any other technical documentation
supplied together with the Product;
4) bad and/or improper and/or not in compliance installation, maintenance, negligence,
improper use;
5) use of non-original spare parts or not authorized in writing by Screenint;
6) normal wear and tear;
7) the motor is removed / dismantled;
8) the screen winch system has been damaged in transit;
9) the instructions regarding the electrical connections have not been followed;
10) the products have to be installed following the electric regulations (CEI) and the other local
specic laws;
11) in the installation are used electric interfaces that does not allow the correct time lapse
between up and down operation (complete cut down of electric power on both phases for one
second)
12) electrical accessories have been used that are incompatible with the screen winch motor
causing damage to its internal components;
13) the sticker regarding the serial number of the product has been altered, deleted, removed
or tampered.
TECHNICAL SPECIFICATIONS
Motor: Power 80 Nm
Speed 12 rpm
Consumption 360 W
Roll down speed: 17 sec. per metre
Net weight of the Screen Winch System: kg. 40
Maximum roll down stroke: 7 mt.
Maximum load that can be hung to the Screen Winch System: kg. 60
SUPPLIED EQUIPMENT LIST:
When you open the packaging, please CHECK that it contains ALL the components
below:
1. 1x SCREEN WINCH SYSTEM
2. 1x BEAM
3. 1x UP/DOWN SWITCH
4. 1x CABLE COILER
5. 1x SAFETY SYSTEM

3
6. 3x FIXING BRACKETS FOR FIXING THE SCREEN WINCH TO THE CEILING
7. 3x BRACKETS FOR FIXING THE SCREEN TO THE BEAM
8. 1x L-FORM BRACKET
9. 1x CONNECTOR BOX
10.1x INSTALLATION MANUAL
This Screen Winch System is made to lift the screens models COMPACT – MAJOR –
ELLIPSE and E-LITE manufactured by Euroscreen SRL.
In order to mount this winch system and the projection screen, please read carefully the
following instructions:
1. First of all x to the ceiling the 3 brackets for the screen winch, taking care that these
3 brackets are perfectly aligned and also mounted horizontally. From the central
bracket, the left and right brackets have to be mounted at 98 cm distance from the
central bracket. (see Fig. 1). Each bracket has to be mounted to the ceiling like showed
in Fig. 2 with 4 suitable screws or bolts (xings are not supplied).
2. Fix the screen winch (seen from the front with the power cable at the right side of the
housing) at the brackets as shown in Fig. 3. First move the clamps close to the winch
housing and tighten the nuts inside the bracket as shown in Fig. 3. Now in order to
secure the clamps, tighten the 2 front screws of the bracket like shown in Fig. 4.
SCREEN WINCH
SCREEN
Fig. 3
Fig. 2

4
3. Fix the safety system (Fig. 5) to the left hand side of the screen winch housing, as in
pictures below. For xing it you will need to use the four bolts supplied with the
suitable Allen key (not supplied), taking care that “TOP” is at the top side of the screen
housing.
Fig. 4
Drawing of the bracket for xing
the screen winch system to the
ceiling
Fig. 5

5
Video Tutorial for xing the safety system available on ScreenInt You Tube
channel:
https://www.youtube.com/channel/UC-_2ddxaJHoCZKHBYvv6odQ
WARNING:
AFTER UNPACKING THE SCREEN WINCH TAKE CARE THAT AFTER RELEASING
THE PACKAGING FOAM FROM THE TRACTION STEEL CABLES, YOU HAVE TO
MOUNT THE PROJECTION SCREEN UNDER THE STEEL CABLES. THIS IN ORDER
TO PREVENT THAT THE STEEL CABLES RAVEL UP INSIDE THE WINCH HOUSING.
BEFORE PROCEEDING WITH ELECTRIC CONNECTION, PLEASE CHECK THAT,
INSIDE THE HOUSING OF THE SCREEN WINCH SYSTEM, BOTH TRACTION STEEL
CABLES ARE WELL POSITIONED IN THE SPLINES OF THE ROLLER TUBE.
4. ELECTRIC CONNECTION
- The motor has the possibility to be controlled via the supplied handheld RF remote
control or via wired low voltage contact closures.
-The motor has a six-core power cable. NEVER CONNECT THE MAINS TO THE WIRES
WHITE, WHITE-BLACK, WHITE-ORANGE.
- Once the winch is mounted to the ceiling, connect the wires brown, blue and
yellow/green to the mains, following the scheme shown in Fig. 4A;
The winch is supplied with a safety mechanism (Fig. 4B) with a double security system:
rst - this is a mechanic safety system that prevents the steel cable to unroll when the speed
has reached 50 rpm; second – this is an electrical security system that disconnect the
electrical connection of the motor if the force driven on the steel cable, caused by the falling
down, is more than 503 Nm.
5. Take now the beam and position it under the screen winch, taking care that the front
(indicated) of the beam is in the correspondence of the front of screen housing.
Take the steel cables coming out of the screen winch and go through the eyebolt and x
them to the L-form bracket, at the beam as shown in Fig.6.
Fig. 4A
Fig. 4B

6
6. At the bottom side of the beam you have to mount the remaining 3 brackets (see Fig. 5).
Take care that the left bracket has to be mounted at 20 cm. from the left end side of the
beam and the right racket has to be mounted at 20 cm. from the right hand side of the beam.
Now x the screen housing at these brackets taking care that the power cable of the screen
is at the right side of the housing.
Fig. 5
7. With the winch completely rolled up, you have to adjust the screws xed on the L-form
brackets, which are xed on the beam (see g. 6) so that the beam is perfectly horizontal
and check also that the steel cables from the winch to the beam are perfectly in vertical
position. In case the steel cables are not perfectly vertical, please move the metal ring on
the beam, left or right in order to position the steel cable vertically. In case you have moved
the eyebolt, check carefully that you x it again sturdy to the beam.
8. To connect the mains 220V to the screen, you have to use the cable coiler that is included
in the packaging. Mount the cable coiler to the ceiling behind the screen winch housing at
the right side (see Fig. 6B), using suitable screw anchors (xings are not supplied).
Fig. 6B – CABLE COILER
9. Now x at the rear side of the beam the L form bracket as indicated in Fig. 7 and t the
output power cable of the screen winch through the bracket and x it with two wire clamps
as shown in Fig.7 in order that it remains xed when the beam moves up and down.
Fig. 5
Fig. 6

7
At this step, you have to connect to the incoming power cable of the cable coiler xed at the
ceiling a plug and connect it to the mains up in the ceiling.
Fig. 7
10. Now x the power connector box to the beam the as shown in Fig. 8 and connect
the end of output power cable of the cable coiler to the power cable that comes out of the
screen housing.
11. At this step, you have to connect the incoming power cable of the cable coiler to the
mains 220V (see page 3).
WARNING: Once you have installed the product, when you switch on the
Screen Winch System you will hear a rhythmical ticking which means that the
safety device is working properly.
L FORM BRACKET
WIRE CLAMP
Fig. 8

8
END STOP ADJUSTMENT OF THE SCREEN WINCH
WARNING: THE END STOP ADJUSTMENT HAS TO BE DONE CAREFULLY,
OTHERWISE THE SCREEN WINCH CAN BE DAMAGED PERMANENTLY.
THE UPPER END STOP IS FACTORY PRESET AT THE HIGHEST POSSIBLE HEIGHT
–DO NOT ATTEMPT TO RAISE IT MORE.
THE BOTTOM END STOP IS FACTORY PRESET AT A FEW CENTIMETRES OF DROP.
ON THE STEEL CABLE MOTOR HAND SIDE OF THE SCREEN WINCH SYSTEM,
THERE IS, AT 680 CM. DROP, A WHITE TAPE WHICH INDICATES THAT THE WINCH
HAS NEARLY REACHED THE MAXIMUM EXTENT, THEREFORE STOP IMMEDIATELY
THE WINCH.
In case the bottom end stop is set lower than 7 mt., there is a DANGER OF FALLING
DOWN OF THE PROJECTION SCREEN HOUSING AND PERMANENT DAMAGE OF
THE SCREEN WINCH SYSTEM.
In case, after installation, the end stops of the Screen Winch System need to be changed,
please, proceed as follows:
A - SETTING OF THE LOWER END STOP (OPEN SCREEN WINCH SYSTEM)
-Lower down the winch till half stroke, pressing the remote control button ▼and stop it
with button .
- Press the button (for 5 secs) till the motor swivels 2 times.
- Press again the button (for 5 sec) till the motor swivels 4 times.
- Press the button ▼(for 5 sec) till the motor swivels 2 times.
- Press the buttons ▼or ▲in order to the reach the desired position of the winch.
Warning: during this programming operation you have to keep the buttons ▼or ▲
pressed in order to reach the desired position.
- Once this position is reached, in order to memorize it press the button (for 5 sec) till
the motor swivels 3 times.
In case of mistake, repeat the procedure.
B- SETTING OF THE UPPER END STOP
WARNING: in case the installer needs to modify this end-stop, it is ONLY allowed to
lower the upper end-stop position. Do not try to raise the upper end-stop because

9
this will cause severe damages to the product and this operation will invalidate
the warranty.
-Lower down the winch till half stroke, pressing the remote control button ▼and stop it
with button .
- Press the button (for 5 secs) till the motor swivels 2 times.
- Press again the button (for 5 sec) till the motor swivels 4 times.
- Press the button ▲(for 5 sec) till the motor swivels 2 times.
- Press the buttons ▼or ▲in order to the reach the desired position of the winch.
Warning: during this programming operation you have to keep the buttons ▼or ▲
pressed in order to reach the desired position.
- Once this position is reached, in order to memorize it press the button (for 5 sec) till
the motor swivels 3 times.
In case of mistake, repeat the procedure.
C- USE OF THE REMOTE CONTROL
-Press the button ▼in order to reach the lower-end stop.
-Press the button ▲in order to reach the upper-end stop.
D – CONNECTION OF LOW VOLTAGE CONTACTS TO REACH THE DIFFERENT
END-STOPS
-Close the connection, for at least 1 second, between the white-black and white-
orange wires in order to reach the LOWER end stop.
-Close the connection, for at least 1 second, between the white-black and white wires
in order to reach the UPPER end stop.
DO NOT TRY TO HIGH UPPER END-STOP, OTHERWISE THE SCREEN WINCH
SYSTEM CAN BE DAMAGED PERMANENTLY AND THE WARRANTY WILL BE
VOIDED.
WARNING: do not change the end stops of the projection screen, otherwise you will
invalidate the warranty on the screen.
Fig. 7A

10
SCREEN WINCH SYSTEM -CHECKREGISTER
In addition to manufacturer inspection guidelines, we recommendyou check your countries own legal obligations
for checking and testing of lifting equipment.
SCREENWINCH SYSTEM PURCHASEDATE:
HALF-YEARLY CHECK
DATE
YEARLY CHECK
DATE
CHECKRESULT
(POSITIVE -NEGATIVE) NOTES
HALF-YEARLYCHECK Checkif rolling upand rolling downisworking properly, without frictions or decelerations.
Checkthat if youcan hear the ticking noiseof the safety brake ispresent.
Checkwith the enduserthat projector lift andprojection screen(if this isthe configuration)
operate in differenttimes(not at the sametime) .
YEARLYCHECK Checksteel cables covered by blackPVC– nosteel wires have to be visible outside the black PVCscabbard.
Checkof the ceiling fixingbrackets of the screen winch system
Checkthat the end stopsare set properly, sothat in the rolled down position(screen winch systemcompletely open)
it remainsat least 3turnsofsteel wire onto the roller tube.
Checkthat boltsonthe bottom endsof the steel cables are tightly fixed.
Checkif rolling upand rolling downis workingproperly, without frictions or decelerations.
Checkthat if youcan hear the ticking noiseof the safety brake ispresent.
Checkwith the enduserthat projector lift andprojection screen(if this isthe configuration)
operate in differenttimes(not at the sametime) .
Other manuals for SCREEN WINCH SYSTEM
1
Table of contents
Popular Lifting System manuals by other brands

Wilo

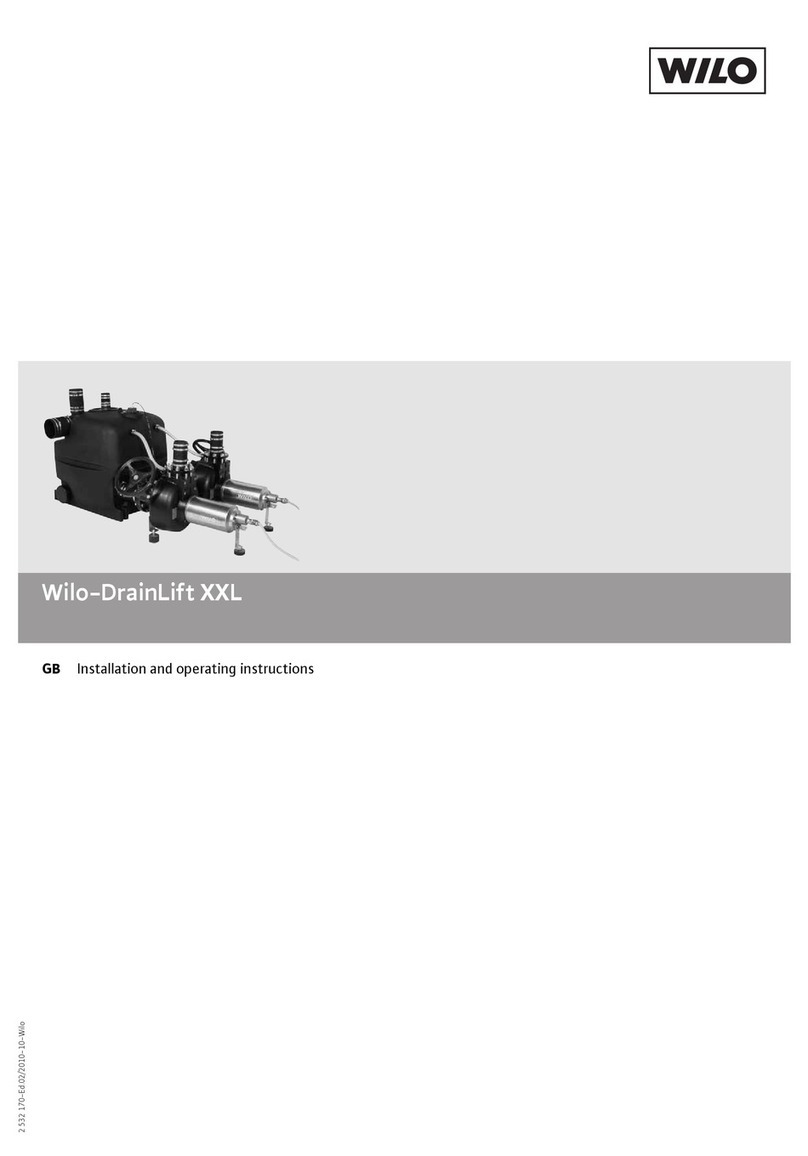

Wilo DrainLift XXL Series Installation and operating instructions

Greencut
Greencut ELA100 instruction manual

Dannmar Equipment
Dannmar Equipment Max Jax Installation and operation

Zico

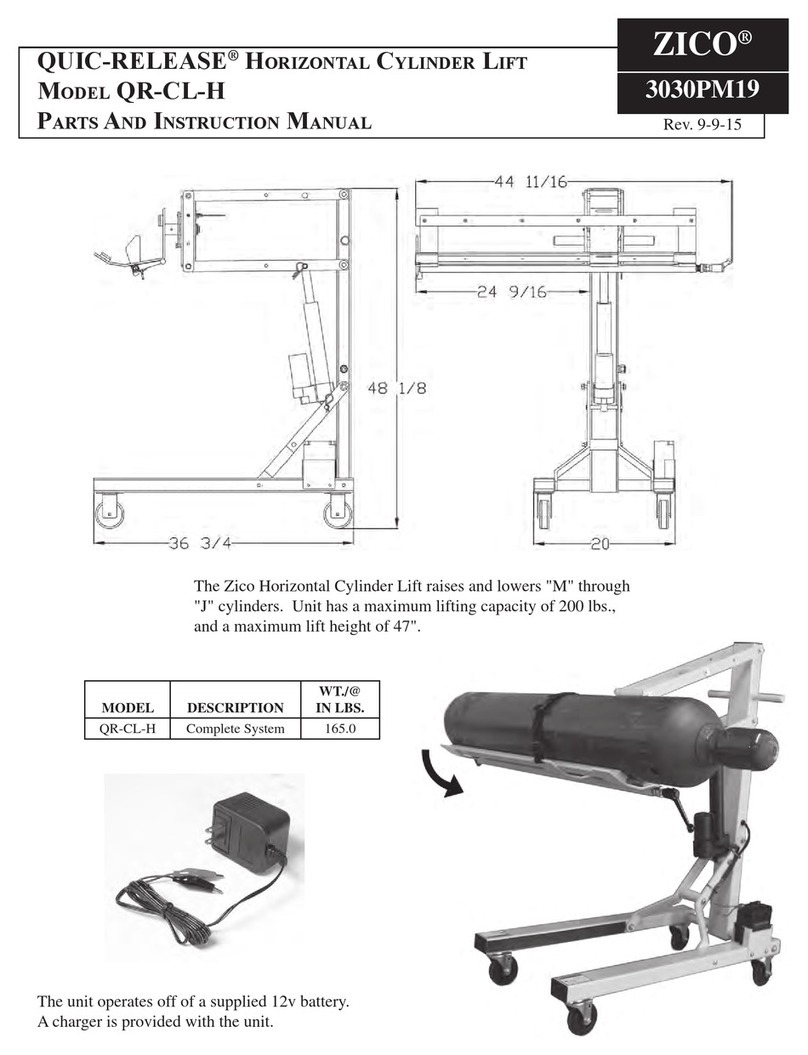

Zico QUIC-RELEASE QR-CL-H Parts and instruction manual

Dhollandia
Dhollandia DH-VZS Quick guide for use

CHIEF

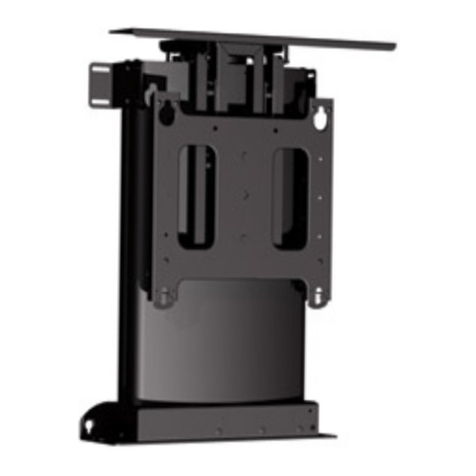

CHIEF CM2L40U installation instructions
