INSTRUCTION MANUAL
Aura
LED SMART MIRROR
Please Note:This specification applies to IR sensor LED smart mirrors
Mosca

Aura
LED SMART MIRROR Mosca

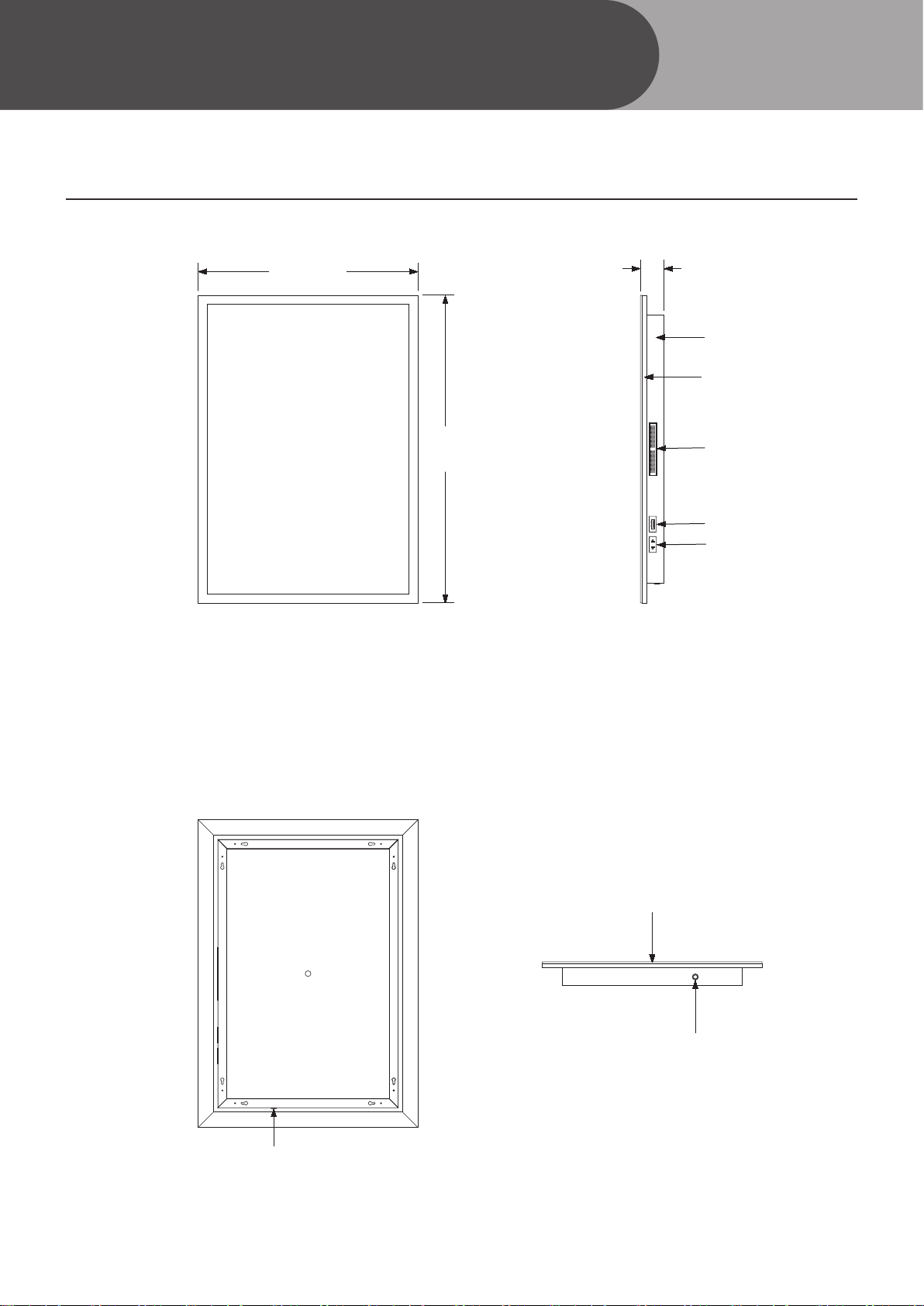

Mirror 500x700mm
Back cover
Front view
Back view
Side view
Bottom view
IR sensor
4mm copper free mirror
IR sensor
500 mm
700 mm
54 mm
USB
Shaver socket
Frame
Acrylic
Bluetooth speaker

Aura
LED SMART MIRROR Mosca
Technical Details
Heated De-mister Pad
This mirror comes with a demister pad,which heats the surface of the mirror
above room temperature removing the mist on surface .
IR Sensor On/Off Switch
The IR sensor switch can be used to Turn Led Lights and Demister On/Off.
Bluetooth
This mirror comes with an inbuilt bluetooth. You can scan and connect bluetooth
on mirror with your phone to play music .
Shaver Socket/USB
You can plug in shaver/electric toothbrush to the shaver socket on side of mirror.
Portrait/Horizontal Mounting
You can hang this mirror in Portrait/Horizontal position using the holes provided
on the back of mirror.
Electrical Safety Information
We recommend that all electrical bathroom products should only be fitted by a
qualified -Part P registered electrician in accordance with the current IEE
Regulations.
Please ensure the Mains supply is switched off before attempting installation.
Before drilling ensure there are no hidden cables or pipes in the wall.
Installation Information
We recommend that you receive the product before commencing with
installation as all sizes and measurements are approximate.
We try to ensure all measurements are as accurate as possible.
In the interest of continued product development, we reserve the right to alter
specifications as necessary.E & OE.

Aura
LED SMART MIRROR Mosca
Safety & Installation Notes
Installation
1. Position the Mirror in a suitable location according
to the Zonal diagram above ensuring that the
domestic electrical mains supply is within reach of
the electrical entry point of the product. Ensure a
distance of >600mm from any reflective surface
parallel to sensor switch.
2. Carefully mark the position of the mirror using a soft
pencil ensuring its level. Remove the mirror and
mark the mounting points, Please ensure that all the
mounting points accurately match up with the fixing
points on the mirror .
3. Using a suitable drill bit, drill holes in the marked
positions to suitable depth.If drilling through tile, use
a ceramic drill bit.
4. Insert wall plugs level with the surface of the wall, If
fitting to a tiled surface. wall plugs should be
inserted below the tiled surface to avoid cracking.
For plasterboard walls, special fixings should be
purchased, available from any DIY or hardware store.
5. Ensure the domestic electrical mains supply to which
the mirrors being connected is turned off. Connect
the domestic mains supply to terminal box
according to the wiring diagram.
6. Hang the mirror in portrait/landscape position.
7. Switch on the domestic electrical mains supply for
the mirror.
Operating Instructions
To turn on the light,wave your hands
below the area marked for IR sensor.
The Heated Pad is Only ON when the
mirror is illuminated.
Care Instructions
Do not use
abrasives or
solvents when
cleaning this
product.Wipe off
all water spillages
as soon as possible
using a soft, damp
cloth.
Aftercare Service
In the unlikely
event that this
product should fail
,please contact our
customer service
Thankyou for purchasing this Product
Please read these instructions thoroughly and
refer back to them during installation to
ensure product safety.
Retain this leaflet for future reference
Before installation ,ensure the domestic
electrical mains supply is switched off.Before
drilling ,ensure there are no hidden cables or
pipes in the wall.

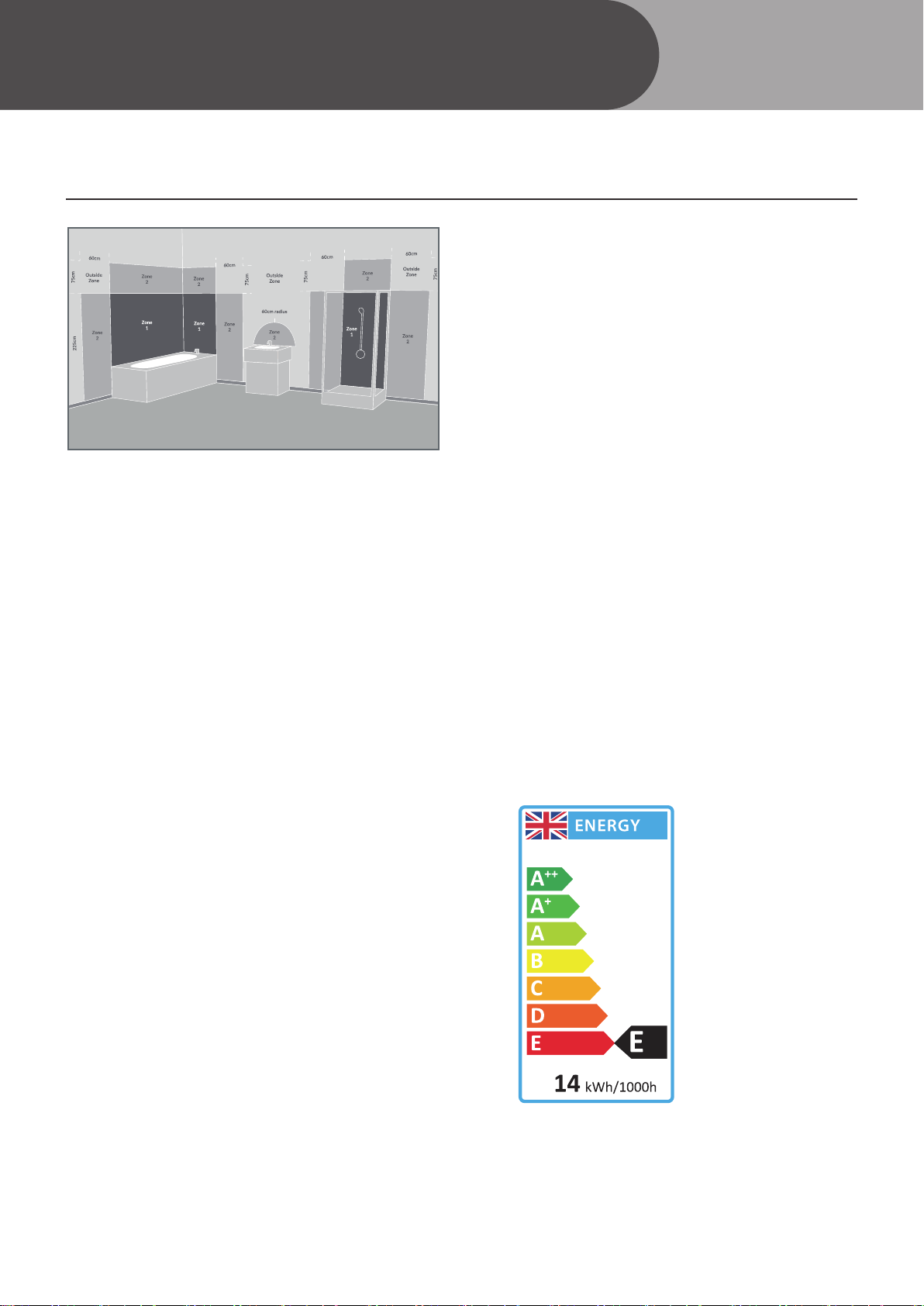

These products are suitable for installation in zones: 2 & Outside Zone
All installations must comply with guidelines which are based on azonal concept.The diagram
above illustrates this concept and must be followed to ensure the safe installation of Electrical
appliances in the bathroom .These regulations apply to domestic installations only. Installations
must be made in accordance with the current IEE wiring regulations and relevant building
regulations.We recommend that all electrical bathroom products shouldonly be fitted by a
suitably qualified, Part P registered electrician.

Aura
LED SMART MIRROR Mosca
Installation Instructions
General Information
This product conforms to U.K. safety standards and must be installed in accordance with the current
IEE Wiring and Building regulations(Part P).
This product must be earthed and should not be connected to an unearthed circuit.If there are only
two wires coming from your power supply it means that this fitting can be wired to an unearthed
circuit.
Ensure that connections are turned off at the consumer unit or fuse board before installing or
carrying out any maintenance.
This product is for indoor use only.
This product is IP44 rated and can be installed in bathroom zone 2(Defined by the IEE wiring
regulations) and beyond.
This product contains a light source of energy efficiency class ‘E’
Important
When working at heights, please use a suitable platform to work from.
Please Note:
For the new installations, check for any electrical cables or pipe work(gas/water) in the vicinity of the
intended mounting point before proceeding with the installation.
Ensure that the fixing location is able to take the weight of the complete fitting.
Wear suitable eye protection when drilling.
Be careful when using power tools near water.
Do not strike the mirror glass with hard or pointed items.It is recommended that the product is
cleaned with a soft and non abrasive cleaning cloth.
Donot use abrasive materials on any type of finished surface .
Do not allow moisture to come in contact with the working electrical components.
Compliance
This product complies to CE & UKCA standards.

Aura
LED SMART MIRROR Mosca
Installation Procedure
Installation Tools
Flexible rule Spirit level Drill Hammer
Notes: To ensure the normal use of products, it is required you set out wires as per the regulations
of IEE at the installation places. The Products are only applicable to being installed on the indoor
solid wall.The installation must be carried out by a professional electrician and wrong installation
may lead to product damage and personal injury.
Pencil
Fig. 1 Fig. 2 Fig. 3
Make certain the wall is solid, and use the flexible rule to measure the distance between two hardy
holes on the mirror frame ("a” in Fig. 1).
Use the flexible rule to measure the distance a on the wall and mark them out with a pencil.
Choose a drill with an appropriate drill bit to make two holes at the marked places, and use a
special ceramic drill if the wall surface is made of ceramic tiles.
Use the hammer to strike an expansion rubber plug into the holes on the wall, and then screw the
hook into the hole (Fig. 2).
Switch off the power, and then use a terminal block to connect the three-core exposed wires with
those reserved on the wall (see details in Fig. 4).
Hang the product on a wall hook (Fig. 3).
Finally switch on the power, and then wave hands below sensor to test the product.
1.
2.
3.
4.
5.
6.
7.
*2 *2
a
a
Hanging hole

Aura
LED SMART MIRROR Mosca

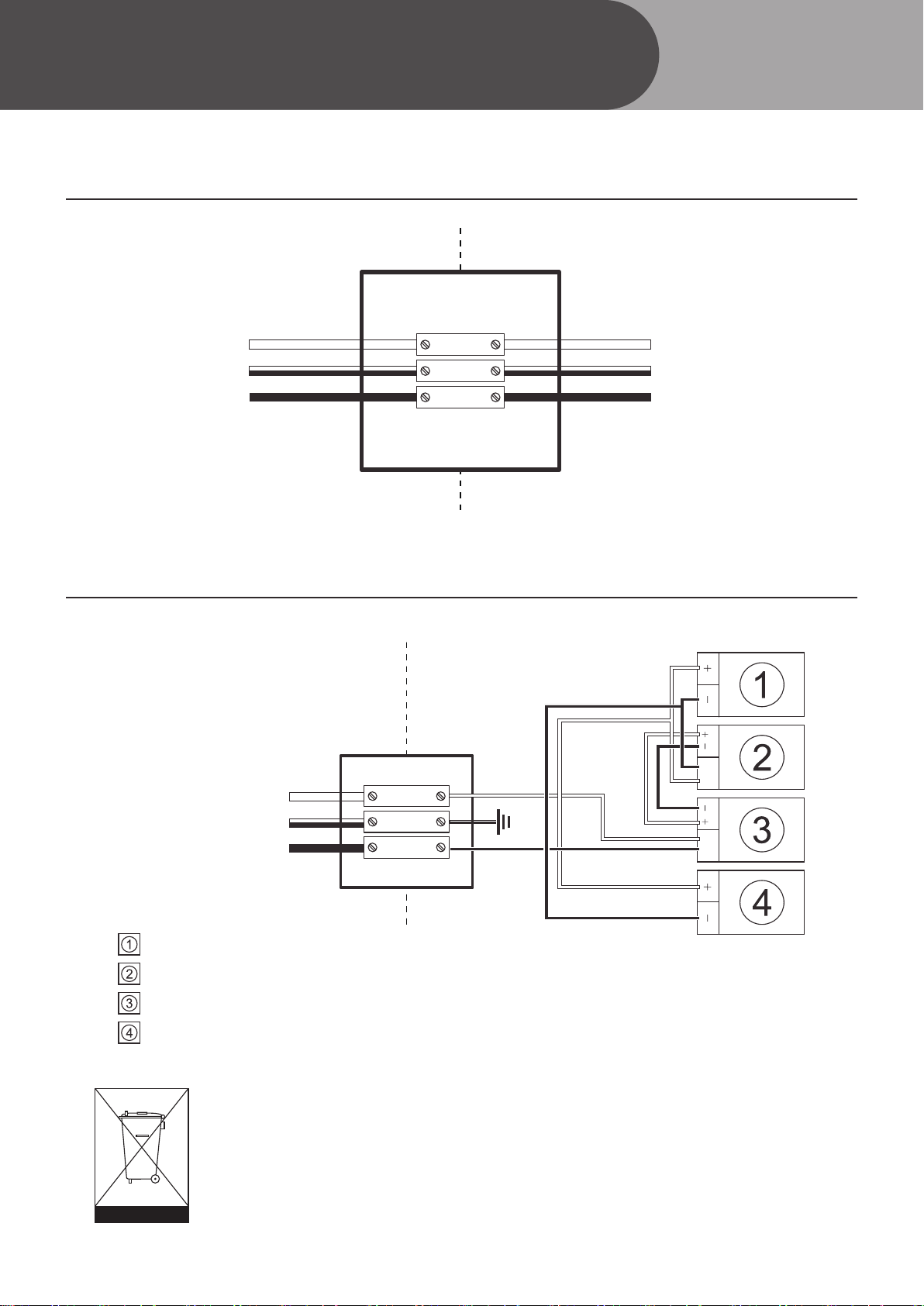

Wiring Diagram for Input
Brown
Yellow green
Blue
Brown
Yellow green
Blue
LUMINAIRE
live
earth
neutral
MAINS SUPPLY
Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing
this mark (left) must not be disposed off with other household or commercial waste. We do not levy any
WEEE disposal charges to its customers for affected WEEE related products. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, please separate any such product
from other waste types and recycle it responsibly at your local facilities. Check with your Local Authority,
Recycling Center or retailer for recycling advice.
Schematic Diagram
Fig. 4
LED strip
IR sensor
Supply power
Defogger pad
LUMINAIREMAINS SUPPLY
inputinput outputoutput
Live
Earth
Neutral

5.20kg
6.70kg
LED
5K HOURS
32.16w
1450
5000
YES
A
PORTRAIT
YES
YES
NO
COOL WHITE
Aura
LED SMART MIRROR Mosca
Electrical Safety Information
LED Mirror FAQ's
We recommend that all electrical bathroom products should only be fitted by a
suitably qualified, Part P registered electrician in accordance with the current IEE
regulations. Ensure mains power supply is turned off before starting
installations.Before drilling ensure their are no hidden pipes or cables in the wall.
We recommend you receive the product before commencing installation as all
the measurements and sizes are approximate.We try to ensure that all
measurements are as accurate as possible.In the interest of continuous product
development,we reserve the right to alter specification as necessary.E & OE.
Mirror Weight (kg)
Mirror+Box Weight (kg)
Light Source
Light source average span
Total Rated Wattage (W)
Lumens(Lm)
Kelvins(K)
Is the mirror Dimmable?
Energy Rating
What orientation can the mirror be hung in ?
Is the heated pad on when the mirror is illuminated ?
Does the mirror require an earth connection?
Can i bypass the sensor so the mirror comes on with the main room light?
Is it white or warm Illumination ?
7.00kg
8.50kg
LED
50K HOURS
26W
1450
6000k
NO
E
PORTRAIT/LANDSCAPE
YES
YES
NO
WHITE
