SE Audiotechnik M-A5 User manual

M-A5
ALL-IN-ONE ARRAY SYSTEM
Designed in Germany 2014/ 7
www.se-audiotechnik.com
Hot line: 400 109 1122
Web: www.se-audiotechnik.com
E-mail: [email protected]
Asia & Pacific Sales Center
USER´S MANUAL

M-A5
ALL-IN-ONE ARRAY SYSTEM
Thank you for choosing !
We have designedthis product to operate reliably over many years. Therefore guarantees for high
quality products with its name and many years of experience as a producer.
Please, take a few moments to read these instructions carefully, as we want you to enjoy your new
products quickly and to the fullest.
For information about check out our website www.se-audiotechnik.com .
0302

4
PREVENTIVE MEASURES:
1. Please read the attached safety instructions as well as the following instructions carefully.
2. Please keep all the instructions.
3. Please use the device only as intended.
4. Please respect the valid waste management rules. Please deliver the packaging divided into plastic and
paper/ cardboard to the recycling management.
5. Please refer all servicing to qualified personel only if the device is damaged, exposed to liquid/rain or if it does
not operate normally.
6. Please, do not expose to any kind of heat such as ovens, radiators, or any other devices (incl. amplifiers).
Please check for enough distance between amplifiers and walls, racks, etc. to prevent overheating.
7. After connection please check the wiring to prevent any kind of accident or damage.
Please never use any kind of damaged cable and wiring.
8. Only use authorized and stable stands, brackets, shelfs, tables etc.. for installations. Please check for
adequate stability against collapse.
9. Appearance of interferences when using wireless systems.
The simultaneoususe of wireless microphones and of mobile phones (if both devices are not very distant from
each other) can lead to the appearance of interferences in the microphone signal which can be heard in the
PA system.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous voltage”within the product´senclosure that may be
of sufficient magnitude to constitute a risk to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
CAUTION! HIGH VOLUME!
You will operate this transmission system for professional use. Therefore the commercial use of this equipment
is liable to the rules and regulations of the Accident Prevention & Insurance Association of your industry sector.
as a manufacturer is bound to inform you formally about the existence of eventual sanitary risks.
This system is able to induce an acoustic pressure of 80 db. 85 db is by law the maximum audio pressure
level which your ear can be exposed to during a work day. It was set according to the technical expertise of the
occupational medicine as a basis for the noise rating level. Higher sound levels or longer exposition times could
damage your ear. The time of exposition by higher sound pressure levels should be shortened in order to prevent
from ear damages. Here are a few reliable warning signals which show that you have exposed yourself for a too
long period to excessive sound pressure levels:
- You hear bell- or whistling sounds!
- You have the impression that you can’t hear high tones anymore!
CAUTION
RISK OF E L EC T RI C SH O CK
DO N O T OP E N
FEATURES & GETTING STARTED:
INTRODUCTION
The M-A5 (Multiple Array User Intuitive) is the perfect solution for musicians and DJs as well as presentations
and events with sophisticated music playback.
Because no cables and stands are required, this “plug-and-play” system can be set up and taken down again
very easily and quickly. Frequency-response-based 4.1 five-way amping results in a clear, dynamic and balanced
sound throughout the frequency range of this system. The array configuration ensures greater coverage with very
well-balanced sound distribution even in the farthest corners of the venue.
The M-A5, which combines PA and monitoring system in one, guarantees the same sound experience for both
audience and musician. No disturbing speaker cables, no speaker stands, no transport issues, simply plug in the
mixer and you're ready to go.
0504

CONTROL ELEMENTS:
6
SETUP , AND STARTUP :
TRANSPORT AND SETUP
The M-A5 active system is very compact and easy to transport . The subwoofer must be placed on the
rubber feet before use .Please NEVER use the system while it is on a transport trolley! There is a danger of
uncontrolled movement of the entire system . This can lead to accidents and dam age.
The amplifier cooling
elements are in the back of the subwoofe r.
When the amplifier is in use
,please maintain a minimum distance of
50 cm between these cooling elements and other objects ,walls,etc.,
to permit sufficient he
at exchange.
Please make certain that the system and all connected source devices ,mixers,CD players,etc.are properly
connected to one another and to the p ower mains .Use only undama
ged cables with a sufficient cross-section
and only completely unrolled cable reels .Route the cables so as to avoid tripping hazards (gaffa t ape). The unit
should never be positioned directly at an edge.Please also do not position the subwoofer on a table .It is ad-
visable to al
ways turn the system on last and off first in order to
avoid loud popping sounds when the connected
devices are turned on and off.
CONNECTION AND OPER A TION
It is possible to set both the overall system volume as well as the volume of the
subwoofer in rel ation to the overall volume . The ultimate volume level is then adjusted via the source device . The
connections permit both an unbalanced and an unbalanced connection (XLR / jack 6.3 mm) to a source device.
The position of the connectors and control elements of the M-A5 are shown on the following page.
SETUP
The M-A5 all-in-one array system consists of the foll owing three components:
1. Subwoofer with integrated electronics for all 3 parts of the
system.
2. The lower vertical array column with 8 x 3’’ speakers and 2
multipin connectors ,one each on the top and bottom.
3. The upper vertical array column with 8 x 3’’ speakers , the
tweeter and a multipin connector on the bottom.
Once the subwoofer is positioned in the room th a
t is to be filled
with sound ,the lower vertical array column is plugged onto the
subwoofer. Four sturdy steel pins help ensure that the multipin
connectors of both speakers m ate perfectl y.Now the upper
vertical array column is simply plugged onto the l ower column
according to the same principle .
0706
CONNECTION
1
4
3
2
5
6
7
8

Connections, controls, and
CONTROL ELEMENTS:
1
MIC INPUT
Balanced microphone input (XLR/ 6.3 mm jack combo) It is also possible to use an unbalanced microphone
cable (mono jack). The microphone input has a built-in 100Hz subsonic filter to suppress low-frequency noise.
NOTE: There is no phantom power on the microphone input.
2
HI-ZINPUT
Input for acoustic or electric guitar. When using this input, Switch 4 must be set to the right-hand position
(HI-Z). This switches the channel to mono.
3
MP3 INPUT
3.5 mm jack input for MP3 players. When using this input, Switch 4 must be set to the left-hand position
(MP3). This switches the channel to stereo.
4
LINE INPUT(LEFT/RIGHT) UNBALANCED
Unbalanced line input (RCA) for connecting an external audio source (e.g., laptop).
5
LINE INPUT(LEFT/RIGHT) BALANCED
Balanced line input (XLR / 6.3 mm jack combo) for connection of an external audio source (e.g., mixer,
keyboard).
6
MIX OUTPUT(LEFT/RIGHT) BALANCED
This balanced stereo XLR output is independent of the main level and provides the mix signal from the
microphone, HI-Z / MP3, and line input signals.
7
POWER SOCKET
IEC power socket with built-in fuse holder.
IMPORTANT INFORMATION: Replace the fuse only with a fuse of the same type and rating. If the fuse blows
repeatedly, please contact an authorised service centre.
8
POWER
Illuminated on / off switch. Before switching the system on or off, always adjust the volume to zero (Main
Level all the way to the left).
0908

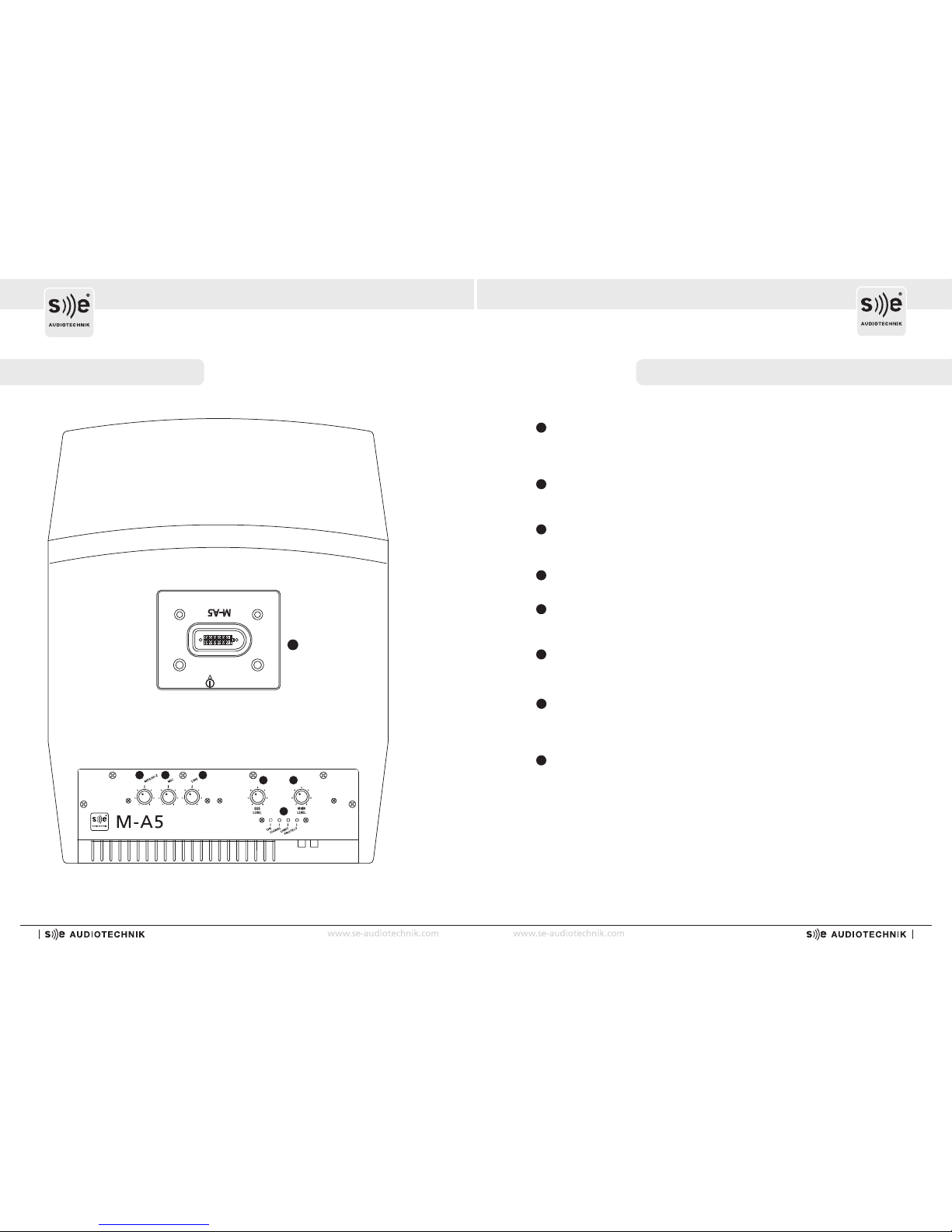

indicators:
9
11 12 13
14 15
16
10 11 12
13 14
15

1110
9
MULTIPIN PLUG-IN CONNECTOR
This is where the lower part of the array column
is plugged on.
10
MP3/ HI-Z
Volume control for the MP3 / HI-Z channel.
11
MIC
Microphone input volume control.
12
LINE
Line in volume control
13
SUB LEVEL
Sets the relative volume of subwoofer and column speakers.
14
MAIN LEVEL
Overall volume adjustment. The subwoofer volume is also adjusted in accordance with the preset on the SUB
LEVEL level control.
15
INDICATOR LED S
ON: Lights up once the system is switched on and properly connected to the power mains.
SIGNAL: Lights up as soon as an audio signal is present.
LIMIT: Lights up if the system is operating in the clipping range. Brief flashing is not a cause for concern,
since the internal audio limiter compensates for over-modulation. Permanent illumination should be avoided
by reducing the volume.
PROTECT:Lights up when one of the power amplifier protection circuits is active. To protect the power
amplifiers and the speakers, the speaker outputs are deactivated in protect mode. Once the source of the
trouble has been eliminated (e.g., overloading), after a short time, the power amplifier returns to normal
status, the Protect LED goes out, and the system is operational again.
Connections, controls, and : POSITIONING:
Recommended minimum distance 3m
With a seated audience, it is advisable to maintain a minimum distance of approx. 3 metres between the M-A5
and the first row of seats in order to provide the listeners with an optimal listening experience.
indicators

1312
TROUBLESHOOTING: TROUBLESHOOTING:
PROBLEM DISPLAY SOLUTION
System is not operational
although it is switched on.
Power switch and power LED do not
light up.
Check mains connection.
Disconnect the system from the
mains! Check the primary fuse of the
system and replace it if necessary. If
the fuse trips repeatedly, disconnect
the system from the power mains
and hand it over to an authorised
service centre.
Power switch, ON LED and Protect LED
light up.
System is overloaded. Reduce volume.
Protect LED goes out after a short
time; the system is operational again.
Protect LED remains lit even after
reduction of the volume.
Internal fault. Turn off the system,
disconnect it from the power mains,
and hand it over to an authorised
service centre.
Microphone signal distorted. Reduce the microphone channel
volume and increase the overall
volume (Main Level). Reduce the
volume of any additionally connected
audio source (e.g., keyboard) by the
same amount.
Guitar/MP3 signal distorted. Reduce the guitar/MP3 channel volume
and increase the overall volume (Main
Level). Reduce the volume of any
additionally connected audio source
(e.g., keyboard, microphone) by the
same amount.
Reduce the volume of the audio
source (e.g., guitar, MP3 player) and
increase the channel and/or overall
volume.
Signal from line input
distorted.
Reduce the line channel volume and
increase the overall volume (Main
Level). Reduce the volume of any
additionally connected audio source
(e.g., keyboard, microphone) by the
same amount.
Reduce the volume of the audio
source (e.g., mixer increase the
channel and/or overall volume.
Overall signal distorted. Limit LED is always on. Reduce overall volume (MAIN LEVEL).

SPECIFICATIONS:
Since all our products are constantly controlled and improved, technical changes
are possible without prior notice.
Model name
Type:
Acoustical Specifications
Frequency Range (-6dB) :
Max.SPL (1m) :
Horizontal Dispersion (-6dB) :
Transducer
LF:
MF:
HF:
Amplifier
Type:
Signal Processing:
Power Output (RMS) :
Protection:
Controls:
Indicators:
Input / Output
Line Input:
MIC Input:
MP3 / Hi-Z Input:
Line Output:
Cabinet
Subwoofer:
Column:
Connector:
Dimensions (W × H × D)
Subwoofer:
Column Speaker:
Overall Height:
Weight
Subwoofer:
Column Speaker:
ALL IN ONE ACTIVE ARRAY PA SYSTEM
Custom-made multipin connector
M-A5
40 Hz - 20 kHz
126 dB
120°
2 × 8” 40 OZ Ferrite magnet, 2” voice
16 × 3” Neodymium magnet, 1” voice coil
1 × 1” N42H Neodymium magnet phenolic diaphragm, 1” voice coil
Class D amplifier, SMPS
DSP, 48 kHz, 24 bitsnalog
Subwoofer: 400 W, Vertical Array System: 400 W
On / Off switch, main level, sub level, MP3 / Hi-Z volume, MIC volume, Line volume
On, signal, limit, protect
XLR / 6.3 mm jack (combo) , RCA
XLR / 6.3 mm jack (combo)
3.5 stereo / 6.3 mm jack
XLR
V construction, bassrelfex, 15 mm plywood, Polyurea paint
Sealed, 6063 Aluminum, HD coating
390 × 450 × 510 mm
110 × 790 × 90 mm
2050 mm
25.5 Kg
4.8 Kg＋5.4 Kg
1514
ltiple limiter, short circuit, overheating
coil
OPTIONAL ACCESSORIES:
M-A3SATBAG
Transport bag for M-A5/3 column speakers
M-A3SUBPC
Transport bag for M-A5/3 subwoofer
M-A3CB
Castor board for M-A5/3

or the
is not liable for any
regarding the branded product you have purchased.
In the unlikely event that your product has a recurring failure, , at its discretion, may elect to
component parts or hardware products removed under this Limited Warranty become the property of .
ferable to anyone who obtains ownership of the branded product from the original purchaser. During
the Limited Warranty Period, will repair or replace the defective component parts or the product. All
does not warrant that the operation of this product will be uninterrupted or error-free. is not
provide you with a replacement unit of ´s choice that is at least equivalent to your branded
This Limited Warranty extends only to the original purchaser of this branded product and is not trans-
warrants that the product you have purchased from or from an autho-rized reseller is
independent warranty claims towards .
17
LIMITED WARRANTY
This Limited Warranty applies to the branded products.
The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional
free from defects in materials or workmanship under normal use for a period of 1 year from the date of purchase.
The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required
to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your
proof of the purchase date. Should products of the brands named above be in need of repair within the limited war -
ranty period, you are entitled to warranty services according to the terms and conditions stated in this document.
product in hardware performance.
responsible for damage that occurs as a result of your failure to follow the instructions included with the
branded product.
This Limited Warranty does not apply,
- to wear parts (e.g. accumulator)
- to any product from which the serial number has been removed or that has been damaged or rendered defec
tive as the result of an accident
- in case of, misuse, abuse, or other external causes
- by operation outside the usage parameters stated in the user´s documentation shipped with the
product
- by use of spare parts not manufactured or sold by
- by modification or service by anyone other than
These terms and conditions constitute the complete and exclusive warranty agreement between you and
MANUFACTURER´S DECLARATIONS:
16
’ maximum liability under this limited warranty is expressly limited
of the possibility of a
is not liable for any dam
branded hardware product fails to work as warranted above, your sole and exclusive remedy
LIMITATION OF LIABILITY
If your
shall be repair or replacement .
to the lesser of the price you h ave paid for the product or the cost of repair or replacement of
any hardware
components th at malfunction in conditions of normal use.
ages caused by the product or the failure of the product ,including any lost
profits or savings or special,incidental ,or consequential damages claim made by
a third party or made by you for a third party.
This limit ation of liability applies whether dam ages are sought, or claims are made,under this Limited Warranty
or as a tort claim (including negligence and strict product liability) ,a contract claim, or any other claim. This limi-
tation of liability cannot be waived or amended by a ny person. This limit ation of liability will be effective even if
you have advised of an authorized represent ative of ny such damages.
This limit ation of liability however, will not apply to claims for personal injury.
This Limited Warranty gives you specific legal rights . You may also have other rights th at may vary from st ate to
state or from count ry to country. You are advised to consult applicable st ate or country laws for a full determina -
tion of your rights.
REQUESTING WARRANTY-SERVICE
To request warranty se rvice for the product , contact authorized reseller from which
you purchased the product.
CORRECT DISPOSAL OF
THIS PRODUCT (ELECTRICAL WASTE)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncon-
trolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an enviromentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal
EC DECLARATION OF CONFORMITY
These devices meet the essential requirements and further relevant specifications of Directives 2004/108/EC (EMC)
and 2006/95/EC . For more information, see www.se-audiotechnik.com.
1716

Your -Systems product was developed and manufactured with high quality materials and components wich
WEEE
-DECLARATION
can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed
of separately from normal waste at the end of its operational lifetime.
Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment.
This will help to protect the environment in which we all live.
BATTERIES
AND ACCUMULATORS
The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return
them to your specialist dealer. In order to protect the environment, only dispose exhausted batteries.
1918
all rights reserved.The technical data and the functional prouct characteristics can
be subject to modifications. The photocopying, the translantion, and all other forms of copying of fragments or of
the integrality of this user’s manual is prohibited.
