Sea Eagle Stealth Stalker 10 Quick start guide

Stealth Stalker
Sea Eagle Stealth Stalker 10
Instruction & Owner’s Manual
For video instructions visit SeaEagle.com/Instructions or scan the R code below!
Sea Eagle Boats Inc.
19 N. Columbia Street, Suite 1
Port Jefferson, NY 11777
1-800-748-8066
March 2015

Congratulations on purchasing a Sea Eagle! With over 40 years of experience in designing, selling and using these quality
inflatables, we’re confident that you are going to love your Sea Eagle and we’re ready to proudly stand behind them.
Sea Eagle Warranty
All Sea Eagle products come standard with a 3 year warranty against any manufacturing defect that begins the date that
your product is delivered. Sea Eagle will refuse delivery on all packages without a valid return authorization number and
will not be responsible for the shipping or handling charges. To obtain a return authorization number, please contact
Sea Eagle directly unless you purchased from an authorized dealer/reseller in which case you should contact them for
more information.
Sea Eagle must inspect equipment in order to determine if there is a defect. In the event that an item must be shipped
back to us for inspection, Sea Eagle will only reimburse the standard return shipping charge through FedEx, UPS or the
U.S. Post Office at published shipping rates. Retail shipping outlets like The UPS Store will not be reimbursed and you will
be responsible for handling and packing charges.
The Sea Eagle warranty does not apply to products that are manufactured by Minn Kota or Torqeedo. These products are
covered by their own, respective warranties. Please refer to the manufacturer’s warranty of each product for details.
If you received an item damaged, please call the shipping carrier to report damaged merchandise. Do not return damaged
merchandise until it has been inspected by the carrier. Sea Eagle will be notified by the carrier when they have completed
their inspection and if necessary, Sea Eagle will arrange for the repair or replacement of damaged merchandise.
Decals, Stickers & Registration
Always contact your state boating authorities for information on boating registration and regulations. Most states require
you to register your boat if you are using a motor.
Upon registration it may be required to provide the Manufacturer’s Statement of Origin.
Purchases made through an authorized dealer or reseller may require for you to contact them directly in order to obtain
this. You may be charged your own state sales tax if you were not charged sales tax at the time of purchase.
Registered boats generally require for the registration number to be applied to the boat. We do not recommend the use of
decals or stickers as they tend to crack and peel over time with the repeated inflation and deflation of your Sea Eagle.
Instead we suggest applying these numbers to a small piece of hard plastic or marine plywood and hanging it from your
boat like a license plate if permitted by your state. Another method is to apply the numbers to the hull using either PVC
based paint or permanent marker.
Contact Us
Unlike many other companies today we pride ourselves on answering the phone and helping you with any concerns,
questions or special ordering needs that you may have!
Feel free to give us a call at 1-800-748-8066 and we will be happy to talk with you!
Our business hours are Monday to Friday from 9-5 (EST).
Sea Eagle Boats Inc.
19 N. Columbia Street, Suite 1
Port Jefferson NY 11777
1-800-748-8066
[email protected]
1
SEA EAGLE WARRANTY

Motoring
If your Sea Eagle comes equipped with a motor mount, it can be used with either an electric or gas motor.
Since the boat is light weight, there is less drag so it will motor very well with small outboard motors. The Sea Eagle
Stealth Stalker 10 has been rated by the National Marine Manufacturer’s Association for a motors maximum capacity for
both weight and horsepower. Under no circumstance should you equip the boat with a motor that exceeds these capaci-
ties (whether they be for weight or the horsepower or both). Not only can this result in damaging your Sea Eagle, it will
also void your Sea Eagle warranty.
as motors are measured in units of horsepower and are generally built with power, range and speed in mind.
The Stealth Stalker 10 is good for use with a 3HP gas motor with a maximum weight of 45 lbs. For the best performance
with a motor, we recommend using a 15” short shaft.
Traditional electric motors are measured in units of thrust and are slower and quieter on the water than gas motors. There
is no direct correlation of thrust to horsepower although most consider traditional electric motors to be about a 1HP (which
is more of a guess than an approximation). We recommend using a motor up to a 74 lb. thrust.
Advantages of having an electric motor over a gas include lighter weight and ease of maintenance. In order to operate an
electric motor you will need a 12V deep cycle marine battery, a battery charger and a battery power center to house the
battery itself as you should never directly connect the motor to the battery.
The Torqeedo Travel 1003s electric motor is unlike any other electric motor on the market today. They are powered by a
waterproof lithium ion battery (battery charger included), the Travel 1003s delivers the true 3HP performance of a gas
motor! Features include on board computer display, PS and an audible alarm when the battery reaches 30%. Torqeedo
electric motors are lighter to transport than gas motors and do not require a heavy 12V battery like a traditional electric
motor. You can also power your Torqeedo Travel 1003s using the new Sea Eagle Solar Canopy which is comprised of a
PowerFilm Solar Panel.
Minn Kota & Torqeedo products come ith a manufacture arranty and are not covered by the
Sea Eagle arranty. All arranty ork is handled directly by the respective manufacturer and all sales on these
products are final. It is strongly advised that you read all printed materials provided.
Rowing
You may be surprised at how easy it is to row your Sea Eagle. You can row facing forward or backwards. Be sure to check
over your shoulder frequently to avoid any obstacles or obstructions. Be aware of the conditions of the water you are row-
ing in.
Stay alert to any obstacles and dangers that you might encounter (i.e. buoys, docks, moored boats, motor boats, sail
boats, waves, weather, lightning, rain, etc). ive right of way to both motor boats and sail boats.
If you are new to rowing, we suggest that you practice rowing near the shore before venturing out further onto open wa-
ters. Practice makes perfect and ensures that you are comfortable in your boat in almost any weather conditions. Make
your strokes as fluid and smooth as possible.
When pulling your oars through the water you should try to keep the blades fully immersed in the water, but as close to
the surface as possible. This will give you greater rowing leverage. Even if you are motoring, we recommend that you al-
ways have your oars on board in case of an emergency or engine failure.
2
OPERATING YOUR SEA EAGLE

In a manual of this type it is impossible to give adequate space to the topic of water safety. For further information on
boating safety, visit USC Boating.org or enroll in one of the excellent water safety courses provided.
It is your responsibility to be aware of and comply with all relevant safety regulations. For all water recreation or sport you
should have a reasonable swimming ability. Just as swimmers have a cardinal rule about not swimming alone, it is
strongly advised that you should never go boating alone. Printed in each Sea Eagle is a list of boater safety suggestions.
Boating Safety Tips
• Always wear a USC approved PFD (life vest) at all times while on the water.
• Be aware of your local boating rules and regulations and abide by them accordingly.
• Check inflation levels each time before you go out and inflate your boat for a full 24 hours before undertaking long trips.
• DO NOT allow children to use Sea Eagle unsupervised.
• DO NOT consume alcohol while boating or operating a boat while under the influence of alcohol or drugs.
• DO NOT smoke inside of your Sea Eagle
• DO NOT drag your Sea Eagle over rocks or gravel if it can be avoided.
• DO NOT exceed the certified maximum capacities of this boat under any circumstance.
• DO NOT go boating alone.
• DO NOT use compressors, CO2or compressed air for inflation, only use Sea Eagle recommended pumps.
• DO NOT use your Sea Eagle Boat as a personal flotation device as they are designed for leisure/recreation in mind.
• DO NOT sleep inside of your Sea Eagle while on the water.
Safety Equipment
The type of water conditions should determine the type of safety equipment that you have on board. For all types of boat-
ing we strongly recommend that every passenger wear a USC approved PFD (personal flotation device). In most places
having a PFD for each person is a requirement by law, but from our point of view it is also an exercise of good judgment to
have a PFD for all passengers. Other important items to consider for all types of boating…
Drinking Water & Snacks: Kayaking is a physical activity that can work up both a thirst and a sweat and especially on a
hot or warm day it is a good idea to have drinking water readily available to you to prevent dehydration. Bring a good
amount of water for all passengers as you want to avoid drinking the water you’re kayaking in which may be full of con-
taminants.
Extra Clothes/Layers: You never know when the weather can change and it’s a good idea to come prepared with extra
clothing. If you have a dry (waterproof) bag than we recommend storing them inside so they’re not damp in case of emer-
gency.
First Aid-Kit: The contents of the kit may vary depending upon your preferences, but make sure to carry a kit that reflects
the possible dangers for the conditions you are in.
Foot Pump/Repair Kit: Although our boats are both durable and rugged, it may be possible that you need to make a repair
while on the water in which case you’ll need the repair kit and the foot pump to re-inflate the boat. If this is your first repair,
you may also want to bring this instruction manual with you.
Sun/Rain Protection: A hat can protect both your face and head from the rain or sun. You may also want to carry sun-
screen with you as both the sun and the sun’s reflection from the water can do serious damage to your skin. If you are out
for prolonged periods of time you may need to reapply sunscreen as needed.
Whistle: Having a whistle readily available to you in case of emergency is a great way to attract the attention of others if
assistance is needed.
Always tell someone where you intend to go boating and when you plan to return. Keep your cellphone in a waterproof
container that will float if it falls overboard.
3
SAFETY

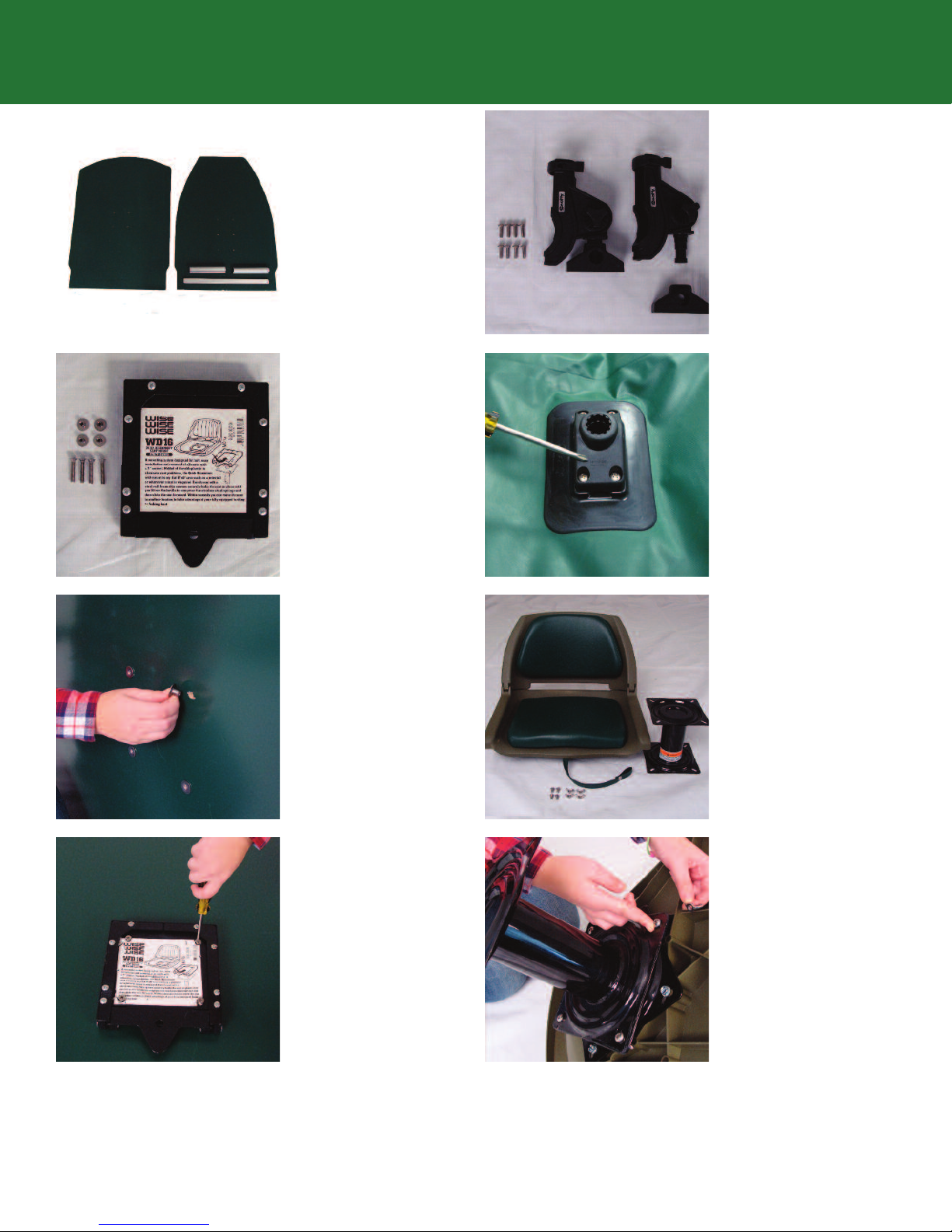

Floorboards
Locate the floorboards
and aluminum struts
Seat Mounts
(OPTIONAL)
First attach the seat
mounts to the floor-
boards. Locate the 1 ½”
flathead bolts and T-
nuts which are packed
with the seat mounts.
You will need a #2
(medium) or #3 (large)
tip phillips head screw-
driver.
Insert the T-nuts into the
mounting holes in the
floorboard. This will be
the underside of the
board.
Place the seat mount
over the top of the floor-
board holes and screw
the flathead bolts into
the T-nuts.
Scotty Rod Holders
Locate the rod holders
and the 7/8” caphead
bolts (usually located in-
side of the orange re-
pair kit canister).
Remove the mounting
base.
Use the bolts to secure
the mounting base to
the pads glued onto the
boat. Orient the base to
the arrow points in-
board. Do not use bolts
longer than the ones
provided as they could
puncutre the boat.
Swivel Seat/Pedestal
(OPTIONAL)
Bolt the seat to the
pedestal using the 1/2”
bolts and wing nuts.
The hardware is usually
packed with the seat
mount.
Offset the swivel base
so you have enough
room to insert the
screws and tread the
nuts. Tighten the nuts
securely.
4
ONE TIME ASSEMBLY
There are some items that require one time assembly. Once installed they may remain in place when the boat is rolled up after use or
require partial assembly for use. Not all items desecribed below are included with all boat packages.

Deluxe Fishing Seat
(OPTIONAL)
The Deluxe Fishing
Seat (DFS) has two in-
ternal bladders, two
valves and two straps.
Tether the valve to the
valve base., Stretch the
ring over the base. The
ring fits in a groove in
the base.
TIP: Soak valve caps in
warm water to make in-
stalling the ring over the
base easier.
Pump Nozzle
This triple nozzle
adapter comes with the
foot pump and is
needed to inflate the
deluxe one-way air
valve on the DFS. Insert
the ribbed end of the
large rounded adapter
piece into the hose.
Unscrew the cap and
screw the valve in tight
to prevent air from leak-
ing during use. Inflate
the seat using the foot
pump with the adapter
above.
Lay out the canopy
parts on the floor.
Arrange the canvas top
side up and fold ends
back as shown here.
Position the curved bars
so the locking holes at
the ends are up. The
sleeve with a window
cut-out is the front.
Push the tube through
the front sleeve until it
shows in the window.
Place the strap loop
over the tube and finish
inserting the tube. Insert
the other tube in its
sleeve.
Flip the front bar over
and insert the side rods
into the curved tube.
The short rod goes into
the front tube. There are
buttons to lock the
tubes together.
Stow Bag
Remove the male clips
from the mounting pads
on the boat. Push the
end of the strap up
through the middle of
the male clip and down
through the slot in front
as shown.
5
ONE TIME ASSEMBLY (continued)

Recessed Air Valves
Remove the cap and
press and turn the valve
stem counterclockwise
so that the stem is in
the UP position. When
the stem is in the up po-
sition the valve will re-
tain air. Turning the
stem clockwise will put
the valve in the down
position for deflation.
Foot Pump
Open the foot pump and
screw the hose into the
OUT port of the pump.
Recessed Adapter
The recessed valve
adapter is located inside
of the orange repair kit
canister.
After locating the re-
cessed valve adapter,
insert the ribbed end
into the hose. We rec-
ommend having the foot
pump with your boat at
all times.

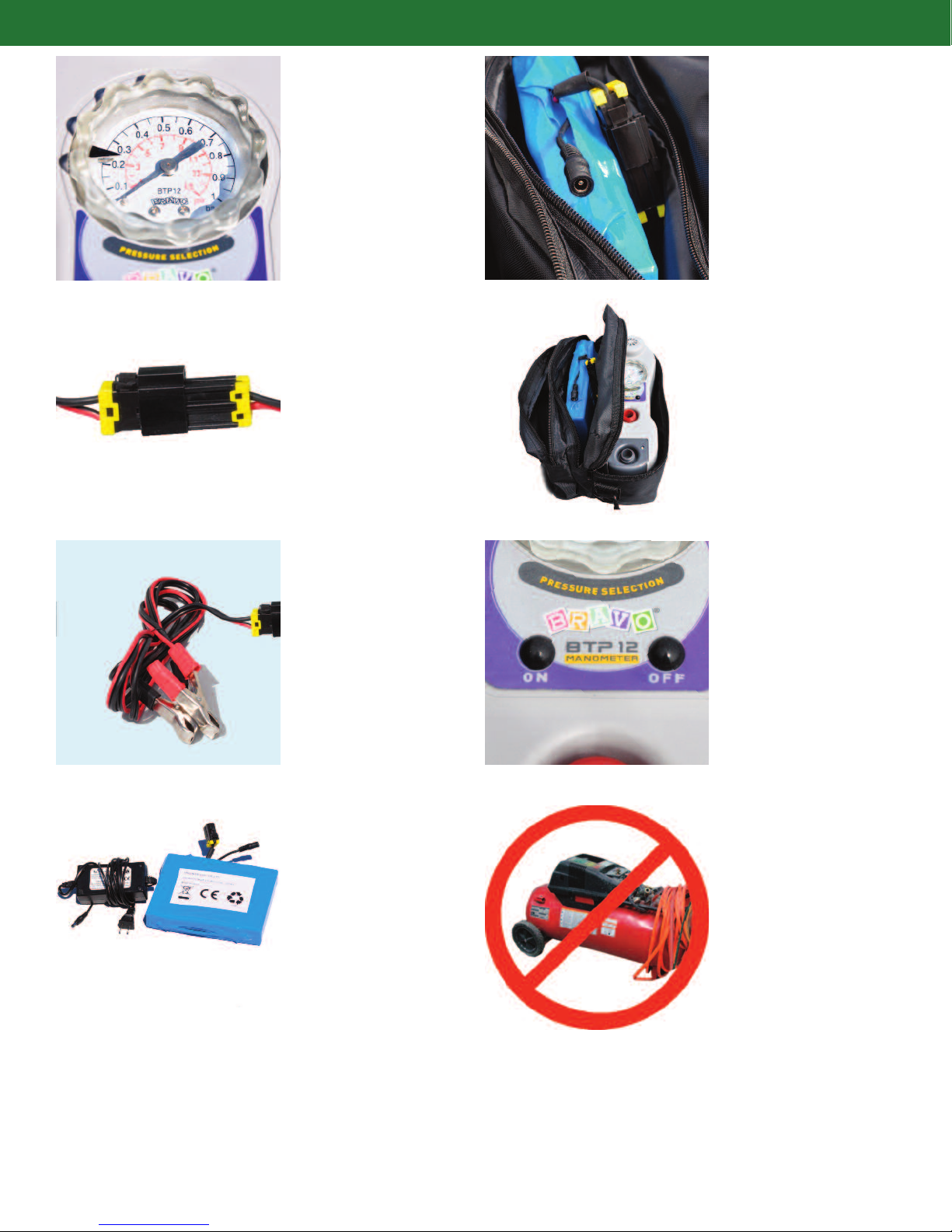

BTP Turbo & BP12
Electric Pumps
(OPTIONAL)
These electric pumps
comes with a nylon
shoulder carry bag, 12V
DC power supply, hose
and adapters.
Included are a cluster of
seven valve adapters,
with raised numbers on
each arm of the cluster.
The adapter marked
number 1 is the only
adapter needed for your
Sea Eagle.
Take adapter number 1
from the cluster and
firmly push it into the
grey tube in the end of
the hose. To ensure that
the adapter is fully
seated on the tube,
push it until the end of
the tube pushes past
the raised ring in the
adapter.
Connect the other end
of the hose to the red
inflation port at the top
of the pump, located
near the ON and OFF
buttons.
6
INFLATION VALVES & PUMPS

Adjust the pressure dial
to read 3.2 PSI which is
the operating pressure
of your Sea Eagle. PSI
is marked in red on the
dial. Never turn the dial
when the device is
under pressure as this
will immediately cause
the instrument to break.
Connect the quick con-
nector at the end of the
power cord into the
quick connector at-
tached to the pump.
To connect the pump to
a 12V battery, use the
cord with alligator clips
at the end of the exten-
sion cord. Connect the
red clip to the positive
pole and the black clip
to the negative pole.
CAUTION: Cross con-
necting wires could
damage the pump and
boat.
If you ordered the
portable battery, con-
nect the battery to the
quick connector onto
the pump.
To charge the portable
battery, plug it into the
charger and then plug
the charger into a
household electrical
outlet. The light on the
battery charger will blink
red until fully charged.
When it is fully charged
the light will be a solid
green.
Keep the pump in its
carry bag to make
transportation easier
and to protect the pump
from sand which could
jam it. The carry bag
has compartments for
the pump, battery hose.
Press the ON button to
begin inflation. The
pump operates in two
stages which can be
identified by the noise of
the turbine at the start,
followed by the piston.
The pump automati-
cally stops once the
pressure is reached.
Air compressors that
are designed for other
uses like tire inflation
(usually around 50 PSI)
can easily harm your
Sea Eagle which works
at a much lower pres-
sure of 3.2 PSI. For this
reason we recommend
only using Sea Eagle
pumps.
7
INFLATION VALVES & PUMPS (continued)

Choose a flat location to
roll out the hull and
check the area for sharp
objects that may dam-
age it. Remove the boat
from its bag and roll it
out when the area is
ready.
Floorboards
Push the floorboards
into position. The boat
may be very stiff when
first opened making the
floorboards difficult to
install. Open the valves
to allow some air to
move inside. Adding
some air to the cham-
bers may help too.
The floorboards should
overlap in the middle.
As a precaution, put the
valve caps in the valve
to prevent them from
being accidentally
pulled off by the floor-
boards.
Place the long strut onto
the edge of one board.
Lift the boards from the
middle and insert the
edge of the other board
into the strut. Press
down until fully seated.
This step is best done
with two people.
Insert the side struts.
If any of the side mate-
rial is under the floor-
boards, it must be
pulled out. Straddle the
boat and hold the board
down with one foot
while pulling up on the
side of the boat.
Motor Mount
(Optional)
Install the motor mount
by inserting the lower
pegs into the mounting
pads.
Then work the upper
pads into their mounts.
You may find it neces-
sary to partially inflate
the boat to make instal-
lation easier. If so, skip
to the next step and
come back to the motor
mount.
Inflation
Close the valves. Twist
the valve stem clock-
wise and allow the stem
to pop up. This will
close the valve for infla-
tion.
8
ASSEMBLY & INFLATION

Insert the valve adapter
into the valve and turn it
to lock the hose in
place. If using the foot
pump, inflate each
chamber until it is very
firm. You cannot over in-
flate with the foot pump.
Your STS-10 holds a lot
of air. We suggest one
of our electric pumps
such as the BTP Mano,
shown here, to speed
the inflation process.
While inflating, check
that the floorboards are
fully seated.
Swivel Seat
(OPTIONAL)
Slide the base of the
pedestal into the seat
mount until you hear it
lock. To remove, lift the
tab and slide out.
Deluxe Fishing Seat
(OPTIONAL)
If you have the inflat-
able seats, they can be
arranged anywhere in
the boat.
Scotty Rod Holders
Push the rodholder into
the mount. The key
must be aligned with the
groove in the base.
The rodholders can be
rotated by lifting slightly,
rotating to desired posi-
tion and pushing down
to lock in place.
Stow Bag
Insert the male clip into
the female part installed
on the boat.
Oars
Assemble the oars and
secure them to the oar-
locks. Unscrew the ball
from the oar pin and in-
sert the oar through the
hole. Replace the ball
and loop the shaft into
the velcro holder. Your
Sea Eagle is ready for
launching.
9
ASSEMBLY & INFLATION (continued)

Remove the valve caps
and open the valves.
Press as much air out of
the chambers as possi-
ble. First, fold the boat
in thirds. Remove seats,
etc.
Fold the boat until it fits
roughly within the out-
line of the bag. The
straps will help com-
press the boat to mini-
mum size.
Run the straps through
both loops. Then fold
the strap and run it
through the top loop. To
undo the strap just pull
the end.Your boat is
now ready for storage.
Although PVC material can become brittle in extremely cold
temperatures, you can still safely store your Sea Eagle in
them so long as you avoid dropping it and do not subject it
to any sudden impacts.
If you’re planning to leave your Sea Eagle outside, be sure
to keep it raised up off of the ground. It’s also a good idea
to keep it covered so that it is not directly exposed to
berries, leaves, rain, sunlight and other elements. A boat
that is left in water will most likely have to be emptied from
time to time. Make sure that your boat is dry before storing
it for more than a few days, to remove any excess moisture
that could cause unsightly mildew. Choose a cool, dry spot
when storing in an enclosed area like basement, closet or
garage. Do not store in an attic or metal shed.
TIP: Mouse proof your storage area. Nesting mice can do a
lot of damage to your Sea Eagle.
Canopy
(OPTIONAL)
Lay the canopy on the
back of the boat with
the front bar on top.
Hook the rear bar straps
to the carry handles.
Attach the poles with
the included hardware.
A phillips head screw-
driver is needed for this
step.
Pull the canopy up by
the front strap and clip it
to D-ring in the bow.
Attach the hardware on
the end of the rod when
removing the canopy so
it is available for next
use.
10
OPTIONAL ACCESSORIESDEFLATION
STORAGE

Life Jacket
(OPTIONAL)
U.S.C. approved! This
type III PFD is great for
all boating needs and
gives you plenty of arm
room in case you feel
like rowing. Comes in
various sizes with three
adjustable buckles and
adjustable nylon straps
for a tight secure fit.
Torqeedo 1003L
(OPTIONAL)
Weighing just 30.8 lbs
with a shaft of 29.3”, the
Torqeedo Travel 1003L
delivers the same
performance of a 3HP
gas motor and develops
4-5 times the power of
traditional electric
motors.
Minn Kota Motors
(OPTIONAL)
Minn Kota Motors are
the most reliable electric
trolling motors on the
market. These motors
run off a 12v deep cycle
marine battery (which is
not included or sold by
Sea Eagle).
Portable Charger
(OPTIONAL)
Protect and preserve
your battery life with this
portable 10 AMP, Minn
Kota battery charger.
Features fully automatic
3-stage charging.
Weighs 17 lbs.
Input: 120V AC
Output: DC 12V
Battery Power Center
(OPTIONAL)
Allows trolling motor
leads and charger leads
to be connected without
opening the box. Built-in
battery meter, two 12-
volt accessory plugs
and three manual reset
circuit breakers. Fits
group 24 and 27 size
batteries.
TIP: Never cross con-
nect the (+) and the (-)
wires of the motor. Take
care that no metal ob-
ject can fall onto the
battery and short the
terminals. This would
immediately lead to a
short and utmost fire
danger.
Troubleshooting
If your boat is losing air it doesn’t necessarily mean that
its leaking. For instance a boat that is inflated late in the
day with 90° air may cool 20° overnight. The cooler air will
exert less pressure on the hull and the boat will appear
softer the next morning. When there has been no variation
in temperature and your boat is losing air then it is time to
start looking for the leak.
The first thing you should do when looking for a leak is to
actually look at the boat. Visually inspect the boat from a
few feet away and if necessary, flip it over and closely
check the outside. Any large leaks when your boat looses a
considerable amount of air should be clearly visible.
Be sure to check the tightness of the one-way recessed
valves as well and if necessary, tighten them with the valve
wrench included in the orange repair kit canister.
If you have a rough idea of where your leak is but can’t see
it, you may want to try listening for it as you may be able to
hear the air escaping and pinpoint the leak.
Other troubleshooting techniques you can try to locate the
leak is to dowse the boat with a mix of dishwashing liquid
and water. The leak may produce bubbles or make
whistling or sputtering noises.
11
OPTIONAL ACCESSORIES (continued)
TROUBLESHOOTING

Although our Sea Eagles are very rugged and tough, you
may still experience the occasional puncture through use of
your boat. Fortunately most repairs are fairly easy and only
take a few minutes.
For an extensive repair please contact us directly for
assistance or a quote to have it sent back and repaired at
our facility. Repair fees start at $75.00 and do not include
return shipping charges.

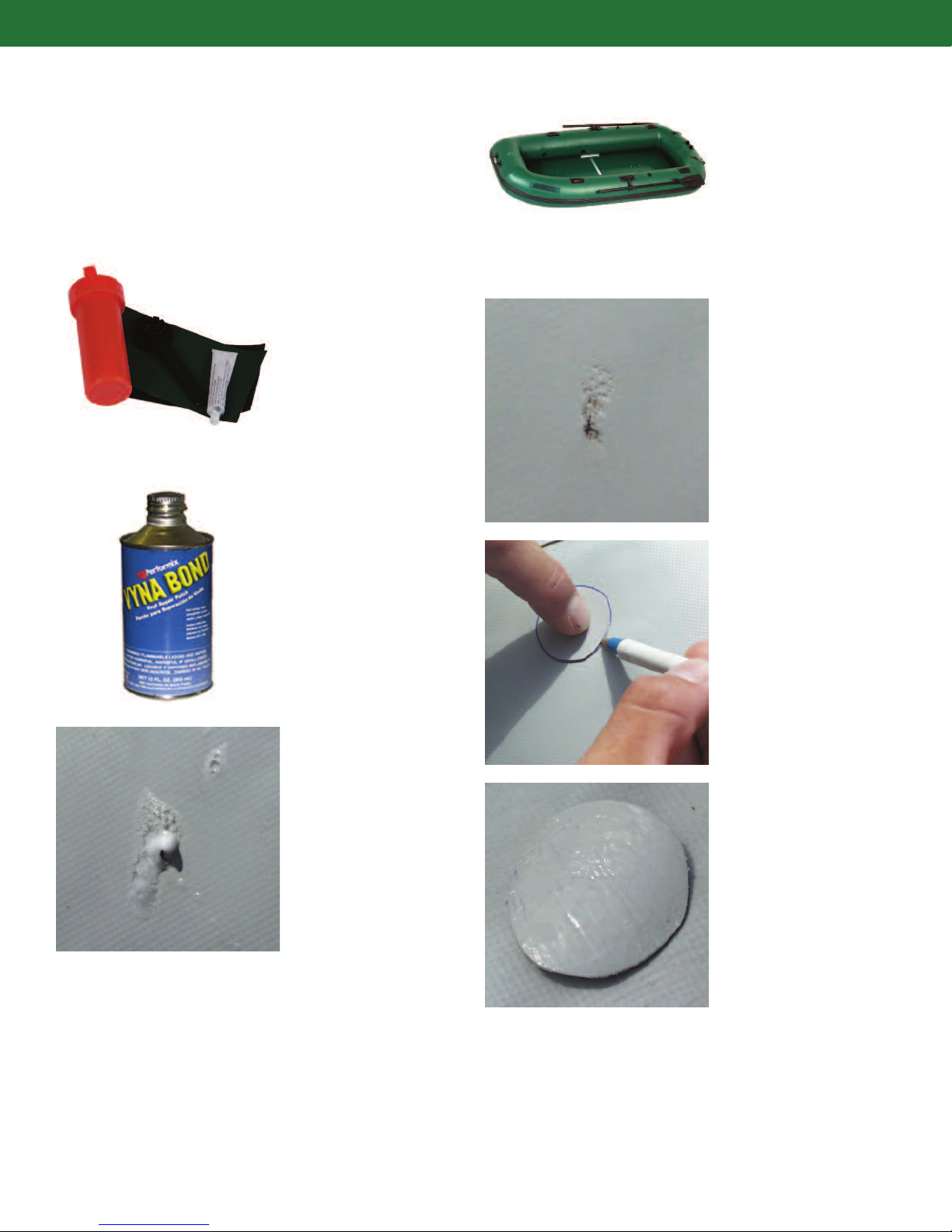

Repair Kit
All Sea Eagles come
with a repair kit that in-
cludes PVC patches
and PVC glue. The kits
also includes a re-
cessed valve adapter
and valve wrench.
PVC Based Glue
For repairs on our boats
you will need to use a
PVC based glue. We
suggest this 12 oz. can
of Vyna Bond if you
need more glue than
what comes standard in
the repair kit.
Repair: Pinholes
Deflate your boat and
thoroughly clean and
dry the area that is to be
repaired. For small
punctures less than 1/8”
apply a small drop of
glue and allow 12 hours
to dry.
For immediate use
allow 30 minutes to dry
and then inflate the
compartment with the
repair only 3/4 full and
be sure to make a more
permanent repair later.
Repair: Patching
Leaks larger than a pin-
hole can be patched.
Most patches can be
done in a few minutes,
but we do offer a repair
service for more com-
plex jobs out of war-
ranty.
Using a ball point pen,
trace the outline of your
patch which should be
large enough to overlap
the damaged area by
approximately 1/2”.
Angle the pen inward a
bit so that the ink will be
covered by the patch
later.
Ap ply ad he sive to the
dull side of the patch
and around the area to
be repaired. Coat the
affected area lightly but
completely with glue. If
you have access to
electricity, heat glue ap-
plied to the surfaces
with a hair dryer.
12
REPAIRS

Place the patch on the
damaged area and
press down firmly. Let
the glue cure for not
less than 24 hours. If
glue does not hold, heat
patch with a hair dryer
and press firmly until
cool.
A temperature of 160°
degrees will activate the
adhesive and from there
you can press firmly on
the patch until cooled.
NEVER use a heat gun
on your boat.
REPAIRS (continued)
13
