Ceiling Fan Installation Instructions
For 15070 Series Fans
READ AND SAVE THESE INSTRUCTIONS
Total fan weight
with light

15070-UL-ENG
HC-1274
Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70-
1999), including fire-rated construction.
Use this unit only in the manner intended by the manufacurer. If you have any questions contact the manufacturer.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one
side of the outlet box and ungrounded conductor on the other side of the outlet box.
Before you begin installing the fan, Switch power off at Service panel and lock service disconnecting means to prevent power from being switched
on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
Be cautious! read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the
floor to the trailing edge of the blade.
To reduce the risk of fire, electric shock, or personal injury, mount to outlet box or supporting system acceptable for fan support.
(Mounting must support at least 35 lbs.)
Do not bend blade holders during installation to motor, balancing or during cleaning. Do not insert foreign object between rotating blades.
Attach the mounting bracket using only the hardware supplied with the outlet box.
To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed control device, or variable speed control.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
NEVER place a switch where it can be reached from a tub or shower.
The combustion airflow needed for safe operation of fuel-burning equipment may be affected by this unit’s operation. Follow the heating equipment
manufacturer’s guideline safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
Before servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS

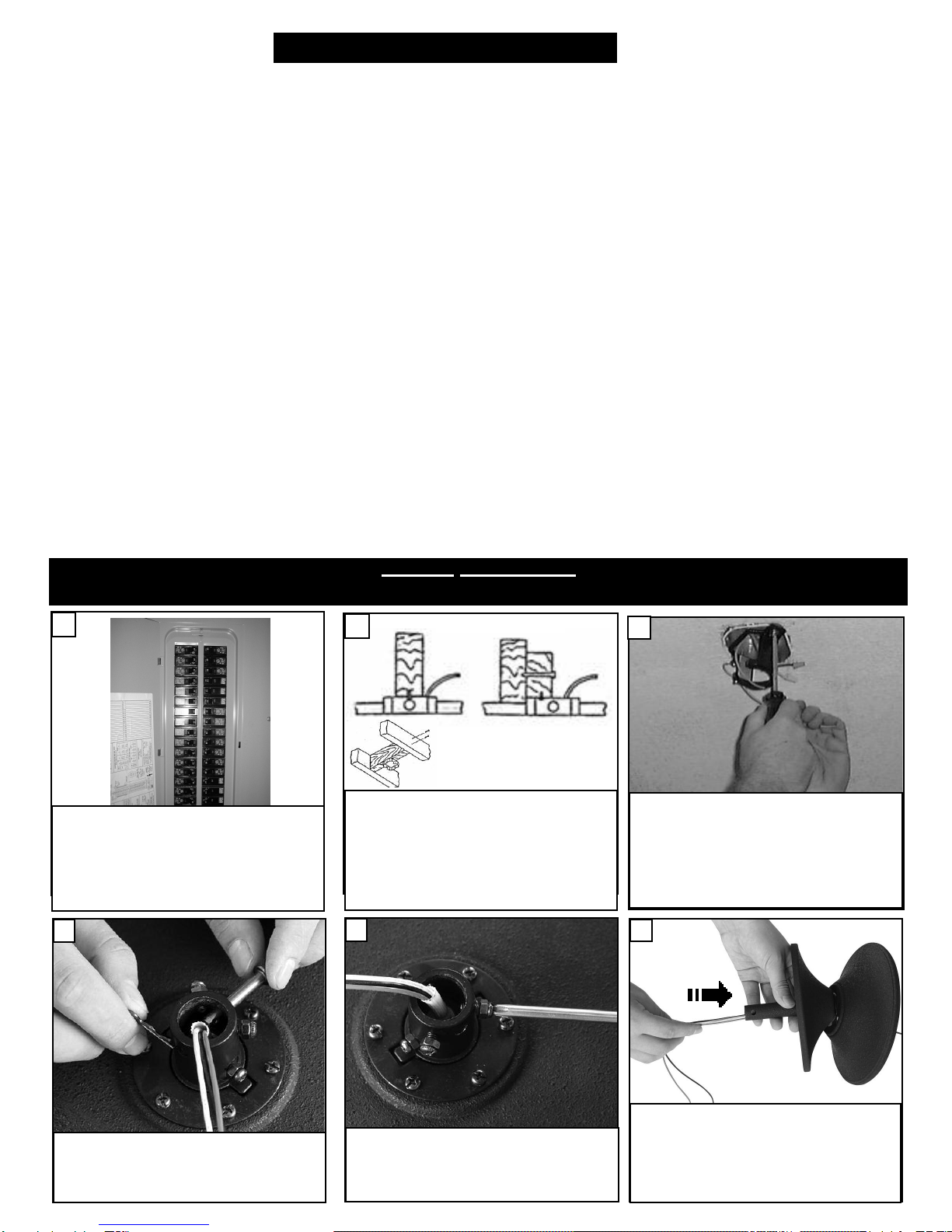

SAFETY TIPS
TTOOOOLLSSRREEQQUUIIRREEDD
PPhhiilllliippssSSccrreewwddrriivveerrWWiirreeCCuutttteerrssPPlliieerrssSStteeppLLaaddddeerr
Before you begin installing the fan, Switch
power off at Service panel and lock service dis-
connecting means to prevent power from being
switched on accidentally. When the service dis-
connecting means cannot be locked, securely
fasten a prominent warning device, such as a
tag, to the service panel.
Before installing this fan make sure
the outlet box is properly installed to
the house structure. To reduce the
risk of fire, electric shock, or person-
al injury, mount to outlet box or sup-
porting system acceptable for fan
support.
(Mounting must support at least 35
lbs.)
2
1OUTLET BOX METHOD
Use metal outlet box suitable for fan support
(must support 35 lbs). Before attaching fan to
outlet box, ensure the outlet box is securely
fastened by at least two points to a structural
ceiling member ( a loose box will cause the fan
to wobble). Use only the screws provided
with the outlet box.
3
Place canopy and then yoke cover
over downrod as shown. Then
thread the lead wires and safety
cable from the fan through the
downrod as shown.
6
Remove keeper from pin. Pull pin out
and replace keeper, save for later.
4
Loosen the 2 set screws and nuts till
you can not feel them on inside of
yoke.
5

15070-UL-ENG

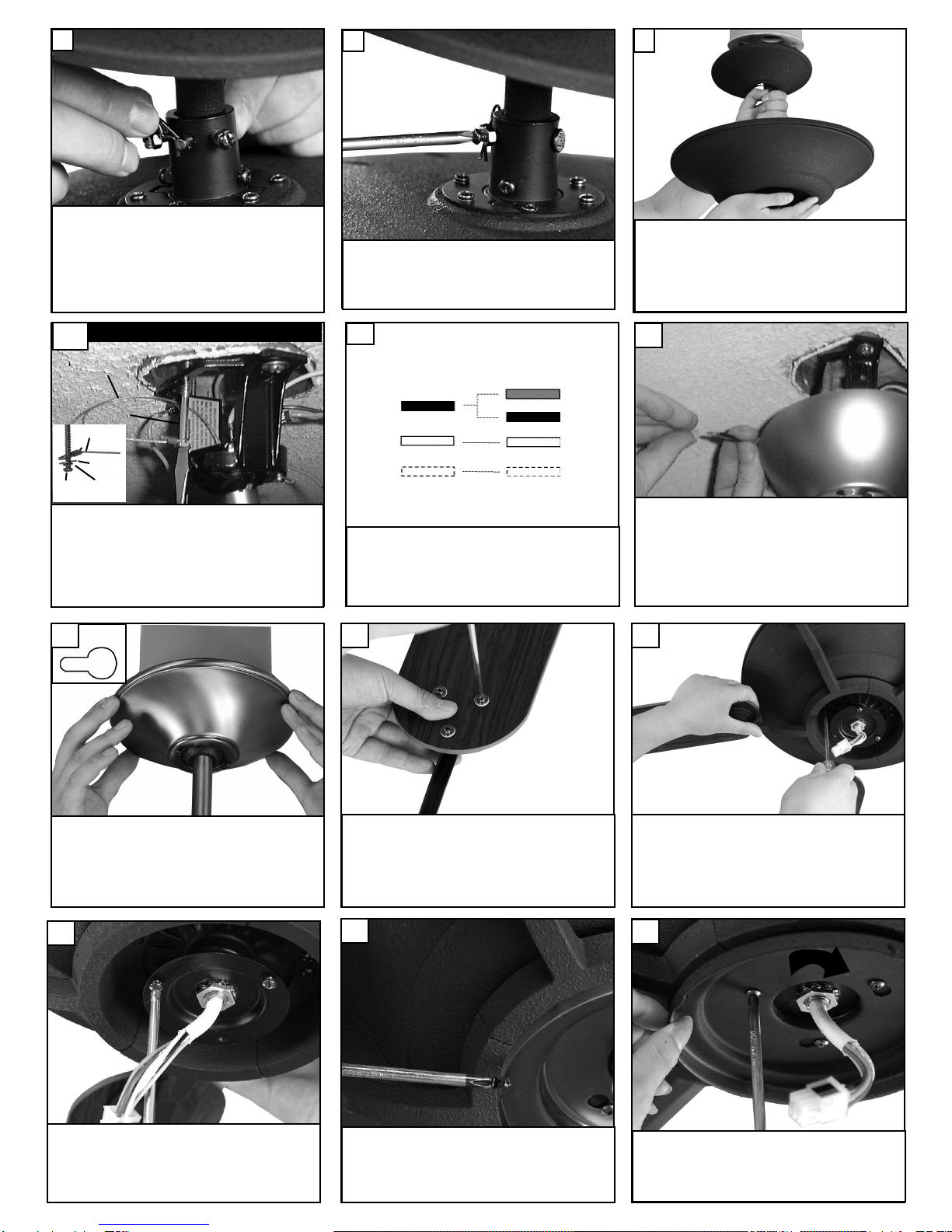

Insert downrod into yoke on top of
fan body. Align the hole in the down-
rod with hole in the yoke. Insert pin
through the yoke and downrod until
the point appears on the other side.
Install the keeper.
7
Tighen set screws and nuts to secure
downrod in yoke.
8
Raise fan with downrod assembled to
the ceiling bracket and hang fan
assembly. Be sure to rotate the
downrod ball so that the notch in the
bracket engages the slot in the ball.
9
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
12
Lift canopy to ceiling aligning the key hole
slots with the screws on the bottom of
the mounting bracket. Rotate the canopy
counter clockwise to lock in place.
Tighten the screws to secure the canopy.
See inset for keyhole shape
13
Attach blade brackets to blades using
the blade bracket screws and wash-
ers provided.
14
Check the motor for plastic shipping sta-
bilizer tabs and remove if they are pres-
ent. The screws, washers and motor pads
are pre-installed to the blade holders.
Attach blade assembly to motor and
tighten screws securely.
15
Connect black and blue wire from fan to Black or (Hot)
wire from house. Connect White wire from Fan to
White (Neutral) wire from house. Connect Ground
leads from mounting bracket and downrod to Ground
lead from house. Refer to Safety Tips section of
manual.
11
House Fan
Blue
Black
White
Green
Black
White
Ground
Loosen 2 screws and remove 1
screw. Save screw removed.
16
Twist lower cover plate into place by
twisting in direction of arrow.
Replace 1 screw removed and tighten
all 3 screws securely.
18
Remove screws as shown and save.
17
For Canadian installation and for USA fan and
light kit combinations over 35 lbs, in both flush
and downrod mode the safety cable must be
installed into the house structure beams using
the 3” lag screws,washers, and lock washers.
provided. Make sure that when the safety cable
is fully extended the leadwires are longer than
the cable and no stress is placed on the lead-
wires.
10 Safety cable installation
Safety Cable
Lag Screw
safety
cable
3” lag
screw lock
washer
washer

15070-UL-ENG
HC-1274

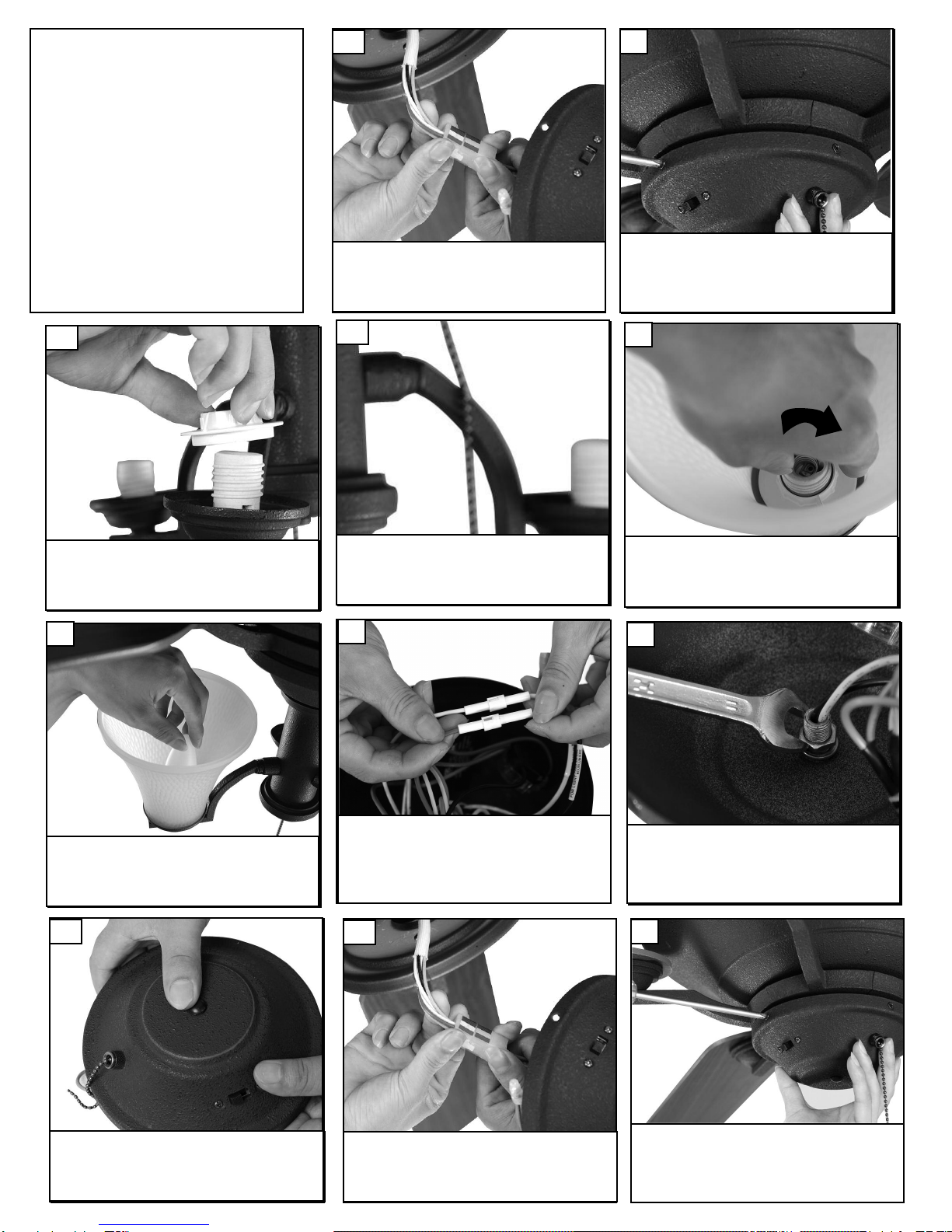

Install glass onto light kit and then
install lock rings to hold in place and
tighten in direction of arrow.
23
Remove lock rings.
21
Install 3 x 60 watt candelabra bulbs.
Bulbs included.
24
Remove nut by holding switch cap
and twisting wrench counterclock-
wise.Pull bottom sockets and wires
from switch cap.
26
Install the switch housing using
screws removed from fan lower cover
plate.
20
Put plug from hardware pack into
switch cap.
27
Install the switch housing using
screws removed from fan lower cover
plate.
29
Disconnect light kit wires.
25
To install lights in the upward posi-
tion push in and twist up on the
arms of light kit.
22
Connect plug from fan to plug from
switch housing.
28
Connect plug from fan to plug from
switch housing.
19
To install without
light kit refer to
step 25

15070-UL-ENG
HC-1274
1.Check main and branch circuit fuses or circuit breakers.
2.Check line wire connections to fan and switch wire connections in switch housing.
3.Check to make sure the dip switches from the transmitter and receiver are set on the same
frequency.
CAUTION: Make sure main power is turned off
1.Check to make sure all screws in motor housing are snug (not over tightened).
2.Check to make sure the screws which attach the fan blade holder to the motor are tight.
3.Check to make sure wire nut connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before entering switch housing.
4.Some fan motors are sensitive to signals from Solid State variable speed controls.
DO NOT USE a Solid State variable speed control.
5.Allow "break-in" period of 24 hours. Most noises associated with a new fan will disappear
after this period.
1.Make sure that the ridge of the canopy engages the notch in the downrod ball.
2.Check that all blades are screwed firmly into blade holders.
3.Check that all blade holders are tightened securely to motor.
4.Make sure that canopy and mounting bracket are tightened securely to ceiling junction box
and junction box is mounted firmly to ceiling joist.
5.Most fan wobble problems are caused when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one of the blades. Measure this distance from
blade tip to ceilng. Keeping measure within 1/8", rotate the fan until the next blade is posi-
tioned for measurement. Repeat for each blade. If all blade levels are not equal, you can
adjust blade levels by the following procedure. To adjust a blade tip down, insert a washer
(not supplied) between the blade and blade holder at the screw closest to the motor. To
adjust a blade tip up, insert washer (not supplied) between the blade and blade holder at the
two screws farthest from the motor. Reverse the position of the washer if blades mount from
top of blade.
6.If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1.Check wire from fan to make sure it is connected to hot wire from house.
2.Check for loose or disconnected wires in fan switch housing.
3.Check for loose or disconnected wires in light kit.
4.Check for faulty light bulbs.
CAUTION: Make sure main power is turned off before entering switch housing.
2. If fan sounds noisy:
1. If fan does not start:
3. If fan wobbles:
4. If light does not work:
Trouble Shooting
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation,
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults,
please check this Trouble Shooting Chart. If a problem cannot be remedied, or you are experiencing difficulty
in installation, please call our Customer Service Center at the number printed on your parts list insert sheet.
Warning: Before servicing or cleaning unit, Switch power off at Service panel and lock service dis-
connecting means to prevent power from being switched on accidentally. When the service dis-
connecting means cannot be locked, securely fasten a prominent warning device, such as a tag,
to the service panel.
Trouble Suggested Remedy
For Technical Support Call:
[phone]

15070-UL-ENG
HC-1274
Mounting bracket
Canopy
Downrod
Yoke cover
Top housing
Yoke
Motor
Lower housing
Blade
Blade holder
Switch housing
Speed switch Reverse switch
Glass
Bulb
Fitter

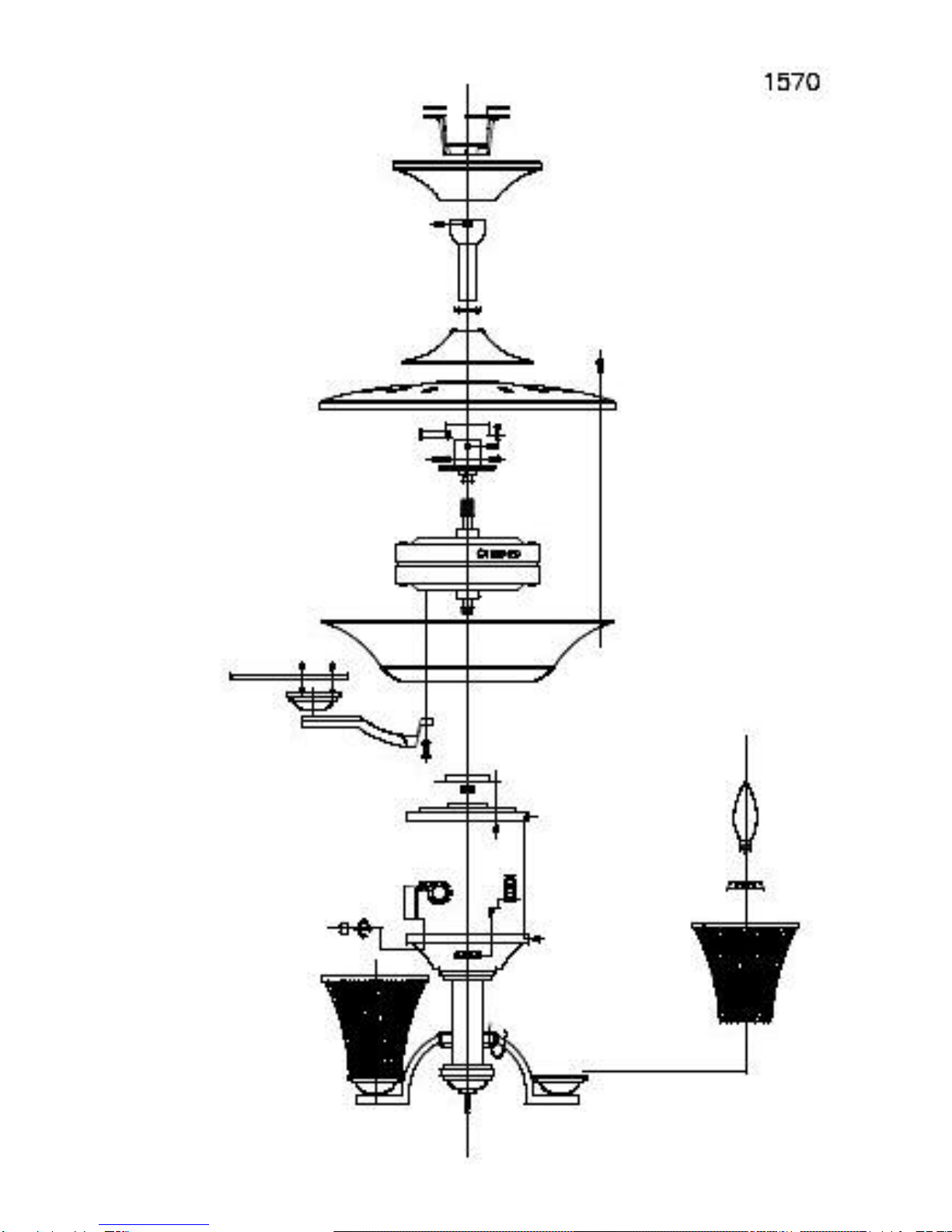

Exploded View
