Sealey Gdm90b User manual

Instructions for:

BENCH MOUNTED PILLAR DRILLS

Models: GDM90B & GDM95B

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions

and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND

CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY

CAUSE DAMAGE OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY INSTRUCTIONS

1.2 GENERAL SAFETY

pWARNING! Disconnect drill from mains power before changing accessories, servicing or performing any maintenance.

3Maintain the drill in good condition (use an authorised service agent).

pWARNING! Keep all guards and holding screws in place, tight and in good working order. Check regularly for

damaged parts. A guard or any other part that is damaged should be checked, before the tool is used, to

ensure that it will operate properly and perform its intended function. The safety guard is a mandatory fitting

where drill is used in premises covered by the Health & Safety at Work Act.

3Check alignment of moving parts and check for possible broken parts.

3Replace or repair damaged parts. Use recommended parts only. Non-authorised parts may be dangerous and will

invalidate the warranty.

3Ensure the set screws of the head frame are screwed tight before using the drill.

3Secure the drill to a supporting structure to avoid the machine tipping, sliding or walking. Drill is designed for use

with drill bits only. No other accessory may be used.

3Ensure the chuck is securely fastened to the spindle.

3Remove adjusting keys and wrenches from the machine and working area before switching on.

3Use clamps or a vice (not included) to secure the workpiece. Available from your Sealey dealer. DO NOT secure

the workpiece by hand.

3Refer to speed chart for recommended drilling speeds.

pWARNING! Always wear approved eye or face protection when operating this drill. Use a face or dust

mask if dust is generated.

7DO NOT wear gloves when drilling.

1.1. ELECTRICAL SAFETY. p WARNING! It is the users responsibility to read, understand and comply with the following:

You must check all electrical equipment and appliances to ensure they are safe before using. You must inspect power supply leads, plugs and

all electrical connections for wear or damage. You must ensure the risk of electric shock is minimised by the installation of appropriate safety

devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD

(Residual Current Device) is used with all electrical products. It is particularly important to use an RCD with portable products that are plugged

into an electrical supply not protected by an RCCB. If in doubt consult a qualified electrician. You may obtain a Residual Current Device by

contacting your Sealey dealer. You must also read and understand the following instructions concerning electrical safety.

1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by

a qualified electrician, using a Portable Appliance Tester (PAT), at least once a year.

1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances

and the safety of appliance operators. If in any doubt about electrical safety, contact a qualified electrician.

1.1.3. Ensure the insulation on all cables and the product itself is safe before connecting to the mains power supply.

See 1.1.1. & 1.1.2. above and use a Portable Appliance Tester (PAT).

1.1.4. Ensure that cables are always protected against short circuit and overload.

1.1.5. Regularly inspect power supply leads and plugs for wear or damage and connections to ensure that none is loose.

1.1.6. Important: Ensure the voltage marked on the product is the same as the electrical power supply

to be used, and check that plugs are fitted with the correct capacity fuse. A 13 amp plug may require

a fuse smaller than 13 amps for certain products.

1.1.7. DO NOT pull or carry the powered appliance by its power supply lead.

1.1.8. DO NOT pull power plugs from sockets by the power cable.

1.1.9. DO NOT use worn or damage leads, plugs or connections. Immediately replace or have repaired by

a qualified electrician. Where a U.K. 3 pin plug with ASTA/BS approval is fitted, in case of damage, cut off

and fit a new plug according to the following instructions (discard old plug safely).

(UK only - see diagram at right). Ensure the unit is correctly earthed via a three-pin plug.

a) Connect the GREEN/YELLOW earth wire to the earth terminal E.

b) Connect the BROWN live wire to the live terminal L.

c) Connect the BLUE neutral wire to the neutral terminal N.

After wiring, check there are no bare wires, that all wires have been correctly

connected, that the cable outer insulation extends past the cable restraint and that the cable restraint is tight.

Double insulated products are often fitted with live (BROWN) and neutral (BLUE) wires only. Double insulated products are always marked with

this symbol . To re-wire, connect the brown & blue wires as indicated above. DO NOT connect the brown or blue wires to the earth terminal.

1.1.10. NOTE: If this product requires more than a 13 amp electrical supply, then NO plug is fitted. You must therefore contact a qualified electrician to

ensure a 30 amp fused supply is available. We recommend you discuss the installation of a industrial round pin plug and socket with your electrician.

1.1.11. Cable extension reels. When a cable extension reel is used it should be fully unwound before connection. A cable reel with an RCD

fitted is recommended since any product which is plugged into the cable reel will be protected. The section of the cores in the cable

is important and should be at least 1.5mm2, but to be absolutely sure that the capacity of the cable reel is suitable for this product and

for others that may be used in the other output sockets, the use of 2.5mm2section is recommended .

Blue

Neutra

Yellow & Green

Earth wire

Cable

restrai

REPLACEMENT FUSES MUST

BE OF THE SAME TYPE AND

RATING AS THE ORIGINAL

Brown

Live

wire

GDM90/95B - 0016 - (2) - 111000

3Others in the workplace should keep a safe distance from the drill, especially when it is in operation.

3Keep the work area as childproof as possible by using padlocks and master switches.

3Keep drill bits clean and sharp for best and safest performance. Follow the instructions for lubrication and changing accessories.

3Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain long hair.

3Locate the drill in a suitable working area, keep area clean and tidy and free from unrelated materials. Ensure there is adequate lighting.

3Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.

3Secure non-stable workpiece with a clamp, vice or other adequate holding device.

3Avoid unintentional starting.

7DO NOT force the drill to achieve a task it was not designed to perform.

7DO NOT allow untrained persons to operate the drill.

7DO NOT get the drill wet or use in damp or wet locations or areas where there is condensation.

7DO NOT operate the drill if damaged.

7DO NOT use drill in an area where paint fumes, solvents or flammable liquids pose a potential hazard. Keep flammable material away from

the drill when operating. Flammable waste, such as wiping or cleaning rags, must be placed in a closed metal container and disposed of correctly.

7DO NOT exceed the rated capacity of the drill.

7DO NOT operate the drill if any parts are missing as this may cause failure or possible personal injury.

7DO NOT leave the drill operating unattended.

7DO NOT operate the drill when you are tired, under the influence of alcohol, drugs or intoxicating medication.

7DO NOT pull the cable from the power supply.

3When not in use switch off the drill, remove plug from the power supply and do not leave until the tool has come to a complete stop.

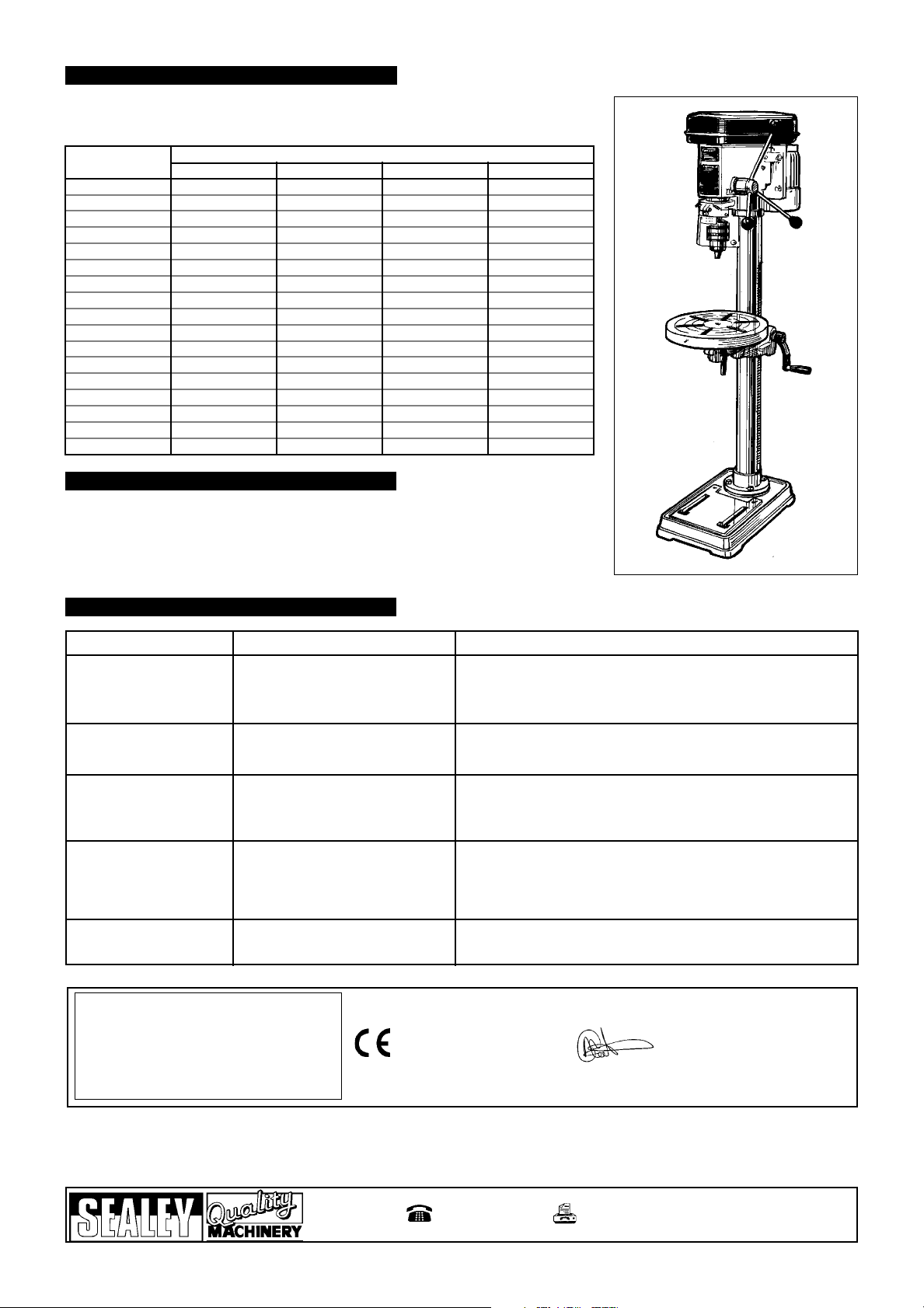

3. TECHNICAL SPECIFICATIONS

2. DESCRIPTION

The GDM90B and GDM95B variable speed bench drills are suitable for light industrial, agricultural and woodworking applications. The drills

are fitted with flip-up safety guards and No Volt Release switches which prevent accidental restart after a mains power interruption. A rack and

pinion feed shaft with preset depth control for repetitive work is also included. Both models have Morse Taper Spindles to accept taper

shank bits. Mortice attachments and work clamps are also available, contact your local Sealey dealer for information.

Model GDM90B GDM95B

Chuck size (mm) 16 16

Spindle Nose Taper MT2 MT2

Swing (mm) 316 316

Chuck to Upright Face (mm) 128 128

Spindle Travel (mm) 60 60

Number of Speeds 12 12

Speed Range (rpm) 240 - 3000 240 - 3000

Spindle to Table - max. (mm) 310 560

Spindle to Base - max. (mm) 410 670

Working Table Diameter (mm) 260 260

Working Base (mm) 160 x 140 155 x 155

Overall Base (mm) 205 x 333 210 x 350

Column Diameter (mm) 60 60

Voltage (AC)

Overall Height (mm)

230

745

230

1000

Motor Range - no load (W)

- under load (W)

370

550

370

550

Weight (kg) 30 32

4. CONTENT

4.1. Package content

Unpack the parts listed below and check to ensure they are in good condition. Any queries must be reported to your dealer immediately.

3Head Assembly 3Base 3Chuck and Key

3Column with Flange 3Feed Handles and Knobs (3) 3Table Arm, Bracket and Worm

3Adjusting Handle with Set Screw (table) 3Table 3Rack and Rack Ring

3Pivoted Clamp Bolts (2 - table arm & bracket) 3Bolts and Washers (4) 3Screw (upper pulley cover)

3Safety Guard 3 Arbor 3 Set Screws (2)

3 Wedge 3Hex. Keys (2)

GDM90/95B - 0016 - (2) - 111000

pWARNING! Ensure the drill is unplugged from the mains power supply before commencing.

6.1. Install drill bit

6.1.1. Insert drill bit into chuck jaws to 1" (25mm) deep (avoid inserting small bits too far) and centre bit in chuck before tightening.

6.2. Adjusting the table

6.2.1. To adjust table up or down, loosen clamp bolt (fig.2.B) then turn bracket handle (fig.2.A). Once at correct height tighten clamp bolt (fig.2.B).

6.2.2. To adjust table tilt, loosen the work table bolt (fig.2.C), adjust to the desired angle using the angle scale, then retighten.

6.2.3. To turn the table around the column, loosen the rack collar slightly, then loosen the work table bolt.

Turn the table to the desired position then secure the bolt and rack collar.

6.3. Adjusting the speed

6.3.1. Open the pulley case and loosen the belt tension lock screw (fig.6.A).

6.3.2. Choose the speed for drilling operation (see drill speed chart) and move the belts to the correct

position for the desired speed, as shown on the chart inside the pulley cover.

6.4. Belt tension

6.4.1. With the belt tension lock screw (fig.6.A) loose and using hand pressure on the motor, set tension so

that belts give is no more than 1/2" (13mm). Tighten lock screw.

6.5. Positioning the workpiece

6.5.1. Use a piece of wood to rest the workpiece on. The drill bit may break through the workpiece and damage the table otherwise.

The wood should rest on the table so that one end of it is against the left side of the column. When the drill bit breaks through the

workpiece, it will contact the wood and cause it to spin. Resting the wood against the column will help prevent this.

6.5.2. For small workpieces that cannot be clamped to the table, use a drill vice (not included). Vice must be clamped or bolted to table.

6.6. Setting the drill depth

6.6.1. Use the scale on the side of the drill head near the drill handle.

6.6.2. Loosen locking screw (fig.5.D) and set the scale to the depth required. Tighten locking screw.

6.6.3. When ready to drill, simply pull the feed handle. The drill will stop at the set depth.

6. OPERATING INSTRUCTIONS

Note: Figures are illustrative and may differ in detail from your drill.

5.1. Assembly

5.1.1. Place the column assembly on the base, align holes and secure with the bolts and washers provided.

5.1.2. Install the table bracket onto the column together with the rack (fig.1), engaging gear in bracket with rack.

5.1.3. Install the rack collar and tighten firmly (fig.2).

5.1.4. Install the table adjusting handle (fig.2.A) and pivoted clamp bolt (the longer of the two - fig.2.B).

5.1.5. Tighten the handle set screw (with the hex. key provided) and the bracket clamp bolt.

5.1.6. Install the table and table pivoted clamp bolt (fig.3).

5.1.7. Carefully place the head assembly over the column and slide it into position. Align head with base.

5.1.8. Fit the two set screws in the right side of the head to lock it into position and tighten with hex. key (fig.4).

5.1.9. Screw the three feed handles and knobs to the hub of the pinion shaft (fig.5.A).

5.1.10. To install chuck open the chuck jaws completely by turning the chuck key counter-clockwise. Place a piece of wood on the drill table

(to prevent the chuck from getting damaged).

5.1.11. Insert thinner tapered end of arbor (fig.5.B) into drill spindle, fit chuck to protruding end of arbor and hold in place.

5.1.12. Turn feed handles to bring nose of chuck down onto wood (fig.5). Firmly pull on feed handle to seat arbor taper in spindle and chuck.

5.1.13. Loosen clamp screw on safety guard mounting collar, pass guard up over chuck and fit collar round flange of quill shaft. Ensure guard pivot

is central and tighten clamp screw (see fig.7).

5.2. Drill mounting

5.2.1. For stability and safety it is important that the drill base is securely screwed or bolted to the workbench.

5.2.2. Ensure that the mounting surface is capable of supporting the drill together with the weight of the heaviest likely workpiece.

5. ASSEMBLY

fig. 1

fig. 2

fig. 3 fig. 4

fig. 5

fig. 6

GDM90/95B - 0016 - (2) - 111000

Declaration of Conformity We, the sole importer into the UK, declare that the products listed here

are in conformity with the following standards and directives.

The construction files for these products are held by the Manufacturer and may be inspected by a national

authority upon request to Jack Sealey Ltd.

For Jack Sealey Ltd. Sole importer into the UK of Sealey Quality Machinery.

Pillar Drill

Models GDM90B & GDM95B.

73/23/EEC Low Voltage Directive (S.I. 1994/3260)

89/336/EEC EMC Directive (S.I. 1992/2372 & Amendments).

98/37/EC Machinery Directive (S.I. 1992/3073)

93/68/EEC CE Marking Directive

Signed by Mark Sweetman Date 1st November 1999

01284 757500 E-mail: sales@sealey.co.uk

01284 703534

Sole UK Distributor,

Sealey Group,

Bury St. Edmunds,

Suffolk.

PROBLEM POSSIBLE CAUSE SOLUTION

Excessive noise 1. Incorrect belt tension 1. Adjust tension

2. Spindle is dry 2. Disassemble spindle/quill and lubricate

3. Pulley is loose 3. Tighten pulley

4. Bearing damaged 4. Replace the bearing

Excessive drill wobble 1. Chuck is loose 1. Tighten the chuck by pressing it against the table (see 4.2.12)

2. Bearing or spindle shaft is worn 2. Replace worn part

3. Chuck is worn 3. Replace the chuck

Drill binds in the 1. Feed pressure is wrong 1. Apply less pressure

workpiece 2. Belt is loose 2. Adjust tension

3. Drill is loose 3. Tighten the drill with the key

4. Speed is too fast 4. Change the speed

Drill burns or smokes 1. Speed is too fast 1. Change the speed

2. Chips are not discharging 2. Clean the drill

3. Drill bit is dull 3. Use a new bit

4. Lubrication needed for work 4. Lubricate while drilling

5. Feed pressure is wrong 5. Apply less pressure

Table is difficult to raise 1. Lubrication is needed 1. Lubricate with light oil

2. Rack is bent 2. Straighten the rack

9. TROUBLESHOOTING

8.1. Clean the tool after each use. A coat of automobile-type wax applied to the table and

column will help to keep the surfaces clean.

8.2. Blow out any dust that may have accumulated in the motor.

8.3. Periodically lubricate the table elevation rack/gear/worm mechanism.

8. MAINTENANCE

7. DRILL SPEEDS

Drill Speed (rpm)

Drill Dia. (mm) Steel Cast Iron Iron Alum. & Copper

3 1820 2580 2580 2580

4 1350 1820 1820 2580

5 1290 1350 1350 2580

6 970 1290 1290 2580

7 830 970 970 2580

8 830 970 970 2580

9 500 970 830 1820

10 500 830 830 1820

11 500 830 830 1820

12 420 830 500 1820

13 420 500 500 1350

14 420 500 500 1350

16 320 500 500 1290

18 320 420 420 1290

20 280 320 320 970

22 210 320 280 970

25 120 280 210 830

fig. 7

The chart below shows recommended drill speeds for various bit diameters and materials.

Select the available drill speed that is the same as, or nearest to, the one recommended for

the task in hand.

NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
