Sealey LP14.V2 User manual
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
LP14.V2 Issue: 6 (ERP) - 31/07/19
Original Language Version
© Jack Sealey Limited
Hot surface
THIS PRODUCT IS NOT SUITABLE FOR PRIMARY HEATING PURPOSES.
1. SAFETY
IMPORTANT: The LP14.V2 is a mobile, propane-fired, unvented, infrared space heater for commercial applications only. It is designed for
use with Propane cylinders of between 7kg to 15kg gas capacity. DO NOT use domestically.
WARNING! Use only in well ventilated spaces of more than 15m³to prevent an accumulation of dangerous combustion gases.
8DO NOT operate heater in basements or otherwise below ground level, in high rise flats, bathrooms or bedrooms.
8DO NOT operate heater in leisure vehicles such as caravans and autocaravans.
WARNING! Heater will become very hot during use.
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this equipment.
9Familiarise yourself with the application and limitations of the heater, as well as the potential hazards.
WARNING! Disconnect the heater from the gas supply before performing any maintenance.
9Maintain the heater in good condition (use an authorised service agent).
9Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
WARNING! Keep all guards and holding screws in place, tight and in good working order. The guard on this appliance is to prevent risk
of fire or injury from burns and no part of it should be permanently removed. IT DOES NOT GIVE FULL PROTECTION FOR YOUNG
CHILDREN OR THE INFIRM. Check regularly for damaged parts. A guard or any other part that is damaged must be repaired or
replaced before the heater is next used. Avoid twisting the regulator’s flexible tube. The tube should be inspected for damage regularly
and replaced if damage is found. Refer to the tube for its specification and length.
9Keep gas hose away from heat, oil and sharp edges. Ensure that all connections are secure.
9Keep the heater clean for best and safest performance.
9Ensure the propane bottle is in a stable upright position before igniting the heater. DO NOT use with the bottle in any position other than
upright.
8DO NOT use any fuel other than propane.
9Ensure there are no flammable or combustible materials within 2 metres of the heater and that nothing, including walls, is less than
500mm from any surface of the heater.
8DO NOT use the heater where there are flammable liquids, solids or gases such as paint solvents, etc.
WARNING! NOT to be used for the heating of habitable areas of domestic premises: for use in public buildings, refer to national
regulations.
WARNING! DO NOT use in basements or areas below ground level.
8DO NOT move the heater when it is operating.
8DO NOT use the heater for any purpose other than that for which it is designed.
8DO NOT operate the heater if any parts are damaged or missing as this may cause failure and/or personal injury.
8DO NOT adjust, or tamper with, the regulator.
8DO NOT allow untrained persons to operate the heater.
8DO NOT operate the heater when you are tired or under the influence of alcohol, drugs
or intoxicating medication.
9When not in use disconnect from the gas supply and store in a safe, dry, childproof area.
9In the event of a gas leak immediately close the bottle valve, extinguish any flame and
then place equipment in a well ventilated area, preferably outdoors, and away from any
heat sources (including strong sunlight). Rectify cause of leakage.
2. INTRODUCTION
Ceramic plaque type heater. Steel tube stand with built-in handle. Heat output from
10,250 to 15,354Btu/hr. Supplied with 37Mbar fixed regulator and 1.5mtr hose.
Fully CE approved. Gas bottle not included.
3. SPECIFICATION
Model No. ...................................................................LP14.V2
Fuel. ............................................................................ Propane
Output.......................................................10,250-15,354Btu/hr
Fuel Consumption. ........................................... 0.22-0.33kg/hr
fig.1
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to instruction
manual
15,354BTU/HR SPACE WARMER®
PROPANE HEATER WITH STAND
MODEL NO: LP14.V2
4. CONTENTS
4.1. Check content against the list below and, in the event of shortages or damage, contact your supplier.
Contents:
•Heaterstandandmountingbolts
•Heaterassembly
•Hoseandgasbottleregulator
5. ASSEMBLY
5.1. Attach the stand to the heater assembly using the two bolts supplied, fig.2.
5.2. Fit the regulator to the gas bottle by screwing the POL nut anticlockwise into the port of the gas bottle valve. Tighten nut with spanner.
5.3. Attach one end of the gas hose to the barbed male connector on the regulator and hose clip . Attach the other end of the gas hose to the
barbed male connector of the heater valve inlet and hose clip. A small amount of washing up liquid would assist fitting the hose. Ensure
the hose is routed so that it does not touch any part of the heater, which will become hot during operation.
5.4. Open the gas bottle valve and, using soapy water, check all joints for leaks.
6. OPERATION
WARNING! Ensure that you read, understand and apply the safety instructions in Section 1.
6.1. SITING THE HEATER
8DO NOT use the heater where there are flammable liquids, solids or gases such as paint solvents, etc. Ensure there are no flammable
or combustible materials within 2 metres of the heater and that nothing, including walls, is less than 500mm from any surface of the
heater. Always ensure that the heater is facing away from the gas bottle.

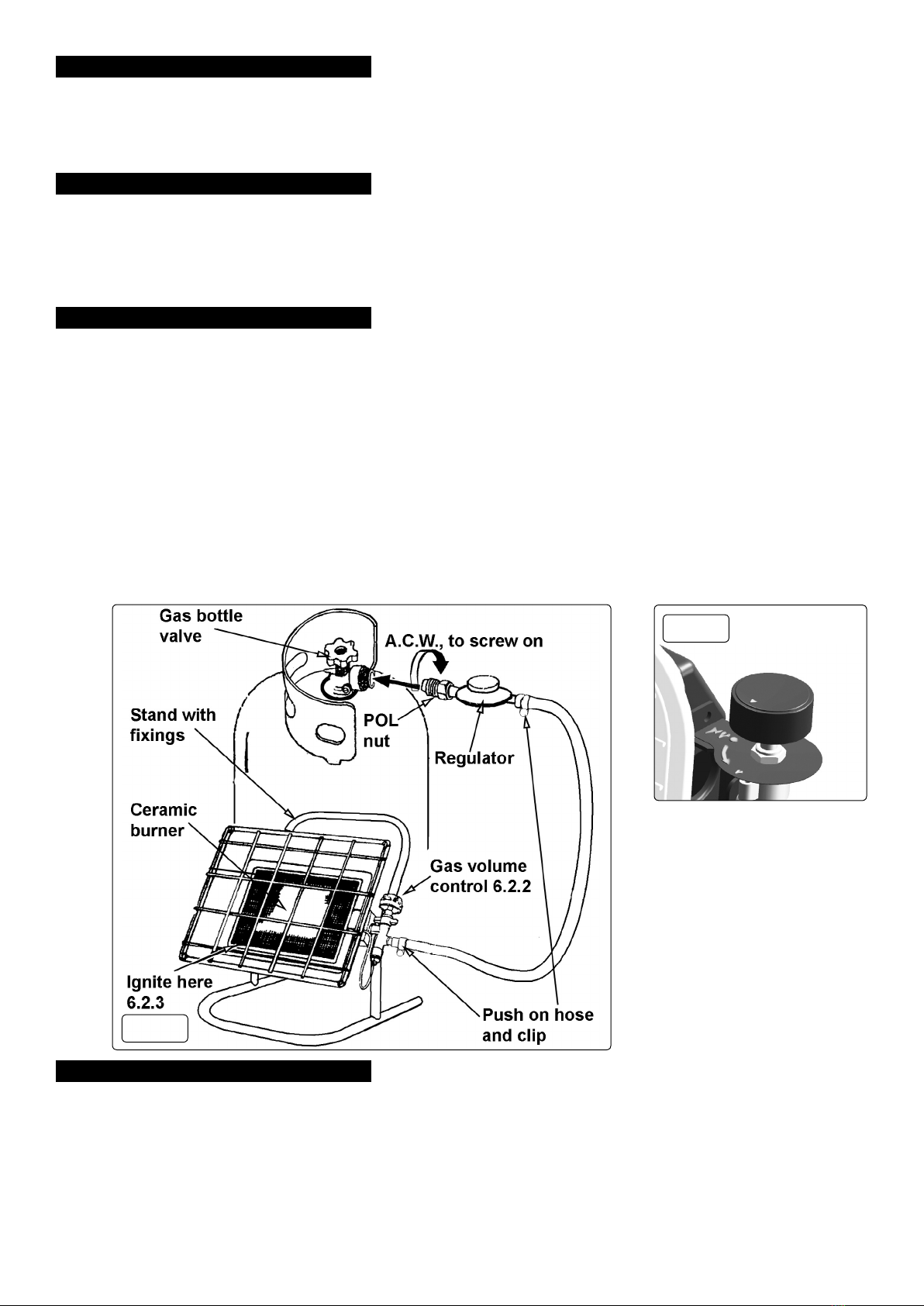

6.2. LIGHTING HEATER (Refer to fig’s 2&3)
6.2.1. Open the gas bottle valve.
6.2.2. Push the heater control dial down and turn it clockwise to the full on position and keep it held down.
6.2.3. After a few seconds bring a flame up to the bottom edge of the burner.
6.2.4. After the gas ignites keep the dial held down for a further 20 seconds then turn the control dial anticlockwise to reduce the heat output to
the required level.
6.3. TURNING HEATER OFF
6.3.1. Close the gas bottle valve.
6.3.2. Changing propane bottle
6.3.3. Ensure the gas bottle valve is closed and then unscrew the POL nut and remove the regulator.
6.3.4. Fit regulator to new gas bottle. Check for gas leaks as in 5.4.
7. MAINTENANCE
7.1. STORAGE
7.1.1. Disconnect the cylinder and store it in a well ventilated area away from combustible material, preferably in an outhouse.
7.1.2. The heater should be covered in a dry, dust free cover and placed in its original packaging.
7.2. CLEANING
8DO NOT clean the heater when it has just been turned off.
7.2.1. Use a soft, dry cloth.
8DO NOTcleanwithaggressive,abrasiveorinammablesubstances,theycouldcauseare
or damage the paint.
g.2
Original Language Version
© Jack Sealey Limited LP14.V2 Issue: 6 (ERP) - 31/07/19
g.3
7.3. MAINTENANCE
7.3.1. Any repairs must be performed by specialised personnel and using original replacement parts.
7.3.2. To ensure proper operation of the burner, we recommend annual maintenance, performed at an authorised service centre.
8DO NOTmakeanymodicationstotheheater,itisdangerous!
NOTE: Spiders or small insects could take up residence inside the burner or nozzle altering the
owofgasandcombustion.Inspectthemfrequently.
8. TROUBLESHOOTING
FAULT POSSIBLE CAUSE REMEDY
Gas leak Regulator and hose connection.
Valve and hose connection.
Split or perished hose
POL nut connection
Brush a solution of washing up liquid and
water on to all connections and look for
active bubbles. Tighten clips or replace hose
CheckPOLnutttingistight(ACW)
Inefcientcombustionacrosstheceramic
plaque
Missingpieceofceramicreclay
Gas jet holes blocked
Replace plaque or repair with PYRUMA (fire
cement) and leave to set for approximately
48 hours.
Clear blockages
Burnerameextinguishesduringoperation Low gas or empty bottle.
Thermal element not hot enough
Thewindhasextinguishedtheame
Thermal element faulty
Faulty manual valve
Change the gas bottle
Go through the start up procedure again.
Allow to cool before restarting. Move
appliance away from draughts
Replace the thermocouple. Contact your
Sealey stockist
Replace the valve. Contact your Sealey
stockist
Heater will not light Gas cylinder valve is closed
Volume control not opened fully when
attempting ignition.
Insects inside the burner
Turn on the gas cylinder control, check for
leaks.
Read instructions 6.2. ignition process.
Clear blockages
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Original Language Version
© Jack Sealey Limited LP14.V2 Issue: 6 (ERP) - 31/07/19
Model identier(s):
Indirect heating functionality: Yes No
Direct heat output: (kW) Indirect heat output: (kW)
Fuel
Select fuel type: Gaseous Liquid Specify: [mg/kWhinput] (GCV)
Item Symbol Value Unit Item Symbol Value Unit
Heatoutput Usefuleciency(NCV)
Nominal heat output Pnom kW Useful eciency at nominal ῃth,nom %
heat output
Minimum heat output (indicative)* Pmin kW Useful eciency at minimum ῃth,min %
heat output (indicative)*
Auxiliaryelectricityconsumption Typeofheatoutput/roomtemperaturecontrol(selectone)
At nominal heat output elmax kW Single stage heat output, no room Yes No
temperature control
At minimum heat output elmin
kW Two or more manual stages, no room Yes No
temperature control
In standby mode elSB kW With mechanical thermostat room Yes No
temperature control
With electronic room temperature control Yes No
With electronic room temperature control Yes No
plus day timer
With electronic room temperature control Yes No
plus week timer
Othercontroloptions(multipleselectionspossible)
Room temperature control, with presence Yes No
detection
Room temperature control, with open Yes No
window detection
With distance control option Yes No
With adaptive start control Yes No
With working time limitation Yes No
With black bulb sensor Yes No
Informationrequirementsforgaseous/liquidfuellocalspaceheaters
Theseasonalspaceheatingenergyeciencyƞs
Item Symbol Value Unit
The seasonal space heating Energy efficiency in active mode ƞs,on %
The seasonal space heating energy efficiency ƞs ƞs%
Energyefficiencyclasses
Contact details: Sealey Group, Kempson Way, Suolk Business Park, Bury St Edmunds, Suolk, IP32 7AR. www.sealey.co.uk
ERP Table 1
Space heating emissions
NOx nitrogen oxides
Permanentpilotamepowerrequirement
Pilot ame power required Ppilot
kW
(if applicable)*
* Enter gure or NA
4.5
N/A N/A
N/A
N/A
N/A
N/A
91
39
91.0
A
G30
LP14.V2
4.5 N/A
100.0
v1
4.5
N/A N/A
N/A
N/A
N/A
N/A
91
39
91.0
A
G30
LP14.V2
4.5 N/A
100.0
v1
Original Language Version
© Jack Sealey Limited LP14.V2 Issue: 6 (ERP) - 31/07/19
