Sealey SPB27W User manual

Model No. .....................................SPB27W
Capacity (Weight)....................................27kg
Capacity (Volume) ...................................16ltr
Spread .........................................3-3.6mtr
Weight ...........................................5.5kg
Dimensions (W x D x H)...................460 x 810 x 765mm
Manufactured with a strong tubular steel frame and polypropylene
dispensing hopper. Fitted with nylon gear and adjustable feed system.
Sprays in 360° motion to cover a large area. Suitable for a variety of
horticultural agents including grit, seed, salt, fertiliser and weed killer.
Original Language Version SPB27W Issue: 3(L)- 30/06/17
Before each use, check that there is no damage to the spreader
and that all fixings are tight.
Replace or repair damaged parts. Use only recommended parts.
Unauthorised parts may be dangerous and will invalidate the
warranty.
Ensure that the operator is fully trained and competent to operate
the spreader.
Ensure that all chemical safety instructions are adhered to when
handling products for use in the spreader. A full range of personal
safety equipment is available from your Sealey dealer.
Always distribute the load evenly.
Ensure all non essential personnel keep a safe distance when
the spreader is in use.
Keep hands and feet away from moving parts.
DO NOT overload the spreader - see Specification.
DO NOT leave unattended, especially when loaded.
DO NOT allow anybody to sit, stand, or ride on the spreader.
DO NOT allow untrained personnel to use the spreader.
DO NOT allow children to play in or climb onto the spreader.
DO NOT use on windy days when spreading seeds or herbicides.
DO NOT tow this spreader with a motorized vehicle of any sort.
DO NOT use the spreader for purposes other than for which it is
designed.
DO NOT operate the spreader when you are tired or under the
influence of alcohol, drugs or intoxicating medicines.
When loaded, DO NOT operate the spreader over edges, rough
surfaces etc. where the spreader is at risk of overturning.
WARNING! Failure to comply with these instructions may result
in damage to spreader or other property and/or personal injury.
INSTRUCTIONS FOR:
BROADCAST SPREADER 27KG WALK BEHIND
MODEL No: SPB27W
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
1. SAFETY
2. SPECIFICATION
3. INTRODUCTION
Refer to
instruction
manual
© Jack Sealey Limited

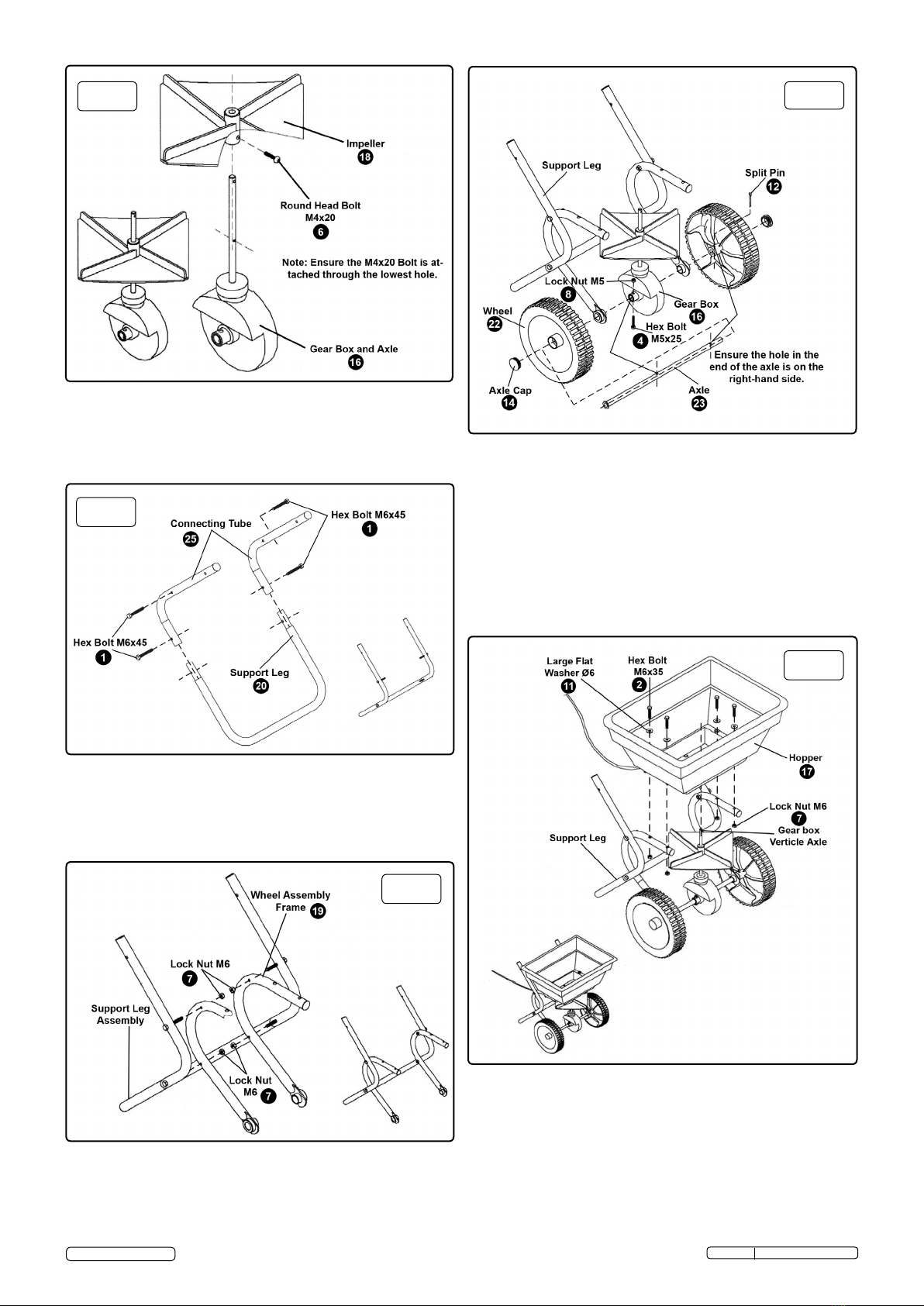

4.2 Refer to fig.2.
4.2.1 Insert the connecting tubes (25) into the support leg (20) and
hold with hex bolt M6x45 (1).
4.2.2 Insert the other two hex bolts M6x45 (1) through the middle
holes in the connecting tubes, ready for step 3.
4.3 Refer to fig.3.
4.3.1 Slide the wheel assembly frame (19) over the bolts already in
the support leg assembly. Secure with 4 M6 lock nuts (7).
fig.2
fig.3
fig.5
fig.4
4.4 Refer to fig.4.
4.4.1 Slide the axle (23) through one wheel (22), frame and gearbox,
through the other leg of the frame and then the other wheel.
4.4.2 Looking at the spreader from the front, ensure the axle (23) is
inserted from the left, so that the hole in the end of the axle
(23) lines up with the hole in the right hand side wheel.
4.4.3 Secure the right hand wheel (22) to the axle (23) with the split
pin (12).
4.4.4 Attach the axle (23) to the gear box with the M5 hex bolt (4)
and lock nut (8).
4.4.5 Insert axle caps (14) into the middle of the wheels (22).
fig.4
4.5 Refer to fig.5.
4.5.1 Lower the hopper (17) over the axle and onto the frame and
secure with 4 hex bolts (2), large flat washers (11) and lock
nuts (7).

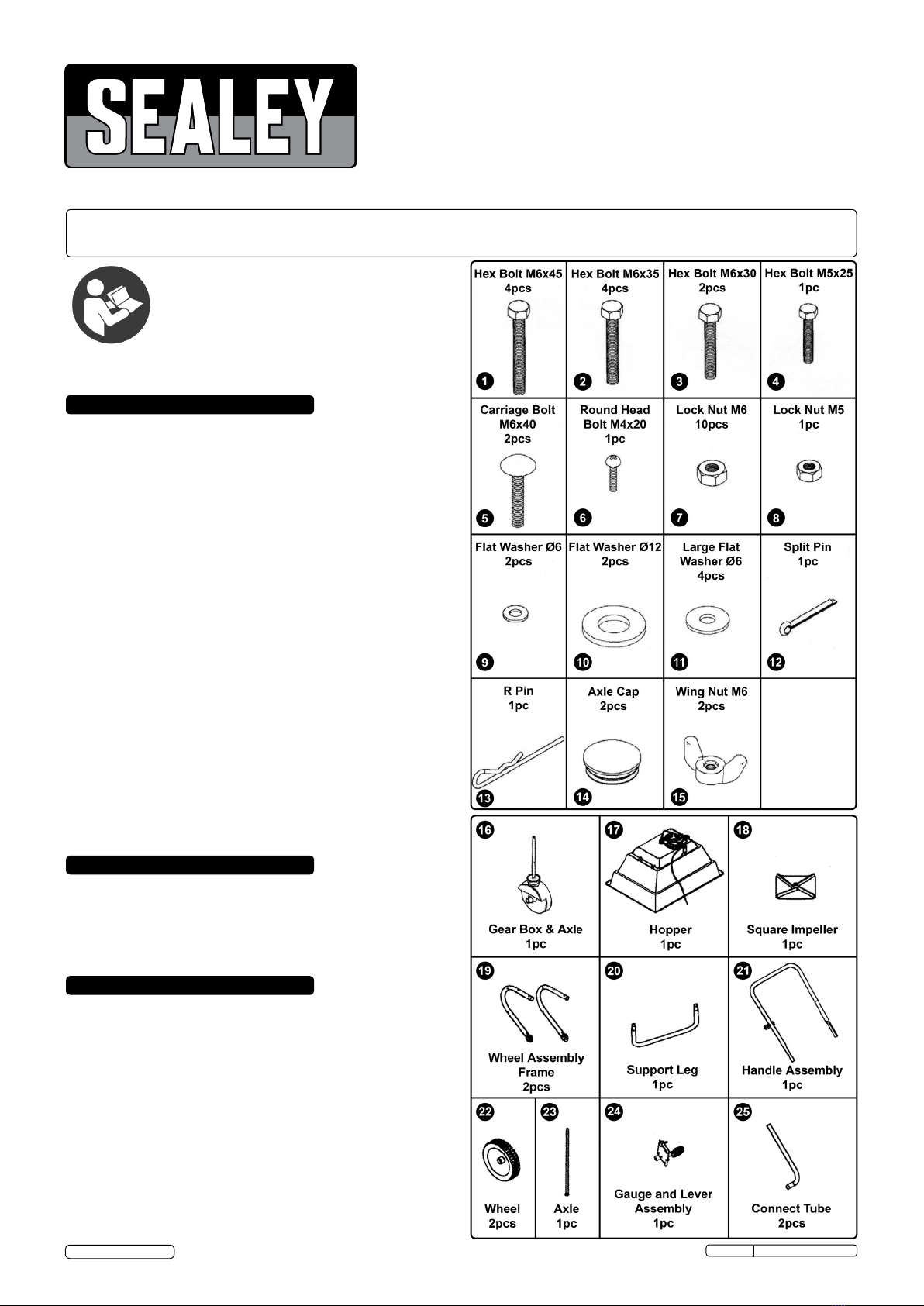

Note! Before assembly ensure there are no missing parts or fixtures.
4.1 Refer to fig.1.
4.1.1 Slide the Impeller (18) over the vertical axle on the gear box (16).
4.1.2 Secure the Impeller to the axle with a round head bolt M4x20 (6).
fig.1
Original Language Version SPB27W Issue: 3(L)- 30/06/17
© Jack Sealey Limited

5.1 The spreader is designed to be pushed at three miles an hour,
which is a brisk walking pace. Slower or faster speeds will
change the spread pattern. Wet fertiliser will also change the
spread pattern.
5.2 Use the Stop bolt on the gauge to ensure the same amount of
distribution.
5.3 See figs.8 & 9 for suggested walking patterns depending on
the level of coverage you require.
5.4 Always start walking prior to opening the flow control plate.
5.5 Every time you are ready to stop, or turn to make a new pass,
close the flow control plate to stop dispensing the material and
continue one more stride. This reduces waste and avoids
damaging a lawn with over saturated product coverage.
5.6 To ensure consistent coverage, make sure each broadcast
pattern slightly overlaps the previous one.
5.7 Make sure that any broadcast material does not come into
contact with trees, shrubs and flowers that could be harmed by
the material.
5.8 Clean the spreader thoroughly after each use paying particular
attention to the shut off plate and the bottom of the hopper.
fig.7
fig.6

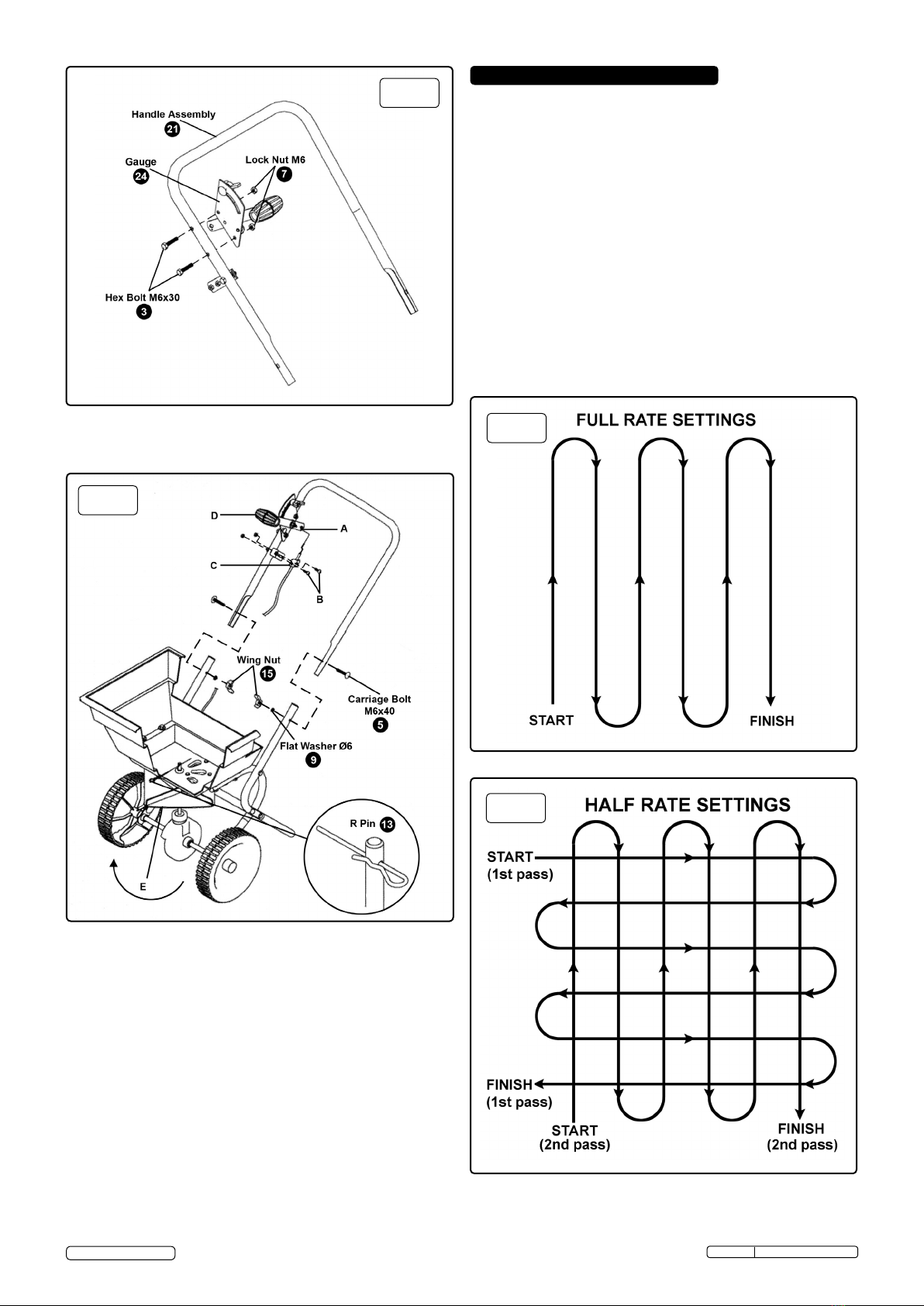

4.6 Refer to fig.6.
4.6.1 Attach the gauge and lever assembly (24) to the inside of the
handle assembly (21). Secure with M6x30 hex bolts (3) and M6
lock nuts (7).
4.7 Refer to fig.7.
4.7.1 Slide the handle assembly around the support leg assembly
and secure with carriage bolts (5), flat washers (9) and wing
nuts (15).
4.7.2 Insert the bent end of the control clamp wire into the small hole
in the lever assembly (A).
4.7.3 Remove the hex bolt from cable clamp then insert the control
cable into the clamp (B,C).
4.7.4 Re-insert hex bolts to clamp control cable in place.
4.7.5 Move the lever (D) down to open the spreader slots in the
bottom of the hopper. If the holes are not fully exposed, loosen
the cable clamp (C) and adjust the cable.
4.7.6 Insert R-pin (13) through top of the vertical axle.
fig.9
fig.8
Original Language Version SPB27W Issue: 3(L)- 30/06/17
© Jack Sealey Limited
5. OPERATION

(CHART 'A') SQUARE FOOT COVERAGE PER BAG (LBS/1000 SQ.FT)
WEIGHT OF BAG (LBS) 5000 SQ.FT COVERAGE 10000 SQ.FT COVERAGE 15000 SQ.FT COVERAGE
5 1.0lb 0.5lb 0.3lb
10 2.0lb 1.0lb 0.7lb
15 3.0lb 1.5lb 1.0lb
20 4.0lb 2.0lb 1.3lb
25 5.0lb 2.5lb 1.7lb
30 6.0lb 3.0lb 2.0lb
35 7.0lb 3.5lb 2.3lb
40 8.0lb 4.0lb 2.3lb
45 9.0lb 4.5lb 3.0lb
50 10.0lb 5.0lb 3.3lb
55 11.0lb 5.5lb 3.7lb
(CHART 'B') SPREADER SETTINGS/SPREADER WIDTHS
MATERIALS TO BE
USED
LBS/1000
SQ.FT
G/M² SPREADER
SETTING
SMALL PARTICLE
SPREAD
MEDIUM PARTICLE
SPREAD
LARGE PARTICLE
SPREAD
GRIT
SEED
FERTILISER
WEED
KILLER
E.T.C.
1 5 5 5-6 ft 6-9 ft 9-12 ft
2 10 8 5-6 ft 6-9 ft 9-12 ft
3 15 10 5-6 ft 6-9 ft 9-12 ft
4 20 13 5-6 ft 6-9 ft 9-12 ft
5 25 15 5-6 ft 6-9 ft 9-12 ft
6 30 18 5-6 ft 6-9 ft 9-12 ft
7 35 20 5-6 ft 6-9 ft 9-12 ft
8 40 23 5-6 ft 6-9 ft 9-12 ft
9 45 25 5-6 ft 6-9 ft 9-12 ft
10 50 28 5-6 ft 6-9 ft 9-12 ft
11 55 30 5-6 ft 6-9 ft 9-12 ft
6.1 After each use clean material out of hopper.
6.1.1 Rinse/dry inside and outside of spreader after each use.
6.1.2 Before operating make sure that the tyres are inflated to the
correct pressure.
6.1.3 Periodically check all fastenings are tight.
6.1.4 Annually clean and lightly lubricate parts.
6.1.5 Touch up all scratched or worn painted metal surfaces.
6.1.6 To avoid damaging the spreader never exceed the rated load
capacity of 27kg.
6.2 STORAGE.
6.2.1 Before storing ensure that the spreader is clean and dry.
6.2.2 Store indoors or in a protected area during severe weather and
in the winter months.
6.2.3 Never allow material to stay in the hopper for extended periods
of time.
5.9 CALCULATING THE AMOUNT OF MATERIAL NEEDED.
(refer to Charts 'A' & 'B')
To calculate the amount of material needed e.g lawn fertiliser,
divide the coverage stated on the packaging by the weight of
the fertiliser bag. For example, a 10lb bag of fertiliser with a
coverage of 10,0000 sq. ft. will distribute 1lb of fertiliser every
1,000 sq.ft. at full rate or 1/2lb. of fertiliser every 1,000 sq. ft. at
half rate.
5.10 For precalculated rates see Chart 'A' (Example: A 25lb bag
with a 15,000 sq. ft. coverage requires 1.7lb of fertiliser per
1,000 sq.ft.
5.11 Use Chart 'B' to find the closest spreader setting. For example,
1.7lb per 1000 sq.ft. = spreader setting 8)
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
01284 757500
01284 703534
[e-mail]
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable)
into approved containers and dispose of the product and the fluids according to local regulations.
