Sealey SA70 User manual

AIR ORBITAL SANDER MINI DISC 50mm
MODEL NO: SA70
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. Operational Safety
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
equipment.
WARNING! Disconnect from air supply before changing accessories or servicing.
9Maintain the sander in good condition (use an authorised service agent).
9Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9Use in a suitable clean and tidy work area and ensure there is adequate lighting.
9Before each use check abrasive pads for condition. If worn or damaged replace immediately.
9Ensure the abrasive pad rating is the same as, or, greater than the RPM rating of the sander.
9Ensure there are no flammable or combustible materials near the work area.
WARNING! Always wear approved eye or face and hand protection when operating the sander.
9Use face, dust, or respiratory protection in accordance with COSHH regulations.
9Depending on the task, sander noise level may exceed 85dB, in which case wear safety ear defenders.
9Remove ill fitting clothing. Remove ties, watches, rings, other loose jewellery and contain and/or tie back long hair.
9Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9Keep children and unauthorised persons away from the work area.
9Check moving parts alignment on a regular basis.
9Ensure workpiece is secure before operating the sander. Never hold a workpiece by hand.
9Check the workpiece to ensure there are no protruding screws, bolts, nuts, nails, stones, etc.
9Avoid unintentional starting.
WARNING! Ensure correct air pressure is maintained and not exceeded. Recommended pressure 70-90psi.
9Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are
secure.
9Prolonged exposure to vibration from this sander poses a health risk. It is the owner’s responsibility to correctly assess the potential
hazard and issue guidelines for safe periods of use and offer suitable protective equipment.
8DO NOT use the sander for a task it is not designed to perform.
8DO NOT operate sander if any parts are damaged or missing as this may cause failure and/or personal injury.
WARNING! DO NOT sand any materials containing asbestos.
8DO NOT carry the sander by the hose, or yank the hose from the air supply.
8DO NOT force, or apply heavy pressure to the sander, let the sander do the work.
8DO NOT place air line attachments close to your face and do not point at other persons or animals.
8DO NOT operate sander when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8DO NOT use sander where there are flammable liquids, solids or gases such as paint solvents and including waste wiping or cleaning
rags etc.
8DO NOT carry the sander with your finger on the power lever.
8DO NOT direct air from the air hose at yourself or others.
9When not in use disconnect from air supply and store in a safe, dry, childproof location.
SA70 Issue 3 (HF) 31/07/18
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear ear
protection
Wear a mask
1.2. LEAD PAINT WARNING!
Paint once contained lead as a traditional ingredient. Contact with the dust from the removal of such paint is toxic and must
therefore be avoided. The following action must be taken before using the grinder on a surface that you suspect may contain lead
paint.
1. User must determine potential hazard relating to age of paint to be removed (modern paints do not have lead content).
2. DANGER! Keep all people and pets away from the working area. The following are particularly vulnerable to the effects of lead
paint dust: Pregnant women, babies and children.
3. We recommend personal protection by using the following safety items:
a) Paint Spray Respirator (Our ref SSP1699)
b) PE Coated Hooded Coverall (Our ref SSP267).
c) Latex Gloves (Our ref SSP24).
4. Take adequate measures to contain the paint dust, flakes and scrapings.
5. Continue to wear safety equipment as in (3) above and thoroughly clean all areas when work is complete. Ensure that paint waste
is disposed of in sealed bags or containers according to local regulations.

2. INTRODUCTION
Contoured composite handle moulded around lightweight aluminium alloy housing reduces e󰀨ects of chill on operator’s hands and provides
added control. Directional, low noise air exhaust can be rotated 360° giving operator added protection. Fitted with safety trigger to prevent
inadvertent operation. Supplied with adjustment spanners.
3. SPECIFICATION
Model No:..................................................................... SA70
Disk Size...................................................................... 50mm
Thread Size ............................................................ M6x1mm
Free Speed ........................................................... 15000rpm
Operating Pressure ...................................................... 90psi
Air Consumption ........................................................... 4cfm
Air Inlet ....................................................................1/4”BSP
Weight........................................................................... 0.6kg
Noise Power/Pressure .................................................186dB
Vibration/ Uncertainty............................................... 6.56m/s2
4. PREPARING FOR USE
4.1. Air Supply
4.1.1. Ensure the sander air valve (or throttle) is in the “O󰀨” position before connecting to the air supply.
4.1.2. You will require an air pressure between 70-90psi, and an air flow according to the specification above.
WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the sander. Too high an air pressure and/or
unclean air will shorten the product life due to excessive wear, and may be dangerous, causing damage and/or personal injury.
4.1.3. Drain the air tank daily. Water in the air line will damage the sander and will invalidate your warranty.
4.1.4. Clean air inlet filter weekly. Recommended hook-up procedure is shown in fig. 2.
4.1.5. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4” I.D. and fittings must have the same inside dimensions.
4.1.6. Keep hose away from heat, oil and sharp edges. Check hoses for wear and make certain that all connections are secure.
4.2. Couplings
Vibration may cause failure if a quick change coupling is connected directly to the air sander. To overcome this, connect a leader
hose to the sander. A quick change coupling may then be used to connect the leader hose to the air line recoil hose. See figs. 2 & 3.
5. OPERATION
WARNING! Ensure you read, understand and apply the safety instructions in Section 1 before use.
5.1. Assembly
5.1.1. To t the backing pad you must rst lock the rotating head using the locking pin(g 4.1). Rotate the head
until the locking hole is visible through the aperture in the outer shroud. Insert the pin as shown in
g.4.1. Screw the backing pad into the threaded hole in the head (see g.4.2) and tighten. Remove the
locking pin. Use only discs with speed ratings equal to or higher than the speed rating of the sander. DO
NOT use cloth backed sanding discs.
5.1.2. Connect air supply to sander, press the control valve lever and check that the sander is working correctly.
5.1.3. The air ow may be regulated by adjusting the regulator valve in the back of the handle.
5.2. Operating
The sander is designed to provide a combined “rotary” and “random orbit” action. Always use a grit
appropriate for the job. Work progressively from coarse grades to finer grades.
8DO NOT go from coarse to ne in one step as it may be di󰀩cult to remove swirl marks left by the coarse
grit.
8DO NOT apply excessive pressure, let the sander do the work for you. Start the sander and bring the
sanding disc to the work surface evenly and slowly. Move the sander back and forth in overlapping areas.
Remove the sanding disc from the work surface before stopping the sander. Regularly check the sanding
disc for wear, always change if cracked or damaged.
8DO NOT allow sander to run in “idle rotation” for an extended period of time, as this will reduce bearing life.
6. MAINTENANCE
WARNING! Disconnect sander from air supply before changing accessories, servicing or performing maintenance. Replace or repair
damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
6.1. If the air supply does not have an oiler lubricate the air sander daily with a few drops of good grade air tool oil such as Sealey
ATO/1000, dripped into the air inlet before use.
6.2. Clean the sander after use and change pads when required.

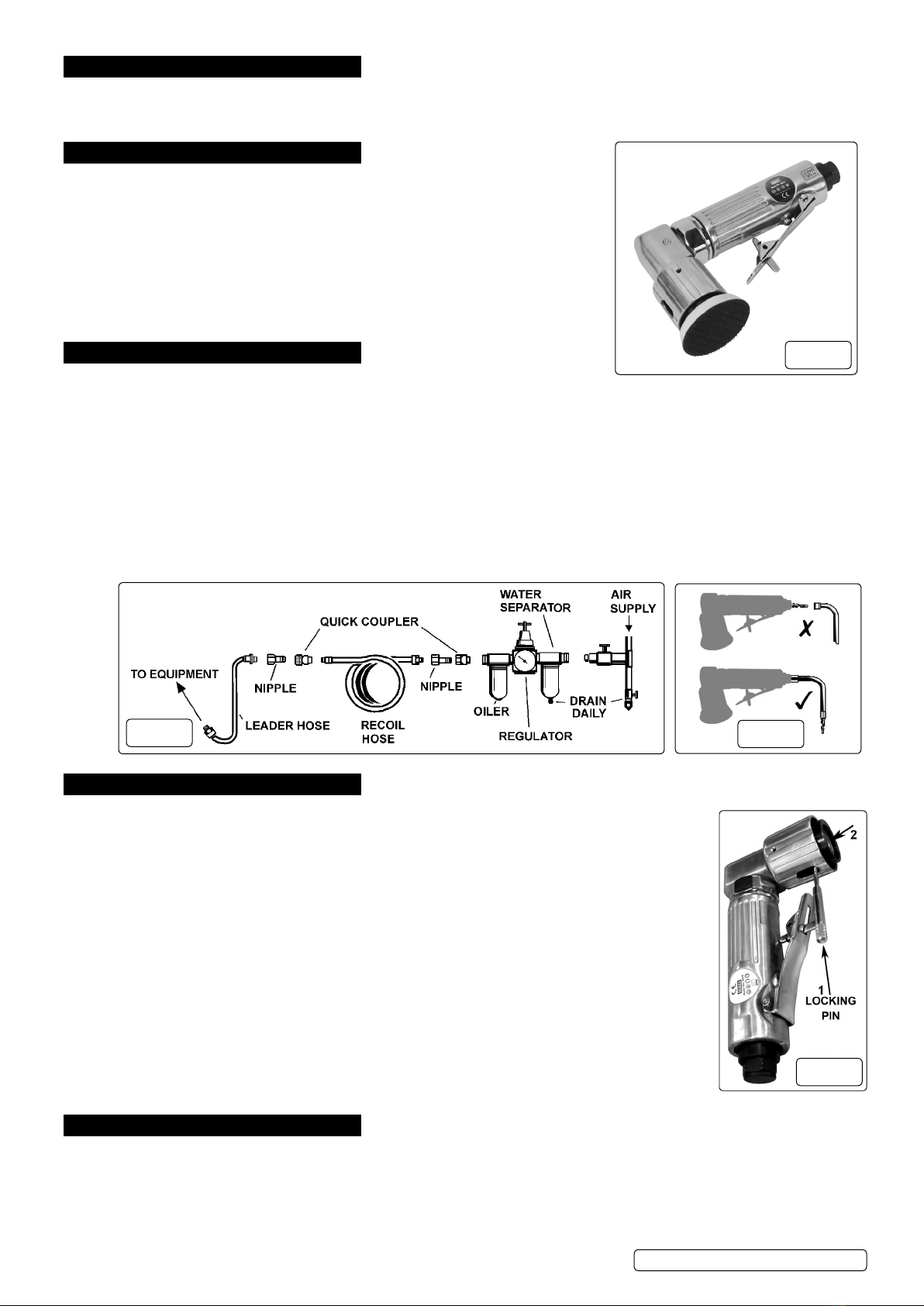

g.1
g.2 g.3
g.4
SA70 Issue 3 (HF) 31/07/18
Original Language Version
© Jack Sealey Limited

6.3. Loss of power or erratic action may be due to the following:
a) Excessive drain on the air line. Moisture or restriction in the air pipe. Incorrect size or type of hose connectors. To remedy check
the air supply and follow instructions in Section 4.
b) Grit or gum deposits in the sander may also reduce performance. If your model has an air strainer (located in the area of the air
inlet), remove the strainer and clean it. Flush the sander out with gum solvent oil or an equal mixture of SAE No 10 oil and kerosene.
Allow to dry before use. If problems continue, contact your local Sealey service agent.
6.4. For a full service contact your local Sealey service agent.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
