Sealey AK466D User manual

OIL DRAINER 230V
MODEL NO: AK466D
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey stockist.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable
Appliance Test) tested.
Electrical safety information, it is important that the following information is read and understood.
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
correct fuse - see fuse rating in these instructions.
8DO NOT pull or carry the appliance by the power cable.
8DO NOT pull the plug from the socket by the cable.
8DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or
is replaced immediately by a qualied electrician.
This product is supplied without a plug and requires a BS1363/A 13 Amp 3 pin plug to be tted.
If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
Ensure that repairs are carried out by a qualied electrician.

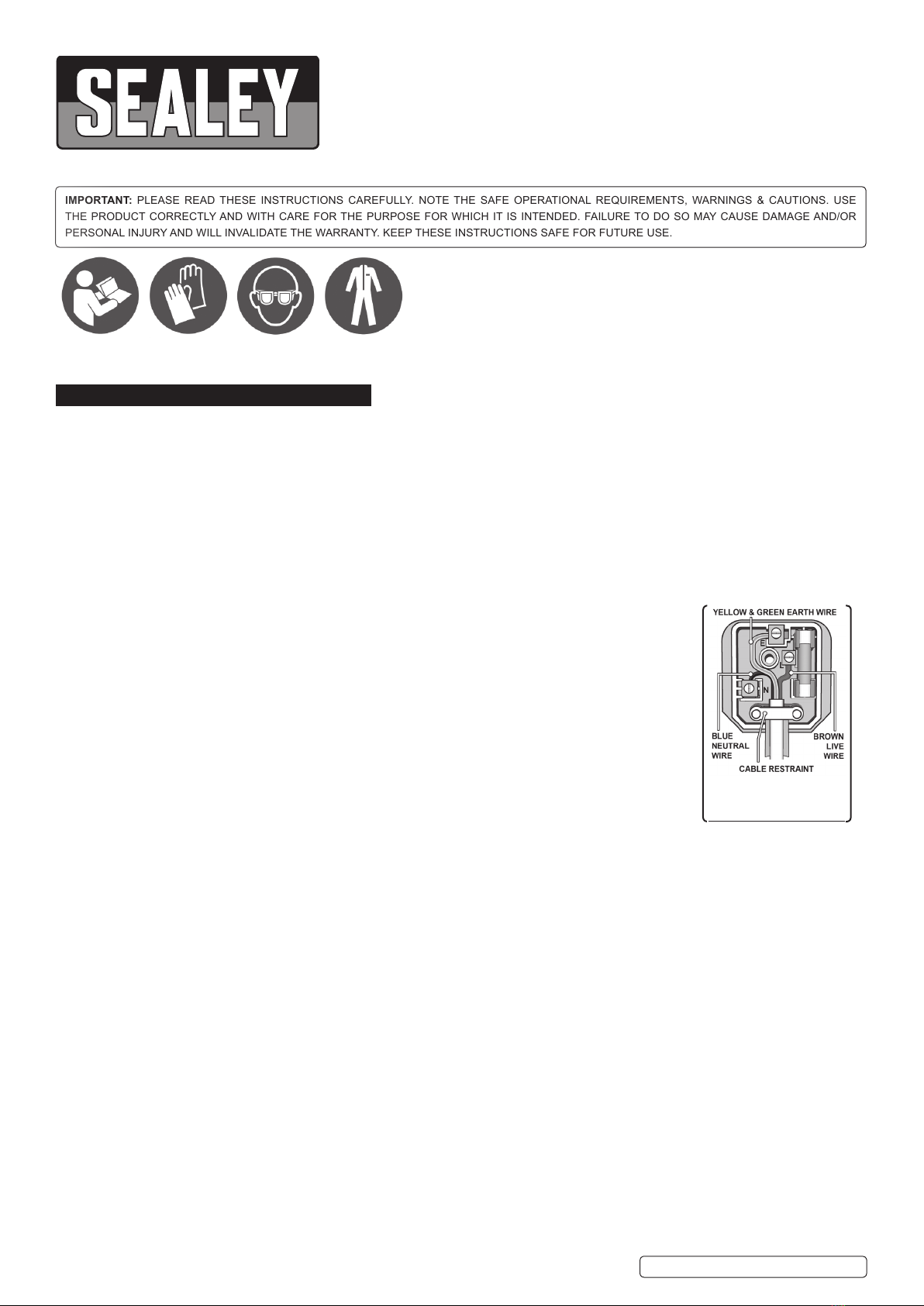

Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
Sealey recommend that repairs are carried out by a qualied electrician.
Cable extension reels. When a cable extension real is used it should be fully unwound before connection. A
cable reel with an RCD fitted is recommended since any product which is plugged into the cable reel will be protected. The section of the
cable on the cable reel is important. We recommend that at least 1.5mm2 section cable but to be absolutely sure that the capacity of the
cable reel is suitable for this product and for others that may be used in the other output sockets, we recommend the use of 2.5mm²
section cable.
1.2. GENERAL SAFETY
WARNING! Disconnect the pump from the mains power before changing accessories, servicing or performing any maintenance.
9Keep the pump clean and maintain it in good condition (use an authorised service agent).
9Replace or repair damaged parts. Use genuine parts only. Non authorised parts may be dangerous and will invalidate the warranty.
9Locate pump in adequate working area for its function, keep area clean & tidy and free from unrelated materials. Ensure there is adequate
lighting.
9Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery, and contain and/ or tie back long hair.
9Sump oil temperature should be 50°C or above for extraction. Ensure you wear appropriate protective clothing and gloves.
9Keep all non essential persons away from the working area.
9Check pump connections and fitting before use. When the pump is turned on check that there are no leaks.
9Ensure the collection tank reservoir capacity exceeds waste oil amount to be collected.
9Avoid unintentional starting of the pump and ensure end nozzle is correctly inserted into the dip stick access hole before operating.
8DO NOT use the pump for any purpose other than for which it is designed.
8DO NOT use to extract diesel, petrol or flammable liquids.
8DO NOT operate the pump if any parts are damaged or missing as this may cause failure or possible personal injury.
8DO NOT pull or yank any pipes or hose, and do not attempt to move the pump by pulling the hose or cable.
8DO NOT leave the pump operating whilst unattended.
8DO NOT direct the nozzle at yourself or others.
8DO NOT pull the cord from the power supply.
WARNING! DO NOT allow uncontrolled discharge of fluids thus polluting the environment.
9Dispose of waste oil in accordance with local authority regulations.
V
AK466D | Issue:4 (H,F) 07/03/18
Original Language Version
© Jack Sealey Limited
Refer to
instruction
manual
Wear
protective
gloves
Wear eye
protection
Wear
protective
clothing
Recommended fuse rating
13Amp

9When not in use unplug from the mains power supply and store in a safe, dry, child proof area.
2. INTRODUCTION
Mobile oil drainer designed to extract oil via the dipstick tube. 12ltr capacity tank allows easy collection and safe disposal of waste oil. Supplied
with two exible Ø6mm and Ø8mm probes, 2mtr inlet hose tted with control tap and Ø2mm, Ø10mm and Ø16mm adaptors. Suitable for
Mercedes.
3. SPECIFICATION
Model no: ..................................................................AK466D
Tank capacity: ................................................................. 12ltr
Supply:...........................................................................230V
Motor power: .................................................................500W
Weight:...................................................................... 16.86kg
4. OPERATION
4.1. Unpack the product and check contents, should there be any damaged or missing parts contact your supplier immediately. Store the
sump extraction probes in storage pipe on the back of the trolley
4.2. Ensure you have read, understood and apply the safety instructions.
4.3. To achieve oil extraction the sump oil temperature must be 50OC or above.
4.4. Check that the waste oil canister cap is correctly screwed on, and the hose tap is turned off.
4.5. Choose the appropriate extraction probe (diameter, flexible or rigid) for the type of vehicle, and push it onto the hose end.
NOTE: To provide a faster extraction, the wider diameter probe is preferred where access allows.

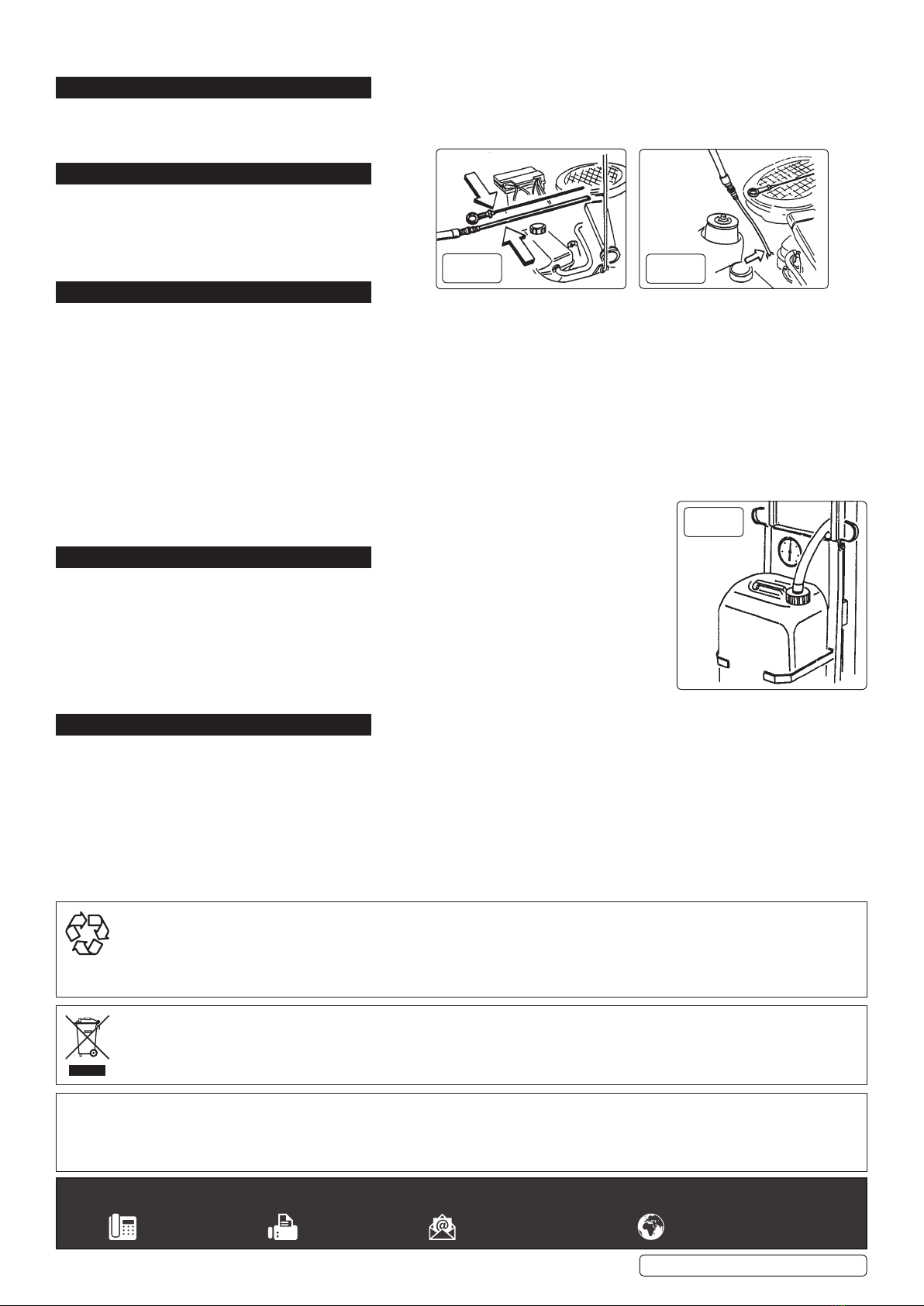

4.6. Check length of the dip stick against the length of the probe (fig 1) to establish an approximate depth, and mark the probe at this point.
4.7. Insert the probe through the dip stick entry hole (fig 2) and gently push the probe down to the bottom of the sump.
4.8. Switch the pump on and open the hose tap. The pressure gauge (fig 3) should register 40cm hg or above as extraction commences.
4.9. When sump is empty the pressure gauge will indicate zero. Move probe around the bottom of the sump to extract any remaining oil.
4.10. Switch the pump off, turn off the hose tap and remove the extraction probe from the sump.
4.11. When extraction is complete unplug from the mains power supply.
4.12. Dispose of waste oil in accordance with local authority regulations.
5. FAULT FINDING
5.1. Should the pressure gauge not reach the required 40cm hg check the following:
a) Ensure the probe has been pushed deep enough to access the oil.
b) Air leak. Ensure all joints and seals on the pump unit and hose are tight.
c) The oil is below the 50°C temperature
c) The extraction may be complete.
5.2. Motor not working:
a) Check electrical supply and connections.
b) Check there are no foreign objects blocking or passing through the motor’s front grill.
6. MAINTENANCE
WARNING! Ensure the drainer is disconnected from the mains electrical supply before attempting any maintenance.
6.1. Keep the unit clean, wipe off any oil spillage.
6.2. Keep the probes clean and check that the tubes are clear.
6.3. Check that all tubes, hoses, and connections are in good condition.
6.4. Regularly check all electrical connections.
6.5. To maintain the motor use an authorised service agent.
fig.1fig.2
fig.3
AK466D | Issue:4 (H,F) 07/03/18
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
