SEARS
operator's
manual
MODEL NO. 143.006004
5.5 RESERVE POWER
11.5 CUBIC INCH (155 cc)
DISPLACEMENT
SOLID STATE IGNITION
CAUTION:
Read RULES for
Safe OPERATION
and INSTRUCTIONS
Carefully
ENGIN
_alifornia Proposition 65 WARNING: The engine exhaust from this product contains chemicals I
known to the State of California to cause cancer, birth defects or other reproductive harm. I
Sold by SEARS, ROEBUCK AND CO., CHICAGO, IL 60684 U.S.A.
and SEARS CANADA, INC., TORONTO, ONTARIO, CANADA
Printed in U.S.A. 2-1-00 181-1222-11

IIIIIHIIIIIIIHIII ]

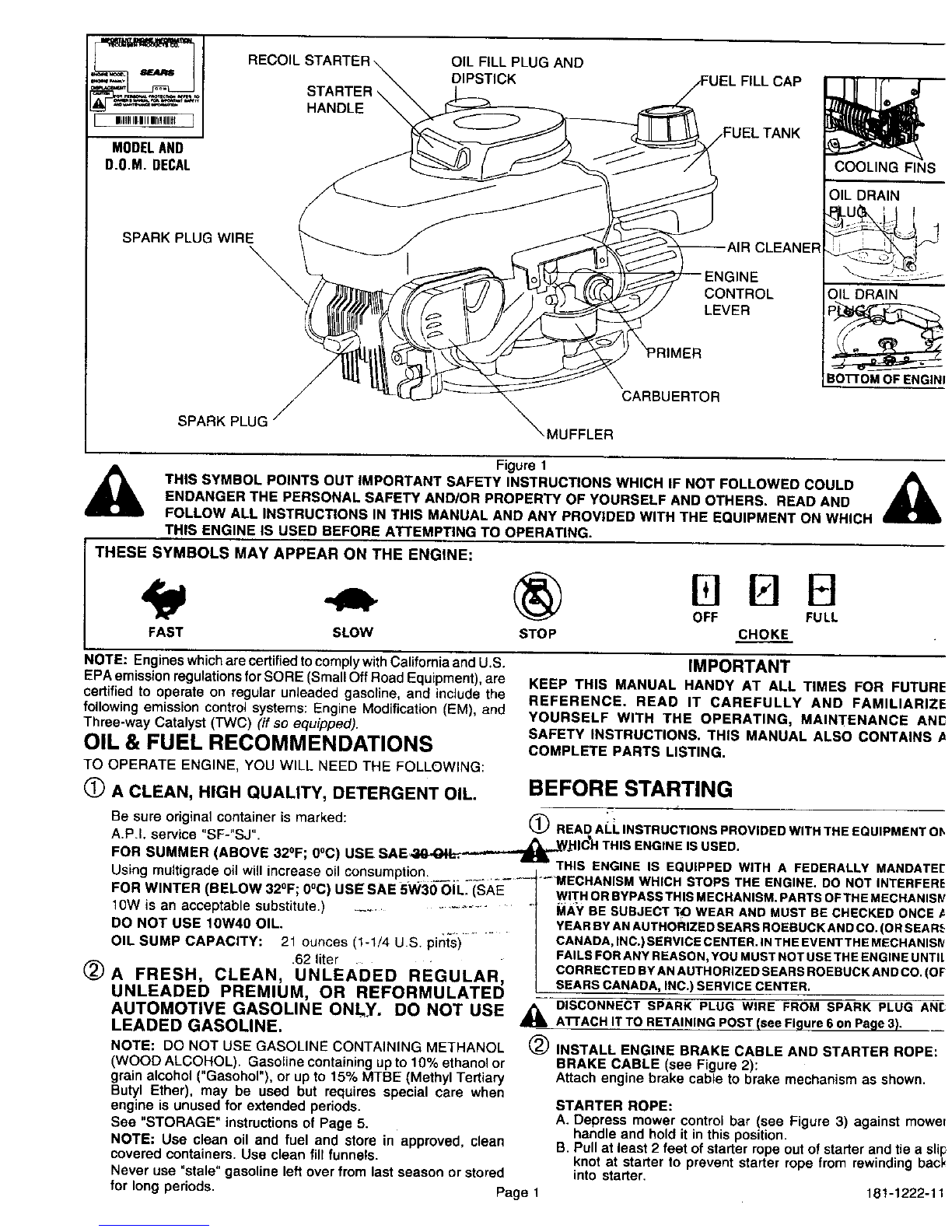

MODELAND
D.O.M. DECAL
SPARK PLUG WIRE
STARTER.
HANDLE
\
SPARK PLUG /
OIL FILL PLUG AND
DIPSTICK
_MUFFLER
FILL CAP
TANK
CLEANER
CONTROL
LEVER
CARBUERTOR
COOLING FINS
OIL DRAIN
,
OIL DRAIN
BOTTOM OF ENGINI
,_ Figure 1 ,_
THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH IF NOT FOLLOWED COULD
ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF YOURSELF AND OTHERS. READ AND
FOLLOW ALL INSTRUCTIONS IN THIS MANUAL AND ANY PROVIDED WITH THE EQUIPMENT ON WHICH
THIS ENGINE IS USED BEFORE ATrEMPTING TO OPERATING.
THESE SYMBOLS MAY APPEAR ON THE ENGINE:
4d E! FI E!
OFF FULL
FAST SLOW STOP CHOKE
NOTE: Engines which are certified to comply with California and U.S.
EPA emission regulations for SORE (Small Off Road Equipment), are
certified to operate on regular unleaded gasoline, and include the
following emission control systems: Engine Modification (EM), and
Three-way Catalyst (TWC) (if so equipped).
OIL & FUEL RECOMMENDATIONS
TO OPERATE ENGINE, YOU WILL NEED THE FOLLOWING:
OA CLEAN, HIGH QUALITY, DETERGENT OIL.
Be sure original container is marked:
IMPORTANT
KEEP THIS MANUAL HANDY AT ALL TIMES FOR FUTURE
REFERENCE. READ IT CAREFULLY AND FAMILIARIZE
YOURSELF WITH THE OPERATING, MAINTENANCE AN r'
SAFETY INSTRUCTIONS. THIS MANUAL ALSO CONTAINS
COMPLETE PARTS LISTING.
A.PJ. service "SF-"SJ".
BEFORE STARTING
READ AI_I.INSTRUCTIONS PROVIDED WITH THE EQUIPMENT O1_
FOR SUMMER (ABOVE 32OF; 00C) USE SAE._)__,HIC_HAt., THIS ENGINE IS USED.
r_THIS ENGINE IS EQUIPPED WITH A FEDERALLY MANDATEE
Using multigrade oil will increase oil consumption.
FOR WINTER (BELOW 32°F; 0°C) USESAE 5W30-'6iL-_A'F-....
10W is an acceptable substitute.) .............
DO NOT USE lOW40 OIL.
OIL SUMP CAPACITY: 21 ounces (1-1/4 U.S. pints)
.62 liter
@A FRESH, CLEAN, UNLEADED REGULAR,
UNLEADED PREMIUM, OR REFORMULATED
AUTOMOTIVE GASOLINE ONLY. DO NOT USE
LEADED GASOLINE.
NOTE: DO NOT USE GASOLINE CONTAINING METHANOL
(WOOD ALCOHOL). Gasoline containing up to 10% ethanol or
grain alcohol ("Gasohol"), or up to 15% MTBE (Methyl Tertiary
Butyl Ether), may be used but requires special care when
engine is unused for extended periods.
See "STORAGE" instructions of Page 5.
NOTE: Use clean oil and fuel and store in approved, clean
covered containers. Use clean fill funnels.
Never use "stale" gasoline left over from last season or stored
for long periods. Page 1
"_MECHANISM WHICH STOPS THE ENGINE. DO NOT INTERFERE
_/!T H OR BYPASS THIS MECHANISM. PARTS OF THE MECHANISLV
MAY BE SUBJECT "_dOWEAR AND MUST BE CHECKED ONCE
YEAR BY AN AUTHORIZED SEARS ROEBUCK AND CO. (OR SEARE
CANADA, INC.) SERVICE CENTER.IN THE EVENTTHE MECHANISrV
FAILS FOR ANY REASON, YOU MUST NOT USE THE ENGINE UNTIL
CORRECTED BY AN AUTHORIZED SEARS ROEBUCK AND CO. (OF
SEARS CANADA, INC.) SERVICE CENTER.
_, DISCONNECT SPARK PLUG WIRE FROM SPARK PLUG AN[,
A'I-rACH IT TO RETAINING POST (see Figure 6 on Page 3).
(_) INSTALL ENGINE BRAKE CABLE AND STARTER ROPE:
BRAKE CABLE (see Figure 2):
Attach engine brake cable to brake mechanism as shown.
STARTER ROPE:
A. Depress mower control bar (see Figure 3) against mower
handle and hold it in this position.
B, Pull at least 2 feet of starter rope out of starter and tie a slip
knot at starter to prevent starter rope from rewinding back
into starter, 181-1222-11

BEFORE STARTING (Continued)
C.
D.
Slide rope stop onto starter rope and feed starter rope
through rope guide on mower handle (see Figure 4).
Feed starter rope through starter handle (see Figure 5) and
tie a left hand knot, leaving 1/2 inch to 1 inch ofstarter rope
extending beyond left hand knot. DO NOT PULL LEFT
HAND KNOT INTO STARTER HANDLE YET.
E. With starter handle resting on rope guide (see Figure 4),
check starter rope for slack. If there is any slack, pull more
starter rope through starter handle and relocate left hand
knot to eliminate slack.
F. Untie slip knot at starter.
G. Pull left hand knot into starter handle.
H. Position rope stop 2 to 3 inches from starter and fasten it
to starter rope by gripping it with pliers and forcing staple
through starter rope until staple is even with outside of rope
stop.
(_) CHECK OIL LEVEL:
IMPORTANT: NEVER RUN ENGINE UNLESS OIL LEVEL IS
BETWEEN "FULL" AND "ADD" MARKS ON
DIPSTICK.
CHECK OIL LEVEL OFTEN DURING ENGINE BREAK-IN.
NEVER RUN ENGINE UNLESS OIL FILL PLUG IS TIGHTENED
SECURELY INTO OIL FILL HOLE.
A. POSITION EQUIPMENT SO ENGINE IS LEVEL.
B. Clean area around oil fill plug (see Figure 1).
C. Remove oil fill plug and dipstick.
D. Wipe dipstick clean, insert it into oil fill hole and tighten
securely.
E. Remove oil fill plug and check oil level. If level is not up to
"FULL" mark on dipstick, add recommended oil, until it is.
POUR SLOWLY. Wipe dipstick clean each time oil level is
checked. DO NOT FILL ABOVE "FULL" MARK ON
DIPSTICK.
F. Replace oil fill plug and tighten securely. See
"MAINTENANCE" section for any future oil level and oil
change instructions (see Page 3).
BEFORE STARTING (Continued)
@FILL FU EL TAN Kwith gasoline as specified in the preceding
"OIL & FUEL RECOMMENDATIONS," item 2.
NEVER MIX OIL WITH GASOLINE
Never use "stale" gasoline left over from last season or stored
for long periods.
NEVER FILL FUEL TANK INDOORS, NEVER FILL FUEL
TANK WHEN ENGINE IS RUNNING OR HOT. DO NOT
SMOKE WHEN FILLING FUEL TANK.
NEVER FILL FUEL TANK COMPLETELY. FILL TANK TO 1/
2" BELOW BOTTOM OF FILLER NECK TO PROVIDE SPACE
IFOR FUEL EXPANSION. WIPE ANY FUEL SPILLAGE FROM
ENGINE AND EQUIPMENT BEFORE STARTING ENGINE.
,_ ANY LIQUEFIED PETROLEUM (LPG) OR NATURAL GAS
FUEL SYSTEM MUST BE LEAKPROOF AND MEET ALL
i APPLICABLE CODES AND REGULATIONS.
(_) CHECK THE FOLLOWING:
,_A. BE SURE EQUIPMENT IS IN NEUTRAL GEAR WITH 1
CLUTCHES, BELTS, CHAINS AND SAFETY SWITCHES I
DISENGAGED. (FOLLOW EQUIPMENT MANU-
II FACTURER'S INSTRUCTIONS.) THIS SHOULD PLACE I
iANY SAFETY SWITCHES IN SAFE STARTING POSITION. I
B. Be sure spark plug wire is attached to spark plug (see
Figure 1).
\ MOWER HANDLE
MOWER
CONTROL
STARTER
STARTER
HANDLE
/
J
/
/
F
BRAKE MECHANISM
Figure 2
Figure 3
STARTER HAN[
NO SLACK
PERMISSIBLE
MOWER HANDLE
Figure 4
STARTER
HANDLE
Page2
LEFT
HANDED
KNOT
STARTER RG
Figure 5
1/2 TO 1 INCH
181-1222-11

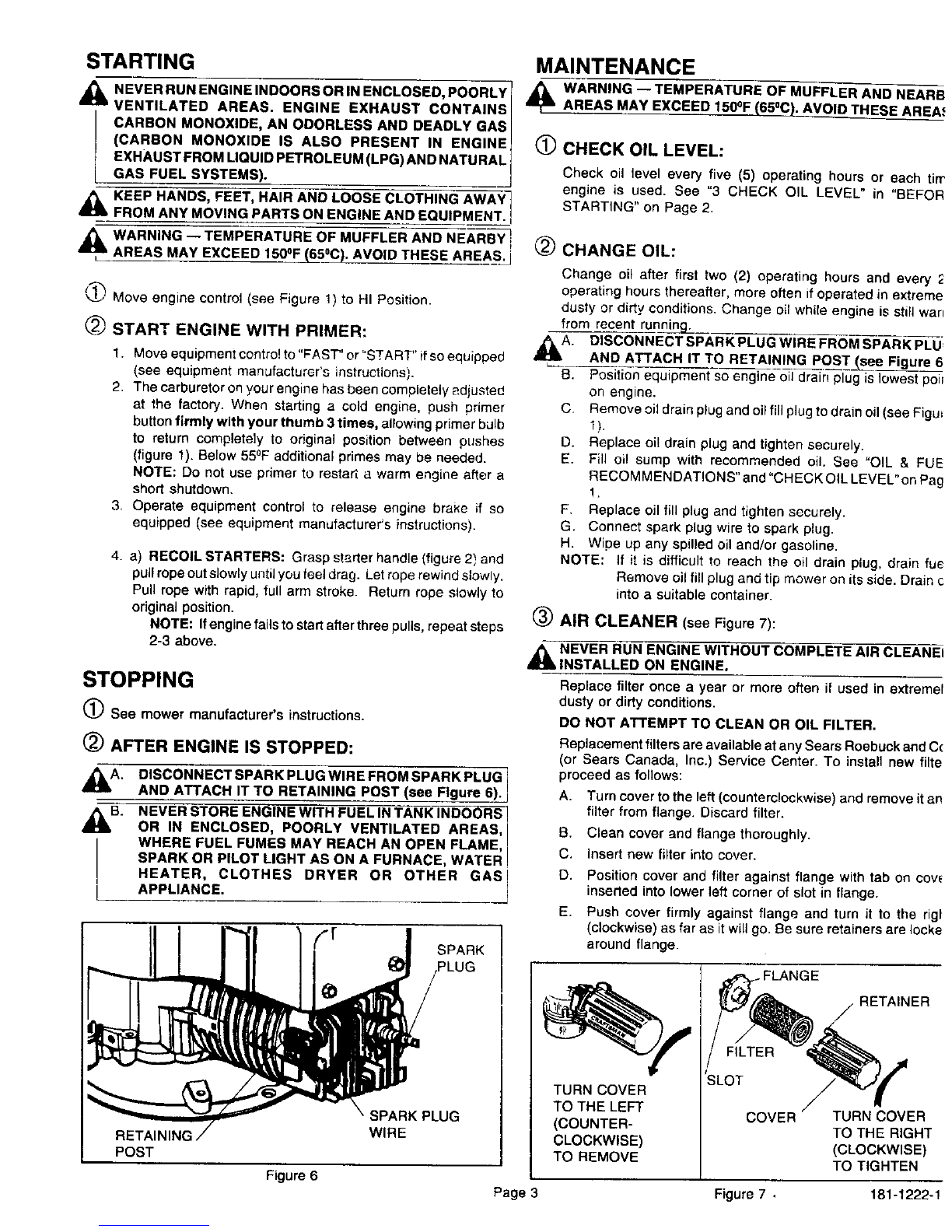

STARTING MAINTENANCE
_NEVER RUN ENGINE INDOORS OR IN ENCLOSED, POORLY
VENTILATED AREAS. ENGINE EXHAUST CONTAINS
CARBON MONOXIDE, AN ODORLESS AND DEADLY GAS
(CARBON MONOXIDE IS ALSO PRESENT IN ENGINE
EXHAUST FROM LIQUID PETROLEUM (LPG) AND NATU RAL
GAS FUEL SYSTEMS).
_lk KEEP HANDS, FEET, HAIR AND LOOSE CLOTHING AWAY
FROM ANY MOVING PARTS ON ENGINE AND EQUIPMENT.
_WARNING -- TEMPERATURE OF MUFFLER AND NEARBY I
AREAS MAY EXCEED 150°F (65°C). AVOID THESE AREAS. i
_. Move engine control (see Figure 1) to HI Position.
START ENGINE WITH PRIMER:
1. Move equipment centre! to"FAST" or "START" ifso equipped
(see equipment manufacturer's instructions).
2. The carburetor on your engine has been completely adjusted
at the factory. When starting acold engine, push primer
button firmly with your thumb 3 times, allowing primer bulb
to return completely to original position between pushes
(figure 1). Below 55°F additional primes may be needed.
NOTE: Do not use primer to restart a warm engine after a
short shutdown.
3. Operate equipment control to release engine brake if so
equipped (see equipment manufacturer's instructions).
4. a) RECOIL STARTERS: Grasp starter handle (figure 2) and
pull rope out slowly until you leel drag. Let rope rewind slowly.
Pull rope with rapid, full arm stroke. Return rope slowly to
original position.
NOTE: Ifengine fails to start after three pulls, repeat steps
2-3 above.
STOPPING
(_See mower manufacturer's instructions,
(_) AFTER ENGINE IS STOPPED:
,_llbA. DISCONNECT SPARK PLUG WIRE FROM SPARK PLUG I
AND ATTACH IT TO RETAINING POST (see Figure 6_)j
_I=B. NEVER STORE ENGINE WITH FUEL IN TANK INDOORS I
OR IN ENCLOSED, POORLY VENTILATED AREAS, I
WHERE FUEL FUMES MAY REACH AN OPEN FLAME, I
SPARK OR PILOT LIGHT AS ON A FURNACE, WATER !
HEATER, CLOTHES DRYER OR OTHER GAS
APPLIANCE.
(,-[ SPARK
,PLUG
/
/
POST
Figure 6
SPARK PLUG
WIRE
Page
_IL WARNING -- TEMPERATURE OF MUFFLER AND NEARB
AREAS MAY EXCEED t50°F (65°C). AVOID THESE AREAl
CHECK OIL LEVEL:
Check oil level every five (5) operating hours or each tirr
engine is used. See "3 CHECK OIL LEVEL" in "BEFOR
STARTING" on Page 2.
(_ CHANGE OIL:
Change oil after first two (2) operating hours and every ,_
o_erating hours thereafter, more often if operated in extreme
dusty or dirty conditions. Change oil while engine is still war
from recent runnin+q=
_hA. DISCONNECT SPARK PLUG WIRE FROM SPARK PLU
AND ATTACH IT TO RETAINING POST (see Figure 6
B. Position equipment so engine oil drain plug is lowest poll
on engine.
C. Remove oi_drain p_ug and oil fill plug to drain oil (see Figu_
1).
D. Replace oi! drain plug and tighten securely.
E. Fill oil sump with recommended oil. See "OIL & FUE
RECOMMENDATIONS" and "CHECK OIL LEVEL" on Pag
!.
F. Replace oil fill plug and tighten securely.
G. Connect spark plug wire to spark plug.
H. Wipe up any spilled oil and/or gasoline.
NOTE: If it is difficult to reach the oil drain plug, drain fue
Remove oil flit plug and tip mower on its side. Drain c
into a suitable container.
€_) AIR CLEANER (see Figure 7):
_NEVER RUN ENGINE WITHOUT COMPLETE AIR CLEANEI
INSTALLED ON ENGINE.
Replace filter once a year or more often if used in extremef
dusty or dirty conditions.
DO NOT ATTEMPT TO CLEAN OR OIL FILTER.
Replacement filters are available at any Sears Roebuck and C(
(or Sears Canada, Inc.) Service Center. To install new filte
proceed as follows:
A. Turn cover to the left (counterclockwise) and remove it an
filter from flange, Discard fitter.
S. Clean cover and flange thoroughly.
C. Insert new filter into cover.
D. Position cover and filter against flange with tab on cow
inserted into lower left corner of slot in flange.
E. Push cover firmly against flange and turn it to the rigl
(clockwise) as far as it will go. Be sure retainers are locke
around flange.
TURN COVER
TO THE LEFT
(COUNTER-
CLOCKWISE)
TO REMOVE
_FLANGE
FILTER
_SLOT
COVER
RETAINER
TURN COVER
TO THE RIGHT
(CLOCKWISE)
TO TIGHTEN
Figure 7 •181-1222-1

MAINTENANCE (Continued)
(_) SPARK PLUG (see Figure8):
This spark ignitionsystem meets all requirements ofthe Canadian
Interference-Causing Equipment Regulations. This engine
complies with all current Australian and New Zealand limitations
regarding electromagnetic interference.
Check spark plug yearly or every 100 operating hours.
A. Clean area around spark plug.
B. Remove and inspect spark plug.
C. Replace spark plug if electrodes are pitted, burned or
porcelain is cracked. For replacement use Champion
RJ 19LM.
NOTE: A resistor spark plug must be used for replacement.
D. Check electrodes gap with wire feeler gauge and set gap at
.030 if necessary.
E. Install spark plug, tighten securely.
.030 GAP PORCELAIN
Figure 8
(_ COOLING SYSTEM:
IMPORTANT: Frequently remove any grass clippings, dirt and
debris from cooling fins,air intake screen and levers and linkage
(see Figure 1). This will help ensure adequate cooling and
correct engine speed.
6_ CHECK ENGINE AND EQUIPMENT OFTEN FOR LOOSE I
_NUTS, BOLTS AND ATTACHMENTS, AND KEEP THESE
ITEMS TIGHTENED.
I
,i
ADJUSTMENTS
DO NOT MAKE UNNECESSARY ADJUSTMENTS. FACTORY
SETTINGS ARE SATISFACTORY FOR MOST APPLICATIONS
AND CONDITIONS. IF ADJUSTMENTS ARE NEEDED,
PROCEED AS FOLLOWS:
(_) CARBURETOR
If you think your carburetor needs adjusting, see your nearest
SEARS, ROEBUCK AND CO. (OR SEARS CANADA, INC.)
SERVICE CENTER. Engine performance should not be affected
at altitudes up to 7,000 feet. For operation at higher elevations,
contact your nearest SEARS, ROEBUCK AN D CO. (OR SEARS
CANADA, INC.) SERVICE CENTER.
_) ENGINE SPEED
_1= NEVER TAMPER WITH ENGINE GOVERNOR WHICH IS
FACTORY SET FOR PROPER ENGINE SPEED.
OVERSPEEDING ENGINE ABOVE FACTORY HIGH SPEED
SETTING CAN BE DANGEROUS.
CHANGING OF ENGINE-GOVERNED SPEED WILL VOID
ENGINE WARRANTY.
STORAGE
_NEVER STORE ENGINE WITH FUEL IN TANK INDOORS OR
IN ENCLOSED, POORLY VENTILATED AREAS, WHERE
FUEL FUMES MAY REACH AN OPEN FLAME, SPARK OR
PILOT LIGHT AS ON A FURNACE, WATER HEATER,
CLOTHES DRYER OR OTHER GAS APPLIANCE.
IF ENGINE IS TO BE UNUSED FOR 30 DAYS OR MORE,
PREPARE AS FOLLOWS:
ODRAIN FUEL SYSTEM:
A. Remove all gasoline from carburetor and fuel tank to
prevent gum deposits from forming on these parts and
causing possible malfunction of engine.
_i DRAIN FUEL INTO APPROVED CONTAINER OUTDOORS, ]
AWAY FROM OPEN FLAME. BE SURE ENGINE IS COOL. i
I DO NOT SMOKE.
B. Run engine until fuel tank is empty and engine stops due to
lack of fuel.
NOTE: Fuel stabilizer (such as STA-BtL) is an acceptable
alternative in minimizing the formation of fuel gum
deposits during storage. Add stabilizer to gasoline in
fuel tank or storage container. Always follow mix ratio
found on stabilizer container. Run engine at least 10
minutes after adding stabilizer to allow it to reach
carburetor.
(_) CHANGE OIL:
Change oil if it has not been changed in the last three (3)
months. See "CHANGE OIL" instructionsin "MAINTENANCE"
section on Page 3.
(_ OIL CYLINDER BORE:
A. Remove spark plug and pour one (1) ounce (30 ml) of
engine oil into spark plug hole.
B. Cover spark plug hole with a rag.
C. Crank engine over, slowly, several times.
AVOID SPRAY FROM SPARK PLUG HOLE WHEN
CRANKING ENGINE OVER SLOWLY.
D. Replace spark plug,
@CLEAN ENGINE:
Remove any clippings, dirt, or chaff from exterior of engine,
GENERAL
Just as your automobile needs professional mechanical maintenance
from time to time, so does your Craftsman engine. Replacement of
the spark plug and air cleaner is made necessary by NORMAL use.
Professional Air-Cooled Engine Service is as close as your nearest
Sears Roebuck and Co. (or Sears Canada, Inc.) Service Center.
A yearly check-up or tune-up by Sears is a good idea to avoid
breakdowns or delay.., do it at the end of the season, then you're
ready for the next. We even prepare it for storage for you.
Page 4 181-1222-11

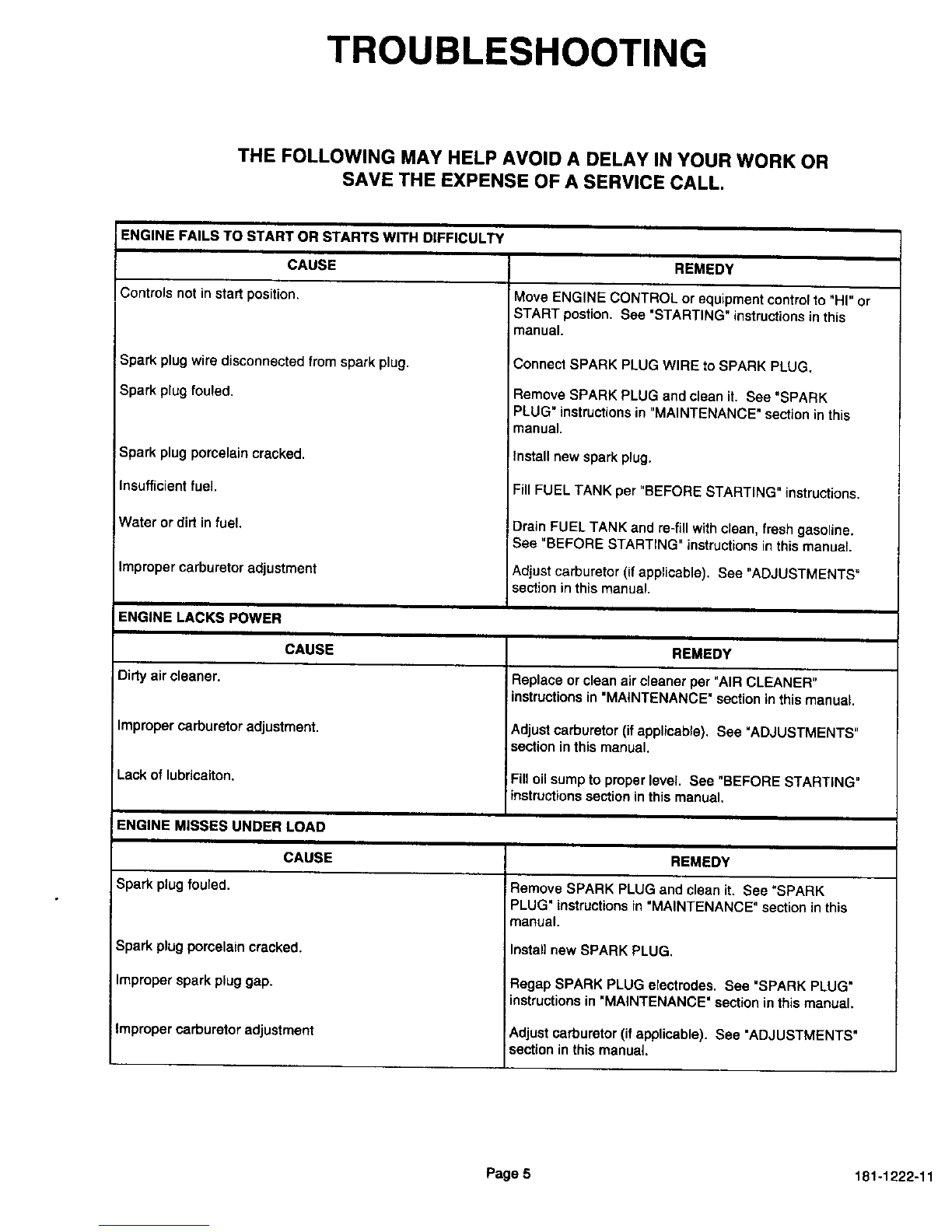

TROUBLESHOOTING
THE FOLLOWING MAY HELP AVOID A DELAY IN YOUR WORK OR
SAVE THE EXPENSE OF A SERVICE CALL.
ENGINE FALLS TO START OR STARTS WITH DIFFICULTY
CAUSE REMEDY
Controls not in start position.
Sparkplug wire disconnectedfrom spark plug.
Spark plug fouled,
Spark plug porcelain cracked.
Insufficient fuel.
Water or dirt in fuet,
Improper carburetor adjustment
Move ENGINE CONTROL or equipment control to "HI" or
START postion. See "STARTING" instructions in this
manual.
Connect SPARK PLUG WIRE to SPARK PLUG.
Remove SPARK PLUG and clean if. See "SPARK
PLUG" instructions in "MAINTENANCE" section in this
manual.
Install new spark plug.
Fill FUEL TANK per "BEFORE STARTING" instructions.
Drain FUEL TANK and re-fill with ctean, fresh gasoline.
See "BEFORE STARTING" instructions in this manual.
Adjust carburetor (if applicable). See "ADJUSTMENTS"
section in this manual.
ENGINE LACKS POWER
CAUSE
Dirty air cleaner,
Improper carburetor adjustment.
Lack of lubricaiton.
REMEDY
Replace or clean air cleaner per "AIR CLEANER"
instructions in "MAINTENANCE" section in this manual.
Adjust carburetor (if applicable), See "ADJUSTMENTS"
section in this manual.
Fill oil sump to proper level. See "BEFORE STARTING"
instructionssection in this manual,
ENGINE MISSES UNDER LOAD
CAUSE
Spark plug fouled.
Spark plugporcelaincracked.
Improper sparkpluggap.
Improper carburetor adjustment
REMEDY
Remove SPARK PLUG and clean it. See "SPARK
PLUG" instructions In "MAINTENANCE" section in this
manual.
Install new SPARK PLUG,
Regap SPARK PLUG electrodes. See "SPARK PLUG"
instructions in "MAINTENANCE" section in this manual.
Adjust carburetor (if applicable). See "ADJUSTMENTS"
section in this manual
Page 5 181-1222-11

SEARS, ROEBUCK AND CO.
Federal and California Emission Control Systems Limited Warranty
Small Off-Road Engines
CALIFORNIA & US EPA EMISSION CONTROL
WARRANTY STATEMENT
The U. S. Environmental Protection Agency ("EPA"), the California Air Resources
Board ("CARB") and Sears, Roebuck and Co. are pleased to explain the Federal
and California Emission Control Systems Warranty on your new small off-road
engine. In California, new 1995 and later small off-road engines must be
desilgned, built and equipped to meet the State's stringent anti-smog standards.
In other states, new 1997 and later model year engines must be designed, built
and equipped, at the time of sale, to meet the U.S EPA regulations for small non-
road engines. Sears, Roebuck and CO. will warrant the emission control system
on your small off-road engine for the periods of time listed below, provided there
has been no abuse, neglect, unapprovod modification, or improper maintenance
of your small off-road engine.
"four emission control system may include parts such as the carburetor, ignition
system and exhaust system. Also included may be the compression release
system and other emission-related assemblies.
Where a warrantable condition exists, Sears, Roebuck and Co. will repair your
small off-road engine at no cost to you for diagnosis, parts and labor.
MANUFACTURER'S EMISSION CONTROL SYSTEM
WARRANTY COVERAGE
Emission control systems on 1995 and later model year Catifomia small off-road
engines are warranted for two years as hereinafter noted. In other states, 1997
and later model year engines are also warranted for two years. If, during such
warranty period, any emission-related part on your engine is defective in materials
or workmanship, the part will be repaired or replaced by Sears, Roebuck and CO.
OWN ER'S WA RRANTY RESPONSIBIMTIES
AS the small off-road engine owner, you are responsible for the performance of
the required maintenance listed in your Owner's Manual but Sears. Roebuck and
Co. will not deny warranty solely due to the lack of receipts or for your failure to
provide written evidence of the performance of all scheduled maintenance.
As the small off-road engine owner, you should, however, be aware that Sears.
Roebuck and CO. may deny you warranty coverage if your small off-road engine or
a part thereof has fai_ed due to abuse, neglect, improper maintenance or
unapproved modifications.
You are responsible for presenting your small off-road engine to aSears,
Roebuck and Co. Authorized Service Outlet as soon as a problem exists. The
warranty repairs should be completed in a reasonable amount of time, nct to
exceed 30 days.
Warranty service can be arranged by contacting either a Sears, Roebuck and Co,
Authorized Service Outlet. or by contacting Sears, Roebuck and Co. at 1-800-
473-7247.
IMPORTANTNOTE
This warranty statement explains your rights and obligations under the Emission
Control System Warranty (=ECS Warranty") which is provided to you by Sears,
Roebuck and Co. pursuant to California law. See also the Sears, Roebuck and
Co. Limited Warranties for Sears, Roebuck and Co. which is enclosed therewith
on a separate sheet and also is provided to you by Sears, Roebuck and Co. The
ECS Warranty applies only to the emission control system of your new engine.
To the extent that there is any conflict in terms between the ECS Warranty and the
Sears, Roebuck and Co. Warranty, the ECS Warranty shall apply except in any
circumstances in which the Sears, Roebuck and Co. Warranty may provide a
longer warranty period. Both the ECS Warranty and the Sears, Roebuck and Co.
Warranty describe important rights and obligations with respect to your new
engine.
Warranty service can only be performed by aSears, Roebuck and Co. Authorized
Service Outlet. At the time of requesting warranty service, evidence must be
presented of the date of sale to the original purchaser. The purchaser shall pay
any charges for making service calls and]or for transporting the plroducts to and
from the place where the inspection and/or warranty work is performed, The
purchaser shall be responsible for any damalge or loss incurred in connection with
the transportation of any engine or any part(s) thereof submitted for inspection
and/or warranty work.
If you have any questions regarding your warranty rights and responsibilities, you
should contact Sears, Roebuck and Co. at 1-800-473-7247,
EMISSION CONTROL SYSTEM WARRANTY
Emission Control System Warranty (=ECS Warranty") for 1995 and later model
year California small off-rood engines (for other states, 1997 and later model year
engines):
A. APPLICABILITY: This warranty shall apply to 1995 and later model year
California small off-road engines (for other states, 1997 and later model year
engines). The ECS Warranty Period shall begin on the date the new engine or
equipment is delivered to its original, end-use purchaser, and shall continue for
24 consecutive months thereafter.
B. GENERAL EMISSIONS WARRANTY COVERAGE: Sears, Roebuck and Co.
warrants to the original, eod-use purchaser of the new enlgine or equipment and to
each subsequent purchaser that each of its small off-roadengines is:
1. Designed, built and equipped so as to conform with all applicable
regulations adopted by the Air Resources Board pursuant to its authority in
Chapters 1 and 2, Part 5, Division 26 of the Health and Safety Code, and
2Free from defects in materials and workmanship which, at any time dudng
the ECS Warranty Period. will cause awarranted emissions-related part to
fail to be idengca/in all material respects to the part as described in the
engine manufacturer's application for certification.
C. The ECS Warran y on y perfa nso em ss ons- ea ed parts on your engine, as
follows:
g.
Any warranted, emissions-relatsd parts which are not scheduled for
replacement as required maintenance in the Owner's Manual shall be
warranted for the ECS Warranty Period. If any such part fails during the
ECS Warranty Period, it shall be repaired or replaced by Sears, Roebuck
and Co. according to Subsection 4 below. Any such part repaired or
replaced under the ECS Warranty shall be warranted for any remainder of
the ECS Warranty Period,
Any warranted, emissions-related part which is scheduled only for regular
inspection as specified in the Owner's Manual shall be warranted for the
ECS Warranty Period. A statement in such written instructions to the
effect of =repair or replace as necessary", shall not reduce the ECS
Warranty Period. Any such part repaired or replaced under the ECS
Warranty shall be warranted for the remainder of the ECS Warranty
Period.
3.
4.
Any warranted, emissions-related part which is scheduled for replacement
as required maintenance in the Owner's Manual, shall be warranted for the
period of time prior to the first scheduled replacement point for that part. if
the part fails pdor to the first scheduled replacement, the part shall be
repaired or replaced by Sears, Roebuck and Co. according to Subsection 4
below. Any such emissions-related part repaired or replaced under the
ECS Warranty, shall be warranted for the remainder of the ECS Warranty
Period prior to the first scheduled replacement point for such emissions-
related part.
Repair or replacement of any warranted, emissions-related part under this
ECS Warranty shall be performed at no charge to the owner at a Sears,
Roebuck and Co. Authorized Service Outlet.
5.
6.
7.
8.
9.
The owner shall not be charged for diagnostic _abor which leads to the
determination that a part covered by the ECS Warranty is in fact defective,
provided that such diagnostic work is performed at a Sears, Roebuck and
Co. Authorized Service Outlet.
Sears. Roebuck and CO. shall be fiable for damages to other original
engine components or approved modifications proximately caused by a
failure under warranty of an emission-related part covered by the ECS
Warranty.
Throughout the ECS Warranty Period, Sears, Roebuck and Co. shall
maintain asupply of warranted emission-related parts sufficient to meet
the expected demand for such emission-related pads.
Any Sears, Roebuck and Co. authorized and approved emission-related
replacement part ma_' be used in the performance of any ECS Warranty
maintenance or repaLr and wil! be provided without charrge to the owner.
Such use shall not reduce Sears, Roebuck and Co. ECSWarranty
obligations.
Unapproved add-on or modified parts may not be used to modify or repair
aSears, Roebuck and Co. engine. Such use voids this ECS Warranty and
shall be sufficient grounds for disallowing an ECS Warranty claim. Sears,
Roebuck and Co. shall not be liable hereunder for failures of any warrantsc
parts of a Sears, Roebuck and CO. engine caused by the use of such an
unapproved add-on or modified part.
EMISSION-RELATED PARTS INCLUDE THE FOLLOWING:
1. Carburetor Assembly and its Internal Components
a) Fuel filter
b) Carburetor gaskets
c) Intake pipe
2, Air Cleaner Assembly
a) Air filter element
3. Ignition System, including:
a) Spark plug
b) Ignition module
c) Flywheel assembly
4. Catalytic Muffler (if so equipped)
a) Muffler gasket (if so equipped)
b) Exhaust manifold (if so equipped)
5. Crankcase Breather Assembly and its Components
a) Breather connection tube
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Page 6
I0f27)99 EPA/CARB
181-1222-1

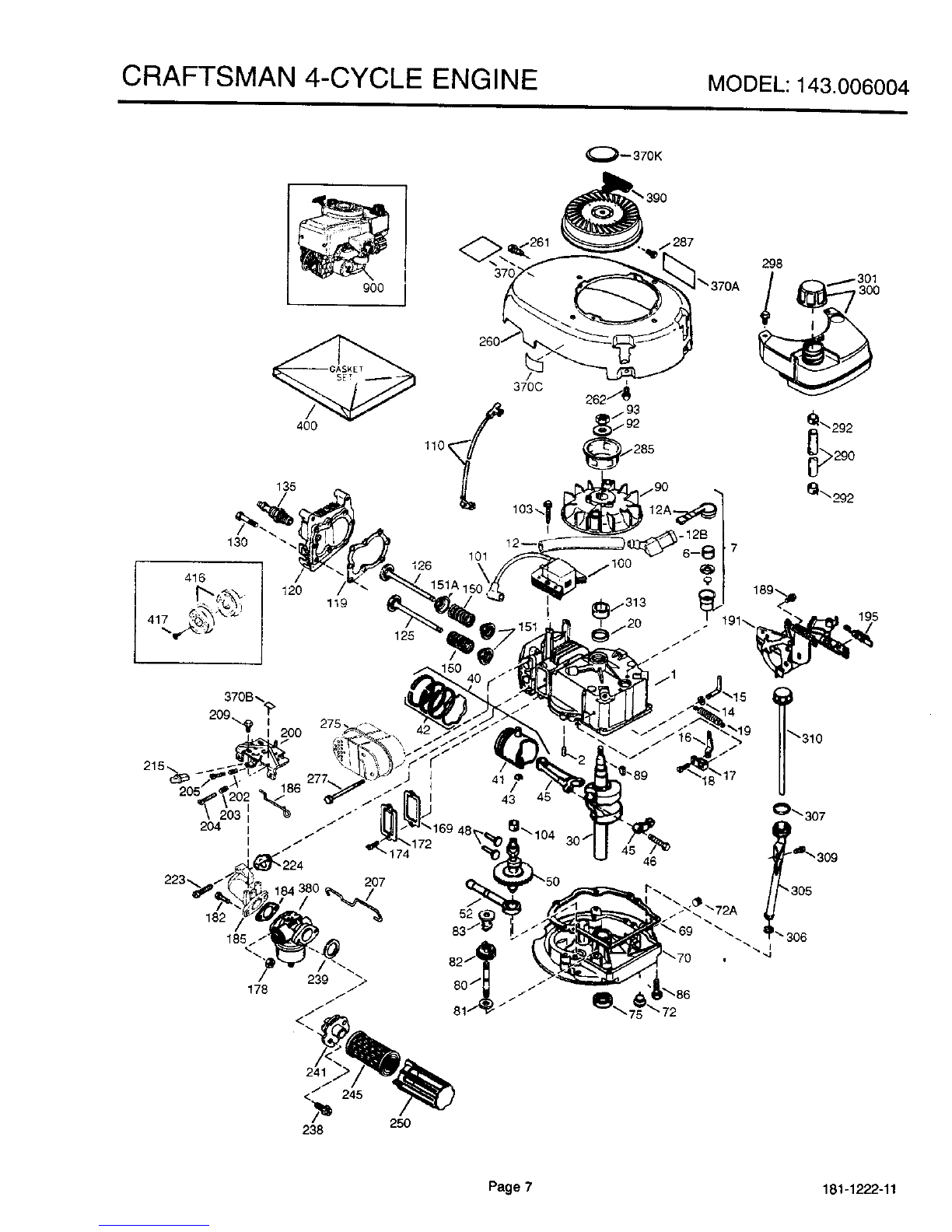

CRAFTSMAN 4-CYCLE ENGINE MODEL: 143.006004
_--370K
900 I
400
135
126
125
370C
_390
/287
298
7
•305
306
Page 7 181-1222-11

CRAFTSMAN 4-CYCLE ENGINE MODEL:143.006004
Ref.
No.
1
2
6
7
12
12A
12B
14
!5
!6
17
18
19
2O
30
40
40
41
41
42
42
43
45
46
48
5O
52
69
7O
72
72A
75
8O
81
82
83
86
89
9O
92
93
100
101
103
104
110
119
120
125
126
130
135
150
151
151A
169
172
Part
No.
37266
26727
33734
36557
36775
36558
36694
28277
30589
34839A
31335
651018
36281
32600
36776
40004
40005
36070
36071
40006
4O007
20381
36777
32610A
27241
37460
29914
*35261
34311E
36083
28534
27897
30574A
30590A
30591
30588A
650488
611004
611112
650815
650816
34443B
610118
651007
37480
37047
*36787
36825
37288
37289
6021A
35395
31672
31673
40017
*36783
36784
Part Name
Cylinder (Incl. 2,20 & 150)
Dowel Pin
Breather Element
Breather Ass'y. (Incl. 6 & 12A)
Breather Tube
9reather Cover & Tube (Incl. 12B)
Breather Tube Elbow
Washer
Governor Rod (Inc!. 14)
Governor Lever
Governor Lever Clamp
Screw, Torx T-15, 8-32 x 19/64"
Extension Spring
Oil Seal
Crankshaft
Piston, Pin & Ring Set (Std.)
Piston, Pin & Ring Set (.010" OS)
Piston & Pin Ass'y. (Std.) (Incl. 43)
Piston & Pin Ass'y. (.010" OS) (Incl.
43)
Ring Set (Std.)
Ring Set (.010" OS)
Piston Pin Retaining Ring
Connecting Rod Ass'y. (Incl. 46)
Connecting Rod Bolt
Valve Lifter
Camshaft (Exhaust MCR) (Inc. Ref.
104)
Oil Pump Ass'y.
Mounting Flange Gasket
Mounting Flange (Incl. 72 thru 83,
306)
Oil Drain Plug
Oil Drain Plug
Oil Seal
Governor Shaft
Washer
Governor Gear Ass'y. (Incl. 81)
Governor Spool
Screw, 1/4-20 x 1-1/4"
Flywheel Key
Flywheel
Belleville Washer
Flywheel Nut
Solid State Ignition
Spark Plug Cover
Screw, Torx T-15, 10-24 x 15/16"
Cam Bushing
Ground Wire
Cylinder Head Gasket
Cylinder Head
Exhaust Valve (Std.) (Incl. 151 )
Intake Valve (Std.) (Incl. 151)
Screw, 5/16-18 x 1-1/2"
Resistor Spark Plug (RJ19LM)
Valve Spring
Valve Spdng Cap
Intake Valve Seal
Valve Cover Gasket
Valve Cover
Ref. Part
No. No.
174 30200
178 29752
182 6201
184 *26756
185 36785
!86 34337
189 650839
191 36559A
195 610973
200 35727
202 36482
203 31342
204 651029
205 651019
207 34336
209 30200
215 32410
223 650451
224 *36786
238 650932
239 *34338
241 35797
245 35066
250 35065
260 36980
261 30200
262 65O831
275 36790A
277 650988
285 35000A
287 650926
290 29774
292 26460
298 28763
300 36916
301 _36246
305 35647
306 *36996
307 35499
309 1650562
310 35648
313 34080
Part Name
Screw, 10-24 x 9/16"
Nut & Lock Washer, 1/4-28
Screw, 1/4-28 x 7/8"
Carburetor To Intake Pipe Gasket
Intake Pipe
Governor Link
Screw, 1/4-20 x 3/8"
S.E. Brake Bracket (Incl. 195)
Terminal
Control Bracket (Incl. 202 thru 205)
Compression Spring
Compression Spring
Screw, Torx T-! 0, 5-40 x 7/16"
Screw, Torx T-10, 6-32 x 41/64"
Throttle Link
Screw, 10-24 x 9/16"
Control Knob
Screw, 1/4-20 x !"
Intake Pipe Gasket
Screw, 10-32 x 49/64"
Air Cleaner Gasket
Air Cleaner Collar
Air Cleaner Filter
Air Cleaner Cover
Blower Housing
Screw, 10-24 x 9/i 6"
Screw, 1/4-20 x 1/2"
Muffler
Screw, 1/4-20 x 2-5/16"
Starter Cup
Screw, 8-32 x 21/64"
Fuel Line
Fuel Line Clamp
Screw, 10-32 x 35/64"
Fuel Tank (Incl. 292 & 301 )
Fuel Cap
Oil Fill Tube
"O"-Ring
"O"-Ring
Screw, 10-32 x 1/2"
Dipstick
Spacer
Page 8 181-1222-11

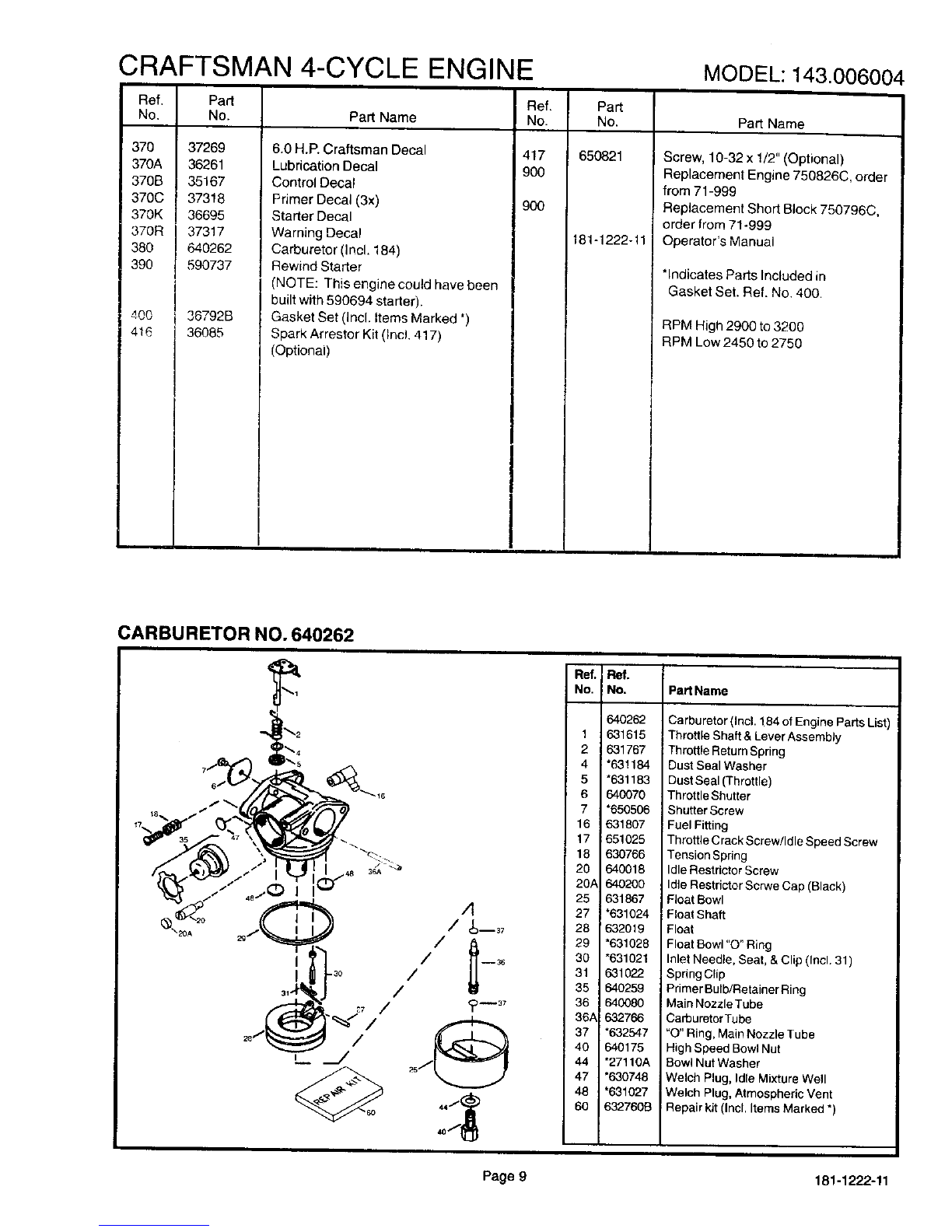

CRAFTSMAN 4-CYCLE ENGINE MODEL:143.006004
Ref.
No.
370
370A
370B
370C
370K
370R
38O
39O
4oo
4,6
Part
No.
37269
36261
35167
37318
36695
37317
640262
59O737
I 36792B
36085
Part Name
6.0 H.E Craftsman Decal
Lubrication Decal
Control Decal
Primer Decal (3x)
Starter Decal
Warning Decal
Carburetor (Incl. 184)
Rewind Starter
I (NOTE: This engine could have been
built with 590694 starter).
Gasket Set (inc!. Items Marked _)
Spark Arrestor Kit (Incl. 417)
(Optional)
I
Ref. Part
No. No.
417 650821
900
900
181-1222ql
Part Name
Screw, 10-32 x 1/2" (Optional)
Replacement Engine 750826C, order
from 71-999
Replacement Short Block 750796C,
order from 71-999
Operator's Manual
*lndic_esPartslnciudedin
GasketSet. Ref. No. 400.
RPM High 2900 to 3200
RPM Low 2450 to 2750
CARBURETOR NO. 640262
Ref. Ref.
No. No, PartName
1
2
4
5
6
7
16
17
18
20
20A
25
27
28
29
30
31
35
36
36A
37
40
44
47
48
6O
640262
631615
631767
"63! 184
"631183
640070
%50506
631807
651025
630766
640018
640200
631867
*631024
632019
*631028
*631021
631022
640259
64OO80
6.32766
*632547
640175
"27110A
*630748
*631027
632760B
Carburetor (Incl. 184 of Engine Parts List)
Throttle Shaft & Lever Assembly
Throttle Return Spring
Dust Seal Washer
Dust Seal (Throttle)
Throttle Shutter
Shutter Screw
Fuel Fitting
Throttle Crack Screw/Idle Speed Screw
Tension Spring
Idle Restrictor Screw
Idle Restrictor Scrwa Cap (Black)
Float Bowl
Float Shaft
Float
Float Bowl "O" Ring
Inlet Needle, Seat, & Clip (Incl. 31)
Spring Clip
Primer Bulb/Retainer Ring
Main Nozzle Tube
Carburetor Tube
"O" Ring, Main Nozzle Tube
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Idle Mixture Well
Welch Plug, Atmospheric Vent
Repair kit (Incl. Items Marked *)
Page 9 181-1222-11

REWIND STARTER NO. 590737
Ref. Pa_
No. No. Pa_Name
3
6
7
8
11
12
13
14
590737
590740
590616
590617
590618A
590687A
590535
590701
590760
Rewind Starter
Retainer
Starter Dog
Dog Spring
Pulley & Rewind Spring Ass'y
Starter Housing Ass'y (40 degree
grommet)
Starter Rope (Length 98" x 9/64"
dia.)
Starter Handle
Spring Clip
STARTER NO. 590694
/
13
12
7__=;
O-4
Bm 5
Ref. PaN
No. No. PaN Name
1
2
3
4
5
6
7
8
11
12
13
59O694
590599A
5906OO
590696
590601
59O697
59O698
59O699
5907OO
590695
59O535
590701
Recoil Starter
Spring Pin (Incl. 4)
Washer
Retainer
Washer
iBrake Spring
, Starter Dog
I Dog Spring
Pulley & Rewind Spring Ass'y.
Starter Housing Ass'y. (40 degree
grommet)
Starter Rope ( 98" x 9/64" dia.)
Starter Handle
Page 10 181-1222-11

SEARS
operator's
manual
MODEL NO. 143.006004
5.5 RESERVE POWER
11.5 CUBIC INCH (185 cc)
DISPLACEMENT
SOLID STATE IGNITION
CAUTION:
Read RULES for
Safe OPERATION
and INSTRUCTIONS
Carefully
How to ORDER Repair Parts
The Model Number can be found on a decal on the blower
housing (See Figure 1). Always mention the Model Number
when requesting service or repair parts for your Craftsman
Engine.
All parts listed herein may be ordered from any SEARS,
ROEBUCK AND CO. or SEARS CANADA, INC. retail or catalog
store. Ifthe parts you need are not stocked locally, your order
will be electronically transmitted to a Sears Repair Parts
Distribution Center for expedited handling.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION AS SHOWN IN THIS LIST.
1. The PART NUMBER
2. The PART DESCRIPTION
3. The MODEL NUMBER
4. The NAME OF ITEM - ENGINE
"YourSeam merchandisehasaddedvaluewhenyouconsiderthatSearshas
serviceunitsnationwidestaffedwithSears trainedtechnicians..,professional
techniciansspecificallytrainedon Searsproducts,havingthe parts,toolsand
equipmenttoinsurethatwe meetourpledgetoyou,..we servicewhatwe sell."
Sold by SEARS, ROEBUCK AND CO., CHICAGO, IL 60684 U.S.A.
and SEARS CANADA, INC., TORONTO, ONTARIO, CANADA
181-1222-1
