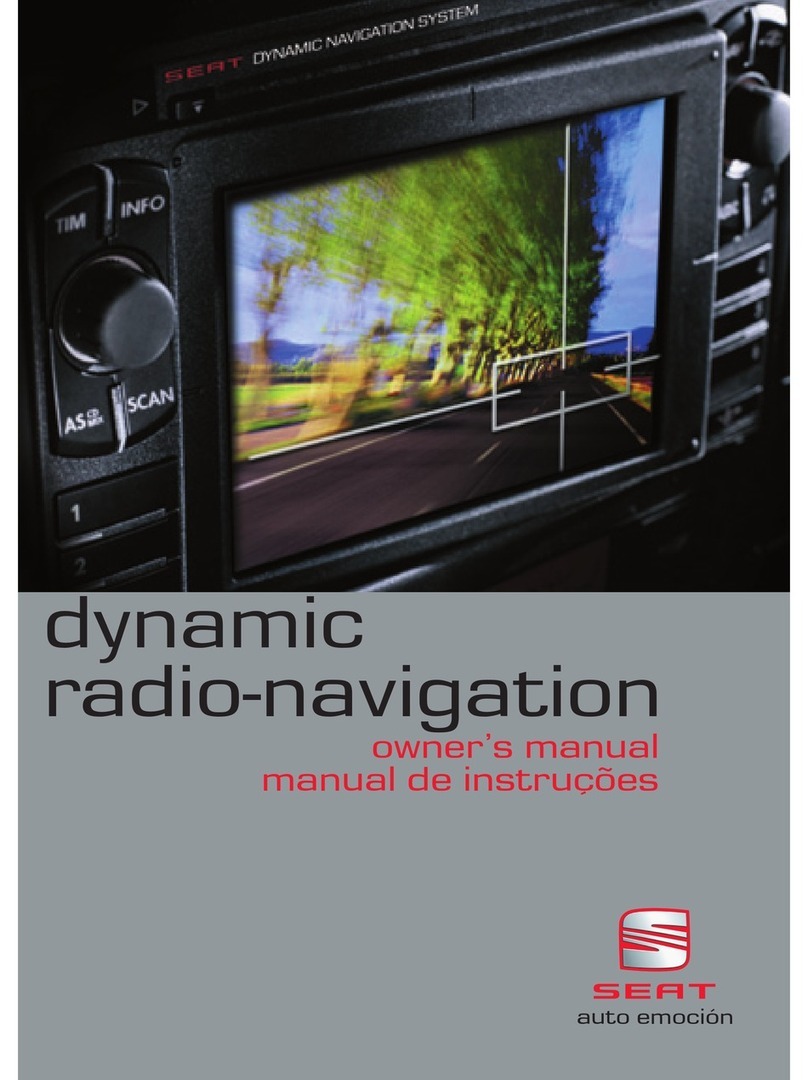

Seat MFD2 User manual

auto emoción
radio-navigation
MFD2 system
owner’s manual
manual de instruções

Contents 1
Contents
General information . . . . . . . . . . . . . . . .
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick Reference Guide . . . . . . . . . . . .
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display elements on the screen . . . . . . . . . . . .
Switching on and off . . . . . . . . . . . . . . . . . . . . . .
Radio / CD / Sound . . . . . . . . . . . . . . . . .
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound, sound focus and volume . . . . . . . . . . .
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination entry . . . . . . . . . . . . . . . . . . . . . . . . .
Destination memory . . . . . . . . . . . . . . . . . . . . . .
Parameters for route calculation . . . . . . . . . . .
Map and symbol displays . . . . . . . . . . . . . . . . .
Route guidance . . . . . . . . . . . . . . . . . . . . . . . . . . .
Information and system settings
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System settings . . . . . . . . . . . . . . . . . . . . . . . . . .
External units . . . . . . . . . . . . . . . . . . . . . . . .
Calling up external units . . . . . . . . . . . . . . . . . .
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
4
4
6
6
8
8
11
13
15
15
18
24
27
32
38
41
41
42
44
44
45
radionaving Seite 1 Mittwoch, 30. März 2005 12:26 12

General information
2
General information
This manual contains important information, tips, suggestions and warnings
on using the MFD2 radio navigation system. The other publications in the
vehicle wallet contain further information which you should be aware of for
your own safety and for the safety of your passengers.
Ensure that the complete vehicle wallet is always in the vehicle. This is espe-
cially important when you lend or sell the vehicle to others.
This manual describes the scope of vehicle equipmentat the time of publica-
tion. Some of the equipment described here will not be available until a later
date, or is available only in certain markets.
Illustrations are intended as a general guide, and may vary from the equip-
ment fitted in your vehicle in some details.
Directions and positions are always relative to the direction of travel of the
vehicle unless otherwise stated.
Some sections of this booklet do not apply to all vehicles. If this is the case,
a text at the start of the section indicatesto which vehicles it applies, e. g.
“Applies to vehicles with: CD changer”.
The equipment marked with an asterisk* comes in series only in determined
model versions, are supplied as optionals only for some versions, or are only
offered in different countries.
®Registered trademarks are marked ®. However, the absence of this
symbol does not constitute a waiver of the rights concerning any propri-
etary name.
The section is continued on the following page.
Indicates the end of a section.
WARNING
Texts with this symbol contain safety information. They warn you of serious
dangers, possibly involving accident or injury.
Caution
Texts with this symbol draw your attention to a possible risk of damage to
your vehicle.
For the sake of the environment
Texts with this symbol refer to points relevant to the protection of the environ-
ment.
Note
Texts with this symbol contain additional information of a more general
nature.
radionaving Seite 2 Mittwoch, 30. März 2005 12:26 12

Introduction 3
Introduction
Important Information. Traffic safety
Travelling on today's roads requires the driver's full attention at all times.
Only operate the radio and its various functions when the traffic situation
really permits this.
WARNING
•Before starting the trip, it is convenient to familiarise yourself with the
different radio functions.
•The high volume may present a danger to you and for others.
•Adjust the volume in a way that you can distinguish surrounding noise,
for example, horns, sirens, etc.
•The auto-radio adjustments should be made with the car stopped, or
should be performed by someone else.
Note
Separate the radio navigation card and keep it in a safe place, but never
within the vehicle. In case the radio is lost with the code, go to a SEAT Dealer,
who will help you.
radionaving Seite 3 Mittwoch, 30. März 2005 12:26 12

Quick Reference Guide
4
Quick Reference Guide
Controls
This overview will help you to quickly familiarise yourself with the control elements.
On/off knob (push) and volume control (turn). The volume
control will regulate the volume of the audio source currently
Fig. 1 Operating overview
A
1
radionaving Seite 4 Mittwoch, 30. März 2005 12:26 12

Quick Reference Guide 5
selected. A column will indicate the volume level. The volume of
a telephone conversation can also be regulated using the
volume control.
Entries in the screen menus can be made using the menu
button. Turning the button marks one of the functions or a sub-
menu and pressing it selects it.
Sound and sound centre settings . . . . . . . . . . . . . . . . . . . .
Left and right of the screen - 5 function keys/station buttons.
−The term function key is used because the keys have
different functions depending on the menu being shown in
the display. If the text says, for example, “Press
”, then press the function key next to where the
text “Dest. on map” appears on the screen.
−Station keys: The upper 6 function keys are used as station
buttons in the radio mode. Stations can be stored on these
keys. The upper 6 function keys can be used to select the
inserted CDs in CD changer mode.
Backwards/forwards keys, apply to the active audio
source
−press briefly: radio mode: station change; CD mode: changes
track
−press longer: radio mode: manual station selection; CD
mode: fast forward/backward search
Switching between day and night display or switch display
off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Slot for an audio or navigation CD. . . . . . . . . . . . . . . . . . . . . . .
CD eject button. The ejected CD will be pulled back into the
unit if it is not fully withdrawn within 10 seconds.
Store flagged destination. The unit will store the current
vehicle position when this button is pressed. When this button
is pressed again, the flagged destination will be overwritten if it
has not been stored in the destination memory. . . . . . . . . . . .
The traffic jam button calls up the input menu to exclude route
sections in a route list or to enter traffic jam information
manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back to previous menu.
Map display when Navigation CD is inserted / Switch to
symbol display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calls up the Navigation main menu. . . . . . . . . . . . . . . . .
Switches to other auxiliary audio or video units. . . . . . . .
Reserved for additional functions in telephone mode at a
later date
CD and CD changer control1) . . . . . . . . . . . . . . . . . . . . . . .
Radio menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call up system settings, traffic reports, position displays
WARNING
Adjust the volume so that you can still hear signals coming from outside
the vehicle, such as fire brigade, ambulances or police cars.
Caution
It is not a tactile display! Do not press the display surface. The screen can be
cleaned with a soft cloth (and alcohol, if necessary). Do not use solvents such
as turpentine or petrol to clean the surface as they will corrode the material.
A
2
A
313
A
4
Dest. on map
A
5
A
6
42
A
711
A
8
A
9
18, 24
1) Optional equipment
A
10
30
A
11 ESC
A
12 MAP
39
A
13 NAVI 17
A
14 AUX 44
A
15 TELE
A
16 CD 11
A
17 RADIO 8
A
18 INFO 41
radionaving Seite 5 Mittwoch, 30. März 2005 12:26 12

Quick Reference Guide
6
Display elements on the screen
This section describes the elements seen in the display.
The functions or sub-menus shown on the screen can be called up by
pressing the function key situated directly next to them. This can also be
carried out by first turning the menu knob and then pressing it.
Use the menu button to move the red selector frame. It will disappear
from the screen if the unit is not used for 30 seconds and will appear
again if the menu knob is turned.
The selection of the function characteristics, such as Destin or Overview,
can only be reached by pressing and turning the menu knob.
The right part of the status bar contains additional information or the
option “back with ESC”
Details of the active audio source or navigation status are shown in the
centre part of the status bar.
The left part of the status bar shows the current menu.
Below the status bar
A light red marking indicates which source is active. Press the key beneath it
to call up the main menu for this source.
A dark red marking indicates which source is still active in the background
(the radio in this example). Press the key beneath it to call up the main menu
for this source.
If the text CD ? is displayed in the small marking above the / ,
button, the CD inserted in the CD drive can not be read and may be
damaged.
Switching on and off
A safety code made up of four characters must be entered
when switching on for the first time.
Fig. 2 Display elements
A
A
A
B
A
C
A
D
A
E
A
F
CD6 NAVI
Fig. 3 Entering the safety
code
radionaving Seite 6 Mittwoch, 30. März 2005 12:26 12

Quick Reference Guide 7
Switching on/off
– Press the left button ⇒page 4, fig. 1 .
– Press the left button again, to switch the unit off.
Entering the safety code
– The safety code can be found on the unit card.
– Enter the characters by turning and pressing the menu knob
⇒page 6, fig. 3.
– Press if you wish to change incorrect digits.
– Once the safety code as entered corresponds to the code given
on the unit card, press .
The last menu used and also the last audio source used before switching off
will be selected automatically when the unit is switched on again. The MFD2
radio navigation system will be switched off if the ignition is turned off. The
unit can be switched on again using the left button when the ignition is
switched off. It will be switched off automatically after an hour to stop the
vehicle battery from running down.
If no CD has been introduced into the unit, upon entering the safety code and
pressing the following message may appear: No CD inserted. Insert a CD-
ROM for SEAT Dynamic Navigation MFD2.
If you do not wish to use the navigation system immediately, you can still
select a different audio source by pressing the appropriate button.
Unit card
The code number is printed on a unit card together with the serial number.
This card can be found at the front of the vehicle wallet.
The unit card must be kept in a safe place - under no circumstances in the
vehicle! Only then will the unit be useless to thieves.
Note
If a wrong code is entered twice repeatedly, the system is locked for an hour.
After this time has passed you may enter the safety code.
A
1

OK
OK
radionaving Seite 7 Mittwoch, 30. März 2005 12:26 12

Radio / CD / Sound
8
Radio / CD / Sound
Radio
Overview
Information is given here on how to select and store stations.
The following radio functions are selected via the function keys:
•– Scans stations or stores those stations with the strongest
reception ⇒page 8, “Scan/AS”,
•– Calls up station list or manual frequency input ⇒page 10,
“Station selection from a list (FM only)”,
•– Sets the waveband and traffic radio, mute function ⇒page 9,
“Setting waveband/Muting”,
•– Set-up for RDS functions ⇒page 11 Settings.
Scan/AS
The stations with the strongest reception are either scanned
or stored automatically.
Playing stations briefly
– Briefly press ⇒fig. 5 .
Autostore on the second memory level (FM2 or AM2)
– Press for longer than 2 seconds to allocate those
stations with the strongest reception in the selected waveband
(FM2 or AM2) to the upper 6 function keys.
Fig. 4 Radio main menu
Scan/_AS
List/_MAN
Band
Ajustes
Fig. 5 Autostore AS
Scan/_AS
Scan/_AS
radionaving Seite 8 Mittwoch, 30. März 2005 12:26 12

Radio / CD / Sound 9
Autostore for all memory levels (Initial Autostore)
– Press for longer than 10 seconds to allocate those
stations with the strongest reception in all wavebands to the
upper 6 function keys.
The selected function will be shown on the screen and can be stopped by
pressing again.
A scan in the FM waveband will play through the list of registered stations. A
scan in AM will play all stations with a high quality reception. Each station
scan lasts 8 seconds. Press the menu knob or if you would like to
hear the station currently being played.
Note
Use the function “Initial Autostore” if you are using the unit for the first time
or when selecting new stations in the waveband. Any station names on the
station buttons will be overwritten. The process of searching for and storing
the station names takes a few seconds.
Setting waveband/Muting
– Press in the radio main menu ⇒page 8, fig. 4 to see
the frequencies.
– Press or to receive FM stations.
– Press or to receive medium wave stations.
– When in FM1 or FM2 mode, press to receive traffic informa-
tion reports.
– Press to mute the radio or to switch the mute function
off.
The last heard station will be played for the waveband selected. Traffic infor-
mation reports will be relayed even when the radio has been muted. The TP
function must be active for this purpose (yellow column next to the field).
When TP is active, the letters TP are lit up in red. The increased volume level
for the traffic announcement can be lowered by pressing the button .
Scan/_AS
Scan/_AS
Scan/_AS
Fig. 6 Radio waveband
Radio band
FM1 FM2
AM1 AM2
TP
Radio off
INFO
radionaving Seite 9 Mittwoch, 30. März 2005 12:26 12
