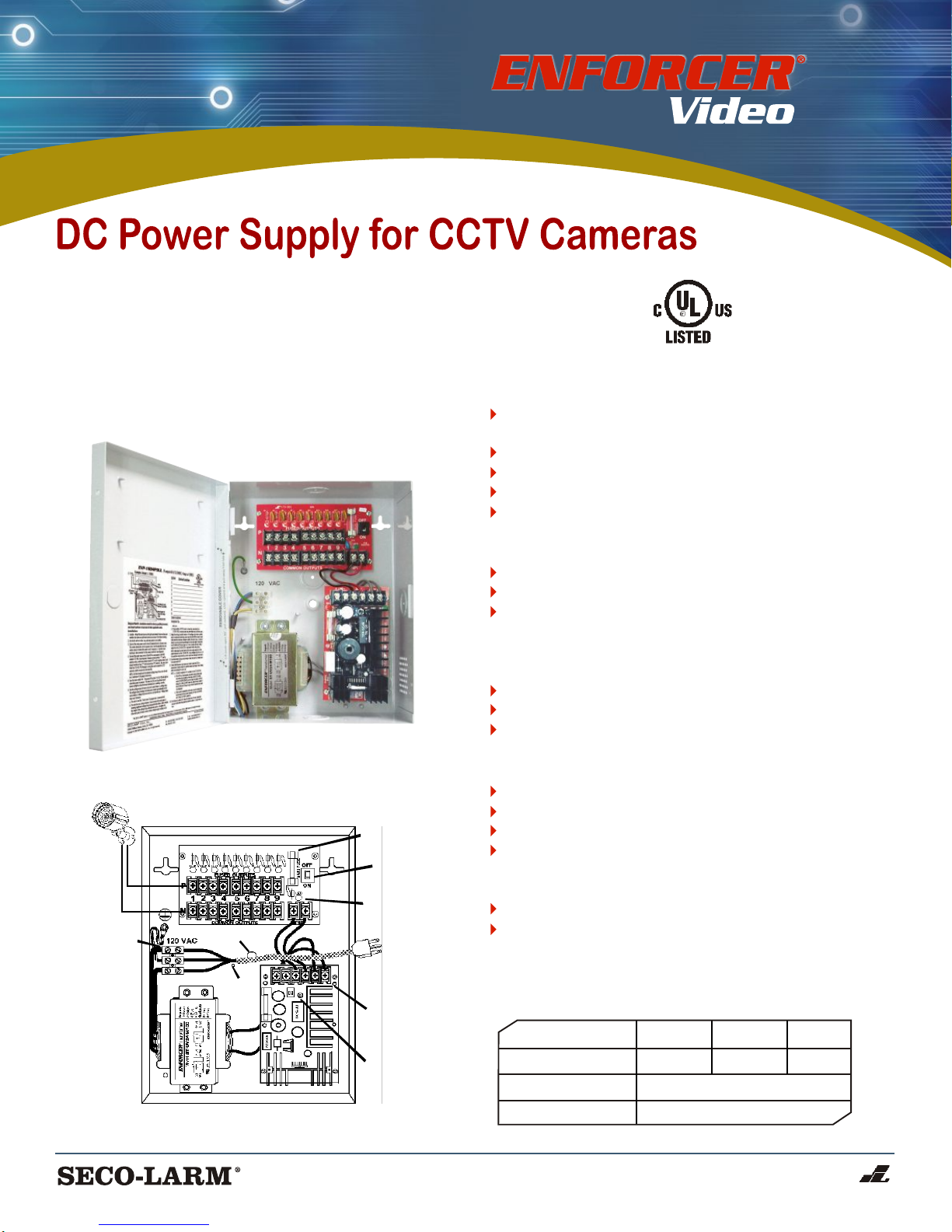

SECO-LARM EVP-124D4-P9 User manual

Output voltage adjustable with potentiometer to compensate for
voltage drop (12.0~15.1VDC).
Each output individually fused (PTC**-type fuses).
Output fuses rated 1.1 Amps @ 250VAC.
Individual red status indicator LED for each output.
Main power switch to turn on/off power to outputs.
1.949.261.2999 (CA & Int’l) 1.800.662.0800 Fax: [phone]
Email: [email protected] Website: www.seco-larm.com
16842 Millikan Avenue, Irvine, CA 92606 DC_PanelPowerSupply.cdr
Features:
110VAC, 60Hz.
UL-approved power transformer.
Max total continuous output current:
6.0Amps(EVP-1SD6P16UL)
4.0Amps(EVP-124D4-P9)
2.5Amps(EVP-1SD2P4UL).
Main fuse rated 5.0 Amps @ 250VAC.
Spare fuse included.
6-foot power cord included.
Power
Heavy-duty steel case to protect the power connections.
Removable steel cover for easy access to power connections.
Ventilation holes to prevent heat build-up.
Dimensions:
31
10” x 7 /4” x 3 /2” (EVP-1SD4P9UL & EVP-1SD2P4UL)
1
12” x 12” x 3 /2” (EVP-1SD6P16UL).
Knock-out on the cover for optional cam lock.
AC terminal block for easy connection from transformer to
6-foot power cord.
Enclosure
®
EVP-1SD2P4UL
4 Outputs @ 12VDC (2.5 Amps*)
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
Copyright 2007 SECO-LARM U.S.A., Inc. Allrights reserved.
EVP-1SD4P9UL shown
Main
Switch
AC
Terminal
Block
Example:Output1,12VDC
ENFORCER
MainFuse
Potentiometer
toAdjustDC
Voltage
GreenLED
(PowerIndicator)
GreenLED
(Power
Indicator)
Power cord
hole
For cable
clamp
use
Connections:
Specifications:
Number of Outputs
Total Output Current
Main Fuse Rating
Output Fuse Rating
4916
2.5 Amps*4 Amps* 6 Amps*
5.0 Amps @ 250VAC
1.1 Amps @ 250VAC
EVP-1SD2P4UL
EVP-1SD4P9UL
EVP-1SD6P16UL
EVP-1SD4P9UL
9 Outputs @ 12VDC (4 Amps*)
EVP-1SD6P16UL
16 Outputs @ 12VDC (6 Amps*)
EVP-1SD4P9UL shown
* Max total continuous output current, each channel output is fused at 1.1 Amp.
The power input, power transformer, and all fused power outputs
are enclosed in one heavy-duty, easy-to-install enclosure.
