SECO-LARM ENFORCER HL Series User manual

Flexible operating voltage: 10~24 VAC, 9~48 VDC
Independently programmable channels
Compatible with all SECO-LARM HL-Series
transmitters of the same frequency
5 Output modes per channel
NOTE: Operating range will vary greatly depending on the installation and operating environment.

Installation Manual
917MHz HL-Series RF Receivers
The ENFORCER 917MHz HL-951 series RF transmitters and receivers use digital modulation for improved
immunity to interference, better signal penetration in environments with heavy obstructions, and significantly
longer range of up to 1,000ft (305m) line of sight. The transmitter's ultra-low power consumption gives you
longer battery life with easy to obtain coin-type batteries (CR-2032).
Mount the receiver out of sight in a location where it is not exposed to weather or moisture.
Installation Notes:
Introduction:
Compatible Transmitters:

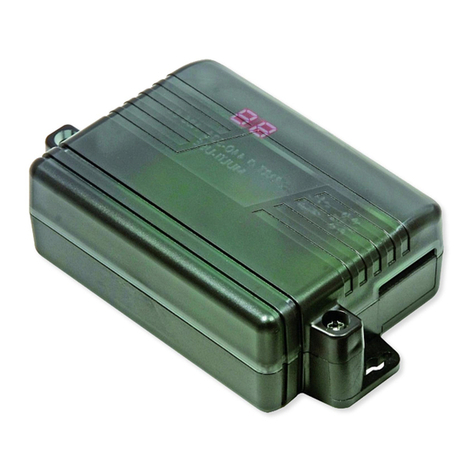

HL-951R1-SQ shown
HL-951T1-SQ 1-Button pocket-sized pendant, 917MHz*,
CR-2032 coin-type battery
HL-951T2-SQ 2-Button pocket-sized pendant, 917MHz*,
CR-2032 coin-type battery
*868.35MHz versions also available
Model
Channels
Output
Frequency*
Operating Voltage
HL-951R1-SQ
1
1x 10A Form “C” relay output
917MHz
10~24 VAC, 9~48 VDC
HL-951R2-SQ
2
2x 10A Form “C” relay outputs
917MHz
10~24 VAC, 9~48 VDC
*868.35MHz versions also available
®
®
1. Press the selector button for 3 seconds or more. The channel’s LED will flash L1, indicating channel 1.
Press the selector to toggle between channels 1 and 2.
2. After 2 seconds, the LED will slow flash with the display showing the number of codes already in storage
and enter programming mode.
NOTE: The LED will flash a maximum of 15 seconds. If the selector button or no transmitter button is
pressed during this time, the receiver will exit programming mode, and the LED will turn off.
Entering Programming Mode:
One- and Two-Channel Receivers:
HL-951T1-SQ shown

ENFORCER One- and Two-Channel 917MHz RF Receivers
2SECO-LARM U.S.A., Inc.
Clear Channel Memory:
1. Enter programming mode and select the desired channel to clear as described on pg. 1.
2. While the LED is flashing the correct channel, press the selector button again for at least 3 seconds or until the channel
indicator LED flashes 2 times. This will clear all codes for that channel.
3. To clear codes from the other channel, enter programming mode for the other channel and repeat the above steps.
Display Channel Memory:
1. To see how many codes have been learned by a channel, enter programming mode and select the desired channel as
described on pg. 1.
2. The LED will flash for 15 seconds showing number of codes stored in that channel’s memory.
Programming Channel Relay Output Mode:
Selecting the relay output mode:
1. Enter programming mode and select the desired
channel as described on pg. 1.
2. Press the selection button again. The LED will
display the current output mode (default P1).
3. To change a channel’s output mode, press the
selector button repeatedly to scroll through the 5
output modes until the desire mode appears. Each
press moves to the next mode in the sequence as
shown in the diagram to the right.
4. In modes P1 and P5, long press the selector button
to choose the number of seconds or minutes,
respectively
5. When complete, wait 15 seconds for the receiver to
automatically exit programming mode.
NOTE: For a diagram of the PC board, including the location of
the function switch, please see Overview, pg. 3.
Toggle Output
(P2)
Follow (Validity)
Output
(P4)
1~99 sec (default, sec)
Timed Pulse Output
(P1)
Latch Output
(P3)
1~99 min Timed Pulse
Output
(P5)
Code Learning a New Transmitter Button:
1. Enter programming mode and select the desired channel as described on pg. 1.
2. While the LED is flashing, press the desired transmitter button to be learned one time. The three horizontal bars of the
receiver’s LED indicator will flash two times to indicate the transmitter button has been successfully learned and will
automatically exit learning mode. To learn further codes, re-enter programming mode and repeat.
NOTES:
Do not press the selection button again after entering programming mode as this will take you to output mode
programming.
The indicator LED will flash a maximum of 15 seconds. If no transmitter button is pressed during this time, the receiver will
exit code programming mode, and the LED will turn off.
If the code has already been learned, the indicator LED will slowly flash two dashes. The code will not be learned a
second time.
One channel can learn the codes of a maximum of 99 transmitter buttons. If you attempt to learn an additional transmitter
code, the earliest code learned will be deleted and the new code will be learned.
Each channel relay can be programmed to one of five output modes. (HL-951R2-SQ only: Each channel can be
independently programmed to operate in a different output mode, depending on the user’s application.) The five modes are:
1. P1 –1~99 Second Timed Pulse Output (default, 1 second) –When the transmitter button is pressed, the relay will turn
ON for the programmed number of seconds.
2. P2 –Toggle Output –Works much like a toggle switch to turn a device ON & OFF alternately. Press the transmitter
button once, and the relay turns ON. Press the transmitter button again, and the relay turns OFF.
3. P3 –Latch Output –Press the transmitter button once, and the relay turns ON and stays ON. The channel relay will
remain ON regardless of whether a compatible transmitter button is pressed again or not. To turn the relay OFF, press the
selector switch on the receiver once to reset.
4. P4 –Follow (Validity) Output –The relay status follows the transmitter button status and will remain active for as long as
the transmitter button is pressed.
NOTE: Due to possible interference or drops in transmitter battery power while the transmitter button is continuously
pressed (even for short periods of time), the receiver may lose the transmitter’s signal and turn the relay OFF.
5. P5 –1~99 Minute Timed Pulse Output –When the transmitter button is pressed, the relay will turn ON for the number of
minutes preset.

ENFORCER One- and Two-Channel 917MHz RF Receivers
SECO-LARM U.S.A., Inc. 3
SK-910RB2Q shown. SK-910RBQ is the
same, but only has one each: mode
switch; function switch; indicator LED;
channel relay.
Selector Button Operation:
LED Indicator:
Overview:
HL-951R2-SQ PC board shown. Remove the front cover of the receiver to access the function switch and terminal block.
Enter programming
mode
Press and hold the selector button for three seconds or more to enter programming mode.
Select channel for
programming
Entering programming mode automatically takes you to channel 1. Pressing the button again will
toggle between channels 1 and 2.
Learn code
After entering programming mode for the desired channel, the receiver is ready to learn a code,
so the selector button is not used again. To learn a code press the desired button on the
transmitter.
Delete all codes
from a channel
After entering programming mode for the desired channel, wait until the LED begins to flash a
number (the number of codes learned for that channel), then press and hold the selector button
for at least three seconds or until the LED flashes 3 stripes.
Memory display
After entering programming mode for the desired channel, after 2 seconds the LED will begin to
flash a number indicating the number of codes already stored for that channel.
Programming output
mode
After entering programming mode for the desired channel, press the selector button again. The
display will show the current mode (P1~P5). To change the mode, press again repeatedly until
the display shows the desired mode.
Programming timed
pulse duration
After following the above steps to program the output mode, when in mode P1 or P5, long press
the selector button to change the number of seconds or minutes, respectively.
8.8.
Flashing every 3~5 seconds –receiver powered on and in operation
8.8.
A valid RF signal has been received
L.1.
Flashing –number shows current channel to be programmed
=.=.
Flash 2 times –new code has been learned or all codes for that channel have been deleted
-.-.
Slow flashing –in programming mode, shows that the attempted code has previously been learned
Flash 2 times –exit programming mode
0.0.
Flashing –in programming mode, shows the number of codes (0~99) already learned for the selected
channel
P.1.
In output programming mode –number indicates the current mode
0.1.
In output programming mode when either P1 or P5 has been selected –number indicates the output time in
seconds or minutes, respectively
See "Selector Button Operation,"
below for a description of the
various uses of this button
Selector Button
Power input
Ch 1 relay
N.O.1
N.C.1
COM1
N.O.2
N.C.2
COM2
Ch 2 relay
–VAC1
+VAC2
LED Display
(HL-915R2-xQ only)
8. 8.
The LED indicator displays:
General status –the left dot will
flash every 3~5 when operating
RF signal received –the right dot
will light when an RF signal is
being received
TX Code enrollment and deletion
Display number of codes
programmed
Output mode programming
See "LED Indicator" below for details.

ENFORCER One- and Two-Channel 917MHz RF Receivers
4SECO-LARM U.S.A., Inc.
Sample Applications:
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for
one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any
defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed
to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or
if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects
in material and workmanship. The sole obligation of SECO-LARM and the purchaser’s exclusive remedy, shall be limited to the
replacement or repair only, at SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or
consequential personal or property damage of any kind to the purchaser or anyone else.
NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM reserves the right
to change specifications without notice. SECO LARM is also not responsible for misprints. All trademarks are the property of
SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2020 SECO-LARM U.S.A., Inc. All rights reserved.
SECO-LARM® U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Website: www.seco-larm.com
Phone: [phone] | [phone]
Email: [e-mail]
®
PITSW1
762-151%
MI_HL-951xx-SQ_201029.docx
Typical N.C. Application
Typical N.O. Application
FCC COMPLIANCE STATEMENT FCC ID: K4E951T4
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is
permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s
authority to operate the device.
Model
HL-951R1-SQ
HL-951R2-SQ
Operating frequency
917MHz*
Memory capacity
99 transmitter button codes per channel
Operating voltage
10~24 VAC, 9~48 VDC
Operating
current
Standby
7mA@12VDC / 5mA@24VDC (typical)
Active
50mA@12VDC / 25mA@24VDC per channel
Relay
Output
Type
Independent, sequence, access control
Modes
1~99 sec momentary (default, 1s), 1~99 min momentary, toggle, latch, follow (validity)
Relay
contacts
Number
1
2
Rating
Form C 10A@14VDC
Digital Display
2-Digit, 7-segment LED
Connectors
Screw terminals, +, -, with NO/NC/COM per relay
Operating temperature
-40°~167° F (-40°~75° C)
Dimensions
315/16"x21/2"x13/16" (100x63x30 mm)
*868.35MHz versions also available
Specifications:
Forward/Reverse, 2 Relays
COM2
NC2
NO2
Power
GRD
–
+
Power
12VDC
Ch. 1
Electric Door Strike
Ch. 2
COM1
NC1
NO1
COM2
NC2
NO2
Power
GRD
–
+
Power
12VDC
Ch. 1
Ch. 2
Electromagnetic Lock
COM1
NC1
NO1
COM2
NC2
NO2
Power
GRD
–
+
Power
12VDC
Ch. 1
Ch. 2
Motor
+
–
COM1
NO1
NC1
