SECO-LARM ENFORCER EV-N1506-2W4Q Installation and operation manual

®
Model# Lens Resolution Voltage Style Color
EV
-
N1506
-
2W4Q
2.8mm
5MP,
1440p
12VDC
Bullet
White
EV
-
N2506
-
2W4Q
2.8mm
5MP, 1440p
12VDC
Turret
White
IP Fixed Cameras
Web Manual

ENFORCER IP Fixed Cameras
2 SECO-LARM U.S.A., Inc.
Accessing the IP Camera Interface:
Table of Contents:
Programmable Features:
Programmable Features
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
...
2
Accessing the IP Camera Interface……………………………………….2
Device Search……………………………………………………………… 3~4
Connect to Camera………………………………………………………… 4~5
Login Screen………………………………………………………………...5
Live…………………………………………………………………………... 6
Color Adjustments:………………………………………………………….7
Playback…………………………………………………………………….. 7
Remote Setting
–
Channel
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
8~1
1
Remote Setting – Record ……………………………………………….12~13
Remote Setting – Alarm………………………………………………….13
Remote Setting – Network…………………………………………….…14~19
Remote Setting – Device………………………………………..............20
Remote Setting – System………………………………………………...21~28
Local Setting……………………………………………………………….28
Troubleshooting/Warranty………………………………………………..29

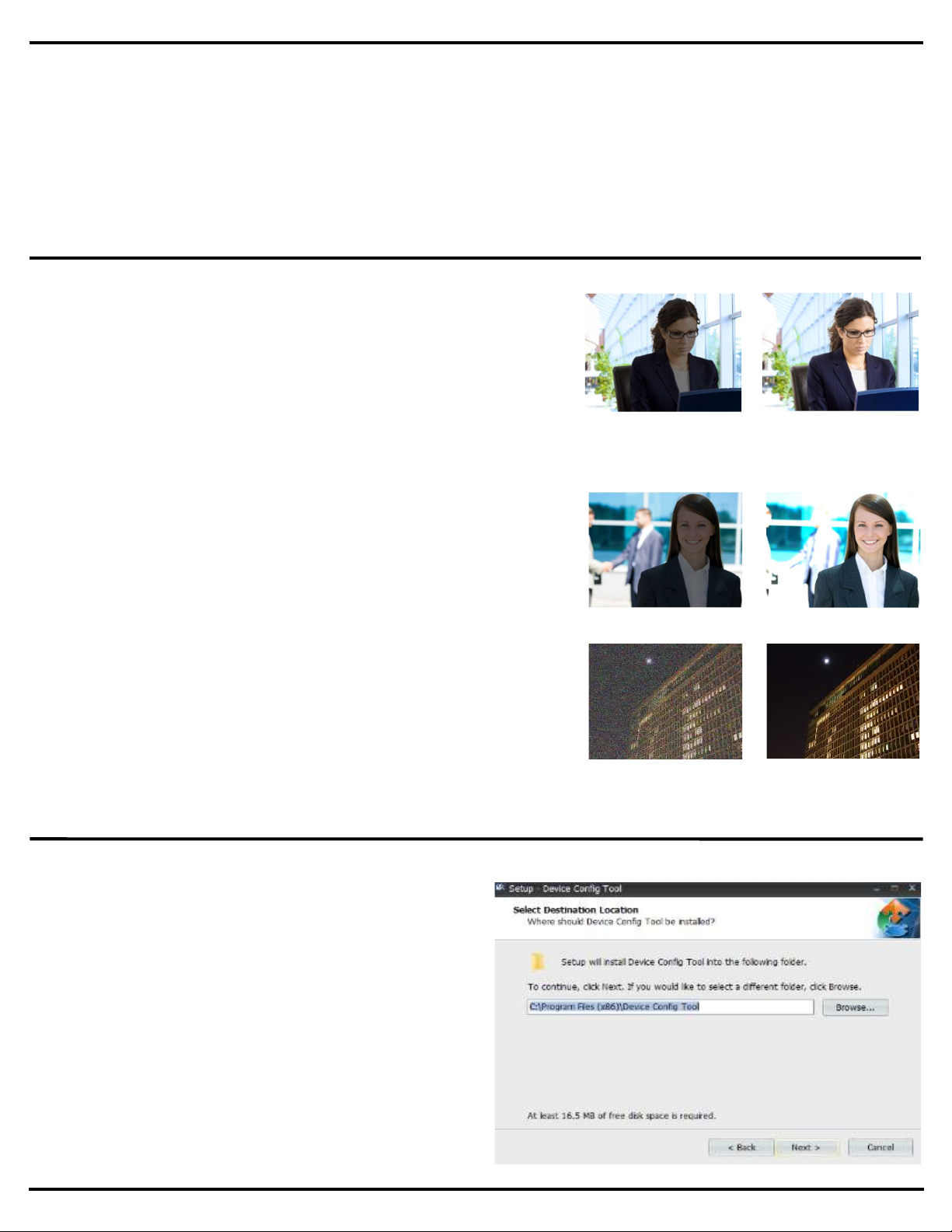

 Exposure
Adjust the shutter speed, automatic gain control (AGC), and
defog settings
 Digital Wide Dynamic Range (D-WDR)
Provide clear images even under circumstances where backlight
illumination can vary
 Back Light Compensation (BLC)
Adjust the exposure to properly display the subject in front of
bright light sources
 White Balance
Adjust the color temperature/image color
 Day & Night
Adjust the level of ambient light that triggers the camera to
switch between color and B/W modes
 Digital Noise Reduction (DNR)
Adjust for less interference on the screen in an area with low
illumination
NOTE
:
All screen images in this manual are simulated.
D
-
WDR
OFF
D
-
W
DR
ON
BLC
OFF
BLC
ON
DNR ON
Install
Device Config Tool
using included CD
:
Select your software:
For Mac Installation:
 CDROM\software for Mac\Device Search\
For PC Installation:
 CDROM\software for PC (except MAC)
1. Click next
2. Choose install location, click next
3. Review your settings and click Install
4. Click Finish (Click the checkbox to the Launch Device Config Tool.)
DNR
OFF

ENFORCER IP Fixed Cameras
SECO-LARM U.S.A., Inc. 3

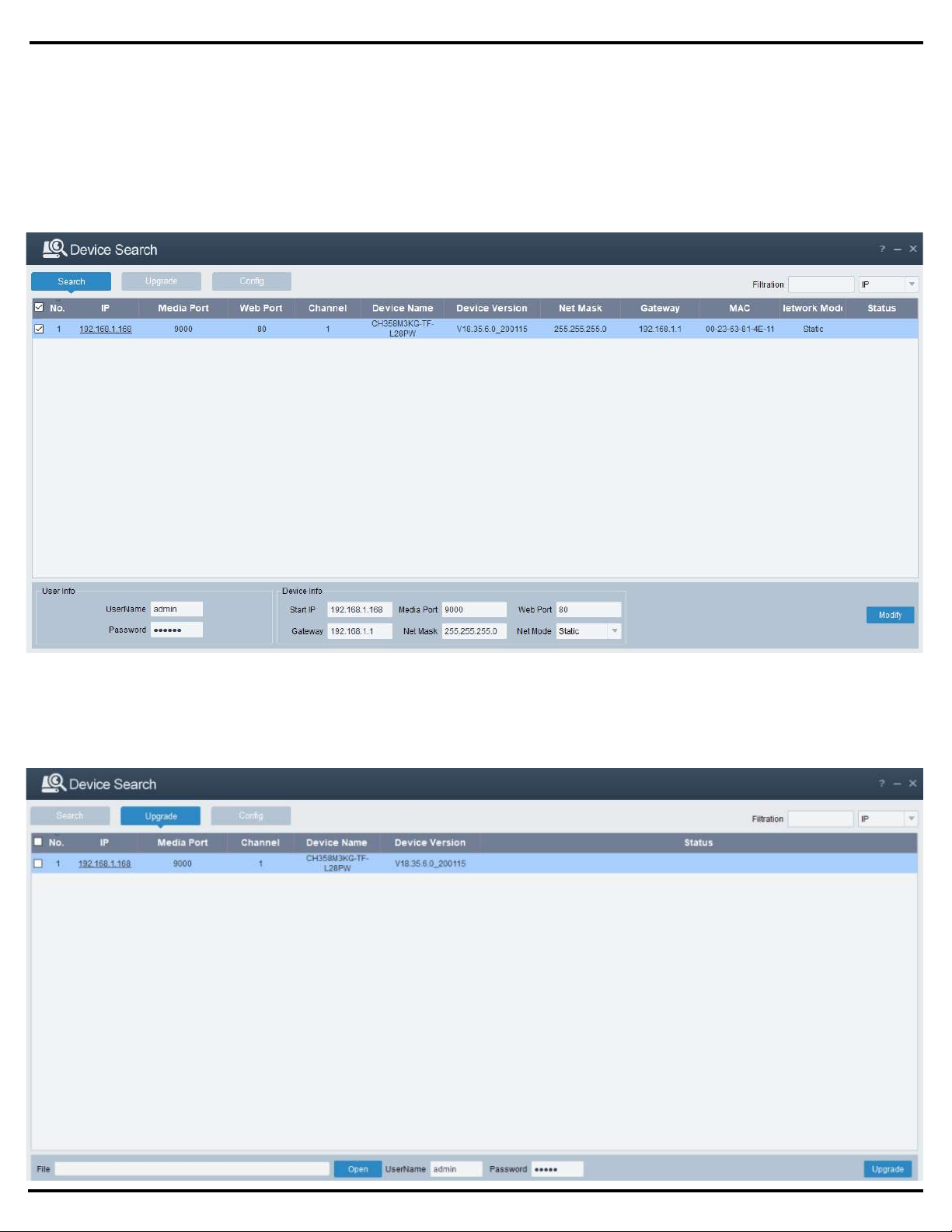

Device Search:
 Search – Click to search for camera (IP address of camera will be revealed. Use to connect to camera)
 User Info – Displays camera credentials
 Device Info – Display camera IP settings
 Filtration – Filter search results by IP, Media Port, or Channel
 Open – Browse for firmware file
 Username – Enter username
 Password – Enter password
Device Search – Upgrade:
Upgrade the camera using firmware file.
1. Click the camera listed
2. Click upgrade

ENFORCER IP Fixed Cameras
4 SECO-LARM U.S.A., Inc.
Device Search (Continued):
Connect to Camera:
Device Search – Configuration:
The Device Configuration provides access to the Record and Record Snapshot settings:
 IP – Enter the camera’s IP address
 Media Port – Enter the media port
 Username – Enter username
 Password – Enter password
 Login – Login
Enter the camera’s IP address into the web address of your internet Browser:
 192.168.1.168 (Default) using Internet Explorer
NOTE: Web Interface designed for Internet Explorer. May not work correctly on other browsers.

ENFORCER IP Fixed Cameras
SECO-LARM U.S.A., Inc. 5
Login Screen:
Connect to Camera (Continued):
 Username: admin
 Password: Set password at initial login (to reset password, press and hold reset button)
NOTE: Reset button available on select cameras

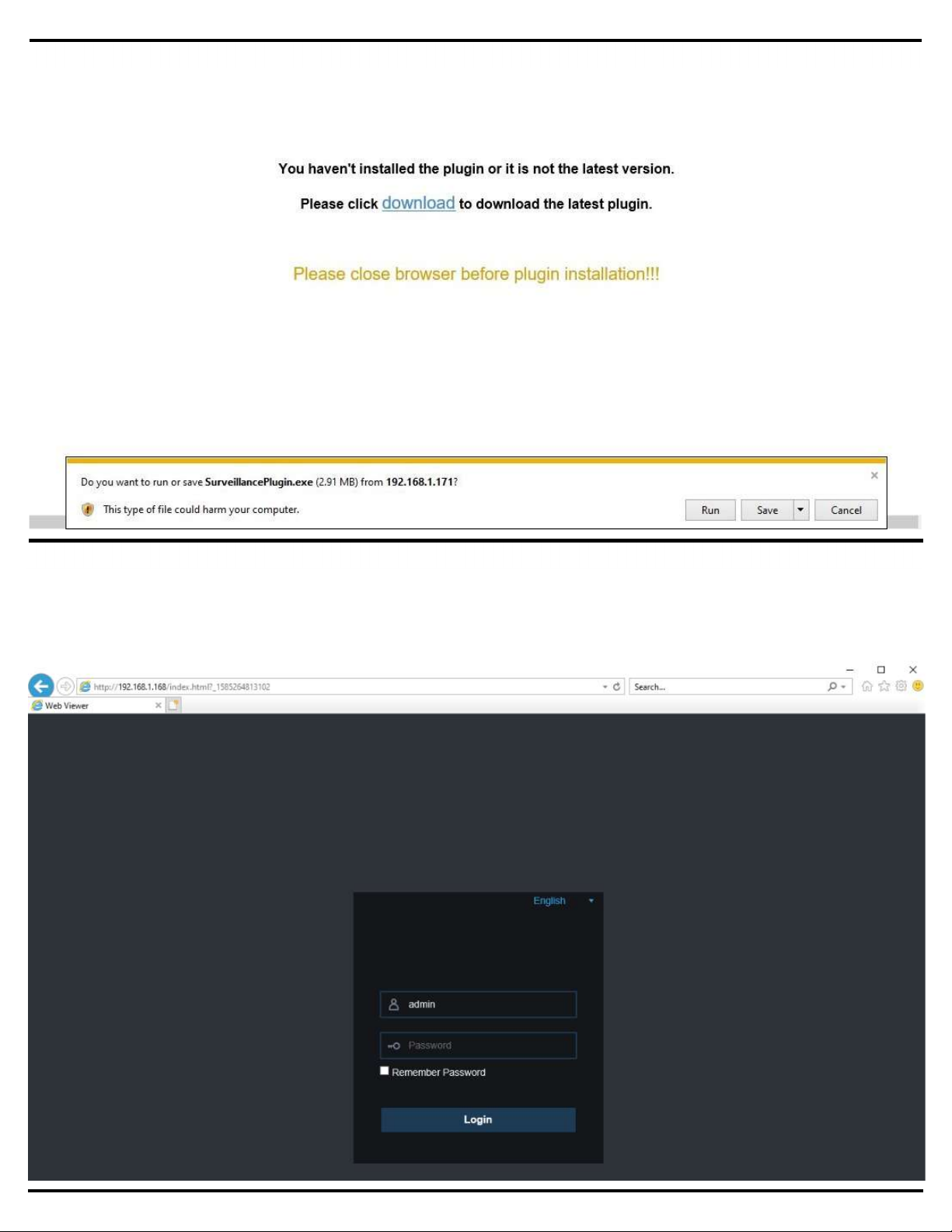

If this is the first-time accessing camera, you will need to install the following plugin.

ENFORCER IP Fixed Cameras
6 SECO-LARM U.S.A., Inc.
Live:
Stop displaying Displays screen using
original proportions
Stretches display to cover
more of the open window
Fullscreen Record (local)
Snapshot (local) Digital Zoom Configure color settings Displays information of
plugin and web version
Log out
 Mainstream – Displays screen at highest resolution
 Sub Stream – Displays screen at lower resolution
 Mobile Stream – Displays screen at lowest resolution
Screen Icons:

ENFORCER IP Fixed Cameras
SECO-LARM U.S.A., Inc. 7
Color Adjustment:

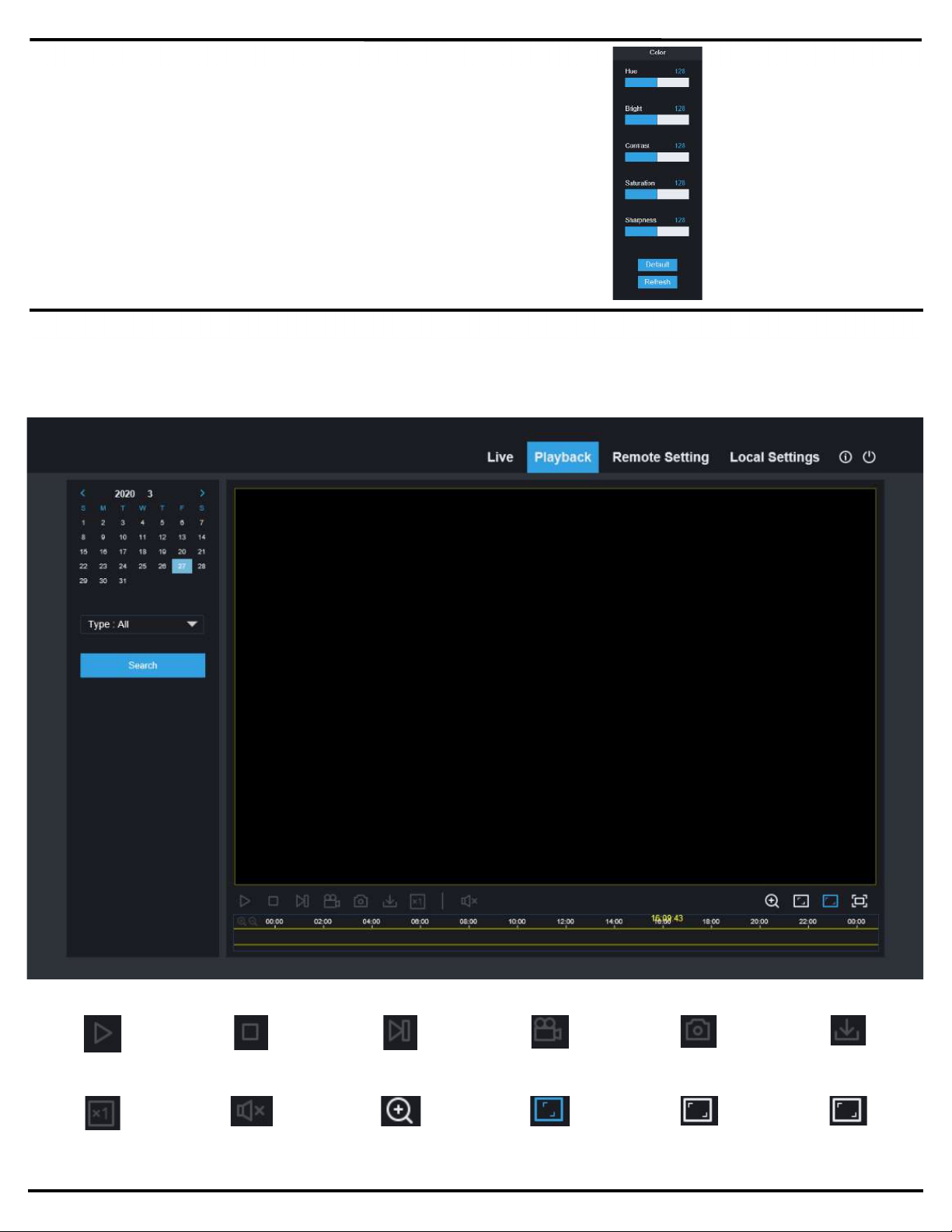

Playback:
Play Stop Forward by one frame Record Snapshot Download
Viewing speed
Audio
Digital Zoom
Displays screen using
original proportions
Stretches display to
cover more of the open
window
Fullscreen
 Hue – Adjust hue
 Bright – Adjust brightness
 Contrast – Adjust contrast
 Saturation – Adjust saturation
 Sharpness – Adjust sharpness
 Default – Reset settings back to default
 Refresh – Reloads initial values

 Date – Select date to search for recorded videos
 Type – Select the type of video or alarm
 Search – Click to search
Screen Icons:

ENFORCER IP Fixed Cameras
8 SECO-LARM U.S.A., Inc.

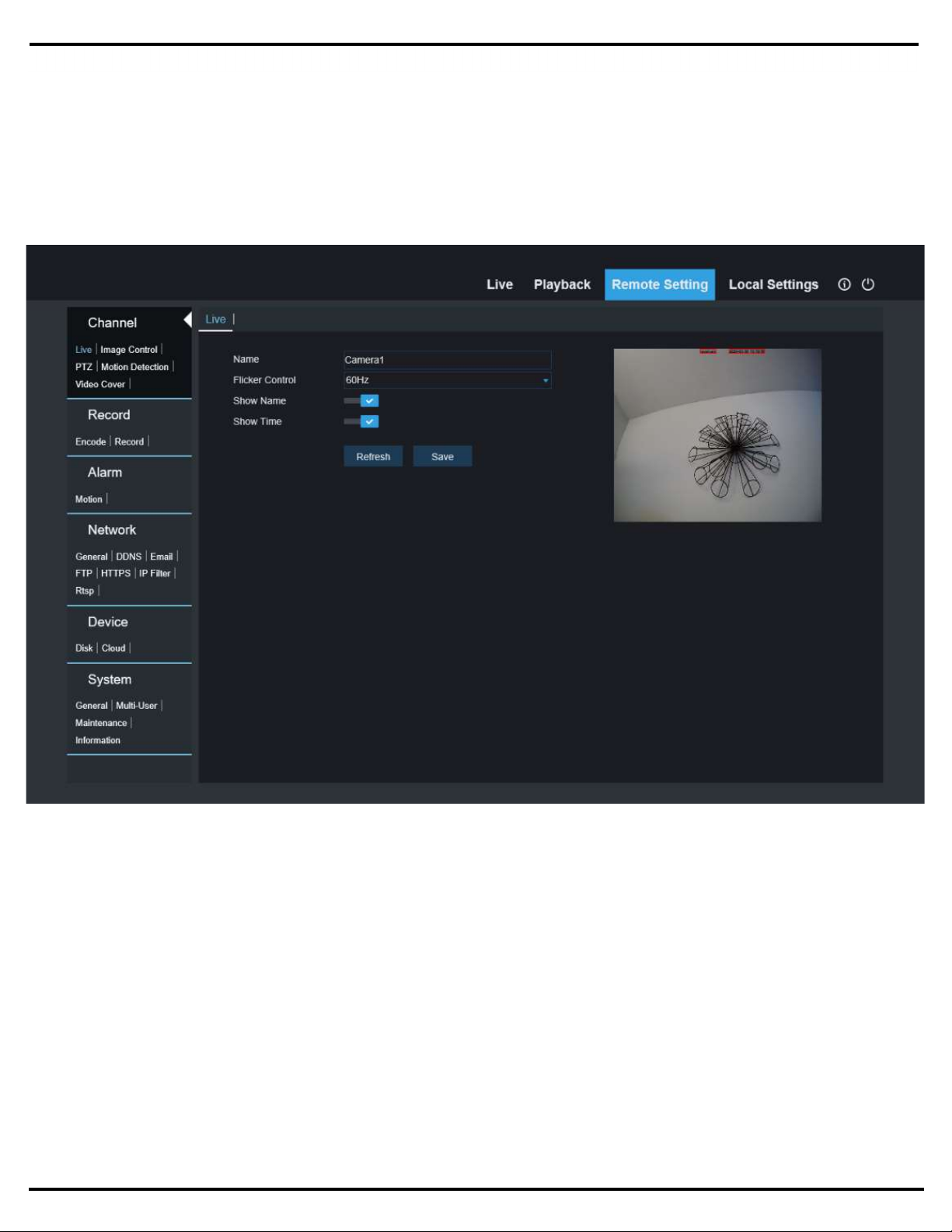

Remote Setting – Channel – Live:
 Name – Enter name for camera
 Flicker Control – Select between 60Hz and 50Hz (United States uses 60Hz, Europe uses 50Hz by default)
 Show Name – Select to display camera name
 Show Time – Select to display camera time
 Refresh – Reloads initial values
 Save – Click to save changes

ENFORCER IP Fixed Cameras
SECO-LARM U.S.A., Inc. 9
Remote Setting – Channel – Image Control:
 R-CUT Mode – Select day and night settings
 GPIO Auto – Automatically switches to B/W after IR Cut Delay time expires
 Color Mode – Stays in color
 B/W Mode – Stays in B/W
 Schedule B/W – Set the time of day to switch between b/w and color
 IR Cut Delay – Set the IR cut delay
 IR-LED – Select how to turn LEDs On/Off (Auto, On, Off)
 Lens Flip – Vertical flip
 Angle Flip – Horizontal flip
 Angle Rotation – Rotate screen 180°
 Back Light – Turn on/off backlight compensation
 3D Noise Reduction – Select to turn enable/disable 3DNR (Disable, Auto, Manual)
 White Balance – Select to control white balance (Auto, Manual)
 Shutter – Select to control shutter (Auto, Manual)
 Time Exposure (max) – Select shutter speed (1/5~1/20000, flickerless)
 Defog Mode – Select to control defog mode (Disable, Auto, Manual)
 Refresh – Reloads initial values
 Save – Click to save changes
 Default – Restore factory default

ENFORCER IP Fixed Cameras
10 SECO-LARM U.S.A., Inc.

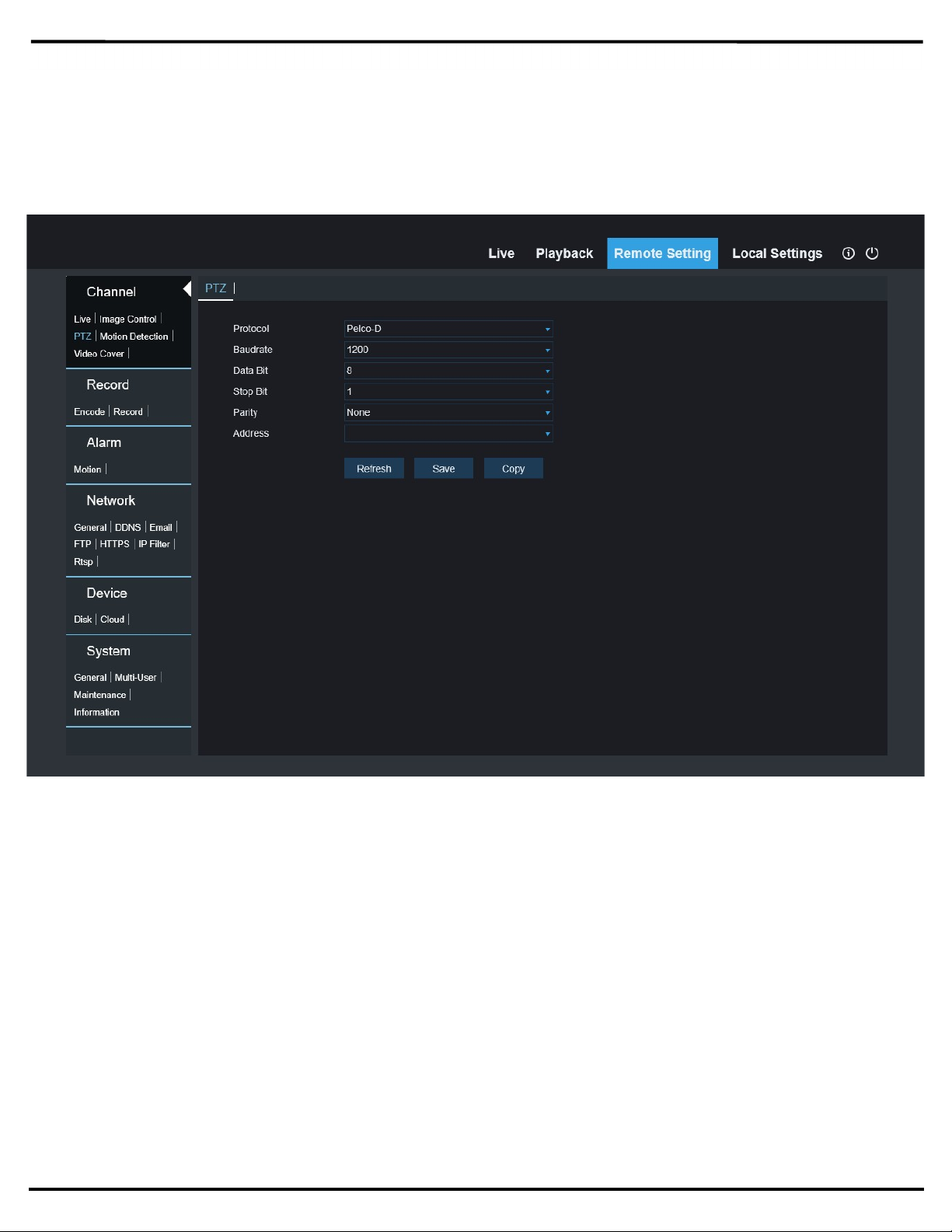

Remote Setting – Channel – PTZ:
 Protocol – Select protocol (Pelco P, Pelco D)
 Baud Rate – Select baud rate (1200, 2400, 4800, 9600)
 Data Bit – Set Data Bit (5.6,7,8)
 Stop Bit – Set Stop Bit (1, 2)
 Parity – Set parity (None, Odd, Even, Mark, Space)
 Address – Set the last octet IP address
 Refresh – Reloads initial values
 Save – Click to save changes
 Copy – Copies configuration to another channel

ENFORCER IP Fixed Cameras
SECO-LARM U.S.A., Inc. 11
Remote Setting – Channel – Motion Detection:
Remote Setting – Channel – Video Cover:
 Enable – Enable/disable motion detection
 Sensitivity – Set sensitivity (1~8)
 Clear – Clears area
 All – Sets the entire area for motion sensing
 Refresh – Reloads initial values
 Save – Click to save changes
 Privacy Zone – Select to enable/disable privacy zone (zone selected will be blacked out of video)
 Delete – Remove selected privacy zone
 Refresh – Reloads initial values
 Save – Click to save changes

ENFORCER IP Fixed Cameras
12 SECO-LARM U.S.A., Inc.

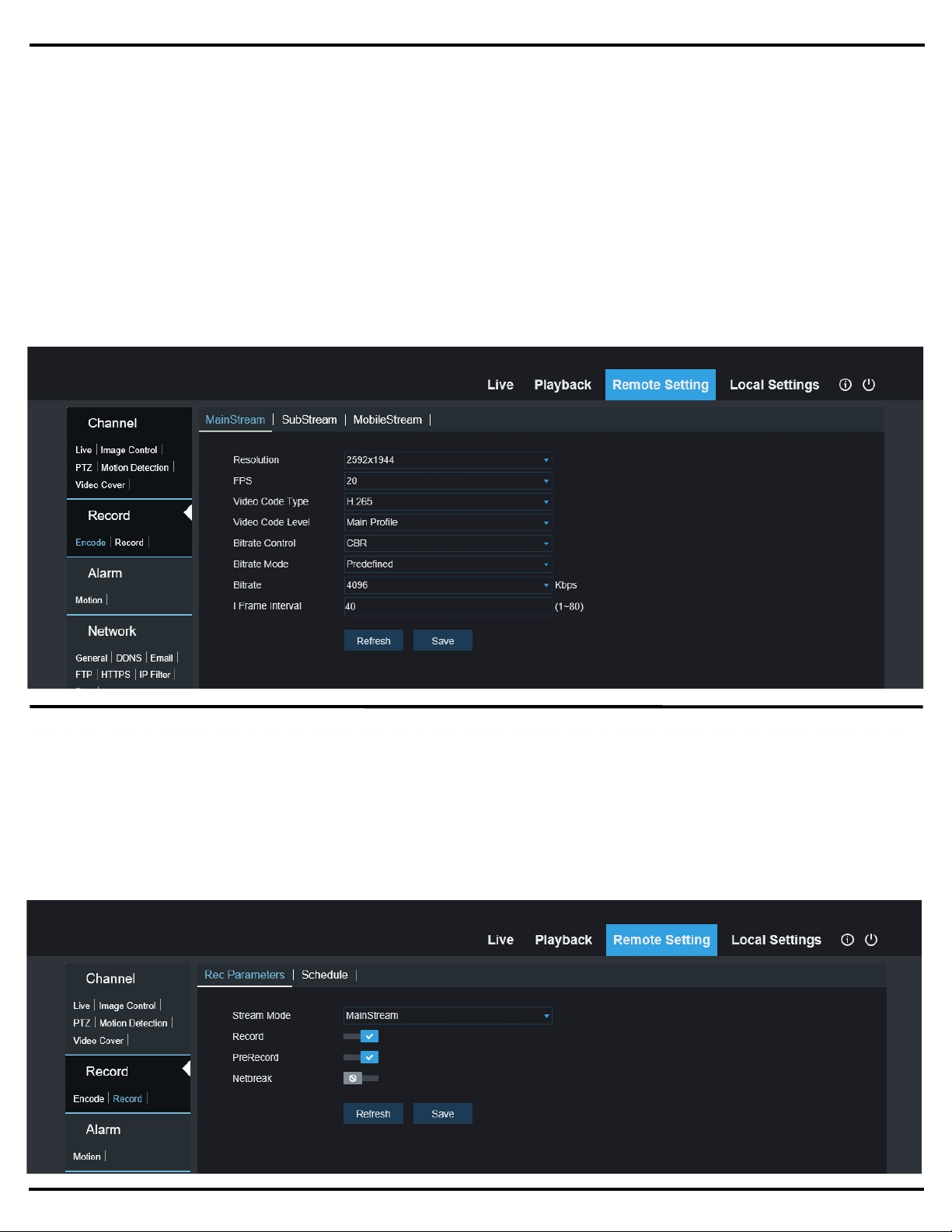

Remote Setting – Record – Encode:
Remote Setting – Record – Record:
Rec. Parameters
 Stream Mode – Select between Mainstream and Sub stream to record
 Record – Enable/Disable recording
 PreRecord – Enable/Disable PreRecord (This always caches a few seconds of video)
 Netbreak – Enable/Disable Netbreak
 Refresh – Reloads initial values
 Save – Click to save changes
Set the values below for MainStream, SubStream, and MobileStream
 Resolution – Set camera resolution
 FPS – Set frames per second (1~20)
 Video Code Type – Select compression (H.264, H.265)
 Video Code Level – Main profile selected on Mainstream
 Bitrate Control – Select constant bitrate or variable bitrate (CBR, VBR)
 Bitrate Mode – Select bitrate mode
 Pre-defined – Select from pre-defined values
o User-defined – Enter user-defined value
o I Frame Interval – Enter I frame interval (1~80)
 Refresh – Reloads initial values
 Save – Click to save changes

ENFORCER IP Fixed Cameras
SECO-LARM U.S.A., Inc. 13
Remote Setting – Record – Schedule:
Remote Setting – Alarm – Motion:
Select the schedule to record
 Normal – Select always recording option
 Motion – Select recording when motion is detected option
 Refresh – Reloads initial values
 Save – Click to save changes
 Default – Select factory default
 Post Recording – Select the seconds to keep recording after alarm has ended (0,5,10,20,30)
 Send Email – Enable email alert
 FTP Upload – Enable file transfer alert to an PTP site
 Send to Cloud – Select to enable cloud alert
 Enable Record – Select to start recording when alarm is activated
 Refresh – Reloads initial values
 Save – Click to save changes

ENFORCER IP Fixed Cameras
14 SECO-LARM U.S.A., Inc.
Remote Setting – Network – General:
Remote Setting – Network – General – PPPoE:
 DHCP – Select to enable DHCP (Automatically receives an IP
address and populates the rest of the network settings)
 IP Address – Enter the IP address
 Subnet Mask – Enter the subnet mask
 Gateway – Enter the gateway
 DNS 1 – Enter the primary DNS
 Enable PPPoE – Select to enable PPPoE (Point-to-Point Protocol over
Ethernet)
 Username – Enter username
 Password – Enter password
 IP Address – Uses current IP Address
 Subnet Mask – Uses current subnet mask
 Gateway – Uses current gateway
 DNS1 – Uses primary DNS
 DNS2 – Specify secondary DNS
 Refresh – Reloads initial values
 Save – Click to save changes
 DNS 2 – Enter the Secondary DNS
 Multicast – Select to enable camera to use multicast address
 Multicast Address – Enter the multicast address
 Refresh – Reloads initial values
 Save – Click to save changes

ENFORCER IP Fixed Cameras
SECO-LARM U.S.A., Inc. 15

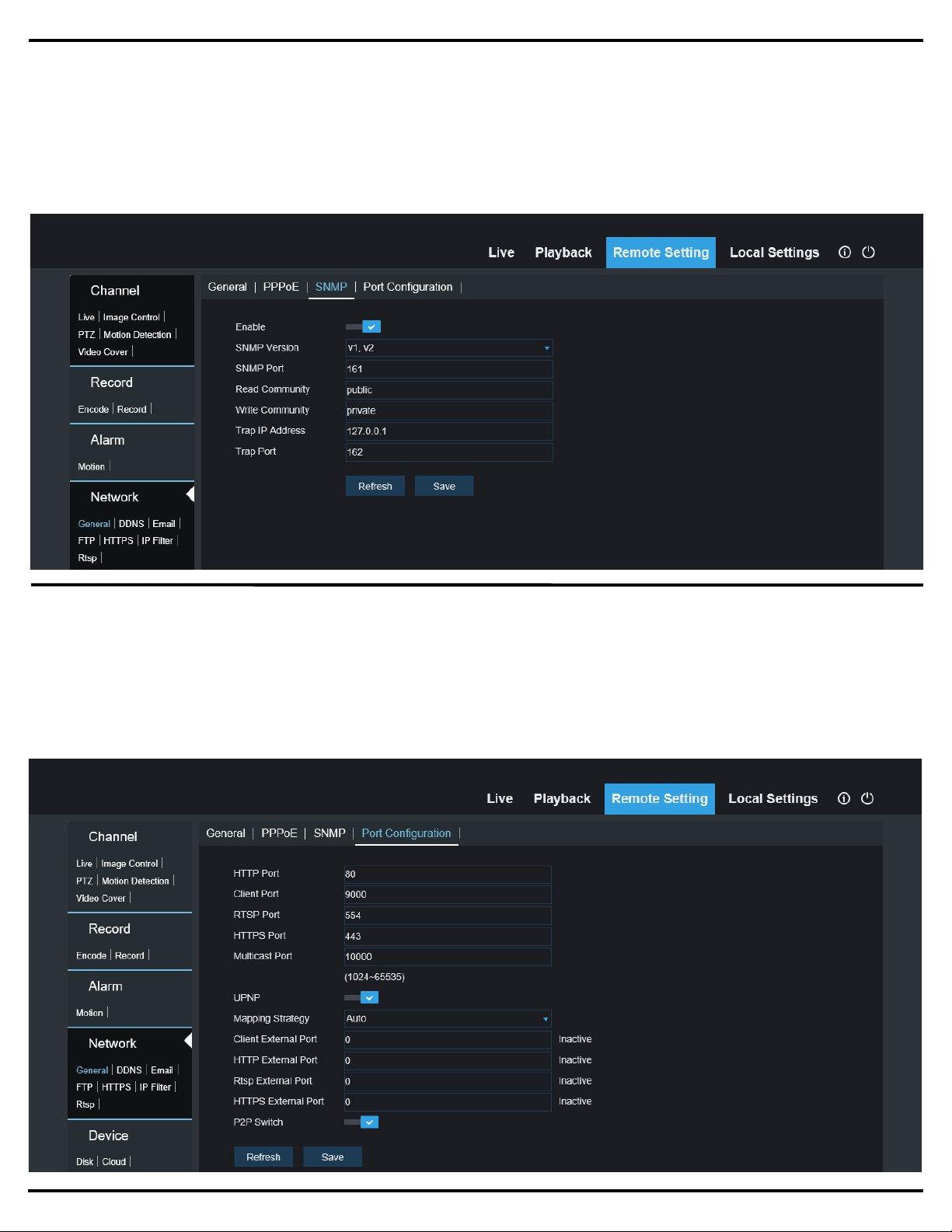

Remote Setting – Network – General – SNMP:
Remote Setting – Network – General – Port Configuration:
 Enable – Select to enable simple network management protocol
(SNMP is used to collect ad manage data from managed devices on
your network)
 SNMP Version – Select version of SNMP to use (v1, v2, v3)
 SNMP Port – Enter port
 Read Community – Enter read community string
 HTTP Port – Number of the http port
 Client Port – Number of the client port
 RTSP Port – Number of the real time streaming port
 HTTPS – Number of the https port
 Multicast Port – Number of the Multicast port
 UPNP – Enable / Disable UPNP
 Mapping Strategy – Choose port mapping strategy
o Auto – Automatically fills the port numbers
o Manual – Allows you to specify port numbers
 P2P Switch – Select to enable P2P
 Refresh – Reloads initial value
 Save – Click to save changes
 Write Community – Enter write community string
 Trap IP Address – Enter trap IP Address
 Trap Port – Enter port
 Refresh – Reloads initial values
 Save – Click to save changes

ENFORCER IP Fixed Cameras
16 SECO-LARM U.S.A., Inc.

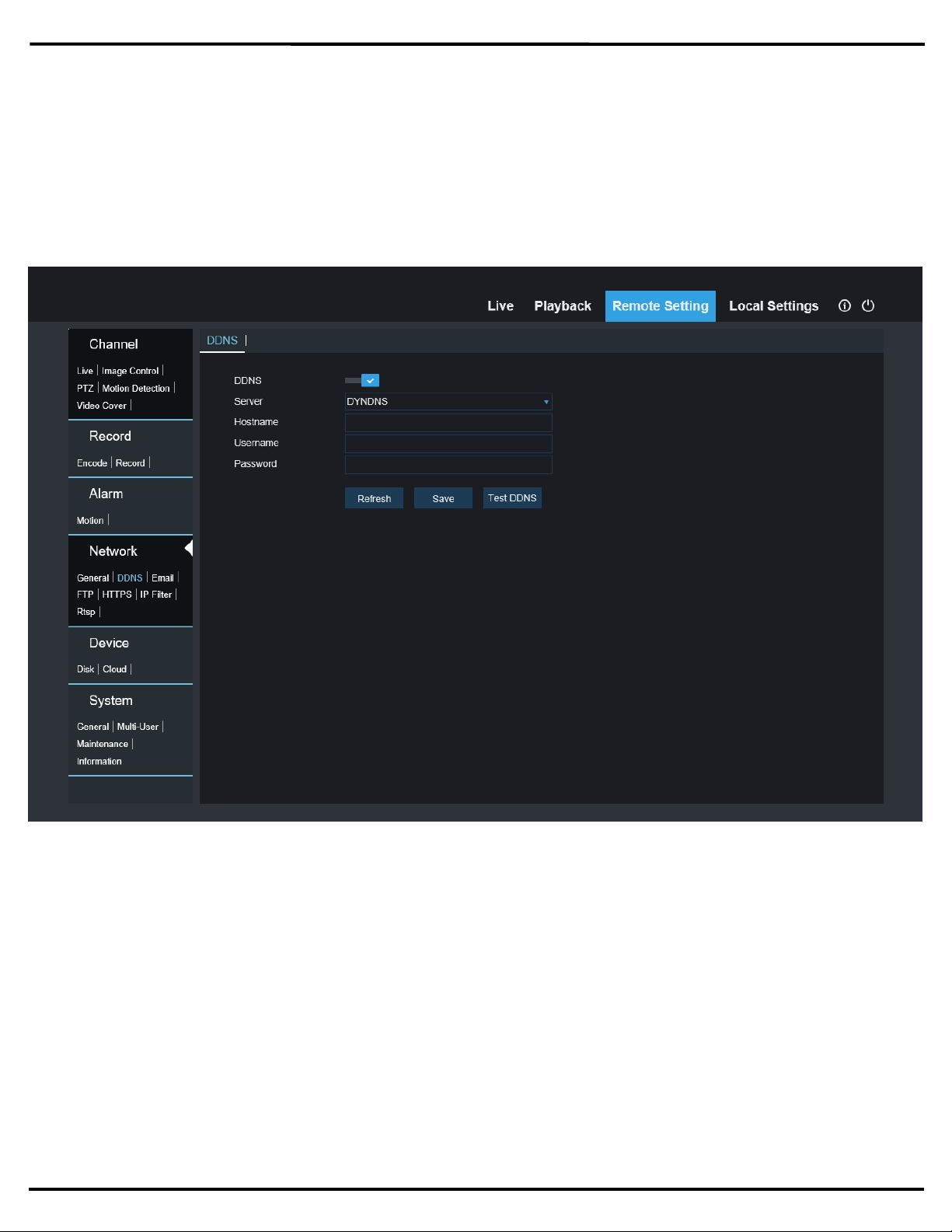

Remote Setting – Network – DDNS:
 DDNS – Select to enable Dynamic DNS (DDNS is used to dynamically update name servers with your network’s information)
 Server – Select third party DDNS service (DYNDNS, NO-IP)
 Hostname – Enter the URL for site
 Username – Enter username
 Password – Enter password
 Refresh – Reloads initial values
 Save – Click to save changes
 Test DDNS – Select to test settings

ENFORCER IP Fixed Cameras
SECO-LARM U.S.A., Inc. 17

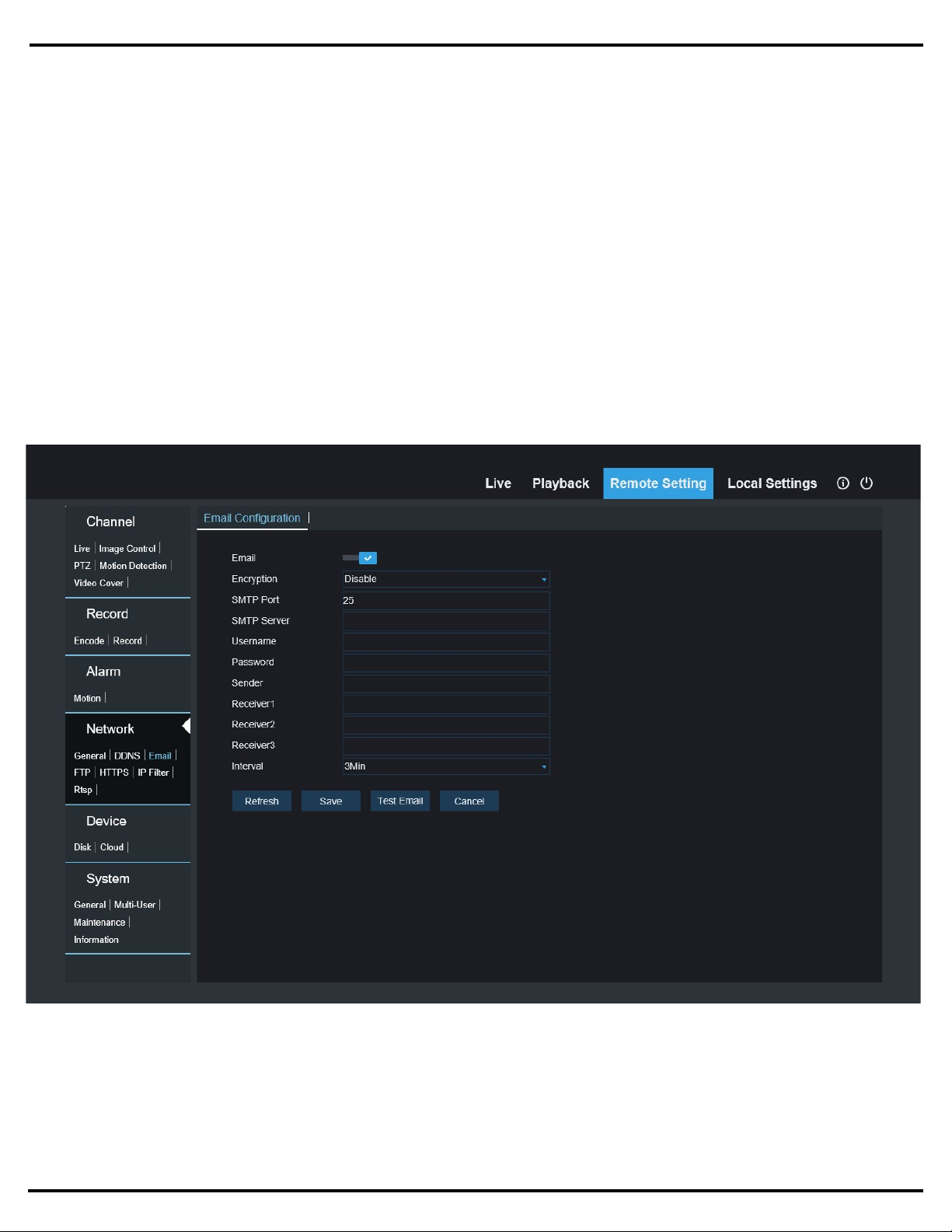

Remote Setting – Network – Email Configuration
 Email – Select to enable email
 Encryption – Select encryption type (SSL, TLS, Auto, Disable)
 SMTP Port – Port for email server
 SMTP Server – Server location
 Username – Enter username
 Password – Enter password
 Sender – Enter user to send email
 Receiver1 – Enter first recipient
 Receiver2 – Enter second recipient
 Reciever3 – Enter third recipient
 Interval – Enter interval to send email in minutes (1, 3, 5, 10)
 Refresh – Reloads initial values
 Save – Click to save changes
 Test Email – Click to test sending an email
 Cancel – Exits with no changes saved

ENFORCER IP Fixed Cameras
18 SECO-LARM U.S.A., Inc.
Remote Setting – Network – FTP:
Remote Setting – Network – HTTP:
 FTP Enable – Select to enable file transfer protocol (FTP is a protocol used to tra
nsfer files between a client computer and an FTP server. Files are stored
in FTP server)
 Server – Enter FTP server address
 Port – Enter port
 Username – Enter username
 Password – Enter password
 Transfer Images – Select to enable image upload
 Refresh – Reloads initial values
 Save – Click to save changes
 HTTPS – Select to enable HTTPS (HTTPS is a secured version of HTTP)
 Certificate Type – Select type of certificate for HTTPS (Default, Custom)
 Refresh – Reloads initial values
 Save – Click to save changes

ENFORCER IP Fixed Cameras
SECO-LARM U.S.A., Inc. 19
Remote Setting – Network – IP Filter:
Remote Setting – Network – RTSP:
 Enable – Select to enable IP filtering (restrict access to camera based on IP addresses)
 Enable Allow List – List devices that are allowed
 Enable Block List – List devices that are blocked
 Restricted Type – View allow or block list
 Start Address – Enter starting IP Address
 End Address – Enter ending IP Address
 Single Add – Add a single address
 Network Segment Add – Add a scope of IP addresses
 Refresh – Reloads initial values
 Save – Click to save changes
 Delete – Remove IP Address from list
 RTSPEnable – Select to enable real time streaming protocol (RTSP is a protocol used to stream media across ethernet networks)
 Anonymous Login – Select to allow users with no credentials
 Refresh – Reloads initial values
 Save – Click to save changes

ENFORCER IP Fixed Cameras
20 SECO-LARM U.S.A., Inc.

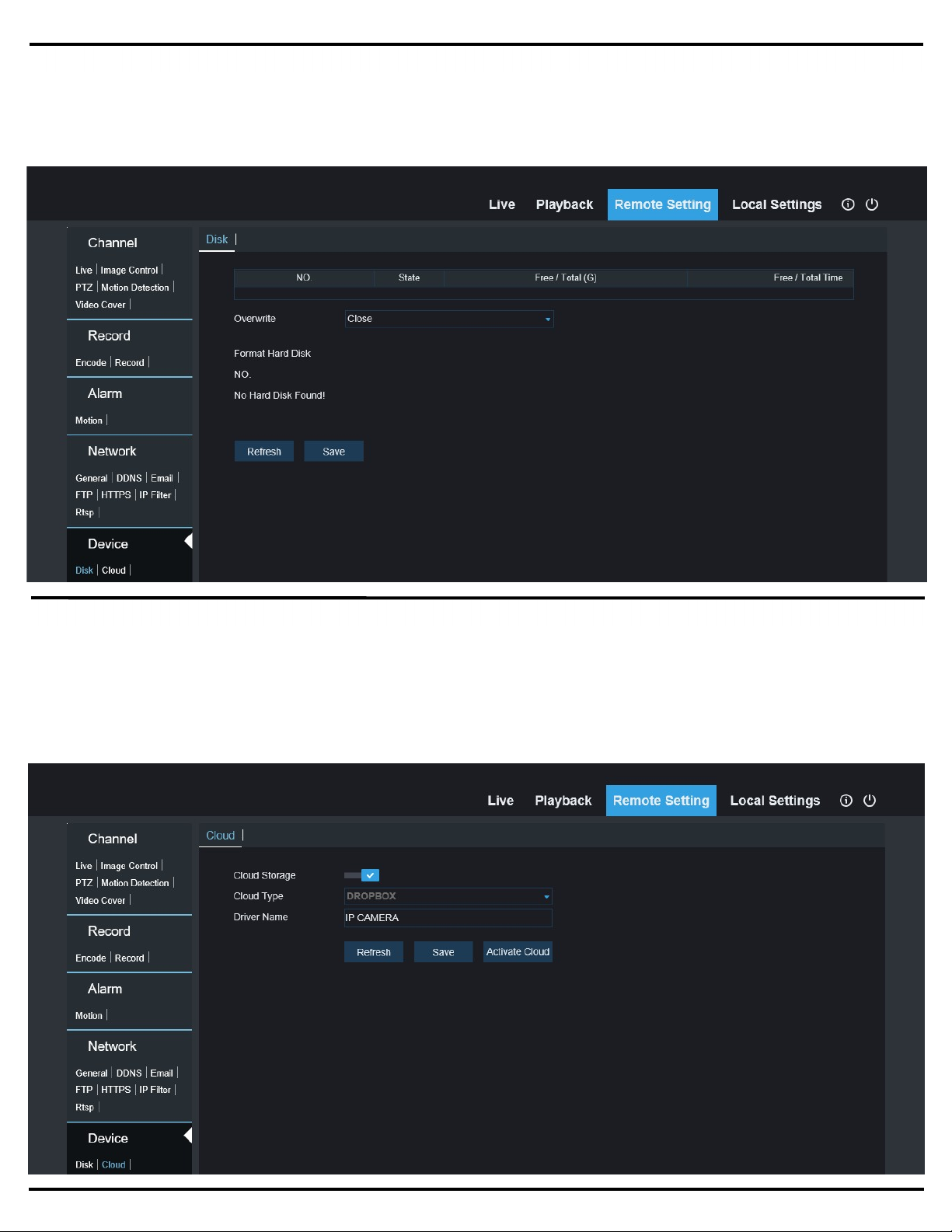

Remote Setting – Device – Disk:
Remote Setting – Device – Cloud:
Information regarding external hard drive (SD Card)
 Overwrite – Select whether to overwrite once hard drive capacity is full (Close, Auto)
 Refresh – Reloads initial values
 Save – Click to save changes
NOTE:
If
the
SD Card is not recognized, format card by clicking on Format
, formatt
ing an SD Card will erase all current
data saved onto the card.
 Cloud Storage – Select to enable cloud storage
 Client Type – Camera will only support Dropbox for cloud storage
 Driver Name – Enter driver name
 Refresh – Reloads initial values
 Save – Click to save changes
 Activate Cloud – Click to test cloud settings
