SecureAire EU-100X User manual
www.secureaire.com | Proudly made in the U.S.A. | EU100X-Rev A
Installation, Operating
and Maintenance Guide
Congratulations on selecting the most advanced
Elevator Air Purication System!
SecureAire’s Patented ACTIVE Particle Control™
Technology removes airborne contaminants while
INACTIVATING™ (killing) viable airborne pathogens
including bacteria, viruses and mold.
Air
Purication
for a Safe,
Healthy,
and Clean
Environment™
Elevator Air Purication System
EU-100X
www.secureaire.com | Proudly made in the U.S.A. | EU100X-Rev A2
Legal Notices
The information contained in this document is subject to change without notice.
This document contains proprietary information that is protected by copyright. All rights are reserved. No
part of this document may be photocopied, reproduced, or translated to another language without the
prior written consent of SecureAire Technologies, LLC.
SecureAire Technologies, LLC
1968 Bayshore Blvd
Dunedin, Florida 34698
www.secureaire.com
Phone: 813-300-6077
Technical Support
Please contact us at 813-300-6077 with any questions.
Printing History
This manual was rst printed in July 2020. The edition number will change when a new edition is printed.
Minor changes may be made at reprint without changing the edition number. The part number will
change when extensive changes are made.
Preface
www.secureaire.com | Proudly made in the U.S.A. | EU100X-Rev A 3
Overview
Advanced Technology Overview
The EU-100X is a State-of-the-Art Elevator Air Purication System that utilizes SecureAire’s ACTIVE
Particle Control Technology (APC). The patented process is described in the following diagram:
STEP 1: CONDITION
Particles entering the SecureAire System become
electrically CONDITIONED.
STEP 2: COLLISION
Conditioned Particles are forced to COLLIDE, gaining
mass in the process.
STEP 3: CAPTURE & INACTIVATE
Collisions make particles easier to CAPTURE within the air
purication cartridge media. Once CAPTURED, any viable
pathogens will be INACTIVATED or destroyed.
STEP 4: TRANSPORT
Particles escaping CAPTURE, are again CONDITIONED and are
thereby used to TRANSPORT contaminants from the treated
space to the SecureAire air purication cartridge.
ACTIVE Particle Control: How it works
The Advanced and Patented 4-Step process
–
+
+
+
+
+
+
+
–
–
–
–
–
–
–
Most particles
are too small to be
transported because
of their lack of weight.
1
2
+
–
+
–
–
4
3
www.secureaire.com | Proudly made in the U.S.A. | EU100X-Rev A4
Overview
System Overview
The System consists of the following: System cabinet, System Electronics, SecureAire Replaceable Filter
Cartridge and the fan. The system has been tested to deliver the following performance metrics:
1. A very high particle collection eciency rate (MERV 15).
2. ACS INACTIVATE™ Technology kills up to 99% of captured biological pathogens.
Further information on SecureAire’s Technologies can be found at www.secureaire.com.
System Dimensions
12”
10.94”
16.23”
Inner diameter:
8.31”
Top View Back View Side View
www.secureaire.com | Proudly made in the U.S.A. | EU100X-Rev A 5
Unpacking:
The EU-100X unit comes complete and is pre-tested at the factory. Once uncrated, the unit is ready for
installation.
Installation:
Installing an EU-100X requires placing the system above the elevator, mounting the system in the
preferred conguration (see below) with appropriate bracing, shock absorbers and running the required
ductwork to the fan plenum. A qualied HVAC installer and a certied or licensed electrician should install
the unit.

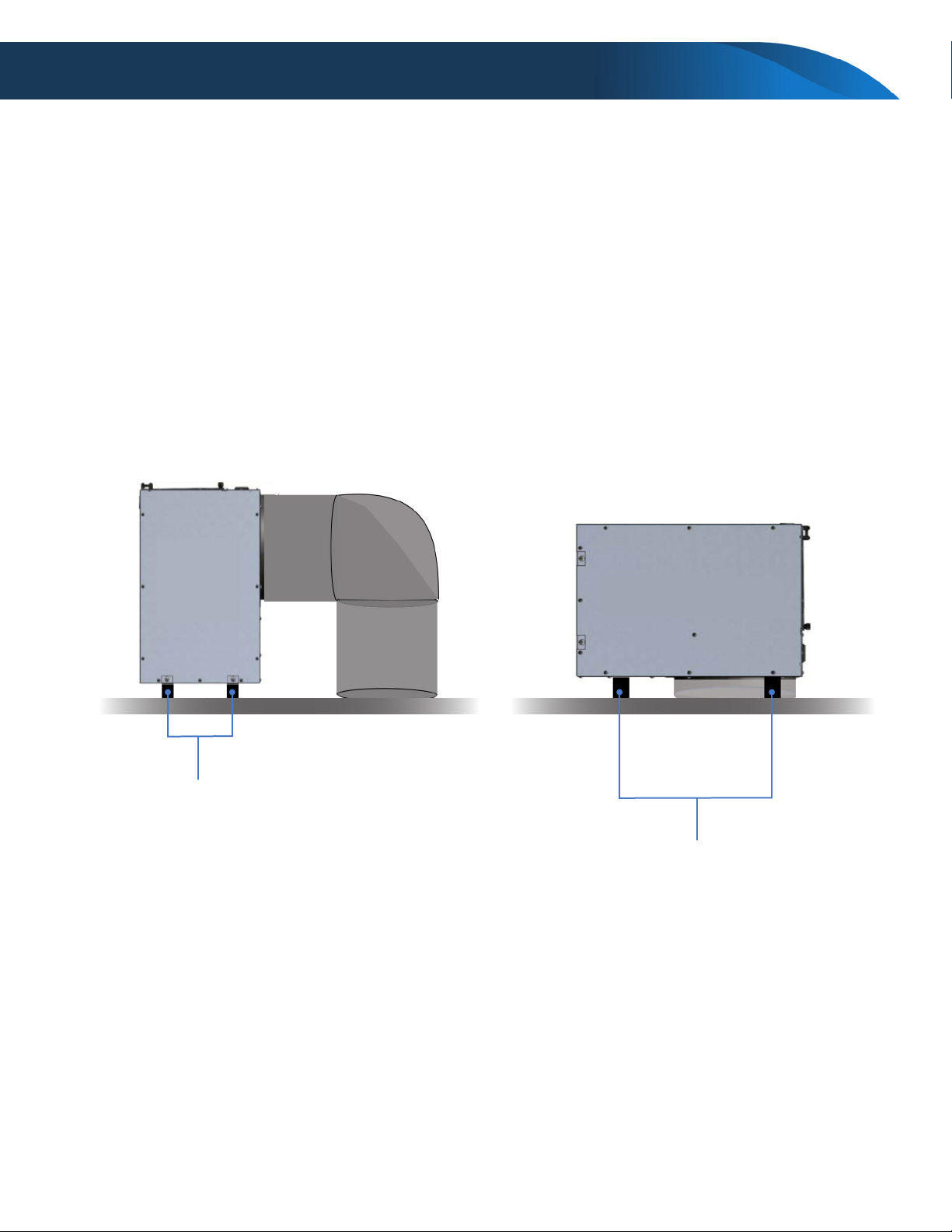

Installing an EU-100X System
Side of
EU-100X Side of
EU-100X
TOP OF
ELEVATOR
TOP OF
ELEVATOR
Shock
Absorbers
Shock
Absorbers
www.secureaire.com | Proudly made in the U.S.A. | EU100X-Rev A6
Installing an EU-100X System
The Installation consists of three following steps:
STEP 1: Plan the System layout. An appropriate location should be chosen for the EU-100X. It should
be placed above the elevator and secured with appropriate brackets and shock absorbing washers.
Once the unit is secured, you can move to Step 2.
STEP 2: Electrical Connection: Connect the unit into an appropriate 10 - amp, 120 VAC electrical outlet/
circuit. Insert power cord into the female connector within the EU-100X
IMPORTANT NOTES:
1. A licensed electrician should provide an individual properly grounded branch electrical circuit with
a rating of 120 VAC, 60 Hz at 10 amps.
2. Wiring must be performed with 2 wires and a ground wire. It is rated for 75°C (176°F).
Grounding Instructions – Cable Direct
This device must be connected to grounded metal, a permanent wiring system, or an equipment
ground conductor. It must be run with the circuit conductors and be connected to the equipment
ground terminal. Use electrical conduit where required.
STEP 3: Test the Unit. After verifying correct connectivity and checking for tight hardware, install the
branch circuit fuse or turn on the circuit breaker. Press the Power Button to select one of the three
desired fan speeds: Low, Medium or High. Turning the system on will produce a green indicator light
that will go out after 10 seconds. To turn the system o, press and hold the Power Button for 3 seconds.
Your installation of the SecureAire EU-100X unit is now complete!
IMPORTANT NOTE: Care should be taken to make sure that no metal, including metal shavings
or screws, gets placed or lodged in the EU-100X as this can create an electrical short in the system.
WARNING
FOR PERSONAL SAFETY:
Remove branch circuit fuse or open circuit breaker before beginning
installation. Do not use an extension cord or adapter plug with this device.
WARNING
The improper connection of the equipment grounding conductor can result
in a risk of electric shock. Check with a qualied electrician or service
representative if you are in doubt that the appliance is properly grounded.
www.secureaire.com | Proudly made in the U.S.A. | EU100X-Rev A 7
Installing an EU-100X System
Maintenance
The EU-100X System was designed for easy installation and maintenance. Once the EU-100X System
has been installed and is properly connected, the system is ready to run.
Filter Cartridge Change Outs:
Filter Media change outs are made easy due to the EU’s Systems design. An access door allows for
quick lter changes. Simply turn o the power to the unit, open the lter door, remove the used lters
and replace it with a new one. Turn the system power back on and your lter change is complete.
Replacement Filter Cartridges can be purchase through your local SecureAire Dealer.
Maintenance:
While no further maintenance is specically required, it is advised to occasionally check for dirt
buildup on the units. Should buildup occur, it can be blown o with an air gun or wiped o with a soft
paintbrush while units are not energized.
WARNING
Electric Shock Hazard!
Can cause personal injury!
Do not, under any circumstances use an electrical extension cord other than
what is provided with the unit. Before servicing this unit, always make sure
that the unit is unplugged from any outlet and do not perform any servicing
other than that contained in this Guide.
Standards and Approvals / Technical Support / Warranty
Standards and Approvals
The SecureAire Elevator Air Purication System has been tested and veried to meet or exceed the
following:
• UL 867 Electrical Standard
• CSA C22.2 No. 187-09 Electrical Standard
Technical Support
Please contact your local representative or SecureAire at 813-300-6077 with any questions.
SecureAire Product Warranty
Limited Warranty. SecureAire products are expressly warranted for normal product use for twelve (12) months
from the date of shipment (as shown on proper purchase paperwork) or manufactured date code (if purchase
paperwork is unavailable, the “Warranty Period”) against failure due to defects in workmanship and materials.
SecureAire’s exclusive obligation under this limited warranty shall be to supply, without charge, a new or like new
replacement for any product part that fails due to defect during the Warranty Period. Replacement of a part shall
not extend the original product Warranty Period and any replacement part provided under this warranty shall only
be subject to the remainder of the original warranty for the product, including the original twelve (12) month
Warranty Period. This limited warranty shall not obligate SecureAire for any labor costs associated with replacing
product parts.
Warranty Exclusions. Filter media is considered a disposable item and is not covered under this limited warranty.
SecureAire is not responsible should the product (i) fail to be maintained properly, or (ii) be modied in any fashion
whatsoever, or (iii) fail to function properly as a result of misuse, abuse, improper installation, neglect, damage
caused by disaster such as re, ood and lightning, improper electrical current, or (iv) be repaired other than by
SecureAire or an Authorized SecureAire Services Representative, or (v) be repaired using parts other than those
supplied by SecureAire, or (vi) be used with non-SecureAire lter media, or (vii) be damaged due to acts of war or
terrorism. Additionally, this limited warranty shall not apply if purchaser has not paid all invoiced amounts due.
SecureAire Products are for installation and operation in the United States and Canada only. Installation and
operation of the SecureAire Products outside of the United States and Canada voids all warranties.
SecureAire Technologies, LLC
1968 Bayshore Boulevard, Dunedin, FL 34698
813.300.6077 | www.secureaire.com
© 2021 SecureAire Technologies, LLC. All rights reserved. Made in USA. 8.3.21
