Security Brands RIDGE 2.0 User manual

QUICK START GUIDE 1 of 6
2Make sure you have all items shown here. (Screwdriver not shown)
9-V Battery
Must be installed before use.
Reset Button
For performing reset procedures
on keypad
START HERE
Keypad Unit Transceiver 9-V Battery Key Carriage Bolt
( 4x )
Hex Nut
( 4x )

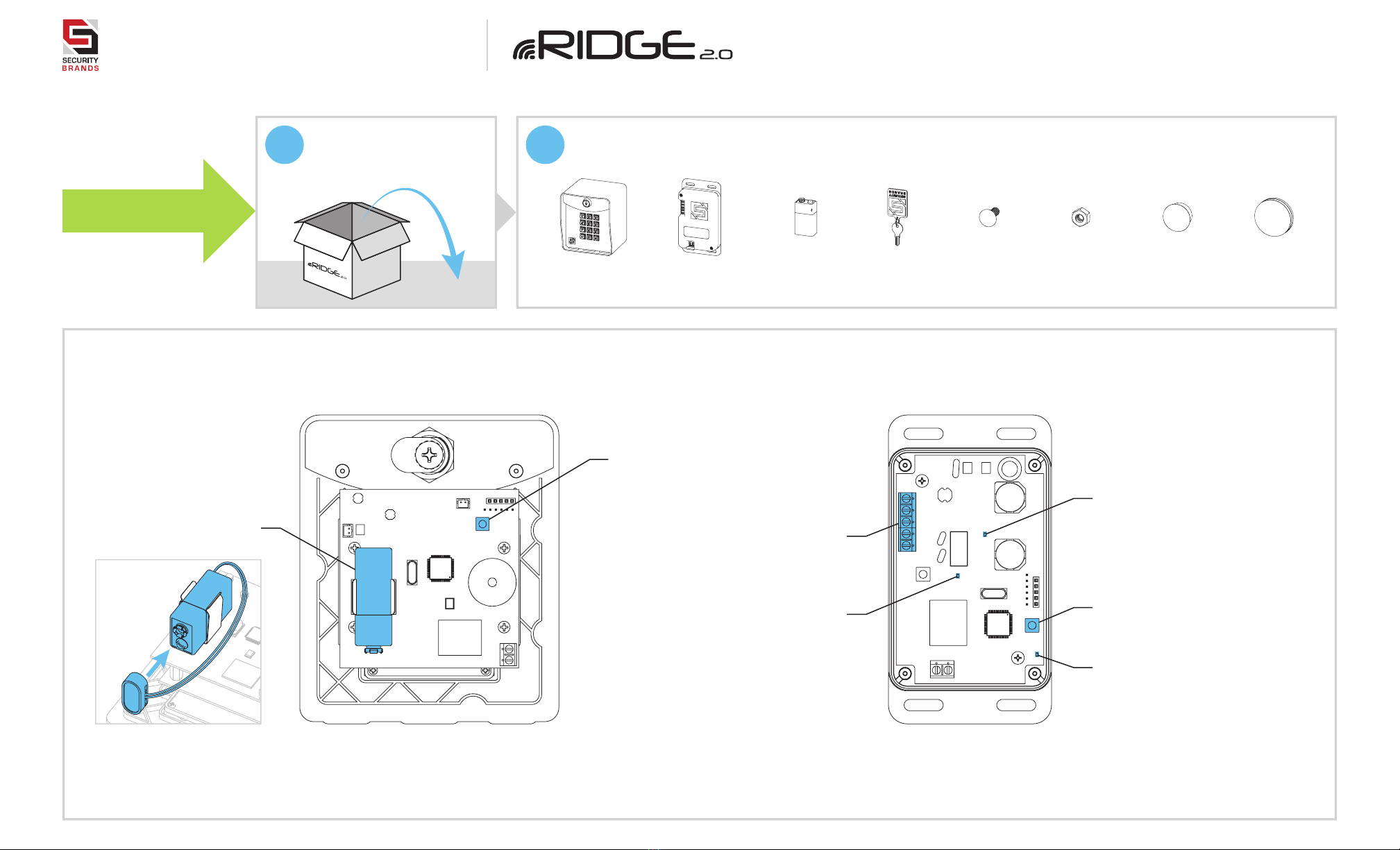

What’s what?
Important components labeled
Transceiver
Shown with cover removed.
Internal wiring not shown for clarity.
Keypad Unit
Back of front panel shown.
Internal wiring not shown for clarity.
Connection Terminals
For wiring to compatible
AC/DC power source and
gate operator or door opener
Relay Status LED
Indicates whether relay is
active or inactive
(Relay active when lit)
Programming Button
For pairing transceiver to keypad
Power LED
Indicates whether or not unit has power
Programming LED
Indicates status of pairing process
Hole Plug
Model 14-500
Adhesive
Mounting Pad
1Carefully unpack box.

© 2021 Security Brands, Inc. All rights reserved. QSG-14500-EN Rev. C (4/2021)
QUICK START GUIDE 2 of 6
Model 14-500
CAUTION!

The transceiver is not weatherproof and must be mounted inside a
weatherproof enclosure. Internal components can be damaged if
exposed to the elements.
Failure to comply will VOID WARRANTY.

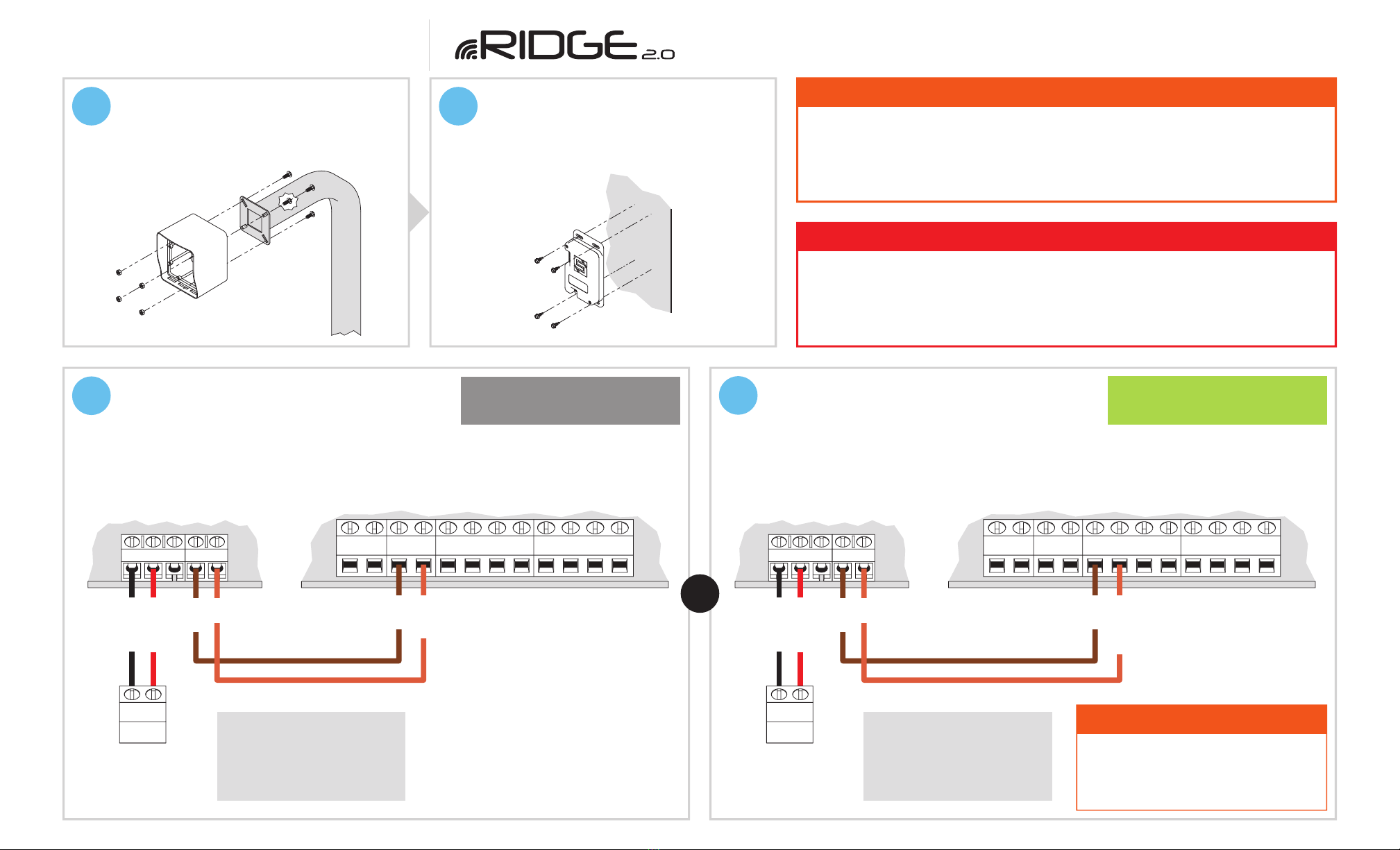

5a Connect transceiver
Ridge Transceiver
12–24 VAC/DC
POWER
RELAY A
12–24 VAC/DC
POWER
Gate Operator / Door Opener
POS. (+)
NEG. (–)
COM
REVERSE LOOP
COM
OPEN
STOP
CLOSE
OR
12–24-VAC/DC
Power Source
(Not Included)
NC
NEG. (–)
POS. (+)
+–
COM
NO
FREE EXIT
COM
5b Connect transceiver
COM
RADIO
Ridge Transceiver
12–24 VAC/DC
POWER
RELAY A
12–24 VAC/DC
POWER
Gate Operator / Door Opener
POS. (+)
NEG. (–)
COM
REVERSE LOOP
COM
OPEN
STOP
CLOSE
12–24-VAC/DC
Power Source
(Not Included)
NC
NEG. (–)
POS. (+)
COM
NO
FREE EXIT
COM COM
RADIO
Gate Operator Timer-to-Close
OFF
Gate Operator Timer-to-Close
ON
A closing gate can cause injury to
persons or damage to property.
ALWAYS USE SAFETY DEVICES!
CAUTION!

WARNING!
AUTOMATIC GATES CAN CAUSE SERIOUS INJURY OR DEATH!
ALWAYS CHECK that the GATE PATH IS CLEAR BEFORE OPERATING!
REVERSING or other SAFETY DEVICES SHOULD ALWAYS BE USED!

3Unlock and remove front panel of
keypad unit; then using included
carriage bolts and hex nuts, attach
unit to pedestal as shown.
4Using Tek screws, zip ties, or
included adhesive mounting pad,
attach transceiver to inside wall or
other surface of gate operator.
Consult gate operator or
door opener manual for
exact connections.
Terminals vary widely across
manufacturers and models.
Consult gate operator or
door opener manual for
exact connections.
Terminals vary widely across
manufacturers and models.
+–

QUICK START GUIDE 3 of 6
7Add Access Code(s) to Channel A.
(To add multiple codes, enter each of them before pressing pound key)
6b Pair keypad unit with transceiver by
entering sequence below on keypad.
(Make sure 9-V battery is connected on keypad unit)
A1 Additional programming
6c While pairing, keypad unit will beep and flash.
Once transceiver LED goes offand “good” tone is
heard on keypad unit, pairing is complete.
LED will
go off
9
LED will light
and stay on
6a Remove transceiver cover; then
hold down Programming button on
circuit board for 3 seconds and let go.
8Make sure gate path is clear; then
enter access code on keypad and
confirm gate opens.
(If keypad locks up, repeat Step 6)
1 12 5 5 ? ? ? ?
Unique Keypad ID
(4 digits; numbers only)
Master Code
(1251 is default)
91 12 5 ?
Master Code
(1251 is default)
Channel
(1 for A, 2 for B)
11 12 5 ? ? ? ?
Access Code(s)
(4 digits; numbers only)
Master Code
(1251 is default)
Sub Mode
21 12 5 ? ? ? ?
Code(s) to Be Deleted
(4 digits; numbers only)
Master Code
(1251 is default)
Sub Mode Sub Mode
Your system is ready to use.
INSTALLATION COMPLETE!
N
NOTE: Green arrow indicates “good” tone on keypad unit.
Model 14-500
NOTE: The Master Code is for programming only and will not trigger the relay.
Delete Code(s)
(To delete multiple codes, enter each of them before pressing pound key)
NOTE: Green arrow indicates “good” tone on keypad unit.
Always wait for good tone before moving on.
Set Unique Keypad ID
(This feature is for added security and allows multiple keypad units and transceivers to be used.
If Keypad ID is changed, keypad unit and transceiver must be paired again.)

© 2021 Security Brands, Inc. All rights reserved. QSG-14500-EN Rev. C (4/2021)
QUICK START GUIDE 4 of 6
Model 14-500
A2 Additional programming (continued)
Sub Mode
Sub Mode
Sub Mode
Sub Mode Sub Mode
Sub Mode
Sub Mode
Sub Mode
31 12 5 ? ? ? ?
New Master Code
(4 digits; numbers only)
Current Master Code
(1251 is default)
Change Master Code
51 12 5 ? ? ? ?
Latch Code
(4 digits; numbers only)
Channel
(1 for A, 2 for B)
Master Code
(1251 is default)
?
Add Latch Code
1
Add Access Code(s) to Channel B
(To add multiple codes, enter each of them before pressing pound key)
81 12 5 ? ? ? ?
One-Time-Use Code
(4 digits; numbers only)
# of Uses
(1–9)
Master Code
(1251 is default)
?
Add One-Time-Use Code (Channel A ONLY)
01 12 5 1 2 5 1
Master Code Again
(1251 is default)
Master Code
(1251 is default)
Keypad unit will beep and flash
while erasing memory then sound
“good” tone when complete.
1 12 5
Master Code Again
(1251 is default)
Delete All Codes (Cannot Be Undone)
61 12 5 ? ? ?
Seconds
(000–999)
Channel
(1 for A, 2 for B)
Master Code
(1251 is default)
?
Set Relay Output Time
41 12 5
Current State
(On: 1 beep;
Off: 2 beeps)
Current State
(On: 1 beep;
Off: 2 beeps)
Master Code
(1251 is default)
2
41 12 5
Master Code
(1251 is default)
2
Configure Three Strikes, You’re Out
(This feature is designed to deter unauthorized users who enter an incorrect code three times
in a row. When this happens, the keypad unit will sound an alarm for 30 seconds, and then it
will go into a period of lockdown for a full 90 seconds.)
Check Status
Toggle On or Off
712 5 ? ? ? ?
Access Code(s)
(4 digits; numbers only)
Master Code
(1251 is default )
NOTE: Green arrow indicates “good” tone on keypad unit.
Always wait for good tone before moving on.

QUICK START GUIDE 5 of 6
Model 14-500
BReset Procedures
Master Reset
(Used if the Master Code is unknown, if the Latch Code is unknown and the unit is in Latch
Mode, or if the Sleep Code is unknown and the unit is in Sleep Mode. All other codes will be
retained after completing this procedure.)
Step 1 - Remove front panel of keypad unit.
Step 2 - Disconnect battery.
Step 3 - Press and hold Reset Button; reconnect battery; then release Reset Button.
Unit will sound one (1) tone. Release Reset Button after you hear tone.
Step 4 - Press Star key (*) on keypad three (3) times and wait up to 30 seconds.
Step 5 - Reattach front panel onto keypad unit.
The Master Code is now reset to default (1251).
NOTE: If an error is made during these procedures, an “error” tone will sound and
you must start again from the beginning.
Unit Reset
(Used to reset unit to factory default settings. The Master Code will be retained.)
CAUTION: FOLLOWING THIS PROCEDURE WILL DELETE ALL CODES BUT MASTER CODE!
Step 1 - Remove front panel of keypad unit.
Step 2 - Disconnect battery.
Step 3 - Press and hold Reset Button; reconnect battery; then release Reset Button.
Unit will sound one (1) tone. Release Reset Button after you hear tone.
Step 4 - Enter Pound (#) Star (*) Pound (#) on keypad. (Unit will sound “good” tone.)
Step 5 - Enter Master Code (1251 is default) on keypad. (Unit will beep continuously.)
Step 6 - While unit is beeping, disconnect and reconnect battery.
Unit will then go through power-up procedure.
Step 7 - Reattach front panel onto keypad unit.
The unit is now reset to factory default settings. Follow Master Reset to reset Master Code.
1
Programming Sub Modes
Add Access Code(s) to Channel A
7Add Access Code(s) to Channel B
9Pairing and Setting Keypad ID
8Add One-Time-Use Code (Channel A)
0Delete All Codes
2Delete Code(s)
3Change Master Code
4Configure “Three Strikes, You’re Out”
5Add Latch Code
6Set Relay Output Time
Things to Know
The Star Key (*)
The star key deletes your current entry.
If you happen to make a mistake keying in a code, simply
press the star key to delete the entire entry and start over.
The Pound Key (#)
The pound key is good for one thing and one thing only:
exiting Programming Mode. Whenever you’re in
Programming Mode, simply press the pound key to get out.
Reset Procedures
If for some reason the Master Code is forgotten or the unit
needs to be reset to factory defaults, two reset procedures
are available: Master Reset and Unit Reset.
These procedures can be found in Section B.
