Securitytronix HD-COAXINATORTVI ST-HDC2FD User manual

User Manual
Thank you for purchasing our product. If there are any
questions, or requests, please do not hesitate to
contact the dealer or technical support.
This manual applies to the Securitytronix HD-TVI Series
cameras.
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily
improve or update the products or procedures
described in the manual.
010000120116
ST-HDC2FD
QUICK START GUIDE
www.nacebrands.com www.securitytronix.com
For additional information, or if you have any issues
with this product, please visit
www.securitytronix.com
Or contact technical support @ 347-817-4342

Privacy Notice
Surveillance laws vary by jurisdiction. Check all relevant
laws in your jurisdiction before using all this product for
surveillance purpose to ensure that your use of this
product conforms.
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and
found to comply with the limits for a digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated
in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European
standards listed under the Low Voltage Directive
2006/95/EC, the EMC Directive 2004/108/EC.
2002/96/EC (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more
information see: www.recyclethis.info.
2006/66/EC (battery directive): This
product contains a battery that cannot be
disposed of as unsorted municipal waste in
the European Union. See the product
documentation for specific battery
information. The battery is marked with
this symbol, which may include lettering to indicate
cadmium (Cd), lead (Pb), or mercury (Hg). For proper
recycling, return the battery to your supplier or to a
designated collection point. For more information see:
www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.

1Introduction
1.1 Product Features
This series of HD-TVI camera adopts high
performance sensors and advanced circuit board
design technology. It features high resolution, low
distortion, and low noise, etc. Designed for use in
surveillance systems..
The main features are as follows:
 High performance CMOS sensor to produce an
exceptional quality image;
 Low illumination, 0.01 Lux @ (F1.2, AGC ON), 0 Lux
with IR;
 IR cut filter with auto switch;
 OSD menu, parameters are configurable;
 Auto white balance and internal synchronization;
 SMART IR mode;
 True WDR;
 Advanced 3-axis design meets different installation
requirements;
1.2 Overview
The cables of device vary according to different models. The
cables of each type are shown in the figures below, please
refer to the actual product in use.
You can debug the camera by connecting an auxiliary HD TVI
cable to the auxiliary video output.
1.2.1 Overview of Type I Camera
Bubble
Auxiliary
Video Output
Lens
Back Box
Menu Button
Video Cable
24VAC/12VDC
Power Cord
Cables
Video Cable
DC 12V Power Cord
Model I Cables
Model II Cables
Figure 1-1 Overview of Type I Camera
1.2.2 Overview of Type II Camera
Bubble
Auxiliary
Video Output
Lens
Back Box
Menu Button
Video Cable
24VAC/12VDC
Power Cord
Cables
Video Cable
12VDC Power Cord
Model I Cables
Model II Cables
Base Plate
Figure 1-2 Overview of Type II Camera

2Installation
Before you start:
2.1 Ceiling Mounting
Steps:

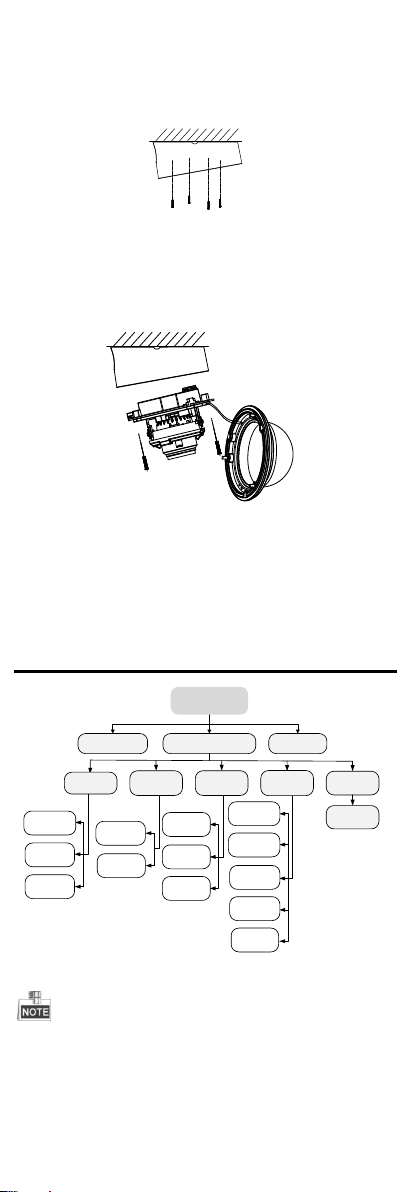

1. Attach the drill template (supplied) to the place
where you want to fix the camera, and then drill the
screw holes and the cable hole in the ceiling
according to the drill template.
Type I Camera：
Type II Camera：
Figure 2-1 Drill Template
2. Loosen the three screws on the edge of the bubble
with the supplied screwdriver to remove the bubble.
3. Attach the back box of Type I camera/base plate of
Type II camera to the ceiling and secure them with
supplied self-tapping screws.
Type I Camera：
Type II Camera：
Figure 2-2 Attach the Back Box/Base Plate
4. Route the cables through the cable hole.
5. Align the cameras with the back box/base plate, and
tighten the set screws to secure the camera with the
back box/base plate.
 Please make sure that the device in the package is in
good condition and all the assembly parts are
included.
Make sure that all the related equipment is
powered-off during installation.
Check the product specifications for the installation
environment requirements.
Check whether the power supply is compatible with
your required output to avoid damage.
Please make sure the wall is strong enough to
withstand three times the weight of the camera and
the mounting.
If the wall is the cement wall, you need to insert
expansion screws before you install the camera. If the
wall is the wooden wall, you can use self-tapping
screw to secure the camera.
If the product does not function properly, please
contact your dealer or the nearest service center. Do
not disassemble the camera for repair or
maintenance by yourself.

Type I Camera：
Type II Camera：
Figure 2-3 Fix the Camera to the Ceiling
6. Connect the video cable to the monitor and connect
the power cable to the power supply.
7. Adjust the camera according to Figure 2-4 to get an
optimum angle.
1). View the camera image with the monitor.
2). Rotate the panning table to adjust the pan
direction.
3). Loosen the tilting lock screw.
4). Rotate the tilting table to adjust the tilt
direction.
5). Tighten the tilting lock screw.
6). Rotate the camera to adjust the lens to the
surveillance angle.
Type I Camera：
0° to 355°
0° to 355°
0° to 75°
0° to 355°
0° to 340°
0° to 75°
Type II Camera:
Figure 2-4 3-axis Adjustment
8. Tighten the screws to secure the bubble with the
back box/base plate.
Once installation is complete, use caution when
removing the plastic film protecting the dome cover.
2.2 In-ceiling Mounting
You need to purchase an in-ceiling mount separately if you
adopt in-celling mounting.
2.2.1 In-ceiling Mounting without Gang Box
Steps:
1. Drill the screw holes and the cable hole in the ceiling
according to the supplied drill template.

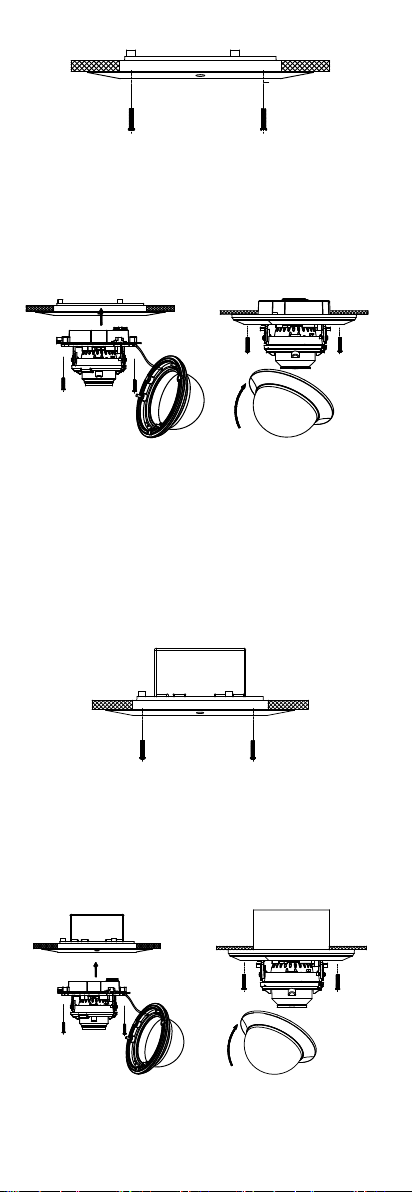

2. Secure the in-ceiling mount with two screws as
shown in Figure 2-5.

Figure 2-5 Install the Mount
3. Route the cables through the hole of in-ceiling
mount and connect the corresponding cables.
4. Fix the camera to the in-ceiling mount with the
supplied screws.
Type I Camera：
Type II Camera：
Figure 2-6 Fix the Camera to the Mount
5. Repeat the steps 6 to 8 of the ceiling mounting
section to complete the installation.
2.2.2 In-ceiling Mounting with Gang Box
Steps:
1. Repeat the steps 1 to 3 of in-ceiling mounting
without gang box and secure the in-ceiling mount
(supplied) to the gang box with two screws.
Figure 2-7 Install the Mount
2. Route the cables through the hole in the center of
the in-ceiling mount.
3. Align the camera with the gang box, and tighten the
screws to secure the camera with the gang box.
Type I Camera：
Type II Camera:
Figure 2-8 Secure the Camera
4. Repeat the steps 6 to 8 of the ceiling mounting
section to complete the installation.

2.3 Mounting with Inclined Base of Type I Camera
Steps:
1. Install the inclined base to the ceiling with supplied
screws, as shown in Figure 2-9.
Figure 2-9 Fix the Inclined Base
2. Route cables through the hole of the in-ceiling
mount and connect the corresponding cables.
3. Fix the camera to the in-ceiling mount with the
supplied screws.
Figure 2-10 Fix the Camera to the Base
4. Repeat steps 6 to 8 of the ceiling mounting
section to complete the installation.
3Menu Description
MAIN MENU
AE WB DAY
&NIGHT
VIDEO
SETTING RESET
SAVE
&EXIT
BRIGHTNESS
EXPOSURE
MODE
GAIN
ATW
MWB
COLOR
B/W
CONTRAST
SHARPNESS
COLOR
GAIN
DNR
MIRROR
SMART
FORMAT FOCUS
SETUP
Figure 3-1 Main Menu Overview
With a camera controller (purchased separately) or calling
the preset No. 95 of DVR you can select the menu and
adjust the parameters.
Move the cursor up/down to select the menu item.
Move the cursor left/right to adjust the value of the
selected item.
Press the OK key to confirm a selection.

3.1 Format
Move the cursor to FORMAT, and press the menu
button to enter the FORMAT sub menu. You can set the
format of camera and confirm.
3.2 Focus
Move the cursor to FOCUS, and press the menu button
to enter the FOCUS sub menu. Move the cursor to
adjust the camera lens by the FOCUS+, FOCUS-, ZOOM
+ and ZOOM-. *MZL models
3.3 Main Menu
3.3.2 AE (Auto Exposure)
AE describes the brightness-related parameters. You
can adjust the image brightness by the BRIGHTNESS,
EXPOSURE MODE, and GAIN in different light
conditions.
EXPO SURE
BRIGHTNESS
EXPO SURE MODE
LV
GAIN
RETURN
5
BLC
5
MIDDLE
Figure 3-2 AE
BRIGHTNESS
Brightness refers to the brightness of the image. You
can set the brightness value from 1 to 10 to darken or
brighten the image. The higher the value is, the brighter
the image is.
EXPOSURE MODE
You can set AE mode as GLOBAL, BLC, and WDR.
GLOBAL
GLOBAL refers to the normal exposure mode which is
for adjusting the situations including unusual lighting
distribution, variations, non-standard processing, or
other conditions of under exposure to get an optimum
image.
BLC (Backlight Compensation)
BLC (Backlight Compensation) compensate light to the
object in the front to make it clear, but this causes the
over-exposure of the background where the light is
strong.
When BLC is selected as the exposure mode, the BLC
level can be adjusted from 0 to 8.
WDR (Wide Dynamic Range)
The wide dynamic range (WDR) function helps the
camera provide clear images even under back light
circumstances. WDR balances the brightness level of
the whole image and provide clear images with details.
GAIN
It optimizes the clarity of image in poor light scene. The
GAIN level can be set to HIGH, MIDDLE, and LOW.
Select OFF to disable the GAIN function.
The noise will be amplified if the GAIN is on.

3.3.3 WB (White Balance)
White balance is the white rendition function of the
camera to adjust the color temperature according to
the environment. It can remove unrealistic color casts
in the image. You can set WB mode as ATW, and MWB.
ATW
In ATW mode, white balance is being adjusted
automatically according to the color temperature of
the scene illumination.
MWB
You can set the R GAIN/B GAIN value from 0 to 255 to
adjust the shades of red/blue color of the image.
WB
MODE
R GAIN
B GAIN
RETURN
MWB
5
5
Figure 3-3 MWB Mode
3.3.4 DAY-NIGHT
Color, B/W, and SMART are selectable for DAY and
NIGHT switches.
COLOR
The image is colored in day mode all the time.
B/W
The image is black and white all the time, and the IR
LED turns on in low-light conditions.
SMART
You can select to turn on/off the INFRARED and set the
value of SMART IR in this menu.
DAY/NIGHT
MODE
INFRARED
SMART IR
RETURN
SMART
OPEN
1
Figure 3-4 Day & Night
INFRARED
You can select to turn on/off the IR LED to respond to
different site requirements.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and to prevent the image from
over exposure. The SMART IR value can be adjusted
from 0 to 3. The higher the value is, the more obvious
effects are, and it is disabled when the value is 0.
3.3.5 VIDEO SETTING
Move the cursor to VIDEO SETTING and press the
confirm button to enter the submenu. CONTRAST,
SHARPNESS, COLOR GAIN, DNR and MIRROR are
adjustable.

VIDEO SET TING
CONTRAST
SHARPNESS
COLOR GAIN
DNR
MIRROR
RETURN
5
5
5
5
DEFAULT
Figure 3-5 Video Setting
CONTRAST
This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 10.
SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS
value from 1 to 10.
COLOR GAIN
Adjust this feature to change the saturation of the color.
The value ranges from 1 to 10.
DNR (Digital Noise Reduction)
The DNR function can decrease the noise effect,
especially when capturing moving images in low light
conditions and delivering a more accurate and sharp
image.
You can set the DNR value from 1 to 10.
MIRROR
DEFAULT, H, V, and HV are selectable for mirror.
DEFAULT: The mirror function is disabled.
H: The image flips 180 degree horizontally.
V: The image flips 180 degree vertically.
HV: The image flips 180 degrees both horizontally and
vertically.
3.3.6 RESET
Reset all the settings to the default.
3.3.7 SAVE &EXIT
Move the cursor to SAVE &EXIT and press OK to save
the setting and exit the menu.
4IR Reflection Prevention
For the cameras that supports IR, you are required to
pay attention to the following precautions to prevent IR
reflection:
Dust or grease on the dome cover will cause IR reflection.
Please do not remove the dome cover film until the
installation is finished. If there is dust or grease on the
dome cover, clean the dome cover with clean soft cloth and
isopropyl alcohol.
Make sure that there is no reflective surface too close to
the camera lens. The IR light from the camera may reflect
back into the lens causing poor image quality.
The foam ring around the lens must be seated flush against
the inner surface of the bubble to isolate the lens from the
IR LEDS. Fasten the dome cover to camera body so that the
foam ring and the dome cover are attached seamlessly.
