SEERS MULTIPOINT SHD833 User manual

MULTIPOINT
INSTALLATION MANUAL
MODEL: SHD833
* Please read manual carefully before installation.
* SEERS reserve the rights to change the contents and illustrative diagrams
without prior notice.

Introduction 1
Important Safety Information 2
Part Contents Checklist 3
Electrical Requirements 4
Water requirements 5
Installation 6
Operating mode 7
Troubleshooting 8
Model Specication 9
CONTENT

Congratulation!
Thank you for making excellent choice by purchasing the Seers Eco Hot Water
Dispenser. This is low power consumption water heater. The design is carefully
crafted for its distinctive use in all household, hotel and any applicable vicinity.
User safety is our priority in accordance to be the rst ever water heater
without submersible electric heating coil. This product has obtained numerous
patents and certication in design, invention and utility model,
Caution!
Read all of these instructions and retain this guide for later use
Pass on this guide in the event of change of ownership of the installation site.
Follow all warnings, cautions and instruction contained in this guide, on or
inside appliance.
Consideration should be given by the young, the elderly, the inrm or anyone
inexperienced in the correct operation of the control as well as children should
be supervised to ensure that they do not play with the appliances.
As of where and when this appliances reached the end of its serviceable
lifespan, it should be disposed o in accordance with local authority safety &
regulations policy.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Please note that the instructions manual is available on SEERS ocial website
www.seers.com.my
INTRODUCTION
1

IMPORTANT SAFETY INFORMATION
THIS APPLIANCE MUST BE EARTHED, TO MAKE SURE EARTH WIRE AND
HEATER UNIT HAVE PROPER GROUNDING IN HOUSEHOLD.
Earthing requirements
The earthing installation should be carried out in accordance with the local
wiring regulation. Where EARTHING of the premises is not evident, it is
necessary to run an EARTH CONDUCTOR and solidly connect an earth rod to
the installation. As it's a safety factor, earthing is essential and mandatory. It's
an electrical connection between the exposed metallic parts of an electrical
appliance or installation and the earth, regarded to have zero potential. Proper
earthing provides an alternative and easy path for leakage or faulty current to
ow. It ensures that any exposed conductive part of the appliance does not
reach a dangerous level of potential or voltage that endangers the user's life. A
proper earthing system should have least electrical resistance, good corrosion
resistance and ability of dissipating high faulty current.
WARNING !
- Installation by trained and competend electrician only.
- TEST the build-in RCD at least once a month.
- Metallic / Chromed hose and conductive control valve shall not be used.
- Do not switch on if there is a possibility that the water in the heater is frozen.
- Press reset if trip.
- The unit shall not be connected to any tap or tting and those not specied.
SAFETY FEATURES:
I. Water ow control ON/OFF
II. Overheat cut protection
III. ELCB - Earth Leakage Circuit Breaker
IV. CBD - Current Breaking Device
V. Thermostat Control
VI. Temperature regulating
2

PART CONTENTS CHECKLIST
Model: SHD83
1 x Seers Heater Unit
3
4 x Green Wall Plug & Screw Set

ELECTRICAL REQUIREMENTS
4
1) The shower heater unit must be connected to its own independent electrical circuit
2) Before beginning any work on the electric installation be sure that main breakerpan-
el switch is ..O” to avoid any danger of electric shock. All mounting and plumbing
must be completed before proceeding with electrical hook-up.Lead the power cable
from the indoor fuse distributor board or Miniature Circuit Breaker (MCB) to a 10mA
RCD and from RCD to ON/OFF Double-Pole switch outside the bathroom.
Recommended MCB rating:
3) The unit must be permanently connected to the electricity supply through a
double-pole linked. switch having a contact of separation of at least 3mm in all poles
incorporated in xed wiring.
4) This switch must be out of reach of a person using a shower
5) The use of a plug and socket is not recommended.
6) Correct size of wire conductor corresponding to dierent electrical
loading should be used
Recommended power cable size:
7) In order to avoid a hazard due to inadvertent resetting of thermal cutout, this appli-
ance must not be supplied through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and o by the utility.
8) For ease of servicing, the unit must always be mounted on the surface of tiled walls.
Never conseal the unit and MUST be positioned vertically.
9) The unit operates at a minimum water ow rate of 2.0 litre/min and maximum work-
ing pressure of 4 bar.
Model MCB rating
SHD833 32A
Model Cable size
SHD833 4mm² -6mm²

5
WATER REQUIREMENTS

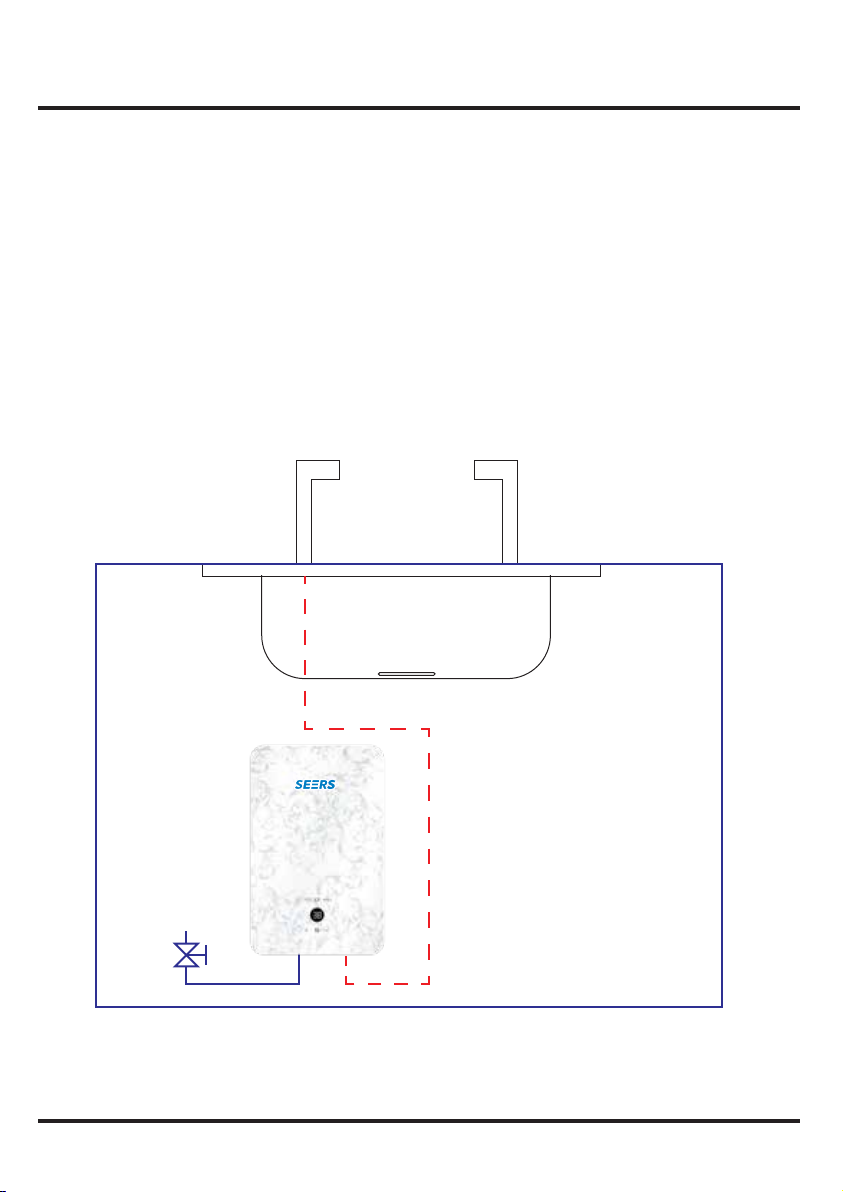

Plumbing Schematic Diagram
Seers Eco Hot Water Dispenser can be tted in your home regardless of the the
type of plumbing system as in most cases they can operate directly o main
cold water supply.
SITING OF THE SHOWER
For ease of servicing, the unit must always be mounted on the surface of tiled
walls. The unit should not be conseal and must be positioned vertically.
NB: Heater unit works at minimum water ow of 2.0 litre/min
HOT COLD

6
INSTALLATION
The installation of the product must comply to national guidelines for electrical wiring
in residential buildings
1) Unfasten the screws on bottom
to remove front cover.
2) Drill hole on wall to mount heater
according to hole position.
3)Fix Front Panel and fasten screws
1
3
2

7
OPERATING MODE
Earth point must be connected to grounding source
STEP 1: Switch ON MAIN AC SUPPLY (white indicator light ON)
STEP 2: Press + or - button activate heating.
P0 = O
P1 = Low Temperature
P2 = Medium Temperature
P3 = High Temperature
STEP 3: Turn ON water supply.
Remarks: Without water supply will stop the heating system and pump operation.
TESTING THE Residual Current Device (RCD)

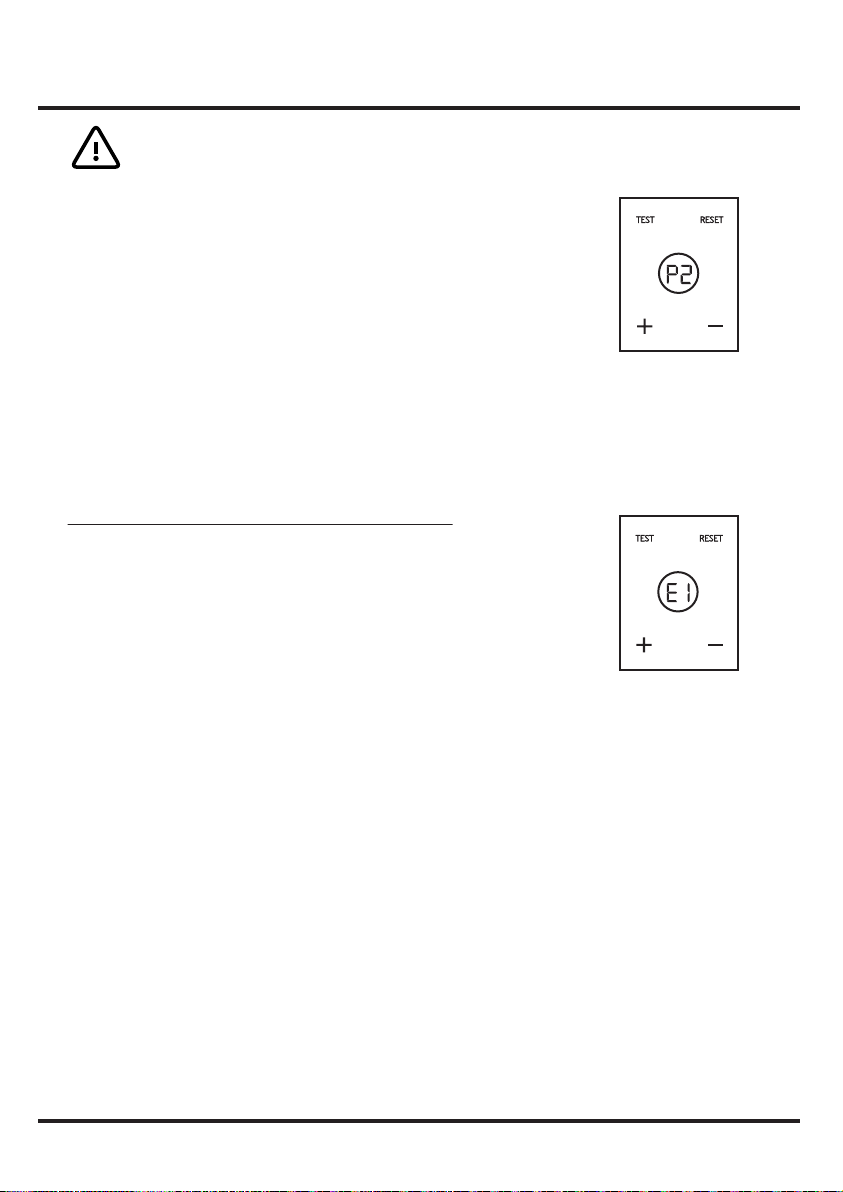

STEP 1: Press TEST button to test bulid in RCD. Display E1 on
screen.
STEP 2: Press RESET to reset the system and back to normal
operation.
Remarks: As long as incoming main supply is present, the white indicator light is ON.

Please be assured that following situation is normal:
1) Water temperature will vary according to inlet water ow rate.
DESCRIPTION POSSIBLE CAUSE REMEDIES
Heater not operating 1) No Power Supply 1) Check incoming power source
2) Water shortage 2) Check incoming water
3) Contact service center
Water not hot 1) System trip 1) Press reset
2) Heating position not set 2) Press +
Error Code
TROUBLESHOOTING
8
ELCB trippedE1 Press RESET button
OverheatE2 Please refer to customer service /
Check Temperature Sensor

Model Specifica�on / Descrip�on
SHD833
Overtemp cutoff
Yes
Water flow sensor
Yes
Easyfit moun�ng
Yes
Leakproof heat module
Yes
Adjustable temperature
Yes
Hea�ng element
No
Technical:
Rated power
6.0 Kw
Rated voltage
220~240VAc/1phase
Rated current
25 Amp
Connec�ng cable size
4mm2 _ 6mm2
Output temperature
40°c ~ 50°c
IP
Minimum Flow
2L/min
Maximum Flow
6L/min
Inlet and Outlet
BSP ½”
RCD Rated Trip Current
12mA
MODEL SPECIFICATION
9
IP25
Min Inlet Water Pressure (pascals)
Max Inlet Water Pressure (pascals)
100,000
350,000
SIZE VIEW
65mm
BACK VIEW
222mm
FRONT VIEW
367mm
