Seifert RK 2125 A-400V User manual

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 1 / 14
Table of Content RK 2125 A-400V
1. User manual 2 ...................................................................................................................
2. Legal regulations 2 ...........................................................................................................
3. Safety instructions 3 ........................................................................................................
4. Technical information 4 ...................................................................................................
5. Functional principle 5 ......................................................................................................
6. Technical data 6 ................................................................................................................
7. Mounting 7 .........................................................................................................................
8. Mounting Principle 8 ........................................................................................................
9. Electrical connection 9 .....................................................................................................

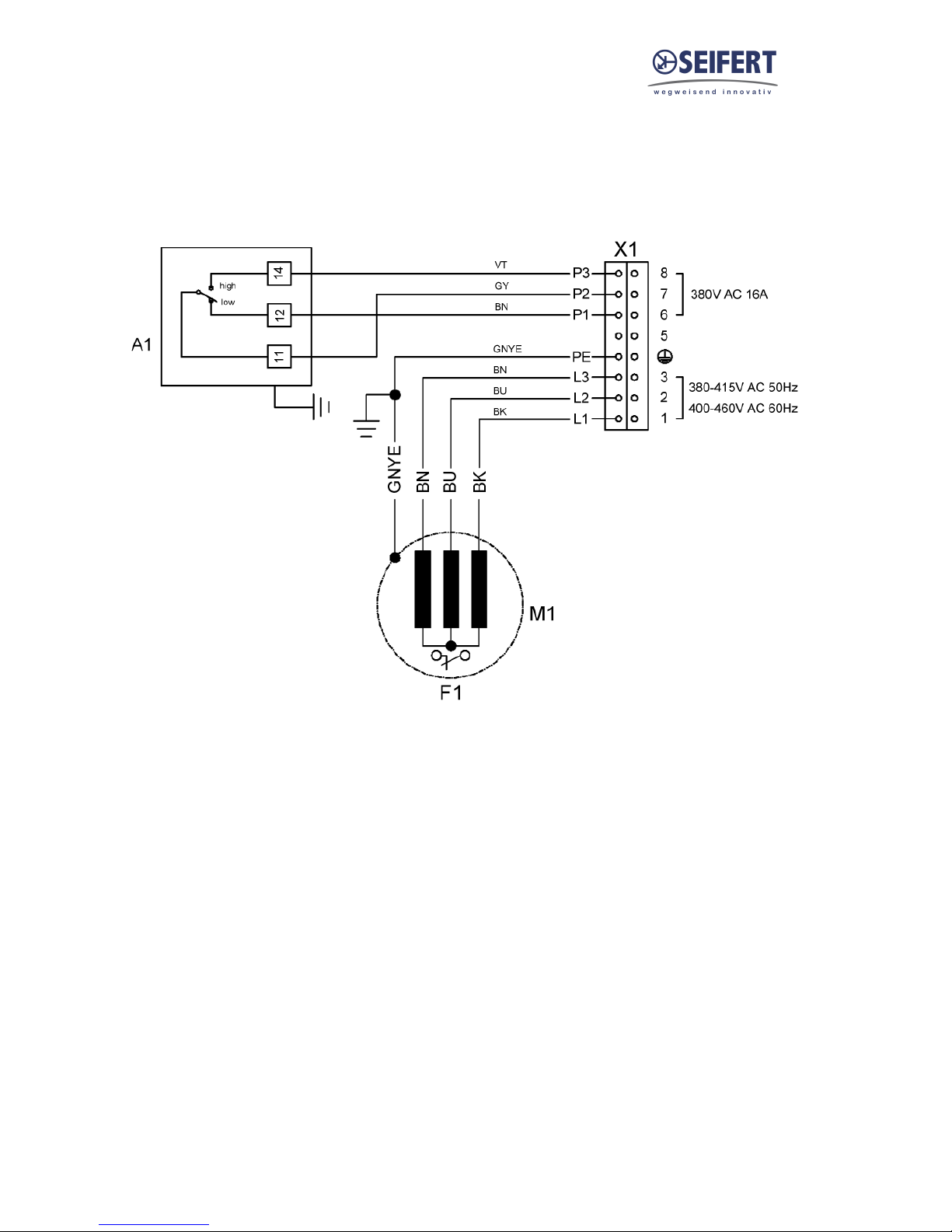

10. Wiring diagram 10 ..........................................................................................................
11. Taking into operation 11 ...............................................................................................
12. Maintenance & Cleaning 12 ..........................................................................................
13. Maintenance 12 ...............................................................................................................
14. Transport & Storage 13 .................................................................................................
15. Parts supplied 13 ............................................................................................................

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 2 / 14
1. User manual
This instruction manual contains information and instructions to enable the user to work safely,
correctly and economically on the unit. Understanding and adhering to the manual can help one:
Avoid any dangers.
●
Reduce repair costs and stoppages.
●
Extend and improve the reliability and working life of the unit.
●
PLEASE ENSURE TO USE THE RIGHT VERSION OF THE INSTRUCTION MANUAL SUITABLE FOR
YOUR UNIT.
Conditions of use
󰾬The unit is to be used exclusively for the dissipation of heat from control cabinets and enclosures in
order to protect temperature sensitive components in an industrial enviorment. To meet the conditions
of use, all the information and instructions in the instruction manual must be adhered to.
General danger
Indicates compulsory safety regulations which are not
covered by a specific pictogram such as one of the following.
󰾬
High electric voltage
Indicates electric shock danger.
Important safety instruction
Indicates instructions for safe maintenance and operation of
the unit.
Attention
Indicates possible burns from hot components.
Attention
Indicates possible damage to the unit.
Instruction
Indicates possible danger to the environment.
2. Legal regulations
Liability
The information, data and instructions contained in this instruction manual are current at the time of
going to press. We reserve the right to make technical changes to the unit in the course of its
development. Therefore, no claims can be accepted for previously delivered units based on the
information, diagrams or descriptions contained in this manual. No liability can be accepted for
damage and production caused by:

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 3 / 14
Disregarding the instruction manual
●
Operating error
●
Inappropriate work on or with the unit
●
The use of non-specified spare parts and accessories
●
Unauthorised modifications or changes to the unit by the user or his personnel
●
The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in
the main contractual agreement. Claims for damages on any grounds are excluded.
3. Safety instructions
Upon delivery the unit is already meeting current technical standards therefore it can be safely taken
into operation. Only trained specialists are allowed to work on the unit. Unauthorised personnel must
be prohibited from working on the unit. Operating personnel must inform their superiors immediately if
any malfunction of the unit becomes apparent.
Please note that before starting to work on or with the unit, a procedure must be carried out inside the
cabinet on which the unit is to be mounted.
Before commencing work inside the cabinet, the control cabinet manufacturer's instruction must be
read with regards to:
Safety instructions.
●
Instructions on taking the cabinet out of operation.
●
Instructions on the prevention of unauthorised cabinet reconnection.
●
The electric equipment meets the valid safety regulations. One can find dangerous voltage (above 50V
AC or above 100V DC)
Behind the control cabinet doors.
●
On the power supply in the unit housing.
●
The unit has to be fused according to the type plate and the wiring diagram, and must be protected
externally from overloading and electrical faults via suitable protective devices such as ground fault
protection breakers.
Danger through incorrect work on the unit
The unit can only be installed and maintained by technical competent and
qualified personnel, using only supplied material according to the supplied
instructions.
󰾬
Danger from electrical voltage
Only specialised personnel are allowed to maintain and clean the unit. The
personnel must ensure that for the duration of the maintenance and cleaning, the
unit is disconnected from the electrical supply.
Attention
Damage to the unit through the use of inappropriate cleaning materials. Please do
not use aggressive cleaning material.
Instruction
Damage to the environment through unauthorised disposal. All spare parts and
associated material must be disposed according to the environmental laws.

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 4 / 14
4. Technical information
Air - water heat exchangers are intended as complementary accessories to large industrial equipment
which include a motor-operated fan or blower together with a cooling heat exchanger. These may also
include an electric heater. The fan or blower is intended to recirculate air and allow heat exchange.
The heat exchanger is designed for chilled water or anti-freeze/corrosion inhibitor mixed water from a
separate source.
The cooling function may be controlled by an on-board or remote controller or thermostat, a
thermostatically controlled valve or an electrically controlled valve. Heating function, when installed is
provided by an electrical heating element. The unit seals the cabinet which ensures that the clean air
inside does not come into contact with the ambient air which may well be dirty or polluted. The unit is
fit for purpose within the rated/declared ambient conditions (e.g. dusty and oily air or high air
temperatures between 34°F and 162°F), also indicating the rated allowable ingress and environment.
Water quality
To ensure the maximum lifetime of an air-water heat exchangers, it is important to supply cooling
water in conformity with the VGB Cooling Water Guidelines (VGB-R 455 P). The cooling water used
must be soft enough to avoid scale deposits, but should not be too soft as this would corrode the heat
exchanger. Where the cooling water is cooled for reuse, part of the water has to be changed with fresh
water to prevent the concentration of hardness and salt content which makes the water more
corrosive.
The main impurities and possible methods of eliminating them are given in the table below:
Pollution of the water Method of elimination
Mechanical impurities (dp > 0.079in) Filtration of the water
Excessive hardness Softening of the water by ion
exchange
Moderate content of mechanical impurities
and hardness formers Addition of dispersants or stabilisers
Moderate content of chemical impurities Addition of passivators and inhibitors
Biological impurities (bacteria and algae) Addition of biocides
When the water is re-cooled, it is recommended that the water condition is maintained as close as
possible to the following list of hydrological data:
Hydrological data
pH-values 7 - 8.5
Carbonate hardness >3 <8 °dH
Free carbon dioxide 0.4673 - 0.8763 gr/gal
Associated carbon dioxide 0.4673 - 0.8763 gr/gal
Aggressive carbon dioxide 0 gr/gal
Sulphides free gr/gal
Oxygen < 0.5842 gr/gal
Chloride ions < 2.921 gr/gal
Sulphate ions < 14.6 gr/gal
Nitrates and nitrites < 0.5842 gr/gal
COB < 0.4089 gr/gal
Ammonia < 0.2921 gr/gal
Iron < 0.01168 gr/gal
Manganese < 0.01168 gr/gal
Conductivity < 2200 µS/cm
Solid residue from evaporation < 29.21 gr/gal

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 5 / 14
Potassium manganate consumption < 1.46 gr/gal
Suspended matter < 0.1753 gr/gal
(part flow cleaning recommended) > 0.1753 < 0.8763 gr/gal
(continuous cleaning) > 0.8763 gr/gal
5. Functional principle
The air inside the control cabinet is moved over a laminar heat exchanger through which a coolant
medium runs, making use of the counter-flow principle. The fan blows the warm air along the
aluminium fins of the heat exchanger; it cools down and is then returned into the cabinet. The heat
exchanger fan runs constantly, providing continuous circulation of the air in the cabinet. This
circulation prevents hot spots within the control cabinet. During this process, the coolant heats up and
is returned to the coolant supply system at an increased temperature.
In order to save operating costs, and in the interests of environmental protection, the water
temperature can be reduced by re-cooling systems or cold water sets so that it can be reused in the
heat exchanger. This process involves the water circulating in a closed circuit.
1. Air intake cabinet side
2. Radial fan cabinet side
3. Heat exchanger
4. Air outlet cabinet side
5. Water in
󰾬6. Water out

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 6 / 14
6. Technical data
Order Number 2125210
Cooling capacity L35W10 (200 l/h) 8,705 BTU
Cooling capacity L35W10 (500 l/h) 10750 Btu/hr @ 50 Hz
11090 Btu/hr @ 60 Hz
Refrigerant / GWP Water, light oils or similar
Temperature range +34°F - +162°F
Air volume flow 294 cfm @ 50 Hz / 311 cfm @ 50 Hz
Mounting Internal / External
Housing Material Mild steel, powder coated
Dimension HxWxD 36.85 x 10.31 x 5.77 in.
Weight 39.68 lbs
Voltage / Frequency 400 V - 50 Hz 3~
460 V - 60 Hz 3~
Starting current 0.54 A / 0.66 A
Max. current 0.27 A / 0.33 A
Max. power 235 W
Pressure water circuit 10 bar
Water connection Rp 1/4" - inside thread with 2 connectors
for pipe internal diameter of 0.39 in.
Fuse 3 x 3 A (T)
Connection Connection terminals
NEMA Type IP 54
Approvals CE

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 7 / 14
7. Mounting
Seifert heat exchangers have an extremely compact design and construction, giving them the
advantage of occupying very little space. In addition, the RK-2114 A/AM, RK-2114 A/AM 632 and RK-
2116 A/AM models can be mounted externally or internally, as required.
To achieve a good seal between the control cabinet and the heat exchanger, the unit's mounting
surface on the control cabinet may need to be reinforced. The air intake and outlet must not be
obstructed by equipment inside the control cabinet, so that the air is mixed thoroughly and thermal
stratification is avoided.
For the heat exchanger to work perfectly, the cabinet must be completely sealed from its
surroundings. An imperfectly sealed control cabinet will result in an increased level of condensation.
The control cabinet should have a minimum of IP54 protection, in accordance with IEC 60 529.
Use of the mounting template
The mounting template enables the unit to be installed quickly. For mounting the template should be
attached to the wall of the cabinet and the holes for the fixing screws should be drilled in the wall of
the cabinet in the marked positions.
Cooling medium connectionThere are two pipe connection points on the bottom (RK-2114, RK-
2116, RK-2140) or in the side (RK-2124) of the unit to connect the refrigerant supply. The piping used
for the supply must have an internal diameter of 10 mm or 13 mm depending on the model. The pipe
connectors have a ¼” thread (1/2" RK 2125948 / RK 21259500 / RK 2149) and can be replaced with
other connectors for larger or smaller pipe diameters. Before connecting the coolant circuit, note the
flow direction of the coolant medium. Next to the pipe connectors, the letters “E” and “A” are visible
on the unit.
E coolant intake
A coolant outflow

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 8 / 14
8. Mounting Principle
1 Mounting gasket
2 Heat exchanger
3 Set screw
4 Washer
5 Lock nut

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 9 / 14
9. Electrical connection
High electric voltage present. Installation, maintenance, cleaning and
any other work must be carried out by qualified personnel only. The
personnel must ensure that for the duration of this work the unit and
the cabinet are disconnected from the electrical supply and protected
against unauthorised/accidental reconnection.
Connection to the main electrical supply
The mains connection is made via a connection terminal. To connect the unit to the mains proceed as
follows:
Take the control cabinet out of operation in the prescribed manner.
●
See the connection details on the circuit diagram.
●
Note the connections on the connector / terminal block from the following table
●
Terminal 400V 3~
L1 Live (black)
L2 Live (blue)
L3 Live (brown)
PE Protection- Earth (green / yellow)
P1 Alarm contact (brown)
P2 Alarm contact (grey)
P3 Alarm contact (violet)
Ensure that the correct polarity is maintained. The fans should have
clockwise rotation.
Connect the unit to the mains.
●
Take the control cabinet back into operation in the prescribed manner.
●
Power consumption and start-up current are stated on the data label and under technical data.
●

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 10 / 14
10. Wiring diagram
M1 Radial fan
F1 Thermal motor protector
X1 6 pin connector
A1 Alarm Thermostat

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 11 / 14
11. Taking into operation
The cooling performance of the heat exchanger is dependent on the water flow rate available from the
supply. The water flow is dependent on the water supply system to which the heat exchanger is
connected and is affected by various factors, such as conduit pressure, conduit diameter, etc.
1. Units with water flow regulator
It is possible to adjust the water flow rate from the supply system to provide the cooling performance
actually required. Operation is controlled according to a pre-set control cabinet temperature. The
control cabinet temperature is measured by a temperature sensor situated in the intake air flow. If the
target temperature is exceeded, the water flow regulator opens the water circuit. If the temperature
falls below the target temperature, the flow regulator closes the water circuit. In this way, the heat
exchanger is made to work more efficiently by saving water.
1.1 Adjustment of the water flow regulator
Before opening the unit make sure that there is no supply voltage at the unit. Remove the fixing
screws to open the cover of the unit. To set the flow rate (Q) turn the thermostatic head. Set the
indicator position to the required cabinet temperature. The work’s setting of the water flow regulator is
+95°F. The adjustment range is +68°F to +122°F.
Temperature setting look-up table
Pos. ˚F
1 68
2 77
3 86
4 95
5 104
6 113
7 122
Setting
Turn clockwise or anti-clockwise to change operating temperature.
Operation
If cabinet temperature changes, the sensing bulb detects the change and results in open and closing
of the flow.
If cabinet temperature increases more than the set value, the valve gradually opens and vice versa.
Warning: Since valve is purely mechanical, the valve will still actuate itself even when the unit is not
powered. Flush unit from fluids, prior to transportation to prevent any damage.
2. Units without water flow regulator
These units do not have any automatic control functions.
3. Units with Alarm Thermostat
With these units the cabinet air temperature can be monitored via a current free sensor which
monitors the cabinet air as it enters the unit. Before opening the unit always make sure that there is
no supply voltage at the unit. To set the target temperature turn the adjustment screw on the
thermostat until the dial reads the correct target temperature. The numbers on the adjustment scale
show the temperature at which the alarm circuit is closed. The Thermostat can be set to a temperature
anywhere between +68°F and +140°F. The work’s setting of the thermostat is 113°F.
4. Units with Solenoid valve
The solenoid valve is switched electrically. If the unit power is off, the valve switches to open.

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 12 / 14
5. Units with temperature controller
The unit is equipped with a temperature controller which regulates the function of the unit. On normal
working conditions the display shows the temperature inside the enclosure. The controller “set point”
for the interior of the enclosure (parameter St / St1) is pre-set at 95°F and can be adjusted between
+68°F and +122°F.
The High temperature alarm (parameter AH) is preset at 131°F. The High Temperature Alarm relay is
delivered as “normally closed” (H1=1). If you need to change it to “normally open”, please modify
value of parameter H1 (H1=2).
Modifying controller parameters
1. Press the SET button for more than 3 sec. (if there are active alarms, mute the buzzer).The display
shows the parameter code ‘PS’ (password).
2. Only for parameters requiring password: Press the SET button to access the password setting, use
the UP and DOWN buttons to scroll the numbers until displaying, “22” (default password to access the
parameters), press the SET button to confirm the password
3. Use the UP and DOWN buttons to scroll the parameters. The LED corresponding to the category of
parameters will be on
4. Press SET to display the value associated with the parameter
5. Increase or decrease the value using the UP or DOWN button respectively
6. Press SET to temporarily save the new value
7. Press the SET button for more than 3 sec. to permanently save the new parameters and exit the
parameter setting procedure.
If no button is pressed for 60 sec. all changes made to the parameters, temporarily saved in the RAM,
will be cancelled and the previous settings restored. The cooling unit manufacturer is in no way liable
for any alterations the customer may make to the factory set parameters, unless the manufacturer has
authorized the customer in writing to change them.
This manual is intended as quick reference for controller, for a full controller manual or if you need to
restore the factory parameters please go to our website to download the full manual or to locate your
nearest servicing office.
6. Units with door switch
The unit can be switched on and of via a door contact switch (optional). When delivered the door
contact terminals are bridged on the female connector. To connect the door contact switch remove the
bridge and connect door contact switch. The contact must be closed when the cabinet door is closed.
12. Maintenance & Cleaning
The unit should have regular functional tests (approx. every 2,000 hours depending on the grade of
ambient pollution).
13. Maintenance
Every unit is given a performance test under load at the factory. The units are largely maintenance-
free, however, the following points should be observed:
1. Fan replacement
Before replacing the fan, the equipment must be switched off from the power supply (pull out mains
plug or connecting cable). The rated life time of the fan is L10 = 30.000 hours under normal
operational conditions. Should it become necessary to replace the fan, remove the support for the fan
by loosening the 4 fastening screws (RK-2114 models only). To detach the fan from the fan support
loosen a further 4 screws and the fan connecting cable.

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 13 / 14
When connecting the new fan, take care that the correct polarity is maintained.
2.Thermostat replacement
Before replacing the thermostat, isolate the equipment from the power supply (pull out mains plug or
connecting cable). Detach the thermostat from its support by unclipping it from the DIN railing and
loosening the 4 connecting cables.
When connecting the new fan make sure that the correct polarity is maintained.
3. Environmental protection
If the heat exchanger has reached its end of life state, we will dispose it if it is returned to us freight
paid.
4. Maintenance work on the cooling circuit
All the maintenance operations described above should only be carried out by expert personnel. All
work on the cooling circuit should only be carried out at the factory.
14. Transport & Storage
Malfunction due to transport damage. During transport and
storage the heat exchanger must be kept in the position
marked on the box and at a temperature between -40˚F and
158˚F and a relative humidity of max. 95% (at 77°F).
Check the packaging has not been damaged during
shipping.
Damage to the unit through incorrect transport. Please
ensure that all liquid has been removed prior any transport.
To avoid transport damage the unit should be returned in the original packing or in a packing case and
must be strapped to a pallet. If the unit cannot be returned in the original packing please ensure that:
A space of at least 1.18 inch must be maintained at all points between the unit and the external
●
packing.
The unit must be firmly fixed in the packing.
●
The unit must be protected by shock -resistant padding (hard foam corners or cardboard corners).
●
15. Parts supplied
1 x Air-water heat exchanger
1 x User manual
1 x CE Declaration
1 x Mounting gasket insulation
2 x PVC Washers PD13 for G1/4”
4 x Lock Nut M6, DIN985 A2
4 x Washer A6.4, DIN125 A2
4 x Screws M6*25 DIN551 A1
1 x Mounting gasket
1 x Female 8-Pole Connector
2 x Brass adapter G 1/4” to Ø9 mm hose
1 x Drain Socket F/Drain pipe 16mm
1 x O-ring
1 x PVC hose 0.5m, 16x20 mm, clear

Version Nr. 1-1 - 31.08.2017 Doc. Nr. 992125210 14 / 14
Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems AG Seifert Systems Inc. Seifert Systems Pty Ltd.
Haßlinghauser Str. 156 HF09/10 Wilerstrasse 16 75 Circuit Drive 105 Lewis Road
Hal-Far Industrial Estate North Kingstown Wantirna South
58285 Gevelsberg Birzebbuga, BBG 3000 4563 Gerlafingen RI 0285 3152 Victoria
Germany Malta Switzerland USA Australia
Tel. [phone] Tel. [phone] Tel. [phone] Tel. [phone] Tel. [phone]
Fax [phone] Fax [phone] Fax [phone] Fax [phone] Fax. [phone]
[email protected] [email protected] [email protected] [email protected] [email protected]
