semmco HEAD 10 User manual

Instructions for Use
HEAD 10 Escape Set
K0² Regenerative Device for Short Term Use
IFU21082017 - HEAD 10 Issue_v2c
© Semmco LPS Ltd 2017 –This document is not to be copied or reproduced without the permission of Semmco LPS Ltd
CONTENTS
•IMPORTANT NOTICE
•INTENDED USE
•PRECAUTIONS
•PRIOR TO USE
•OPENING DEVICE
•DONNING DEVICE
•USAGE PICTOGRAMS
•USE
•AFTER USE
•STORAGE AND USAGE CONDITIONS
•RETURN CONDITIONS
•ORDERING INFORMATION
•PRODUCT IDENTIFICATION
•TECHNICAL DATA
•EU DECLARATION
IMPORTANT NOTICE
1. The equipment should only be used for the purposes specified in this
manual.
2. All individuals involved in the use of the equipment must read and
understand the contents of this manual and have been trained by a
Semmco LPS Ltd certificated trainer.
3. All individuals involved with the training of the end user or maintenance
of this equipment must be authorised and certificated by Semmco LPS
Ltd.
4. The warranties made by Semmco LPS Ltd with the regard to this product
are void if the equipment is not used and serviced in accordance with the
instructions in this manual.
5. The warranties and conditions of sale of Semmco LPS Ltd are not to be
altered by the above recommendations.
INTENDED USE
HEAD 10 ESCAPE SET is a short duration, oxygen breathing device, which is
intended for a single emergency use, in areas of:
•smoke
•toxic contamination and
•oxygen deficiency
•Potentially explosive atmospheres (when supplied in a carry case)
HEAD 10 is available in the following options;
HEAD 10 CC –Carry Case
The apparatus, described in these instuctions for use, has been designed and
tested in accordance with EN13794, EN145, EN1146 and DIN 58652-1
where applicable, to demonstrate compliance with the essential safety
requirements with PPE Regulation (EU) 2016/425. Intrinsic safety as per SIRA
certificate Sira 04Y2057X.
Type examination performance by: BSI Group, Kitemark Court, Davy
Avenue, Knowlhill, Milton Keynes MK5 8PP
(Notified Body Number 0086)
PRECAUTIONS
•Due to the potential fire risk it is important to prevent the ingress of
flammable substances such as petrol, grease or solvents into the device
before and during operation.
•If the device is damaged there is a risk that flammable substances may be
ignited if they come into contact with the oxygen producing chemical.
•Do not remove the device from the case until the equipment is required
for use. Doing so may reduce the protection afforded by the device.
PRIOR TO USE
Check case to ensure:
•The case is not damaged.
•The security seal is still intact.
•The unit is within the expiry date.
•The vacuum pack is intact and the Indicator is not pink in colour.
•The equipment should not be used if these conditions are
not met.
OPENING DEVICE
HEAD 10 CARRYING CASE
1. Open carrying bag by pulling webbing tag.
2. The lid will fall away to reveal vacuum pack. Go to 3 below.
3. Pull firmly on the breathing protection device to remove from
vacuum pack. This action automatically activates the oxygen
generation into the breathing bag, commences the alarm self-test
procedure and removes the two red sealing bungs from the device. If
these remain attached remove manually.

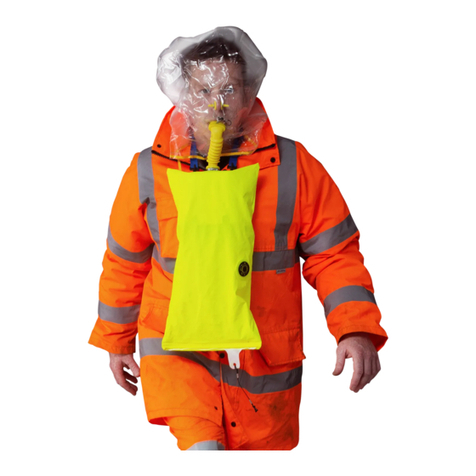

DONNING HEAD 10
1. Unfold the hood, place fingers inside neck seal, inhale and pull onto
head.
2. Hold front port and adjust position of inner mask to ensure correct
fit, comfort and field of vision.
3. Exhale into mask and commence normal breathing.
NOTE:
•The action of removing the breathing device from the vacuum bag
automatically activates oxygen generation, the alarm self test and
removes the two red sealing bungs from the device. The LED and
alarm will sound for a few seconds to indicate it is functioning
correctly. In the unlikely event the alarm self check is not
activated, HEAD 10 remains safe to use however no reliance
should be placed on the alarm timer. The two red rubber bungs
are connected inside the bag via a red lanyard, if for any reason
the bungs stay attached to the device when it has been removed
from the bag they should be removed from the device manually
before donning starts.
•Facial hair in the sealing area may cause leaks and can seriously
reduce the protection provided by the apparatus.
•The correct positioning of the inner mask is essential to
provide a face seal and prevent ingress of atmospheric
contaminants.
•Always follow training procedures. The hood must be
properly sealed before starting to use the equipment.
USAGE PICTOGRAMS
HEAD 10 ESCAPE SET CC
USE
•Once activated and the correct function checked, the red LED’s and
audible warning will operate intermittently when two thirds duration
of the operating time has elapsed. This will change to the constant
mode when the stated duration is reached. This warning will continue
for a further period of approximately 5 minutes.
•When the warning device activates the constant mode, HEAD 10 may
be ending and that the device may no longer be providing protection.
IMPORTANT NOTES FOR USERS
•Immediately the device is donned and a seal obtained
activities should commence in a calm manner. Do not
rush.
•Maintain a steady work rate to ensure regular breathing.
Rapid breathing uses more oxygen.
•During use the starter and oxygen generators will
increase in temperature and the air provided by this
device will be warm and dry and slight odours or tastes
may be detected. These are normal conditions and
indicate the device is functioning correctly.
AFTER USE
•Remove the hood immediately in a safe area, or when the warning
device indicates oxygen production may have ceased.
•The device can be returned to Semmco LPS Ltd for reclamation or
rework, see section on ‘RETURN CONDITIONS’.

Instructions for Use
HEAD 10 Escape Set
K0² Regenerative Device for Short Term Use
IFU21082017 - HEAD 10 Issue_v2c
© Semmco LPS Ltd 2017 –This document is not to be copied or reproduced without the permission of Semmco LPS Ltd
STORAGE AND USAGE CONDITIONS
The device can be stored for up to 12 years (after a satisfactory inspection at
6 years and 9 years at Semmco LPS Ltd). Official regulations on inspection
must be observed. For units which are routinely carried, the following visual
checks must be carried out daily.
•The carrying case must be free from damage.
•The security tag must be in place and un-damaged.
•The vacuum indicator must be blue.
If these conditions are not met the unit should not be used
and should be replaced with a new unit
RETURN CONDITIONS
The protective device contains potassium superoxide (K02) therefore
transportation hazard regulations apply when in transport. The devices can
only be transported by road, rail or air cargo and should be returned in their
original transportation packaging and marked with the appropriate hazard
identification label. When returning damaged or used devices they must be
sealed in a plastic bag prior to placing in the transportation packaging.
The devices can be returned for disposal or rework to the Reclamation Unit
at the address below:
Semmco LPS Ltd
9 Kestrel Way, Goldsworth Trading Estate
Woking
Surrey
GU21 3BA
England
ORDERING INFORMATION
Description Part No.
HEAD 10 ESCAPE SET CARRY CASE 802.000.19
HEAD 10 –Rework on request
HEAD 10 –6 & 9 year inspection on request
HEAD 10 –Training systems on request
Semmco LPS Ltd
9 Kestrel Way, Goldsworth Trading Estate
Woking
Surrey GU21 3BA
UK
Tel: [phone]
Fax: [phone]
e-mail: [email protected]om
www.semmco.com
PRODUCT IDENTIFICATION –HEAD 10 CARRY CASE
KEY
1HEAD 10 VAC PACK
2VACUUM INDICATOR
3CARRY CASE
4DATE AND SERIAL NUMBER LABEL
5SECURITY TAG
KEY
1OVER PRESSURE VALVE FITTED TO BACK OF HOOD
2PRESSURE RELIEF VALVE
3OXYGEN STARTER
4RESERVOIR BAG
5OXYGEN GENERATOR
6SUPPLY TUBE
7MASK AND HARNESS
8WARNING LED
9HEAT SINK
10 FRONT PORT
11 VISOR
12 HOOD
TECHNICAL DATA
Intrinsic Safety Label
•Inspiratory/expiratory resistance at 35L/min <±4 mbar
•Temperature Inhaled gas 35L/min < 50°C
•Breathing Bag Volume ≥8 litre
•CO² content (inhaled gas) < 3 vol%
•Operating time according to EN13794 10 minutes
•Weight with case (kg) 2.4 CC
•Weight without case (kg) 1.5
•Case dimensions (mm) approx 330 x 190 x 140
•Temperature: Storage -20 to +50°C
•Temperature: In Use -6 to +50°C
•Max surface temp < 100°C
EU DECLARATION OF CONFORMITY
Manufacturer: Semmco LPS Ltd
9 Kestrel Way Goldsworth Trading Estate
Woking Surrey GU21 3BA
Under the sole responsibility declares that the PPE described below
HEAD 10 Escape Set –CC 802.000.19
1. Is in conformity with the PPE Regulation (EU) 2016/425 and with the relevant
requirements of the appropriate sections of the harmonized standards
EN13794:2002, EN145:1998 and DIN58652:2005-. for general specification and
performance and EN1146 for the hood, it is deemed to meet the basic safety and
health requirements (Annex 11) of the Regulation.
2. Are identical to the PPE which is the subject of EU certification of conformity No.
CE690202 issued by:
BSI Group
Kitemark Court
Davy Avenue
Knowlhill
Milton Keynes
MK5 8PP
3. Are subject to the procedures set out in PPE Regulation (EU) 2016/425 under the
supervision of the notified body SGS United Kingdom Ltd. NB0120
Signed:
Authorised Signatory –General Manager Semmco Group
On behalf of Semmco LPS Ltd
Issue: 02c Dated: January 2021
Telephone: [phone] Fax: [phone]
Email: [email protected] www.semmco.com
