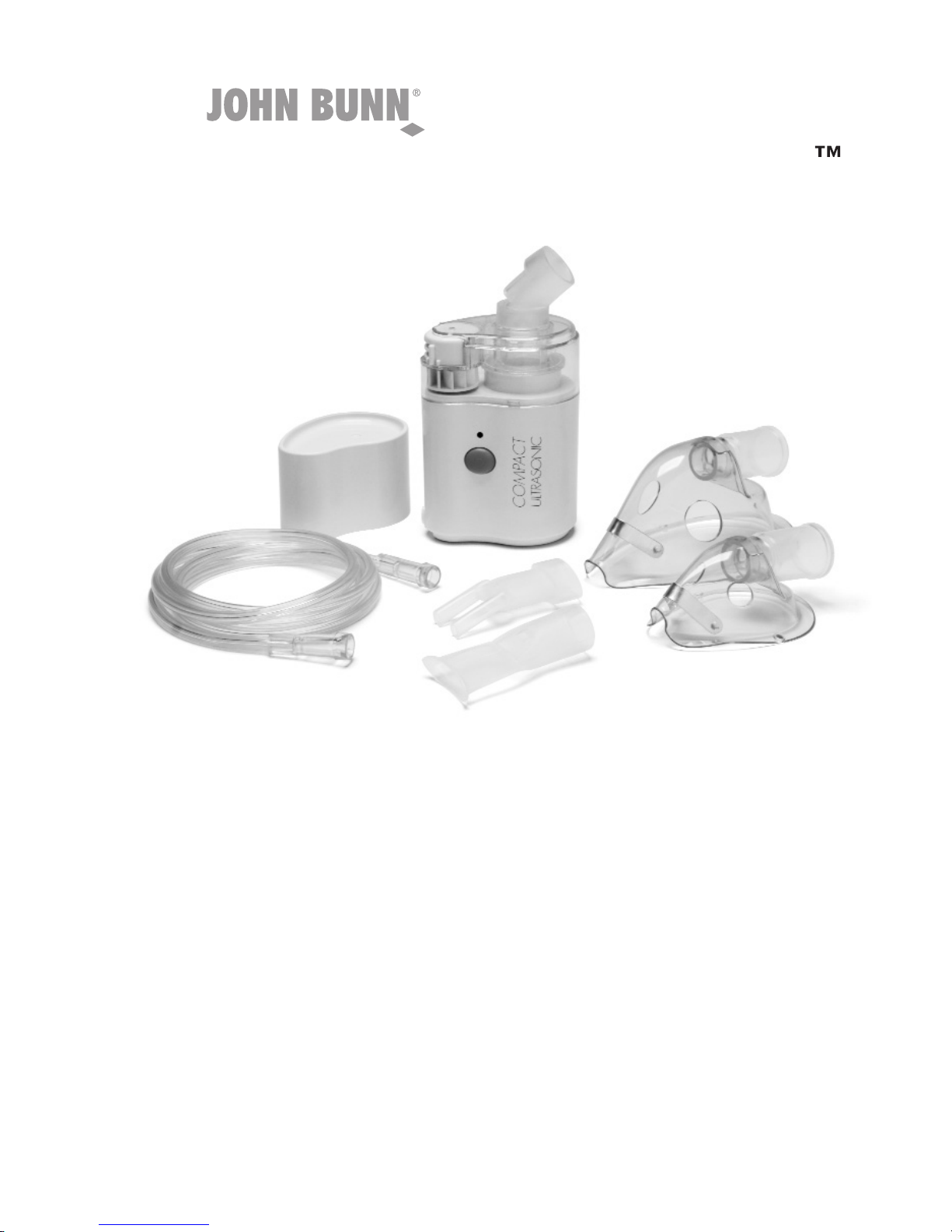

John Bunn JB0112-066 NANO-SONIC User manual

USER’S MANUAL
Read this manual before operating the nebulizer
Save these instructions for future reference
Caution:
Federal law restricts this device to sale by or on order of a physician, or any other
practitioner licensed by the law of the State in which he practices to use or order
the use of this device.
MODEL: JB0112-066
COMPRESSOR NEBULIZER
JB0112-066-INS-LABRevA05
N
ANO-SONIC

22
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Symbols Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Spare Parts Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Use Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Clean and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Air Filter Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Accessories provided . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
OptionalAccessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Trouble Shooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1 Year Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Introduction
Congratulations for having purchased a John Bunn Nano-Sonic Nebulizer!
Thanks for your support.
Graham-Field warrants that this device has been produced using high quality materials
and it complies with the safety rules in force both domestically and internationally.
The John Bunn Nano-Sonic Nebulizer operates on ultrasound which produces the drug
solution vibration and turns it into mist. Effective and quick results are achieved without
side-effects.
This model comes with the exclusive Closed Water Chamber System, easy to use:
All you need to do is pour the solution into the medication cup and it is ready to use.
Symbols key
ON........................................................
Off / Customize nebulizing................
DC.......................................................
Class II..........................
Type B...........................
Read the instructions....

33
It operates on three types of power sources: the main supply viaAC adapter, the
optional car lighter adapter and the optional rechargeable battery pack.
CAUTION: As per USAFederal regulations this product can only be sold under medical
prescription.
Recommendations
1. Read the manual carefully before using the device and keep it in case you need
further information in the future.
2. Do not turn the device on if there is no drug solution in the medication cup.
3. Disconnect the nebulizer when it is not being used.
4. Do not remove the medication cup cover while the device is operating.
5. Do not expose the nebulizer to a heat source.
6. Do not pour more than 8 ml. of solution into the medication cup.
7. Do not leave drug solution in the medication cup when the device is not being used.
8. Do not scrape or pierce the medication cup cover.
9. Do not touch the medication cup or the drug solution while the device is being used.
10. Do not dip the nebulizer in water.
11. Children should only use the device under adult supervision.
12. To avoid infections and contagion the accessories should not be shared by different
patients. They are intended for personal use.
13. Use the unit intermittently. Maximum operating period: 30 minutes.
Rest period: 30 minutes.
14. Graham-Field warrants the quality of the liquid contained in the Closed Water
Chamber for a period of 3 years. This solution can be changed easily by the
authorized dealer.
15. This device can only be repaired by the local dealer’s authorized service agents.

44
Clear Housing
Air Chamber
Main body
Power Indicator
ON/OFF Switch
Power Connector
AC Adapter
Adapter
Top cover OPTIONAL:
Car lighter
adapter
Nasal piece
Mouth piece
Air Filter

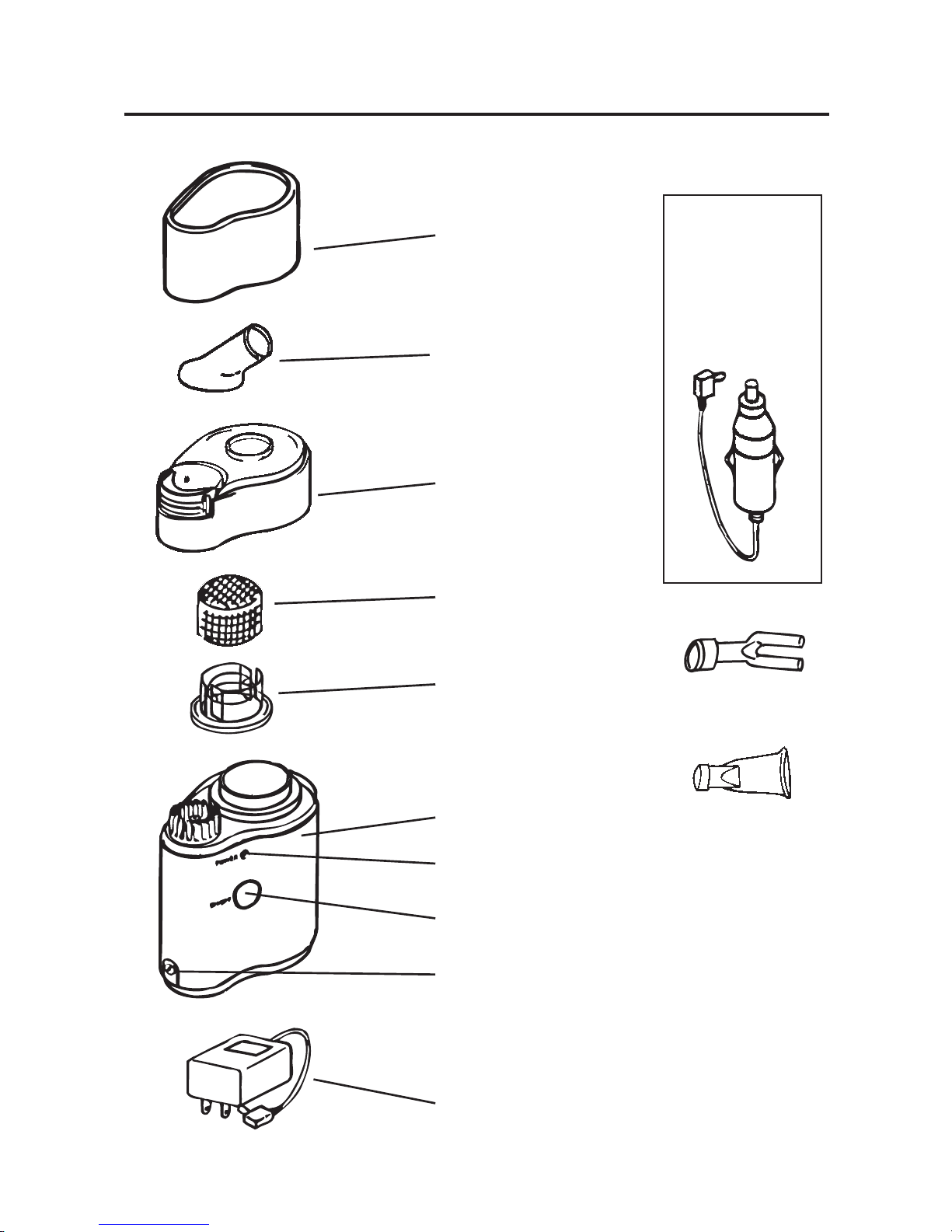

Spare Parts Description

5
Use Instructions
1. Take the unit and the AC adapter out of the box
2. Remove the clear housing and pour the
medication into the medication container
(8 ml. Max.)
3. Add the clear housing and
adapter and insert the device to be
used into it (adult mask, pediatric
mask, and nasal or mouth piece).
CAUTION: carefully check the
membrane at the bottom of the
medication cup before each use. If it
is pierced or broken do not use the
nebulizer and contact the authorized
ServiceAgent.
4. Attach the unit to the power connector.
5. Press ON switch. The green light will turn on and the unit will start to operate.Adjust
the air regulator to the desired intensity.
6. The unit will automatically turn off at 3 minutes. If you wish to continue nebulizing,
check if the medication amount in the pool is sufficient.Add more if necessary. Then
press the ON/OFF switch twice and the unit will start to operate again.
7. Once use is over, unplug the equipment and disconnect theAC adapter. Remove
the clear housing and clean using a clean cloth.
3-
Air regulator
ON/OFF
Switch
2-

6
Cleaning and Maintenance
Important:
Clean the accessories before using the nebulizer for the first time or after each use
following these instructions: wash all the pieces, except for the air filter, with warm water
and detergent. Rinse with warm tap water to remove the detergent.
Dip the pieces into a clean bowl containing 3 parts warm water and 1 part vinegar, let
soak for 30 minutes. Disinfectant can also be used.
Wash your hands and remove the pieces from the cleaning solution. Rinse them with
warm tap water and let them air dry. Keep the pieces into a tightly sealed bag. Do not
dry them with a towel. Clean the outer surface with a dry piece of cloth.
WARNING: In order to avoid infections, it is highly recommended to clean the pieces
after each use. Only nebulize solutions prescribed by a doctor and follow the doctor’s
instructions carefully. Do not use balm substances
Air Filter Change:
1. The air filter must to be replaced if it turns dirty or torn.
2. Remove the air chamber from the medication cup cover.
3. Take out the filter and place a new one.
4. Put all the pieces back .

7
Accessories Provided
1 Pediatric mask, 1Adult mask, 1Adapter, 1 Nasal piece, 2Air Filters, 1 Mouth piece,
1ACAdapter, 1 Instruction Manual and Warranty
Optional Accessories
1 Car lighter adapter, 1 portable battery pack
Trouble Shooting Chart
If something wrong happens while the device is working, please check and correct the
following points:
Symptom Possible cause Suggested solutions
Although the
device is on, it
does not work
1-Incorrectly connected to
power source
2-No power
3-TheACAdapter is not connected
1-Check the plug is
properly connected
2-Check that power is on
3-Check theACAdapter is
properly connected
The mist does
not come out There is no solution in the cup Pour some drug solution into the medication cup
Little mist is
delivered
1-The air filter is dirty
2-There is not enough
solution in the cup
3-Little power
4-Air excess
1-Change the filter
2-Pour drug solution into
the medication cup
3-Increase the power
4-Regulate the air flow
The device
operates for a
period and then
turns off
Timer off Press the key twice and
turn it on again

8
Technical Specifications
Method of nebulization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Ultrasonic vibration
Operating voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110V~ 120V~ 220V~
230V~ 240V~ 50Hz 60Hz
Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class II
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 W
Oscillation frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.5 Mhz
Nebulization rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 ml./ min.
Particle dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5 - 5.7 (MMAD 3,8 micrones)
Medication cup maximum capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 ml.
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.57 lbs / 260 g
Device dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.2" x 6.6" x 2.3"
83.5 x 169 x 60 mm
Operating temperature and humidity . . . . . . . . . . . . . . . .41ºF to 104ºF, 30% to 95% RH
5º to 40º C, 30% to 95% RH
Storage temperature and humidity . . . . . . . . . . . . . . . . .33.8ºF to 104ºF, 10% to 95% RH
1º to 40º C, 10% to 95% RH
Atmospheric pressure range for transport and storage . . . . . . . . . . . . . . . . .500-1060 mb
*The Closed Water Chamber contains a solution of Benzalkonium Chloride at 0,01%.
*The specifications and the outer design are subject to change for improvement reasons
without previous notice.

9
3 Year Limited Warranty
Graham-Fieldwarrantstotheoriginalretailpurchaserthatthisproductisfreefromdefects
in material and workmanship for a period of 3 years from the date of purchase. This
warranty does not cover failures resulting from misuse, abuse, alteration of the John Bunn
Nebulizer System, use of improper components or failure to comply with the operating
instructions. This warranty does not include the Nebulizer System tubing or accessories.
All requests for warranty service should include the model number of your John Bunn
NebulizerSystem,proofofpurchase (includingdate ofpurchase),yourphonenumberand
the nature of your service request. Graham-Field will either repair or at its option replace
free of charge any parts necessary to correct defects in material or workmanship covered
by this limited warranty.
THISLIMITEDWARRANTYISINLIEUOFALLOTHERWARRANTIES,WHETHERORAL,
WRITTEN, EXPRESS OR IMPLIED. THERE ARE NO WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, EXCEPT FOR
THOSE IMPLIED WARRANTIES ARISING BY OPERATION OF LAW WHICH ARE
LIMITEDIN DURATIONTOTHE1YEARTERMOFTHISWARRANTY. GRAHAM-FIELD’S
LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY,
ORANYOTHERTHEORY,SHALLNOTEXCEEDTHEPRICEOFTHEINDIVIDUALJOHN
BUNN NEBULIZER SYSTEM WHICH IS THE BASIS OF THE CLAIM. IN NO EVENT
SHALL GRAHAM-FIELD BE LIABLE FOR ANY LOSS OF PROFITS, FACILITIES,
EQUIPMENT OR OTHER INCIDENTAL, CONSEQUENTIALOR SPECIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, or allow the
exclusion or limitation of incidental, consequential, or special damages, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal
rights. You may also have other rights which vary from state to state

U.S.A., Corporate Headquarters:
Graham-Field Health Products
2935 Northeast Parkway
Atlanta, Georgia 30360
telephone: [phone]
fax: [phone]
http://www.grahamfield.com
JB0112-066-INS-LABRevA05
NECO/21180
