Sena Parani-ESD100 User manual

Parani-ESD100/110
User Guide
Version 2.0.6.2
2017-01-26

2
User Guide for the Parani-ESD100/110
Version 2.0.6.2
Firmware version 2.0.X
Printed in Korea
Copyright
Copyright 2008~2017, Sena Technologies, Inc. All rights reserved.
Sena Technologies reserves the right to make changes and improvements to its product without
providing notice.
Trademark
Parani™ is a trademark of Sena Technologies, Inc.
Windows® is a registered trademark of Microsoft Corporation.
Ethernet® is a registered trademark of XEROX Corporation.
Notice to Users
When a system failure may cause serious consequences, protecting life and property against such
consequences with a backup system or safety device is essential. The user agrees that protection
against consequences resulting from system failure is the user's responsibility.
This device is not approved for life-support or medical systems.
Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's
authority to operate this device.
Precautions and Safety
Electricity
Use only the supplied AC adapter. Use of unauthorized power adapter is not recommended. Electrical
shock may result.
Do not kink or crease the power cable or place heavy objects on the power cable. Fire can result from
damaged power cables.
Do not handle power plug and adapter with wet hands. Electrical shock may result.
Immediately power off the product and unplug the AC adapter if smoke or odors emit from the product
and adapter. Fire can result from improper use.
Immediately power off the product and unplug the AC adapter if water or other liquids are present. Fire
can result from improper use.
Product
Parani-ESD100/110 meets the RS-232 standards. Do not wire with non-standard products. Damage to
your products may result from improper use.
Do not drop or subject the device to impact. Damage to your products may result from improper use.
Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your
products may result from improper use.
Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your
products may result from improper use.
Do not place heavy objects on the product. Damage to your products may result from improper use.
Technical Support
Sena Technologies, Inc.
Tel: [phone]
Fax: [phone]
E-Mail: [e-mail]
Website: http://www.senanetworks.com

3
Revision History
Revision
Date
Name
Description
V1.0.0
2009-09-29
Yh Moon
Initial Revision History
V2.0.0
2009-11-19
Yh Moon
Multiple connection mode
V2.0.2
2010-05-04
Yh Moon
Add a Parani Multi Wizard
V2.0.3
2010-09-03
Yh Moon
Update Table 3-3
V2.0.4
2011-01-31
Jh Park
Add remote configuration
V2.0.4.1
2011-12-26
HR Zo
Package does not contain CD-ROM
V2.0.5
2012-01-18
Jh Park
Modify contents about page timeout and node
switching mode
V2.0.6
2012-02-24
Jh Park
Modify AT+MULTI command of response
V2.0.6.1
2015-09-10
TM Kim
Change the website address
V2.0.6.2
2017-01-26
TM Kim
Change the approval information

4
Contents
1. Introduction 7
1.1. Overview ....................................................................................................................................7
1.2. Package Check List ...................................................................................................................7
1.2.1. Single/Bulk Unit Package.................................................................................................7
1.2.2. Starter Kit.........................................................................................................................7
1.3. Product Specification .................................................................................................................8
2. Getting Started 9

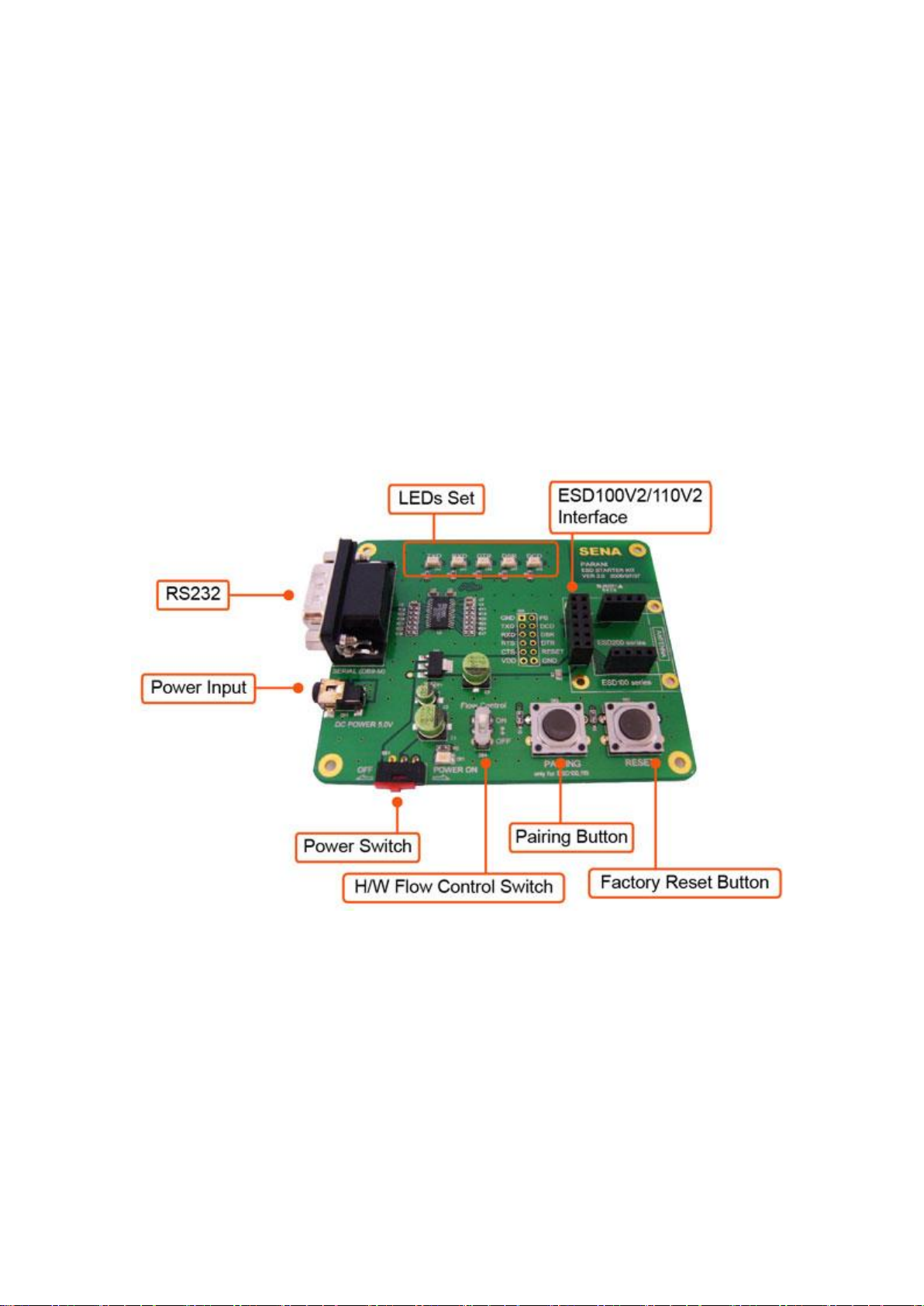

2.1. Panel Layout ..............................................................................................................................9
2.2. Connecting the Hardware ..........................................................................................................9

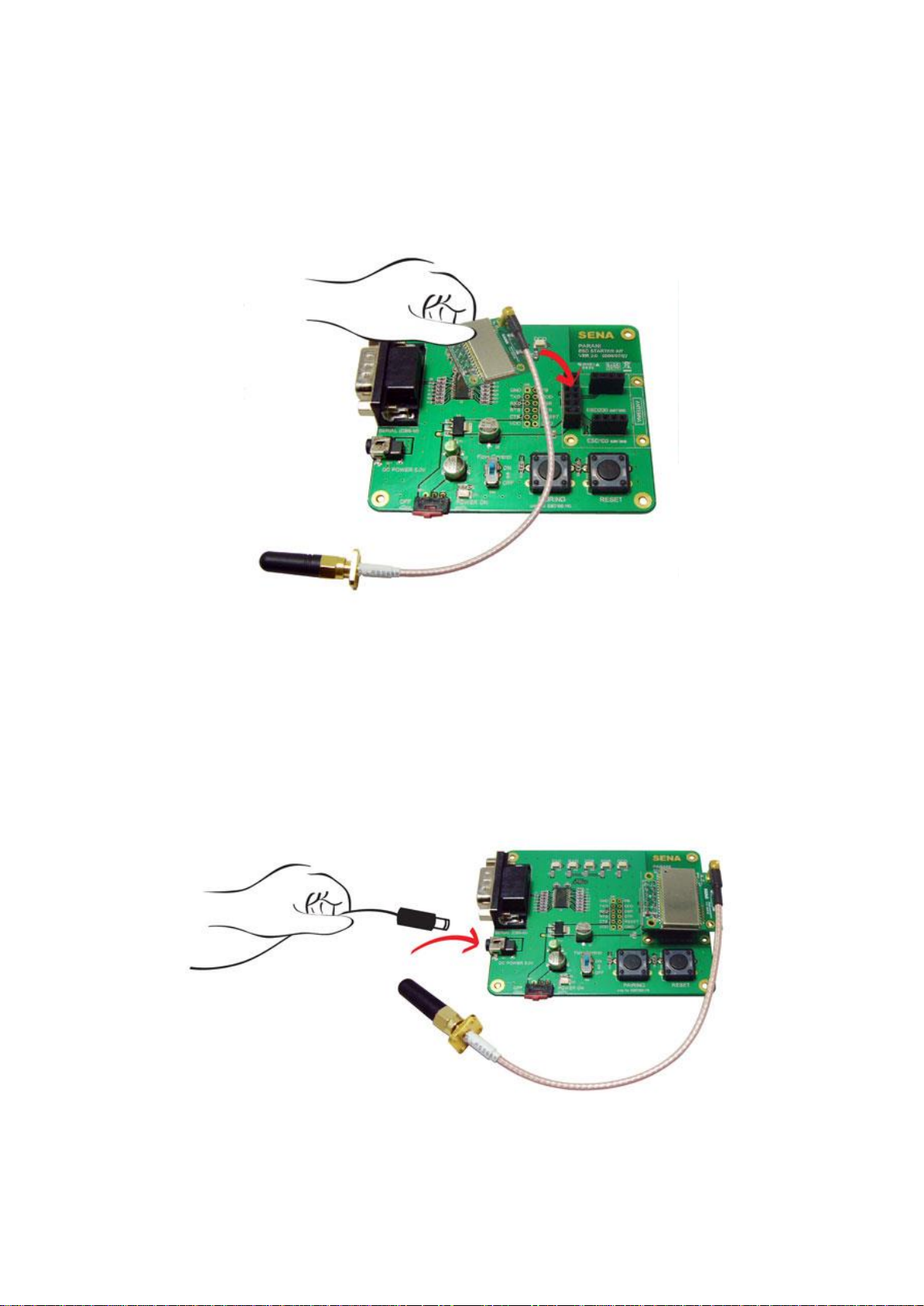

2.2.1. Connecting Parani-ESD to Development Board............................................................10
2.2.2. Connecting Power to Development Board.....................................................................10

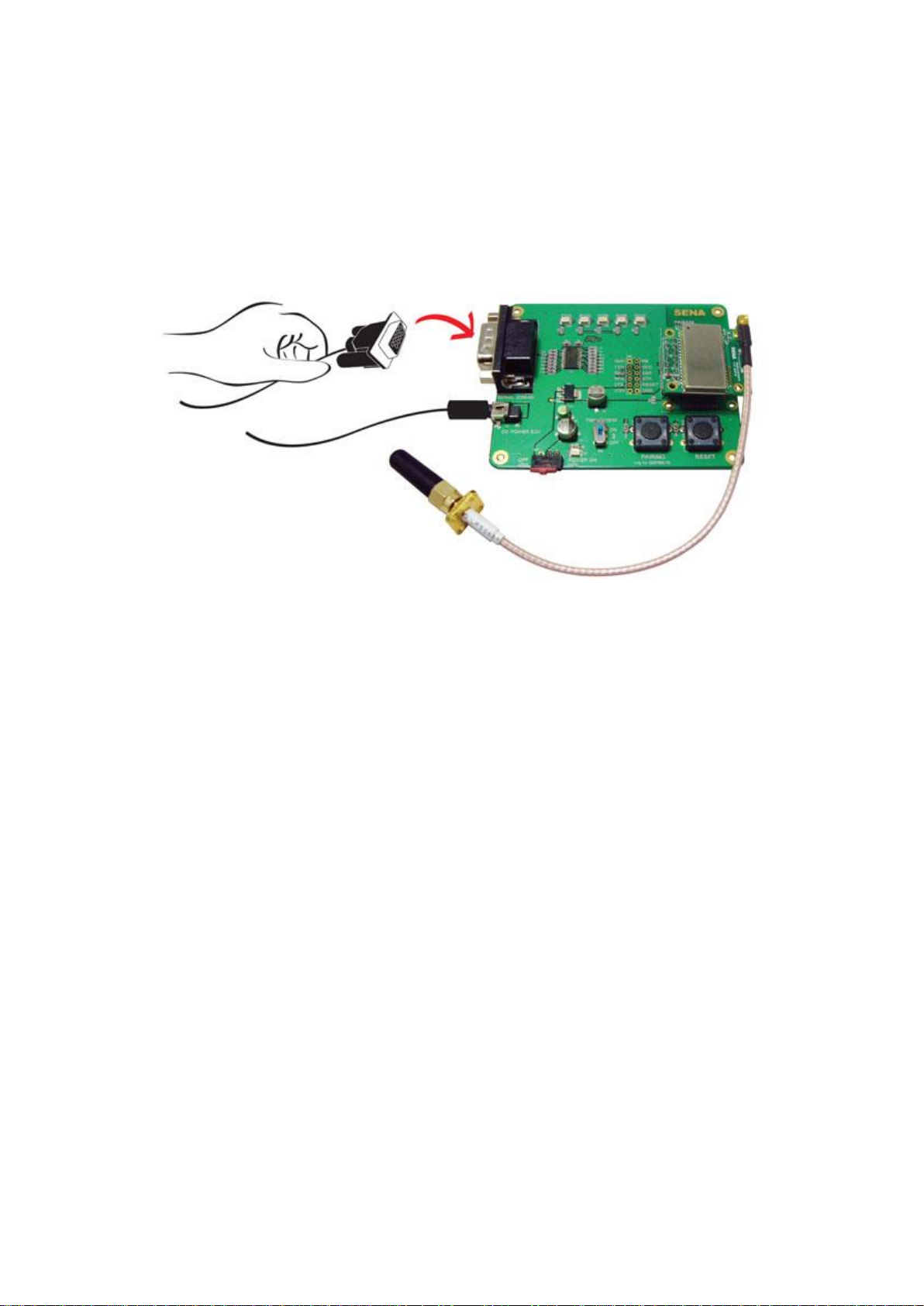

2.2.3. Connecting a Device to Development Board.................................................................11
3. Configuration 12
3.1. Operation Modes......................................................................................................................12
3.2. Serial Ports...............................................................................................................................13
3.3. Data Bit.....................................................................................................................................13
3.4. Hardware Flow Control ............................................................................................................13
3.5. Remote Configuration ..............................................................................................................13
3.6. Software and Utility ..................................................................................................................14

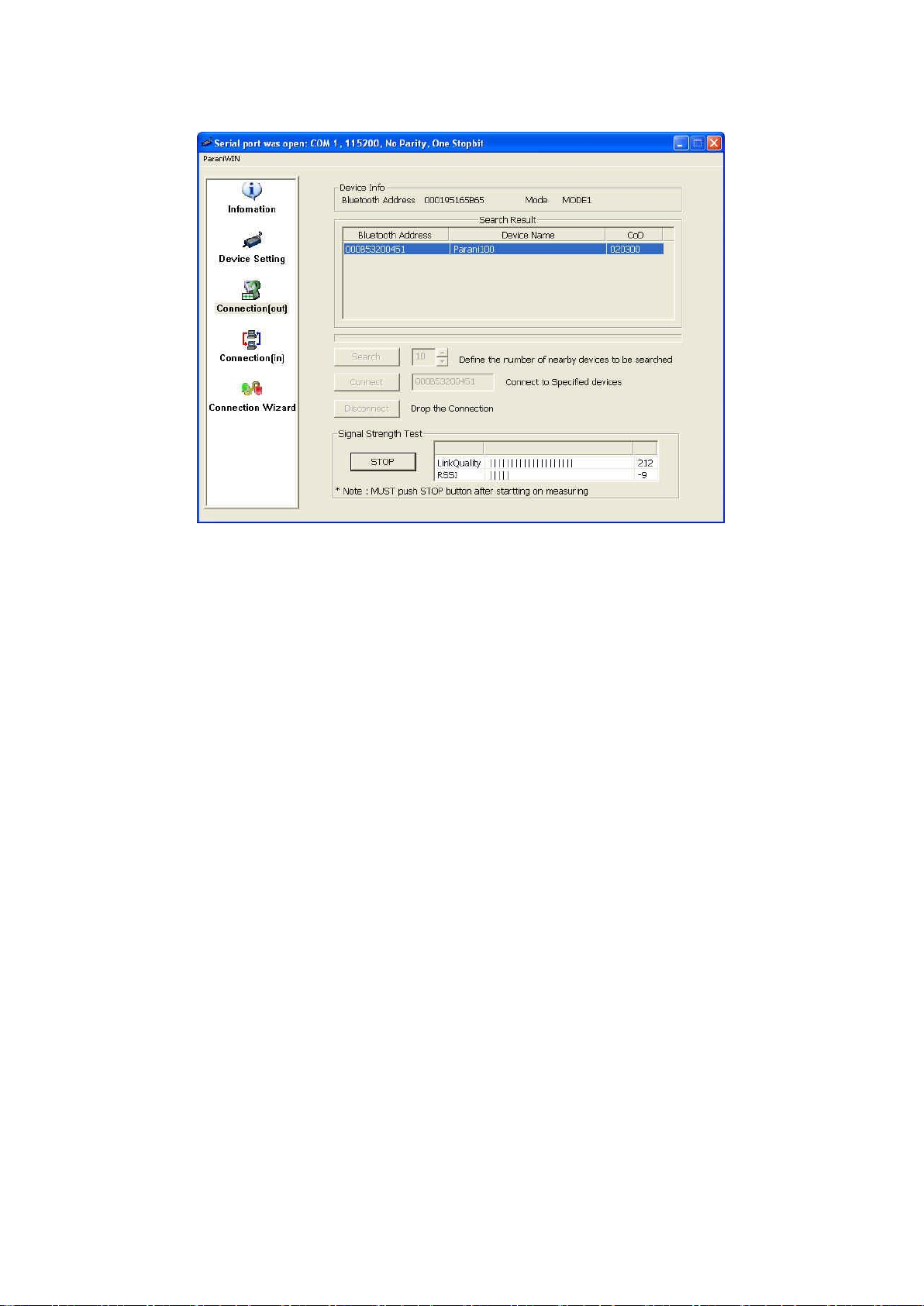

3.7. ParaniWIN................................................................................................................................14
3.8. ParaniWizard............................................................................................................................20
3.9. Parani Multi Wizard..................................................................................................................24
3.10. ParaniUpdater........................................................................................................................25
3.11. Terminal Program ...................................................................................................................26
4. Multiple Connection Mode 28
4.1. Overview ..................................................................................................................................28
4.2. Configuration............................................................................................................................29
4.3. AT Commands..........................................................................................................................30
4.3.1. AT+MULTI,n...................................................................................................................30
4.3.2. AT+MLIST?....................................................................................................................30
4.3.3. ATHx, ATHbdaddr..........................................................................................................30
4.3.4. ATOx, ATObdaddr .........................................................................................................30
4.4. Notes........................................................................................................................................31
5. Approval Information 32
5.1. FCC..........................................................................................................................................32
5.1.1. FCC Compliance Statement..........................................................................................32
5.1.2. RF Exposure Statement.................................................................................................32
5.1.3. Do not.............................................................................................................................32
5.2. CE ............................................................................................................................................32
5.3. KCC..........................................................................................................................................33
5.4. TELEC......................................................................................................................................33
5.5. SIG ...........................................................................................................................................33
6. RF Information 34
6.1. Radio Frequency Range ..........................................................................................................34
6.2. Number of Frequency Channel................................................................................................34
6.3. Transmission Method...............................................................................................................34
6.4. Modulation Method...................................................................................................................34
6.5. Radio Output Power.................................................................................................................34
6.6. Receiving Sensitivity ................................................................................................................34
6.7. Power Supply...........................................................................................................................34
Appendix A: Connections 35
A.1. Pin Assignment........................................................................................................................35
A.1.1. Parani-ESD100/110.......................................................................................................35
A.1.2. DCD Signal (Status: Bluetooth Connect Detect)...........................................................35
A.1.3. Factory Reset Signal .....................................................................................................36

5
A.1.4. Pairing (BT_MODE) Signal (Single Connection Mode Only) ........................................36
A.2. Connection Diagram................................................................................................................37
A.2.1. Parani-ESD100/110.......................................................................................................37
Appendix B: AT Commands 40
B.1. Terminology..............................................................................................................................40
B.1.1. AT Command.................................................................................................................40
B.1.2. AT Response .................................................................................................................40
B.1.3. Operation Mode.............................................................................................................40
B.1.4. Operation Status............................................................................................................40
B.1.5. Security..........................................................................................................................40
B.1.6. Symbols.........................................................................................................................40
B.2. Command Category.................................................................................................................41
B.3. Command Description .............................................................................................................42
B.3.1. ATZ..............................................................................................................................42
B.3.2. AT&F............................................................................................................................42
B.3.3. AT.................................................................................................................................42
B.3.4. AT+UARTCONFIG,Baudrate,Parity,Stopbit,Hwfc........................................................42
B.3.5. AT+BTINFO?...............................................................................................................42
B.3.6. AT+BTINQ?..................................................................................................................43
B.3.7. AT+BTLAST?...............................................................................................................43
B.3.8. AT+BTVER?................................................................................................................43
B.3.9. AT+BTRSSI,n(Single Connection Mode Only)............................................................43
B.3.10. AT+MLIST?................................................................................................................44
B.3.11. AT+BTMODE,n..........................................................................................................44
B.3.12. AT+MULTI,n...............................................................................................................44
B.3.13. +++.............................................................................................................................44
B.3.14. AT+SETESC,nn.........................................................................................................45
B.3.15. ATO(ATOx, ATObdaddr) ...........................................................................................45
B.3.16. AT+BTCANCEL.........................................................................................................45
B.3.17. AT+BTSCAN..............................................................................................................45
B.3.18. AT+BTSCAN,n,to.......................................................................................................46
B.3.19. AT+BTSCAN112233445566,to..................................................................................46
B.3.20. ATD............................................................................................................................46
B.3.21. ATD112233445566....................................................................................................46
B.3.22. ATA.............................................................................................................................47
B.3.23. ATA112233445566.....................................................................................................47
B.3.24. ATH(ATHx, ATHbdaddr)............................................................................................47
B.3.25. AT+BTKEY=$string....................................................................................................48
B.3.26. AT+BTSD?................................................................................................................48
B.3.27. AT+BTCSD................................................................................................................48
B.3.28. AT+BTFP,n.................................................................................................................48
B.3.29. AT+BTSEC,Authentication,Encryption......................................................................48
B.3.30. AT+BTNAME=$string................................................................................................49
B.3.31. AT+BTLPM,n.............................................................................................................49
B.3.32. AT+PASS=$string......................................................................................................49
B.3.33. AT+CHPASS=$string.................................................................................................49
B.3.34. AT&V..........................................................................................................................49
B.3.35. ATSnn?.....................................................................................................................50
B.3.36. ATSnn=mm................................................................................................................50
B.4. Command Validity....................................................................................................................50
Appendix C: S-Register 52
C.1. S1: Force to Reconnect (default 1)..........................................................................................52
C.2. S3: Stream UART Policy (default 0)........................................................................................52
C.3. S4: Enable Remote Name Query (default 1)...........................................................................52
C.4. S6: Enable Low Power Mode (default 0).................................................................................52
C.5. S10: Enable Response Message (default 1)...........................................................................52
C.6. S11: Enable Escape (default 1)...............................................................................................52
C.7. S12: Clear Data Buffer When Disconnected (default 0)..........................................................53

6
C.8. S13: Enable DCD Signal (default 1)........................................................................................53
C.9. S14: Enable DTR Transfer (default 1).....................................................................................53
C.10. S15: Enable Disconnect by DTR (default 0)..........................................................................53
C.11. S22: Faster Connection (default 3)........................................................................................53
C.12. S23: Intercharacter Timeout Setting (default 0).....................................................................53
C.13. S24: Maximum Number of Inquiry Result (default 15) ..........................................................53
C.14. S26: Intercharacter Timeout (default 0).................................................................................53
C.15. S28: Escape Sequence Character (default 43).....................................................................54
C.16. S31: Page Timeout (default 20).............................................................................................54
C.17. S33: Inquiry Timeout (default 30) ..........................................................................................54
C.18. S37: Supervision Timeout (default 5) ....................................................................................54
C.19. S43: COD (default 001F00)...................................................................................................54
C.20. S44: COD Filter (default 0)....................................................................................................54
C.21. S45: Inquiry Access Code (default 0x9E8B33) .....................................................................54
C.22. S46: BD Address of Last Connected Device.........................................................................54
C.23. S48: Low Power Max Interval (default 5000) ........................................................................55
C.24. S49: Low Power Min Interval (default 4500) .........................................................................55
C.25. S52: Low Power Timeout (default 5) .....................................................................................55
C.26. S54: BD Address of Last Connected Device.........................................................................55
C.27. TS55: BD Address of Last Connected Device.......................................................................55
C.28. S56: BD Address of Last Connected Device.........................................................................55
C.29. S57: Slave Disconnect Timeout (default 3) ...........................................................................55
C.30. S58: MAX TX POWER (default 0).........................................................................................55
C.31. S59: Current Slave in Communication (default 0).................................................................56
C.32. S60: Reconnect Time Interval (default 5)..............................................................................56
Appendix D: Trouble Shooting 57
D.1. No Data Transmission .............................................................................................................57
D.1.1. Device Settings .............................................................................................................57
D.2. Data Loss or Malfunctioning....................................................................................................57
D.2.1. Hardware Flow Control..................................................................................................57
D.2.2. Response Message.......................................................................................................57
D.3. Transmission Delay .................................................................................................................57
D.3.1. RF Processing Delay.....................................................................................................57
D.3.2. RF Transmission Environment......................................................................................57
Appendix E: Warranty 58
E.1. GENERAL WARRANTY POLICY............................................................................................58
E.2. LIMITATION OF LIABILITY......................................................................................................58
E.3. HARDWARE PRODUCT WARRANTY DETAILS....................................................................58
E.4. SOFTWARE PRODUCT WARRANTY DETAILS ....................................................................59
E.5. THIRD-PARTY SOFTWARE PRODUCT WARRANTY DETAILS............................................59
Appendix F: How to make a RS232 interface Development Board 60
Appendix G: Parani-ESD100/110 PCB mechanical drawing 61

7
1. Introduction
1.1. Overview
Parani-ESD is a module device for wireless serial communication using Bluetooth technology that is
international a standard for short range wireless communications. Parani-ESD can communicate with
other Bluetooth devices that support the Serial Port Profile.
The working distance of Parani-ESD with default antenna is 100m. The Parani-ESD delivers better
quality of communication than a standard RS232 cables.
Parani-ESD has a compact design and can be placed conveniently into devices or equipment. Its
detachable antenna optimizes the quality and distance for wireless communications.
Parani-ESD supports FHSS (Frequency Hopping Spread Spectrum), which is a technique, native to
Bluetooth that allows the Parani-ESD minimize radio interference while decreasing the likelihood of over-
air hijacking. Parani-ESD also supports authentication and Bluetooth data encryption.
Parani-ESD can be configured and controlled by typical AT commands. Users can easily configure
Parani-ESD by using a terminal program such as HyperTerminal and can use Bluetooth wireless
communication without modifying user’s existing serial communication program. In addition to the basic
AT commands, Parani-ESD provides some expanded AT commands for various functions. User friendly
ParaniWizard and ParaniWIN are also provided for easy setup on Microsoft Windows.
1.2. Package Check List
1.2.1. Single/Bulk Unit Package
Parani-ESD100B
- Parani-ESD100B Module (on-board chip antenna)
Parani-ESD110B
- Parani-ESD110B Module
- Stub Antenna
- Antenna extension cable
1.2.2. Starter Kit
- Development board
- Serial data cable
- DC Power Adapter
- A hardcopy of Quick Start Guide

8
1.3. Product Specification
Note *:
Bluetooth v2.0 supports improved AFH function. AFH function is to mitigate the interference
between WiFi and Bluetooth radios by automatically avoiding the active WiFi channel from
Bluetooth link. However, AFH does not provide a complete solution making WiFi and Bluetooth
work together in harmony. It is highly recommended for users to test their wireless system
enough before deployment since the overall system performance is affected by various
environmental factors such as distance between them.
Parani-ESD100/110
Serial Interface
Serial UART speed up to 921.6kbps
CTS/RTS flow control, DTR/DSR for loop-back & full transfer
2.54mm Pin Header 2X6 (12pin)
Bluetooth Interface
Bluetooth v2.0 + EDR
Profile: Serial Port Profile
Class 1
Working distance:
- Parani-ESD100:
Nominal 100m
- Parani-ESD110:
Stub Antenna (+1dBi) - Stub Antenna (+1dBi) 100 meters
Stub Antenna (+1dBi) - Dipole Antenna (+3dBi) 150 meters
Dipole Antenna (+3dBi) - Dipole Antenna (+3dBi) 200 meters
Dipole Antenna (+3dBi) - Dipole Antenna (+5dBi) 300 meters
Dipole Antenna (+3dBi) - Patch Antenna (+9dBi) 500 meters
Dipole Antenna (+5dBi) - Dipole Antenna (+5dBi) 400 meters
Dipole Antenna (+5dBi) - Patch Antenna (+9dBi) 600 meters
PatchAntenna (+9dBi) - Patch Antenna (+9dBi) 1,000 meters
Configuration
ParaniWIN, ParaniWizard, Modem AT command set
Firmware Update
ParaniUpdater
Power
Supply voltage: 3.3V DC
Supply current::10mA –60mA
Environmental
Operating temperature: -30 ~ 80 oC
Storage temperature: -40 ~ 85 oC
Humidity : 90% (Non-condensing)
Physical properties
Parani-ESD100/110 Dimension
27.5 mm L (1.08 in )
30.0 mm W (1.18 in )
14.0 mm H (0.55 in )
Weight
6 g
Approvals
FCC, CE, KC, TELEC, SIG
Warranty
1-year limited warranty

9
2. Getting Started
This chapter describes how to set up the Parani-ESD for the first time.
- 2.1 Panel Layout explains the panel layout.
- 2.2 Connecting the Hardware describes how to connect the Parani-ESD, the power, and the serial
device to the Jig Board.
Following items are pre-required to get started.
- One Jig Board (included in the Starter Kit package).
- One DC power adapter or one USB power cable (included in the Starter Kit package).
- One serial console cable for configuration (included in the Starter Kit package).
- One PC with RS232 serial port.
- Terminal emulation program running on the PC
2.1. Panel Layout
This section describes the panel layout of the Development Board.
Figure 2-1 The Panel Layout of Development Board
2.2. Connecting the Hardware
This section describes how to connect the Parani-ESD to the Development Board and the Development
Board to the serial device for initial testing.
- Connect the Parani-ESD to the Development Board.
- Connect a power source to the Development Board for the Parani-ESD.
- Connect the Development Board for the Parani-ESD to a serial device.

10
2.2.1. Connecting Parani-ESD to Development Board
Connect the Parani-ESD to the Development Board as shown below.
Figure 2-2 Connecting Parani-ESD to Development Board
2.2.2. Connecting Power to Development Board
Connect the power plug to the power connector of the Development Board for the Parani-ESD using the
DC power adapter or USB power cable that is included in the package.
Figure 2-3 Connecting Power to Development Board
