Seneca RTU-LP-ST User manual

ISTRUCTIONS TRANSLATED INTO ENGLISH - EN
INSTALLATION
MANUAL
RTU-LP-ST
RTU
/
Datalogger
Low
Power
with
embeddedmodem GSM/GPRS andI/O
SENECA S.r.l.
Via Austria 26 – 35127– Z.I. - PADOVA (PD) - ITALY
Tel. [phone] Fax [phone]
www.seneca.it

RTU
-
LP
-
ST
|
RTU / Datalogger Low Power with embedded modemGSM/GPRS and I/O
SENECA
Doc. MI000474 Rev. 0 P a g e 2
z
The full content of this Manual must be read before performing
any operation.
The module must only be used by qualified electricians. Specific
documentation is available from www.seneca.it
The module must be repaired and damaged parts replaced by the
Manufacturer. The product is sensitive to electrostatic discharges.
Take appropriate measures during alloperations.
The warranty is null and void in the event the module or devices
supplied bytheManufacturer, necessaryfor its correct operation, are
improperlyused or tampered with and, in any case, if the instructions
contained in this manual were not followed.
Electrical and electronic waste disposal (applicable in the European
Union and other countries with recycling).
The symbol on the product or its packaging shows the product must
be surrendered toa collection centre authorized to recycle electrical
and electronic waste.
This document is the property of SENECA srl. Unauthorized duplication and reproduction is
strictly forbidden. The content of this document corresponds to the described products and
technologies. Stated datamaybemodifiedorsupplemented fortechnicaland/orsalespurposes.
RTU-LP DESCRIPTION
The RTU-LP-ST is a device used to tele-control digital and analogue data via GSM/GPRS
connections. The system architecture is based on a microcontroller, an in-built modem and
arange of inputs/outputs. RTU-LP-ST is suitable for all thetelecontrolapplications onsmall
systems, system parts, data collection and management.
The many accessories such as external aerials, IP65, IP67 protection casings or battery
packs with increased capacity, guarantee a customisable and complete offer for industrial
applications.

RTU
-
LP
-
ST
|
RTU / Datalogger Low Power with embedded modemGSM/GPRS and I/O
SENECA
Doc. MI000474 Rev. 0 P a g e 3
INSTALLATION REGULATIONS
In addition to the installation on an IEC EN 60715 omega rail using the S-DIN support with
screws supplied, the RTU-LP device can be housed in an IP65 pre-wired housing (BOX-
RTU-IP65) with battery support and dimensions 290x140x108mm.
Check the order codes in the SOFTWARE and ACCESSORIES paragraph on page 8.
For the wiring, use onlya cablecompliant withthe nationalor harmonised
regulations, having a section suitable to the device consumption and the
installation conditions. Use power cables with a minimum section of
0.25mm².
If externalbatteries are used, the power cable maximum length must not
exceed 3 meters.
Itis MANDATORY touse an antennawith coaxialcable positioned at minimum
50cm fromtheunit.
FACTORY SETTINGS
The RTU-LP device has no factory settings: To proceed with the first configuration, it is
necessary to use the EASY RTU LP software that can be downloaded free of charge from
the software section of the product sheet www.seneca.it/products/rtu-lp-st
MODULE DIMENSIONS
Dimension
(
W
xHxD)
132
x
65
x
67
mm
Weight
290
g
Case
ABS,
black

RTU
-
LP
-
ST
|
RTU / Datalogger Low Power with embedded modemGSM/GPRS and I/O
SENECA
Doc. MI000474 Rev. 0 P a g e 4
TECHNICAL SPECIFICATIONS
POWER SUPPLY
Voltage 8..30 Vdc
Absorption 3.7 mW (no TX, no AUX PWR and inputs OFF).
5 W PEAK DURING tx
Sensor auxiliary
supply 100 mA maximum • for external loop-powered sensors with automatic pre-start function.
AUTONOMY Life with 13,000 mA/h @ 10,8V (*) Lithium-thionyl Chloride
batteries up to 3 years.
FUNCTIONALITY

Data transmission on event or request.
Temporaryswitching onformessagereceptionand/orsending
and temporaryswitching on on event
Datalogger with 2MB internalFlash memory
Maximum analogue log speed: 30 sec.
Maximum digital log speed: 1 sec.
INSULATION
DIGITAL INPUTS 4 galvanically insulated with 1 Hz sampling frequency
4 x 32 bit totalizers (maximum 1 Hz).
DIGITAL OUTPUTS 2 with bistable relays
Capacity: 30 Vdc / 1 A Max (resistive load)
ANALOGUE
INPUTS
2 in Voltage (±50 V, ±20 V, ±2 V) or Current (±20 mA)
Resolution: 15 bit + sign
Precision: 0.1% F.S. at 20°C
Input impedance: > 1 MOhm
CPU and
MEMORIES ARM 32 bit, EEPROM: 64 kB, FLASH: 2 MB
CLOCK Internal RTC; max error: 75 ppm (-20 – 70°C)
IN-BUILT MODEM GSM/GPRS quad-band 850/900/1800/1900 MHZ GPRS multi slot class 10, GPRS max. speed 86 kbps (DL)
Coding scheme CS-1, CS-2, CS-3, CS-4.

RTU
-
LP
-
ST
|
RTU / Datalogger Low Power with embedded modemGSM/GPRS and I/O
SENECA
Doc. MI000474 Rev. 0 P a g e 5
TECHNICAL SPECIFICATIONS
COMMUNICATION
PORT 1 RS232 half duplex
PROTOCOLS ModBUS RTU SMS protocol
FTP protocolto send the Log
CONNECTIONS DB9F connector for RS232
SMA-F antenna connector
I/O connectors: Removable terminals pitch = 3.5mm
AMBIENT
CONDITIONS
Operating
temperature -20°C – +70°C
Humidity 30 – 90% to 40°C non condensing
Altitude up to 2000 m above sea level
Storage temperature -20°C – +85°C
Protection rating IP40 (without optionaloutside container)
STANDARDS
EN 61000-6-4 Electromagnetic Emission, industrialenvironment.
EN 61000-6-2 Electromagnetic Immunity, industrialenvironment.
EN 301 511 Harmonized standard for mobile stations in the
GSM900 and 1800 bands.
EN 301 489-1 Electro-Magnetic Compatibility standard for radio
equipment and services
EN 301 489-7 Specific (EMC) conditions for mobile radio
equipment (GSM 900 and 1800).
EN 60950 Safety of information Technology Equipment.
(*) with 1 SMS transmitted a day, allinputs OFF, no sensor auxiliary power
and no RS232 serial communication.
LED SIGNALLING THE STATUS OF THE GSM NETWORK
Fast flashing Network search / SIM not connected
Slow flashing GSM transmitting
ON Data connection
OFF GSM not operating

RTU
-
LP
-
ST
|
RTU / Datalogger Low Power with embedded modemGSM/GPRS and I/O
SENECA
Doc. MI000474 Rev. 0 P a g e 6

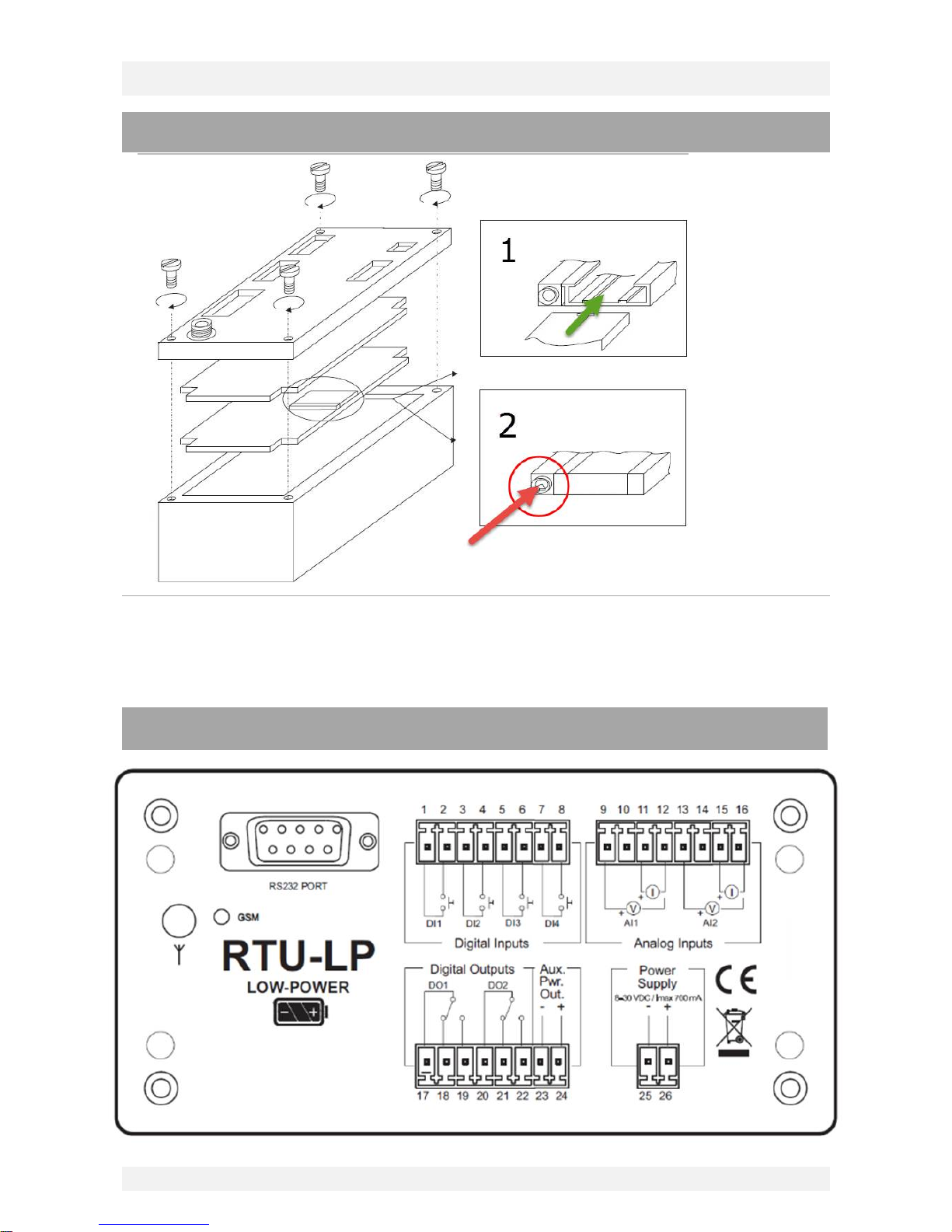

OPENINGTHE CASE AND INSERTINGTHE SIM CARD
After removing the 4 screws with a screwdriver, follow the instructions in the picture above: to
insert theSIM card,follow figure1; toremove it, press the buttonon the sideoftheslot as shown
in figure 2.
MODULE FRONT LAYOUT

RTU
-
LP
-
ST
|
RTU / Datalogger Low Power with embedded modemGSM/GPRS and I/O
SENECA
Doc. MI000474 Rev. 0 P a g e 7
ELECTRICAL
CONNECTIONS
Power supply
8..30 Vdc
Absorption 5 W max
Digital inputs
Rated voltage: 7 V
Rated current: 4 mA
Minimum current for ON status: 1.5 mA
Maximum cable resistance: 100 Ohm
Sampling frequency: 1 Hz
Each input has a 32 bit counter.
Insulation towards the other circuits: 500 Vdc
Digital outputs / Auxiliary
supply port
Relay type: bistable
Relay capacity : 30 Vdc, 1 A Max, resistive load
Auxiliary output to supply the sensors
Maximum current 100 mA
Analogue inputs
Measuring scales:
± 50 Vdc
± 20 Vdc
± 2 Vdc
± 20 mA
Insulation towards the other circuits: NO
Impedance of voltage input: 1 MOhm
Voltage drop with current input: 1.5 Vdc
protected by a self-resetting fuse

RTU
-
LP
-
ST
|
RTU / Datalogger Low Power with embedded modemGSM/GPRS and I/O
SENECA
Doc. MI000474 Rev. 0 P a g e 8

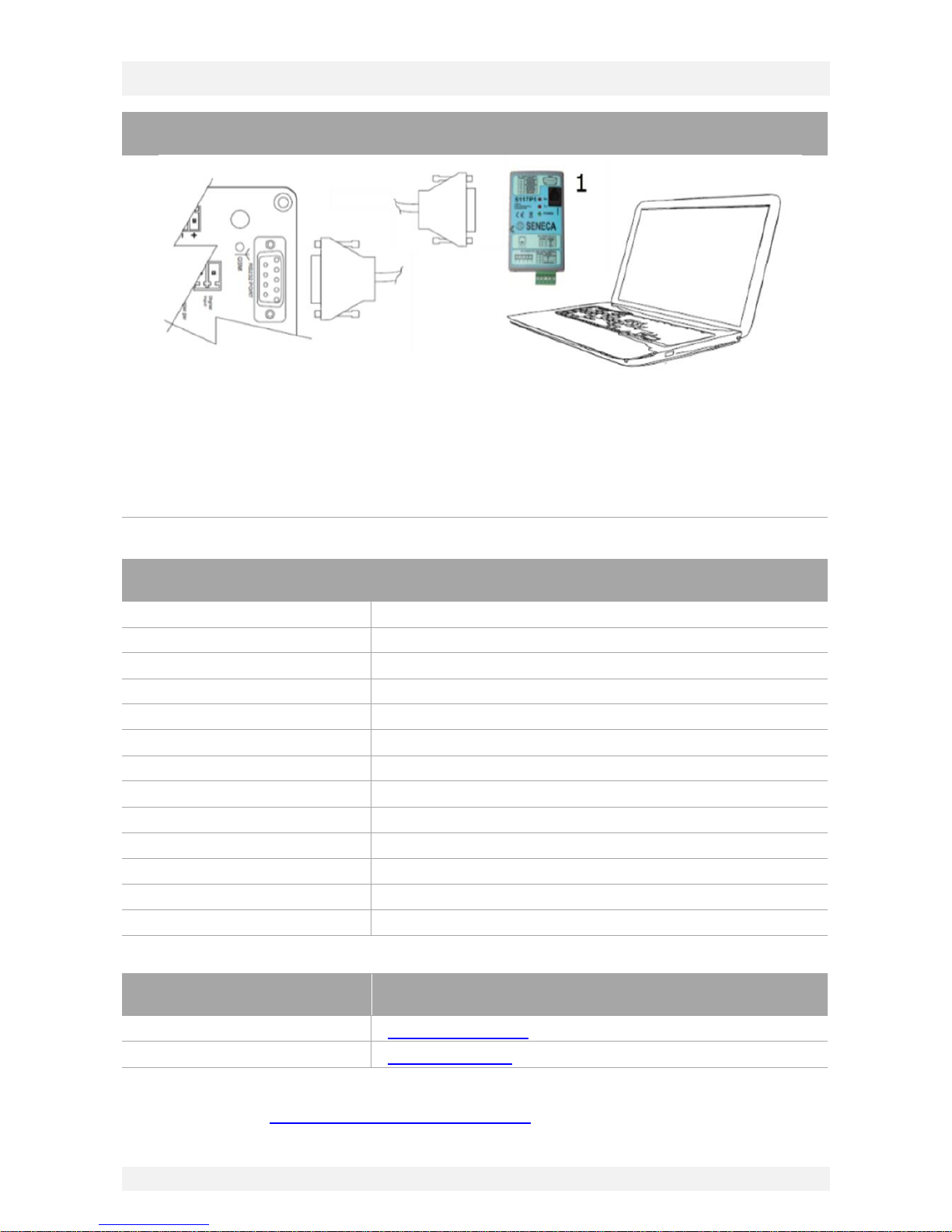

CONNECTION TO THE PC
To connect to aPC, anRS232/USB (1) serialconverter such as SENECA S117P1 is required.
Once the converter is installed, just use the cables supplied:
To configure thedevice, the EASYRTULPsoftware musthave beeninstalled and theserial
cable with the CONFIG CABLE labelmust be used.
To update the firmware, theEASY RTU LP software must have been installed and theserial
cable with the UPDATE CABLE label must be used.
SOFTWARE AND ACCESSORIES
EASY RTU LP Free software used to configure the device
BOX-RTU-IP65 Pre-wired IP65 case 290x140x108mm
BATT-S Lithium battery pack 3 cells 10.8 V – 1.5 Ah
BATT-2S Double lithiumbatterypack 3 cells 10.8 V – 25 Ah
A-GSM External antenna (3m cable)
A-GSM-DIR-5M Triband compact directive antenna (5m cable)
A-GSM-OMNIDIR Triband omnidirectional antenna (5m cable)
A-GSM-OMNIDIR-10 Triband omnidirectional antenna (10mcable)
A-GSM-QUAD 4G omnidirectional external antenna (5m cable)
S117P1 RS232-TTL-RS485/USB serial converter
CS-DB9M-DB9F Configuration serial cable (CONFIG CABLE)
CS-DB9M-DB9F-CR Firmware update cable (UPDATE CABLE)
S-DIN Support for DIN rail
CONTACTS
Technical support [e-mail]
Product information: sal[email protected]
Forfurtherinformation,refertotheonlinesheetandtheUSERMANUALthatcanbedownloaded
free of charge from www.seneca.it/products/rtu-lp-st
