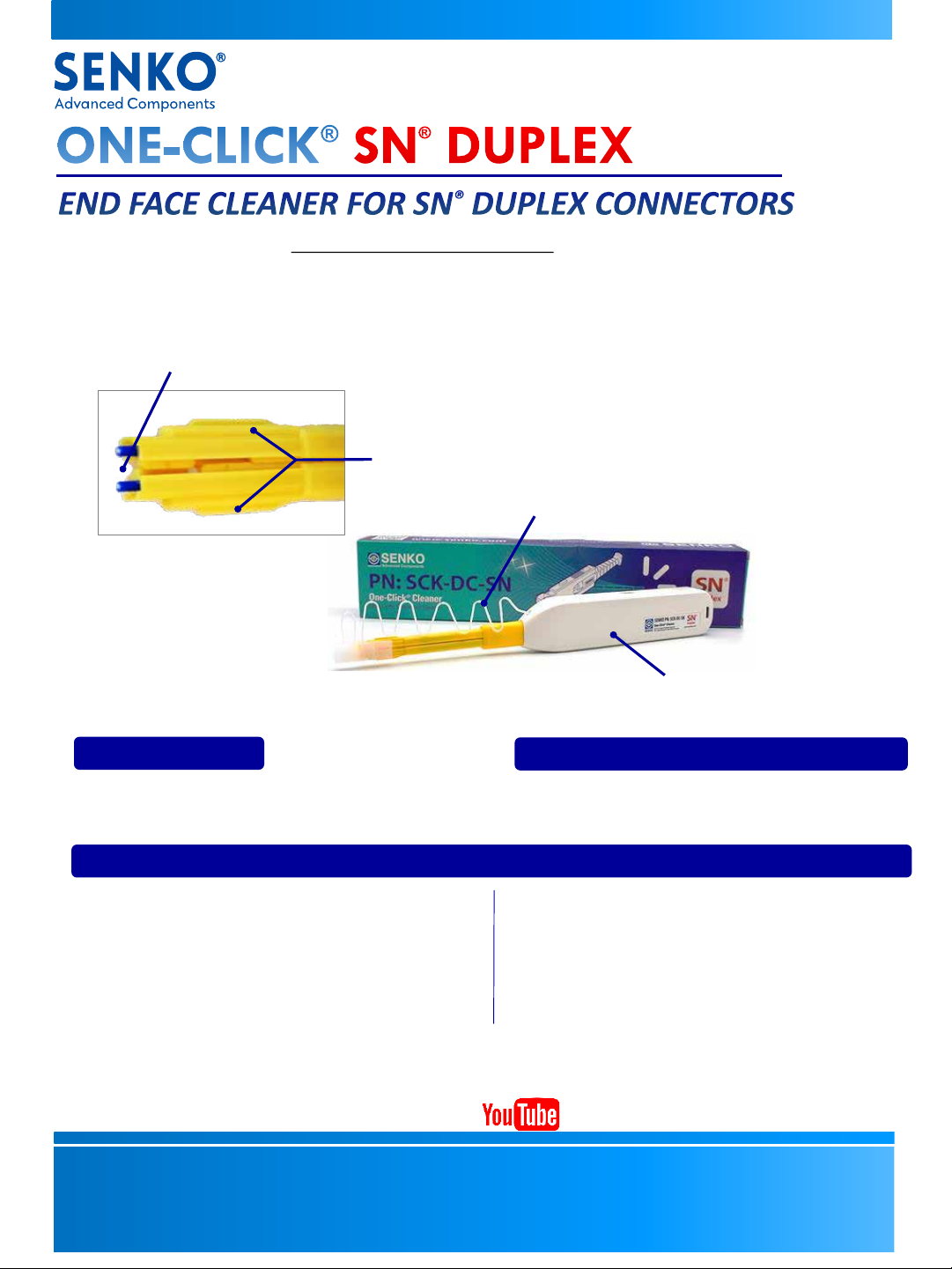

SENKO One-Click SN Duplex User manual

FEATURES
•Dual cleaning of end faces reduces cleaning times.
•Self aligning cleaning tips for consistent cleaning
performance of unmated and in adapter end faces.
•RoHS and REACH compliant with no shelf life or
restrictions on storage or shipments
•Works for UPC and APC polished end faces.
•Effective cleaning inserted into adapter ports and
transceiver ports in the up or down position.
•Cleaner locks up at end of life to alert operator.
SENKO PART NUMBER
TYPICAL APPLICATIONS INCLUDE
§Cable Assembly Production
§Network Equipment Production
§Engineering and Research Labs
§Field Installations with SN and IP 9 SN connectors
§QSFP DD Optical Transceiver Production and Maintenance
DIMENSIONS (IN BOX)
Length: 26cm (10.2”) Height: 5.2cm (2.0”)
Width: 3.0cm (1.2”) Weight: 57g (2oz)
Check Out the SENKO NEWS CHANNEL on How To Use Video Demonstration.
Duel cleaning tips rotate and wipe in tandem
Ergonomic handle
Cleans 500 SN Duplex (1000 end faces total)
Keyed features for precise alignment of the cleaning tips
SN®is registered trademark of Senko Advanced Components.
ONE-CLICK®is registered trademark of Fujikura Ltd.
Protected by US Patents 7,212,719 and 8,087,118
View of the cleaning tips
SCK-DC-SN

Cleaning Unmated SN Assemblies
1Open the lid on the end cap and insert the SN duplex connector.
2Push the cleaner forward 1X until you hear the audible CLICK sound.
TYPICAL PERFORMANCE
1
2
Cleaning In Adapter SN and Transceiver Ports
It is important to always clean both ends of the connector pair
before mating to prevent accidental avoid cross contaminating both end faces.
1Remove end cap and insert yellow barrel of the cleaner into the
adapter port or the transceiver port.
1
2Push the cleaner forward 1X until you hear the audible CLICK sound.
2
SN End Face 1
1. End face is touched to a finger tip
and plugged into adapter.
2. Cleaner is engaged one time and
checked to the IEC 61300-3-35 spec.
SN End Face 1 Cleaned 1X SN End Face 2 Cleaned 1X
SN End Face 2
