LDetek LDP1000 User manual

LDP1000
Gas Purifier for noble gases and nitrogen
USER’S MANUAL
V1.0
Printed in Canada
Copyright 2010

LDP1000 User’s manual
1
Table of Content
1. Forwarning...................................................................................................................... 2
2. Warranty, maintenance and service policies................................................................... 3
3. Specifications.................................................................................................................. 6
4. Cautions and installation information............................................................................. 6
4.1. Gas line connection.................................................................................................. 6
4.2. Installation steps....................................................................................................... 6
5. Lifetime and LED indication.......................................................................................... 7
6. Drawings......................................................................................................................... 8
7. Maintenance.................................................................................................................... 9

LDP1000 User’s manual
2
1. Forwarning
This manual is required to be read by any user wanted to use the LDP1000 Gas Purifier.
It contains important information to successfully operate the instrument. LDetek makes
assumption that all operators have taken the time to read this information prior to install,
operate and troubleshoot the purifier.
If any error is suspected by the reader, please contact LDetek. LDetek reserves the right
to make changes to subsequent editions of this document without prior notice to holders
of this edition.
We want to thank you to choose LDetek as your gas purifier supplier.

LDP1000 User’s manual
3
2. Warranty, maintenance and service policies
Goods and part(s) (excluding getter) manufactured by Seller are warranted to be free
from defects in workmanship and material under normal use and service for a period of
twelve (12) months after installation and start up and not exceeding 18 months from
shipment date. Goods, part(s) proven by Seller to be defective in workmanship and/or
material shall be replaced or repaired, free of charge, F.O.B. Seller's factory provided that
the goods, part(s) are returned to Seller's designated factory, transportation charges
prepaid, within the twelve (12) months after installation and start up and not exceeding
18 months from shipment date.
The Seller shall not be liable to the Buyer, or to any other person, for the loss or damage
directly or indirectly, arising from the use of the equipment of goods, from breach of any
warranty, or from any other cause. All other warranties, expressed or implied are
hereby excluded.
IN CONSIDERATION OF THE HEREIN STATED PURCHASE PRICE OF THE
GOODS, SELLER GRANTS ONLY THE ABOVE STATED EXPRESS WARRANTY.
NO OTHER WARRANTIES ARE GRANTED INCLUDING, BUT NOT LIMITED TO,
EXPRESS AND IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
THIS WARRANTY IS THE ONLY WARRANTY MADE BY LDETEK INC. WITH
RESPECT TO THE GOODS DELIVERED HEREUNDER, AND NO EMPLOYEE,
REPRESENTATIVE OR OTHER PERSON OR ENTITY IS AUTHORIZED TO
ASSUME FOR LDETEK INC ANY OBLIGATION OR LIABILITY BEYOND OR AT
VARIANCE WITH THIS WARRANTY IN CONNECTION WITH THE SALE OF
LDETEK PRODUCTS.
Limitations of Remedy.SELLER SHALL NOT BE LIABLE FOR DAMAGES
CAUSED BY DELAY IN PERFORMANCE. THE SOLE AND EXCLUSIVE
REMEDY FOR BREACH OF WARRANTY SHALL BE LIMITED TO REPAIR OR

LDP1000 User’s manual
4
REPLACEMENT UNDER THE STANDARD WARRANTY CLAUSE. IN NO CASE,
REGARDLESS OF THE FORM OF THE CAUSE OF ACTION, SHALL SELLER'S
LIABILITY EXCEED THE PRICE TO BUYER OF THE SPECIFIC GOODS
MANUFACTURED BY SELLER GIVING RISE TO THE CAUSE OF ACTION.
BUYER AGREES THAT IN NO EVENT SHALL SELLER'S LIABILITY EXTEND
TO INCLUDE INCIDENTAL OR CONSEQUENTIAL DAMAGES.
CONSEQUENTIAL DAMAGES SHALL INCLUDE BUT ARE NOT LIMITED TO,
LOSS OF ANTICIPATED PROFITS, LOSS OF USE, LOSS OF REVENUE, COST OF
CAPITAL AND DAMAGE OR LOSS OF OTHER PROPERTY OR EQUIPMENT. IN
NO EVENT SHALL SELLER BE LIABLE FOR PROPERTY DAMAGE AND/OR
THIRD PARTY CLAIMS COVERED BY UMBRELLA INSURANCE AND/OR
INDEMNITY COVERAGE PROVIDED TO BUYER, ITS ASSIGNS, AND EACH
SUCCESSOR INTEREST TO THE GOODS PROVIDED HERE UNDER.
Major force. Seller is not liable for failure to perform due to labor strikes or acts beyond
Seller’s direct control.
SERVICE POLICY
1. If a product should fail during the warranty period, it will be repaired free of
charge. For out of warranty repairs, the customer will be invoiced for repair
charges at current standard labor and materials rates.
2. Customers who return products for repairs, within the warranty period, and the
product is found to be free of defect, may be liable for the minimum current repair
charge.
3. For parts replacement, the original part must be returned with serial and model
numbers of the analyzer. NO PART WILL BE SHIPPED IF THE ORIGINAL IS NOT
SENT BACK TO LDETEK INC.

LDP1000 User’s manual
5
RETURNING A PRODUCT FOR REPAIR
Upon determining that repair services are required, the customer must :
1. Obtain an RMA (Return Material Authorization) number.
2. Supply a purchase order number or other acceptable information.
3. Include a list of problems encountered along with your name, address and
telephone, and RMA number.
4. Ship the parts in its original crating or equivalent. Failure to properly
package the parts will automatically void the warranty.
5. Every gas connection must be capped with appropriate metal caps. Failure to
do so will automatically void the warranty.
6. Write RMA number on the outside of the box.
7. Use a LDetek approved carrier. Also, the delivery must be sent to LDetek
facilities. LDetek will not accept airport to airport delivery.
8. LDetek will not cover transport fees.
Other conditions and limitations may apply to international shipments.
PROPRIETARY RIGHTS
Buyer agrees that any LDetek’s software, firmware and hardware products ordered or
included in the goods ordered are proprietary of LDetek. No change, modification,
defacement, alteration, reverse engineering, software decompilations nor reproduction of
such software or hardware products, or disclosures of programming content to other
parties is authorized without the express written consent of LDetek.
To maintain LDetek trade secret and other proprietary protection of such software and
firmware, such items are not sold hereunder but are licensed to buyer.
LDetek Inc. reserves the right to interrupt all business relationship and warranty or
service if there is any tentative from any customers to reverse engineering any of LDetek
products or to tamper with any sealed module.
Trademarks and product identification as LDetek are the property of LDetek Inc. and
shall be used only in connection with LDetek's products. No third party could remove or
deface any model number or marks.

LDP1000 User’s manual
6
3. Specifications
Getter type: Alloy of Zr/V/Fe
2 beds (350 and 200 Celsius)
Gases purified: Ar/He/Ne/Xe/Kr. Nitrogen version available.
Impurities removed: H2O,O2,CO,CO2,N2,THC, H2, CH4(Heated)
H2O,O2,CO,CO2,H2(room temperature)
Impurity level : <1 ppb for each impurity
Flow: 200 cc/min (nominal)
Gas connections: 1/8’’ compression or
1/8’’ VCR
Recommended operating
pressure: 100 PSIG (689 kPAG)
Recommended minimum
operating pressure: 10 PSIG (28 kPAG) optional 1 PSIG (7 kPAG)
Supply: 115 VAC, 50 – 60 Hz or 220 VAC, 50 – 60 Hz
Power consumption: Maximum 200 watts
Dimensions: 12” (304.8) high, 4.12” (104 mm) deep, 4.25”’ (108 mm) wide
Weight: 5 lbs (2.26 kg)
4. Cautions and installation information
4.1. Gas line connection
Be sure to connect the upcoming gas to the inlet on the top of the purifier. The outlet is
on the bottom. Connecting the gas line incorrectly will decrease the capability of the
purifier to generate pure gas.
1/8” Truelok or 1/8” Face Seal fittings are used to interface your gas line.
Stainless steel tubing is recommended to use with this purifier.
4.2. Installation steps
1. After removing the purifier from the shipping container and protective wrapping,
ensure that both end caps are tight.
2. Make sure that fittings in the gas line match those supplied with the purifier.

LDP1000 User’s manual
7
3. Start the flow of purge gas (minimum purity of 5N) through the gas line at
approximately 100sccm for a minimum of 20 minutes.
4. While holding the purifier in the gas stream, quickly remove inlet cap, and make
connection with fitting on gas line. Tighten as recommended by fitting manufacturer.
Leak check fitting.
5. Remove outlet end cap and quickly make connection to gas line of 1/8" O.D. and
having 5 feet long. Let it vent to atmosphere for 30 minutes.
6. Connect the purifier on the electrical supply. WARNING: make sure you have the
right operating voltage.
7. With the power on the purifier, let the gas vent to the atmosphere for about 3 hours.
5. Lifetime and LED indication
The LDP1000 getter has a lifetime of 2 years. However, the red light will indicate when
the getter is not purifying the gas anymore. The getter can be replaced instead of the
whole purifier. Some manipulation is required to change it. It is explained later in this
manual.
Here is the meaning of each LED on the side of the purifier:
LED Color Meaning
Red The getter is not good anymore. It needs to
be replaced.
Green Power is ON
Yellow Temperature deviation. The getter is not at
the good temperature. The purified gas can
be as not pure as desired. Please contact
factory.

LDP1000 User’s manual
8
6. Drawings
Wiring Diagram
Cable #4
Cable#5
Cable #2
Cable #3
RS-232
Connector
Cable #1
Thermocouple #1
Thermocouple #2
Yellow Led
Green Led
Red Led
Heater #1
Heater #2
Pin A
Corcom Pin C
Module Pin B
Pin D
Internal PCB

LDP1000 User’s manual
9
7. Maintenance
The LDP1000 does not require any maintenance. However, the LDP1000 design gives
the possibility to replace the getter when the lifetime is over.
Getter replacement procedure :
Step 1 : Turn off the power on the LDP1000 unit.
Step 2 : Remove the inlet and outlet tubing connections.
Step 3 :

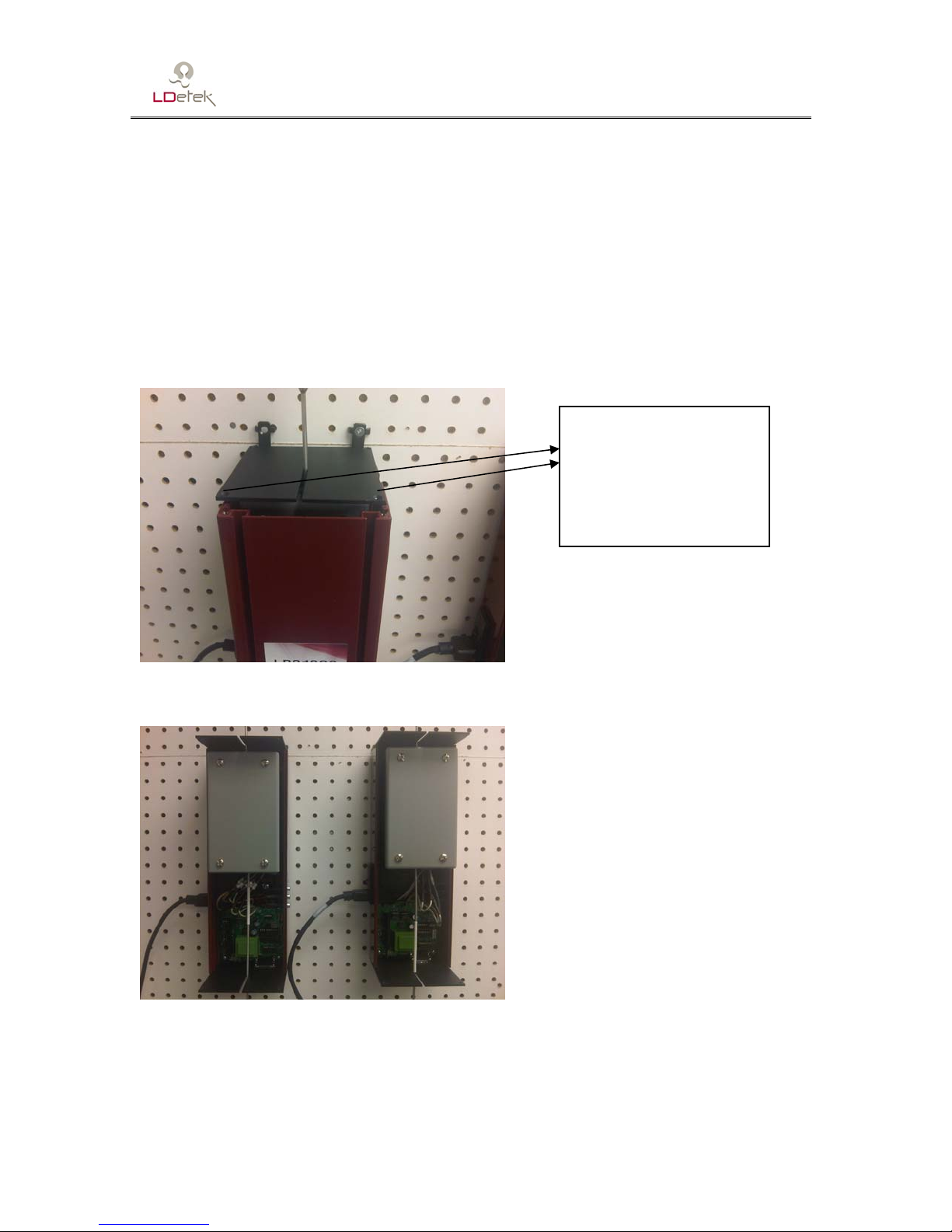

Step 4 : Remove the front part of the LDP1000 to have access to the inside.
Using a screw driver,
remove the front screws
on the bottom plate and
the top plate, in order to
remove the front part of
the LDP1000.

LDP1000 User’s manual
10
Step 5 :
Step 6 :
Step 7 : Install the new getter by re installing the screws of step 6.
Step 8 :Put back the wires in the terminal bloc J1 and J2 that you have removed in step 5.
Use wiring diagram as reference for the cable #.
Step 9 : Re install front part of the LDP1000 and put back the screws that have been
removed in step 1.
Step 10 : You can put back the gas lines in and out and power up the unit for normal
operation running.
NOTE : MAKE SURE TO WELL PURGED THE LINE BEFORE TO CONNECT TO
THE INLET (10 MINUTES PURGE). DO NOT EXPOSE THE DEVICE TO AIR;
MAKE SURE TO QUICKLY CONNECT INLET AND OUTLET TO AVOID AIR
CONTAMINATION OF THE UNIT. IF THIS NOTE ISN’T PREPERLY RESPECTED,
SOME DAMAGE CAN OCCUR TO THE LDP1000 DEVICE.
FOR THE HIGH PURITY VERSION, A BRAND NEW GASKET MUST BE
INSTALLED ON THE INLET AND OUTLET FITTINGS.
Using a screw driver,
remove the wires in J1
and J2 terminal blocks.
Using a srew driver, remove
the getter isolated box by
removing the 4 screws on
the back side plate.
