SENKO SCK-SS-M-200A User manual

Best Practice for Cleaning MIL ST and MIL PRF 29504/14 Terminus
For MIL PRF 28876 to MIL ST optical assemblies
Part Number Description
SCK-SS-M-200A
SCK-SS-M-250S
AFT-G-FC
SMART CLEANER MINI 2.0mm Endface Cleaner
SMART CLEANER MINI 2.5mm Endface Cleaner
SMART CHECKER VFL

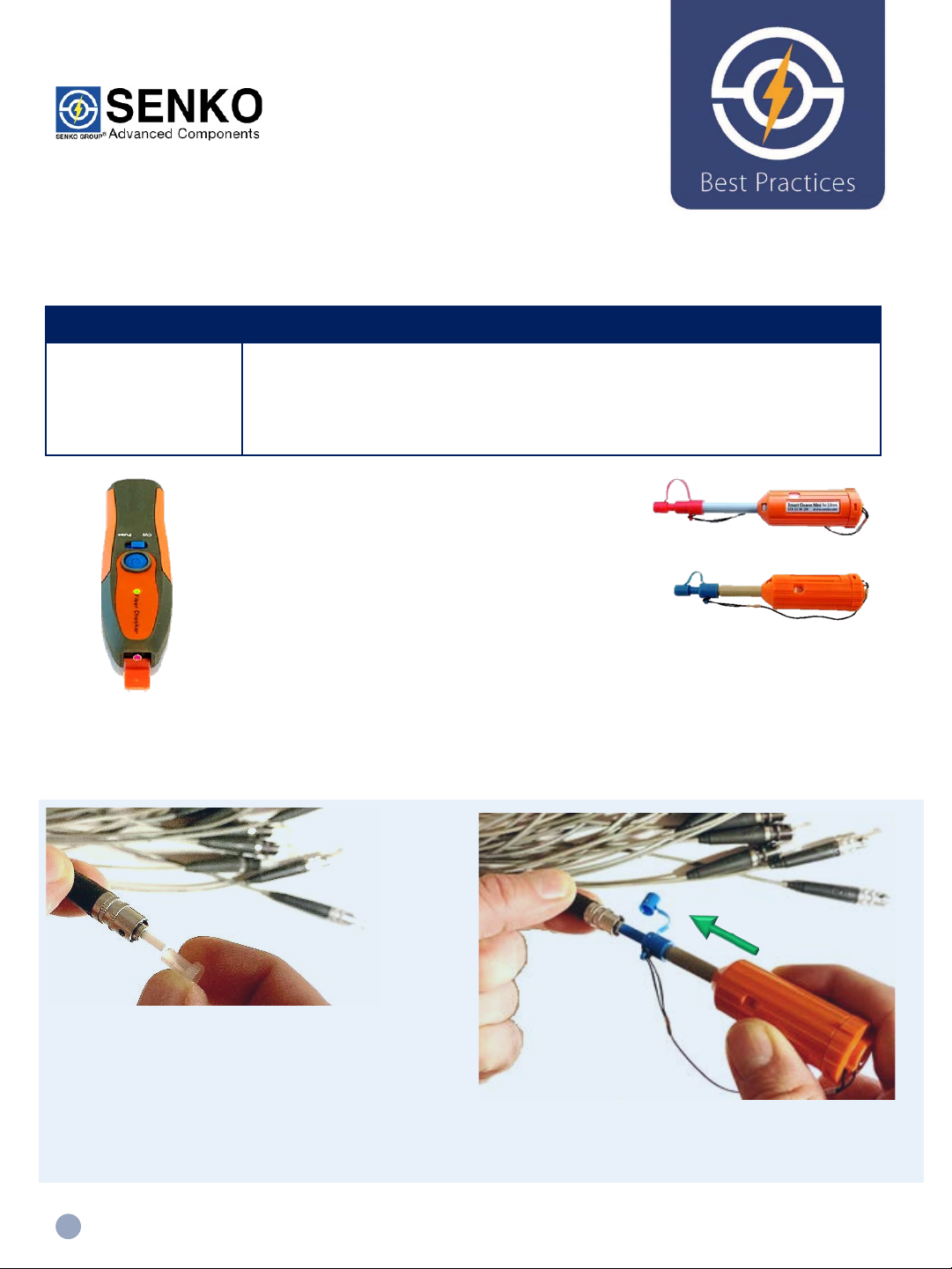

1 Best Practice for Cleaning MIL ST and MIL PRF 29504/14 Terminus
SENKO SMART CLEANER MINI 2.0mm Endface Cleaner
•Cleans MIL PRF 29504/14 (pin) and /15 (socket)
•Cleaning SMPTE 304M plug & jack
SENKO SMART CLEANER MINI 2.5mm Endface Cleaner
•Cleans SC, ST, FC, E2000, OptiTap-HFOC
•Cleaning MIL DTL 83526 with MIL PRF 29504/16 terminus
SENKO SMART CHECKER VFL
•2.5mm port with pulse and continuous wave
•Use for checking polarity and signal continuity
3 Step Process For Cleaning Unmated MIL ST Connectors
Using SMART CLEANER MINI 2.5mm
❶Remove the protective endcap just before
you are ready to mate the connector
❷Open the cover on the blue endcap and
insert the ST ferrule
❶
❷
❸
❸Push the cleaner 1X until it bottoms out for cleaning the endface

2 Best Practice for Cleaning MIL ST and MIL PRF 29504/14 Terminus
3 Step Process For Cleaning MIL ST Connectors In Adapter
Using SMART CLEANER MINI 2.5mm
❶
❶Place the blue endcap in hole in the handle
❷
❸
❷Insert the cleaning tip into the port of the MIL ST adapter
❸Push the cleaner 1X until it bottoms out for cleaning the endface
3 Step Process For Cleaning MIL PRF 29504/14 Terminus
Using SMART CLEANER MINI 2.0mm
❶
❷
❸
YES 
NO ❶Make an orientation
mark on the outer
connector housing.
There are 31 termini in the connector. The orientation mark will help you keep track
of which termini have been cleaned. Do not mark the collar because it rotates.
❷Open the cover on the red endcap and
insert the cleaner onto the first ferrule.
Cleaning the termini in rows will help you
keep track of which termini have been
cleaned.
❸Push the cleaner 1X until it bottoms
out for cleaning the endface

2 Best Practice for Cleaning MIL ST and MIL PRF 29504/14 Terminus
Process For Checking Signal Continuity and Managing Polarity
Using SMART CHECKER VFL
❶Open the cover of the SMART CHECKER VFL
❷Insert MIL ST into the SMART CHECKER VFL and push the blue button
Note: Try to avoid staring directly at the red light.
❶❷
1
2
5 4 367
1
1
1
0 9
1
2
1
3 8
1
6
1
5
1
4
1
7
1
8
2
2
2
1
2
0
2
3
2
4
1
9
2
7
2
6
2
5
2
8
2
9
3
0
3
1
FIBER POSITION
ROW 1
ROW 2
ROW 3
ROW 4
ROW 5
ROW 6
ROW 7
MAP OF MIL PRF 29504/14 Termini in the MIL PRF 28876
