Sennheiser AVX User guide

System Manual
AVX

2 | evolution wireless Digital 1

AVX 1
Contents
Important safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
AVX – perfect sound you can rely on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Product overviews . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
EKP AVX receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

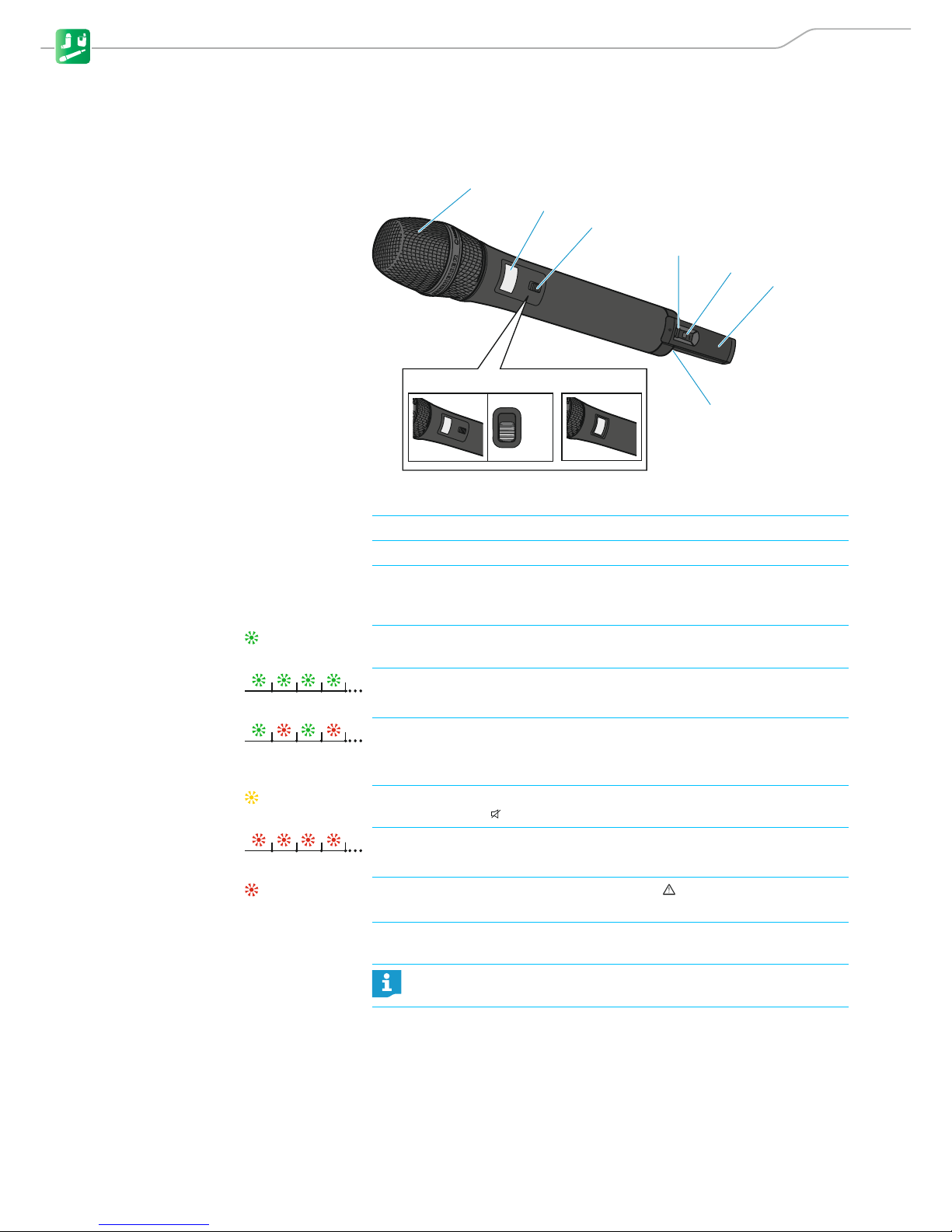

SKM AVX, SKM AVX-S and SK AVX transmitters . . . . . . . . . . . . . . . . . . . . . . . . . 9
USB power supply/charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
ME 2 clip-on microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
MKE 2 clip-on microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Putting the products into operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Putting the receiver into operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Putting the bodypack transmitter into operation . . . . . . . . . . . . . . . . . . . . . . 15
Putting the clip-on microphones into operation . . . . . . . . . . . . . . . . . . . . . . . 16
Putting the handheld transmitter into operation . . . . . . . . . . . . . . . . . . . . . . 20
Recharging the accupack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Using the products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Switching the devices on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Checking the charge status of the accupacks . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Checking the RF signal level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Muting the bodypack transmitter or
the SKM AVX-S handheld transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Pairing a receiver with a transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Identifying paired devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Displaying or adjusting the receiver‘s audio output level . . . . . . . . . . . . . . . 27
Cleaning and maintaining the products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
If a problem occurs ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Manufacturer Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

2 AVX
Important safety information
Important safety information
1. Read these safety instructions and the instruction manuals of the prod-
ucts.
2. Keep these safety instructions and the instruction manuals of the prod-
ucts. Always include these safety instructions and the instruction manuals
when passing the products on to third parties.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use the products near water.
6. Do not operate near any heat sources such as radiators, stoves, or other
apparatus (including amplifiers) that produce heat.
7. Only operate the products from the types of power source specified in the
chapter “Specifications” on page 30 and indicated on the power supply
unit.
8. Unplug the power supply units from the wall socket,
- to completely disconnect the products from the power supply system,
- during lightning storms or
- when not using the products for long periods of time.
9. Always ensure that the power supply units are
- in a safe operating condition and easily accessible,
- properly plugged into the wall socket,
- only operated within the permissible temperature range,
- not covered or exposed to direct sunlight for longer periods of time in
order to prevent heat accumulation.
10. Protect the power cords from being walked on or pinched, particularly at
the points where they exit from wall sockets, power supply units and prod-
ucts.
11. Only use attachments, accessories or spare parts specified by Sennheiser
12. Refer all servicing to qualified service personnel. Servicing is required
when the products have been damaged in any way, liquid has been spilled
or objects have fallen into the products, when the products has been
exposed to rain or moisture, do not operate normally, or have been
dropped.
13. WARNING: To reduce the risk of fire or electric shock, do not expose the
products to rain or moisture.
14. Do not expose the products to dripping or splashing. Ensure that no
objects filled with liquids, such as vases, are placed on the products.

AVX 3
Important safety information

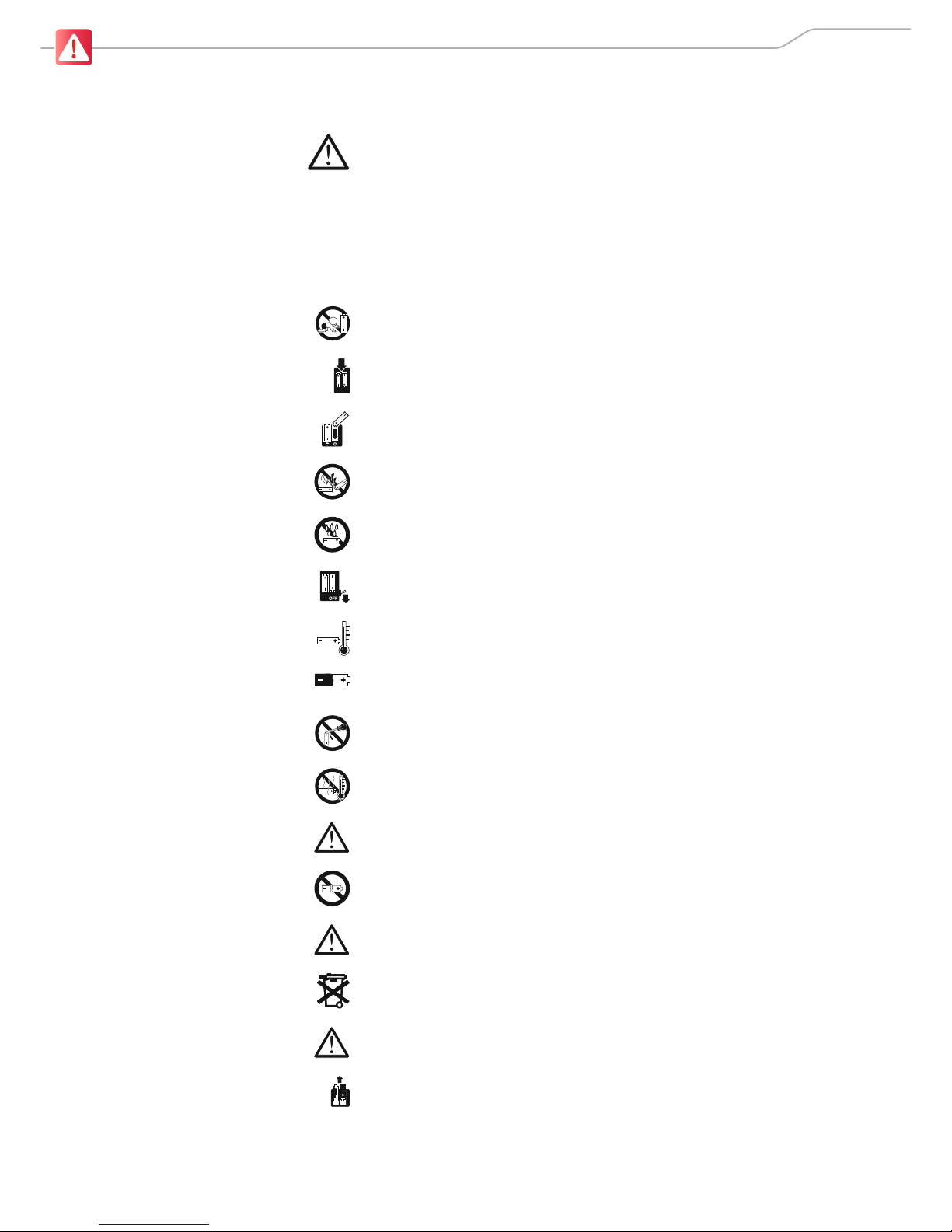

Safety instructions for lithium-ion rechargeable batteries
If abused or misused, the rechargeable batteries may leak. In extreme cases,
they may even present a risk of
•explosion,
• fire development,
• heat generation,
•smokeorgasdevelopment.
Sennheiser does not accept any liability for damage arising from abuse or mis-
use.
왘Keep away from children.
왘Only charge rechargeable batteries with chargers recommended by
Sennheiser.
왘Observe correct polarity.
왘Pack/store charged rechargeable batteries so that the terminals cannot
contact each other – danger of shorting out/fire hazard.
왘Do not expose to moisture.
왘Switch rechargeable battery-powered products off after use.
왘Only charge rechargeable batteries at ambient temperatures between
10 °C/50 °F and 40 °C/104 °F.
왘When not using rechargeable batteries for extended periods of time,
charge them regularly (about every three months).
왘Do not mutilate or dismantle.
왘Do not heat above 60 °C/140 °F, e.g. do not expose to sunlight or throw
into a fire.
왘Immediately remove rechargeable batteries from obviously defective prod-
ucts.
왘Do not continue to use defective rechargeable batteries.
왘Only use rechargeable batteries specified by Sennheiser.
왘Dispose of rechargeable batteries at special collection points or return them
to your specialist dealer.
왘Store the products in a cool and dry place at room temperature (approx.
20 °C/68 °F).
왘Remove the rechargeable batteries if the products will not be used for
extended periods of time.

4 AVX
Important safety information
Intended use
The microphones, the transmitters, the receiver and the accessories of the
Sennheiser AVX system can be combined with each other and have been
designed for use in video recordings in dry environments.
In order that speech, music and vocals are transmitted in the best possible
quality, the receiver has to be connected, as described in this instruction man-
ual, to a video camera or a DSLR camera with video recording function.
The products can be used for commercial purposes.
Intended use includes:
• having read and understood these safety instructions and the instruction
manuals of the products
• using the products within the operating conditions and limitations
described in these safety instructions and in the instruction manuals of the
products.
It is considered improper use when the products are used for any application
not named in the instruction manuals of the products.
Sennheiser does not accept liability for damage arising from abuse or misuse
of the products and their accessories.

AVX 5
AVX – perfect sound you can rely on
AVX – perfect sound you can rely on
AVX is the wireless digital microphone system for your film projects and is
ideal for use with both video and DSLR cameras.
AVX features self-configuring digital transmission which eliminates time-con-
suming frequency setup. The ultra compact receiver can be rotated freely
around its XLR connector to avoid obstructing other devices mounted on your
camera. It switches on and off automatically with your camera, thereby saving
battery power. AVX matches perfectly to your camera‘s input sensitivity with-
out having to adjust the audio level on the microphone. From professional
wedding video to documentaries, from street interviews to corporate videos,
AVX just works allowing you to concentrate on creativity.
• Very fast setup
• Receiver plugs directly into the XLR audio input of the camera
• Ultra compact receiver
• Receiver switches on and off with the camera‘s P48 phantom power
• Optimized dynamic range
• Automatic frequency management
• AES 256 encryption
• License-free 1.9 GHz frequency range
• DSLR accessories included
•Metalhousing
• Made in Germany

6 AVX
Package contents
Package contents
Package contents Lavalier Set Lavalier Set Pro Handheld Set Combo Set1
1only available in the USA
AVX-ME 2 AVX-MKE 2 AVX-835 AVX-MMD 42-1
EKP AVX receiver 1 1 1 1
SK AVX bodypack transmitter 1 1 – 1
ME 2 clip-on microphone 1 – – 1
MKE 2 clip-on microphone – 1 – –
SKM AVX-S handheld transmitter
with mute switch
incl. MMD 835-1 microphone head
(cardioid)
– – 1 –
SKM AVX handheld transmitter
without mute switch
incl. MMD 42-1 microphone head
(omni-directional)
– – – 1
BA 10 accupack – – 1 1
BA 20 accupack 1 1 1 1
BA 30 accupack 1 1 – 1
EKP AVX adapter 1 1 1 1
NT 5-10U power supply unit 1 1 1 1
CI 400 adapter cable 1 1 1 1
Microphone stand clamp for
handheld transmitter – – 1 1
Bag 1 1 1 1

AVX 7
Product overviews
Product overviews
The transmitters and the receiver are available in different country variants:
• Country variant -3 for Europe, the Mid East and Australia
• Country variant -4 for North, Central and South America (except Brazil)
•Countryvariant -5 for Japan
• Country variant -6 for Taiwan
•Countryvariant-7 for Brazil
The country variant can be found on the packaging and on the type plate 1
as shown on the left.
왘Only use the country variant permitted for use at the venue.
왘Do not combine devices of different country variants.

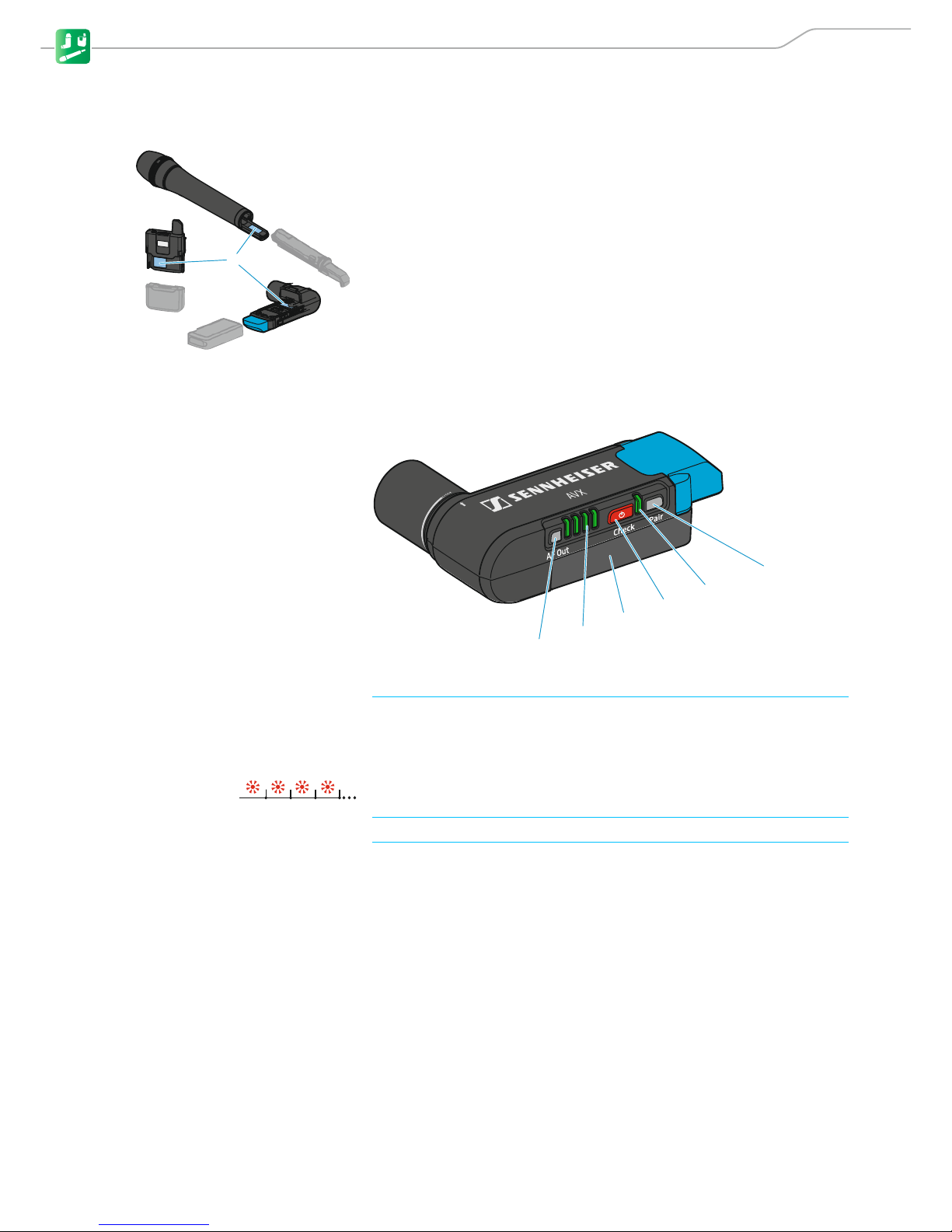

EKP AVX receiver
1
12
4
5
6
3
1AF Out button for displaying and adjusting the audio output level (see page 27)
24-step LED display When the On/Off/Check button has been pressed, the LED display lights up
green to indicate the remaining battery life of the receiver‘s BA 20 accupack
(see page 24); when the AF Out button has been pressed, the LED display
lights up red to indicate the audio output level (see page 27).
When the right LED flashes red, the capacity of the receiver‘s BA 20 accupack
is only sufficient for a maximum of 15 minutes of operation.
3BA 20 accupack For details, see page 8.
4On/Off/Check button Short-press to switch the receiver on (see page 23) or to display the charge
status of the accupack (see page 24);
Long-press to switch the receiver off (see page 23).

8 AVX
Product overviews

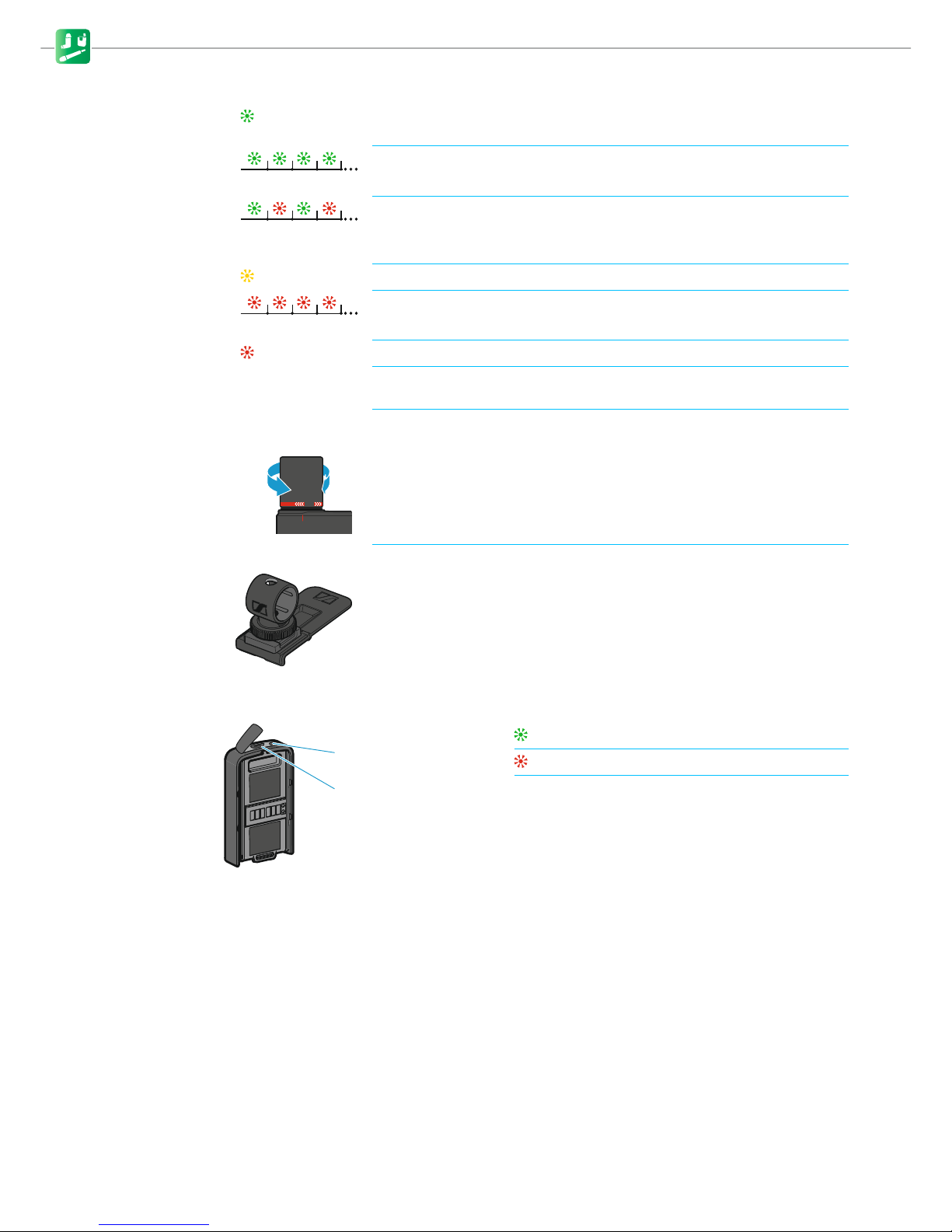

BA 20 accupack for the EKP AVX receiver
5Status LED lights up green: A radio link to the transmitter is established. The accupack of the received
transmitter is sufficiently charged.
flashes green:
The Pair button has been short-pressed. The paired transmitter is being iden-
tified.
flashes alternately
green and red:
The Pair button has been long-pressed. The receiver establishes a radio link to
a transmitter whose Pair button has also been long-pressed.
lights up yellow: The received transmitter has been muted with its MUTE switch.
flashes red:
The accupack capacity of the received transmitter is only sufficient for approx.
15 minutes of operation.
lights up red: No radio link to a transmitter.
6Pair button Short-press to identify the paired transmitter (see page 26).
Long-press to change the pairing (see page 26).
7Rotatable XLR-3 connector for connection to the video camera or the DSLR camera
The receiver can be rotated by a maximum angle of 320°.
8EKP AVX adapter The EKP AVX adapter consists of a hot shoe adapter and a belt clip.
The belt clip allows the attachment of the receiver to a belt or a pocket (see
page 15).
The hot shoe adapter allows the attachment of the receiver to the hot shoe of
a DSLR camera. The receiver can then be connected to the DSLR camera using
the CI 400 adapter cable (see page 14).
max. 320°
1
2
1Charge status LED lights up green: The accupack is fully charged.
lights up red: The accupack is being charged.
2Micro USB socket for charging the accupack (see page 21)

AVX 9
Product overviews
SKM AVX, SKM AVX-S and SK AVX transmitters
SKM AVX and SKM AVX-S handheld transmitters
AVX SKM-S AVX SKM
Mute
Mic
1
2
3
4
56
7
1Unscrewable microphone head For details, see page 21.
2Display panel For details, see page 11.
3MUTE switch for muting the SKM AVX-S handheld transmitter (for details, see page 25)
4ON/OFF
button
with status LED Slide briefly to switch the handheld transmitter on.
Slide and hold to switch the handheld transmitter off (for details, see
page24).
lights up green: A radio link to the receiver is established. The accupack of the handheld trans-
mitter is sufficiently charged.
flashes green:
The Pair button has been short-pressed. Paired devices are being identified.
flashes alternately
green and red:
The Pair button has been long-pressed. The handheld transmitter establishes
a radio link to a receiver whose Pair button has also been long-pressed.
lights up yellow: The SKM AVX-S handheld transmitter has been muted with the MUTE switch.
In addition, Muted is displayed on the display panel.
flashes red:
The accupack capacity of the received transmitter is only sufficient for approx.
15 minutes of operation.
lights up red: No radio link to a receiver. In addition, No Link is displayed on the display
panel.
5Pair button Short-press to identify the paired receiver (see page 26).
Long-press to change the pairing (see page 26).
6Antenna Do not cover the antenna during transmission to avoid a reduction in
the transmission range.
7BA 10 accupack For details, see page 10.

10 AVX
Product overviews

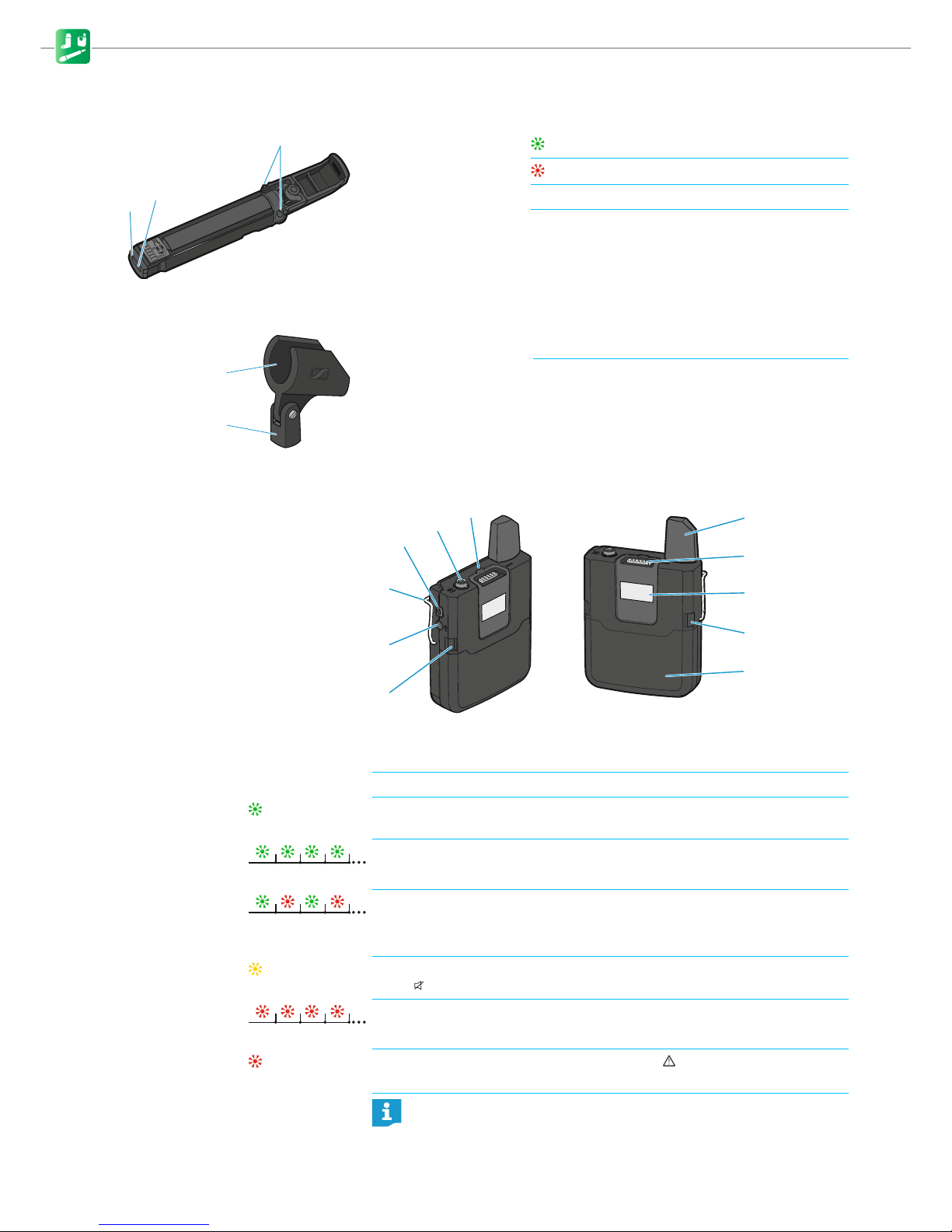

BA 10 accupack for the SKM AVX or SKM AVX-S handheld transmitter
Microphone stand clamp for the handheld transmitters
SK AVX bodypack transmitter
1
3
2
1Charge status LED lights up green: The accupack is fully charged.
lights up red: The accupack is being charged.
2Micro USB socket for charging the accupack (see page 21)
3Catches Press simultaneously to release the accupack from
the handheld transmitter.
1
2
1Microphone clamp for attachment of the handheld transmitter
2Thread for screwing the microphone clamp onto a stand
1
2
3
5
7
7
4
6
8
0
9
1On/Off button Short-press to switch the bodypack transmitter on.
Long-press to switch the bodypack transmitter off (for details, see page 24).
2Mic/Line 3.5 mm jack socket for connecting the clip-on microphone
3Status LED lights up green: A radio link to the receiver is established. The accupack of the bodypack trans-
mitter is sufficiently charged.
flashes green:
The Pair button has been short-pressed. Paired devices are being identified
(for details, see page 26).
flashes alternately
green and red:
The Pair button has been long-pressed. The bodypack transmitter establishes
a radio link to a receiver whose Pair button has also been long-pressed (for
details, see page 26).
lights up yellow: The bodypack transmitter has been muted with its MUTE switch. In addition,
Muted is displayed on the display panel (for details, see page 25).
flashes red:
The accupack capacity of the bodypack transmitter is only sufficient for
approx. 15 minutes of operation.
lights up red: No radio link to a receiver. In addition, No Link is displayed on the display
panel.
4Antenna Do not cover the antenna during transmission to avoid a reduction in
the transmission range.

AVX 11
Product overviews
BA 30 accupack for the SK AVX bodypack transmitter
Displays of the transmitters
5MUTE switch for muting the bodypack transmitter (for details, see page 25)
6Display panel For details, see page 11.
7Catches Press simultaneously to release the accupack from the bodypack transmitter.
8BA 30 accupack For details, see page 11.
9Pair button Short-press to identify the paired receiver (see page 26).
Long-press to change the pairing (see page 26).
0Belt clip For details, see page 15.
1
2
1USB cover flap Covers the micro USB socket for charging the accupack
(see page 21).
2Charge status LED lights up green: The accupack is fully charged.
lights up red: The accupack is being charged.
AVX 0000
10 h
1
23
1Name of the radio link The name of the radio link always consists of “AVX” and the last four digits of
the serial number of the paired receiver. The receiver‘s serial number can be
found on the type plate under the accupack.
You cannot change this name.
2Expected battery life of the accupack For details, see page 24.
36-segment RF signal level display Displays the field strength of the transmitted signal at the receiver.

12 AVX
Product overviews
USB power supply/charger
The NT 5-10U power supply/charger is suitable for recharging the BA 10 accu-
pack (handheld transmitter), the BA 20 accupack (receiver) or the BA 30
accupack (bodypack transmitter).
ME 2 clip-on microphone
MKE 2 clip-on microphone
You can recharge the BA 10, BA 20 and BA 30 accupacks as follows:
• using the Sennheiser NT 5-10U USB power supply/charger
•usinganyUSBpower supply/charger
• via the USB port of a computer
• via a USB hub with its own power supply
• via a mobile USB power supply (power bank)
1
3
2
1NT 5-10U USB power supply/charger (country-specific) for
charging the accupacks
2USB connector (type A) for connection to the USB power supply/charger
3Micro USB connector for connection to an accupack
1
2
3
4
5
1Microphone clip for attaching the clip-on microphone to clothing
2Microphone capsule with omni-directional pick-up pattern
3Anti-kink protection to prevent cable damage
4Connection cable (1.6 m) with lockable 3.5 mm jack plug for connection to
the bodypack transmitter
5Foam windshield for attenuating wind noise by 10 dB
1
2
3
4
5
6
7
1Microphone capsule with omni-directional pick-up pattern
2Anti-kink protection to prevent cable damage
3Microphone clip for attaching the clip-on microphone to clothing
4Connection cable (1.6 m) with lockable 3.5 mm jack plug for connection to
the bodypack transmitter
5Frequency response caps for sound optimization
6Metal windshield for attenuating wind noise by 20 dB
7Fur windshield for attenuating wind noise by additional 10 dB;
with retaining loop for secure attachment to the
clip-on microphone

AVX 13
Putting the products into operation
Putting the products into operation
Avoiding sources of interference Featuring automatic interference management, the devices are capable of
avoiding interfering signals at any time by automatically moving together to
unused frequencies in the 1.9 GHz frequency band, without any audio inter-
ruption. However, the number of usable radio links is reduced if there are
active sources of interference in the vicinity of the devices.
왘Maintain a distance to sources of interference in the 1.9 GHz frequency
band.
Possible sources of interference are e.g. base stations of DECT telephones.
WiFi, Bluetooth, Sennheiser ew D1, infrared remote controls and headphones
as well as UHF radio links such as Sennheiser evolution wireless G3 do not
represent sources of interference. You do not have to maintain a distance to
such equipment.
Direct line of sight Walls and other obstacles will reduce the range. Therefore, there should
always be a direct line of sight between the transmitting antenna and the
receiving antenna of a radio link.

14 AVX
Putting the products into operation
Putting the receiver into operation
The receiver can be rotated by a maximum angle of 320° around its XLR-3
connector.
Mounting the receiver to a video camera
To mount the receiver to a video camera, proceed as follows:
왘Plug the receiver‘s rotatable XLR connector into the camera‘s XLR-3 audio
input.
If the video camera has an XLR-3 audio input with P48 phantom power, the
receiver is automatically switched on and off together with the video cam-
era – provided that the phantom power is automatically switched on and
off together with the camera.
왘Rotate the receiver into position, making sure that it does not disturb dur-
ing filming and that there is – preferably – a direct line of sight to the trans-
mitter.
Mounting the receiver to a digital single-lens reflex camera
To mount the receiver to a DSLR camera, use the supplied EKP AVX adapter.
The adapter consists of a hot shoe adapter and a belt clip.
왘Loosen the locking screw.
왘Remove the hot shoe adapter from the belt clip.
왘Slide the hot shoe adapter onto the hot shoe of the DSLR camera as shown
on the left.
왘Fasten the hot shoe adapter using the locking screw .
max. 320°

AVX 15
Putting the products into operation
왘Plug the receiver‘s rotatable XLR connector into the hot shoe adapter.
왘Connect the XLR-3 socket of the supplied CI 400 adapter cable to the XLR-
3 connector of the receiver.
왘Connect the 3.5 mm jack plug of the CI 400 adapter cable to the 3.5 mm
audio output of the DSLR camera.
Attaching the receiver using the belt clip
You can use the belt clip to attach the receiver to e.g. a belt or to the camera
bag.
Proceed as follows:
왘Slide the hot shoe adapter onto the belt clip.
왘Fasten the hot shoe adapter to the belt clip using the locking screw.
왘Plug the receiver‘s rotatable XLR-3 connector into the hot shoe adapter as
shown on the left.
왘Use the belt clip to attach the receiver to a camera bag or a belt.
Putting the bodypack transmitter into operation
Removing/inserting the accupack
You can power the bodypack transmitter with the supplied BA 30 accupack.
The accupack must be charged before first time use. The accupack can remain
in the bodypack transmitter for charging.
To remove the accupack from the bodypack transmitter:
왘Simultaneously press the two catches and pull the accupack away from the
bodypack transmitter.
왘Remove the protective foil.
Before using the bodypack transmitter for the first time, remove the
protective foil from its accupack.

16 AVX
Putting the products into operation
To insert the accupack into the bodypack transmitter:
왘Slide the accupack onto the bodypack transmitter as shown.
The accupack locks into place with an audible click.
Attaching the bodypack transmitter to clothing
왘Use the belt clip to attach the bodypack transmitter to clothing.
- The antenna of the bodypack transmitter should not be touched or cov-
ered during transmission as this would reduce the transmission range.
- There should be a free line of sight between the antenna of the bodypack
transmitter and the receiving antenna.
Connecting a clip-on microphone to the bodypack transmitter
Only connect one of the clip-on microphones recommended by Sennheiser.
These microphones are optimized for the bodypack transmitter.
왘Connect the jack plug of the clip-on microphone to the 3.5 mm jack socket
(Mic/Line) of the bodypack transmitter.
왘Lock the jack plug by screwing down the coupling ring.
Putting the clip-on microphones into operation
Putting the MKE 2 into operation
The MKE 2 clip-on microphone is supplied with the Lavalier Set Pro and meets
the highest demands on sound quality and ruggedness.
Using the frequency response caps You can use the supplied frequency response caps to boost the frequency
response of the MKE 2 (e.g. if the sound is too muffled) and to optimize your
recordings by improving the speech intelligibility.
왘Slip the frequency response cap of your choice onto the microphone capsule
until it locks into place.
- The (small) MZC 2-1 frequency response cap slightly increases the treble
response of the microphone.
- The (large) MZC 2-2 frequency response cap allows you to increase the
treble frequencies to a greater extent.

AVX 17
Putting the products into operation

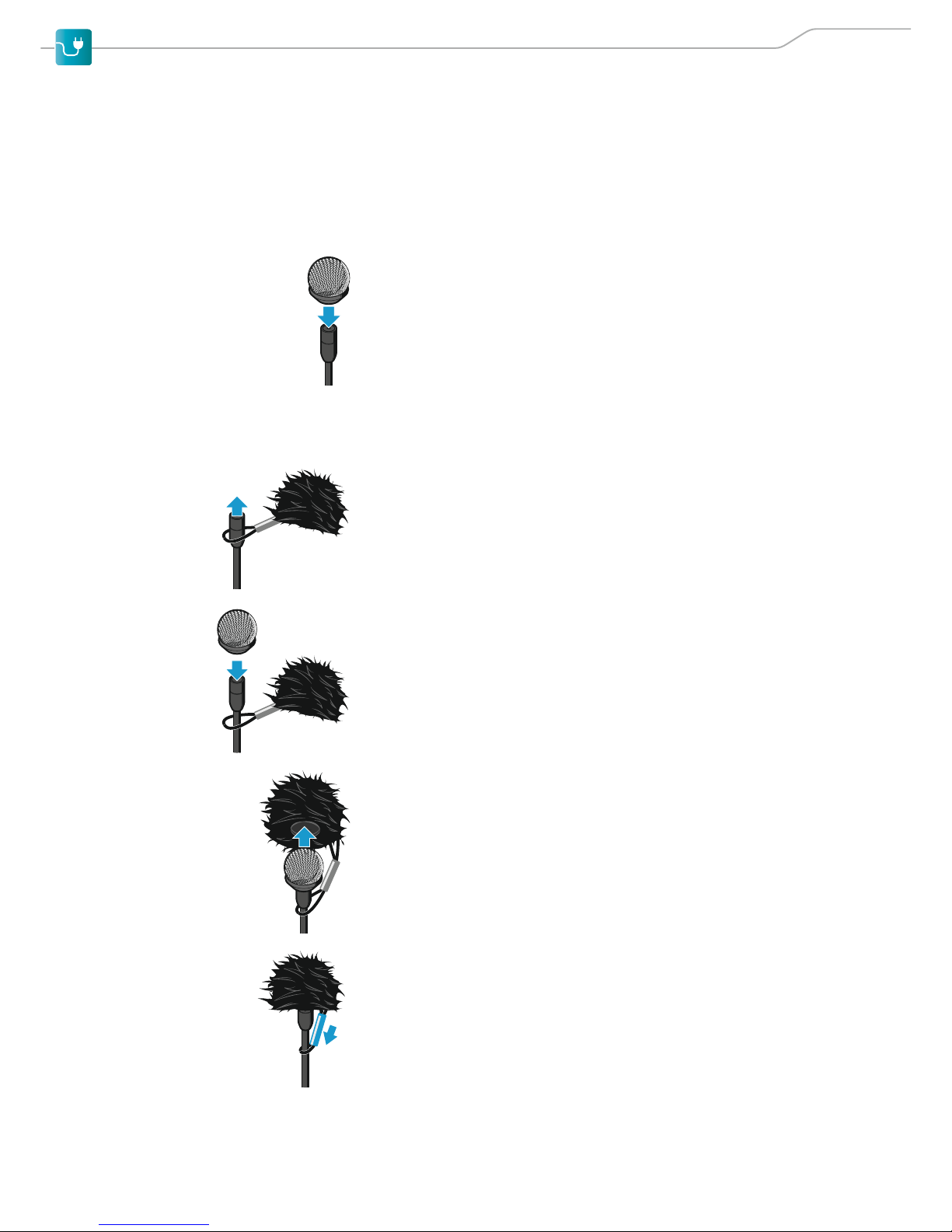

Using the windshield In order to avoid annoying wind noise during recording, we recommend using
a suitable windshield.
The MKE 2 is supplied with a metal windshield and a fur windshield. To begin
with, use the metal windshield which reduces wind noise by up to 20 dB. With
the additional fur windshield, you can reduce wind noise by a further 10 dB.
The fur windshield can only be used together with the metal windshield.
To use the metal windshield:
왘Slip the metal windshield onto the microphone capsule of the MKE 2.
The microphone is ready for operation and can be attached to clothing by
means of the supplied microphone clip (see page 18).
To use the fur windshield:
왘If you are already using the metal windshield or one of the frequency
response caps, remove them from the microphone capsule.
왘Stretch open the retaining loop of the fur windshield by moving the sleeve
towards the fur.
Make sure you do not accidentally remove the sleeve from the retaining
loop.
왘Pass the microphone through the retaining loop of the fur windshield.
The retaining loop now fits loosely around the connection cable of the
MKE 2.
왘Slip the metal windshield onto the microphone capsule.
왘Carefully stretch the opening of the fur windshield and slide it over the
metal windshield. Make sure that the fur windshield completely covers the
metal windshield.
왘Use the sleeve to tighten the retaining loop around the connection cable.
The retaining loop ensures that the fur windshield is securely attached to
the clip-on microphones.

18 AVX
Putting the products into operation
Attaching the clip-on microphone
to clothing
The MKE 2 is supplied with a microphone clip that consists of two parts:
• a microphone holder 4
• a clip 5for attaching the microphone to clothing
The clip has three holes. Inserting the microphone holder into one of the holes
influences the clip‘s contact pressure and thus ensures secure attachment of
the clip to clothing made of different materials:
•Hole1: for attaching the microphone clip to clothing made of very heavy
and tightly-woven materials
•Hole2: for attaching the microphone clip to clothing made of medium-
heavy materials
•Hole3: for attaching the microphone clip to clothing made of very thin
materials
왘Snap the connection cable of the MKE 2 into the microphone holder.
왘Insert the microphone holder into the desired hole of the microphone clip.
To do so, press the two ends of the microphone holder together and hook it
into the hole.
The microphone clip can be attached to clothing either vertically or horizon-
tally. Make sure to insert the microphone holder into the hole according to
the desired orientation of the microphone clip.
To vertically attach the microphone clip to clothing:
왘Guide the connection cable through the cable grip of the clip.
왘Use the microphone clip to attach the clip-on microphone to clothing (e.g.
lapel, collar, tie).
왘Conduct the connection cable so that noise due to friction is avoided and
that the connection cable and the antenna do not cross.
왘Attach the microphone at a distance of approx. 25 cm to the mouth.
The MKE 2 clip-on microphone has an omni-directional pick-up pattern. It is
therefore not necessary to position it precisely.
1
2
3
4
5
25 cm
(10")
