Sennheiser UI 760 User manual

Instruction manual |
Notice d’emploi |
Instrucciones de uso |
Bedienungsanleitung
Istruzioni per l’uso
Gebruiksaanwijzing
Universal Interface
UI 760
TitelSeite_Sp6.pdf 10.02.2009 15:01:41

UI_760.book Seite 2 Freitag, 30. Januar 2009 11:52 11

English
Deutsch
Français
Italiano
Español
Nederlands
UI_760.book Seite 183 Freitag, 30. Januar 2009 11:52 11

UI_760.book Seite 184 Freitag, 30. Januar 2009 11:52 11

1
Universal Interface UI 760
The UI 760 allows you to connect:
• a standard telephone
•ahandset
• a headset of the Sennheiser Office or Call Center series
• a PC with sound card or USB port (enabling you to use
the headset for VoIP and multimedia applications)
• a dictaphone for voice recording
With the UI 760, you can switch between the headset,
handset and PC, set the volume of the headset speaker and
microphone and mute the headset microphone.
Delivery includes
• UI 760
• 1.5 V C-size battery (IEC LR 14)
• Telephone connecting cable
• Modular to Easy Disconnect cable
• Instruction Manual
UI_760.book Seite 1 Freitag, 30. Januar 2009 11:52 11

2
Safety instructions
• Keep children away from the UI 760. When playing,
children can be strangled by the cables.
• Do not use the UI 760 in a damp or dusty environment.
• Only use 1.5 V alkaline C-size (IEC LR 14) batteries for
powering the UI 760.
Putting the UI 760 into operation
Connection sockets
The connection sockets are located at the box front and
back side.
At the front:
•HEADSET socket for the headset adapter cable
•DICTAPHONE socket  for voice recording
•HANDSET socket  for the handset
At the back:
•PHONE socket  for the telephone connecting cable
•AUX socket  for the PC connecting cable


쐋


UI_760.book Seite 2 Freitag, 30. Januar 2009 11:52 11

3
Connections
Box connection Peripheral devices
AHeadset RJ11 Secom Quick disconnect
BDictaphone Jack 3.5 mm
“Color Black”
Jack 3.5 mm
“Color Black”
CHandset RJ11 RJ11
DPhone RJ11 Depending on phone
EAux/PC RJ11 Jack (2x) 3.5 mm/USB
A
BCD
E
UI_760.book Seite 3 Freitag, 30. Januar 2009 11:52 11

4
Connecting the headset to the UI 760
AConnect the RJ11 4/4 plug of the adapter cable to the
HEADSET socket until it locks in place.
Connecting the dictaphone to the UI 760
BConnect the 3.5 mm jack plug of the dictaphone
connecting cable to the JACK socket at the UI 760 front
side until it locks in place. Connect the 3.5 mm jack
plugs to the outputs of your dictaphone device.
Connecting the handset to the UI 760
CPull the RJ11 4/4 plug of the handset cable out of the
telephone and connect it to the HANDSET socket until it
locks in place.
Connecting the telephone to the UI 760
DConnect one of the two RJ11 4/4 plugs of the supplied
telephone connecting cable to the PHONE socket until it
locks in place. Connect the second RJ11 4/4 plug to the
handset socket on your telephone.
UI_760.book Seite 4 Freitag, 30. Januar 2009 11:52 11

5

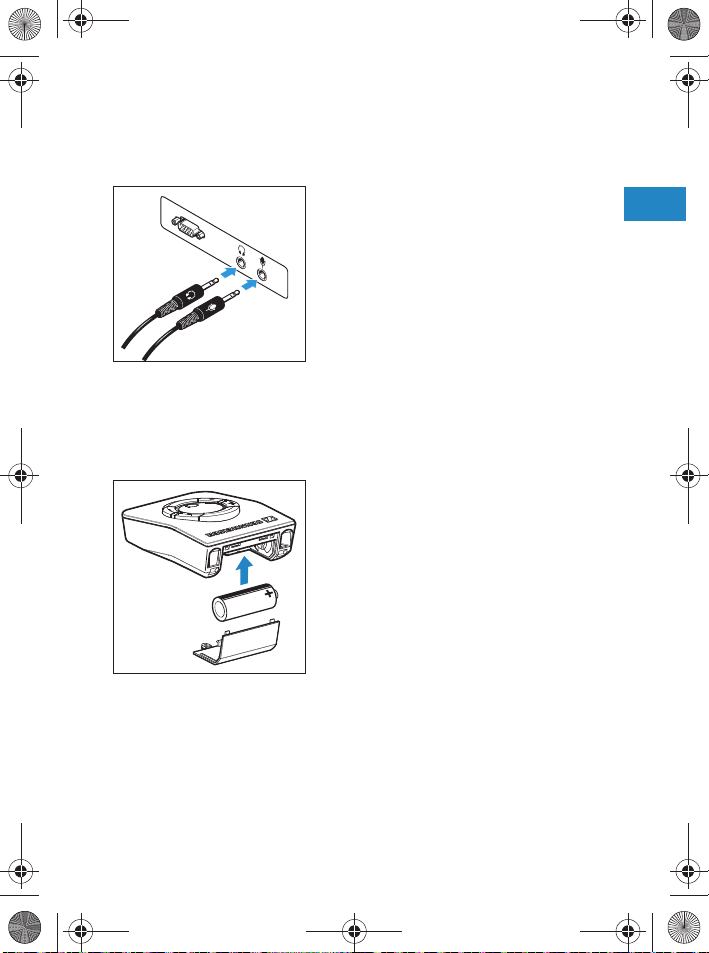

Connecting the PC to the UI 760
EConnect the RJ11 4/4 plug of the PC connecting cable to
the AUX socket on the UI 760 until it locks in place.
Connect the two jack plugs to the
outputs of your PC sound card as
shown or the USB plug to the PC
USB port.
Inserting the battery
When inserted into the UI 760, the battery has a service life
of approx. two years.
Remove the lower rear part of the
housing. Use included screw to
tamper-proof the battery cover–
mandatory in some countries.
Insert the battery as shown and
replace the lower rear part of the
housing.
Low battery warning
Reduced output volume and a hum noise are heard in the
headset speaker to indicate that the battery is low. Insert
a new battery.
UI_760.book Seite 5 Freitag, 30. Januar 2009 11:52 11

6
Adjusting the UI 760 to your telephone
Use the switch  at the bottom of the housing to adjust
the UI 760 to your telephone.
왘First make sure that the handset and the headset are
connected correctly. The handset must be activated, i.e.
the Headset/Handset button  must be in “down”
position. Check if you can hear a dial tone in the
handset. Press the Headset/Handset button to
activate the headset. Check if you can hear a dial tone.
Otherwise, please proceed as follows:
Set the ABC switch to the positions “A”, “B” and
“C”one after the other. In each position, check if you can
hear a dial tone. The switch is located at the box bottom
side.
UI 760 Technical
ABC switch Clear dial tone adjustment (wiring)
Microphone VC Adjust microphone sensitivity Position 0-9
EU Switch 85 dB output limit



UI_760.book Seite 6 Freitag, 30. Januar 2009 11:52 11

7
When is the UI 760 ready for operation?
The UI 760 is ready for operation as soon as:
• it is connected to your telephone
• the battery is inserted
• it is adjusted to your telephone
If you disconnect the UI 760 from the telephone, it is
immediately put out of operation.
Setting the volume of the headset microphone
With the UI 760, you can set the volume of the headset
microphone: a soft voice is slightly amplified and a loud
voice is attenuated. The trimmer  is located at the box
bottom side.
왘Turn the trimmer  to the position marked “1”.
왘Make a call and speak into the microphone with a
normal voice. Slowly turn the trimmer until the other
party can hear you loudly and clearly.
Adjusting the speaker volume output to comply with the
EU Directive 2003/10/EC
The UI 760 allows you to limit the speaker volume output
in the headset to comply with EU Directive 2003/10/EC.
왘Move the switch  from position “square” to
“triangle” to reduce the speaker volume output
according to EU Directive 2003/10/EC noise at work.
Note:
The Universal Interface UI 760 is a special version
featuring a reduced output level. Even with the volume
UI_760.book Seite 7 Freitag, 30. Januar 2009 11:52 11

8
of the Interface set to the maximum value, the signal
transmitted by the connected Sennheiser
Communications headset will never exceed the
maximum of 85 dB (A) per day as a time-weighted
average* value, which is in compliance with the EU
Noise Directive**
* The time-weighted average value is based on a
breakdown of a typical working day and measured as
the sound pressure level with a B&K HATS (Head And
Torso Simulator)
** EU Directive 2003/10/EC on the minimum health
and safety requirements regarding the exposure of
workers to the risks arising from physical agents
(noise)
UI_760.book Seite 8 Freitag, 30. Januar 2009 11:52 11

9
Using the UI 760
PC/telephone button
Mute button
Headset/Handset button
Sound clarity button
Volume control




Headset/Handset
PC interface Sound clarity
Communication through
PC/Active
Not Active/default
Mute/Active
Not Active/default
Handset/Active
Headset/default
Sound clarity/Active
Not Active/default
Mute
UI_760.book Seite 9 Freitag, 30. Januar 2009 11:52 11

10
Switching between the headset and the handset
왘Press the button to switch between the headset and
the handset.
Button down: handset is activated
Button up: headset is activated
Muting the headset microphone
왘Press the button to mute the headset microphone.
Button down: microphone is muted
Button up: microphone is activated
Adjusting the sound clarity of the headset speaker
With the UI 760, you can adjust the sound clarity of the
headset speaker. Annoying background noise coming
through the headset speaker is filtered out and speech
intelligibility is thus enhanced.
왘Press the button to filter out annoying background
noise.
Button down: speech intelligibility enhancement
system is activated
Button up: speech intelligibility enhancement
system is deactivated
Selecting the source — PC or telephone
왘Press the button  to select the source — PC or
telephone.
Button down: PC is selected as the source
Button up: telephone is selected as the source
UI_760.book Seite 10 Freitag, 30. Januar 2009 11:52 11

11
Note:
If the PC is selected as the source, the button  and
volume control  are deactivated. Consequently, you
cannot mute the headset microphone or set the volume
of the headset speaker using the UI 760 but you have
to set the volume via your PC.
Setting the volume of the headset speaker
왘Use the volume control  to continuously set the
volume of the headset speaker.
“Dynamic Volume Control” ensures that the volume set
via volume control is kept constant, even if the other
party speaks with varying volumes.
The functions of your telephone
Even with the UI 760 connected, you can use all functions
of your telephone as usual. To make a call, lift the handset
and dial a phone number. To end a call, replace the
handset. The ”hands-free conversation” function can also
be used as usual.
Using the dictaphone output
The output can be used to record a conversation in both
directions.
UI_760.book Seite 11 Freitag, 30. Januar 2009 11:52 11

12
Cleaning the UI 760
Only use a soft – and, if necessary, slightly damp – cloth for
cleaning the UI 760. Do not use any solvents or cleansing
agents as these can damage the varnish of the UI 760.
If problems occur...
Problem What to do
No dial tone • Make sure that the button 
is in ”up” position.
• Make sure that the handset is
lifted.
• Make sure that the cables are
connected correctly.
• Make sure that the UI 760 is
correctly adjusted to your
telephone.
Adjustment to your tele-
phone is not possible
• Your telephone does not meet
standard requirements. Please
contact your dealer.
The other party cannot
hear you
• Make sure that button mic.
mute  is in ”up” position.
UI_760.book Seite 12 Freitag, 30. Januar 2009 11:52 11

13
If the problem persists, please contact your local
Sennheiser Communications agent for assistance. Never
repair or attempt to repair the units as this will invalidate
the warranty.
Problem What to do
No connection to the PC • Make sure that the cables are
connected correctly.
• Increase the volume on your
PC.
• Your PC and the UI 760 are not
compatibel.
Please contact your dealer.
Your voice can hardly be
heard
• Make sure that the headset
microphone is positioned at
the corner of your mouth.
• Make sure that the volume of
the headset microphone is
sufficient.
• Make sure that the UI 760 is
correctly adjusted to your
telephone.
The speaker volume varies • Your telephone does not meet
standard requirements. Please
contact your dealer.
• The battery may be low.
Replace the battery.
UI_760.book Seite 13 Freitag, 30. Januar 2009 11:52 11

14
Accessories
Spare parts
Specifications
Dimensions [mm]: 91 x 32 x 101
Weight: approx. 137 g
approx. 205 g with battery
Battery: 1.5 V C-size battery (IEC LR 14)
Article number
Headset holder 3 in 1 (Headset holder -
Desktop mounting plate - Desktop lock
plate)
502392
Modular to 2 X 3.5 mm jack plugs cable -
for connection of UI box to PC via standard
sound card - existing CUIPC 1
05373
Modular to USB plug cable - for connection
of UI box to PC directly via USB port
502394
3.5 mm jack plug to 3.5 mm jack plug
cable - for connection of UI box to “Dicta-
phone device” (PC, PDA, tape recorder etc.)
502391
Article number
Modular to Modular cable - for connection
of UI box to desk phone CPHUI 1
05372
Modular to Easy Disconnect cable - for
connection of UI box to headset - CSTD 01
standard bottom cable
05362
UI_760.book Seite 14 Freitag, 30. Januar 2009 11:52 11

15
Manufacturer declarations
Warranty regulations
The guarantee period for this Sennheiser product is 24
months from the date of purchase. Excluded are accessory
items, rechargeable or disposable batteries that are
delivered with the product; due to their characteristics these
products have a shorter service life that is principally
dependent on the individual frequency of use. The
guarantee period starts from the date of original purchase.
For this reason, we recommend that the sales receipt be
retained as proof of purchase. Without this proof (which is
checked by the responsible Sennheiser service partner) you
will not be reimbursed for any repairs that are carried out.
Depending on our choice, guarantee service comprises, free
of charge, the removal of material and manufacturing
defects through repair or replacement of either individual
parts or the entire device. Inappropriate usage (e.g.
operating faults, mechanical damages, incorrect operating
voltage), wear and tear, force majeure and defects which
were known at the time of purchase are excluded from
guarantee claims. The guarantee is void if the product is
manipulated by non-authorised persons or repair stations.
In the case of a claim under the terms of this guarantee, send
the device, including accessories and sales receipt, to the
responsible service partner. To minimise the risk of
transport damage, we recommend that the original
packaging is used. Your legal rights against the seller,
resulting from the contract of sale, are not affected by this
guarantee.
UI_760.book Seite 15 Freitag, 30. Januar 2009 11:52 11

16
The guarantee can be claimed in all countries outside the
U.S. provided that no national law limits our terms of
guarantee.
Batteries
The supplied batteries or rechargeable batteries can be
recycled. Please dispose of them as special waste or return
them to your specialist dealer. In order to protect the
environment, only dispose of exhausted batteries.
WEEE Declaration
Your Sennheiser product was developed and manufactured
with high quality materials and components which can be
recycled and/or reused. This symbol indicates that electrical
and electronic equipment must be disposed of separately
from normal waste at the end of its operational lifetime.
Please dispose of this product by bringing it to your local
collection point or recycling centre for such equipment. This
will help to protect the environment in which we all live.
Further information
Frequently asked questions
For possible solutions to problems, please refer to the FAQ
on our web page:
www.senncom.com and see under “Products”, “Universal
Interface”.
UI_760.book Seite 16 Freitag, 30. Januar 2009 11:52 11
