SEPLOS PUSUNG-S User manual

Shenzhen Seplos Technology Co,. Ltd
Please read this manual carefully before operating
and retain it for future reference.

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
2
This manual introduces PUSUNG-S designed by SEPLOS Technology. Please read this manual before installation
of the battery module and follow the instruction carefully during the assembly. Any confusion, please contact
SEPLOS Technology immediately for advice and clarification.
CONTENT
1. Safety Precautions.............................................................................................................................1
1.1 Precautions.............................................................................................................................. 1
1.2 Warning....................................................................................................................................1
2. Introduction...................................................................................................................................... 3
2.1 Features....................................................................................................................................4
2.2 Specifications........................................................................................................................... 5
2.2.1 Recommended Continuously Discharge Current...........................................................6
2.2.2 Recommended Continuously Charge Current............................................................... 6
2.3 Interfaces................................................................................................................................. 7
2.4 Cell Features...........................................................................................................................10
2.4.1 Specifications............................................................................................................... 10
2.5 Advanced Battery Management System (BMS).....................................................................11
2.5.1 BMS Functions............................................................................................................. 11
2.5.2 Monitoring software.................................................................................................... 12
2.5.3 Compatible Inverters................................................................................................... 13
3. Installation.......................................................................................................................................16
3.1 Application............................................................................................................................. 16
3.2 Battery pack wiring (Pack to pack)........................................................................................16
4. List................................................................................................................................................... 17
4.1 Packing list..............................................................................................................................17
4.2 Optional Accessories..............................................................................................................18
5. Appendix......................................................................................................................................... 19

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
1
1. Safety Precautions
This section describes the safety information that must be observed when working with battery
packs. To prevent any damages, or personal injury, and to ensure the performance of the battery
packs, please read this section carefully and observe the safety precautions at all times.
1.1 Precautions
It is very important and necessary to read the user manual carefully before installing or using
the product. Failure to do so or to follow any of the instructions or warnings in this document
can result in electrical shock, serious injury or death, and could damage the battery, or
potentially rendering it inoperable.
If the battery pack is stored for long time, it is required to charge them every six months, and
the SOC should be no less than 90%.
Please recharged the battery pack within 12 hours, after fully discharged.
All the battery pack terminals must be disconnected before any maintenance.
Do not use cleaning solvents to clean battery pack.
Do not expose battery pack to flammable or harsh chemicals, or corrosive gases or liquids.
Do not paint any part of battery pack, include any internal or external components.
Do not expose the battery pack to direct sunlight for extended periods of time.
Do not connect battery pack with PV solar wiring directly.
Do not insert any foreign object into any part of the battery pack.
1.2 Warning
Do not touch the battery pack with wet hands.
Do not crush, drop or puncture the battery pack.

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
2
Always dispose of the battery pack according to local safety regulations.
Store and recharge the battery pack in a manner in accordance with this user manual.
Ensure reliable grounding.
Do not reverse the polarity when installing.
Do not short circuit the terminals, remove all jewelry items that could cause a short circuit before
installation and handling.
Disconnect battery from power or loads, and then power off battery before installation and
maintenance.
The battery packs should be not stacked more than specified numbers.
Continued operation of a damaged battery pack can result in dangerous situation.

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
3
2. Introduction
SEPLOS PUSUNG-S
SEPLOS PUSUNG-S lithium iron phosphate battery pack is a household renewable energy storage
solution developed and produced by SEPLOS Technology. It is a low-voltage DC battery system with
an operating voltage of 48V, and works with a low voltage inverter to realize the goal of energy
storage for home application.
PUSUNG-S battery pack supports parallel connection to expand capacity, which can meet various
capacity requirements. It has built-in smart battery management system (BMS), which can manage
and monitor the pack and cells information including voltage, current and temperature. What’s
more, BMS can balance cells charging and discharging to extend cycle life.

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
4
2.1 Features
Brand New Grade A 3.2V 100Ah aluminum case prismatic cell.
Battery cell is made from lithium iron phosphate (LiFePO4) with safety performance and longer
cycle life.
Specially designed plastic cell holder features fire proof and insulation. 8 cells in series
composes a battery module, and two modules in series, then connected with BMS, composes
a SEPLOS PUSUNG battery pack.
BMS has over-discharge, over-charge, over-current, high and low temperature warning and
protection functions.
BMS monitors the charge and discharge state, and balance the current and voltage of each
cell.
BMS comes with upper computer system for real-time cell and pack voltage, current,
temperature, and battery status monitoring and recording.
Flexible configuration, max. 15 packs can be connected in parallel for expanding capacity and
power with 8 DIP switches.
Large working temperature range from -10℃to 50℃(Charging 0℃~50℃; discharging -10℃
~50℃)with excellent discharge performance and cycle life.
Pre-programmed with multi-protocols, SEPLOS PUSUNG works with multi-brands of inverters.
Check the communication inverter list.

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
5
2.2 Specifications
Basic Parameters
PUSUNG-S
Nominal Voltage (V)
51.2V
Nominal Capacity (Ah)
100Ah @0.5C discharge current
25±2℃
Rated Capacity (Ah)
98-105Ah @0.5C discharge current
25±2℃41.6V - 57.6V
Nominal Power (Wh)
5.12KWh
Dimension (mm)
565*440*170mm
Weight (Kg)
56.2±5KG
Discharge Cut-off Voltage (V)
41.6V
Charge Voltage (V)
57.6V
Continuously Charge/Discharge Current (A)
100A @25±2℃
Standard charge/discharge Current (A)
50A @25±2℃
Communication Interface
CAN (Default), RS485
Configuration
2*1P8S
Working Temperature
0～50℃(Charge)
-10～50℃(Discharge)
-20～55℃(Storage)
Cell chemistry
Lithium iron phosphate (LiFePO4)
Cycle life
≥80% capacity state after 4800
cycles at 0.5C, 25℃, 100% DOD
Humidity
10% - 85%
IP level
IP 20
Certificates
CE, ROHS, MSDS, UN38.3

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
6
2.2.1 Recommended Continuously Discharge Current
Temperature
SOC
0% - 20%
SOC
20% - 40%
SOC
40% - 80%
SOC
80% - 100%
-10 - 0℃
10A
10A
50A
50A
0 - 7℃
15A
50A
60A
80A
7 - 15℃
20A
40A
70A
90A
15 - 25℃
30A
70A
100A
100A
25 - 45℃
30A
70A
100A
100A
45 - 50℃
10A
30A
40A
50A
50 - 55℃
5A
15A
20A
30A
2.2.2 Recommended Continuously Charge Current
Temperature
SOC
0% - 20%
SOC
20% - 40%
SOC
40% - 80%
SOC
80% - 100%
-10 - 0℃
10A
10A
8A
5A
0 - 7℃
20A
20A
15A
10A
7 - 15℃
50A
50A
40A
20A
15 - 25℃
80A
80A
60A
30A
25 - 45℃
100A
100A
60A
30A
45 - 50℃
80A
80A
50A
20A
50 - 55℃
50A
50A
40A
15A

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
7

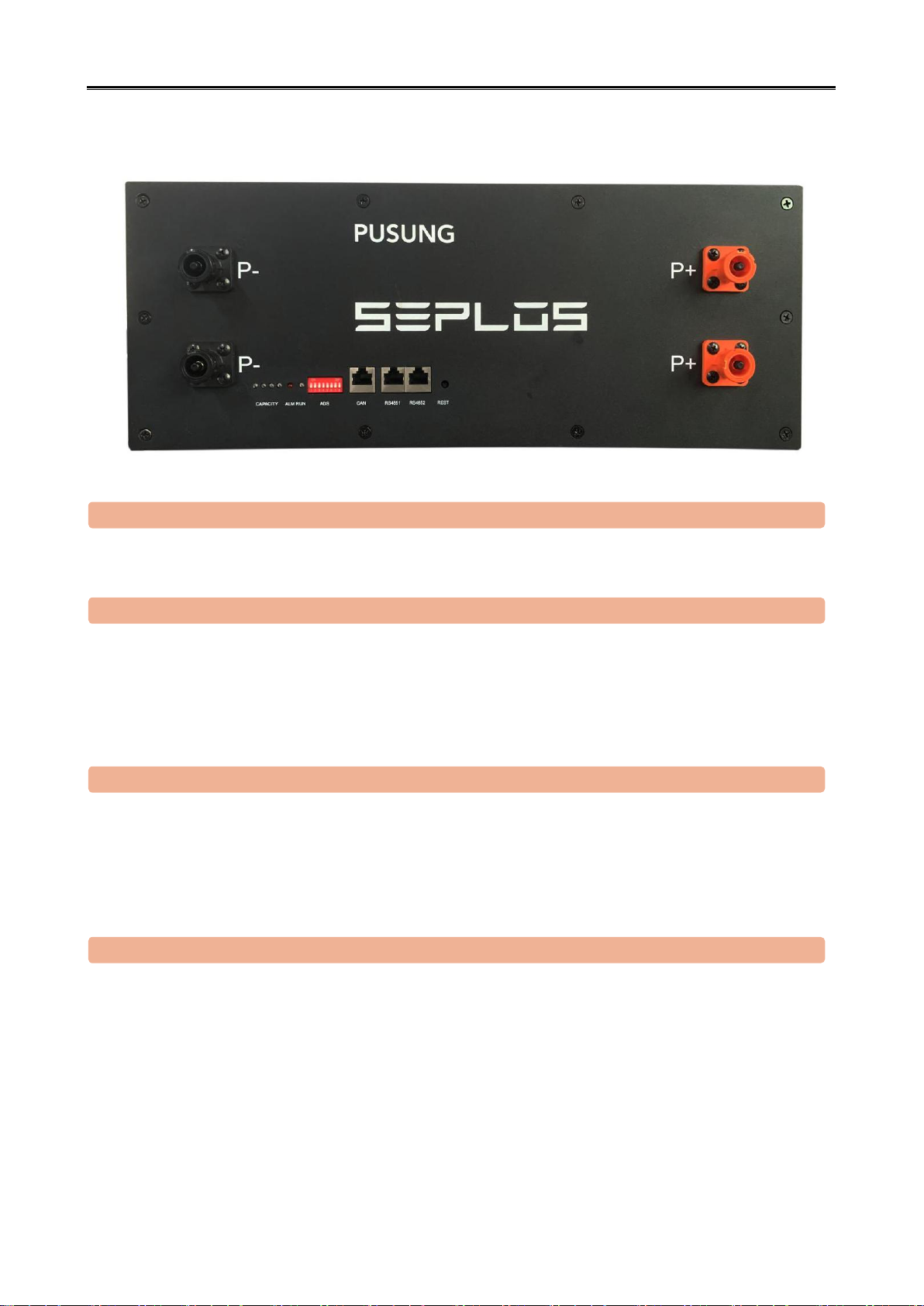

2.3 Interfaces
RESET
Reset button: to start the battery pack, hold the button for 2s to turn on battery pack.
RS485
RS485 communication interface: RJ45 port, follow RS485 protocol. For transmitting battery pack
information between paralleled packs. The first 4 DIP switches (#1, #2, #3, #4) are used for
identifying packs’ information on software.
CAN
CAN 5 communication interface: follow CAN BUS protocol, for output pack information to inverter.
One pack should be assigned as master pack. And the last 4 DIP switches (#5, #6, #7, #8) to tell how
many slave packs are followed. The firs DIP switches are used for identifying slave packs.
ADS
ADS Switch: To setup battery address for identification, and make the communicate between
batteries, battery to inverter.
NOTE: There are 8 bit DIP switches, keep the switch on down side means ‘OFF’, turn up the switch to top side
means ‘ON’.

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
8
ALARM
ALARM light: red LED flash to show the battery alarm status. And red light to show the battery in
protection status of abnormal temperature, over-current, or short-circuit.
RUN
Working light: green LED to show the battery working status.
Details as follows,
Battery
status
Operating
Mode
RUN
ALM
LED Light
Remark
●
●
●
●
●
●
Power off
Standby
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Standby
Normal
Solid Green
OFF
According to battery SOC status
Standby
mode
Charge
Mode
Normal
Solid Green
OFF
According to battery SOC status
Over current
warnings
Solid Green
Blink type 2
Over voltage
protection
Blink type 1
OFF
OFF
OFF
OFF
OFF
Temperature,
over current
protection
Blink type 2
OFF
OFF
OFF
OFF
OFF
Discharge
Mode
Normal
Blink type 3
OFF
According to battery SOC status
Warning
Blink type 3
Blink type 3
Over current,
temperature,
short-circuit
protection
OFF
Solid Red
OFF
OFF
OFF
OFF
Termination
of discharge
Under voltage
protection
OFF
OFF
OFF
OFF
OFF
OFF
Termination
of discharge

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
9
CAPACITY
SOC light: 4 green LED lights to show the capacity status of battery pack. Each LED represents 25%
the capacity.
P+/P-
Power terminals: two pairs of power terminals with the same function, one connect to equipment,
and the other one parallel to other battery pack for capacity expanding. For a single pack, both
terminals can achieve charging and discharging functions.
Power cable uses 6.0mm power plug with lock button. And can be full rotation.
Status
Charge
Discharge
Capacity
indicator
●L4
●L3
●L2
●L1
●L4
●L3
●L2
●L1
0-25%
OFF
OFF
OFF
Blink
OFF
OFF
OFF
Solid Green
25%-50%
OFF
OFF
Blink
Solid Green
OFF
OFF
Solid Green
Solid Green
50%-75%
OFF
Blink
Solid Green
Solid Green
OFF
Solid Green
Solid Green
Solid Green
>75%
Blink
Solid Green
Solid Green
Solid Green
Solid Green
Solid Green
Solid Green
Solid Green
Operating
indicator
Solid Green
Blink

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
10
2.4 Cell Features
2.4.1 Specifications
SEPLOS 3.2V 100Ah lithium iron phosphate (LiFePO4) aluminum case prismatic rechargeable
battery cell.
Refer to the cell specification for more detailed information.
SEPLOS Technology applies high quality Grade A cells inside the battery box. And did the following
designs to prolong the battery pack cycle life.
Judging by the current testing report below, if the battery pack charging and discharging at
0.2C, the battery pack could reach a cycle life of 6000 times or more at the remaining capacity
of 80% capacity state at 25℃room temperature, 100%DOD.
The real capacity of each single cell is 105Ah.
Nominal Voltage
3.2V
Nominal Capacity
100Ah
Weight
≤2.25Kg
Self-discharge Rate
≤3.5% per month
Initial Internal
Resistance（1KHz）
≤0.35mΩ

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
11
The module inside comes with 16 cells in parallel. And the default setting of BMS pack
discharge end voltage is for 15 cells in parallel.
2.5 Advanced Battery Management System (BMS)

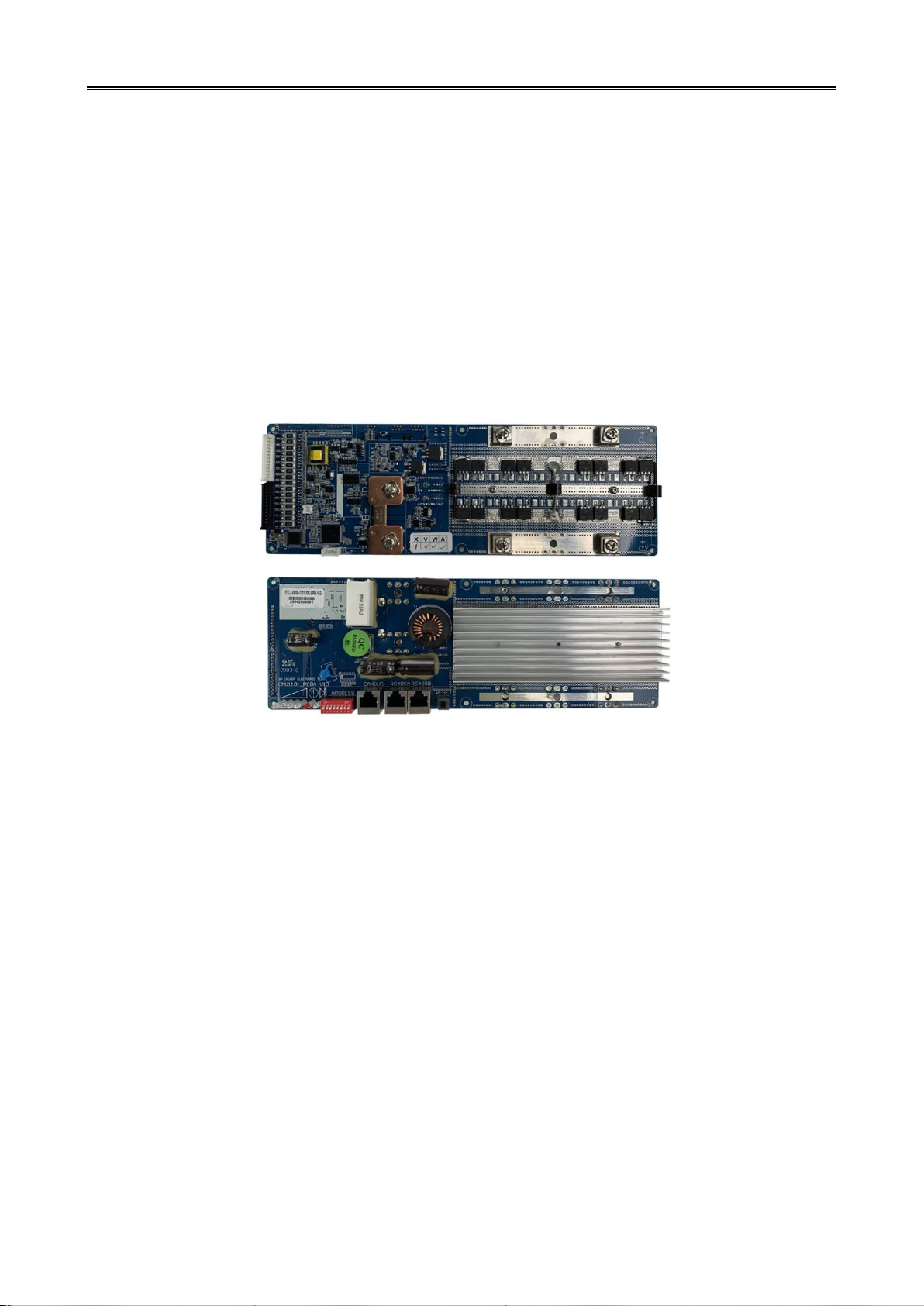

The BMS is applied to monitor current, voltage, temperature, protection against over-charge,
over-discharge, over-current, over-temperature, under-temperature and short circuit. The BMS
provides cell balancing and current limitation during charging process to ensure a reliable safety
and performance.
2.5.1 BMS Functions
Over charge protection
Over discharge protection
Over current protection
Cell balancing
Temperature protection
CAN and RS485 communication
Refer to the BMS specification for the detailed information

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
12
2.5.2 Monitoring software
Battery pack can be remotely monitored with SEPLOS BATTERYMONITOR software. With this
software, battery voltage, cell voltage of single cell and pack, SOC status, cell temperature, voltage
differences can be monitoring in real time. Through history record, battery status can be checked
afterwards.
First, connect PUSUNG to the master computer with USB-RS485 adapter.

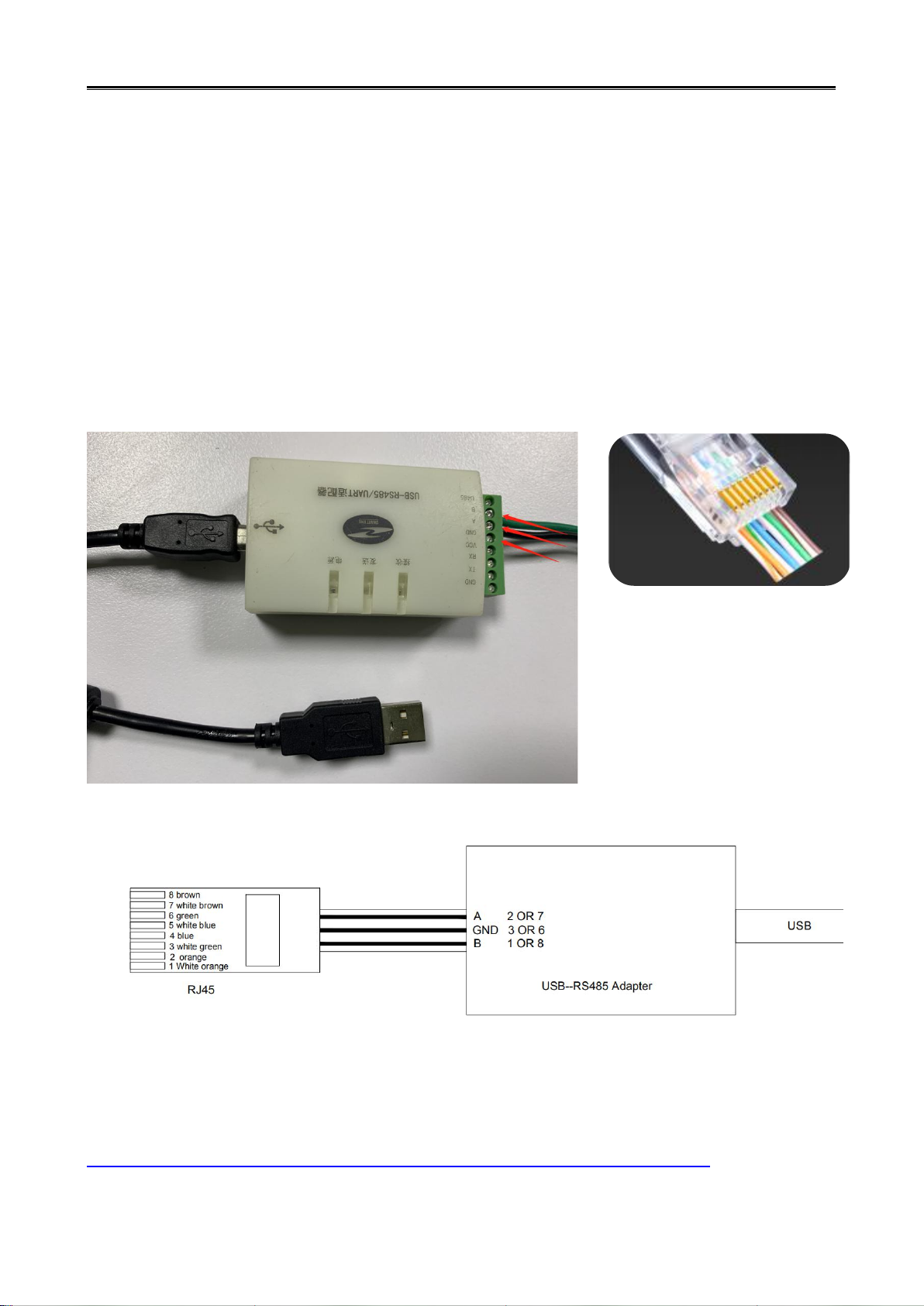

If the adapter needs wiring, follow the wiring diagram.
Wiring Diagram
Note: Download the software installation file at Google drive with this link:
https://drive.google.com/drive/folders/10pxgNLHovcDZRVGrCZsSkfecBrRw-AdW?usp=sharing
RJ45

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
13
Software interface
2.5.3 Compatible Inverters
SEPLOS PUSUNG Battery pre-programmed with multiple CAN protocols to compatible with
multi-brands of inverters. To make sure that the battery module works perfectly, it would be
better to use the compatible inverters listed below.
Note: Different models of inverters may comes with different protocols and designing even for the
same brand. For some models, a firmware updating is required for perfect communication.
Pre-programmed CAN Protocol list:
Goodwe-V1.5
Pylon-V1.3
Growatt-V1.05
Victron CANBUS_PROTOCOL

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
14
LUXPOWER_CAN Protocol
Sofar_REV5
SMA_EN_10
Communicate inverters list (CAN Protocol):
Goodwe
Growatt (Growatt inverter comes with both CAN and RS485 protocol models. Please confirm
before purchase.)
Victron
Voltronic (Voltronic inverter comes with RS485 protocol only. Please confirm with your sales
representative before purchase.)
Phocos (Phocos inverter comes with RS485 protocol only. Please confirm with your sales
representative before purchase.)
LUXPOWER
Sofar
DEYE
Sermatec
RENAC
TBB POWER
SOLIS
SMA
FoxESS

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
15
Inverter Settings:
Battery information would be synchronized to the inverter through CAN communication. If the
inverter do not support CAN communication, the following parameters need to be modified before
connecting with battery system.
Charging Settings:
Parameter
Setting
Battery type
Lithium
Charge curve
Fixed
Absorption voltage
57.6V
Float voltage
55V
Absorption time
1Hr
Note:
1. Make sure to double check the float voltage after completing Assistants, and if necessary set it
back to 55.0V.
2. For off-grid use: ignore the 'BMS assistant required' warning.
Inverter Settings
Parameter
Setting
DC input low shut-down
43V
DC input low restart
47V
DC input low pre-alarm*
47V

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
16
3. Installation

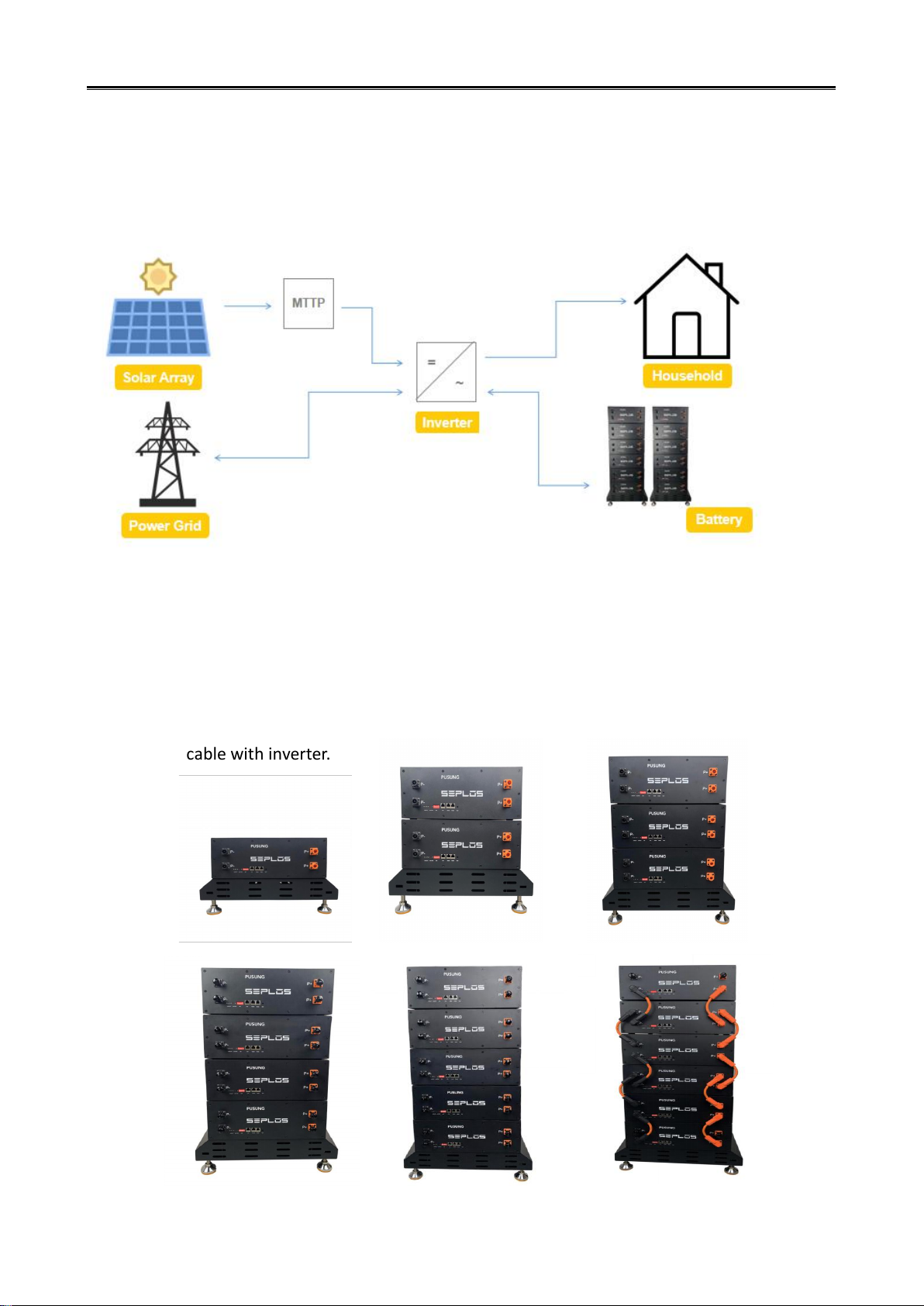

3.1 Application
3.2 Battery pack wiring (Pack to pack)
Stack the battery packs onto the base. (Maximum 6 packs can be stacked.)
Connect cables between packs.
Connect cable with inverter.

SEPLOS PUSUNG-S 51.2V 100AH LIFEPO4 BATTERY PACK USER MANUAL www.seplos.com
17
4. List
4.1 Packing list
Item
Description
Quantity
1
PUSUNG-R Battery Pack
5.12KWh
1 PCS
2
Parallel cable with plus orange and
black
240mm
1 SET
3
RJ45 cable, yellow
300mm
1 PCS
4
Ground cable, M6 screw hole
190mm
1 PCS
5
Packing list
1 PCS
/
