Propaq®MD Battery Pack Guide
"




,ITHIUM)ON"ATTERY
=2//
9650-0809-01 Rev. A

The issue date for the Propaq ®MD Battery Pack Guide (REF 9650-0809-01 Rev. A) is
September, 2010.
If more than three years have elapsed since the issue date, contact ZOLL Medical Corporation to
determine if additional product information updates are available.
ZOLL is a registered trademark, and SurePower is a trademark, of ZOLL Medical Corporation. Propaq is a
registered trademark of Welch Allyn Inc. All other trademarks and registered trademarks are property of
their respective owners.
Copyright © 2010 ZOLL Medical Corporation. All rights reserved.

9650-0809-01 Rev. A Propaq ® MD Battery Pack Guide 1
Introduction
The Propaq ® MD Battery Pack is a rechargable, sealed lithium ion battery for use in
compatible ZOLL ®defibrillators and chargers.
It is important that you read and understand the information in this manual. The proper use of
the Propaq MD Battery Pack is critical to the reliable operation of your ZOLL defibrillator.
Conventions
This manual uses the following conventions:
Warning statements describe conditions or actions that can result in personal injury or
death.
Caution Caution statements describe conditions or actions that can result in damage to the Propaq MD
Battery Pack.
Note: Notes contain additional information on using and maintaining the Propaq MD Battery
Pack.
The manual displays button and LED labels in bold face type.
Safety
The following sections provide important warnings, cautions, and notes regarding the ZOLL
Propaq MD Battery Pack.
Warnings
•Locate ZOLL Propaq MD units where they cannot harm the patient or medical personnel if
they fall -- accidental sliding or drop of the Propaq MD Battery Pack may cause physical
injury. Damaged batteries may expose users to a safety hazard. Should the Propaq MD
Battery Pack be dropped, inspect and test the unit prior to further use following the
procedures described in the Maintenance section of this Guide.
•Avoid prolonged exposure of the Propaq MD Battery Pack to direct sunlight to minimize
heating and damage that may occur from exposure to ultraviolet light.
•Propaq MD Battery Packs have been tested against interference from radio frequency
emissions typical of two-way radios used in emergency service/public safety activities.
Refer to the Propaq MD Operator’s Guide to determine recommended operating distances
from RF transmission equipment.
•Do not use Propaq Battery Packs unless they have been visually inspected, tested, and
recalibrated by appropriate personnel and you have been adequately trained in the proper
use of these batteries. See the Maintenance section of this guide for more information.
•Do not disassemble the Propaq MD Battery Pack.
•Charge the Propaq MD Battery Pack in a well-ventilated area.
•You must perform periodic inspection, capacity testing, and functional testing of
rechargable defibrillator batteries to ensure the availability of safe and reliable batteries. See
the Maintenance section of this guide for more information.
•If the battery in use on a Propaq MD unit indicates a fault condition or any operating state
that can prevent the effective use of the defibrillator, replace that battery as soon as possible.

INTRODUCTION
2 www.zoll.com 9650-0809-01 Rev. A
•Do not place foreign objects into battery sockets.
•Do not use the Propaq MD Battery Pack in the presence of flammable agents (such as
gasoline), oxygen-rich atmospheres, or flammable anesthetics. Using the device in the
presence of flammable agents can cause an explosion.
•Do not immerse or set the Propaq MD Battery Pack in liquid. Using the battery near or
within puddles of water may present a shock hazard to the operator, patient, and nearby
personnel.
•Use only ZOLL chargers to charge ZOLL batteries.
•If the display indicators on the Propaq MD Battery Pack are not consistent with the
indicators on the SurePower Charger Station, a fault condition may be present. Remove the
battery from service as soon as practical, and verify the correct operation of the charger,
defibrillator, and battery.
Cautions
•Follow all recommended maintenance instructions. If a problem occurs, obtain service
immediately.
•Do not use alcohol or ketones (MEK, acetone, etc.) to clean Propaq MD Battery Packs.
•Do not sterilize or autoclave Propaq MD Battery Packs.
•Avoid storage of fully depleted Propaq Battery Packs.
•Do not install batteries into a Propaq MD unit that is not plugged into live AC mains when
storage may exceed 90 days. Battery damage may occur.
•If you are disposing of a Propaq MD Battery Pack, contact your local authorities to
determine the requirements for the recycling and disposal of electrical equipment and follow
those requirements.
Notes
•Propaq MD Battery Packs may feel warm to the touch following a large number of shocks
delivered at maximum energy or after recharging.
•You can get additional information about the Propaq MD Battery Pack and its use from the
Propaq MD Operator’s Manual (for example, labeling information -- symbols used, Serial
Number format, Date of Manufacture, and so on).

9650-0809-01 Rev. A Propaq ® MD Battery Pack Guide 3
Using the Propaq MD Battery Pack
The Propaq MD Battery Pack provides enhanced on-board processing that allows the battery to
communicate its specific charging requirements to the SurePower ™Charger Station or Propaq
MD unit. The battery’s on-board processing also allows it to provide the following information:
•The battery’s run time or capacity.
•The battery’s calibration status.
•Battery Fault Indications.

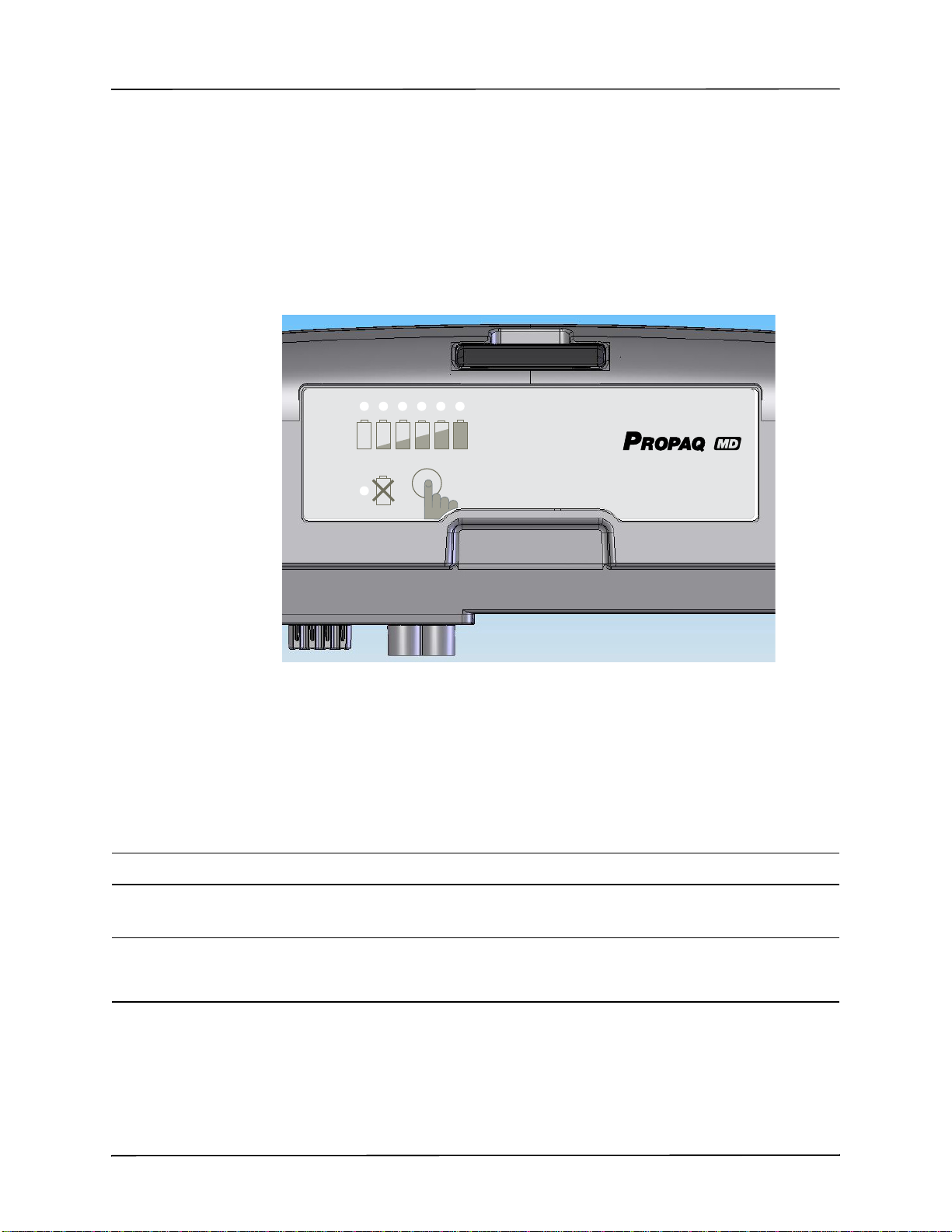

Figure 1-1 ZOLL Propaq MD Battery Pack
Note: ZOLL ships the Propaq MD Battery Pack in a partially charged state and you must
fully charge the battery before first use.
It is very important that you recharge a depleted Propaq MD Battery Pack as soon as possible.
Caution Do not store fully depleted batteries or damage can result.
Caution Do not store fully charged batteries for more than 90 days. Should you need to store a battery for
90 days or longer, see the Extended Storage section of this guide for information on how to do
so.
"




,ITHIUM)ON"ATTERY
=2//


USING THE Propaq MD Battery Pack
4 www.zoll.com 9650-0809-01 Rev. A
Displaying Battery Runtime
The Propaq MD Battery Pack can display its present status.
Note: The Propaq Battery Pack’s LEDs light only when the Display button is pressed.
To display the status of the Propaq MD Battery Pack, press and
release the Display button (momentary press) on the top of the
battery.
When you press and release the Display button, all LEDs blink to
indicate that they work. The battery then lights specific LEDs for
approximately 10 seconds to indicate the battery’s runtime, calibration
status, and fault state.
We describe what these LEDs indicate in the following sections.

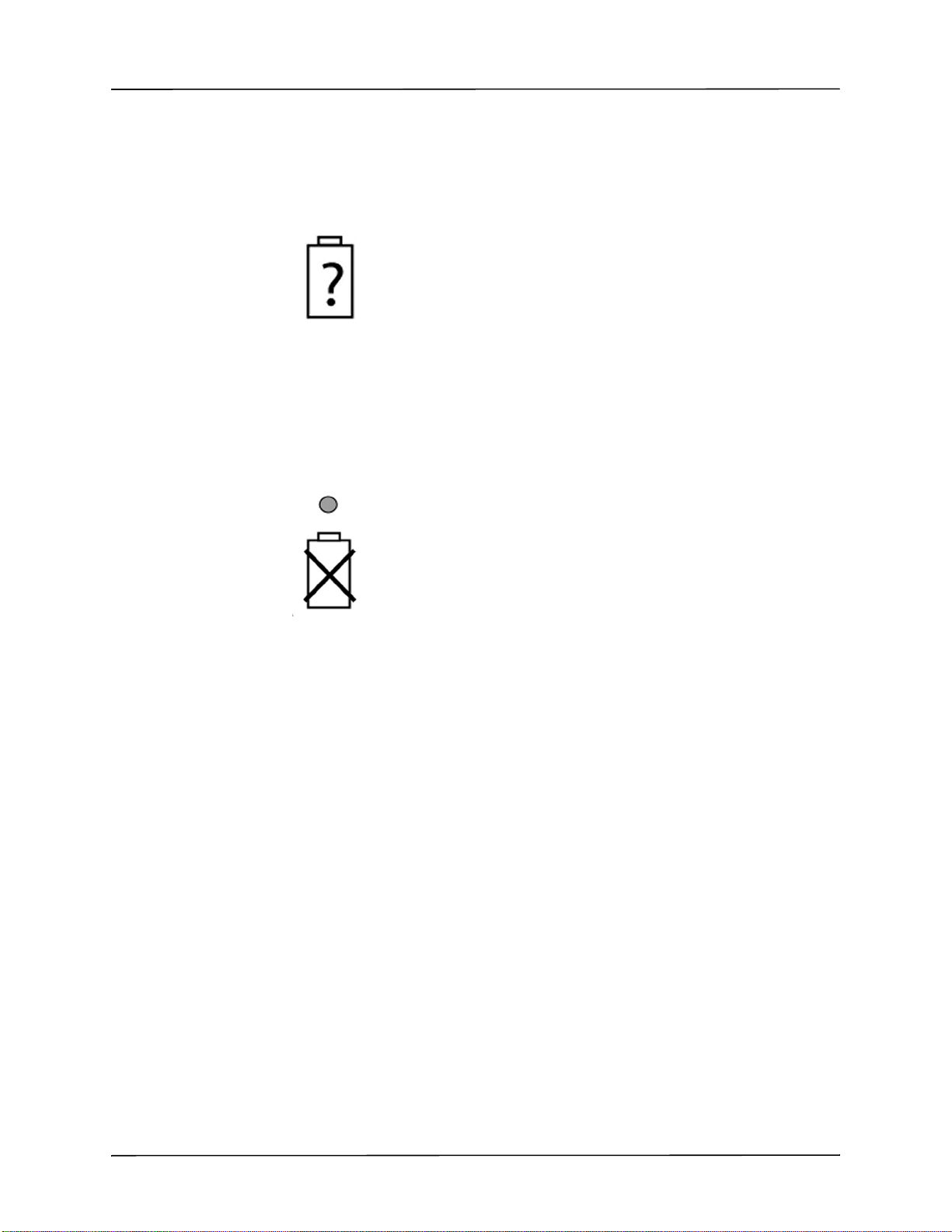

Propaq MD Battery Pack
Icon LED Indications
This is the runtime indicator that displays the estimated
runtime of the Propaq MD Battery Pack in your defibrillator.
When you momentarily press and release the Display
button on the Propaq MD Battery Pack, the LEDs above
these icons light for approximately 10 seconds to indicate
the battery’s estimated run time.
If the battery is fully charged, the LED over each of the five
runtime indicator icons illuminates. As the battery
discharges, the number of illuminated LEDs decreases.
As the Propaq MD Battery Pack discharges, pressing the
Display button will light, from left to right, the LED’s that
indicate the battery’s run time. For example, if four LED’s
light, the battery can power a defibrillator for at least
3 hours (displayed as 3:00+); if three LED’s light, the battery
can power the defibrillator for at least 2 hours (displayed as
2:00+), and so on.
When you press the Display button on a battery that is
installed and powering a Propaq MD unit, the runtime
indicator displays the run time for the battery in that specific
defibrillator.
When a Propaq MD Battery Pack is not installed in a
Propaq MD unit, the runtime indicator displays the
runtime for the battery at a nominal drain rate for a
Propaq MD Unit.
Note: If the left-most LED of the runtime indicator
blinks, the battery has less than fifteen minutes
of use left, and defibrillator shutdown will soon
occur. Recharge the battery as soon as possible.

9650-0809-01 Rev. A Propaq ® MD Battery Pack Guide 5
Cleaning
Clean the Propaq MD Battery Pack with a soft damp cloth and mild soap.
Do not immerse or set the Propaq MD Battery Pack in fluids of any kind. Do not use alcohol or
ketones to clean the Propaq MD Battery Pack.
Maintenance -- Testing and Inspection
Perform a battery check, which verifies that the battery is fully charged and fault free, as part of
any regularly scheduled unit test. Press the battery’s Display button to perform the battery
check.
As part of your defibrillator/monitor maintenance program, verify that the battery’s LEDs work
(press the Display button to test LEDs) -- if the LEDs do not work, remove the battery from
service. Also check the battery casing for cracks or other damage -- if the battery is cracked or
damaged, remove it from service.
Propaq MD Battery Pack
Icon LED Indications
This is the Recalibration icon.
This LED lights for approximately 10 seconds (after you
press and release the Display button) if the battery needs to
be calibrated. If the Recalibration LED lights, the runtime
indicator will not display run time for that battery. For best
performance of the battery, you should recalibrate the
battery as soon as possible.
To manually recalibrate the Propaq MD Battery Pack, you
can insert the battery into the SurePower Charger Station
(using the Propaq Battery Adaptor) and perform a
ManualTest (for more information, see the ZOLL
SurePower Charger Station Operator’s Guide). After you
recalibrate the battery, the Recalibration LED will only flash
momentarily when you press the Display button.
This is the Fault Icon.
If the Propaq MD Battery Pack detects a battery fault, this
LED lights for approximately 10 seconds after you press the
Display button.
If the Fault LED lights, the runtime indicator will not display
run time for that battery.
See the following section for more information on battery
faults.

USING THE Propaq MD Battery Pack
6 www.zoll.com 9650-0809-01 Rev. A
Extended Storage
Do not store the Propaq MD Battery Pack for extended periods in a fully charged state. If you
must store the Propaq MD Battery Pack for an extended period
1. Charge the Propaq MD Battery Pack until three runtime LEDs light (this takes
approximately 1.5 hours when charging a fully depleted battery).
2. Recharge the Propaq MD Battery Pack until three runtime LEDs light every 4 months.

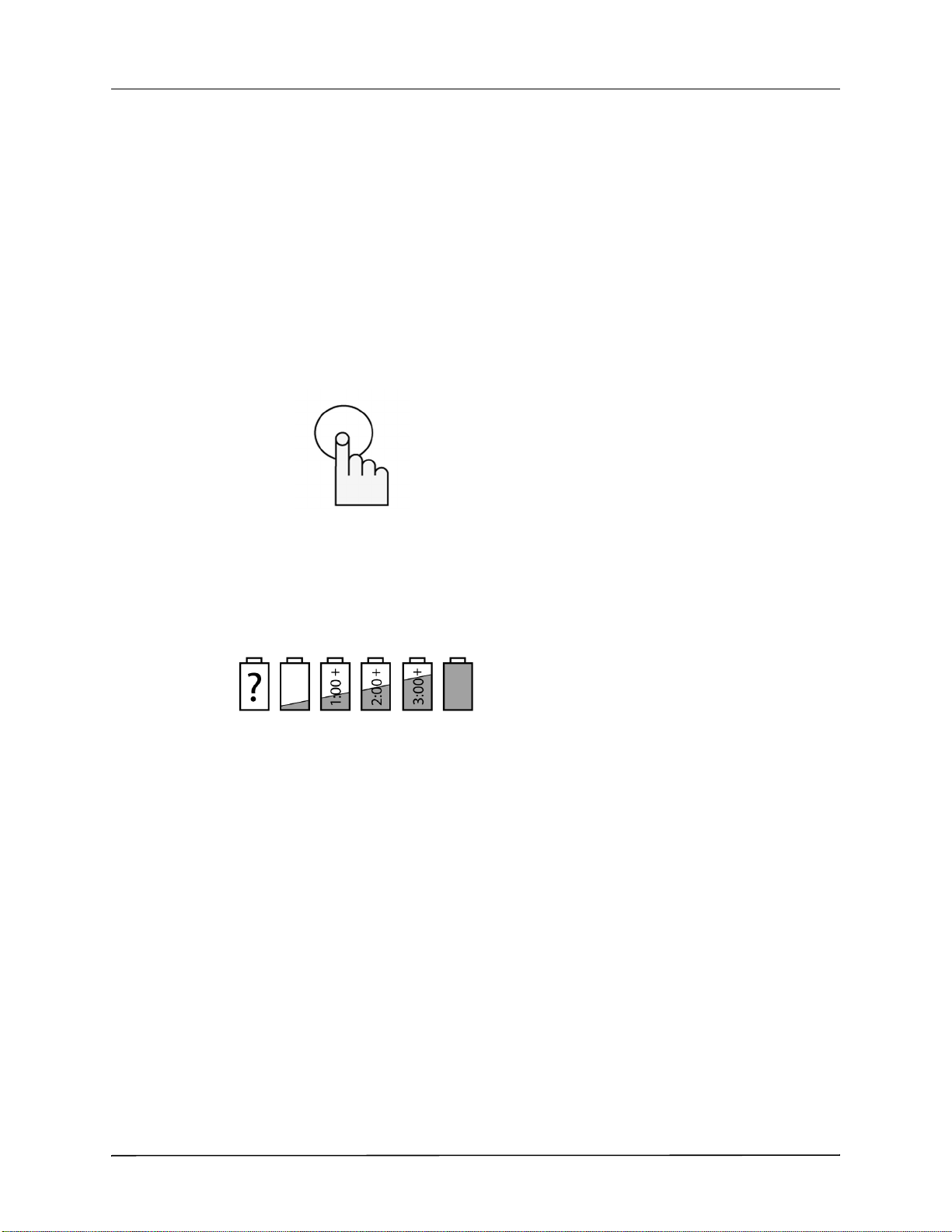

Checking Capacity Loss
To check battery capacity (the amount of charge the battery can hold), press and hold down the
Display button for at least 5 seconds.
Press and hold down the Display button for at least
5 seconds.
While you hold down the Display button, the
runtime indicator displays the battery runtime.
When you release the Display button, the
runtime indicator displays the battery capacity
for 2 seconds, then redisplays the battery
runtime.
During the 2 seconds after you release the
Display button, the runtime indicator displays
battery capacity and will light five LEDs to
indicate that the capacity is equal or close to
that of a new battery.
After displaying battery capacity for 2 seconds,
all LEDs blink and then display the battery’s
runtime.
Over time, as you use a Propaq MD Battery
Pack, the battery capacity decreases and this
capacity check will light fewer LEDs. When the
capacity check lights only a single LED, the
battery is at or near 60% of its original capacity,
and you should remove the battery from service.
If the Recalibration or Fault LED lights after
you release the Display button, the runtime
indicator will not display the capacity or run time
for that battery.

9650-0809-01 Rev. A Propaq ® MD Battery Pack Guide 7

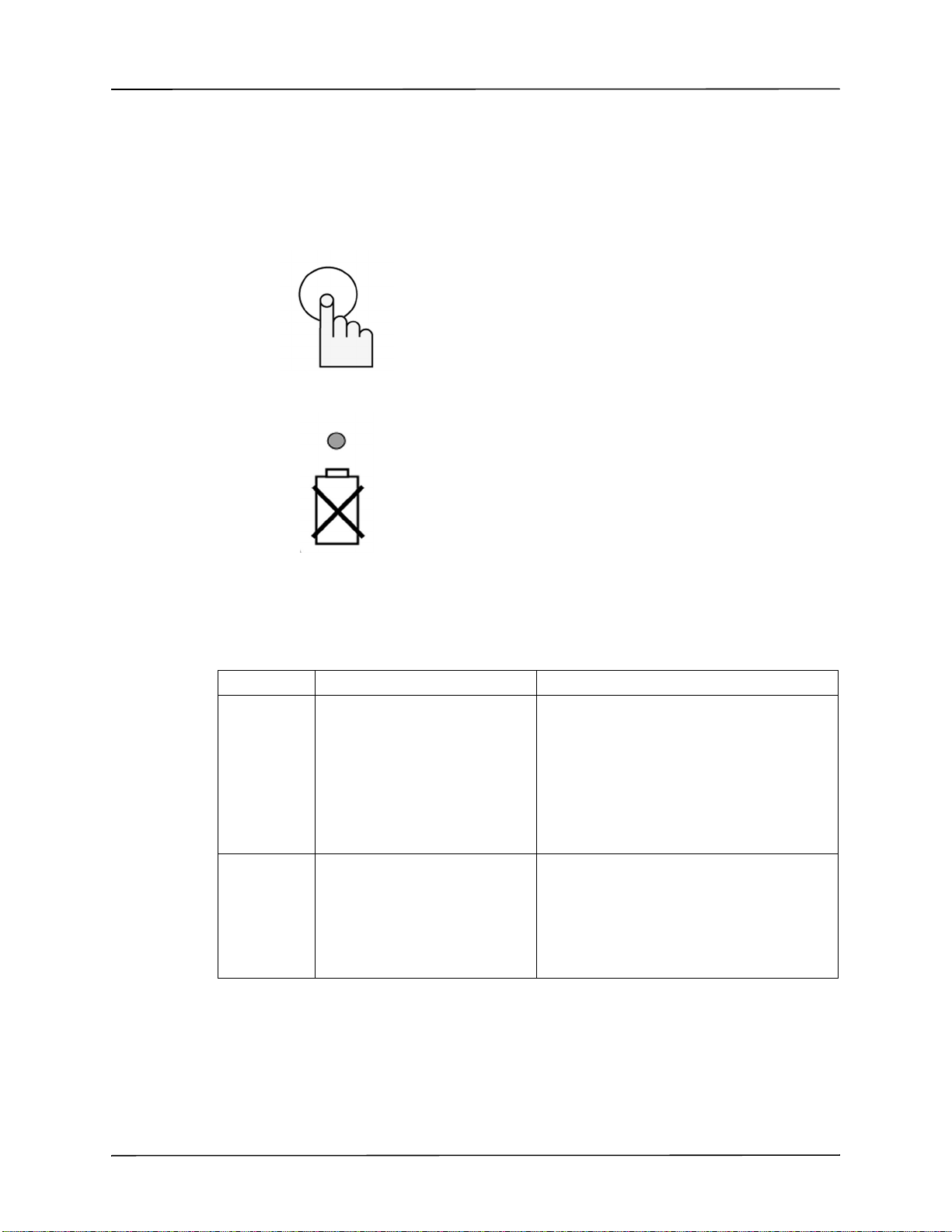

Understanding Battery Faults
The Propaq MD Battery Pack can detect one or more simultaneously occurring faults that
render the battery unfit for use.
To determine the faults that affect a battery, follow this procedure when the fault light is on:
The following table lists battery temperature faults and actions you can take to clear these fault
conditions. All other fault codes require you to remove the battery from service. For more
information on these fault codes, see the Propaq MD Service Manual.
Press and hold down the Display button for at least
15 seconds.
If the battery does not detect any battery faults, all of the
LEDs will light for 10 seconds.
The Fault LED will blink to indicate the code that identifies
the battery fault (there will be a brief delay before the LED
blinks).
The fault codes number from 1 to 29. To indicate fault code
1, the Fault LED blinks once. To indicate fault code 2, the
LED blinks twice, and so on.
If the battery detects multiple battery faults, it displays the
first fault code, pauses briefly, and then displays the next
fault code, and so on.
Fault ID Fault Type Recommended Action
13 Battery Over Temperature
During Charge.
The battery is at or above its
maximum temperature for
charging (140°F/60°C).
Move the battery to a cooler room or out of
direct sunlight, if possible, and allow the
battery to cool before continuing to charge the
battery.
If the ambient temperature was low when the
battery reached or exceeded its maximum
temperature, do not use this battery.
14 Battery Under Temperature
during Charge.
The battery is at or below the
minimum temperature for
charging (32°F/0°C).
Move the battery to a warmer room (above
32°F / 0°C) and allow the battery to warm up
before charging again.

USING THE Propaq MD Battery Pack
8 www.zoll.com 9650-0809-01 Rev. A
Propaq MD Battery Pack Specifications
*For extended storage periods, store the Propaq MD Battery Pack between 60°F to 77°F
(15°C to 25°C) to minimize capacity loss.
Type Lithium Ion
Size 7 (Length) x 3.7 (Width) x 1.2 (Height) in
17.8 (Length) x 9.3 (Width) x 3 (Height) cm
Weight 1.4 lb (.64 kg)
Voltage 11.1 V
Capacity 6.6 Ah when charged to 12.6V
Operating Temperature 32°F to 122°F
0°C to 50°C
Optimal Charging
Temperature 59°F to 95°F
15°C to 35°C
Short Term Storage/
Transportation
Temperature *
-22°F to 158°F
-30°C to 70°C
Particle and Water Ingress
Protection IP 55
Altitude of Operation -557.7 ft through 15,000 ft (below and above sea level)
-170 m through 4572 m (below and above sea level)
103 kPa through 57 kPa
