Sercomm NA502S-4G User manual

i
NA502S-4G
Multiple RF Home
Gateway

ii
User Guide
Table of Contents
CHAPTER 1 INTRODUCTION.............................................................................................. 1
Package Contents .............................................................................................................. 1
Features.............................................................................................................................. 1
LEDs................................................................................................................................... 2
CHAPTER 2 INITIAL INSTALLATION .............................................................................. 5
Requirements..................................................................................................................... 5
Procedure........................................................................................................................... 5
SIM Card Installation....................................................................................................... 7
CHAPTER 3 CONFIGURATION........................................................................................... 8
Configuration..................................................................................................................... 8
APPENDIX A SPECIFICATIONS.......................................................................................... 9
Multiple RF Home Gateway............................................................................................. 9
Regulatory Approvals....................................................................................................... 9
Copyright 2016. All Rights Reserved.
Document Version: 1.0
All trademarks and trade names are the properties of their respective owners.

1
Chapter 1
Introduction
This Chapter provides an overview of the Multiple RF Home Gateway's fea-
tures and capabilities.
Congratulations on the purchase of your new Multiple RF Home Gateway. The Multiple RF
Home Gateway is a consumer electronic device, which is designed to bridge all appliances of
your home, from IP cameras to sensors, and allow you to monitor and manage them over the
Internet. Most of the devices can be paired with the gateway via a single button push.
Package Contents
The following items should be included:
Multiple RF Home Gateway Unit x 1
Power Adapter x 1
If any of the above items are damaged or missing, please contact your dealer immediately.
Features
MT7621S processor with128MB Flash and 512MB RAM
One 10/100/1000 Ethernet port with RJ45 connector
Front Panel LEDs
Z-Wave Transceiver
ZigBee Transceiver
4G Wireless
USB 2.0 port
Battery Backup (2hours)
SIM Card Slot
Built-in Siren
Internal antenna for WiFi, ZigBee, Z-Wave and 4G
1

2
LEDs
Front Panel
The Multiple RF Home Gateway has 7 LEDs.
POWER (Green)
On - Power On/Normal Operation
Off - Power Off
Flashing - Rebooting.
4G
(Green)
On - 4G connection established.
Off - No active 4G connection.
Flashing - Data is being transmitted or received via the 4G con-
nection.
ZigBee
(Green)
On - ZigBee mode is selected.
On (5 seconds) - ZigBee sensor added or synchronization is suc-
cessful.
Off - ZigBee module is in idle mode.
Flashing - ZigBee module is in active mode.
Z-Wave
(Green)
On - Z-Wave mode is selected.
On (5 seconds) - Z-Wave sensor added or synchronization is suc-
cessful.
Off - Z-Wave module is in idle mode.
Flashing - Z-Wave module is in active mode.

3
WiFi
(Green)
On - WPS mode is selected.
On (5 seconds) - WiFi connection is established.
Off - No WiFi connection available.
Flashing - Data is being transmitted or received via the Wireless
connection.
Service
(Green)
On - Cloud service is available and working properly.
Off - Cloud service is not available.
Flashing - Cloud service is not sending data properly.
Security
(Green)
On-Security function is enabled(Arm).
Off-Security function is not enabled(DisArm).

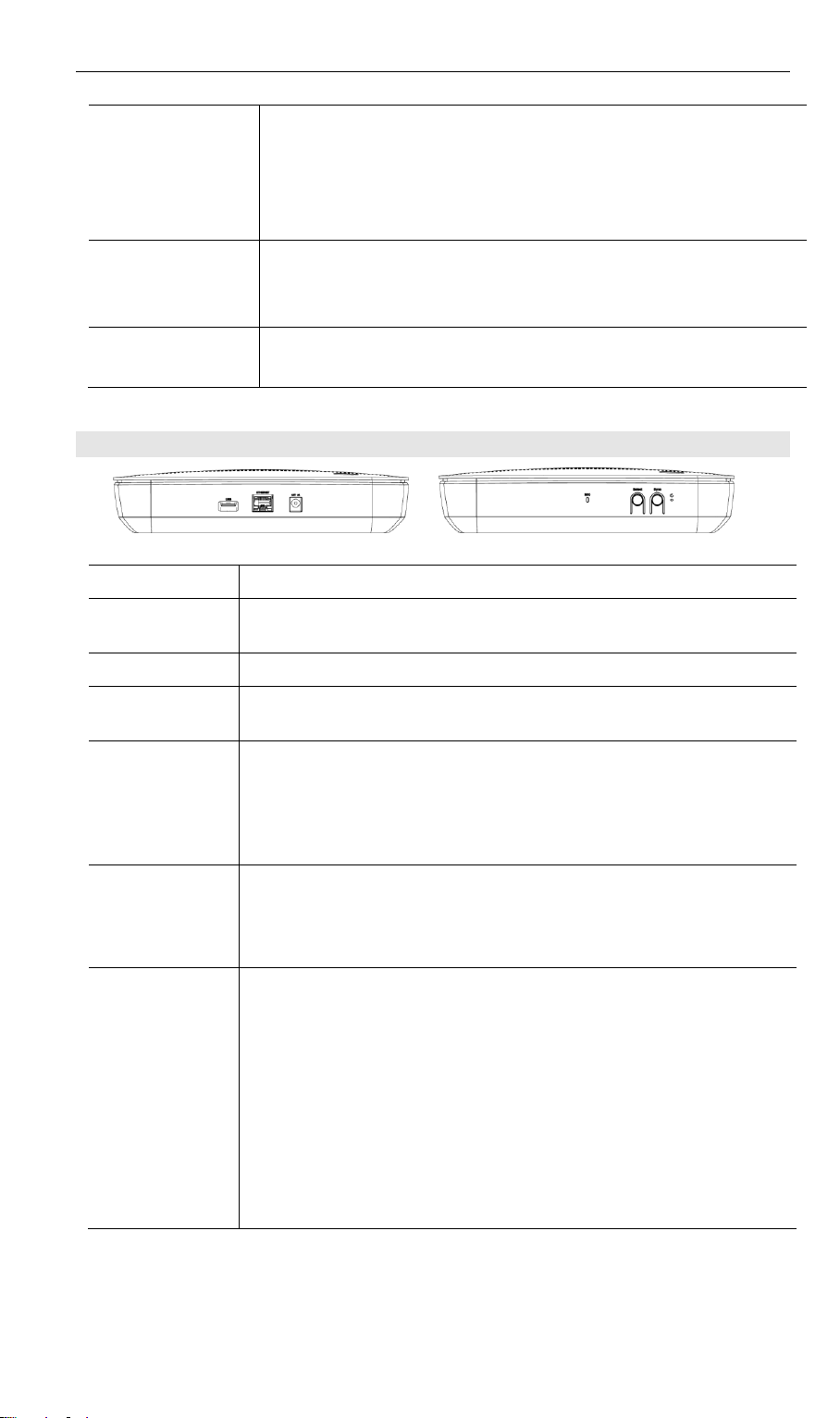

Rear/Side Panel
Power Port
Connect the supplied power adapter here.
ETHERNET
Port
Use a standard LAN cable (RJ45 connector) to connect your PC to the
port.
USB Port
The connector is USB host with support for mass storage device.
Mic
The built-in microphone is located on the side of the device(Function
Disabled).
Select Button
Push the Select button on the device to choose the desired RF mode
(WiFi/Z-Wave/ZigBee), and then the LED of the selected mode
will be on.
Push the Select button for three seconds again to unselect the RF
mode if needed.
Sync Button
After selecting the RF mode, push the Sync button to synchronize
the gateway and sensors.
Push the Sync button for three seconds again to stop the synchroni-
zation process if needed.
Reset
This button has two (2) functions:
Reboot. When pressed and released, the Multiple RF Home Gate-
way will reboot (restart).
Clear All Data. This button can also be used to clear ALL data
and restore ALL settings to the factory default values.
To Clear All Date and restore the factory default values:
1. Power On.
2. Keep holding the Reset Button down for 3 seconds.
Release the Reset Button. The Multiple RF Home Gateway is now using
the factory default values.

4
Rear Panel
System on/off
switch
On –System Power (default).
Off –System Power off but Battery is still in charged..

5
Chapter 2
Initial Installation
This Chapter covers the software installation of the Multiple RF Home Gate-
way.
Requirements
Use a standard 10/100/1000 BaseT network (UTP) cable with RJ45 connector.
Procedure
1. Choose an Installation Site
Select a suitable place to install the Multiple RF Home Gateway.
2. Connect Battery Plug Connector
The supplied backup battery can provide excellent continuous power source when discon-
necting power to the device.

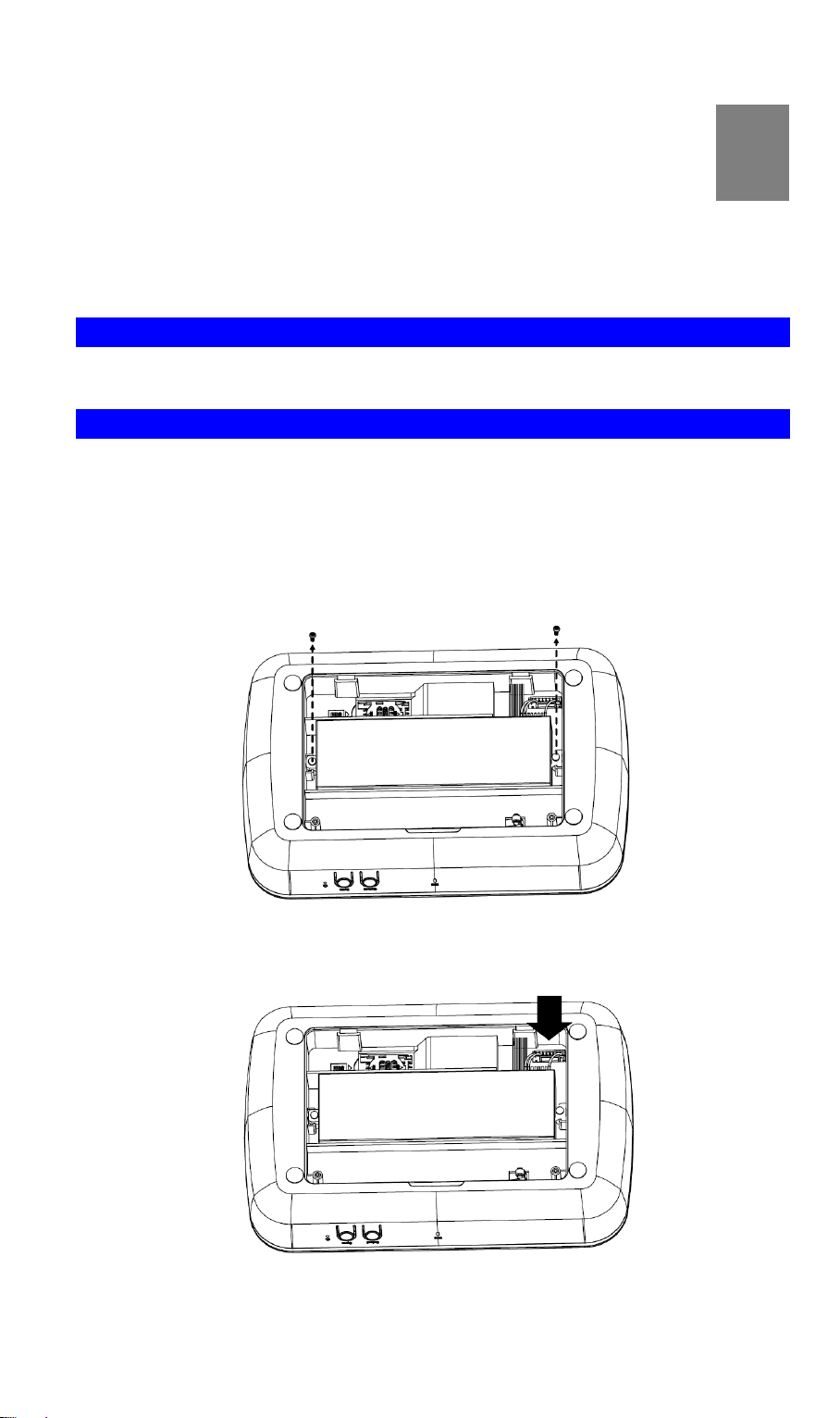

1.Remove the screws on the back cover of the device with a screwdriver.
2.Put the battery connector into the plug, and this will charge and maintain your device’s
backup battery.
3.Attach the back cover to the device with the screws.
2

6
3. Connect LAN Cable

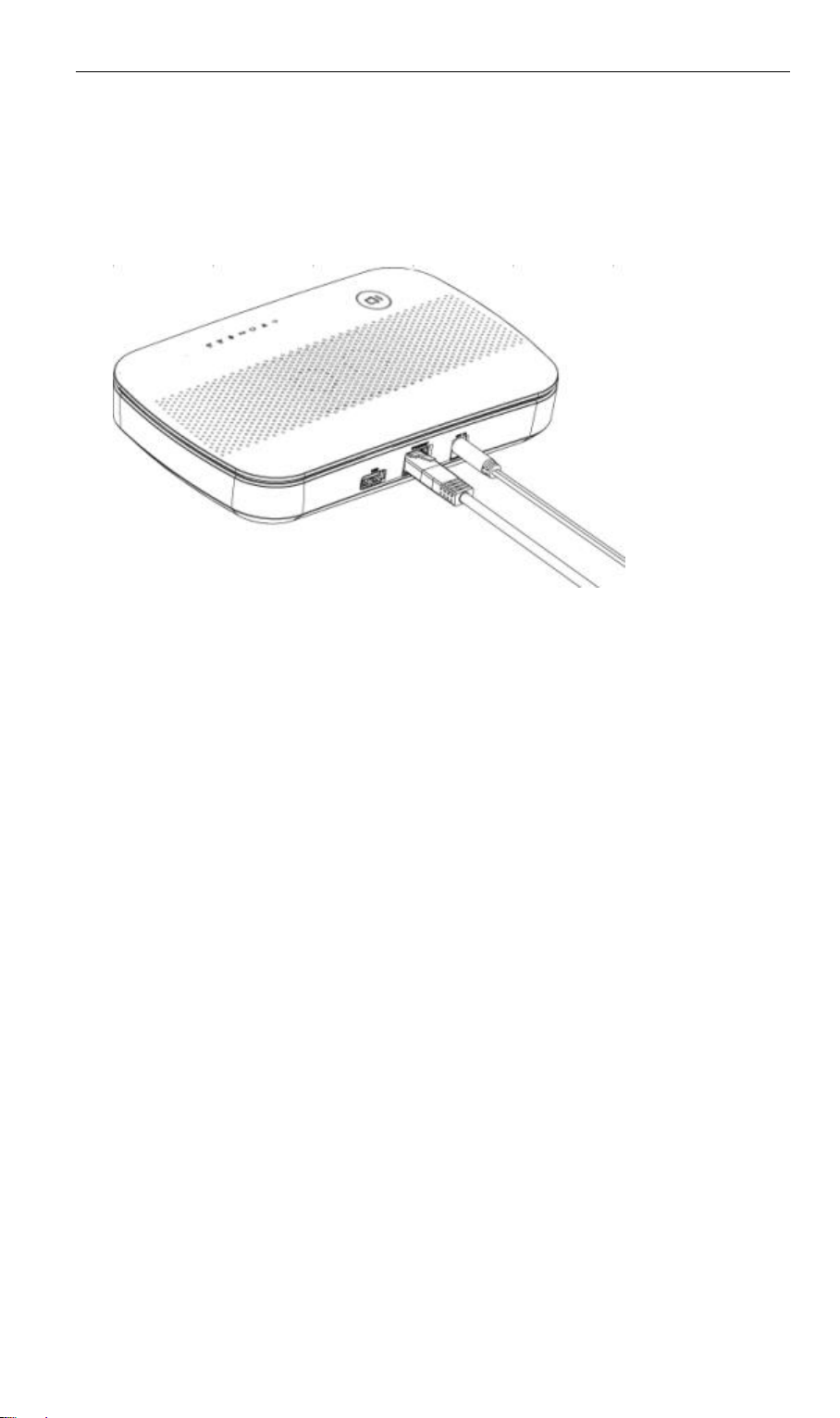

Use a standard LAN cable to connect the device to the Ethernet port on the Multiple RF
Home Gateway.
4. Power Up
Connect the supplied power adapter to the Multiple RF Home Gateway. Use only the
power adapter provided. Using a different one may cause hardware damage.
5. Check the LEDs
The Power LED should be ON.
The WiFi LED should be ON (provided the PC is also ON.)

Initial Installation
7
SIM Card Installation
1. Ensured the device is powered off.

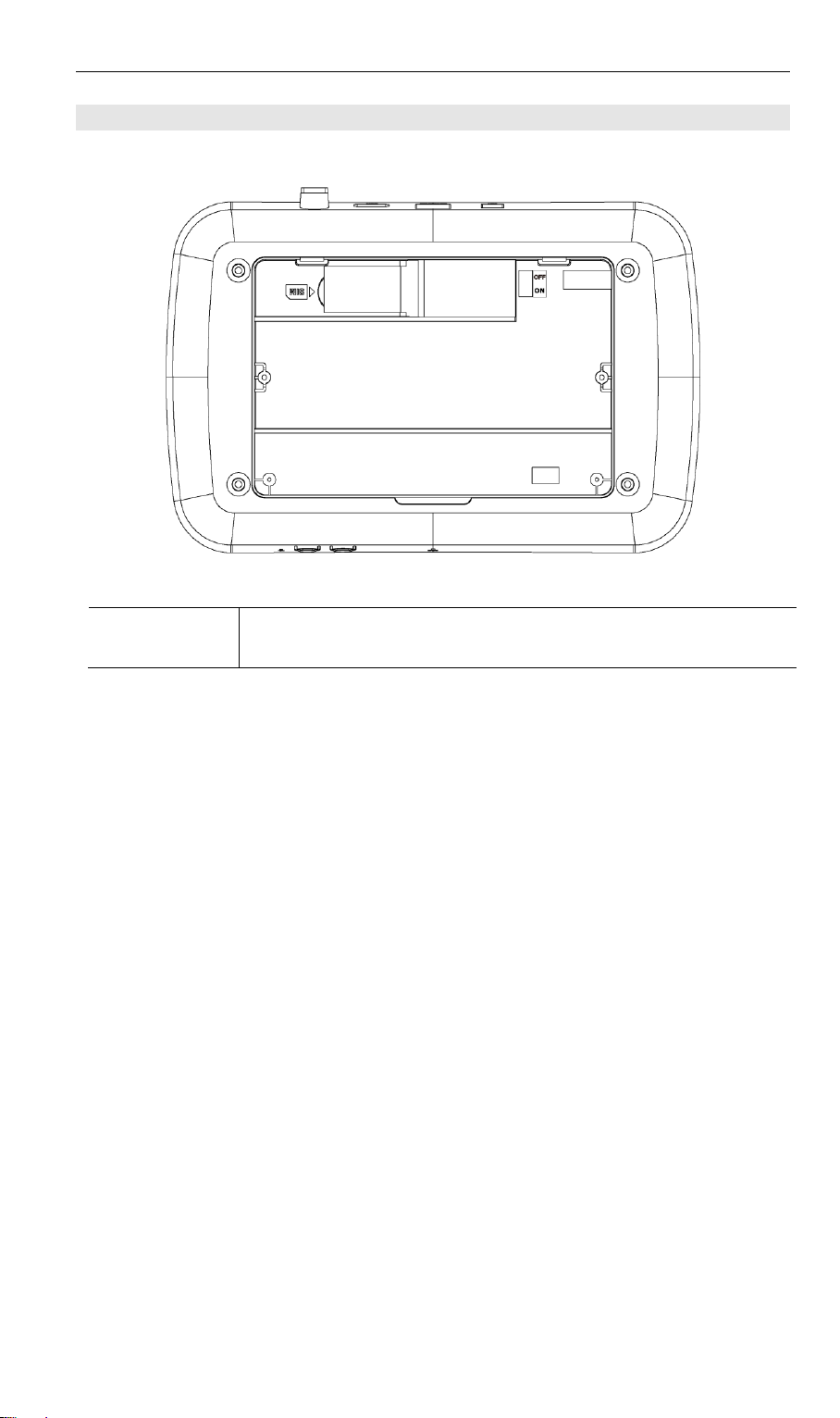

2. Remove the screws on the back cover of the device with a screwdriver.
3. Find the location of the SIM card tray.
4. Push the SIM card cover upward.
5. Insert the SIM card into the slot. Make sure the SIM card is installed correctly.
6. Put the SIM card cover back.
7. Attach the back cover to the device with the screws.

8
Chapter 3
Configuration
This Chapter provides Setup details of the Gateway.
Configuration
The Multiple RF Home Gateway can offer customers with seamless communication between
devices and clouds while at home or away. This gateway is designed to provide complete con-
nectivity with all certified devices including cameras, security systems and WiFi/ZigBee/Z-
Wave/4G devices.
Preparation
Before attempting to configure the Multiple RF Home Gateway, please ensure that:
Your PC can establish a physical connection to the Multiple RF Home Gateway. The PC
and the Multiple RF Home Gateway must be directly connected (using the Hub port on the
Multiple RF Home Gateway) or on the same LAN segment.
The Multiple RF Home Gateway must be installed and powered ON.
Choose the desired RF mode by using the Select button of the gateway, and then push the
Sync button for pairing the gateway and sensors. Make sure that the gateway and added
sensors are synchronized successfully before using.
After completing the preparation, the Multiple RF Home Gateway is ready to be used.
3
