41535-01 10/8/2001 1 © 2001 Hunter Fan Company
Caution!
1. Read entire instructions before beginning installation.
2. To avoid possible electrical shock, be certain electric-
ity is shut off at main panel before wiring.
3. All wiring must be in accordance with national and lo-
cal electrical codes. If you are unfamiliar with wiring,
you should use a qualified electrician.
4. Toreducethe risk ofpersonal injury,install the fanonly
tothebuildingstructureaccordingtotheseinstructions,
and use only the hardware supplied.
WARNING!
1. Toreduce the riskof fireor electrical shock, do notuse
a solid state speed control with this fan.
2. To reduce the risk of personal injury, do not bend the
bladebrackets when installingthe brackets, balancing
the blades, or cleaning the fan. Do not insert foreign
objects in between the rotating fan blades.
Step 1: Pre-installation Instructions
A. Selectinstallation site. Checkto see thatin normal use
no object can come in contact with the rotating fan
blades. The mounting site should also meet the pre-
cautions listed in Step 3 below.
B. Installationhardware is includedfor a standard drywall
or plaster ceiling. You will need a 4" x 1-1/2" or 4" x 1/
2" octagon outlet box and wire nuts (3) which can be
purchased from any hardware store or electrical sup-
ply house.
C. The fan blades must be mounted at least 7' above the
floor. For maximum efficiency, they should not have
any obstruction (walls, posts, etc.) within 24" of the
blade tips. See Figure 1 for mounting distances.
Step 2: Inspection of Fan
A. Unpack the fan carefully to avoid any damage to the
components.
B. Check for any shipping damage to the motor assem-
bly and the fan blades. If more than one fan is being
installed, keep the matched and balanced fan blades
in sets of five as they were shipped. Should one of the
fan blades become damaged during shipment, return
all blades in the set for replacement.
C. Checkcontents to be certain itcontains abag of parts.
Step 3: Installation of Outlet Box and
Rough-In Wiring
Caution: Your Hunter ceiling fan with accessories can
weighupto35pounds.Thefollowingprecautionsmust
be taken for safety and to ensure that your fan is se-
curely mounted to the ceiling.
• Be certain electricity is “off” at the fuse panel when
inspecting or repairing installation site.
• Allwiringmustmeetlocaland national electrical codes.
• Do not mount directly to an unsupported ceiling or to
an electrical outlet box. Mounting must support a 35
pound fan with accessories.
A. Securemetallic outlet box 4" x1-1/2" or4" x 1/2" deep
to2x4crossbracebetweentwoceilingjoistsasshown
in Figure 2. The outlet box must be recessed into the
ceiling by 1/16" minimum. Secure the outlet box to the
crossbrace by drilling (2) pilot holes no larger than the
minor diameter of the wood screws (5/64") and use
two #8 x 1-1/2" wood screws and washers. Use the
innermost holes for securing the box. Orient the box
sotheoutermostholes are aligned withthe2x 4 brace.
Caution: Do not use lubricant on screws.
®
Installation Instructions
For Hunter Low Profile Ceiling Fan
Read And Save These Instructions
CEILING JOIST
2 x 4 WOOD BRACE
CEILING OUTLET BOX
#8 WOODSCREW &
WASHER (2) REQUIRED

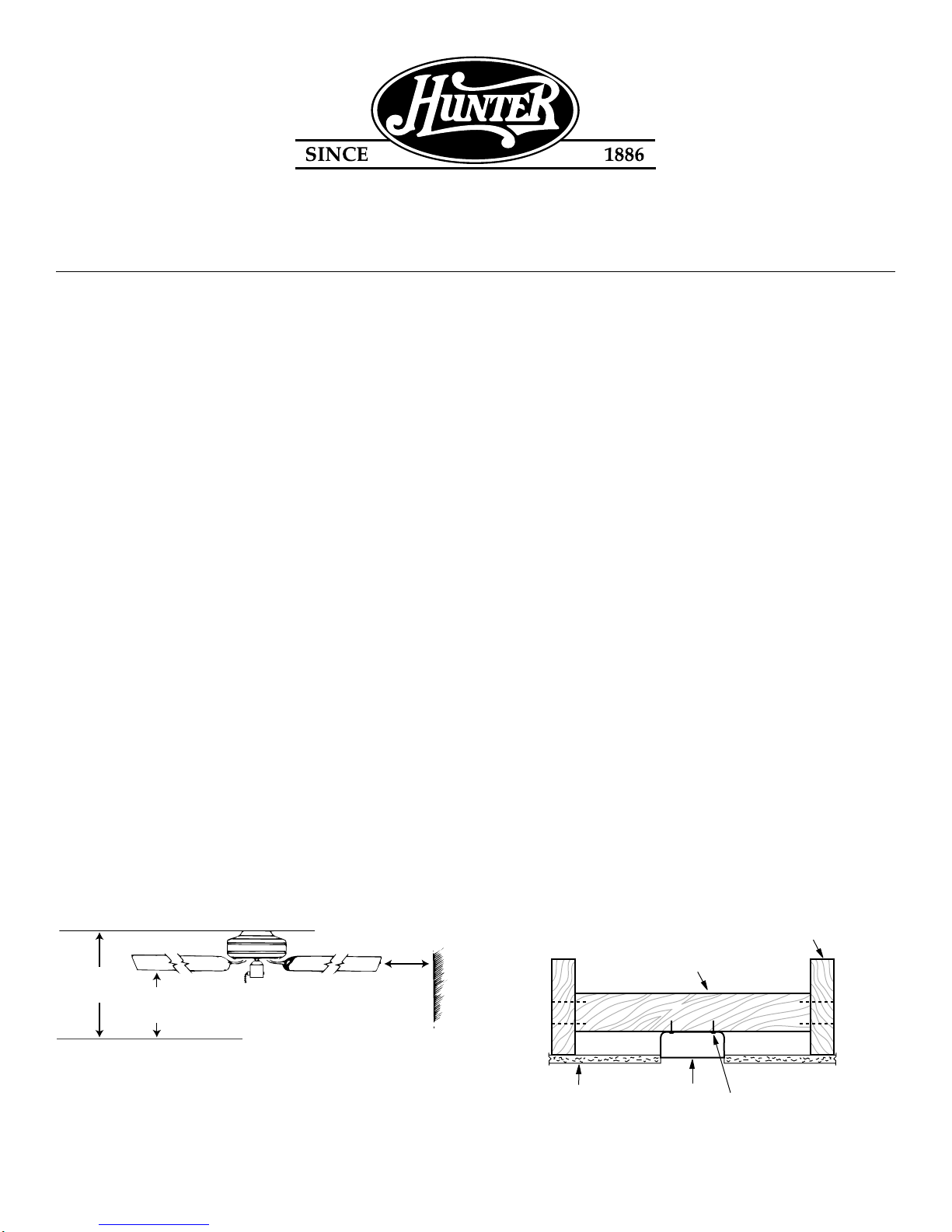

FIGURE 1
FIGURE 2
8' MIN
Ceiling to
Floor 7' MIN
Ceiling to
Floor
24"
Clearance
to Obstructions

41535-01 10/8/2001 2 © 2001 Hunter Fan Company
B. Bringelectrical cable intotheoutletbox and attach with
anapprovedconnector.Makecertain that wiring meets
allnationalandlocalelectricalcodes.Wireleadsshould
extend at least 6" beyond outlet box for ease in mak-
ing connections. See Figure 3.
Step 5: Hanging of Motor
Caution: Do not lift motor by wires.
A. Liftthemotorandinserttheplastichangerintotheopen-
ing in the front of the hanger bracket. See Figure 7.
Make sure none of the wires are trapped between the
plastic hanger and the inside of the hanger bracket.
B. Rotatethe motor andplastic hanger assemblyuntilthe
lowerhalf of the plastic hanger fits into thesquareopen-
ing in the bottom of the metal bracket. Check the as-
semblyby trying torotate the motor and plastichanger
assembly. When properly installed the upper part of
the plastic hanger will sit flat inside the hanger and the
assembly will not rotate. See Figure 8.
Caution: Make sure plastic hanger cannot rotate in
metal bracket. Failure to check this could result in the
motor falling.
NOTE: The green ground wire attached to the plastic
hangershouldfacethe opening in thefrontofthemetal
hanger bracket.
Step 4: Installation of Ceiling Plate
A. Install the four (4) rubber bushings into the top of the
ceiling plate by inserting the small side of the bushing
into the four holes in the ceiling plate. See Figures 4
and 5.
B. Threadthe lead wiresthrough the openingin the topof
theceiling plate and throughthe opening inthe side of
the hanger bracket. See Figure 6.
Using the two center slots, attach the ceiling plate to the 2
x 4 brace supporting the outlet box. Use (2) #10
woodscrews 3" long for mounting through the outer-
most holes. Drill two pilot holes 9/64" diameter in the 2
x 4 brace for mounting screws. See Figure 6.
NOTE: When attaching the ceiling plate to the outlet box
support, make certain that bushings remain in place.
NOTE: Tighten the ceiling plate mounting screws only
enoughttoprovide slight compressionofthe bushings.
Do not overtighten.
CONNECTOR 6" MIN. LEAD LENGTH
BUSHING
CEILING PLATE
BUSHING
OUTLET BOX 2 x 4 BRACE
HANGER BRACKET
CEILING
PLATE
FLAT WASHER
MOUNTING
SCREWS
PLASTIC
HANGER
MOTOR
HANGER
BRACKET
HANGER BRACKET
FIT LOWER HALF
OF PLASTIC
HANGER INTO
SQUARE HOLE
IN BOTTOM OF
HANGER BRACKET
FIGURE 3
FIGURE 4
FIGURE 5
FIGURE 6
FIGURE 7
FIGURE 8

41535-01 10/8/2001 3 © 2001 Hunter Fan Company
Step 6: Final Wiring
A. Connect electrical supply leads to the leads from mo-
tor, using approved connectors. See Figure 9.
1. Connectblack electrical supplylead to theblack motor
lead and the black with white stripe motor lead (see
note).
2. Connect the white electrical supply lead to the white
motor lead.
3. Connect the ground wire to the green leads.
NOTE: Ifaseparatewallswitchwillbeused to control a light-
ingaccessory,connecttheblackwirewithawhitestripeto the
wallswitch lead, following wiring instructions included with
theaccessory. Thewallswitchmust be acceptable foruseasa
general-useswitch.
Caution: No bare wire or wire strands should be vis-
ible after making connections.
B. After making the wire connections, the wires should
be spread apart with the white and the green wires on
one side of the outlet box, and the black and black/
white wires on the other side of the box. The splices
should be turned upward and pushed carefully up into
the outlet box.
NOTE: If the wires are not pushed up into the outlet box,
they could strike the motor when it operates.
Step 8: Attaching and Balancing the
Blades
A. Attachwood blades toblade brackets using(3)screws
for each blade. See Figure 11. If your blades have
large holes you must first insert the rubber grommets
into the holes. See Figure 12.
NOTE:Grommets are usually assembledbyhand.If you use a
toolmakecertainyoudonotdamagethegrommetorbladewhen
insertingthegrommets.
Next, assemble the blade to the blade bracket. Make
sure all screws are tight to prevent vibration or wob-
bling. A cavity in the Styrofoam packaging has been
provided to nest the parts in during assembly to as-
surecorrect alignment ofparts. Even whenthe screws
are tight the blades may seem to be loose. This is nor-
mal when using grommets and will not be a problem.
Grommet
Fan
Blade
FIGURE 12
LOCKING
SCREWS
Step 7: Finish Fan Assembly
A. Usingtwo 8-32byapproximately5/8”longscrewsfrom
sack parts, thread the plastic hanger locking screws
into the back of the hanger bracket. See Figure 9.
Thescrews should be driven allthewayintothebracket
and tightened. The screws are located just above the
plastichanger andpreventthemotorfrom twistingwhen
the blades are assembled
Check and make sure all wiring is tucked up into the outlet
box.
B. Place the fan housing over the motor assembly and
fasten the housing to the ceiling plate using the four
screws provided (two into each side). See Figure 10.
Check and make sure the motor clears the opening in the
bottom of the housing.
FIGURE 11
ASSEMBLY
SCREWS
FAN HOUSING
FIGURE 9
FIGURE 10

41535-01 10/8/2001 4 © 2001 Hunter Fan Company
FIGURE 13
FIGURE 14
Switch
Housing
Mounting
Plate
Housing
Assembly
Screw
Upper Plug
Connector
Upper Switch
Housing
B. Remove the screws from the motor hub. Insert one of
these screws in hole in blade bracket. Use a screw-
driverto hold in place.Align blade holeswith mounting
holes in hub, by turning screw and readjusting blade
bracket until screw mates with threaded hole in hub.
Donottighten until bothscrews have been putin blade
bracket. Repeat for all blades. See Figure 13.
C. A blade balancing kit has been provided with your fan.
Should the fan wobble in operation, you may use this
kit to correct the balance per the instructions supplied
with the kit.
Step 9: Attaching The Upper Switch
Housing
A. Partially install two #6-32 x 3/8" housing assembly
screwsintotheswitchhousingmountingplateasshown
in Figure 14.
B. Feedtheupperplugconnector throughthecenteropen-
ing of the upper switch housing. See Figure 14.
C. Alignthekeyholeslots in theupperswitchhousing with
the housing assembly screws installed in sub-stepA.
D. Turn the upper switch housing counterclockwise until
thehousing assembly screws are firmly situated in the
narrowend of thekeyhole slots as shown inFigure 15.
Install the one remaining #6-32 x 3/8" housing assem-
bly screw into the third hole in the upper switch hous-
ing. Tighten all three screws firmly.
Caution: Make sure the upper switch housing is se-
curely attached to the switch housing mounting plate.
Failure to properly attach and tighten all three hous-
ing assembly screws could result in the switch hous-
ing and light fixture falling.
UPPER SWITCH
HOUSING
UPPER PLUG
CONNECTOR
LOWER SWITCH
HOUSING
ASSEMBLY
SCREW
LOWER PLUG
CONNECTOR
Step 10: Attaching The Lower Switch
Housing
Warning:
•To avoid possible electrical shock disconnect power
byturning offthe circuit breakers both to the outletbox
andto its associatedwall switch location.If you cannot
lock the circuit breakers in the off position, securely
fasten a prominent warning device, such as a tag, to
the service panel.
•All wiring must be in accordance with national and lo-
cal electrical codes andANSI/NFPA70. If you are un-
familiar with wiring, you should use a qualified electri-
cian.
A. Connect the upper plug connector from the motor to
the lower plug connector in the lower switch housing
assembly. See Figure 16.
Note: Both plug connectors are polarized and will only fit
togetheroneway.Makesurethatbothconnectorsareprop-
erly aligned before connecting them together. Incorrect
connection could cause improper operation and damage
to the product.
B. Place the lower switch housing assembly over the up-
per switch housing. Align the side screw holes in the
upper and lower switch housings. Attach the lower
switch housing to the upper switch housing with three
#6-32x 3/8" housing assemblyscrews. See Figure16.
FIGURE 15
FIGURE 16

41535-01 10/8/2001 5 © 2001 Hunter Fan Company
Step 11: Operation of Fan
A. Turn electrical service on at main panel.
B. Switch operates in this sequence: “high,”“medium,”
“low,”“off.”Pull chain slowly to operate.Also, release
the chain slowly so as to prevent chain from flying up
into blades, possibly resulting in damage to blades or
pull chain. The breakaway connector is designed to
separate from the chain at a predetermined force. If
thisseparationoccurs,simplyreinsert connector. It can
be reused again and again.
C. Motoriselectricallyreversible.Whenfirstoperatingfan,
determine direction of air flow. If you wish to change
direction,switch fan offand allowto stop. Slide revers-
ingswitch to the opposite position and switch fan back
on.
1. Nothing happens; fan does
not move.* 1. Power turned off or fuse blown.
2. Loose wire connections or wrong con-
nections.
3. Motor reversing switch not engaged.
4. Pull chain switch not “on”.
5. Rubber shipping blocks not removed.
1. Turn power on or replace fuse.
2. Loosen canopy, check all connections
(turn power off while checking).
3. Pushswitchfirmlyto onesideortheother.
4. Pull switch chain.
5. Remove shipping blocks.
1. Blade irons loosely screwed to motor.
2. Blade screwed loosely to blade iron.
3. Blade cracked.
4. Non-approved speed control being
used.
1. Tighten screws until snug.
2. Tighten screws.
3. Replace all four blades.
4. Change to approved speed control.
2. Noisy operation.
3. Excessive wobbling. 1. Unbalancedblades.
2. Fan too close to vaulted ceiling.
3. Loose blades or blade brackets.
4. Fan not secure on hanger assembly.
1. Use balancing kit.
2. Lower or move fan.
3. Tighten all screws.
4. Turn poweroff,supportfanvery carefully,
loosen canopy and hang correctly.
Problem Probable Cause Solution
Troubleshooting Guide
* If blades will not turn by hand, contact your nearest service representative.
When switching from medium to low speed, you may notice some fan wobble. When fan speed stabilizes at low speed,
wobble will disappear. If you have checked the above problems and still have trouble, call 901-248-2222.
