Emerson MAYA ZEN CF750ORB00 User manual

Part No. F40BP73330000 Form No. BP7333
UL Model No.: CF750
READ AND SAVE THESE INSTRUCTIONS
Net Weight: 28.6 Lbs.
MAYA ZEN™
54” Ceiling Fan
Owner's Manual
CF750ORB00
Model No.
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 1

WARNING: To avoid fire, shock, and serious personal injury, follow these
instructions. Safety Instructions
1. Read your owner’s manual carefully and keep it for future reference.
2. Before servicing or cleaning unit, switch power off at service panel and lock service
panel disconnecting means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a
warning device, such as a tag, to the service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the fan.
Always turn off the power to the ceiling fan before servicing.
4. Do not put anything into the fan blades while they are turning.
5. Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off at the fuse box before
wiring, and do not operate fan without blades.
2. The installation is to be in accordance with the National Electrical Code, ANSI/NFPA
70-1999 and Local Codes. Use the National Electrical Code if Local Codes do not
exist. The ceiling fan must be grounded as a precaution against possible electrical
shock. Electrical installation should be made or approved by a licensed electrician.
3. The outlet box and joist must be securely mounted and capable of reliably
supporting at least 50 pounds. Use only U.L. outlet boxes listed as “Acceptable for
Fan Support”, and use the mounting screws provided with the outlet box. Most
outlet boxes commonly used for support of light fixtures are not
acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
4. The longer downrod (8”) furnished with the fan provides the minimum
recommended floor to fan blade clearance for a 9 foot ceiling. The shorter downrod
(4.5”) must be used for an 8 foot ceiling.
5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent
accidental contact with the fan blades.
6. Follow the recommended instructions for the proper method of wiring your ceiling
fan. If you do not know enough about electrical wiring, have your fan installed by a
licensed electrician.
NOTE: This fan is suitable for use with solid-state speed controls.
WARNING: To reduce the risk of fire or electric shock, this fan should only be used
with fan speed control Model No. SW105, manufactured by Rhine Electric Co., Ltd.
WARNING: This product is designed to use only those parts supplied with this
product and/or any accessories designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or accessories not designated for use with
this product by Emerson Electric Co. could result in personal injury or
property damage.
WARNING: To reduce the risk of personal injury, do not bend the blade flange when
installing the blade flanges, balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING: To reduce the risk of electric shock, this fan must be installed with an
isolating wall control/switch.
!WARNING
DATE CODE:
The date code of this fan may be found on the box, stamped in ink on a white label.
You should record this data above and keep it in a safe place for future use.
2
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 2

3
This Manual is Designed to Make it as Easy as Possible for You to
Assemble, Install, Operate and Maintain Your Ceiling Fan
Do not install or use fan if any part is
damaged or missing. Call Toll-Free:
1-800-654-3545
!WARNING
This product is designed to use only
those parts supplied with this product
and/or any accessories designated
specifically for use with this product by
Emerson Electric Co. Substitution of
parts or accessories not designated for
use with this product by Emerson Electric
Co. could result in personal injury or
property damage.
!WARNING
Tools Needed for Assembly
One Phillips head screwdriver
One wire stripper
One stepladder
Four 7-watt (maximum) candelabra
base bulbs (upper light)
Three 60-watt (maximum) candelabra
base bulbs (lower light)
Materials
Wiring, outlet box and box connectors
must be of type required by the local code.
The minimum wire would be a 3-conductor
(2-wire with ground) of the following sizes:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
Before assembling your ceiling fan, refer
to section on proper method of wiring
your fan (Page 10). If you feel you do not
have enough wiring knowledge or
experience, have your fan installed by a
licensed electrician.
!WARNING
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each
step is completed, place a check mark in the box. This will insure that all steps
have been completed and will be helpful in finding your place should you be
interrupted.
NOTE: If you are uncertain of part
description, refer to exploded view
illustration.
a. One Fan motor assembly
b. One coupling cover
c. One ceiling cover
d. One upper decorative scroll
e. Five blade flanges
f. Five fan blades
g. One light kit plate assembly
h. One lower glass
i. One hanger ball/8” downrod assembly
j. One hanger bracket
k. One 4.5” downrod
l. One fan/light wall control
(transmitter)
m. One SW105 receiver
n. One loose parts bag containing:
1. One clevis pin
2. One hairpin clip
3. Three 12 ga. wire connectors
4. Two #8-32 x 1-1/4” threaded studs
5. Two #8 external tooth lockwashers
6. Two #8-32 knurled knobs
7. Sixteen M5 x 6mm washer head
screws
8. Eleven M5 x 12mm pan head
screws
9. Eleven M5 lockwashers
10. Four M4 x 10mm serrated head
screws
11. One balancing kit
1. Open carton containing fan. Remove
top half of styrofoam unit. Remove
parts and check to see that you have
received the following parts:
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 3

4
2. Remove and discard the two cardboard
shipping retainers securing the motor
hub in the motor housing assembly.
3. Remove the fan motor assembly from
the protective plastic bag. Place all
carton contents on a protective surface.
J. HANGER
BRACKET
HI
MED
LOW
FAN OFF
EMERSON
D/L
U/L
LIGHT
A. FAN MOTOR ASSEMBLY
C. CEILING COVER
G. LIGHT
PLATE
ASSEMBLY
L. FAN/LIGHT WALL CONTROL
N. LOOSE
PARTS BAG
H. LOWER GLASS
B. COUPLING COVER
D. UPPER DECORATIVE SCROLL
K. 4.5" DOWNROD
M. SW105
RECEIVER
F. FAN
BLADES
E. BLADE
FLANGE
I. HANGER BALL/
8" DOWNROD
ASSEMBLY
NOTE: Place the parts from the loose
parts bags in a small container to keep
them from being lost.
CARDBOARD
SHIPPING
RETAINER (2)
PROTECTIVE
PLASTIC BAG
IMPORTANT
IMPORTANT
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 4

5
Your new ceiling fan will require a
grounded electrical supply line of 120 volts
AC, 60 Hz, 15 amp circuit.
The outlet box must be securely anchored
and capable of withstanding a load of at
least 50 pounds.
IMPORTANT: Before assembling your
ceiling fan, refer to sections “Setting
Operating Frequency of Wall Control
and Receiver” and “Battery Installation
of Wall Control”, page 11. These
sections instruct you how to:
a. Set the operating frequency of the
fan/light wall control and the remote
control receiver.
b. Install the fan/light wall control in
the wall box.
You will then be ready to proceed with
the assembly and installation of your
ceiling fan.
To reduce the risk of fire, electric shock,
or personal injury, mount fan to outlet box
marked “Acceptable for Fan Support”,
and use screws supplied with outlet box.
Most outlet boxes commonly used for
support of light fixtures are not
acceptable for fan support and may need
to be replaced. Consult a qualified
electrician if in doubt.
!WARNING
If your fan is to replace an existing ceiling
light fixture, turn electricity off at the main
fuse or circuit breaker box at this time and
remove the existing light fixture.
IMPORTANT: Your ceiling fan is
supplied with a Fan/Light Wall Control
(transmitter) and a remote control
SW105 Receiver which mounts under
the ceiling cover. This system allows
you to regulate your ceiling fan speed,
airflow direction, and light intensity. An
optional Emerson Electric SR110
Remote Control may also be used.
IMPORTANT: Your ceiling fan will not
function properly and may be
damaged, if used with any wall dimmer
switch or control other than the
Emerson controls listed above.
Electrical Requirements
Preliminary Procedures
How to Assemble Your
Ceiling Fan
Turning off wall switch is not sufficient.
To avoid possible electrical shock, be
sure electricity is turned off at the main
fuse or circuit breaker box before wiring.
All wiring must be in accordance with
National and Local codes and the ceiling
fan must be properly grounded as a
precaution against possible electrical
shock.
!WARNING
Turning off wall switch is not sufficient.
To avoid possible electrical shock, be
sure electricity is turned off at the main
fuse or circuit breaker box before wiring.
All wiring must be in accordance with
National and Local codes and the ceiling
fan must be properly grounded as a
precaution against possible electrical
shock.
!WARNING
To avoid possible fire or shock, follow all
wiring instructions carefully. Any
electrical work not described in these
instructions should be done or approved
by a licensed electrician.
!WARNING
1. Mount the fan blades to the blade
flanges using three M5 x 6mm washer
head screws (supplied) (Figure 1).
BLADE
FLANGE
FAN BLADE
M5 x 6mm
WASHER HEAD
SCREWS (3)
Figure 1
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 5

FAN MOTOR
ASSEMBLY
6 - 8
INCHES
STYROFOAM
PACKAGING
FLAT EDGE OF LIGHT KIT
PLATE ASSEMBLY
STYROFOAM
M4 x 10mm SERRATED
HEAD SCREW (3)
KEY HOLE
SLOT (2)
MOUNTING
HOLE (1)
LIGHT KIT
ASSEMBLY
FAN MOTOR
ASSEMBLY
Figure 2
To reduce the risk of personal injury, do
not bend the blade flange when installing
the blade flanges, balancing the blades or
cleaning the fan. Do not insert foreign
objects in between rotating fan blades.
!WARNING
2. Slide the blade/flange assembly
through the center slot in the fan
housing. Mount each blade/flange
assembly to the fan motor housing
using two M5 lockwashers and two
M5 x 12mm pan head screws
(supplied) (Figure 2).
NOTE: Take care not to scratch fan
motor housing while installing blade/
flange assemblies.
BLADE/FLANGE
ASSEMBLY
M5 LOCKWASHER
(2 per flange)
M5 x 12mm PAN HEAD
SCREW (2 per flange)
CENTER SLOT (5)
FAN MOTOR
HOUSING
WIRE
CONNECTOR (2)
Figure 5
Figure 4
3. Remove the wire connectors from the
motor blue and white wires. Using the
removed wire connectors, securely
connect the light kit assembly black
wire to the motor blue wire. Securely
connect the light kit assembly white
wire to the motor white wire (Figure 3).
4. Position the light kit plate assembly
onto the fan motor assembly, aligning
one hole and the two keyholes.
5. Attach the light kit plate assembly by
inserting a M4 x 10mm serrated head
screw into the hole. Rotate the light kit
plate assembly to align the key hole
slots. Attach the two remaining M4 x
10mm serrated head screws into the
key hole slots. Tighten the three screws
securely. (Figure 4).
6. Turn the fan motor assembly upside
down in preparation for mounting the
hanger bracket/downrod assembly.
Position the top and bottom halves of
the styrofoam packaging side-by-side
on the floor with a six to eight-inch gap
between the halves (Figure 5).
Carefully place the partially assembled
ceiling fan on the styrofoam halves,
resting the flat edge of the light kit plate
assembly onto the styrofoam. Do not
rest fan motor assembly on light
sockets.
7. Remove the hanger ball by loosening
the setscrew in the hanger ball until the
ball falls freely down the 8” downrod
(Figure 6). Remove the clevis pin from
the downrod, then remove the hanger
ball. Retain the pin and hanger ball for
reinstallation in Step 13.
PIN
HANGER
BALL
SETSCREW
8" DOWNROD
Figure 6
6
LIGHT KIT
ASSEMBLY
WIRE
CONNECTOR (2)
LIGHT KIT
ASSEMBLY
BLACK WIRE
LIGHT KIT
ASSEMBLY
WHITE WIRE
MOTOR
WHITE
WIRE
MOTOR BLUE
WIRE
Figure 3
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 6

10. Unscrew and remove one lockwasher
and screw from each end of the upper
light plate cover on the fan motor
housing. Do not remove the screw
closest to the light holes (Figure 9).
NOTE: The screw closest to the light
holes, holds the light socket to the light
plate cover. Do not remove this screw.
11. Pull up on the upper light plate cover
to expose the light socket. Place a 7-
watt (maximum) candelabra base bulb
(not supplied) into the light socket
(Figure 10). Insert bulb into each of the
remaining three sockets.
12. Push the upper light plate cover down
for each of the four light sockets and
replace the lockwashers and screws
previously removed in Step 10.
7
8. Loosen the two setscrews in motor
coupling if necessary. Separate,
untwist and unkink the three 80” motor
leads. Route the motor lead wires
through the desired downrod. Align the
clevis pin holes in the downrod with the
holes in the motor coupling. Install the
clevis pin and secure with the hairpin
clip (Figure 7). The clevis pin must go
through the holes in the motor coupling
and the holes in the downrod. Be sure
to push the straight leg of the hairpin
clip through the hole near the end of
the clevis pin until the curved portion of
the hairpin clip snaps around the clevis
pin. The hairpin clip must be properly
installed to prevent the clevis pin from
working loose. Pull on the downrod to
make sure the clevis pin is properly
installed.
9. While pulling up on the downrod,
securely tighten the two setscrews in
the motor coupling (Figure 8).
NOTE: The two setscrews must be
properly installed as described above,
or fan wobble could result.
SETSCREW
CLEVIS PIN
MOTOR
COUPLING
DOWNROD
HAIRPIN
CLIP
DOWNROD
HAIRPIN
CLIP
MOTOR
COUPLING
SETSCREW (2)
CLEVIS PIN
Figure 7
REMOVE SCREW AND
LOCKWASHER
UPPER LIGHT
PLATE COVER
HINGE DO NOT REMOVE LIGHT
SOCKET SCREW
LIGHT HOLES
REMOVE SCREW AND
LOCKWASHER
Figure 9
7-WATT (max.)
CANDELABRA
BASE BULB (4)
UPPER LIGHT
PLATE COVER
LIGHT
SOCKET
Figure 10
It is critical that the clevis pin in the motor
coupling is properly installed and the two
setscrews securely tightened. Failure to
verify that the pin and setscrews are
properly installed (as shown in Figure 6)
could result in the fan falling.
!WARNING
SETSCREW (2)
MOTOR
COUPLING
DOWNROD
Figure 8
NOTE: The longer downrod (8”) furnished
with the fan provides the minimum
recommended floor to fan blade clearance
for a 9 foot ceiling.
NOTE: The shorter downrod (4.5”) must be
used for an 8 foot ceiling and can not be
used with the decorative upper scroll.
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 7

8
CEILING
COVER
PIN
DOWNROD
HANGER
BALL
SETSCREW
Figure 14
It is critical that the pin in the hanger ball
is properly installed and the setscrew
securely tightened. Failure to verify that
the pin and setscrew are properly
installed could result in the fan falling.
!WARNING
16. Reinstall the hanger ball (Figure 14) on
the downrod as follows. Route the motor
leads through the downrod. Position the
pin through the two holes in the downrod
and align the ball so the pin is captured
in the groove in the top of the hanger
ball. Pull the hanger ball up tight against
the pin and securely tighten the setscrew
in the hanger ball. A loose setscrew
could create fan wobble.
17. The fan comes with blue, black and
white leads that are 80” long. Before
installing fan, measure up approx-
imately 6 to 9-inches above top of
hanger ball/downrod assembly. Cut off
excess leads and strip back insulation
1/2-inch from end of leads.
13. Slide the coupler cover on the
downrod until it rests on the fan motor
assembly (Figure 11).
14. For Use With The 8” Downrod Only:
Position the decorative upper scroll
over the downrod. Slide scroll down
onto the downrod until it rest on the fan
motor assembly (Figure 12).
15. Place the ceiling cover over the
downrod. Be sure both the ceiling
cover, decorative upper scroll (use
with 8” downrod only) and coupler
cover are oriented correctly (Figure
13).
DOWNROD
COUPLING
COVER FAN MOTOR
ASSEMBLY
Figure 11
FAN MOTOR
ASSEMBLY
8" DOWNROD
DECORATIVE
UPPER SCROLL
Figure 12
FAN MOTOR
ASSEMBLY
8" DOWNROD
DECORATIVE
UPPER SCROLL
CEILING
COVER
Figure 13
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 8

1. Securely attach the hanger bracket to
the outlet box using the two screws
supplied with the outlet box (Figure 16).
How to Hang
Your Ceiling Fan
The fan must be hung with at least 7' of
clearance from floor to blades (Figure 15).
!WARNING
The outlet box and joist must be securely
mounted and capable of supporting at
least 50 lbs. Use only a U.L. outlet box
listed as “Acceptable for Fan Support”.
!WARNING
To reduce the risk of fire, electric shock,
or personal injury, mount fan to outlet box
marked “Acceptable for Fan Support”,
and use screws supplied with outlet box.
Most outlet boxes commonly used for
support of light fixtures are not
acceptable for fan support and may need
to be replaced. Consult a qualified
electrician if in doubt.
!WARNING
CEILING
FLOOR
AT
LEAST
7'
Figure 15
2. Carefully lift the fan and seat the
hanger ball/downrod assembly on the
hanger bracket that was just attached
to the outlet box (Figure 17). Be sure
the groove in the ball is lined up with
the tab on the hanger bracket
(Figure 16).
Hanger bracket must seat firmly against
outlet box. If the outlet box is recessed,
remove wall board until bracket contacts
box. If bracket and/or outlet box are not
securely attached, the fan could wobble
or fall.
!WARNING
Failure to seat tab in groove could cause
damage to electrical wires and possible
shock or fire hazard.
!WARNING
To avoid possible fire or shock, do not
pinch wires between the hanger
ball/downrod assembly and hanger
bracket.
!WARNING
TWO SCREWS
SUPPLIED
WITH
OUTLET BOX HANGER
BRACKET
TAB
OUTLET
BOX
NOTE: CEILING COVER, SUPPLY WIRES AND FAN
WIRES OMITTED FOR CLARITY.
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD
ASSEMBLY
Figure 16
Figure 17
9
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 9

OUTLET BOX
BLACK SUPPLY WIRE
BLACK/WHITE RECEIVER WIRE
BLACK FAN WIRE
BLUE FAN WIRE
BLUE RECEIVER
WIRE
YELLOW FAN WIRE
YELLOW RECEIVER WIRE
CEILING COVER
WHITE RECEIVER WIRE
WHITE FAN WIRE
WIRE CONNECTOR
RECEIVER
WHITE SUPPLY
WIRE
SUPPLY GROUND
WIRE (GREEN OR
BARE)
HANGER BALL
GROUND WIRE
(GREEN)
HANGER BRACKET
GROUND WIRE
(GREEN)
HANGER BRACKET
BLACK RECEIVER WIRE
OPEN
PORTION OF
RECEIVER
HERE
Figure 18
10
1. Pull the wire leads, coming from the
end of the downrod, and the supply
wires through the open side of the
hanger bracket. (Figure 18).
2. Position the SW105 Receiver
(supplied) in the ceiling cover so that
the flat side of the receiver faces up
and the open portion of the receiver is
to the right, as shown in Figure 18.
How to Wire
Your Ceiling Fan
Turning off wall switch is not sufficient.
To avoid possible electrical shock, be
sure electricity is turned off at the main
fuse box before wiring. All wiring must be
in accordance with National and Local
codes and the ceiling fan must be
properly grounded as a precaution
against possible electrical shock.
!WARNING
If you feel that you do not have enough
electrical wiring knowledge or
experience, have your fan installed by a
licensed electrician.
CAUTION: To reduce the risk of
electrical shock, disconnect the
electrical supply circuit before
installing the fan, light kit or receiver.
3. Using wire connectors (supplied),
make wiring connections as follows
(Figure 18 and 19):
a. Connect the white fan wire and the
white supply wire to the white
receiver wire (AC IN N/MOTOR N).
b. Connect the black fan wire to the
black receiver wire (TO MOTOR L).
c. Connect the black supply wire to the
black/white receiver wire (AC IN L).
d. Connect the blue fan wire to the
blue receiver wire (BOTTOM
LIGHT).
e. Connect the yellow fan wire to the
yellow receiver wire (UPPER
LIGHT).
f. Connect the green ground wires
from the hanger bracket and the
hanger ball to the supply ground
wire (bare or green).
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 10

11
Check to see that all connections are
tight, including ground, and that no bare
wire is visible at the wire connectors,
except for the ground wire. Do not
operate fan until blades are in place.
Noise and fan damage could result.
!WARNING
BLUE RECEIVER WIRE
YELLOW RECEIVER WIRE
BLUE FAN WIRE
DOWNROD
BLACK FAN WIRE
SW105 RECEIVER
WHITE FAN WIRE
WHITE RECEIVER WIRE
BLACK RECEIVER WIRE
YELLOW FAN WIRE
BLACK/WHITE RECEIVER WIRE
BLACK
SUPPLY
WIRE WHITE
SUPPLY
WIRE
4. After connections have been made,
separate the white and green wires
from the black, blue and yellow wires.
5. Carefully turn the wires upward and
insert them up through the open side of
the hanger bracket and into the outlet
box. Push the green and white wires
into one side of the outlet box; push the
black, blue and yellow wires into the
other side of the outlet box.
1-1/4"
THREADED
STUDS (2)
HANGER
BRACKET
OUTLET BOX
RECEIVER
CEILING
COVER
Figure 19
Figure 20
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 11

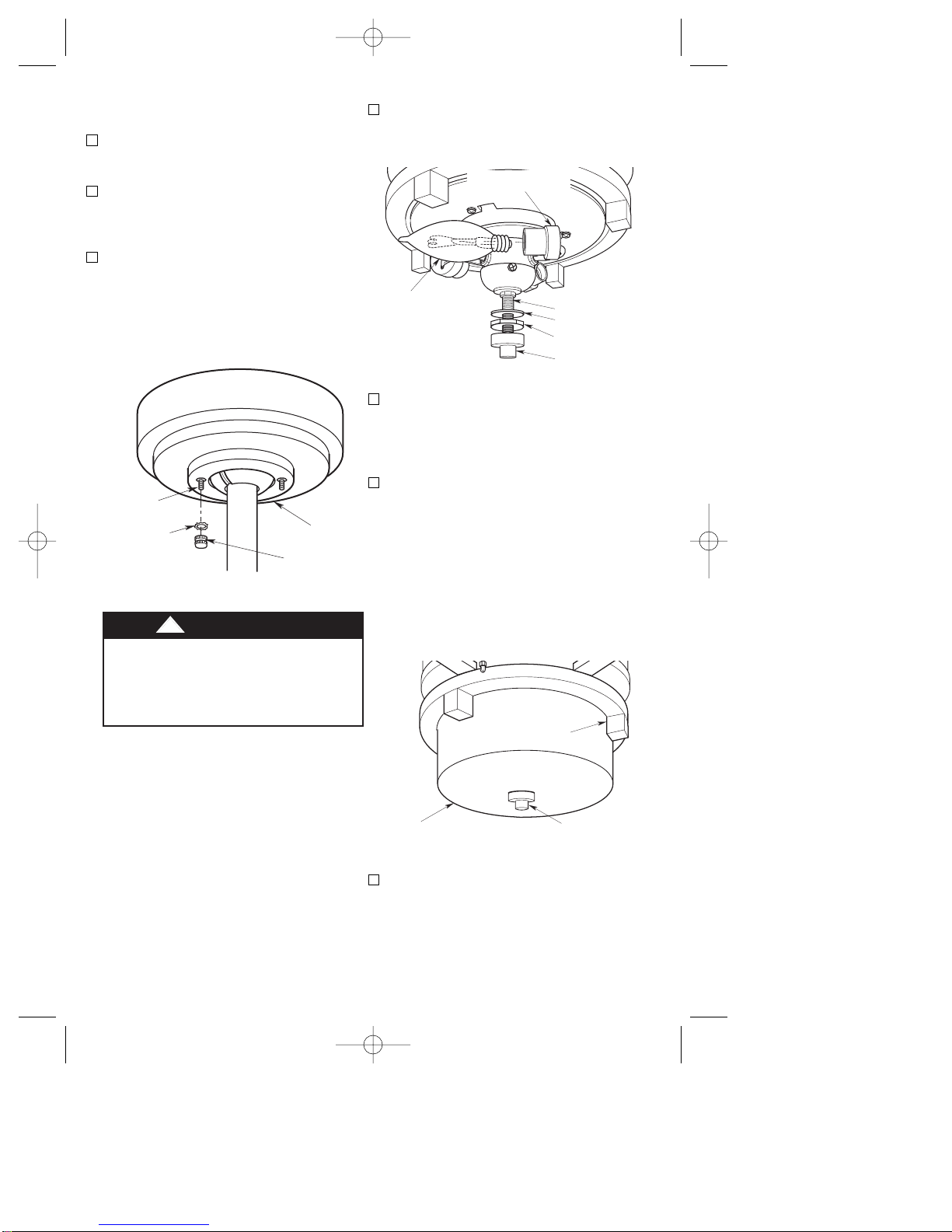

5. Unscrew the finial nut, hex jamnut, and
rubber lockwasher from the light kit
threaded nipple (Figure 22). Retain the
lockwasher, hex jamnut and finial nut
for future installation.
6. Position the glass shade over the
threaded nipple in the light kit plate
assembly (Figure 23). Seat the glass
shade evenly over the plate assembly
and securely install the rubber
lockwasher, hex jamnut, and finial nut
(previously removed) on the threaded
nipple.
NOTE: Periodically check that the glass
bowl is seated correctly in the light kit
assembly.
12
4. Screw three 60-watt (maximum)
candelabra base bulbs (not included) in
the light kit assembly sockets (Figure
22).
To avoid possible fire or shock, make
sure that the electrical wires are
completely inside the outlet box and
not pinched between the ceiling
cover and the ceiling.
!WARNING
#8 EXTERNAL
TOOTH
LOCKWASHER (2)
CEILING
COVER
1-1/4"
THREADED
STUD (2)
#8-32 KNURLED
KNOB (2)
Figure 21
60-WATT (max.)
CANDELABRA BASE
BULB (3)
LIGHT KIT ASSEMBLY
SOCKET (3)
THREADED NIPPLE
RUBBER WASHER
FINIAL NUT
HEX JAMNUT
Figure 22
FINIAL NUTGLASS
SHADE
LIGHT KIT PLATE
ASSEMBLY
Figure 23
Final Assembly
1. Screw the two 1-1/4” threaded studs
(supplied) into the tapped holes in the
hanger bracket (Figure 20).
2. Lift the ceiling cover up to the threaded
studs and turn until studs protrude
through the holes in the ceiling cover
(Figure 21).
3. Secure the ceiling cover in place by
installing two lockwashers and two
knurled knobs (supplied) (Figure 21).
Tighten the knurled knobs securely
until the ceiling cover fits snugly against
the ceiling and the hole in the ceiling
cover is clear of the downrod.
7. Your ceiling fan is now installed and
wired and ready for use.
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 12

ON
1234
RECEIVER SWITCH
LEVERS
CODE
SWITCH
SW105 RECEIVER
CODE
SWITCH
WALL
CONTROL
WALL CONTROL
LEVERS
ON
1234
LIGHT
HI
HI
MED
MED
LOW
LOW
FAN OFF
Turning off wall switch is not sufficient.
To avoid possible electrical shock, be
sure electricity is turned off at the main
fuse or circuit breaker box.
!WARNING
13
Battery Installation of
Wall Control
Figure 24
Setting Operating
Frequency of Wall
Control and Receiver
(Figure 24)
Your wall control and receiver have code
switches which must be set in one of 16
possible code combinations. The four
levers (numbered 1, 2, 3, and 4) on the
switches are factory-set in the ON (up)
position. Change the switch settings as
follows:
1. Slide the four switch levers in the wall
control to your choice of ON (up) or
down positions. Use a ball-point pen or
small screwdriver and slide the levers
firmly up or down.
2. In the receiver, slide the four switch
levers to the same positions as set in
the wall control. Make sure the levers
on both switches are in the same
positions, otherwise the fan will not
operate.
The wall control transmits the
command signals via radio waves to
the SW105 receiver installed in the
ceiling fan ceiling cover. The SW105
receiver is required for the wall control
to function. Power for the wall control
comes from the 12V battery, located in
the wall control.
Replacement 12V batteries recom-
mended are Duracell MN21, Eveready
A23, and GP23A.
1. Install the 12V battery (supplied) into
the wall control (Figure 25).
2. The wall control is supplied with a white
or almond color cover. Choose the style
that best suits your needs and snap the
cover onto the wall control (Figure 25).
WALL
CONTROL
WALL CONTROL
COVER
12V BATTERY
HI
HI
MED
MED
LOW
LOW
FAN OFF
EMERSON
U/L
D/L
LIGHT
Figure 25
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 13

4. To turn the lights on and off, press and
release the upper part of the LIGHT
(U/L) button or the lower part of the
LIGHT (D/L) button. The lights will turn
on at the light level previously set (see
Step 3).
Red light turns on when any button is
pressed. If the light does not come on,
replace your battery.
5. If airflow is desired in the opposite
direction, turn the fan off with the FAN
OFF button and wait for the blades to
stop turning. Then slide the reversing
switch, located on top of the fan motor
assembly, to the opposite position
(Figure 28) and turn the fan on again.
The blades will turn in the opposite
direction and reverse the airflow.
14

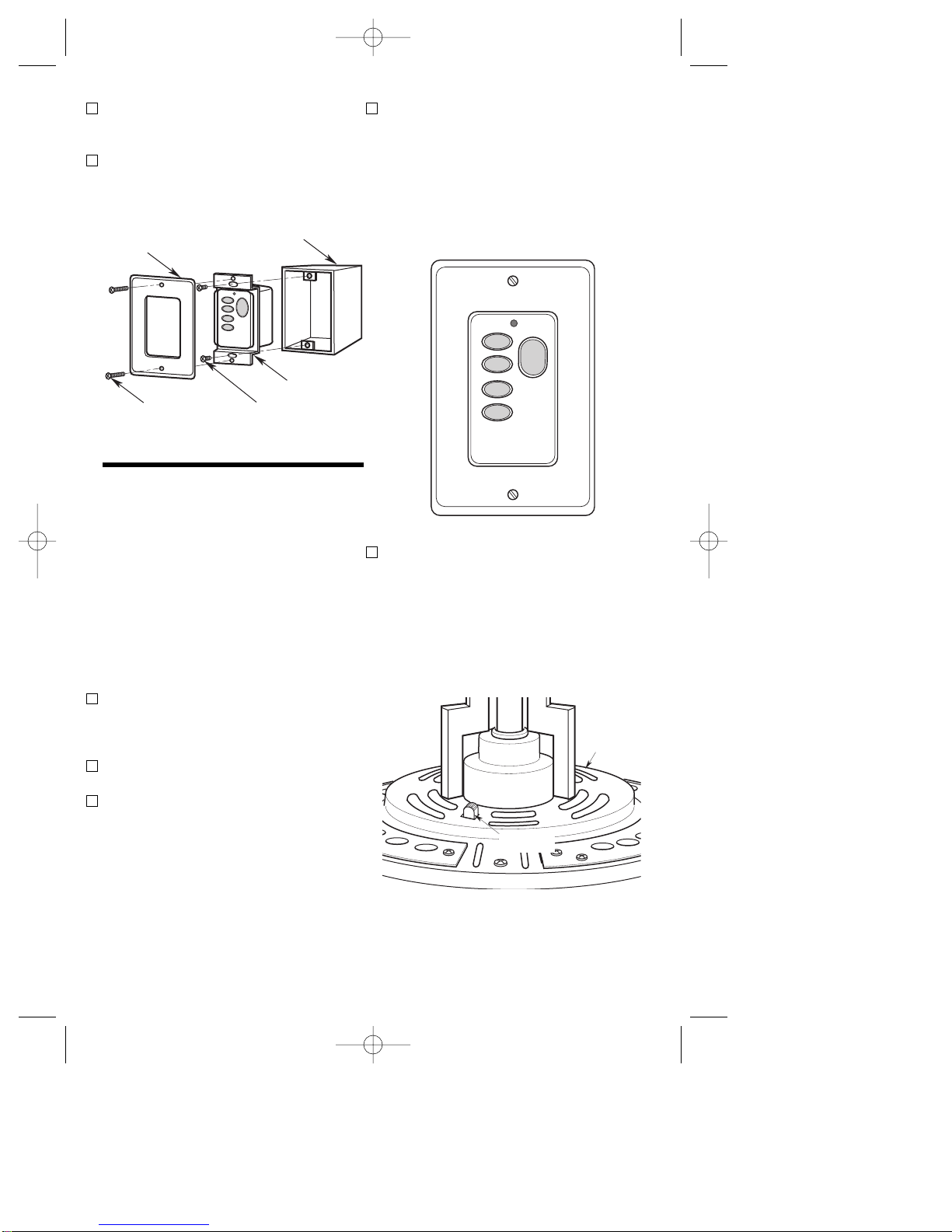

3. Install the wall control onto the outlet
box using the supplied screws (Figure
26).
4. Install decorator faceplate (included)
using the two screws provided. Leave
wall control in “OFF” mode until fan
installation is completed (Figure 26).
DECORATIVE
FACEPLATE OUTLET BOX
WALL
CONTROL
WALL CONTROL
SCREW (2)
FACEPLATE
SCREW (2)
HI
MED
LOW
FAN OFF
EMERSON
LIGHT
U/L
D/L
Figure 26
IMPORTANT
Fan installation must be completed,
including the installation of the fan
blades, before testing of the remote
control.
Your Fan/Light Wall Control (Figure 27)
has full control of your fan, lights, and
airflow direction.
1. To set the desired fan speed, push the
HI, MED, or LOW buttons to operate
your fan on high, medium or low speed
(See Figure 27).
2. To turn your fan off, press the FAN OFF
button.
3. To set the level of light brightness,
press and hold the upper part of the
LIGHT (U/L) button or the lower part of
the LIGHT (D/L) button. The light
brightness will continue to increase
then decrease while the button is held
down. When the light is at the desired
brightness, release the button.
Operating Your
Ceiling Fan
HI
MED
LOW
FAN OFF
EMERSON
D/L
U/L
LIGHT
Figure 27
FAN MOTOR
ASSEMBLY
REVERSING
SWITCH
Figure 28
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 14

15
1. Downrod Extension Kits (see store or
catalog).
2. Ceiling Fan Controls (see store or
catalog).
3. Blades (see store or catalog).
Do not use water when cleaning your
ceiling fan. It could damage the motor or
the blades and create the possibility of an
electrical shock.
!WARNING
The use of any other control not
specifically approved for this fan could
result in fire, shock and personal injury.
!WARNING
This product is designed to use only
those parts supplied with this product
and/or any accessories designated
specifically for use with this product by
Emerson Electric Co. Substitution of
parts or accessories not designated for
use with this product by Emerson Electric
Co. could result in personal injury or
property damage.
!WARNING
Maintenance
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is
the only maintenance that is needed.
When cleaning, use only a soft brush or
lint free cloth to avoid scratching the finish.
Abrasive cleaning agents are not required
and should be avoided to prevent damage
to finish.
Accessories
INSTRUCTION TO THE USER
(if device contains a digital device)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a Class B computing device,
pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded
cables must be used with this equipment. Operation with non-approved equipment or
unshielded cables is likely to result in interference to radio and TV reception. The user is
cautioned that changes and modifications made to the equipment without the approval of
manufacturer could void the user’s authority to operate this equipment.
This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 15

16
Repair Parts
4
24
HI
MED
LOW
FAN OFF
EMERSON
D/L
U/L
LIGHT
29
17
8
9
63
2
15
16
17
28
5
21
22
25
13
14
23
18
30
10 27
26
11
12
20
19
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 16

Before discarding packaging material, be certain all parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS,ALWAYS GIVE THE FOLLOWING INFORMATION:
The model number of your Fan will be found on a label attached to the top housing.
For repair parts, phone [phone].
• PART NUMBER
• NAME OF ITEM • PART DESCRIPTION • MODEL NUMBER
Part Numbers
Key Model No.
No. Description CF750ORB00
* Hanger Pack, Consisting of: 761655-50
1 Hanger Bracket Assembly (1) —
2 Hanger Ball (1) —
3 Downrod, Long 8” (1) —
* Parts Bag, Containing: 763304
4 Pin, Clevis (1) —
5 Clip, Hairpin (1) —
6 Connector, Wire, 12 Ga. (3) —
7 Stud, Threaded,
#8-32 x 1-1/4” (2) —
8 Lockwasher, External Tooth
#8-32 (2) —
9 Knob, Knurled #8-32 (2) —
10 Screw, Washer Head,
M5 x 6mm (16) —
11 Screw, Pan Head,
M5 x 12mm (11) —
12 Lockwasher, M5 (11) —
13 Screw, Serrated Head,
M4 x 10mm (4) —
14 Kit, Balancing (1) —
15 Cover, Ceiling (1) 763286-ORB
16 Scroll, Decorative Upper (1) 763303-ORB
17 Cover, Coupling (1) 763287-ORB
18 Housing, Assembly, Upper (1) 763288-ORB
19 Glass, Housing Center (1) 763290
20 Harness, Wiring (1) 763302
21 Light Kit Plate Assembly (1) 763307-ORB
22 Glass, Lower (1) 763296
23 Washer, Rubber (1) 763312
24 Jamnut, Hex 1/8-27 NPS (1) —
25 Nut, Finial (1) 763297-ORB
26 Flange Set (full set for one fan) 763298-ORB
27 Blade Set (full set for one fan) 763300
28 Downrod, Short (4.5”) 761631-37
29 Receiver, SW105 Remote Control (1) 762401
30 Transmitter, Remote Control (1) 763306
— Owner's Manual (1) BP7333
Repair Parts Listing
17
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 17

18
Trouble Shooting
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1.Fan will not 1.Fuse or circuit breaker 1. Check main and branch
start. blown. circuit fuses or circuit breakers.
WARNING: Make sure
main power is turned off.
2.Loose power line 2. Check line power connections
connections to the fan. to fan.
3.Fan/Light Wall Control is OFF. 3. Turn ON Fan/Light Wall Control.
4.Code switches in remote 4. Check that both code switches
control receiver and Fan/Light are set in the same positions.
Wall Control are not set in the
same position.
2.Fan sounds 1.Blades not attached to fan. 1. Attach blades to fan before
noisy. operating.
2.Screws securing fan blades 2. Check to make sure the screws
to motor are loose. which attach the blades to the
motor are tight.
WARNING: Make sure main
power is turned off.
3.Loose screws in motor housing. 3. Check to make sure all screws
in motor housing are snug
(not over-tight)
3.Fan wobbles 1.Setscrews in motor coupling are 1. Raise coupling cover and tighten
excessively. not tightened securely. setscrews securely.
2.Setscrew in the hanger ball/ 2. Tighten the setscrew in the
downrod assembly is loose. hanger ball/downrod assembly.
3.Screws securing fan blades 3. Check to be sure screws which
to motor are loose. attach the fan blade to the
motor are tight.
4.Fan blades are not seated 4. Check to be sure that the
properly. screws securing the fan
blades seat firmly.
5.Hanger bracket and/or ceiling 5. Tighten the hanger bracket
outlet box is not securely screws to the outlet box, and/or
fastened. secure outlet box.
6.Fan blades out of balance. 6. Interchanging an adjacent (side
by-side) blade pair can
redistribute the weight and result
in smoother operation.
Or use supplied balancing kit to
balance blades.
WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX
OR CIRCUIT BREAKER BEFORE TROUBLE SHOOTING YOUR FAN.
!
!
!
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 18

LIMITED WARRANTY
What The Warranty Covers:
This warranty covers the motor and the other components and accessories of your Emerson Electric Co. ceiling
fan against all defects in workmanship and materials. You must be the original purchaser or user of the product
to be covered.
What The Period Of Coverage Is:
As it applies to the motor, this warranty will last for a lifetime from the date you purchased your ceiling fan.
All other components and accessories are covered by this warranty for one year from the date you purchased
your ceiling fan. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Electric Co. Do To Correct Problems:
Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other
accessory at no charge to you. If repair of the motor or blades is not practical or possible within a reasonable
time and no replacement can be provided, Emerson Electric Co. will refund the actual purchase price of your fan.
We will ship the repaired product or replacement to you at no charge, but you are responsible for all costs or
removal, reinstallation and shipping of the product to Emerson Electric Co.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY
SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF OF PURCHASE. You can return the product to our factory
or to your nearest authorized service center.
• To return the product to the factory, obtain a return authorization and service identification tag by writing to
Air Comfort Products, Division of Emerson Electric Co., 8100 W. Florissant Ave., St. Louis, MO 63136.
Include all model numbers shown on the product with your request.
• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest
authorized service center.
You will be responsible for all insurance, freight or other transportation charges to our factory or authorized
service center. Your Emerson Air Comfort Ceiling Fan should be properly packed to avoid damage in transit
since we will not be responsible for any such damage.
What Is Not Covered:
The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does
not cover any defects, malfunctions or failures caused by:
• Repairs by persons not authorized by Emerson Electric Co.,
• Use of parts or accessories not authorized by Emerson Electric Co.,
• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or
• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal
wear and tear.
• Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are
voided when:
• The original purchaser or user ceases to own the product, or
• The fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other
written or oral warranties apply, and no employee, agent, dealer or other person is authorized to give any
warranties on behalf of Emerson Electric Co.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS
WARRANTY AND EMERSON ELECTRIC CO. IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING
INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such
damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of
repairing or replacing other property which was damaged if this product does not work properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above
exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
19
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 19

Part No. F40BP73330000 Printed in China 12/06 Form No. BP7333
Air Comfort Products
DIVISION OF EMERSON ELECTRIC CO.
8100 W. Florissant ¥ St. Louis, MO 63136
BP7333 CF750 MAYA ZEN 12/22/06 7:59 AM Page 20
