SHANY SSC-WD2201M User manual

Full HD 1080P
HDCCTV Box Camera
SSC-WD2201M
Thanks for purchasing our product. Before operating the unit, please read the
instructions carefully and keep this manual for future reference.

130521-XE3312N-0862-V1.6-V1
i
Safety Warning
1. Read this manual carefully before installing the unit
Please read this manual first for correct installation and operation.
2. Never install the camera on a ceiling that cannot hold its weight
The product may fall down and cause damages.
3. Never install the camera near electric or magnetic fields
Install the camera away from TV, radio transmitter, magnet, electric motor, transformer, audio
speakers since the magnetic fields generate from above devices would distort the video image.
4. Never install or use the camera in areas exposed to water, oil or gas
The water, oil or gas may result in operation failure, electric shock or fire. Do not use this unit
near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet
basement, near a swimming pool, in an unprotected outdoor installation, or any area which is
classified as a wet location.
5. Never face the camera toward the sun
Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
6. Power Cord Protection
Touching the wet power cord with hands or touching the power cord with wet hands may result in
electric shock. Power supply cords should be routed so that they are not likely to be walked on
or pinched by items placed upon or against them, playing particular attention to cords and plugs,
convenience receptacles, and the point where they exit from the appliance.
7. Attachments
Do not use attachment not recommended by the product manufacturer as they may cause
hazards.
8. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of
any kind onto the product.
9. Do not operate the camera in environments where the temperature,
humidity or power source is beyond the specified ones
Use the camera in suitable environments where the temperature is within -10°C~50°C and
humidity below 80%. Use the input power source as this instruction indicated.

130521-XE3312N-0862-V1.6-V1
ii
10. Cleaning
Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
11. Never disassemble the camera nor put impurities in it
Disassembly or impurities may result in trouble or fire.
12. Stop using when the product emits smoke or abnormal heat
13. Servicing
Do not attempt to repair this unit yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
14. Retain Instructions
THE SAFETY AND OPERATING INSTRUCTIONS SHOULD BE RETAINED FOR FUTURE
REFERENCE.
NOTE:
The information in this manual was current when published. The manufacturer reserves the right to
revise and improve its products. All specifications are therefore subject to change without notice.

130521-XE3312N-0862-V1.6-V1
iii
Table of Contents
1. CAMERA ......................................................................................................................................................................... 1
1.1 FEATURE................................................................................................................................................................. 1
1.2 LIST OF CONTENTS .................................................................................................................................................. 1
1.3 DIMENSIONS............................................................................................................................................................ 1
1.4 SPECIFICATION ........................................................................................................................................................ 2
1.5 CAMERA PARTS ....................................................................................................................................................... 3
2. CAMERA OSD ................................................................................................................................................................ 5
2.1 MAIN MENU .................................................................................................................................................................. 7
2.2 EXPOSURE ................................................................................................................................................................... 8
2.3 IMAGE .......................................................................................................................................................................... 9
2.4 WHITE PIXEL COMPENSATION...................................................................................................................................... 10
2.5 EFFECT .......................................................................................................................................................................11
2.6 PRIVACY MASK ........................................................................................................................................................... 12
2.7 FOG REDUCTION......................................................................................................................................................... 13
2.8 SYSTEM ..................................................................................................................................................................... 14
2.9 ANALOG OUT.............................................................................................................................................................. 15
2.10 DIGITAL OUT.......................................................................................................................................................... 16
2.11 COMMUNICATION ................................................................................................................................................... 17
2.12 DEFAULT ............................................................................................................................................................... 18

130521-XE3312N-0862-V1.6-V1
1
1. CAMERA
1.1 Feature
Full HD 1920x1080P@50/60fps (3G-SDI) Color Camera
1/2.8" Sony 3.0 Megapixel Progressive Exmor™ CMOS Sensor
Color:[email protected], B/W:0.01Lux@F1.2, Sense-up:[email protected]
Simultaneous Video Output: SDI / HDMI / Composite BNC
OSD Menu Control
OSD Control / by RS485 Remote Control / by Coaxial Control
Fog Reduction & 2D Noise Reduction & Sense Up Functions
Shutter Mode (AUTO / MANUAL)
Mechanical IR Cut Filter (ICR)
RS-485x1, DIx1, DOx1 / Option: PoC + Audio
1.2 List of Contents
Camera Unit
User manual
1.3 Dimensions
(Unit: mm)
56
62
67
120

130521-XE3312N-0862-V1.6-V1
2
1.4 Specification
Video System PAL / NTSC Selectable
Image Sensor 1/2.8" Sony 3.0 Megapixel Progressive ExmorTM CMOS Sensor
Resolution 1920(H)x1080(V)
Frame Rates 1920x1080P@50/60fps ; Adjustable to 1920x1080P@25/30fps,
1920x1080i@50/60fps
SDI Standards 3G-SDI (SMPTE 424M)
Minimum Illumination Color:[email protected], B/W:[email protected], Sense-up:[email protected]
Digital Wide Dynamic Range 512x Normal Camera (54dB)
Digital Video Output BNC connector (SDI) x1 / HDMI x1
Analog Video Output BNC connector (1.0Vp-p Composite, 75Ω) x1
Audio Option: Two-way Audio
Mechanical IR Cut Filter (ICR) Automatically Switches (Switching Lux Level Can Be Adjusted) / External
IR LED ; Working Distance Compatible with Infrared Illuminator
Menu OSD Control / by RS485 Remote Control / by Coaxial Control
Day&Night Mode COLOR / B&W / AUTO / EXTERNAL
Multi-Electronic Shutter Auto Shutter: Self Defined Auto Shutter Speed Range Programmable
Manual Shutter: 1/50(60), 1/100(120), 1/150(180), 1/200(240), 1/250, 1/300,
1/350, 1/400, 1/450, 1/500, 1/600, 1/750, 1/1,000, 1/2,000, 1/3,000, 1/4,000,
1/10,000 sec.
Automatic Gain Control 128 Levels (Adjustable Level Settings)
White Balance ATW / AWB / MANUAL / PUSH LOCK / 3200K / 6300K
WDR ; BLC WDR / BLC / OFF
Fog Reduction 16 Levels (0~15)
Flickerless PAL 50Hz / NTSC 60Hz / OFF
Dynamic Noise Reduction 2D
Sense Up ON (2~6X) / OFF
Language ENGLISH, JAPANESE, TRADITIONAL CHINESE, SIMPLIFIED CHINESE
(Option Not Changeable)
Image Setting SHARPNESS / CONTRAST / SATURATION / HUE / MIRROR
Privacy Zone Mask ON / OFF (16 Zones Programmable, Mosaic)
I/O Connector RS-485(Pelco-D/P)x1 / DIx1 / DOx1, Option:Audio In(3.5mm)x1 / Audio
Out(3.5mm)x1
Automatic IRIS ; Connector DC ; D4 IRIS Jack
Lens Mount CS / C mount (With Adaptor Ring)
Power Supply ; Consumption Standard: 12Vdc, Option: PoC (Power over Cable) ; 4.2W
Operation ; Storage Temp. -10˚C~50˚C ; -20˚C~60˚C
Operation ; Storage Humidity Maximum: RH80% ; RH90%
Dimensions 67(W)×56(H)×120(L)mm
Weight 350g
Subject to change without notice.

130521-XE3312N-0862-V1.6-V1
3
1.5 Camera Parts
1. Overview
ཛLens Mount
This mount is used to install a CS-mount lens. CS-adaptor ring is required when using a C mount lens.
ཛྷCamera Mounting Screw Holes
Screw holes for mounting the camera.
ཝMount Adaptor
The adaptor can be attached onto the top or the bottom of the unit.
ཞAuto Iris Lens Connector (4-pin type)
The lens connector supplies the auto-iris lens (not supplied) with DC control signal.
ཟOSD Control Buttons
ENTER button
UP & DOWN buttons
LEFT & RIGHT buttons
PIN NO. DC
1 CONTROL -
2 CONTROL +
3 DRIVE +
4 DRIVE -

130521-XE3312N-0862-V1.6-V1
4
2. Back Panel
■Power / HDMI LED:
(1) Power LED(Green): On—Power Ready Off—No Power
(2) HDMI LED(Green): On—Successfully Connected Off—Connection Not Ready
■DI / DO / RS-485 Port:
(1) RS-485 Rx+: Controlled by RS-485 receiving signal (POSTIVE).
(2) RS-485 Rx-: Controlled by RS-485 receiving signal (NEGATIVE)
(3) RS-485 Tx+: Controlled by RS-485 transmitting signal (POSTIVE)
(4) RS-485 Tx-: Controlled by RS-485 transmitting signal (NEGATIVE)
(5) DI: Digital Input
(6) GND: Ground
(7) DO: Digital Output
(8) GND: Ground
■HDMI Out:
Connecting cable ONLY support HDMI 1.3a version and later. The suggested length is
shorter than 10 meter.
■SDI Out: (Gold-plated BNC Connector)
For SDI signal output, it supports PoC (Power over Cable) technology.
■Video Out (BNC Connector):
For analog composite video TV signal output. Please DO NOT plug to PoC (Power over
Cable) technology device. Otherwise, the camera will be damaged.
■ Audio In/Out:
For analog audio input / output, stereo ψ3.5mm (1/8”) mini phone jack. Some models have
no such audio interface.
■ DC 12V:
DC Jackψ2.1, DC12V---0.5A or higher.
DI / DO / RS-485
Power 12V DC
SDI Out
HDMI Out
A
udio In
A
udio Out
HDMI LED
Video Out
(
BNC
)
Power LED

130521-XE3312N-0862-V1.6-V1
5
2. Camera OSD
To operate the camera OSD setting, use the control key pad to control it. For some models, you
might need to open the control panel case to access the control key panel. Press the Enter button
which in the center of the control panel to bring up the "MAIN MENU" on the TV/Monitor screen as
below. Please check the OSD content tables to find out the function you need.
■ Main Menu
MAIN M ENU Default Value Alternative Options
LENS DC<┘MANUAL
EXPOSURE SET<┘See Exposure Table
WDR OFF WDR<┘, BLC<┘
WHITE BALANCE ATW 6300K<┘, 3200K<┘, PUSHLOCK<┘, MANUAL<┘, AWB
2DNR 3 0-6
DAY/NIGHT AUTO<┘B/W, COLOR, EXTERNAL<┘
IMAGE SET<┘See Image Table
EFFECT SET<┘See Effect Table
SYSTEM SET<┘See System Table
EXIT <┘

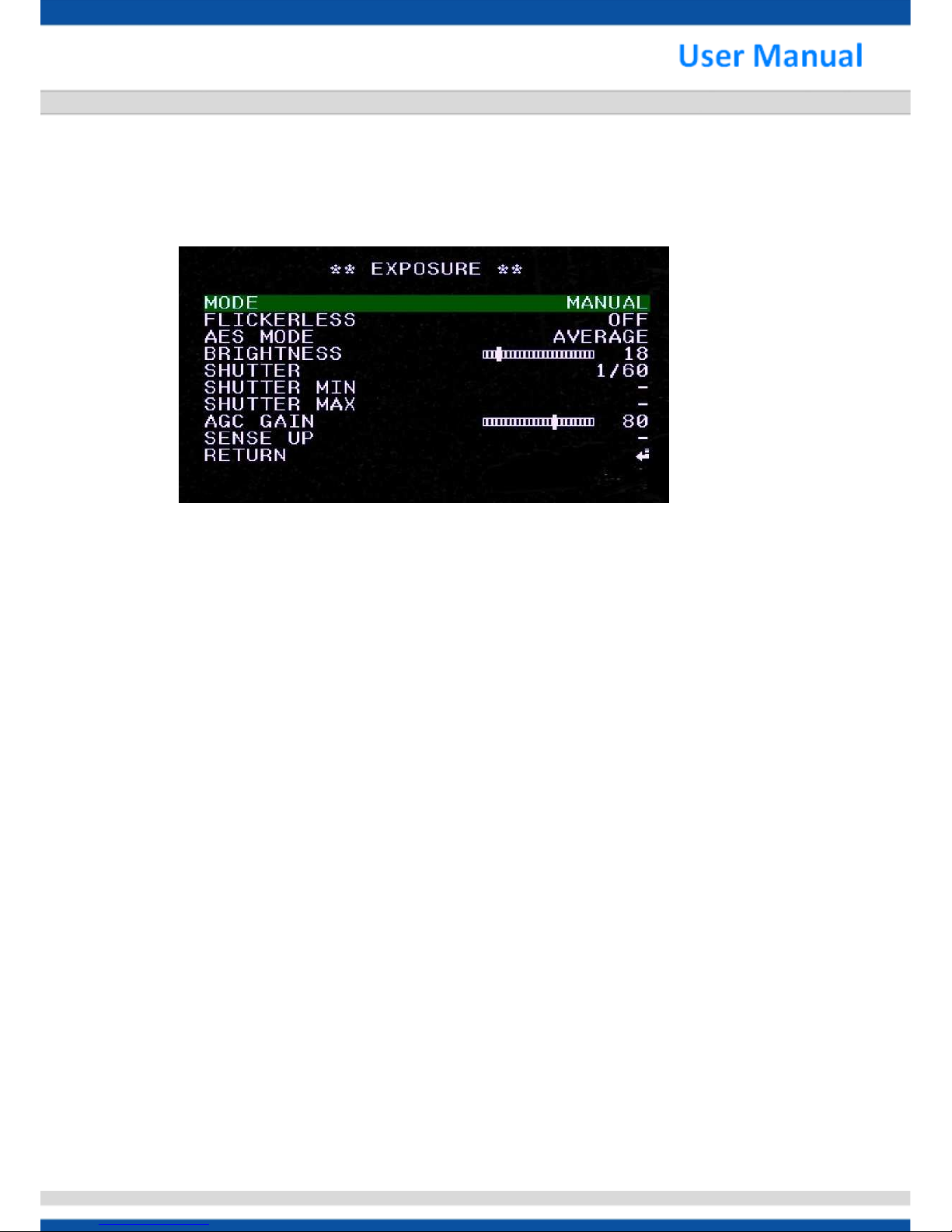

■ Exposure
EXPOSURE Default Value
MODE MANUAL
FLICKERLESS OFF
AES MODE AVERAGE
BRIGHTNESS 18
SHUTTER 1/60
SHUTTER MIN -
SHUTTER MAX -
AGC GAIN 80
SENSE UP -
RETURN <┘
■ Image
IM AGE Default Value
SHARPNESS 80
CONTRAST 128
SATURATION 128
HUE 0
LOW LUX SATURATION 18
MIRROR NORMAL

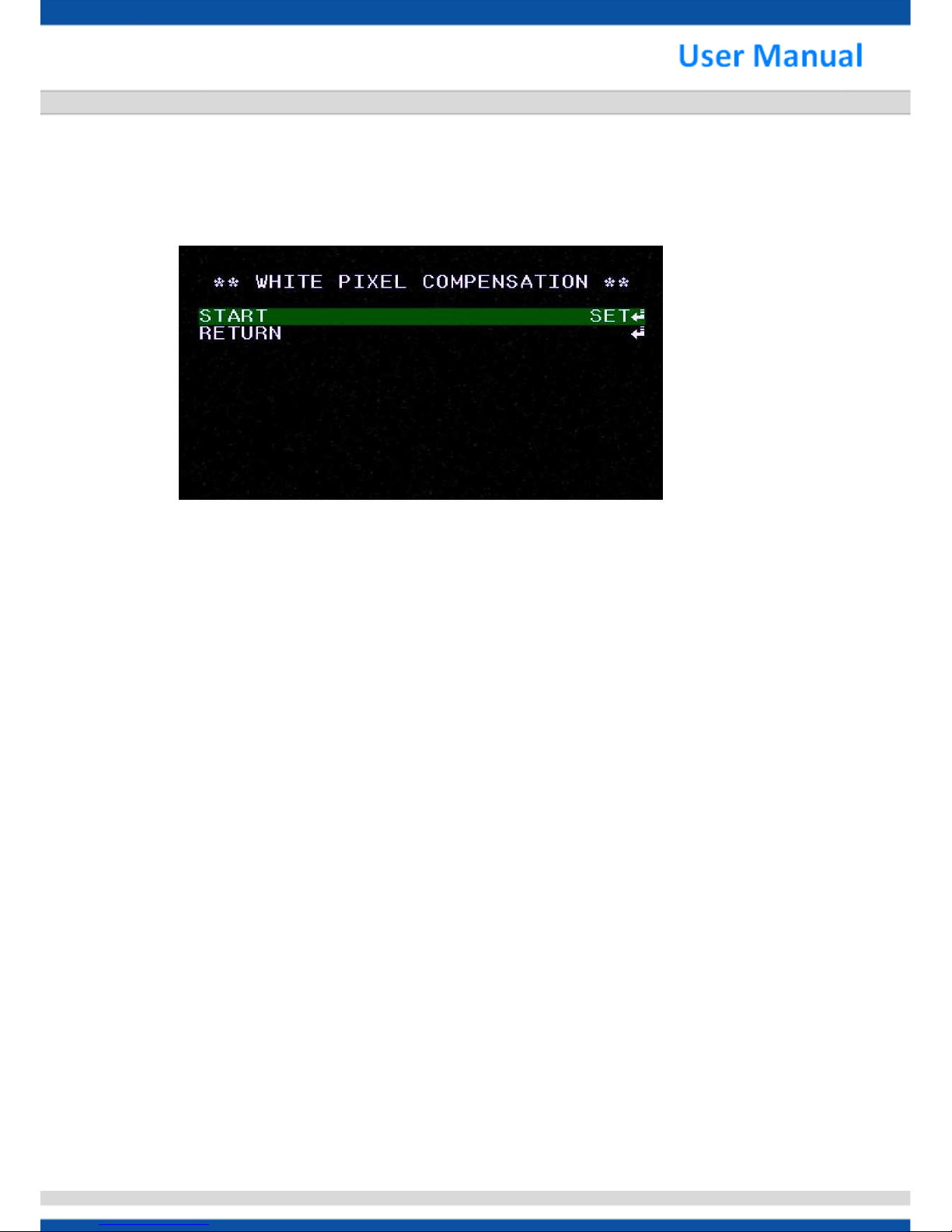

WHITE PIXEL COMPENSATION SET<┘
RETURN <┘
■ Effect
EFFECT Default Value
PRIVACY MASK OFF
FOG REDUCTION -
RETURN <┘

130521-XE3312N-0862-V1.6-V1
6
■ Privacy Mask
PRIVACY M ASK Default Value
ALL ON/OFF NOT USE
AREA SEL 1
MODE ON
TOP 36
BOTTOM 60
LEFT 12
RIGHT 33
COLOR MAGENTA
TRANSP x0.5
MOSAIC OFF
MOSAIC SIZE 8
RETURN <┘
■ Fog Reduction
FOG REDU CTION Default Value
LEVEL 12
RETURN <┘
■ System
SYSTEM Default Value
ANALOG OUT SET<┘
DIGITAL OUT SET<┘
COMMUNICATION SET<┘
TEST PATTERN 0
FONT COLOR SET<┘
FIRMWARE V1.60-2021601 (vary by production)
DEFAULT SET<┘
RETURN <┘
■ Analog Out
ANALOG OU T Default Value
FROM NTSC
CHANGE TO NTSC
APPLY -
RETURN <┘
■ Digital Out
DIGI TAL OU T Default Value
FROM 1920x1080p 30fps
CHANGE TO 1920x1080p 30fps
APPLY -
RETURN <┘
■ Communication
COMM UNI CATI ON Default Value
CAMERA ID 1
BAUD RATE 2400
PROTOCOL PELCO D
RETURN <┘
■ Font color
FONT COLOR Default Value
FONT 1
BACKGROUND 7
RETURN <┘
■ Default
DEFAU LT Default Value
NO SET<┘
YES SET<┘
RETURN <┘

130521-XE3312N-0862-V1.6-V1
7
2.1 Main Menu
In the "MAIN MENU" of camera OSD, there are several sub-menus and items can be select to
modify the settings.
■LENS:
To select the lens is on manual or on DC.
■EXPOSURE:
This is a sub-menu for exposure setting. Please check the details in its section.
■WDR:
To select the mode of WDR (Wide Dynamic Range).
■WHITE BALANCE:
To select the mode of white balance.
■2DNR:
To modify the value of 2DNR (Two Dimension Noise Reduction).
■DAY / NIGHT:
To select the mode of day/night.
■IMAGE:
This is a sub-menu for image setting. Please check the details in its section.
■EFFECT:
This is a sub-menu for effect setting. Please check the details in its section.
■SYSTEM:
This is a sub-menu for system setting. Please check the details in its section.
■EXIT:
After you finished all the settings, to exit the OSD is selecting the "EXIT" on the "MAIN MENU".
Just push the "Enter" button, and then it will quit the setting menu.

130521-XE3312N-0862-V1.6-V1
8
2.2 Exposure
In the "EXPOSURE" of camera OSD, there are some items can be select to modify the settings.
The main function of this page is about the optical settings.
■MODE:
To switch the exposure mode between manual mode and automatic mode.
■FLICKERLESS:
To select the lighting flicker speed or not.
■AES MODE:
To select the mode of AES.
■BRIGHTNESS:
To modify the value of brightness.
■SHUTTER/SHUTTER MIN/SHUTTER MAX:
To modify the value of shutter speed and time.
■AGC GAIN:
To modify the value of AGC (Automatic Gain Control) gain.
■SENSE UP:
To modify the "sense up" speed setting.
■RETURN:
Return to upper level of OSD menu.

130521-XE3312N-0862-V1.6-V1
9
2.3 Image
In the "IMAGE" of camera OSD, there are some items can be select to modify the settings. The
main function of this page is about the image settings.
■SHARPNESS:
To modify the value of sharpness.
■CONTRAST:
To modify the value of contrast.
■SATURATION:
To modify the value of saturation.
■HUE:
To modify the value of hue.
■LOW LUX SATURATION:
To modify the value of low lux saturation.
■MIRROR:
To select the mode of image mirror.
■WHITE PIXEL COMPENSATION:
This is a sub-menu for white pixel compensation setting. Please check the details in its section.
■RETURN:
Return to upper level of OSD menu.

130521-XE3312N-0862-V1.6-V1
10
2.4 White Pixel Compensation
In the "WHITE PIXEL COMPENSATION" of camera OSD, there are some items can be select to
modify the settings. The main function of this page is about the white pixel compensation.
■START:
To enable the "white pixel compensation" effect. Select to start, when completed, the system
will display this page.
■RETURN:
Return to upper level of OSD menu.

130521-XE3312N-0862-V1.6-V1
11
2.5 Effect
In the "EFFECT" of camera OSD, there are some items can be select to modify the settings. The
main function of this page is about the camera effects.
■PRIVACY MASK:
To enable the "privacy mask" effect or not. Enable this will go its sub-menu for privacy mask
setting. Please check the details in its section.
■FOG REDUCTION:
To enable the "fog reduction" effect or not. Enable this will go its sub-menu for fog reduction
setting. Please check the details in its section.
Note: To activate fog reduction function, please turn off WDR function first.
■RETURN:
Return to upper level of OSD menu.

130521-XE3312N-0862-V1.6-V1
12
2.6 Privacy Mask
In the "PRIVACY MASK" of camera OSD, there are some items can be select to modify the
settings. The main function of this page is about the privacy mask size and position.
■ALL ON/OFF:
To enable or disable all of the privacy mask. You can choose "ALL ON" or "ALL OFF" in this
selection.
■AREA SEL:
It divided the whole screen into 16 areas. You can use these to design your desired privacy
mask combination.
■MODE:
To decide which one of these 16 areas will enabled or not.
■TOP/BOTTOM/LEFT/RIGHT:
The setting values of privacy mask size and position.
■COLOR:
The color of privacy mask.
■TRANSP:
The transparency level of privacy mask.
■MOSAIC:
Apply mosaic effect to privacy mask.
■MOSAIC SIZE:
To modify the size of mosaic area.
■RETURN:
Return to upper level of OSD menu.

130521-XE3312N-0862-V1.6-V1
13
2.7 Fog Reduction
In the "FOG REDUCTION" of camera OSD, there are some items can be select to modify the
settings. The main function of this page is about the fog reduction effects.
■LEVEL:
To modify the level of fog reduction.
■RETURN:
Return to upper level of OSD menu.

130521-XE3312N-0862-V1.6-V1
14
2.8 System
In the "SYSTEM" of camera OSD, there are several sub-menus and items can be select to modify
the settings. The main function of this page is about the video format information and OSD
firmware version.
■ANALOG OUT:
This is a sub-menu for analog output setting. Please check the details in its section.
■DIGITAL OUT:
This is a sub-menu for digital output setting. Please check the details in its section.
■COMMUNICATION:
This is a sub-menu for communication setting. Please check the details in its section.
■TEST PATTERN:
For SDI video signal output testing, please select the test pattern mode as you like.
■FONT COLOR:
To modify the font color and background.
■FIRMWARE:
The firmware version number of this SDI camera. (Version may vary by production)
■DEFAULT:
This is a sub-menu for factory default value restoring. Please check the details in its section.
■RETURN:
Return to upper level of OSD menu.

130521-XE3312N-0862-V1.6-V1
15
2.9 Analog Out
In the "ANALOG OUT" of camera OSD, there are some items can be select to modify the settings.
The main function of this page is to decide what the analog video output format is.
■FROM:
To change the analog video output format from the value now.
■CHANGE TO:
To change the analog video output format to the new value.
■APPLY:
To apply the change of analog output.
■RETURN:
Return to upper level of OSD menu.

130521-XE3312N-0862-V1.6-V1
16
2.10 Digital Out
In the "DIGITAL OUT" of camera OSD, there are some items can be select to modify the settings.
The main function of this page is to decide what the digital video output format is.
■FROM:
To change the digital video output format from the value now.
■CHANGE TO:
To change the digital video output format to the new value.
■APPLY:
To apply the change of digital output. You can choose "NO" or "YES<┘" in this selection.
■RETURN:
Return to upper level of OSD menu.
