Congratulations on your purchase of Shaper
Origin! We know you’re excited to start cutting and
carving, but please make sure to read all of the
operating instructions, warnings, and safety notes
detailed in this booklet before operating Origin.
To get started with Origin navigate to the link
below for a complete walk-through and some
demos to get you acquainted.
shapertools.com/start
Welcome
TM
2
support.shapertools.com
Here, you’ll nd answers to frequently asked
questions about using Origin: choosing router
bits, working with different materials, effectively
clampingandsecuringyourworkpiece,maintaining
Origin, and more. We highly recommend you read
these tips before getting started. You’ll also nd
contact info for Shaper customer support.
tutorials.shapertools.com
For written and video tutorials that will walk you
through Origin’s many features and capabilities,
visit our tutorials site. In addition to clearly
explaining various features, tutorial videos also
walk you through the creation of projects that
you’ll nd on Shaper Hub.
hub.shapertools.com
When you’re ready to make your rst project,
check out Shaper Hub for an array of ready-to-cut
projects with detailed instructions, material lists,
and design les.
shapertools.com
3
Table of Contents
What’s Included
Overview
Basics
Using ShaperTape™
Safety & Care
Compliance
4-5
6-7
8-10
11-13
14-24
25
TM
4
Shaper Origin
dust collection hose
ShaperTape™
What’s Included
shapertools.com
5
4mm T handle
hex wrench
1/4 in upcut
router bit 1/8 in upcut
router bit
nger guard
engraving
bit
19mm wrench
What’s Included
TM
6
Overview
Touchscreen: Use Origin’s 5in multi-touch display
to control Origin’s many features.
SM1 Spindle: Origin is equipped with a powerful
720-Watt motor. It features variable speed control
and on-board electronics to deliver soft start,
thermal and overload protection, and constant
speed under load.
Dust Port: Origin is intended to be used with a
dust extraction system. Origin’s dust port accepts
many common vacuum hose sizes, or you may use
the hose that’s included with Origin.
Spindle Switch: You’re in control. For your
safety, Origin’s SM1 Spindle will never turn on
automatically. Use the spindle switch to turn on
the spindle when you’re ready to start cutting.
Spindle Mount: The SM1 Spindle is designed to be
removable from Origin for easy and safe router bit
changing operations. After loosening the spindle
mount bolt, simply remove or insert the SM1
Spindle.
Handles: Always rmly grasp both handles when
operating Origin. The buttons on each handle map
to the functions shown on the screen.
touchscreen
spindle
dust port
spindle switch
spindle mount
handle
shapertools.com
7
Overview
Speed Control: The SM1 Spindle has adjustable
speed from 10,000 to 26,000 RPM, with the lowest
speed mapped to 1 on the dial, and the highest
speed mapped to 6. Use this dial to adjust the
spindle rotation speed. For a list of recommended
cut speeds for various materials and applications,
visit support.shapertools.com.
Z-Axis: Origin’s Z-Axis is responsible for plunging
and retracting the SM1 Spindle.
Collet Lock: Press the collet lock and use the
included 19mm wrench to change router bits in
the SM1 Spindle.
Back Handle: On the go? Carry Origin using its back
handle.
Camera: Origin uses a computer vision system
to track its location on your workpiece. Keep the
camera unobstructed and the lens cover glass
clean to ensure the best cutting experience.
USB Port: No network? No problem. If your Origin
is not in range of a Wi-Fi network, you can also
transfer design les using a USB ash drive.
speed control
z-axis
collet lock
back handle
camera
usb port
TM
8
Basics
Remove the transport lock before operating Origin,
and retain for future use. Reinstall the transport
lock to keep the spindle stationary during transit.
To enable unobstructed access to change the
router bit, the SM1 Spindle must be removed from
Origin. IMPORTANT: Always unplug the SM1 Spindle
from Origin before removing the spindle from the
spindle mount. Use the included 4mm T-handle
hex wrench to loosen the spindle mount bolt.
Once loosened, lift the spindle to remove it.
Removing the Transport Lock
Removing and Installing the SM1 Spindle
shapertools.com
9
Basics
To change router bits, rst unplug the SM1 Spindle
from Origin and remove it from the spindle mount,
as described earlier. Press the collet lock while
loosening or tightening the collet locking nut with
the included 19mm wrench. Do not tighten the
collet locking nut until a router bit is inserted.
WARNING: Maximum allowable cutter diameter is
1in (25.4mm).
To reinstall the spindle, slide it into the spindle
mount with the ON/OFF switch facing towards
you. A groove on the back of the spindle will only
allow it to be inserted in the correct orientation,
with the cable exiting on the left side. Gently re-
insert the spindle as to not deform the alignment
pin. IMPORTANT: Be sure to tighten the spindle
mount bolt after fully inserting the spindle into
the spindle mount. Finally, ensure the switch is in
the “OFF” position and plug the spindle cable back
into the side of Origin.
Changing the Router Bit
TM
10
material
spoil board
table
When setting up your workpiece use clamps,
adhesives or other practical ways to secure and
support the workpiece to a stable table. It is rec-
ommended to use a spoil board underneath your
material when doing a through cut.
Safety First. When Operating Origin always use eye
and ear protection. Always keep the nger guard
installed when the spindle is plugged in. Keep n-
gers and body parts away from collet and router
bit when it is installed to Origin.
Basics
shapertools.com
11
Using ShaperTape
Using ShaperTape™
Origin uses ShaperTape to digitally augment your
workpiece. When you’re ready to cut with Origin,
lay down ShaperTape on the workpiece. For best
results, place strips of ShaperTape every three
inches or closer. Strips need not be parallel.
All tape must be coplanar with the surface you are
cutting to ensure the best tracking accuracy. Origin
should be able to glide across any tape you’ve
put down. Ensure that tape covers the area that
you plan to cut, as well as space a few inches in
front of your cut area so that Origin can always see
some markers. For more details on optimal tape
placement, visit tutorials.shapertools.com.
TM
12

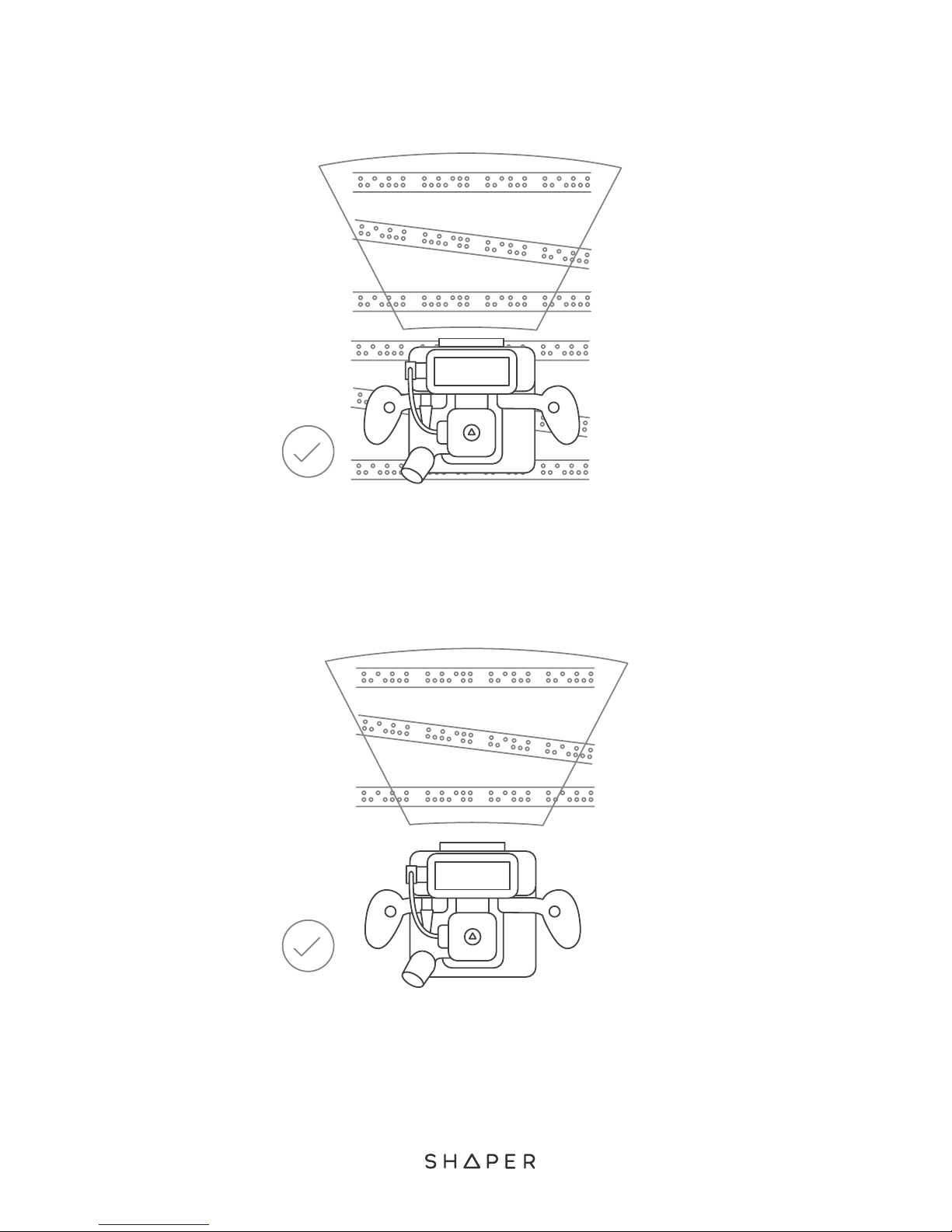

Origin will operate correctly if there is ShaperTape
placed in the cutting area, as well as the area in
the eld of view of its camera.
Origin will also operate correctly if ShaperTape is
only placed in the eld of view of its camera.
Using ShaperTape
shapertools.com
13
Origin will operate incorrectly there is not enough
ShaperTape within the eld of view of it’s camera.
Origin will operate incorrectly If there is only
ShaperTape in the cutting area. ShaperTape must
be within the eld of view of Origin’s camera for it
to operate correctly.
3A86F7
Using ShaperTape
TM
14
Safety & Care
Warning! Read all safety
warnings and instructions.
Failure to follow the warn-
ings and instructions in
this booklet may result in
electric shock, re, and/or
serious injury.
Save all warnings and instructions for future ref-
erence. The term “power tool” in the warnings re-
fers to a mains-operated (corded) power tool or a
battery-operated (cordless) power tool.
Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
Do not operate power tools in explosive atmo-
spheres such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep children and bystanders away while oper-
ating power tools. Distractions can cause you to
lose control.
Power tool plugs must match the outlet. Never
modify the plug in any way. Unmodied plugs and
matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded sur-
faces such as pipes, radiators, ranges, and refrig-
erators. There is an increased risk of electric shock
if your body is earthed or grounded.
General Power Tool Safety Warnings
Work Area Safety
Electrical Safety
shapertools.com
15
Do not expose power tools to rain or wet condi-
tions. Water entering the power tool will increase
the risk of electric shock.
Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the
risk of electric shock.
When operating power tools outdoors use an ex-
tension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
If operating a power tool in a damp location is
unavoidable use a ground fault circuit interrupter
(GFCI) protected supply. Use of a GFCI reduces the
risk of electric shock.
Use appropriate extension cords. Only use un-
damaged extension cords that match Origin’s plug.
Extension cords should have an adequate voltage
and current rating that meets or exceeds the elec-
trical specications listed on the product label.
Always make sure that the spindle motor’s con-
nector is securely plugged into the side of Origin
while operating.
Stay alert, watch what you are doing and use
common sense when operating power tools. Do
not use power tools while you are tired, or under
the inuence of drugs, alcohol, or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
Use personal protective equipment. Always wear
eye protection. Protective equipment such as
Personal Safety
Safety & Care
TM
16
dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate condi-
tions will reduce personal injuries.
Prevent unintentional starting. Ensure the switch
is in the OFF position before connecting to power
source, picking up or carrying the tool. Carrying
power tools with your nger on the switch or ener-
gizing power tools that have the switch on invites
accidents.
Remove any adjusting key or wrench before turn-
ing the power tool on. A wrench or a key left at-
tached to a rotating part of the power tool may
result in personal injury.
Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of
the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jew-
ellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust col-
lection can reduce dust-related hazards.
Safety & Care
shapertools.com
17
Do not force the power tool. Use the correct pow-
er tool for your application. The correct power
tool will do the job better and safer at the rate for
which it was designed.
Do not use the power tool if the switch does not
turn the spindle on and off. Any power tool that
cannot be controlled with the switch is dangerous
and must be repaired.
Disconnect the plug from the power source be-
fore making any adjustments, changing accesso-
ries, or storing power tools. Such preventive safe-
ty measures reduce the risk of starting the power
tool accidentally.
Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
Use the power tool, accessories, and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for opera-
tions different from those intended could result in
Power Tool Use and Care
Safety & Care
TM
18
a hazardous situation.
Keep Origin’s mechanisms clean. Wearing suitable
eye protection, use vacuum to remove debris from
Origin’s mechanisms.
Periodically open chip tray to remove debris.
Safety & Care
Have your power tool serviced by a qualied
repair person only using identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
Origin is covered by a warranty. Call or email
Shaper support (support.shapertools.com) if you
believe Origin requires servicing beyond what is
listed in the “Use and Care” section.
Service
Table of contents
