Shark EURO-PRO UV610 User manual

OWNER’S MANUAL
GUIDE DU
PROPRIETAIRE
Model /Modde UV610
7.2 Volt DC
Cordless Sweeper
Balai Motoris Sans
Fil
For information or assistance:
Pour plus d’information ou pour obtenir de I’assistance :
EURO-PRO Corporation
4400 Bois Franc
Ville St. Laurent, QC H4S IA7
Tel.: l-800-361 -4639
www.sharkhomecare.com
Ew?o-Iwo~~M

IMPORTANT SAFEGUARDS
When using an electrical appliance, basic safety precautions should always be observed,
including the following
READ ALL INSTRUCTIONS BEFORE USING YOUR CORDLESS SWEEPER.
WARNING.
To reduce the risk of fire, electrical shock, or injury:
6.
7.
8.
9.
IO.
11.
12.
13.
14.
15.
16.
17.
18.
1920
21.
22.
23.
24.
Do not charge this unit outdoors.
Do not use outdoors or on wet surfaces.
Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
Use only as described in this manual. Use only manufacturer’s recommended
attachments.
Do not use with damaged cord or plug.Do not use cordless sweeper if it has
been dropped. damaaed. left outdoors, or dropped in water. Return it to EURO-PRO
Corporation for examination repair or adjustment.
Do not abuse the charger cord.Never carry the charger or base by the cord or yank to
disconnect from an outlet; instead grasp the charger and pull to disconnect.
Keep charger cord away from heated surfaces.
This product includes rechargeable nickel cadmium batteries. Batteries must be
recycled or disposed of properly.
Do not incinerate batteries or expose to high
temperatures, as they may explode.
Do not handle
plug or apoliance with wet hands.
Do not put any’object into openings. Do not use with any opening Mocked; keep free of
dust, lint! hair and anything that may reduce air flow.
Keep
hair loose clothing, fingers, and all parts of body away from openings and
moving parts.
Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot
ashes.
Do not attempt to change accessories while unit is running.
Use extra care when cleaning on stairs.
Do not use to pick up flammable or combustible liquids such as gasoline or use in
areas where they may be present.
Read and follow all label, operational and marking instructions.
Do not use charger with an extension cord. Plug charger directly into an electrical
outlet. Use charger only in a standard
(12OV-, 60Hz) electrical outlet.
Keep end of rotating brush,hose, wands and other openings away from your face and
body.
Do not use the cordless sweeper without dust container in place.
Store the cordless sweeper indoors.Store after use to prevent accidents.
Leaks from battery cells can occur under extreme conditions. If the liquid, which is 20-
35% solution of potassium hydroxide, gets on the skin
- wash immediately with soap
and water or neutralize with a mild acid such as lemon juice or vinegar.If the liquid
aets into the eves. flush them immediatelv with clean water for a minimum of IO
Minutes and seek medical attention.
Use only on dry, indoor surfaces.
Do not use for any purpose other than described in this user’s guide.
Do not attempt to use the charger with any other product or attempt to charge this
product with another charger. Use only the charger model TechWorld AD-0920~UL
supplied with this appliance.
SAVE THESE INSTRUCTIONS
’
FOR HOUSEHOLD USE ONLY
Rev. 08/02B

CORDLESS SWEEPER
Model UV610
7.2 Volt DC
1.
Sweeper Power Head
7.
2.
On I Off Switch
6.
3.
Charging Light Indicator
9.
4.
Dust Cup (Container)
10.
5. Rotating Brush
11.
6.
See Thru Brush Cover
12.
Edging Tool
Charging Jack
Lower Handle
Metal Extension Handles
Upper Handle
Charging Adapter
(TechWorld AD-O920-UL
rated output DCSV, 2OOmA.)
NOTE:
Cordless Sweeper Model UV610 is shipped with the
batteries uncharged. Charging of the unit for 16-20
hours prior to first use is required.

ASSEMBLING YOUR CORDLESS SWEEPER
Before you start:
Your Cordless Sweeper will require very little assembly. You should remove it
from the carton and familiarize yourself with all the components listed per the
exploded view drawing (pg.2) This will help you in the assembly and operation of
your cordless sweeper
I. Insert the Edging Tool into the “square” hole under the bottom of the sweeper power
head. Gently but firmly push until the edging tool locks into place.(See fig. 1)
2. Insert the lower handle - small end
in place.(Fig. 2)
Lower Handle
Figure 2
into the sweeper power head. Push until firmly
3.
fissemble the metal extension handles by pushing the plastic insert into the mating
metal tube. Push until only small portion of insert is visible or you cannot press any
farther into the tubing. Push the handle assembly into the upper handle.(Fig. 3)
NOTE: One metal extension tube has a different plastic insert. This tube should
be on the bottom of the handle.
Insert the handle assembly into the lower handle so that the “tab’ on the plastic
insert snaps into the open slot on the lower handle. (Fig. 3a)
Insert
Into Lower
Figure
3a
Figure 3
4. Place the handle into the upward storage position.
5. Plug the charging adapter into the sweeper power head charging jack. Plug
the charging adapter cord into a standard electrical outlet
(lZOV--,60Hz.)

HOW TO OPERATE YOUR CORDLESS SWEEPER
1. Before using, please ensure that the cordless sweeper has been initially
charged for 16-20 hours
Your cordless sweeper will only operate properly when the batteries are fully
charged. When fully charged your sweeper will operate for 35-45 minutes
-
dependent upon the type of use (example - carpets or bare floors).
2. Push the On/Off switch to operate the unit. To turn off, press switch again(Fig.4)
NOTE: Do not operate the sweeper without the dust container in place.
“On/Off” switch
CAUTION: Any electronic or electrical appliance should not
be stored or exposed to continued areas of high heat or
humidity. Do not store your cordless sweeper close to stoves,
radiators, furnaces or in a bathroom or bathing area.
3. To release the handle to a comfortable position, apply pressure to the top of
the sweeper head with your foot while pulling back on the
handle.(Fig. 5)
Figure 5
4

CLEANING THE DUST CONTAINER
To achieve the best performance, empty the dust container after each use.

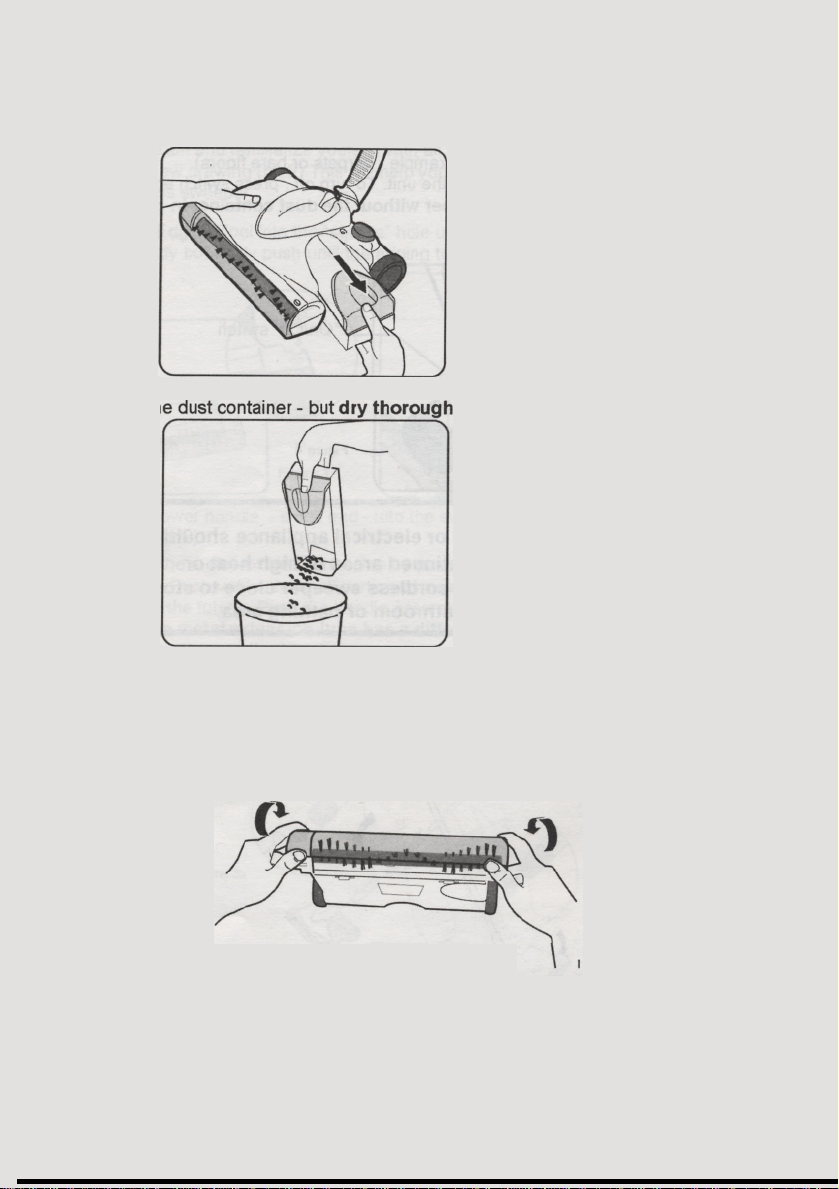

I, Pull the dust container straight out from the side. (Fig. 6)
Figure 6
2. Empty dust container contents. (Fig. 7) If desired- you may rinse with water to
clean th
ly before replacing on the sweeper.
Figure 7
3 Replace dust container on cordless sweeper.
4. Periodically remove the “See Thru” cover on the front of the cordless sweeper
and remove any build up of lint, hair or fiber on the rotating brush. To
remove the cover
- grip the cover from the bottom, pull out and upward until
the cover unlocks from the side slots and tabs located on the top of the
sweeper. (Fig. 8)
Figure 8
CAUTION: Do not accidentally turn unit on while cleaning. Do not clean
while unit is charging.
5

CHARGING THE CORDLESS SWEEPER
I, Connect the charger plug to the charging jack or hole on the back of the
sweeper. Plug the the charging adapter into the wall outlet. (120V-,60Hz.) Use only
TechWorld Charger AD-092~UL, rated output DC9V,200mA. (Fig. 9)
2. This cordless sweeper is powered by Ni-Cd batteries. Before first use,
they must be charged for a minimum of 16 hours.
3. Once the batteries are fully charged, the cordless sweeper will run for
approximately 35 to 45 minutes before recharging is required.
4. When recharging the unit, the “On/Off’ switch must be in the “OFF” position.
5. To recharge, repeat step #I above. Charging times will vary depending upon
the amount of usage between charging cycles.
6. The charging light indicator on the top of the sweeper will illuminate
to indicate that the sweeper is properly charging.
Figure 9
I
NOTE: Peak performance may only be realized after the unit has been
charged and discharged two (2) or three (3) times. I
IMPORTANT: To maintain peak performance of your cordless
sweeper, it is recommended that the unit be fully
discharged, then completely re-charged at least once a
month.
CAUTION
lUse only with the battery pack supplied with the unit.
lDo not attempt to remove the battery pack from the unit to charge it.
lNever attempt to throw the battery pack or unit into a fire or incinerate
it.
lDo not attempt to remove or damage the battery casing.
lBattery must be recycled or disposed of properly at the end of it’s
service life.
6

BATTERY REMOVAL & DISPOSAL
NOTE : If uncertain as to how to remove your battery pack, we
suggest you take your vacuum cleaner to a reputable small
appliance service technician to have this service performed.
Follow these steps when battery removal is required.
This vacuum cleaner is equipped with Ni-Cd batteries and you need to dispose of
them properly. When the batteries are no longer good for use, they must be removed
from the vacuum cleaner for disposal. Do not remove the batteries for any reason
other than disposal of them. This vacuum cleaner contains nickel-cadmium Ni-Cd)
batteries. The batteries must br recycled or disposed of properly. Call your nearest
recycling center for information on the recycling and disposal of Ni-Cd batteries.
WARNING:
You must never use ordinary batteries for replacement as these may
leak and cause damage.
REMOVAL OF BATTERY PACK
1. Remove the extention handles and dust cup container.
2. Turn unit over so that the base is facing upwards. Remove See-Thru brush
cover.
3. With a #I Phillips screwdiver, remove all ten (10) screws securing the base and
the top housing.
4. Grasp the battery pack and remove both the red and black wires leading to the
battery pack. The battery pack may now be removed.
CAUTION: This appliance contains Ni-Cd batteries. The batteries must be recycled
or disposed of properly.
CARE AND MAINTENANCE
To improve the performance and life of your unit, we recommend you
do the following:
1. Once a month clean the unit with a dry cloth, including the chamber which
the dust container fits into. Remove any hair, fiber or other materials that
may have built up in the chamber, on the rotating brush or edging tool.
2. Don’t use abrasive materials to clean the sweeper. Do not immerse the
unit in water.
3. Do not pick up liquids or use on wet floors.
4. Do not use on concrete, tar or similar rough surfaces.
5. Don’t pick up pieces of string or fabrics with the sweeper.
6. Do not clean tasseled or frayed carpets with the sweeper.
7

TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
1. Batteries discharged.
2. No power in electrical
1
Charge unit.
SWEEPER WILL NOT
2. Check fuse or breaker.
OPERATE
outlet supplying
transformer. Replace fuse/reset breaker
3. Unit needs servicing.
3 Call I-600-361 -4639.
SWEEPER WILL NOT
PICK-UP OR
I. Dust container is full.
1. Empty dust container -
SUCTION POWER IS
2. Unit needs recharging. 2. Charge unit.
WEAK
DUST ESCAPING
FROM SWEEPER
I. Dust container is full.
I. Empty dust container.
ROTATING BRUSH
1. Unit clogged.
WILL NOT PICK UP
2. Dust container is full.
1. Check for excessive material
on brush or
In bottom of
sweeper Remove obstruction
from brushes and/or sweeper.
2. Empty and clean dust
container.
1. Electrical outlet not
1. Check to ensure outlet is
working working properly. (Easily
SWEEPER WILL NOT
2. Charging Adapter not checked by plugging in
CHARGE
working another appliance.
3. Batteries no longer 2. Replace charging adapter
functioning 3. See disposal
recommendations pg. 7.
8

ONE (1) YEAR LIMITED WARRANTY
EURO-PRO CORPORATION warrants this product to be free from defects in material and
workmanship for a period of one (1) year from the date of the original purchase, when utilized for
normal household use, subject to the following conditions, exclusions and exceptions.
If your appliance fails to operate properly while in use under normal household conditions within the
warranty period, return the complete appliance and accessories, freight prepaid to EURO-PRO
Corporation, 4400 Bois Franc, Ville St. Laurent,
QC. H4S-lA7. If the appliance is found by EURO-
PRO to be defective in material or workmanship, EURO-PRO will repair or replace it free of charge.
Proof of purchase date and $ 11.95 to cover the cost of return shipping and handling must be
included.
*
Non-durable parts including, without limitation, dust cups, filters and brushes which normally require
replacement are specifically excluded from warranty.
The liability of EURO-PRO Corporation is limited solely to the cost of the repair or replacement of
the unit at our option. This warranty does not cover normal wear of parts and does not apply to any
unit that has been tampered with or used for commercial purposes. This limited warranty does not
cover damage caused by misuse, abuse, negligent handling or damage due to faulty packaging or
mishandling in transit.This warranty does not cover damage or defects caused by or resulting from
damages from shipping or repairs, service or alterations to the product or any of its parts, which
have been performed by a repair person not authorized by EURO-PRO.
This warranty is extended to the original purchaser of the unit and excludes all other legal and/or
conventional warranties. The responsibility of EURO-PRO Corporation if any, is limited to the
specific obligations expressly assumed by it under the terms of the limited warranty. In no event is
EURO-PRO Corporation liable for incidental or consequential damages of any nature whatsoever,
Some states do not permit the exclusion or limitation of incidental or consequential damages, so the
above may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from
province to province.
*iITlpOI%Iflt: Carefully pack item to avoid damage in shipping. Be sure to include proof of
purchase date and to attach tag to item before packing with your name, complete address
and phone number with a note giving purchase information, model number and what you
believe is the problem with item. We recommend you insure the package (as damage in
shipping is not covered by your warranty). Mark the outside of your package “ATTENTION
CUSTOMER SERVICE”. We are c onstantly
Striving to improve our products, therefore
the specifications contained herein are subject to change without notice.
x
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..*..................
OWNERSHIP REGISTRATION CARD
Please fill out and mail the product registration card within ten (10) days of purchase in order to
validate the foregoing Limited Warranty. The registration will enable us to contact you in the unlikely
event of a product safety notification. By returning this card you acknowledge to have read and
understood the instructions for use, and warnings set forth in the accompanying instructions.
RETURN TO EURO-PRO CORPORATION: 4400 Bois Franc, Ville St. Laurent,
QC, H4S-IA7
Appliance model
Date purchased
Owner’s name
Address
Prtnted in China
Name of store
City Prov. Postal code
9
