WARNING: To reduce the risk of
electric shock or injury, do not use outdoors
or on wet surfaces.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY:
GENERAL ELECTRICAL SAFETY:
1. Unplug from electrical outlet when not in use
and before servicing.
2. DO NOT use vacuum with a damaged cord or
plug. If the supply cord is damaged, it must be
replaced by a qualified electrician in order to
avoid a hazard. Incorrect re-assembly or repair
can cause a risk of electrical shock or injury to
persons when the appliance is used.
3. DO NOT pull or carry the vacuum by the cord.
4. DO NOT unplug by pulling on the cord; to
unplug, grasp the plug, not the cord.
5. DO NOT handle the plug or the appliance with
wet hands.
6. DO NOT run the vacuum over the power cord.
7. DO NOT use the cord as a handle.
8. DO NOT close a door on the cord.
9. DO NOT pull the cord around sharp
corners. The use of an extension cord is not
recommended.
10. DO NOT leave the appliance plugged in when
not in use.
11. Keep the cord away from heated surfaces.
12. Turn off all controls before plugging or
unplugging the vacuum cleaner.
13. Always turn off this appliance before attaching
or removing accessories.
WHEN USING AN ELECTRICAL
APPLIANCE, BASIC SAFETY PRECAUTIONS
SHOULD ALWAYS BE OBSERVED,
INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS BEFORE USING
YOUR SHARK®LIFT-AROUND™PORTABLE
VAC.
IMPORTANT:
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning the use of the
appliance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
IMPORTANT SAFETY INSTRUCTIONS
For Household Use Only
NP320UKL_40_IB_ENG_120518_2.indd 1 12-05-18 11:58 AM

2
www.lakeland.co.uk
GENERAL USE:
1. Use only as described in this manual.
2. DO NOT put any objects into openings. DO
NOT use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce air
flow.
3. Keep your work area well lit.
4. DO NOT place the vacuum on unstable
surfaces such as chairs or tables.
5. DO NOT allow young children to operate
the vacuum or use as a toy. Close attention is
necessary when used by or near children.
6. DO NOT use the vacuum cleaner if the
appliance is not working as it should, has
a damaged plug or cord, if the unit has
been dropped, damaged, left outdoors or
submerged in water.
7. DO NOT use without dust cup and/or filters
in place.
HOSE ATTACHMENTS:
1. DO NOT use if air flow is restricted; if the air
paths, the hose, or the accessories become
blocked, turn the vacuum cleaner off. Remove
all obstructions before you turn on the
unit again.
2. Keep the end of the hose and accessory
openings away from face and body.
3. Keep cleaning tools and hose suction openings
away from hair, face, fingers, uncovered feet,
or loose clothing.
4. Only use manufacturer’s recommended
attachments.
GENERAL CLEANING:
1. DO NOT pick up large-sized objects.
2. DO NOT pick up hard or sharp objects such as
glass, nails, screws or coins that could damage
the vacuum cleaner.
3. DO NOT pick up smoking or burning objects
such as hot coals, cigarette butts, matches or
hot ash.
4. DO NOT pick up flammable or combustible
materials such as lighter fluid, gasoline, or
kerosene or use vacuum in areas where they
may be present.
5. DO NOT pick up toxic solutions such as
chlorine bleach, ammonia, or drain cleaner.
6. DO NOT use in an enclosed space where
vapors are present from paint, paint thinner,
moth-proofing substances, flammable dust or
other explosive or toxic materials.
7. DO NOT vacuum up any liquids.
8. DO NOT immerse the vacuum cleaner in water
or other liquids.
9. DO NOT use outdoors or on wet surfaces; use
only on dry surfaces.
10. Use extra care when cleaning on stairs.
DUST CUP/FILTERS/ACCESSORIES:
Before turning on the vacuum:
1. Make sure that all filters are thoroughly dry
after routine cleaning.
2. Make sure that the dust cup and all filters are in
place after routine maintenance.
3. Make sure accessories are free of blockages.
4. Only use filters and accessories provided by the
manufacturer. [Failure to do so will void the
warranty.]
SAVE THESE
INSTRUCTIONS
NP320UKL_40_IB_ENG_120518_2.indd 2 12-05-18 11:58 AM

3
www.lakeland.co.uk
This manual covers model number:
NP320UKL 40
TECHNICAL SPECIFICATIONS
Voltage: 220-240V~, 50/60Hz
Watts: 550 W
Amps: 4.6 A
This appliance complies with the WEEE-Directive 2002/96/EC on the disposal of electrical and electronic
equipment (WEEE).
This appliance complies with the European directives for electromagnetic compatibility (EMC) 2004/108/
EC and its revisions, as well as Low Voltage Directive (LVD) 2006/95/EC and its revisions.
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of
material sources. To return your used device, please use the return and collection systems
or contact the retailer where this product was purchased. They can take this product for
environmental safe recycling.
Not to be disposed
of with othe r
household waste.
NP320UKL_40_IB_ENG_120518_2.indd 3 12-05-18 11:58 AM

4
www.lakeland.co.uk
Contents
Getting Started............................................................................5
How to Use ...................................................................................7
Maintenance ................................................................................8
Checking for Blockages...............................................................10
Storing..........................................................................................11
Resetting the Motor Thermostat ...............................................11
Ordering Replacement Parts ......................................................11
Troubleshooting Guide................................................................12
Thank you for
purchasing the
Shark®
Lift-Around™
Portable Vac.
NP320UKL_40_IB_ENG_120518_2.indd 4 12-05-18 11:58 AM

5
www.lakeland.co.uk
Getting Started
Use the Shark®Lift-Around™Portable
Vac as a stand alone vacuum for spot-
cleaning small areas and large piles of debris,
or with the Flexible Hose and cleaning tools
for above-floor cleaning.
FIRST THING’S FIRST, YOU NEED TO KNOW

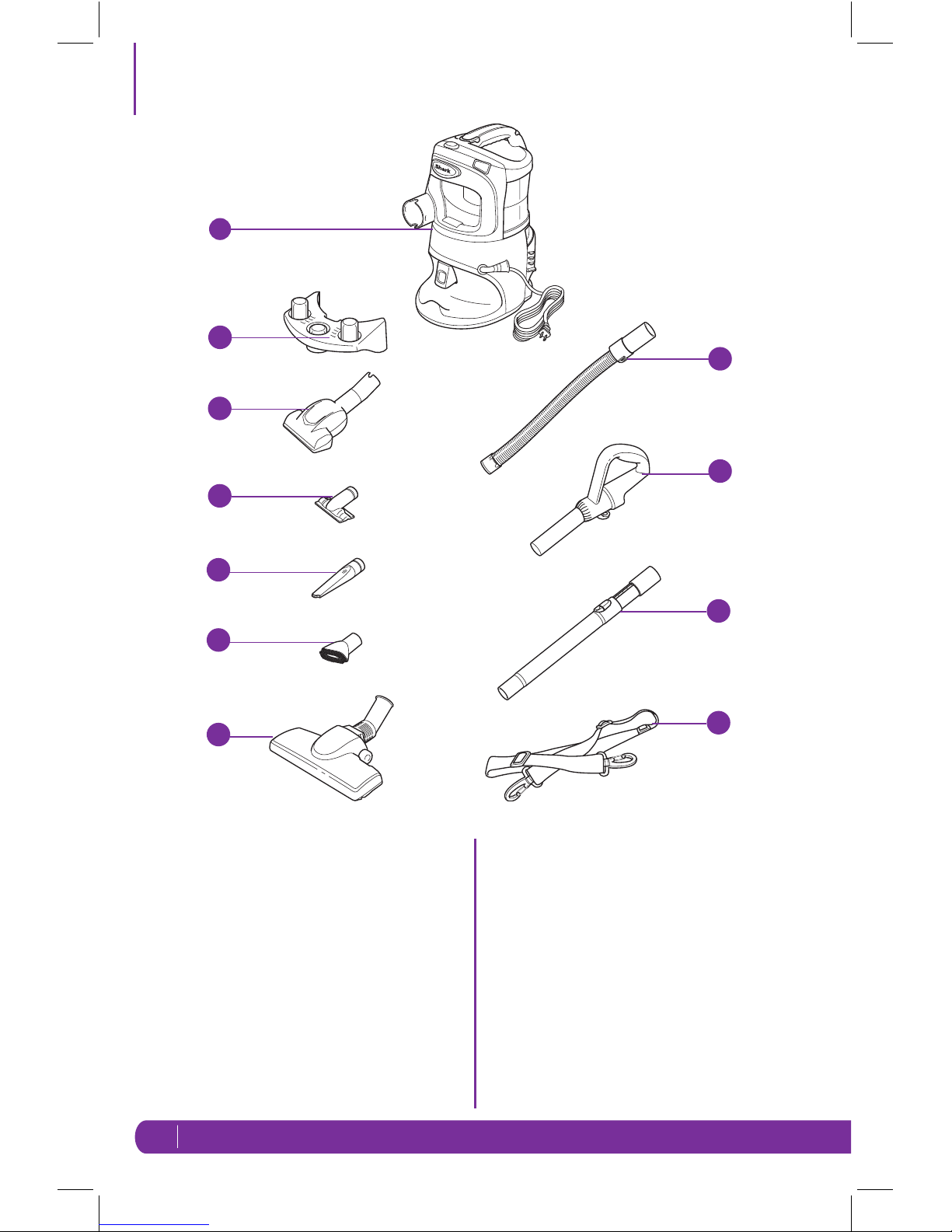

WHAT’S IN THE BOX YOU JUST OPENED:
ALift-Around™Portable Vac
BRemovable Tool Caddy
C Power Brush
D Upholstery Brush
ECrevice Tool
FDusting Brush
GStraight Suction Nozzle
B
G
A
C
I
K
H
D
E
J
F
HFlexible Hose
I Floor Kit Handle
JTelescopic Tube
K Shoulder Strap
L Accessory Bag (not shown)
NP320UKL_40_IB_ENG_120518_2.indd 5 12-05-18 11:58 AM

6
www.lakeland.co.uk
NOTE: Always turn the power off before attaching
or detaching accessories.
REMOVABLE TOOL CADDY (B)
Specially designed to hold the crevice tool, dusting
brush and upholstery brush for quick access to
tools when vacuuming and cleaning around the
house.
POWER BRUSH (C)
This small accessory has an air driven brushroll
for cleaning upholstery, pet hair and even auto
interiors.
UPHOLSTERY BRUSH (D)
This unique tool was engineered for fast and easy
removal of pet hair from upholstery.
CREVICE TOOL (E)
Reach deep into narrow spaces and clean between
cushions, under radiators and baseboards and in
hard to reach crevices and corners.
DUSTING BRUSH (F)
Dust shelves, lamp shades, window blinds, books,
furniture and other household items.
STRAIGHT SUCTION NOZZLE (G)
Powerful cleaning on low-pile carpets and
hardwood floors.
FLEXIBLE HOSE (H)
With the right cleaning tool in place and the Flexible
Hose, you can extend your reach into hard-to-clean
areas.
NOTE: Use the Flexible Hose without any
accessories attached for large debris cleaning.
FLOOR KIT HANDLE (I)
Designed for easy manoeuvrability and effortless
swivel.
TELESCOPIC TUBE (J)
Extend and adjust your reach farther into hard-to-
clean areas.
SHOULDER STRAP (K)
Specialised design to make carrying the Portable
Vac with ease. The removable Shoulder Strap is
ergonomic and easily distributes weight across the
shoulder.
NP320UKL_40_IB_ENG_120518_2.indd 6 12-05-18 11:58 AM

7
www.lakeland.co.uk
ASSEMBLING THE LIFT-AROUND™PORTABLE VAC

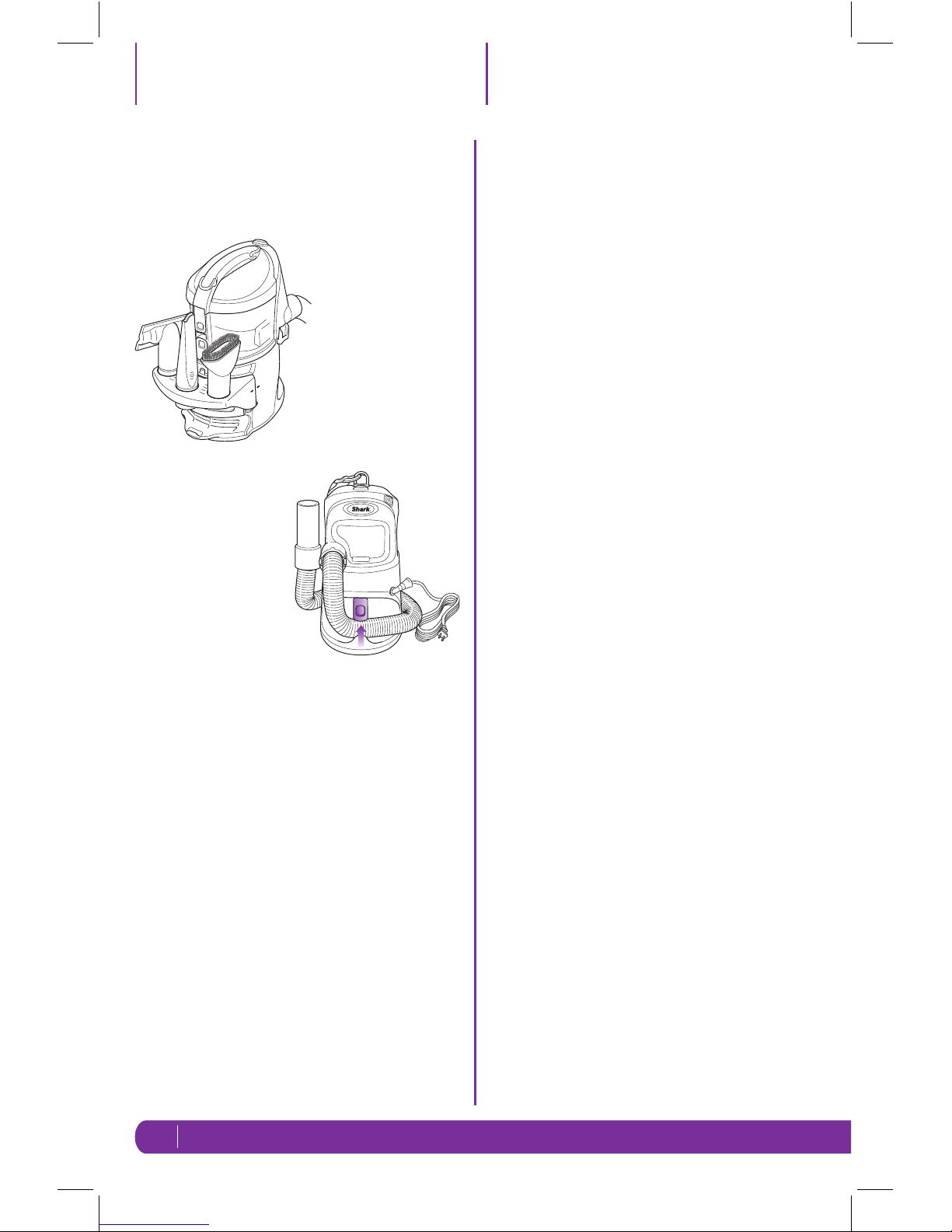

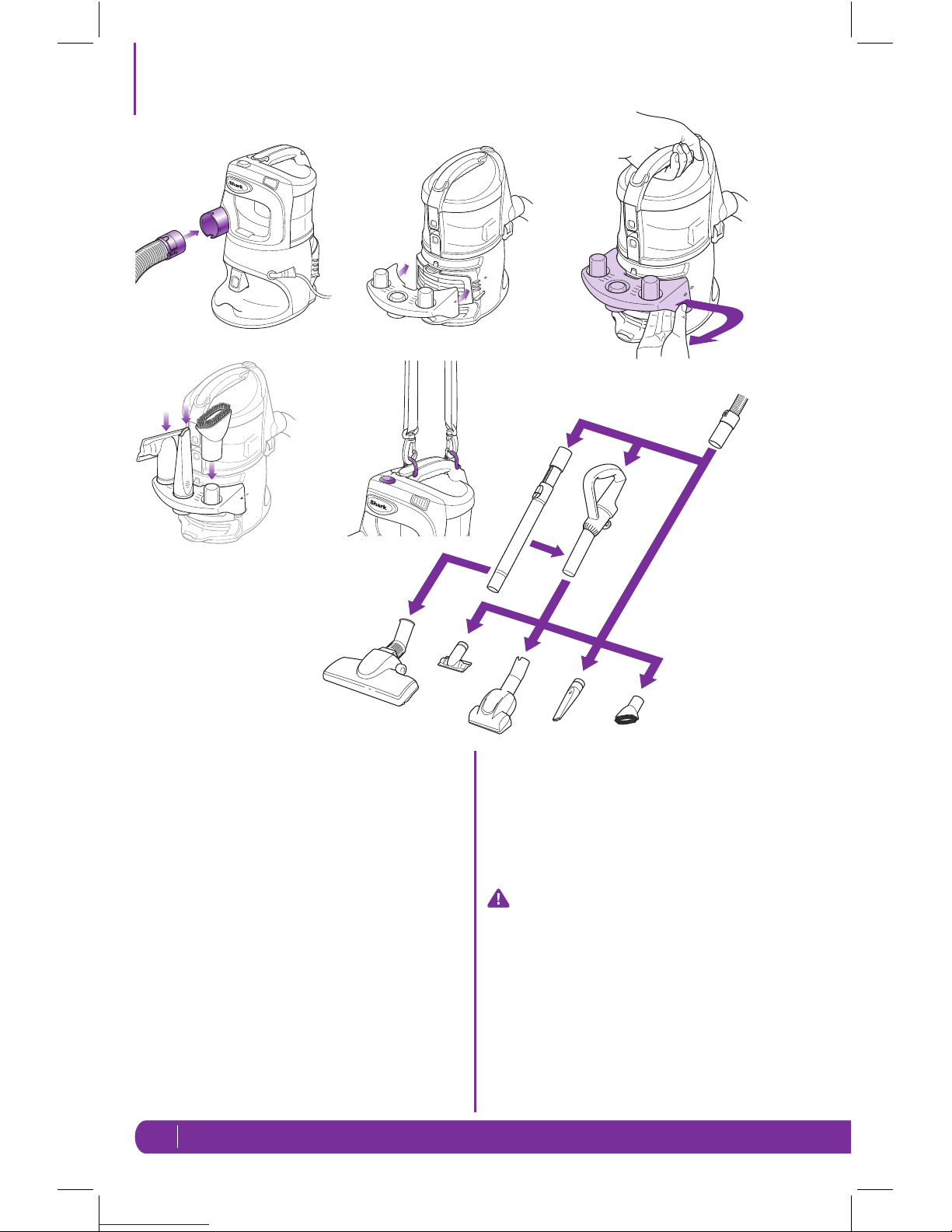

1Insert the end of the flexible hose into the
connector on the front of the Lift-Around™
Portable Vac. (fig. 1)
2Insert the removable tool caddy onto the back
of the Portable Vac. (fig. 2) To remove the tool
caddy, hold the vacuum by the handle, pull out
slightly from the right side and then remove it from
the Portable Vac. (fig. 3)
3Insert the crevice tool, dusting brush, upholstery
brush or power brush into the openings on the tool
caddy. (fig. 3)
4Attach the shoulder strap onto the hooks on the
handle of the Portable Vac. (fig. 4)
5Empty Dust Cup after cleaning and periodically
during cleaning when it appears full. (See
“Maintenance” section for instructions.)
FOR ADDED COMFORT OR FOR AN EXTENDED
REACH
6Attach the floor kit handle to the flexible hose.
Push it in until it is secure. (fig. 6)
7Insert the telescopic tube into the end of the floor
kit handle. Push it in until it is secure. (fig. 6)
NOTE: All accessories may be used with the
flexible hose, the floor kit handle or the telescopic
tube.
8Attach the desired accessory to the end of the
flexible hose, floor kit handle or telescopic tube by
pushing it in until it is tightly secured. (fig. 6)
9While holding the Portable Vac by the handle,
press down on the power button to turn the
Portable Vac on and begin vacuuming. Press down
again to turn the vacuum off. (fig. 5)
How to Use
Fig. 6
Fig. 1 Fig. 2
Fig. 4 Fig. 5
Power
Button
Align arrows to attach tool caddy
Pull out to remove tool caddy
Fig. 3
NP320UKL_40_IB_ENG_120518_2.indd 7 12-05-18 11:58 AM

8
www.lakeland.co.uk
Maintenance
For best results empty the Dust Cup
after each use; empty several times
during prolonged usage or when it
reaches the MAX fill line.
NEVER OVER-FILL THE DUST CUP.
CAUTION:
Unplug the vacuum;
failure to do so might
result in electric shock.
To reduce the risk of electric shock, unplug the unit before performing any cleaning, maintenance, or
troubleshooting checks.
Reassemble all parts securely before operating vacuum.
EMPTYING THE DUST CUP
The Dust Cup needs to be emptied each time you
vacuum and periodically during cleaning, when the
Dust Cup appears full.

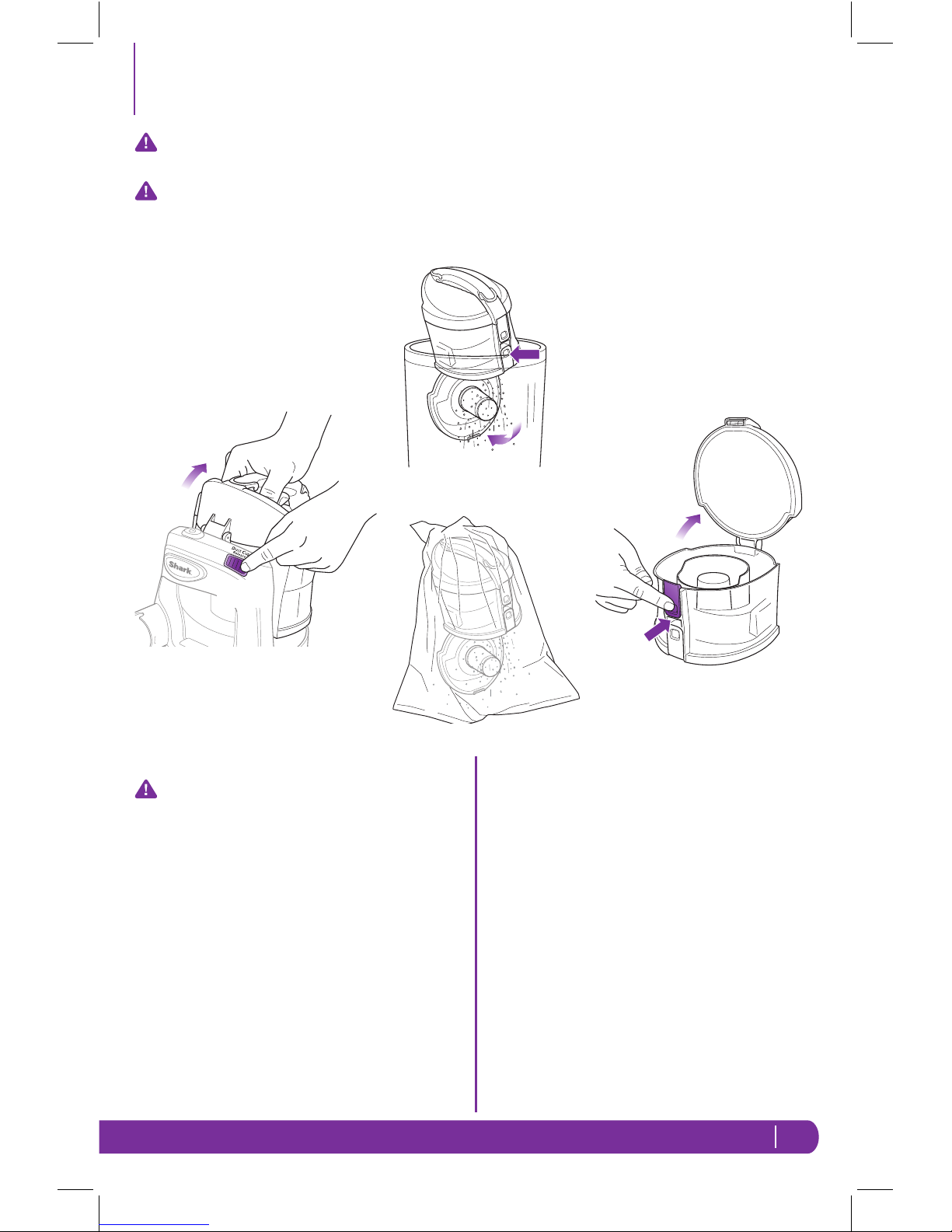

1Press the dust cup release button and remove the
dust cup from the vacuum. (fig. 7)
2Option A: for Quick Empty:
Insert the Dust Cup deep inside a rubbish
receptacle to contain the dust and debris.
Press the bottom door release button to release
the trap door. Tap gently to empty contents.
(fig. 8)
Press the door shut again until it clicks.
3Option B: For Allergy Sufferers:
Wrap a rubbish bag around the Dust Cup leaving
space at the bottom for the door to swing open.
Locate the bottom door release button within the
rubbish bag and press to release as you shake the
dust cup to empty dust and debris. (fig. 9)
Press the door shut again until it clicks.
Note: Option B can also be performed outside of
the home to further minimise releasing dust back
into the air. Carry just the dust cup and rubbish bag
outside.
4Check to make sure the trap door is secure before
returning it to the Vacuum.
5To clean the upper compartment of the dust cup,
press the top door release button to open.
(fig. 10) Empty the contents over a rubbish
receptacle and push the door shut until it clicks
into place.
Fig. 7
Fig. 8
Fig. 10
Bottom Door
Release
Fig. 9
Top Door
Release
Dust Cup
Release
NP320UKL_40_IB_ENG_120518_2.indd 8 12-05-18 11:58 AM

9
www.lakeland.co.uk
Maintenance - cont.

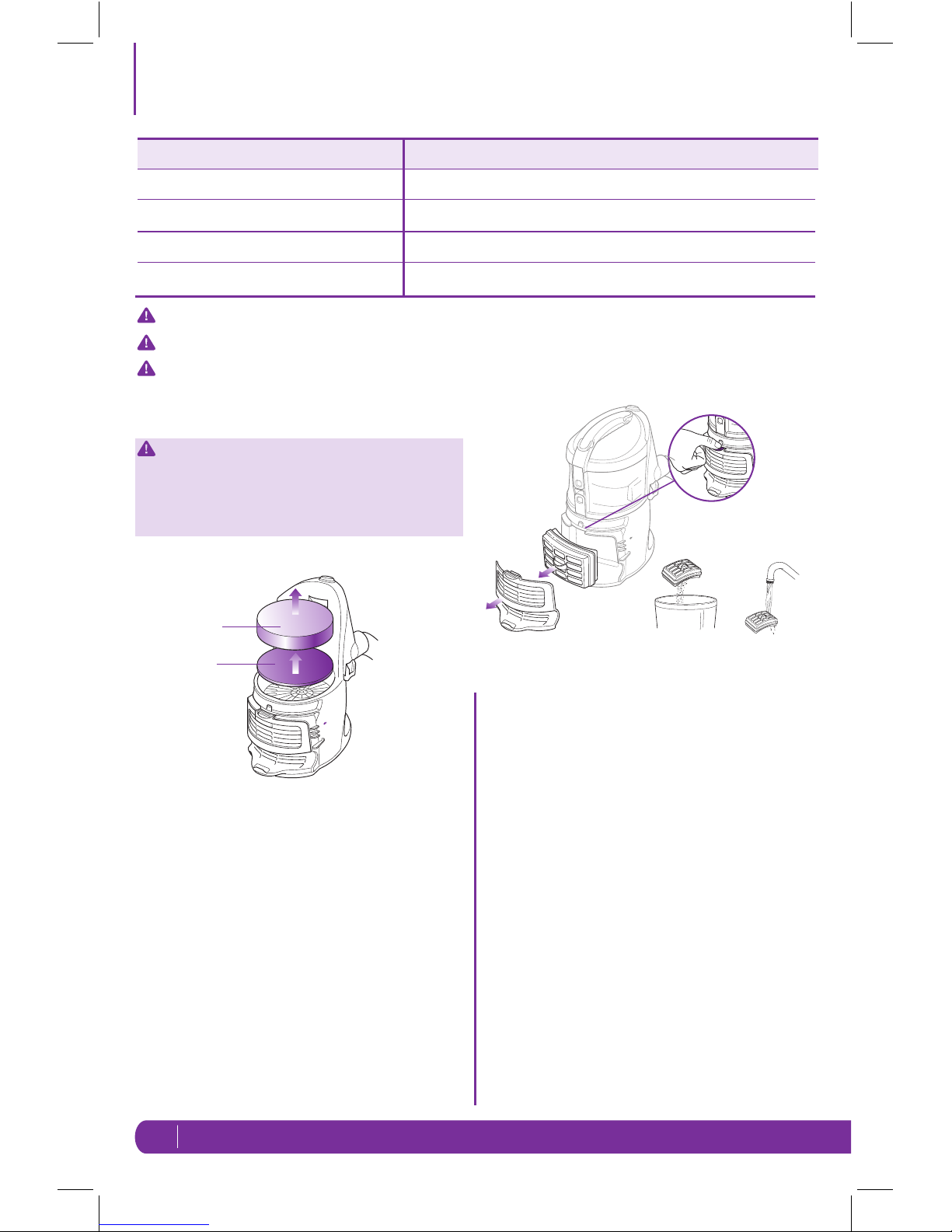

CLEANING THE POST-MOTOR HEPA FILTER
1 Remove the tool caddy from the unit.
2 Remove the filter cover from the vacuum by pulling
up on the tab and pulling the cover away from the
vacuum. (fig. 12)
3 Take out the HEPA filter by pulling it straight out.
4 Turn the filter over so that the dirty side is on
the bottom and vigorously tap it clean against a
garbage can to remove any dust. (fig. 13)
5 Wash the filter under the tap using lukewarm
water with the dirty side face down until the water
runs clear. (fig. 14)
6 Allow the filter to air dry for 24 hours. Do not use a
hair dryer or other heating methods to dry.
7 Once the HEPA filter is dry, replace it back into the
vacuum.
8 Replace the cover by inserting the two tabs into
the holes at the top and then swinging the cover
down until it clicks into place.
CLEANING THE PRE-MOTOR FILTERS
1 Remove the dust cup.
2 Remove the pre-motor filters out from the top of
the motor base. (fig. 11)
3 Rinse the filters thoroughly in lukewarm water until
the water runs clear.
4 Squeeze out excess water and let air-dry for at
least 24 hours before replacing. Do not use a hair
dryer or other heating methods to dry.
5 Place the felt filter in first, then the foam filter.
6 Replace the dust cup.
COMPONENT MAINTENANCE SCHEDULE
Rinse and air dry every month under normal use.
Empty each time you vacuum.
Pre-Motor Foam Filter
Dust Cup
Rinse and air dry every month under normal use. Pre-Motor Felt Filter
Clean once every 24 months under normal use.
Post-Motor HEPA Filter
1
2
3
4
IMPORTANT: Loss of Suction may occur if foam
filter is not cleaned every month. Rinse and allow to air
dry completely. Tap loose dirt from foam filter as needed
in between washing. Foam filter may appear dirty after
use - this is normal.
Post Motor
HEPA Filter
Fig. 12 Fig. 13
Pre-Motor
Foam Filter
Felt Filter
Fi g. 11
Fig. 14
DO NOT operate the vacuum without ALL the filters in place.
DO NOT operate the vacuum with WET filters.
DO NOT put the filters in the washing machine or dishwasher.
NOTE: The material in the filters will discolor over time. This is
NORMAL and will not affect the performance of the filters.
NP320UKL_40_IB_ENG_120518_2.indd 9 12-05-18 11:58 AM

10
www.lakeland.co.uk
Checking for Blockages
Blockages may cause your vacuum to overheat and
shut down. To prevent this from happening, check
potential blockage areas after heavy use or if you
detect a loss of suction or poor cleaning performance.
1 DUST CUP
Dust Cup may be full. Empty Dust Cup.
2 FILTERS (PRE-MOTOR AND POST MOTOR)
Ensure that both the Pre Motor Filters and the Post
Motor HEPA filter are clean.
3 ACCESSORIES
Check intake openings:
 • PowerBrush
 • CreviceTool
 • UpholsteryBrush
 • DustingBrush
 • FlexibleHose
 • FloorKitHandle
 • StraightSuctionNozzle
CLEANING THE POWER BRUSH
•Turn the Power Brush over, slide the locking latch
forward and tilt the cover upward to remove.
(fig. 15)
•Inspect the rotating bristle brush, turbine wheel
and air passage.
•Remove any blockage or debris and carefully,
without damaging the bristles or belt, cut any
build-up of hair or string wrapped around the
rotating bristle brush with scissors.
•To reassemble, first insert the tabs on the front
edge of the cover into the matching holes in the
top half of the Power Brush and tilt the cover back
down pressing until it clicks into place. (fig. 16)
Locking
Latch
Rotating
Bristle Brush
Turbine
Wheel
Fig. 15 Fig. 16
NP320UKL_40_IB_ENG_120518_2.indd 10 12-05-18 11:58 AM

11
www.lakeland.co.uk
STORE YOUR VACUUM SAFELY
1 Store the dusting brush, upholstery brush, the
crevice tool or the power brush on the mounts on
the removable tool caddy. (fig. 17)
2 Wrap the flexible hose around the base of the
vacuum and hook the end of the flexible hose into
the hose dock. (fig. 18) To release the hose, press
the Hose Storage button.
3 Wrap the attached cord strap around the power
cord when storing.
4 Store your vacuum cleaner with the rest of the
accessories safely in a cool dry area where they
will not be a hazard, will not get damaged and will
not cause damage to anyone or anything.
NOTE: Empty dust cup after cleaning and prior
to storing. (See “Maintenance” section for
instructions.)
Storing
Your Shark®Lift-Around™ Portable Vac is
equipped with a protective Motor Thermostat. If the
motor should overheat, the thermostat shuts off the
power.
To reset the Motor Thermostat:
Press the Power Button to turn the vacuum off.
Unplug the vacuum.
Check for clogged hose or filter; unclog hose and replace
filter. Refer to Checking for Blockages.
Wait 45 minutes for vacuum to cool; then plug in the
vacuum.
Press the Power Button to restart the vacuum.
Resetting the Motor Thermostat
Fig. 17
Fig. 18
NP320UKL_40_IB_ENG_120518_2.indd 11 12-05-18 11:58 AM

12
www.lakeland.co.uk
Troubleshooting Guide
PROBLEM POSSIBLE REASONS & SOLUTIONS
Vacuum is not
picking up dirt.
Check Filters to see if they need cleaning. Follow instructions for rinsing and
drying the Filters before re-inserting back into the Vacuum. (See “Maintenance”
sections for instructions.)
Dust Cup may be full; empty Dust Cup.
Check Hose, Hose connections and accessories for blockages; clear blockages if
required.
If Dust Cup is empty, and attachment inlets are clear, check for other blockages.
(See “Checking for Blockages” for instructions.)
Airflow is restricted. No
suction or light suction.
Check Filters to see if they need cleaning. Follow instructions for rinsing and
drying the Filters before re-inserting back into the Vacuum. (See “Maintenance”
sections for instructions.)
Dust Cup may be full; empty Dust Cup.
Check Hose and Hose connections for suction strength; clear blockages if
required.
If Dust Cup is empty, and attachment inlets are clear, check for other blockages.
(See “Checking for Blockages” for instructions.)
Vacuum turns off on its
own.
This vacuum cleaner is equipped with a motor protective thermostat. If for some
reason your vacuum overheats, the thermostat will automatically turn the unit off.
Should this occur, perform the following steps to restart the motor thermostat:
1. Press down on the Power Button to turn the Portable Vac off.
2. Unplug the vacuum.
3. Empty the Dust Cup and clean Filters. (See “Maintenance” sections for
instructions.)
4. Check for blockages in hose, accessories and inlet opening. (See “Checking for
Blockages” for instructions.)
5. Allow the unit to cool for a minimum of 45 minutes.
6. Plug in the vacuum.
7. Press the Power Button again to restart the vacuum.
NOTE: This appliance has no serviceable parts.
NP320UKL_40_IB_ENG_120518_2.indd 12 12-05-18 11:58 AM

13
www.lakeland.co.uk
Notes
NP320UKL_40_IB_ENG_120518_2.indd 13 12-05-18 11:58 AM

14
www.lakeland.co.uk
Notes
NP320UKL_40_IB_ENG_120518_2.indd 14 12-05-18 11:58 AM

Shark Customer Services
PO Box 298
Mirfield
WF14 9BA
Freephone 0800 862 0453
www.lakeland.co.uk
Technical Details
Model number: NP320UKL 40
Input: 550 Watts
Amps: 4.6
Main unit voltage: 220-240V~, 50/60 Hz.
COPYRIGHT© EURO-PRO OPERATING LLC 2012
PRINTED IN CHINA
NP320UKL.E.120518.2
Illustrations may differ from actual product.
Not to be disposed
of with othe r
household waste.
NP320UKL_40_IB_ENG_120518_2.indd 15 12-05-18 11:58 AM
