RUSH POWER M

Dear customer!
Congratulations for purchasing one premium quality SHARKOON product.
For a long life time and to take full advantage of this product we recommend that you
read this manual completely.
Have a good time with our product!
SHARKOON Technologies GmbH
1. Features
ATX 12 V v.2.31:
Supports the latest Intel and AMD processor based systems.
Separate 12 V rails:
Separate 12 V rails guarantee a stable power supply for all
components.
High energy efficiency:
This power supply achieves an energy efficiency higher than 80%.
This value indicates the ratio (in percent) between energy input
and output. The closer this value reaches 100%, the less power
dissipation does the PSU produce.
CABLE
MANAGEMENT
Cable management:
The PSU provides a modular cable system. Thus only the
required cables need to be connected.
ACTIVE PFC
Active PFC function:
This power supply operates with active power factor correction (PFC).
135mm FAN
135 mm fan:
The installed 135 mm fan provides a considerably higher airflow
with lower rpm, thus reducing the operating noise effectively.
1x/2x 6-PIN
1x/2x 6+2-PIN
2x/4x PCIe
PCIe connectors:
This power supply unit is equipped with two (SHA-R400M) / four
(SHA-R500M, SHA-R600M) PCIe connectors (6-pin plus 6+2-pin).
RUSH POWER M

WARNING
To prevent the risk of electric shock, do not open
the power supply housing. No user-exchangeable
parts inside. For service and maintenance refer
to authorized SHARKOON personnel. Warranty
is void under unauthorized attempt to open the
power supply housing.
Suitable for indoor or office use only.
Keep the power supply away from humidity!
2. Specifications
2.1 Overview
Model No. SHA-R400M
Input (AC) Input voltage Current Frequency
100 – 240 V ~ 8 – 4 A 60 – 50 Hz
Output (DC) +3.3 V +5 V +12 V1+12 V2-12 V +5 VSB
Max. Output Current 24 A 20 A 18 A 18 A 0.3 A 2.5 A
Max. Combined Power 120 W 300 W
400 W
Model No. SHA-R500M
Input (AC) Input voltage Current Frequency
100 – 240 V ~ 10 – 5 A 60 – 50 Hz
Output (DC) +3.3 V +5 V +12 V1+12 V2-12 V +5 VSB
Max. Output Current 24 A 20 A 20 A 20 A 0.3 A 2.5 A
Max. Combined Power 130 W 360 W
500 W
Model No. SHA-R600M
Input (AC) Input voltage Current Frequency
115 – 240 V ~ 10 – 5 A 60 – 50 Hz
Output (DC) +3.3 V +5 V +12 V1+12 V2-12 V +5 VSB
Max. Output Current 24 A 24 A 30 A 30 A 0.3 A 2.5 A
Max. Combined Power 140 W 500 W
600 W
RUSH POWER M

2.3 Line voltage and protective functions
This PSU works with 100 to 240 V (50/60 Hz) and is equipped with the following
protective functions:
1. Over voltage protection:
The power supply provides a latch mode against over voltage, as defined below:
Min. Max. Unit
+5 V 5.74 7.5 Volt
+3.3 V 3.76 4.8 Volt
+12 V1, 2 13.4 17 Volt
2. Short circuit protection:
The power supply is designed with a short circuit protection to prevent damage
of the power supply components. Main power will be shutdown when a short
circuit occurs. The PSU will return to normal after the short circuit has been re-
moved and the main power switch has been turned off and back on again, with a
minimum cycle pause of 2 seconds.
3. Over current protection:
The power supply provides a latch mode against over current, as defined below:
Model No. Limit value (min.) Limit value (max.) Unit
+12 V1, 2
SHA-R400M
SHA-R500M
SHA-R600M
23
23
31
36
37
50
A
2.4 Safety standards
Our power supply has been certified to comply with CB, FCC, BSMI and CE safety
regulations.
Operation 0 to +40 °C 20 – 85% rel. humidity,
non-condensing
Storage -40 to +70 °C 5 – 90% rel. humidity,
non-condensing
2.2 Temperature range and humidity
RUSH POWER M

3. Parts and accessory
 • Powersupply“RushPower”(A)
 • Powercord(B)
 • Manual
 • Setwithmodularcables:
o PCIe cable set with 1x 6-pin and 1x 6+2-pin each (C): 1x SHA-R400M,
2x SHA-R500M, SHA-R600M
o 1x Peripheral (3x 4-pin / D)
o 1x Peripheral (2x 4-pin + 1x Floppy / E)
o 1x SATA cable (6x 15-pin / F)
 • Cableties(G)
 • Setwithscrews(H)
 • Cablebag(I)
Note:
If you are missing any of the items listed above, please contact customer service via
e-mail at [email protected] or call + 49 (0) 6403 – 775 6100.
A
B
C D E F
G
H I
RUSH POWER M

4. The modular system of the Rush Power
The special feature of this PSU is the so called cable management system to connect
the peripheral devices.Thanks to this modular system only the really required cables
need to be connected thus keeping your case proper and optimizing the airflow within.
4.1 The connectors at the PSU
A – 1x 10-pin connector for SATA cables
B – 4x 4-pin connector for 4-pin cables
C – 2x 6-pin connector for PCIe cables
4.2 The modular cables
Besides the 20+4-pin ATX connector cable and a 4+4-pin P8 connector cable – both
soldered to the PSU – the Rush Power is delivered with an extensive set of modular cables:
1x/2x PCIe connector cable (6-pin PSU
connector) for graphics cards (2x 6-pin +
2x 6+2-pin connectors).
AB
C
RUSH POWER M

1x connector cable for peripheral devices
(4-pin PSU connector) for optical drives
(2 connectors) and floppy (1 connector).
1x connector cable for peripheral devices
(4-pin PSU connector) for optical drives
(3 connectors).
1x SATA connector cable
(10-pin PSU connector) for SATA drives
(6 connectors).
5. Installation
Remove an already installed PSU from the case. Proceed as follows:
1. Switch off your PC. Disconnect the PSU’s power cord from the wall outlet and your
PSU. Unplug all cables connected to the PC case (e.g. keyboard, mouse etc.).
2. Open the PC case (for additional information refer to the PC case’s manual).
3. Disconnect all cable connections between the PSU and other PC components (e.g
mainboard, HDDs, drives, fans etc.).
4. Remove the mounting screws connecting PSU and PC case and carefully take the
PSU out of the case.
5.1 Installing the Rush Power into the PC case
1. Insert the Rush Power into the PC case and put it against the PSU bracket on the
case’s back side.
2. Screw the PSU to the case from the outside using the included screws. Pay
attention not to cover the fan/air intake of the built-in PSU.
RUSH POWER M

5.2 Connecting the PC components to the PSU

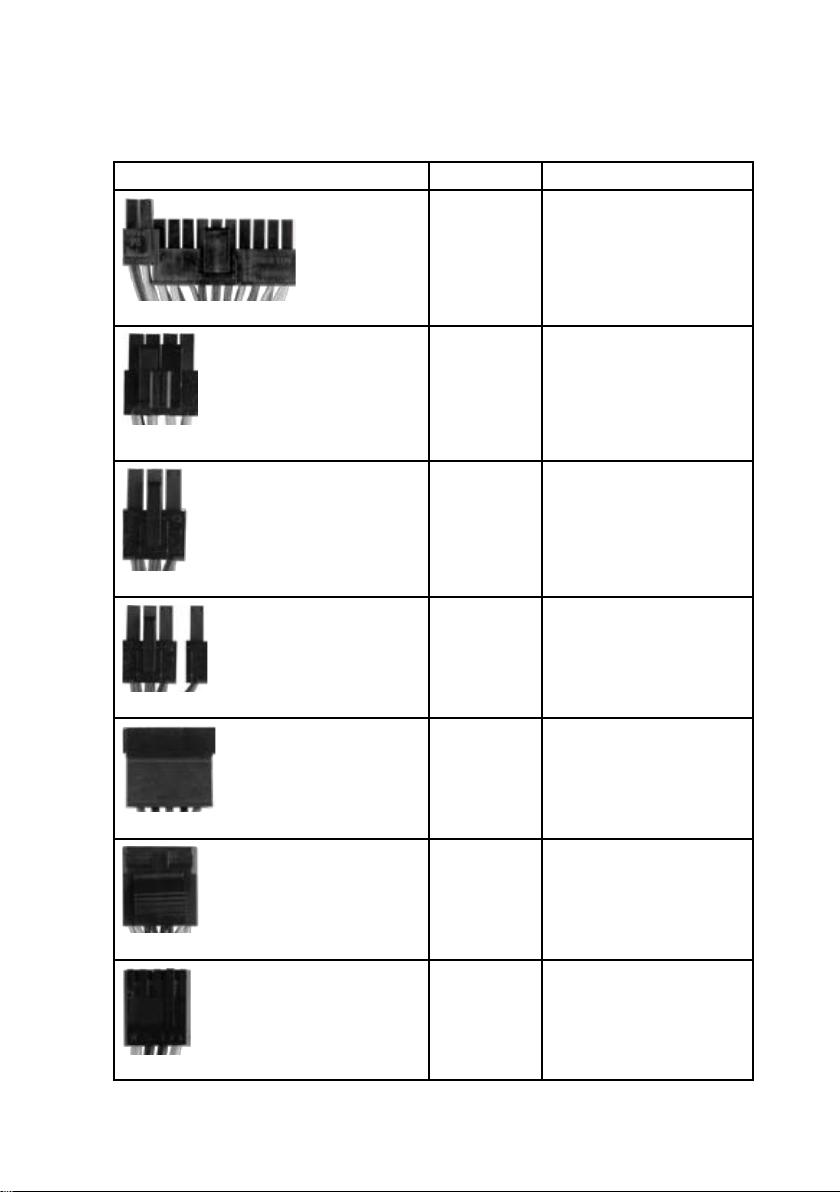

5.2.1 The connectors at a glance
Connector SHA-R400M SHA-R500M, SHA-R600M
20+4-pin ATX power connector
1x attached 1x attached
4+4-pin P8 power connector
1x attached 1x attached
6-pin PCIe power connector
1x modular 2x modular
6+2-pin PCIe power connector
1x modular 2x modular
SATA power connector
6x modular 6x modular
4-pin connector for peripheral devices
5x modular 5x modular
4-pin floppy connector
1x modular 1x modular
RUSH POWER M

Note:
All connectors are designed fault-preventing to avoid misconnection. If you cannot
attach the female connector to the drive’s or peripheral’s male connector, please check
if both connectors are attached in the correct orientation.
Do not force to plug the female connector into the male connector in wrong orien-
tation, nor modify any of the components, as this will damage the PSU and your hard-
ware. SHARKOON warranty does not cover damage caused by incorrect handling.
5.2.2 Connecting mainboard and graphics card(s)
1. Plug the ATX power connector (fig. 1) to the respective jack on the mainboard.
fig. 1
2. In case your mainboard also provides an additional 4-pin or 4+4-pin power connector
(the so called P4 resp. P8 connector), also plug the respective connector (fig. 2).
fig. 2
Note:
The mainboard’s power connection depends on the vendor and may vary. For
detailed information on how to establish the power connection refer to your
mainboard’s manual.
RUSH POWER M

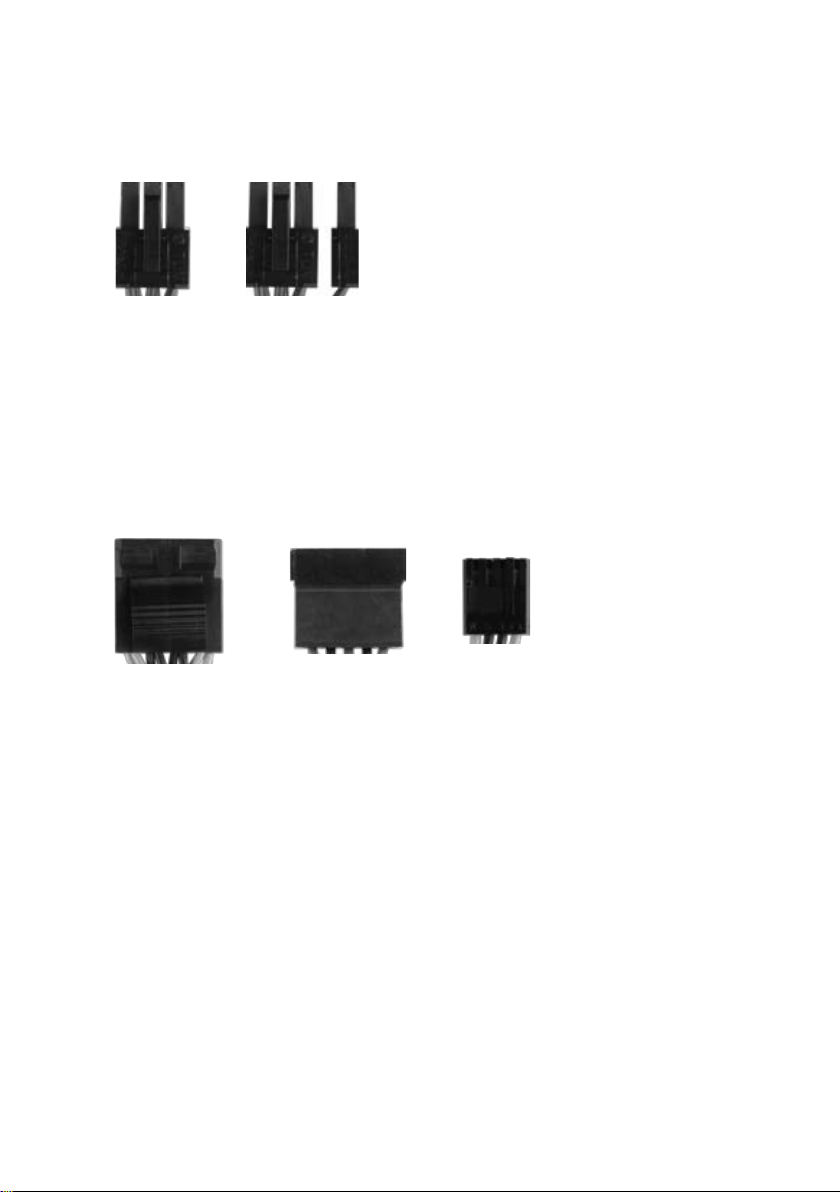

3. In case your PCIe graphics card is equipped with an additional power connector, also
plug the 6-pin (fig. 3a) or 6+2-pin (fig. 3b) PCIe power connector which will provide
a stable power support for your graphics card.
fig. 3a fig. 3b
5.2.3 Connecting optical drives and other peripheral devices
1. Connect the 4-pin plug (fig. 4), the SATA plug (fig. 5) and the 4-pin floppy plug (fig. 6)
to the respective peripheral devices.
fig. 4 fig. 5 fig. 6
Note:
For more information refer to the respective manuals of your drives and peripheral devices.
5.2.4 Connecting the cables to the PSU
Finally connect the modular cables to the PSU according to the connector coding (see
above 4.).
5.2.5 Checking all connections
Make sure that all devices are connected properly then plug the PSU’s power cord to
a wall outlet and switch the power supply on.This ends the installation of the PSU.
RUSH POWER M

6. Troubleshooting
In case the power supply does not work properly, check the following topics:
1. Is the power cord correctly connected to a wall outlet and the PSU’s power connector?
2. Makesuretheon/offswitchisturnedtothe“I”position.
3. Check if the main power connector is correctly plugged to the mainboard.
4. Check if the power connectors are properly connected to the peripheral devices in
case the short circuit protection function was activated when switching on the PSU.
5. Turn the power supply off and back on after at least 5 seconds. Repeat this procedure
several times.
6. In case the PSU still does not start, contact suppor[email protected].
7. Cable diagrams and pin assignments

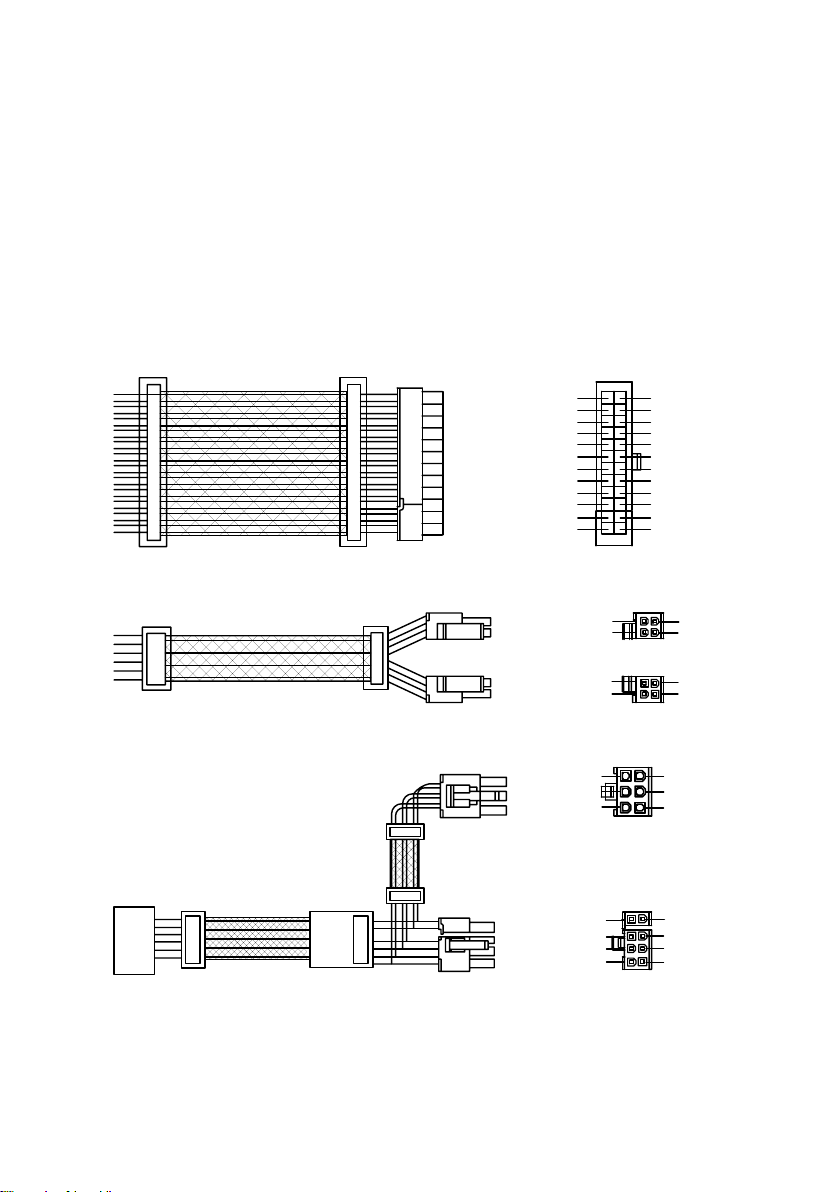

20+4-pin ATX power connector (mainboard)
4+4-pin P8 power connector
6/6+2-pin PCIe power connector
BLACK
GREEN
ORANGE
BLUE
RED
BLACK
BLACK
BLACK
RED
BLACK
RED +5V
+5V
GND
+5V
GND
GND
-5V
GND
GND
+3.3V
-12V
PS-ON
+12V1
YELLOW
YELLOW
ORANGE
+12V1
+3.3V
GREY
BLACK
RED
BLACK
BLACK
RED
ORANGE
ORANGE
NC
+5V
PW-OK
+5Vsb
+5V
GND
GND
PURPLE
GND
+3.3V
+3.3V
BLAC KGND
BLAC KGND
BLAC KGND
+12V1
+12V1
YELLOW
YELLOW
BLAC KGND
+12V2
YELLOW/BLACK
+12V2
YELLOW/BLACK
BLACK GND
YELLOW +12V1
YELLOW +12V1
YELLOW +12V1
BLACK GND
BLACK GND
6PIN
YELLOW +12V1
YELLOW +12V1
YELLOW +12V1
BLAC KGND
BLACK GND
BLACK GND
BLACK GND
BLACK GND
RUSH POWER M

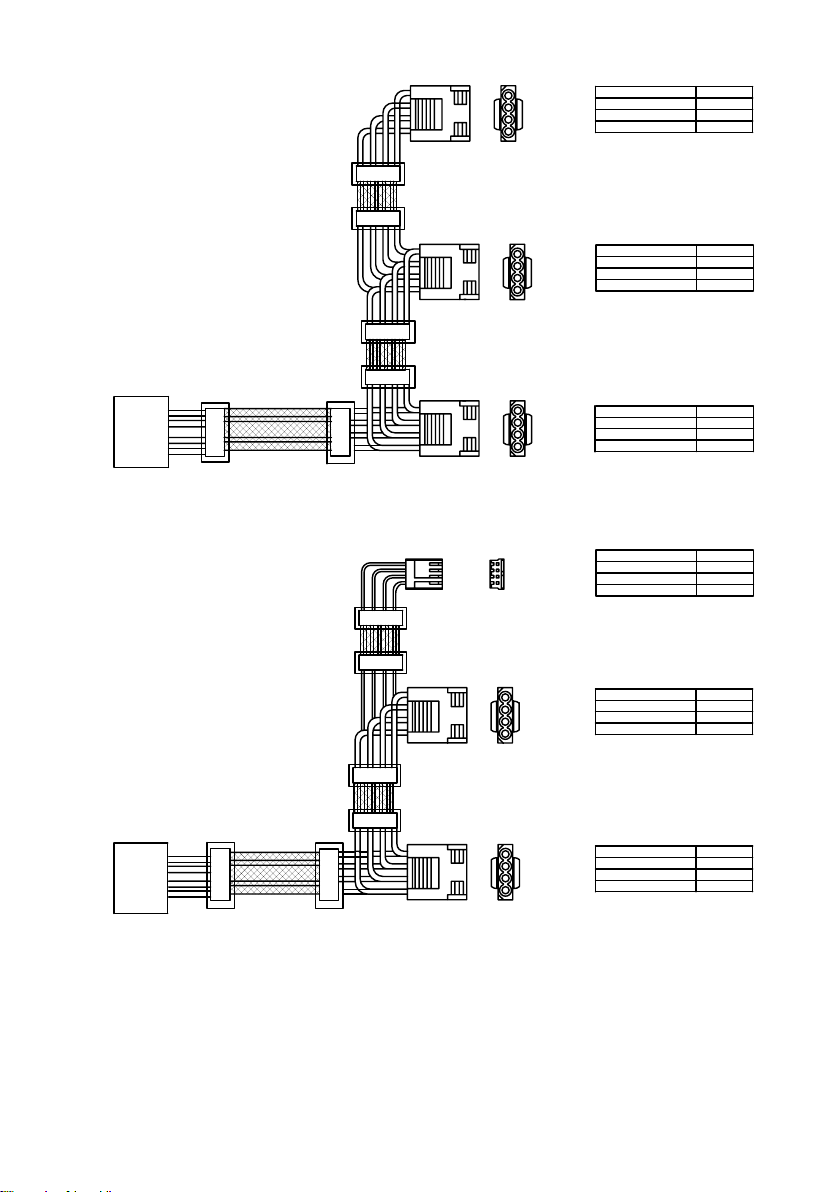

4-pin power connector for peripherals
4-pin power connector for peripherals + 4-pin power connector for floppy
RED
+5V
GND
GND
BLACK
BLACK
4PIN
+12V1
YELLOW
RED
+5V
GND
GND
BLACK
BLACK
+12V1
YELLOW
RED
+5V
GND
GND
BLACK
BLACK
+12V1
YELLOW
YELLOW +12V1
BLACK
BLACK
GND
GND
RED
+5V
GND
GND
BLACK
BLACK
+12V1
YELLOW
RED
+5V
GND
GND
BLACK
BLACK
+12V1
YELLOW
RED
+5V
4PIN
RUSH POWER M

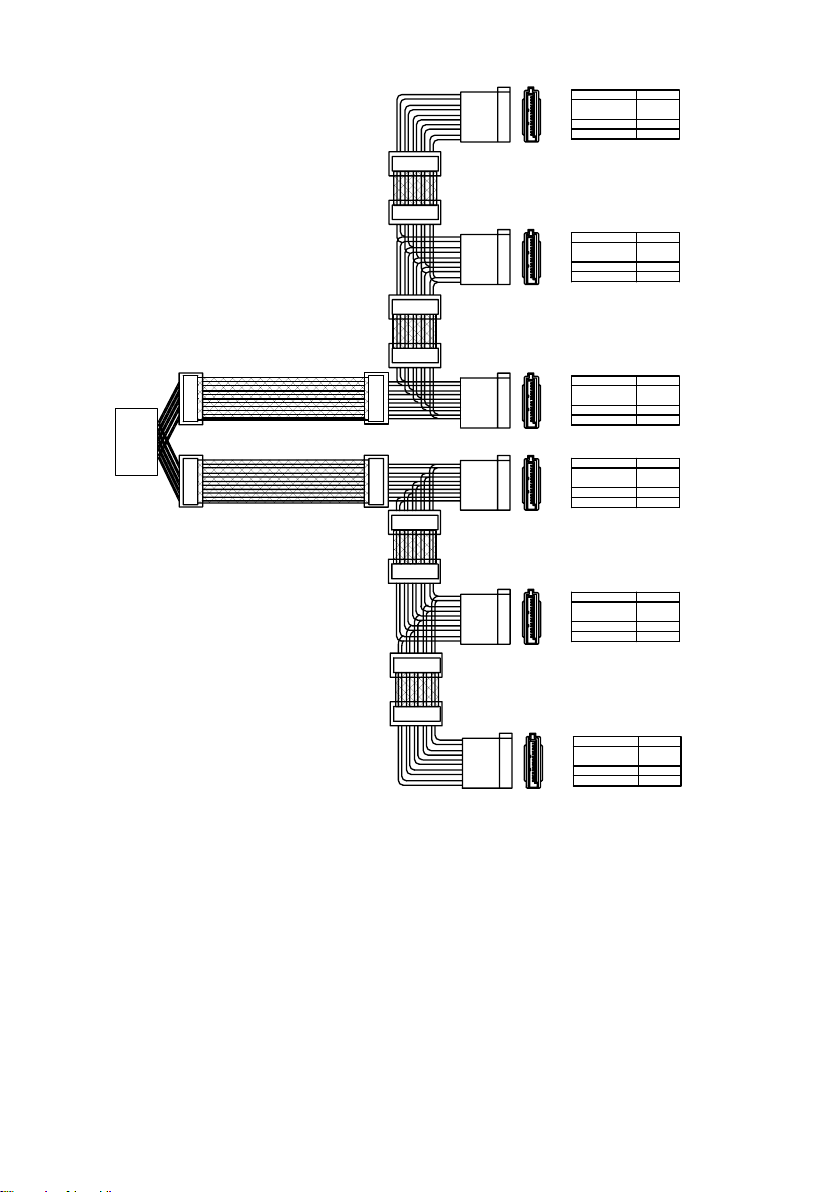

15-pin power connectors for SATA devices
Attention:
As a continuing policy of product improvement at SHARKOON, the design and
specifications are subject to change without prior notice. National product speci-
fications may vary.
All rights reserved especially (also in extracts) for translation, reprinting, reproduction
by copying or other technical means. Infringements will lead to compensation.
All rights reserved especially in case of assignation of patent or utility patent. Means
of delivery and technical modifications reserved.
© SHARKOON Technologies GmbH 2009
www.sharkoon.com
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLAC K
BLAC K
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLAC K
BLAC K
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLAC K
BLAC K
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLAC K
BLAC K
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLAC K
BLAC K
YELLOW +12V1
+5V
GND
GND
+3.3V
RED
ORANGE
BLAC K
BLAC K
10PIN
RUSH POWER M
