Sharkoon SilentStorm Icewind 550 User manual

Manual

TABLE OF CONTENTS
1. General 3
2. Specifications 3
2.1 Overview 3
2.2 Mains Voltage and Protections 4
2.3 Safety Certifications 4
3. Package Contents 5
4. Modular System of the Power Supply 5
4.1 Connection Options 5
4.2 Cable Diagram SilentStorm Icewind 550 6
4.3 Cable Diagram SilentStorm Icewind 650/750 6
5. Installation 7
5.1 Installing the Power Supply into a PC Case 7
5.2 Connecting Mainboard and Graphic Card(s) 7
5.3 Connecting Optical Drives and Other Peripheral Devices 8
5.4 Attaching the Cable Combs 8
5.5 Connecting the Cables to the Power Supply 8
5.6 Checking All Connections 8
6. Troubleshooting 9

SilentStorm Icewind
3
Dear Customer,
Thank you for your purchase of this high-quality SHARKOON Product. To ensure a long service life, and full
functionality of the product, we recommend that you read this manual thoroughly.
SHARKOON Technologies
www.sharkoon.com
1. General
Power 550, 650 or 750 Watt
CPU Compatible with Intel Haswell, Skylake, Kaby Lake plus
the latest Intel and AMD CPUs
Warranty 3 Years
PCIe Connectors 550 Watt: 2x 6+2-Pin PCIe Connector
650/750 Watt: 4x 6+2-Pin PCIe Connector
80-PLUS Certification Bronze
Fan 135 mm Fan
Efficiency
20% Load: Min. 82%
50% Load: Min. 85%
100% Load: Min. 82%
2. Specifications
2.1 Overview
Model No. SilentStorm Icewind 550
Input (AC) Input Voltage Current Frequency
100 - 240 VAC 8 A 50 - 60 Hz
Output (DC) +3.3 V +5 V +12 V -12 V +5 Vsb
Max. Output Current 20 A 20 A 45.9 A 0.3 A 2.5 A
Max. Combined Power 105 W 550 W 3.6 W 12.5 W
Total Power 550 Watt

SilentStorm Icewind
4
Model No. SilentStorm Icewind 650
Input (AC) Input Voltage Current Frequency
100 - 240 VAC 10 A 50 - 60 Hz
Output (DC) +3.3 V +5 V +12 V -12 V +5 Vsb
Max. Output Current 22 A 22 A 54.2 A 0.3 A 2.5 A
Max. Combined Power 120 W 650 W 3.6 W 12.5 W
Total Power 650 Watt
Model No. SilentStorm Icewind 750
Input (AC) Input Voltage Current Frequency
100 - 240 VAC 12 A 50 - 60 Hz
Output (DC) +3.3 V +5 V +12 V -12 V +5 Vsb
Max. Output Current 22 A 22 A 62.5 A 0.3 A 2.5 A
Max. Combined Power 120 W 750 W 3.6 W 12.5 W
Total Power 750 Watt
2.2 Mains Voltage and Protections
This power supply works with 100 - 240 V. It is available with the following protective measures:
1. Over Power Protection (OPP)
If a voltage rail draws in more electricity to the power supply than the specifications allow, the power
supply will switch off.
2. Over Voltage Protection (OVP)
This function protects against excessive voltage, preventing damage to the PC by switching off the power
supply during a surge.
3. Under Voltage Protection (UVP)
If the power supply falls below a fixed number of the minimum voltage, the power supply will switch off
automatically.
4. Short Circuit Protection (SCP)
Should a short circuit occur with your PC, the SCP function switches off the power supply and protects the
electronics from damage.
5. Over Current Protection (OCP)
If the rail draws in more current than allowed, the OCP function switches off the power supply, ensuring no
damage.
6. Over Temperature Protection (OTP)
The overheat protection circuit switches off the power supply to protect the electronics from damage when
excessive heat is detected.
2.3 Safety Certifications
Our power supply is tested and complies with CE, FCC and CB safety certifications.

A
B
CD
E
F
SilentStorm Icewind
5

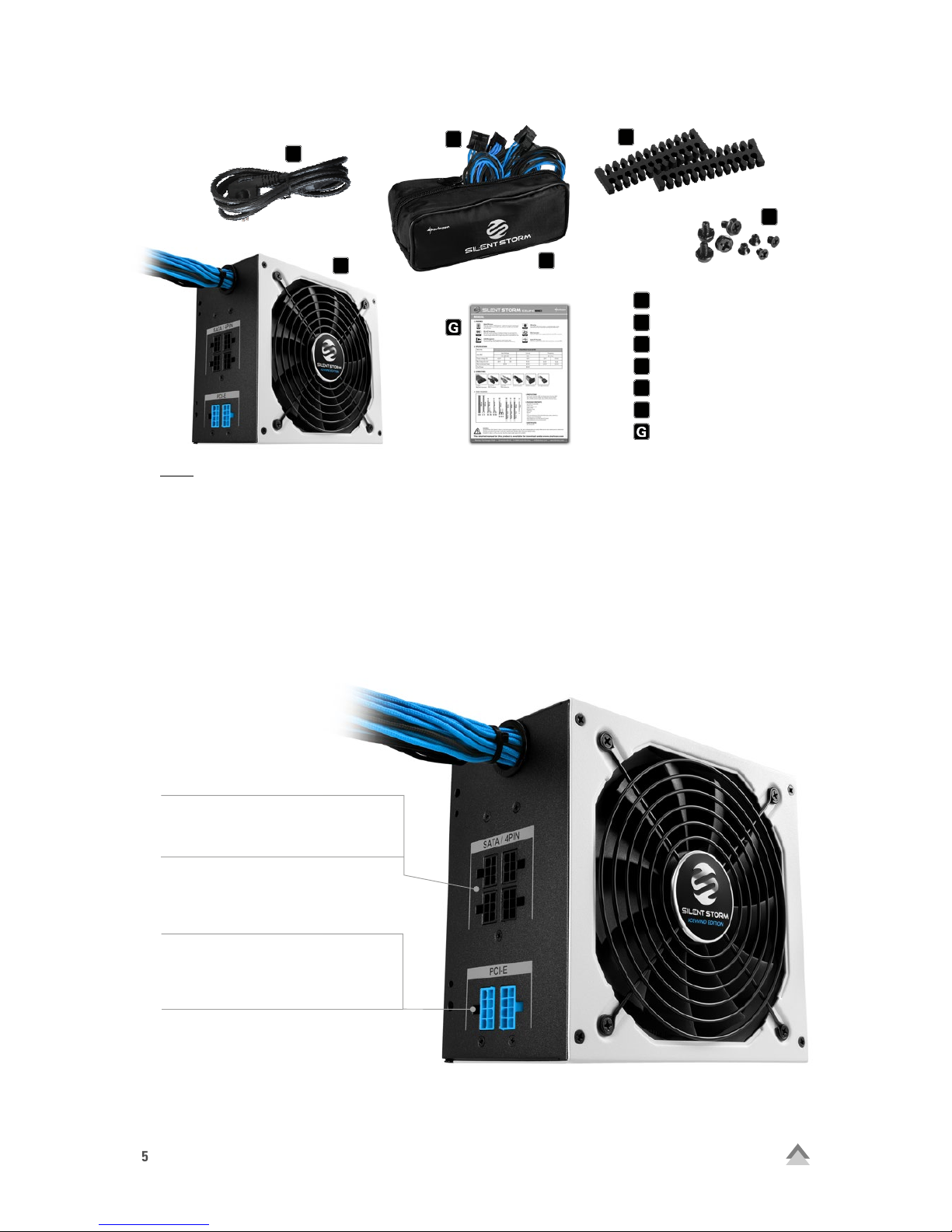

3. Package Contents
Note:
If you are missing any of the items listed above, please contact our customer service immediately:
[e-mail] (Europe)
[e-mail] (International)
4. Modular System of the Power Supply
The provided modular cables are a special feature for connecting peripheral devices. With them, not needed
cables can be simply detached or, if necessary, easily reattached to the power supply. The case remains tidy
and airflow is not hindered.
4.1 Connection Options
SilentStorm Icewind
Power cord
Set of modular cables
Cable combs
Mounting screws
Cable bag
Manual
C
B
A
D
E
F
3x cables for
3x SATA connectors
1x cable with 3x IDE connectors
550 Watt: 2x cables with
1x 6+2-pin PCIe connector
650/750 Watt: 2x cables for
2x 6+2-pin PCIe connectors

550 mm
550 mm
550 mm
550 mm
550 mm
150 mm
150 mm
150 mm
150 mm
150 mm
150 mm
150 mm
150 mm
150 mm 550 mm
550 mm
550 mm
550 mm
550 mm
550 mm
550 mm
550 mm
550 mm
150 mm
150 mm
150 mm
150 mm
150 mm150 mm
150 mm
150 mm 150 mm
150 mm
150 mm
550 mm
550 mm
SilentStorm Icewind
6
In addition to the 24-pin mainboard connector and 4+4-pin CPU connector cable, which are firmly soldered
to the power supply, the SilentStorm Icewind provides a range of modular, textile braided cables with the
following connectors:
Note:
Please ensure to only use the supplied set of modular cables. The use of other cables (e.g. cables from an
older Sharkoon power supply series or cables from another manufacturer) may result in damage to the device.
4.2 Cable Diagram SilentStorm Icewind 550
1x 24-Pin Mainboard Connector 1x 4+4-Pin CPU Connector 550 Watt: 2x 6+2-Pin PCIe Connector
650/ 750 Watt: 4x 6+2-Pin PCIe Connector
9x SATA Connector 1x Floppy Connector 3x IDE Connector
4.3 Cable Diagram SilentStorm Icewind 650/750
1x 24-Pin
Mainboard Connector
1x 4+4-Pin
CPU Connector
550 Watt: 2x 6+2-Pin
PCIe Connector
650/ 750 Watt: 4x 6+2-Pin
PCIe Connector
9x SATA Connector
3x IDE Connector
1x Floppy Connector

SilentStorm Icewind
7
5. Installation
If installing into an empty PC case, please continue to section 5.1. If a power supply is already installed, remo-
ve it first from the case.
To do so, proceed as follows:
1. Turn off your PC. Disconnect the power cord from the wall outlet and your power supply.
2.Open the PC case. For additional information, refer to the manual of the PC case.
3.Disconnect all cables between the power supply and the other PC components (e.g. mainboard, HDDs, dri-
ves, fans, etc.).
4.Remove the mounting screws connecting the power supply to the PC case and then carefully remove the
power supply from the case.
5.1 Installing a Power Supply into a PC Case
1. Insert the power supply into the PC case and place it against the power supply bracket on the rear panel.
For additional information, refer to the manual of the PC case.
2.Attach the power supply from the outside of the case using the provided screws. Ensure that the fan and air
vents of the built-in power supply are not covered.
5.2 Connecting Mainboard and Graphic Card(s)
1. Plug the 20+4-pin mainboard connector (Fig. 1) into the respective port on the mainboard.
2.If your mainboard also features either a 4-pin or 4+4-pin CPU connector, connect the plug with the main-
board port (Fig. 2).
Note:
The power connection of the mainboard depends on the vendor and may vary. For detailed information on
how to establish the power connector, please refer to your mainboard’s manual.
3.If your PCIe graphics card requires an additional power supply, connected the 6-pin or 6+2-pin PCIe connec-
tor to ensure the graphics card receives a stable power supply (Fig. 3).

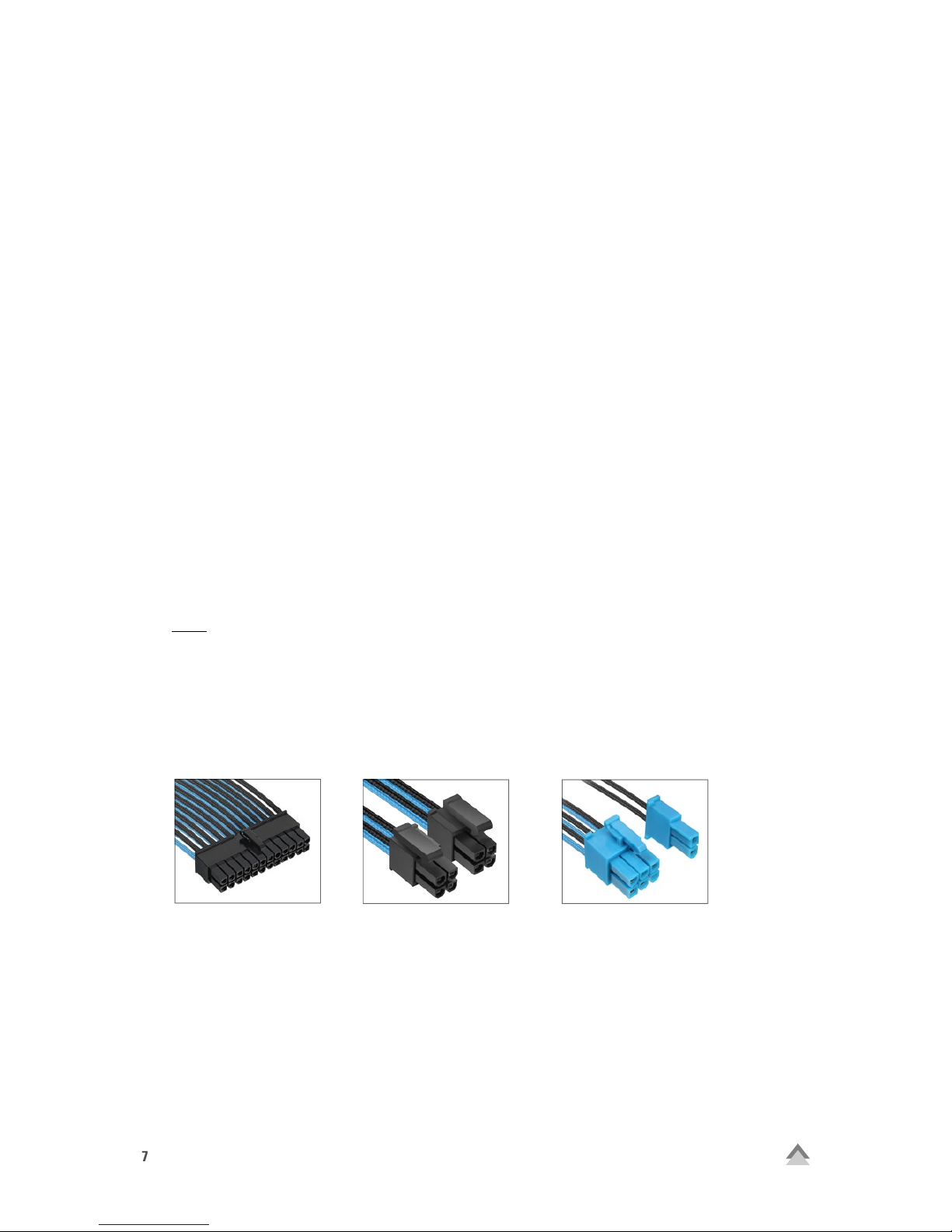

Fig. 1: 24-Pin Mainboard Connector Fig. 2: 4+4-Pin CPU Connector Fig. 3: 6+2-Pin PCIe Connector

SilentStorm Icewind
8
5.3 Connecting Optical Drives and Other Peripheral Devices
Connect the IDE connector (Fig. 4), SATA connector (Fig. 5) and the Floppy connector (Fig. 6) with the appro-
priate peripherals.
Note:
For additional information, refer to the respective manuals of your drives and peripheral devices.
5.4 Attaching the Cable Combs
Using the included cable combs, the power supply cables can be organi-
zed for better clarity. The cable combs hold the cables tightly together,
keeping the case tidy. To attach the cable combs, first arrange the indivi-
dual cables of the respective connector so that they all lay neatly together.
Depending on the cable, connect up to four cable combs at a distance of
approx. every 10 to 15 centimeters on the bundled cables of the respective
connector. If necessary, move the attached cable combs to re-tighten the
cables.
5.5 Connecting the Cables to the Power Supply
Finally, connect the modular cable according to the connection options to the power supply (see Section 4).
5.6 Checking All Connections
Ensure that all devices are properly connected. Close the PC case. Connect the power cord
with the power supply and wall outlet. Turn the power supply on. This completes the instal-
lation of the power supply.
Note:
All connectors are designed to avoid misconnection. If the connectors are unable to connect to the main-
board, drives or peripheral devices, please check if both connectors are attached in the correct orientation.
Do not force to plug the connectors within the incorrect orientation, nor modify any of the components, as
this will damage the power supply and other hardware. SHARKOON warranty does not cover damage cause
by incorrect handling.

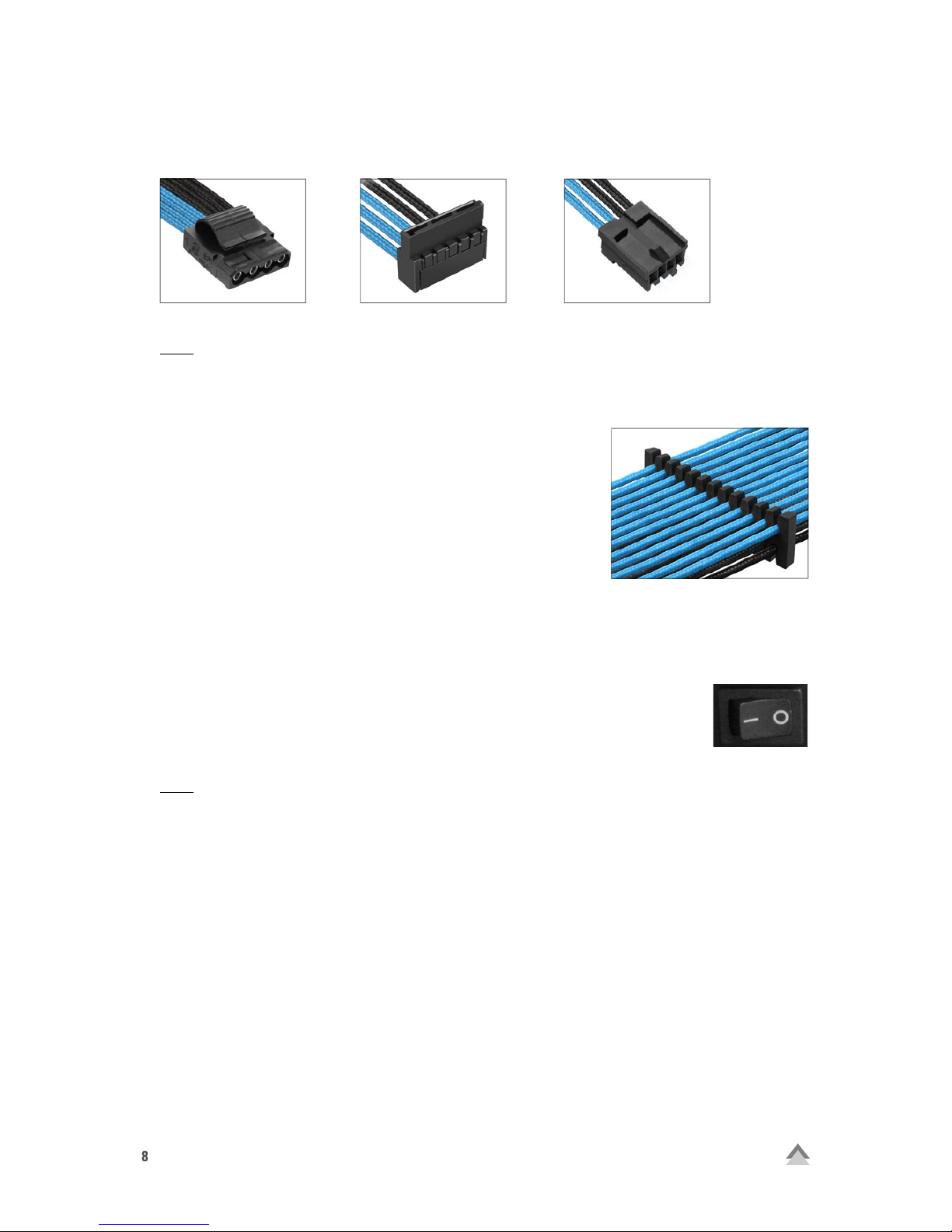

Fig. 4: IDE Connector Fig. 5: SATA Connector Fig. 6: Floppy Connector
On/Off Switch of the
Power Supply

SilentStorm Icewind
9
6. Troubleshooting
If the power supply does not work properly, please check the following:
1. Is the power cord correctly inserted into a wall outlet and the power inlet of the power supply?
2. Ensure that the on/off switch is in the “I” position.
3. Check if the 20+4-pin mainboard connector and the 4+4-pin CPU connector are correctly attached to the
mainboard.
4. Check if the cable is securely connected to the port of the peripheral devices.
5. Unplug the power cord from the wall outlet and let the power supply rest for about 10 minutes.
This will trigger a reset of the protection circuitry.
If the system still does not start, please contact [e-mail].
