Sharp MX-M283N User manual

INSTALLATION MANUAL
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with
specified ones for maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
SHARP CORPORATION
CONTENTS
CODE: 00ZMXM503/I3E
DIGITAL MULTIFUNCTIONAL SYSTEM
MODEL
: '10/Jun/18
1
MX-M283N
MX-M363N/U
MX-M453N/U
MX-M503N/U
MX-M282N/M362N
MX-M452N/M502N
1
CONFIGURATION
[1] MX-M283N/M363N/M363U/
M453N/M453U/M503N/M503U/
M282N/M362N/M452N/M502N . . . . 1-1
[2] MX-DEX8/DEX9 . . . . . . . . . . . . . . . . 2-1
[3] MX-LCX1 . . . . . . . . . . . . . . . . . . . . . 3-1
[4] MX-FNX9 . . . . . . . . . . . . . . . . . . . . . 4-1
[5] MX-PNX1 . . . . . . . . . . . . . . . . . . . . . 5-1
[6] MX-RBX3 . . . . . . . . . . . . . . . . . . . . . 6-1
[7] MX-FN10 . . . . . . . . . . . . . . . . . . . . . 7-1
[8] MX-PNX5A/B/C/D . . . . . . . . . . . . . . 8-1
[9] MX-FN11 . . . . . . . . . . . . . . . . . . . . . 9-1
[10] MX-PNX6A/B/C/D . . . . . . . . . . . . . 10-1
[11] MX-TRX2 . . . . . . . . . . . . . . . . . . . . 11-1
[12] MX-FXX2 . . . . . . . . . . . . . . . . . . . . 12-1
[13] AR-SU1 . . . . . . . . . . . . . . . . . . . . . 13-1
[14] MX-PB10 . . . . . . . . . . . . . . . . . . . . 14-1
[15] MX-PB11 . . . . . . . . . . . . . . . . . . . . 15-1
[16] MX-FWX1. . . . . . . . . . . . . . . . . . . . 16-1
[17] MX-EBX3 . . . . . . . . . . . . . . . . . . . . 17-1
[18] MX-PKX1 . . . . . . . . . . . . . . . . . . . . 18-1
[19] MX-PUX1 . . . . . . . . . . . . . . . . . . . . 19-1
[20] MX-SMX3. . . . . . . . . . . . . . . . . . . . 20-1
[21] AR-PF1 . . . . . . . . . . . . . . . . . . . . . 21-1
[22] MX-FR14U/FR14/FR15U/FR15/
FR24U . . . . . . . . . . . . . . . . . . . . . . 22-1
[23] MX-KBX2 . . . . . . . . . . . . . . . . . . . . 23-1
[24] MX-AMX1. . . . . . . . . . . . . . . . . . . . 24-1
[25] MX-AMX2. . . . . . . . . . . . . . . . . . . . 25-1
[26] MX-AMX3. . . . . . . . . . . . . . . . . . . . 26-1
[27] Dehumidifying heater . . . . . . . . . . . 27-1
[28] MX-RP11 . . . . . . . . . . . . . . . . . . . . 28-1
[29] MX-PC11/XB13
* Refer to the MX-PC11
(00ZMXPC11/A1J) service manual
1
1
1

CONTENTS
: '10/Jun/18
1
CONFIGURATION
1. Main unit and option. . . . . . . . . . . . . . . . . . . . . . .i
2. Main unit configuration. . . . . . . . . . . . . . . . . . . . ii
3. Combination of options . . . . . . . . . . . . . . . . . . . ii
[1] MX-M283N/M363N/M363U/M453N/M453U/M503N/
M503U/M282N/M362N/M452N/M502N
1. Installing (use) conditions . . . . . . . . . . . . . . . 1-1
2. Transit and delivery . . . . . . . . . . . . . . . . . . . . 1-3
3. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
4. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
[2] MX-DEX8/DEX9
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
[3] MX-LCX1
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
[4] MX-FNX9
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
[5] MX-PNX1
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
[6] MX-RBX3
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
[7] MX-FN10
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
[8] MX-PNX5A/B/C/D
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
[9] MX-FN11
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
[10] MX-PNX6A/B/C/D
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
[11] MX-TRX2
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . .11-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .11-1
[12] MX-FXX2
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
[13] AR-SU1
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
[14] MX-PB10
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1
[15] MX-PB11
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1
[16] MX-FWX1
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1
[17] MX-EBX3
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 17-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 17-2
[18] MX-PKX1
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1
[19] MX-PUX1
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 19-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 19-1
[20] MX-SMX3
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1
[21] AR-PF1
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 21-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 21-1
[22] MX-FR14U/FR14/FR15U/FR15/FR24U
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 22-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 22-1
[23] MX-KBX2
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 23-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 23-1
[24] MX-AMX1
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 24-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 24-1
[25] MX-AMX2
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 25-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 25-1
[26] MX-AMX3
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 26-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 26-1
[27] Dehumidifying heater
1. Parts included . . . . . . . . . . . . . . . . . . . . . . . 27-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 27-1
[28] MX-RP11
1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . 28-1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . 28-1
[29] MX-PC11/XB13
*Refer to the MX-PC11 (00ZMXPC11/A1J)
service manual
1
1
1

MX-M503N CONFIGURATION - i
: '10/Jun/18
1
MX-M503N Service Manual
CONFIGURATION
1. Main unit and option
1
Paper exit system
Paper feed system
MX-SCX1
12
10
FINISHER
MX-FNX9
7
STAND/2 x 500 SHEET
PAPER DRAWER
MX-DEX9
4
PUNCH MODULE
STAPLE CARTRIDGE
MX-SCX1
12 STAPLE CARTRIDGE
STAPLE CA
(For saddle)
RTRIDGE
MX-PNX1
A/B/C/D
AR-SC3
13
PUNCH MODULE
MX-PNX5
A/B/C/D
11 SADDLE STITCH FINISHER
MX-FN10
9
PAPER PASS UNIT
MX-RBX3
8
PAPER PASS UNIT
MX-RBX3
8
EXIT TRAY UNIT
MX-TRX2
6
STAND/1 x 500 SHEET
PAPER DRAWER
MX-DEX8
3
STAPLE CARTRIDGE
AR-SC2
16
PUNCH MODULE
MX-PNX6
A/B/C/D
15
FINISHER
MX-FN11
14
DIGITAL MULTIFUNCTIONAL SYSTEM
MX-M363U/M453U/M503U
DIGITAL MULTIFUNCTIONAL SYSTEM
MX-M283N/M363N/M453N/M503N
DIGITAL MULTIFUNCTIONAL SYSTEM
MX-M282N/M362N/M452N/M502N
LARGE CAPACITY TRAY
MX-LCX1
5
Document reading system
DOCUMENT COVER
MX-VRX1
1
REVERSING SINGLE
PASS FEEDER
MX-RP11
2
Other
PLASMACLUSTER ION
GENERATOR
MX-PC11
43
PLASMACLUSTER ION
GENERATOR
MOUNTING KIT
MX-XB13
44

MX-M503N CONFIGURATION - ii
: '10/Jun/18
1
2. Main unit configuration
STD: Standard provision. OPT: Option. OPT*1: Product key target.
3. Combination of options
MX-M363N/MX-M453N/
MX-M503N MX-M283N MX-M363U/MX-M453U/ MX-M503U
MX-M282N/MX-M362N/
MX-M452N/MX-M502N
Copier STD STD STD STD
PCL printer STD STD OPT*1 STD
PS printer OPT*1 OPT*1 OPT*1 OPT*1
Main body LCD COLOR WVGA 8.5" COLOR WVGA 8.5" MONOCHROME HVGA 8.1" COLOR WVGA 7"
FAX OPT OPT OPT OPT
Scanner STD STD OPT*1 STD
Filing (Print hold function) STD STD OPT*1 STD
HDD STD STD OPT*1 STD
RSPF/DSPF/OC DSPF RSPF RSPF RSPF or OC
Automatic duplex STD STD STD STD
Security OPT*1 OPT*1 OPT*1 OPT*1
Internet Fax OPT*1 OPT*1 OPT*1 OPT*1
Section Name Model
name
MX-M283N
MX-M363N
MX-M453N
MX-M503N
MX-M363U
MX-M453U
MX-M503U
MX-M282N
MX-M362N
MX-M452N
MX-M502N
Product
key
target
Remarks
Document
reading
system
1DOCUMENT COVER MX-VRX1 — — {
2REVERSING SINGLE PASS FEEDER MX-RP11 STD/—*5STD {
Paper feed
system
3 STAND/1 x 500 SHEET PAPER DRAWER MX-DEX8 {{{
4 STAND/2 x 500 SHEET PAPER DRAWER MX-DEX9 {{{
5 LARGE CAPACITY TRAY MX-LCX1 {{{A4
Paper exit
system
6 EXIT TRAY UNIT MX-TRX2 {{{
7 FINISHER MX-FNX9 {{{Inner finisher
8 PAPER PASS UNIT MX-RBX3 {{{
9 SADDLE STITCH FINISHER MX-FN10 {{{
10 PUNCH MODULE MX-PNX1A/
B/C/D
{{{For inner finisher
Printer expansion
Memory
Authentication/Security Application/Solution
Image send expansion
EXPANSION
MEMORY BOARD
MX-SMX3
42
PRINTER EXPANSION KIT
WITHOUT HDD
(For U model only)
MX-PB10
17
PS3 EXPANSION KIT
MX-PKX1
19
PRINTER EXPANSION KIT
WITH HDD
(For U model only)
MX-PB11
18 STAMP UNIT
AR-SU1
23
STAMP CARTRIDGE
AR-SV1
24
INTERNET FAX
EXPANSION KIT
MX-FWX1
25
ENHANCED COMPRESSION KIT
(For N model only)
MX-EBX3
26
NETWORK SCANNER
EXPANSION KIT (For U model only)
MX-NSX1
28
APPLICATION
INTEGRATION MODULE
MX-AMX1
27
XPS EXPANSION KIT
MX-PUX1
20
BARCODE FONT KIT
AR-PF1
21
DATA SECURITY KIT
(For the machine
with HDD installed)
MX-FR14U
29
DATA SECURITY KIT
(For the machine
with HDD installed)
MX-FR14
30
DATA SECURITY KIT
(For the machine
without HDD installed)
MX-FR15U
31
DATA SECURITY KIT
MX-FR24U
33
SHARPDESK
1 LICENSE KIT
MX-USX1
34 KEYBOARD (For N model only)
MX-KBX2
41
APPLICATION
COMMUNICATION MODULE
MX-AMX2
39
EXTERNAL
ACCOUNT MODULE
MX-AMX3
40
FACSIMILE
EXPANSION KIT
MX-FXX2
22
SHARPDESK
5 LICENSE KIT
MX-USX5
35
SHARPDESK
10 LICENSE KIT
MX-US10
36
SHARPDESK
50 LICENSE KIT
MX-US50
37
SHARPDESK
100 LICENSE KIT
MX-USA0
38
MX-FR15
32
DATA SECURITY KIT
(For the machine
without HDD installed)
1
1
1
1
1

MX-M503N CONFIGURATION - iii
STD: Standard provision. {: Installable. —: Cannot be connected.
*1: No support for some destinations.
*2: Standard for North America.
*3: Memory expansion are required.
*4: The printer expansion kit with hard drive (MX-PB11) is required.
*5: MX-M283N includes this as standard equipment. Other models of MX-M283N includes DSPF as standard equipment.
Paper exit
system
11 PUNCH MODULE MX-PNX5A/
B/C/D
{{{For saddle stitch
finisher
12 STAPLE CARTRIDGE MX-SCX1 {{{For finisher
(MX-FNX9)/
For saddle stitch
finisher (MX-FN10)
13 STAPLE CARTRIDGE AR-SC3 {{{For saddle
14 FINISHER MX-FN11 {{{
15 PUNCH MODULE MX-PNX6A/
B/C/D
{{{For finisher
(MX-FN11)
16 STAPLE CARTRIDGE AR-SC2 {{{For finisher
(MX-FN11)
Printer
expansion
17 PRINTER EXPANSION KIT WITHOUT HDD MX-PB10 — {—{
18 PRINTER EXPANSION KIT WITH HDD MX-PB11 STD {STD {
19 PS3 EXPANSION KIT MX-PKX1 {{{{
20 XPS EXPANSION KIT MX-PUX1 {*3{*3{*3{The expansion
memory board
(MX-SMX3) is
required.
21 BARCODE FONT KIT AR-PF1 {{{
Image send
expansion
22 FACSIMILE EXPANSION KIT MX-FXX2 {*1{*1{*1
23 STAMP UNIT AR-SU1 {{{
24 STAMP CARTRIDGE AR-SV1 {{{
25 INTERNET FAX EXPANSION KIT MX-FWX1 {{*4{{
26 ENHANCED COMPRESSION KIT MX-EBX3 {—{
27 APPLICATION INTEGRATION MODULE MX-AMX1 {{*4{{
28 NETWORK SCANNER EXPANSION KIT MX-NSX1 STD {STD {
Authentication/
Security
29 DATA SECURITY KIT
(For the machine with HDD installed)
MX-FR14U {{*4—{Commercial version
30 DATA SECURITY KIT
(For the machine with HDD installed)
MX-FR14 { {*4—{Authentication
version
31 DATA SECURITY KIT
(For the machine without HDD installed)
MX-FR15U — {—{Commercial version
32 DATA SECURITY KIT
(For the machine without HDD installed)
MX-FR15 —{—{Authentication
version
33 DATA SECURITY KIT MX-FR24U — — { { Commercial version
Application/
Solution
34 SHARPDESK 1 LICENSE KIT MX-USX1 {{{
35 SHARPDESK 5 LICENSE KIT MX-USX5 {{{
36 SHARPDESK 10 LICENSE KIT MX-US10 {{{
37 SHARPDESK 50 LICENSE KIT MX-US50 {{{
38 SHARPDESK 100 LICENSE KIT MX-USA0 {{{
39 APPLICATION COMMUNICATION
MODULE
MX-AMX2 STD/{*2{*4STD/{*2{For North America,
the SharpOSA Utility
CD-ROM is not
provided.
40 EXTERNAL ACCOUNT MODULE MX-AMX3 {{*4{{
41 KEYBOARD MX-KBX2 STD/{*2— —
Memory 42 EXPANSION MEMORY BOARD MX-SMX3 {{{1GB (Required when
the XPS expansion
kit is used.)
Others 43 PLASMACLUSTER ION GENERATOR MX-PC11 { { { {
44 PLASMACLUSTER ION GENERATOR
MOUNTING KIT
MX-XB13 { { { {
Section Name Model
name
MX-M283N
MX-M363N
MX-M453N
MX-M503N
MX-M363U
MX-M453U
MX-M503U
MX-M282N
MX-M362N
MX-M452N
MX-M502N
Product
key
target
Remarks
1
1
1
1
: '10/Jun/18
1

MX-M503N MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U/M282N/M362N/M452N/M502N 1 – 1
: '10/Jun/18
1
MX-M503N Service Manual
[1] MX-M283N/M363N/M363U/
M453N/M453U/M503N/M503U/
M282N/M362N/M452N/M502N
1. Installing (use) conditions
Before installing the machine, check that the following installing
(use) conditions are satisfied.
If the installing (use) conditions are not satisfied, the machine may
not display full performances, resulting in troubles. It may also
cause safety problems. Therefore, be sure to arrange the installing
(use) conditions before setting up the machine.
A. Bringing space
For installation of a large size machine, be sure to check that the
door size is wide enough before bringing in.
B. Installing space
The following space must be provided around the machine in order
to assure machine performances and proper operations.
If any option is installed, provide the additional space for installing
it.
Adequate space must be provide behind the machine for proper
ventilation heat and dust. If not, the machine cannot exhibit func-
tions against heat and dust, causing some troubles.
C. Power source (Capacity, voltage, frequency,
safety, plug)
If the power specifications are not satisfied, the machine cannot
exhibit full performances and may cause safety trouble.
Strictly observe the following specifications.
(1) Power capacity
Check that the following power capacity is satisfied. If not, addition-
ally provide a power source.
Current capacity
100V: 15A or more
200V: 10A or more
NOTE: Check the shape of the power plug of the machine, and
insert it into a power outlet of the acceptable shape.
(2) Power voltage
Measure the voltage during copying to check that the voltage is in
the range of the specified voltage ±10%.
If the voltage is outside the specified range, use thicker lead wires
to reduce impedance.
(An electrical work is required.)
Use of a step-up transformer is also available. In this case, the
capacity must be great enough for the max. power consumption of
the machine.
(3) Power frequency, waveform
The frequency must be within the range of the specified frequency
±2%. If power waveform is deformed, a trouble may occur.
(4) Safety
Be sure to properly ground the machine.
Grounding (earth connection) must be performed before inserting
the power plug into the power outlet.
When disconnecting the earth connection, be sure to disconnect
the power plug from the power outlet in advance.
(5) Power plug
Check the shape of the power plug of the machine, and insert it into
a power outlet of the acceptable shape.
D. Floor strength and level
This machine is considerably heavy and becomes heavier with an
option installed.
The floor must be strong enough for assuring safety.
If the unit is not horizontally installed, the toner density control is not
performed normally, degrading the copy quality.
If not, color shift or image distortion may occur.
E. Direct rays of the sun, dust, temperature,
humidity, gasses, chemicals, vibration
(1) Temperature and humidity
This machine is designed to perform properly under the specified
temperature and humidity. If the temperature and humidity exceeds
the specified range, the machine may not operate properly and or
cause equipment failure.
Especially when the humidity is too high, paper absorbs humidity to
cause a paper jam or dirty copy.
Do not install the machine near a heater, a cooler, or a humidifier.
Dew may be formed inside the machine to cause a trouble. Use
enough care for ventilation.
• Working environment
Temperature: 10 to 35°C
Humidity: 20 to 85% RH
Atmospheric pressure: 590 to 1013hPa (altitude: 0 to 2000 m)
No. Content
1 Bringing space
2 Installing space
3 Power source (Capacity, fluctuation, safety)
4 Floor strength
5 Direct rays of the sun, dust, temperature, humidity, gases,
chemicals
1
11-13/16"
(30cm)
11-13/16"
(30cm)
17-23/32"
(45cm)
1
85%
Humidity㧔RH㧕
60%
20%

MX-M503N MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U/M282N/M362N/M452N/M502N 1 – 2
(2) Dust
If dust enters the machine, it may cause dirty copy and a paper
jam, resulting in a shortened lifetime.
(3) Direct rays of the sun
If the machine is installed under the rays of the sun, the exterior of
the machine may be discolored and abnormal copies may be pro-
duced.
(4) Gases and chemicals
Do not install the machine at a place where there are gases and
chemicals. Especially be careful to avoid installation near a diazo-
type copier, which produces ammonium gas.
Copy quality may be adversely affected and a trouble may be
caused.
(5) Vibration
Avoid installation near a machine which produces vibrations.
If vibrations are applied to the copier machine, copy images may be
deflected and a trouble may be caused.
F. Note for handling PWB and electronic parts
When handling the PWB and the electronic parts, be sure to
observe the following precautions in order to prevent against dam-
age by static electricity.
1) When in transit or storing, put the parts in an anti-static bag or
an anti-static case and do not touch them with bare hands.
2) When and after removing the parts from an anti-static bag
(case), use an earth band as shown below:
• Put an earth band to your arm, and connect it to the
machine.
• When repairing or replacing an electronic part, perform the
procedure on an anti-static mat.

MX-M503N MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U/M282N/M362N/M452N/M502N 1 – 3
: '10/Jun/18
1
G. Note for handling the drum unit, the transfer
unit, the developing unit, and the fusing unit
When handling the OPC drum unit, the transfer unit, and the devel-
oping unit, strictly observe the following items.
If these items are neglected, a trouble may be generated in the
copy and print image quality.
(Drum unit)
1) Avoid working at a place with strong lights.
2) Do not expose the OPC drum to lights including interior lights
for a long time.
3) When the OPC drum is removed from the machine, cover it
with light blocking material. (When using paper, use about 10
sheets of paper to cover it.)
4) Be careful not to attach fingerprints, oil, grease, or other for-
eign material on the OPC drum surface.
(Transfer unit)
1) Be careful not to attach fingerprints, oil, grease, or other for-
eign material on the transfer roller.
(Developing unit)
1) Be careful not to attach fingerprints, oil, grease, or other for-
eign material on the developing unit.
(Fusing unit)
1) Be careful not to put fingerprints, oil, grease, or other foreign
material on the fusing roller and the external heating belt.
2) Do not leave the fusing roller in contact state for a long time.
2. Transit and delivery
A. Implements, facility, and manpower
It is recommendable to use a forklift for bringing in the machine for
safety.
If no forklift is available, man-power of two persons is required. The
machine is considerably heavy, and requires safety precautions for
delivery and installation.
Transit of the machine must be made in packed condition to the
installing place.
Since the hard disk drive is built in the machine, use care not to
exert vibrations or shocks to the machine when in transit.
B. Delivery
Remove the packing materials prior to installation in the office envi-
ronment.
3. Unpacking
A. Unpacking procedure
1) Remove the PP band.
2) Remove the internal packing pads with the machine.
B. Removal of the fixing tape, protection material
and parts packed together
• MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U
No. Content Method
1 Implements, facility,
and man power
Use a forklift. (If no forklift is available,
manpower of two persons is required.)
2 Delivery Transit must be made in packed condition.
1

MX-M503N MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U/M282N/M362N/M452N/M502N 1 – 4
: '10/Jun/18
1
• MX-M282N/M362N/M452N/M502N
C. Check the parts packed together
1) Check that all the parts are in the package.
* Expect Europe.
4. Installation
<Note before installation>
* When connecting the main unit with the optional STAND/1 X 500
SHEET PAPER DRAWER (MX-DEX8) or STAND/2 X 500
SHEET PAPER DRAWER (MX-DEX9), first unpack and install
the MX-DEX8 or MX-DEX9; then unpack the main unit and
securely place the main unit on the MX-DEX8 or MX-DEX9
before installing the main unit.
A. Lock release
(1) Tray rotation plate lock release
1) Pull out the tray, and remove the rotation plate fixing material
and the tray note label.
2) Attach the removed fixing material to the position shown in the
figure for storage.
(2) Scanner (2/3 mirror unit) lock release
1) Remove the optical unit fixing screw, and remove the note
label.
NO. Parts name Quantity
1 Paper exit full detection actuator 1
2 Paper holding plate unit 1
3 Operation manual 1
4 Operation manual pocket 1
1
1
1
34
2

MX-M503N MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U/M282N/M362N/M452N/M502N 1 – 5
: '10/Jun/18
1
(3) Removal of the fusing heat roller protector
(4) Install the paper exit cover unit
* Europe only. For except Europe, progress to the procedure of B.
* If the MX-FNX9 (Inner Finisher) or the MX-RBX3 (Interface Unit)
is installed when installing the main unit, do not install the paper
holding plate unit and the paper exit full detection actuator.
1) Install the paper exit tray, and fix the screw.
2) Install the paper exit tray cover.
3) Remove the screw, and remove the inlet cover.
B. Developer supply
Be careful not to put fingerprints or oil dirt on the roller surface.
Do not hold the case adjacent to the DV roller strongly.
1) Open the front cabinet, and remove the waste toner box.
2) Remove the fixing screw of the developing unit, and pull out
the developing unit.
3) Remove two screws. Remove the DV cover.
4) While supplying developer from the developer supply port of
the developing unit, turn the MC gear counterclockwise by
using long-nose pliers to supply all developer to the developing
unit.
* Before opening the developer bag, shake the bag to mix
toner and developer in the bag, and then supply developer
to the developing unit.
5) Attach the DV cover to the machine.
* Check to confirm that the pawl is securely engaged.
6) Insert the developing unit into the machine, and fix it with the
blue screw.
7) Install the waste toner box.
1
Inlet cover

MX-M503N MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U/M282N/M362N/M452N/M502N 1 – 6
: '10/Jun/18
1
C. Toner density reference control level setting
1) Insert the power plug into a power outlet. With the front cabinet
open, turn ON the power switch of the machine and the power
switch on the operation panel.
2) With the front cabinet open, enter SIM 25-2.
WARNING: Do not install the toner cartridge before complet-
ing the Toner density reference control level setting (SIM 25-2).
3) Close the front cabinet.
4) After completion of the adjustment of the toner density control
reference value, insert the toner cartridge.
5) When [EXECUTE] key is pressed, it is highlighted. The devel-
oping roller rotates, and the toner density sensor detects toner
density, and the output value is displayed.
The above operation is executed for 3 minutes, and the aver-
age value of the toner density sensor detection level is set
(saved) as the reference toner density control value.
When the reference toner density control adjustment operation
is completed, [EXECUTE] key returns to normal from highlight.
This makes known about whether the adjustment operation is
completed or not.
6) Press the CA key to exit the simulation.
NOTE:
If the operation is interrupted within 3 minutes, the adjustment
result is not reflected.
When [EXECUTE] key is pressed during rotation, the opera-
tion is stopped and [EXECUTE] key returns to the normal dis-
play.
If [EE-EU] or [EE-EL] is displayed, setting of the reference
toner density control value is not completed normally.
NOTE: When not replacing the developer, do not execute SIM25-
2.
Only execute SIM 25-2 when replacing the Developer.
SIM 25-2 should only be run immediately after installing
new DV material.
Toner Concentration Reference Control Level Setting will
be incorrect if SIM 25-2 is performed at any other time.
D. Install toner cartridge
1) Shake the toner cartridge several times.
2) Open the front cabinet, and insert the toner cartridge slowly.
* Do not forcibly insert the toner cartridge.
Keep holding the cartridge and completely insert it.
* When the machine is transported with the developing unit
removed, be sure to remove the toner cartridge. (If not, toner
may be clogged.)
3) Insert the cartridge securely until it locks.
E. Installation of the paper holding plate unit
1) Install the paper exit full detection actuator.
2) Install the paper fixing sheet and paper fixture to the paper fix-
ture HCT.
Error display Content Details of content
EE-EL EL abnormality Sensor output level less than 67, or
sensor control voltage level over 197
EE-EU EU abnormality Sensor output level over 154, or sensor
control voltage level less than 49
EE-EC EU abnormality Sensor output level less than 95, or
sensor control voltage level over 105
1
1

MX-M503N MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U/M282N/M362N/M452N/M502N 1 – 7
3) Install the paper holding plate unit.
* If the MX-FNX9 (Inner Finisher) or the MX-RBX3 (Interface
Unit) is installed when installing the main unit, do not install
the paper holding plate unit and the paper exit full detection
actuator.
F. Installation of the operation manual pocket
1) Install the Operation Manual storage cover to the left side of
the machine.
a) First, insert the pawl on the lower side of the Operation
Manual pocket.
b) Then, lift the pawl on the upper side and insert it, and slide
down to install.
* If the finisher is installed together with installation of the
machine, the Operation Manual storage cover must be
installed to the finisher.
G. Tra y s e t u p
(1) Simulation setup
Change the tray setting in the "system setting" mode. If "Disabling
of Tray Settings" has been enabled in the system settings (adminis-
trator), the tray settings (except for the bypass tray) cannot be con-
figured.
1) Press the [SYSTEM SETTINGS] key.
2) Touch the [Paper Tray Settings] key.
3) Touch the [Paper Tray Settings] key to configure the settings.
These settings specify the paper type, paper size, and func-
tions allowed for each paper tray. When the [Tray Settings] key
is touched, a list appears showing the trays and the current
settings.
4) Touch the [Change] key in the above screen to change the set-
tings. The following settings can be configured.
(2) Tray size setup
1) Pull out the paper tray.
Gently pull the tray out until it stops.
If paper remains in the tray, remove it.
1
1
1
2
LOGOUT
HOME
IMAGE SEND
JOB STATUS PRINT
READY
DATA
DATA
LINE
SYSTEM
SETTINGS
Item Description
Type Select the type of paper that is loaded in the tray. The
paper types that can be selected vary by paper tray.
Size Select the paper size from the list. The paper sizes
that can be selected vary by tray. The sizes that can
be selected may also be restricted by the paper type
selected above.
If the desired size does not appear in the list, select
[Custom Size] and directly enter the size (only for the
bypass tray).
Feeding Approved
Job
Select the modes that can be used. If there is a
function that you do not wish to be used with the
selected tray, disable the function. When the "Type"
is other than plain paper, recycled paper, colored
paper, or a user type, [Fax] and [Internet Fax] cannot
be selected.
: '10/Jun/18
1

MX-M503N MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U/M282N/M362N/M452N/M502N 1 – 8
2) Adjust the guide plates A and B by squeezing their lock levers
and sliding them to match the vertical and horizontal dimen-
sions of the paper to be loaded.
The guide plates A and B are slidable. Slide each guide plate
while squeezing its lock lever.
H. Specifications setup
Used to set the specifications with SIM26 according to the cus-
tomer's request.
To customize the following items after completion of the destination
setup, change the set values.
I. Image quality check
(1) Copy density and gradation check
(Note)
Before checking the copy density and gradation, be sure to execute
the following jobs.
* Execute the high density image correction (Process correction)
forcibly. (SIM 44-6)
* Execute the half-tone image correction forcibly. (SIM 44-26)
(Method)
Make a copy of the gray test chart (UKOG-0162FCZZ), and check
that it is proper.
Note for checking the copy mode density
To check the density, use the gray test chart (UKOG-0162FCZZ).
Set the copy density level to "Manual 3" in the Text/Printed Photo
mode (Manual).
In addition, all the picture quality adjustment settings in the user
adjustment mode must be set to the default (center).
[Check with the gray test chart (UKOG-0162FCZZ)]
In the copy density check with the gray test chart, check to insure
the following conditions.
[Check with the servicing color test chart (UKOG-0317FCZZ/
UKOG-0317FC11 or UKOG-0326FCZZ/UKOG-0326FC11)]
Check to confirm that it is in the conditions shown below.
(2) Printer density and gradation check
If no printer option is installed to the U model, the following proce-
dures are not required. (SIM64-5 does not operate.)
(Note)
Before checking the printer density and gradation, be sure to exe-
cute the following jobs.
* Execute the high density image correction (Process correction)
forcibly. (SIM 44-6)
* Execute the half-tone image correction forcibly. (SIM 44-26)
(Method 1)
Execute SIM 64-5 to print the print test pattern.
Set each set value to the default and press [EXECUTE] key. The
print test pattern is printed.
The print density must be changed gradually from the lighter level
to the darker level. The density changing direction must not be
reversed.
(Method 2)
Execute SIM 67-25 to print the adjustment check pattern.
The print density must be changed gradually from the lighter level
to the darker level. The density changing direction must not be
reversed.
Patch A or B is slightly copied.
SIM No Content
26 6 Used to set the destination.
SIM No Content
26 2 LCC paper size setting
3 Used to set the auditor specification mode.
5 Used to set the count mode of the total counter and the
maintenance counter.
18 Used to set YES/NO of the toner save mode
(Only in UK and Japan versions)
* For other destination versions, this setup is made by
the user program.
52 Used to set YES/NO of counting when non-print paper
is passed through each counter.
53 Used to set YES/NO of user calibration permission.
65 Used to set the limit number of sheets for stapling.
B
A
12 345678910 W
SHARP GRAY CHART
SHARP gray chart
Patch 1 is not copied.
Patch 2 is
slightly copied.
Patch 3 is copied.
Serviceman chart (Color patch section)
Patch 7 is slightly
copied or not copied.
Q (Max)
ABCDEFGH I JKLMNOP
Patch A or B is slightly copied.
PRINTER CALIBRATION
High densityLow density
The patch density is identical between patches or not reversed.
The patch density is changed gradually.

MX-M503N MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U/M282N/M362N/M452N/M502N 1 – 9
J. Function and operation check
Check that the following operations are normal.
K. Setup and adjustment data recording
Print the various setup data and the adjustment data (list) with
SIM22-6 and keep the data.
• In case of a memory trouble, if the data are not kept, all the
adjustments must be made again.
• If the data are kept, the setup values and the adjustment values
can be entered without adjustments, shortening the servicing
time.
L. Necessary works before moving the machine
1) If the following options are installed, remove all of them from
the machine.
• Finisher
• Large capacity tray
2) Remove the following consumable parts from the machine.
• Paper
• Toner cartridges
• Development cartridge
3) Lock the following sections.
• Scanner (Optical section)
• Paper cassette lift plate
NOTE: Since the hard disk drive is built in the machine, use care
not to exert vibrations or shocks to the machine when in
transit.
M. Remote operation panel function Enable
setting
(1) General
To use the remote operation panel function, the password for the
remote operation panel function must be entered on the password
input menu displayed on the VNC boot screen. Note that, therefore,
the password must be set in advance to use the remote operation
panel function.
Let the user make the password, and use SIM26-78 to set it.
(2) Remote operation panel function password setting
procedures
1) Enter the SIM26-78 mode.
2) Enter the password with 10-key. (Within 5 - 8 digits)
The entered password is displayed on the column of "NEW."
To modify the entered password, use clear key to delete the
password digit by digit.
3) Press [SET] key, and the password is set.

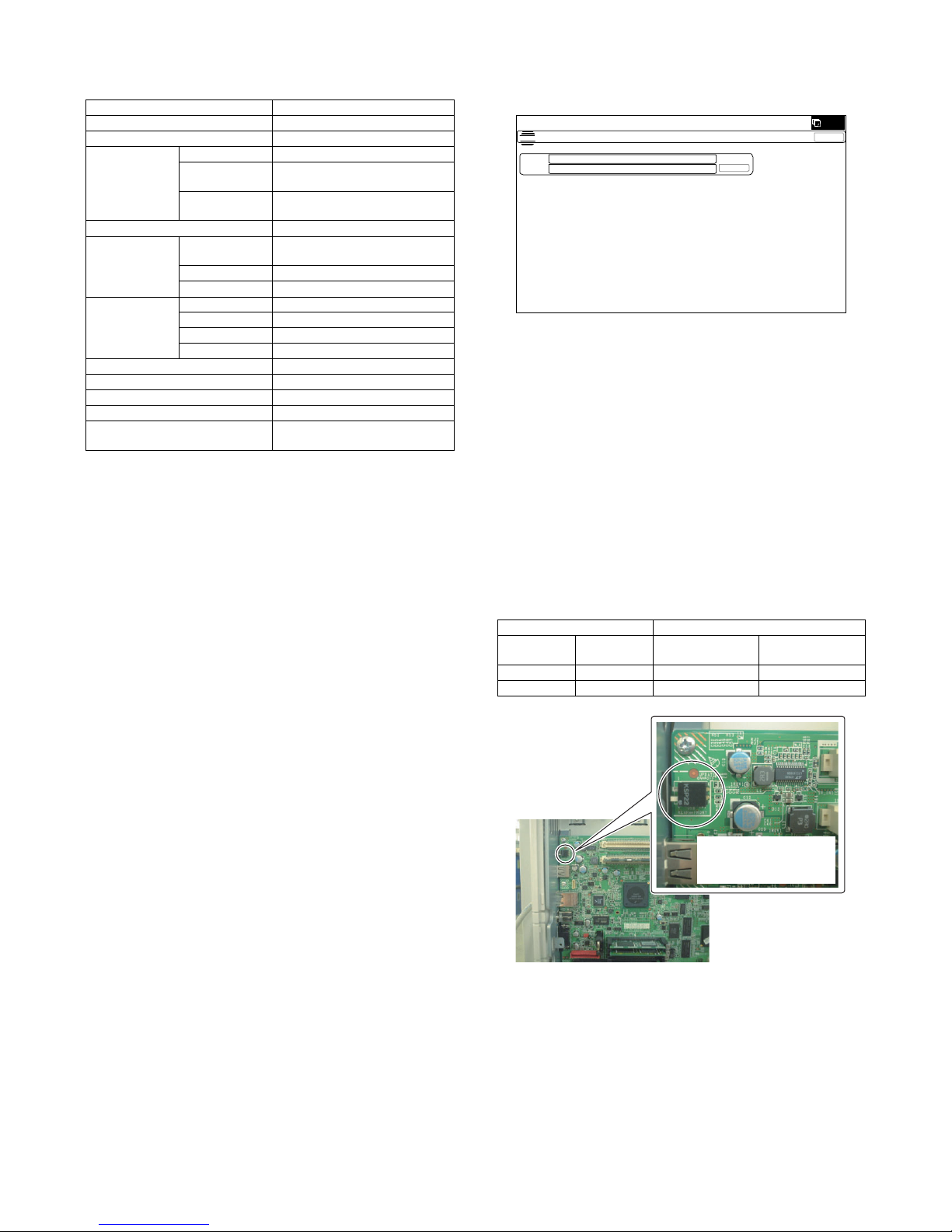

N. USB PORT selection
There are two USB ports; one on the front frame side and the other
on the rear frame side. Only one of them can be used at a time. Do
not connect the two USB ports simultaneously.
When shipping, the port on the front frame side is valid and the port
on the rear frame side is invalid. When using the USB port, be care-
ful of the total current consumption not to exceed 500mA.
The valid port can be switched by changing the setting of the MFP
PWB DIP SW.
Select the valid USB port according to the user’s request.
* The default setting for SW1/SW2 is OFF.
NOTE: For the machine which is provided with a keyboard, either
one of two USB ports can be used at a time. However, both
DIP SW1’s must be set to OFF.
Note that, if DIP SW1 is set to ON, the machine is set to the
CN update mode.
NOTE: After completion of option installation, revise all the firm-
ware to the latest version.
Check item list Equipped condition
Key-in (operation panel)
Display (operation panel)
Paper feed
operation
Hand feed
Main unit paper
tray
Desk unit paper
feed tray
With the desk unit installed
Paper size detection
Originals size
detection
Original table
mode
DSPF mode
RSPF mode
DSPF/RSPF
operation / two
sided copy
S-S mode
D-S mode
S-D mode
D-D mode
Bookbinding operation When the finisher is installed
Stapling operation When the finisher is installed
Grouping operation When the finisher is installed
Sorting operation When the finisher is installed
Paper exit operation When the exit tray unit (MX-TRX2)
is installed
MFP PWB DIP SW USB I/F
SW 1 SW 2 Port on the front
frame side
Port on the rear
frame side
OFF OFF Valid Invalid
OFF ON Invalid Valid
ǂǂǂ6,08/$7,21ǂǂ12 &/26(
7(67
523(3$66:25'6(77,1*

35(6(17˖
ǂǂ1(:˖

6(7
Upper side: DIP-SW1
Lower side: DIP-SW2
When tilted toward you: OFF
When tilted to the PWB side: ON

MX-M503N MX-DEX8/DEX9 2 – 1
MX-M503N Service Manual
[2] MX-DEX8/DEX9
1. Unpacking
A. Removal of the desk unit
B. Removal of the fixing material and packing
parts
* If the connector is removed first, it may be pinched in the install-
ing procedures. Therefore, keep it packed when unpacking the
package, and unpack it when connecting the connector to the
machine.
1) Remove the fixing material and packing parts.
C. Check the packed items
1) Check that all the items are included in the package.
2. Installation
<Note before installation>
* Before starting installation, check to insure that the data lamp on
the operation panel does not light up or blink.
A. Turn off the power of the main unit
1) Turn OFF the power switch on the operation panel.
2) Open the front cabinet.
Turn OFF the power switch in the front cabinet of the main unit.
3) Disconnect the power plug of the main unit from the power out-
let.
No. Names of bundles Quantity
1 Right adjuster 1
2 Fixing screws (M4 x 8) 4
12
OFF

MX-M503N MX-DEX8/DEX9 2 – 2
B. Installation of the adjuster
1) Install the right adjuster (package part No. 1) to the desk unit.
2) Turn each adjuster to fix the desk unit.
C. Connection of the main unit and the desk unit
1) Remove the connection plate covers of the both sides of the
main unit.
2) Put the main unit on the desk unit.
* Use man power of four persons or more to lift the main unit.
* Place the main unit on the desk unit slowly by fitting the
external lines. Check to insure that the positioning pin on the
top of the desk unit is securely engaged in the positioning
groove of the main unit.
3) Remove the No. 2 paper feed tray.
4) Pull out the No. 3 paper feed tray until it stops.
1
2
2
1
1
2

MX-M503N MX-DEX8/DEX9 2 – 3
5) Lift the connection plates on the right and left of the main unit
front side, and fix them with the fixing screws (package part
No. 2).
6) Replace the No. 3 and No. 2 trays to the original positions.
7) Lift the connection plates, and fix them with the fixing screws.
8) Install the connection plate covers.
1
2
2
1
2
1

MX-M503N MX-DEX8/DEX9 2 – 4
D. Release the lock
1) Pull out each tray.
2) Turn and remove the fixing material, and remove the caution
sheet.
3) Attach the removed fixing material to the position shown in the
figure for storage.
4) Close the cassette which was pulled out.
E. Connector connection
1) Remove the screw from the back of the main unit. Remove the
connector cover.
2) Connect the connector.
3) Split the removed connector cover along the perforated line.
4) Install the connector cover and fix it with a screw.
NOTE:
Before turning on the power, check to insure that the fixing
material of the tray is disengaged. If the power is turned on
without disengaging the fixing material, a trouble may be
resulted.

MX-M503N MX-DEX8/DEX9 2 – 5
F. Turn on the power of the main unit
1) Insert the power plug of the main unit into the power outlet.
2) Open the front cabinet.
Turn ON the power switch in the front cabinet of the main unit.
3) Turn ON the power switch on the operation panel.
* For setting the tray size, refer to "Tray size setup" (1-6).
G. Image off-center adjustment
1) Enter the SIM50-28 mode.
2) Select [SETUP/PRINT] ADJ with the key button.
3) Select [ALL] with the key button.
(Note)
By pressing [LEAD] or [OFFSET] button, the following items
can be executed individually.
* [LEAD]: Print image lead edge image position adjustment
* [OFFSET]: Print image off-center adjustment
When [ALL] is selected, both of the above two items are
executed simultaneously.
4) Select a paper feed tray to be adjusted.
5) Press [EXECUTE] key.
The patch image (adjustment pattern) is printed out.
6) Set the adjustment pattern on the document table. (Any direc-
tion)
NOTE: Fit the adjustment pattern correctly with the document
guide.
7) Press [EXECUTE] key.
The following item is automatically adjustment.
* Print image lead edge image position adjustment
* Print image off-center adjustment
8) Press [OK] key.
The adjustment result becomes valid.
Perform procedures 4) to 7) for each paper feed tray.
ON
ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
$872,0$*(326,7,21$'-8670(176(59,&(

2&ǂ$'-
%.0$*ǂ$'-
63)ǂ$'-
6(78335,17ǂ$'-
5(68/7
'$7$

ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
$872,0$*(326,7,21$'-8670(176(59,&(

/($'
2))6(7
$//

ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
$872,0$*(326,7,21$'-8670(176(59,&(

(;(&87(

0)7
&6
$'8
&6
&6
&6
/&&

MX-M503N MX-LCX1 3 – 1
MX-M503N Service Manual
[3] MX-LCX1
1. Unpacking
A. Removal of the large capacity tray unit
B. Removal of the fixing material and packing
parts
1) Remove the fixing material.
2) Remove the fixing material and the packing parts.
3) Remove the paper feed desk fixing screw.
C. Check the packed items
1) Check that all the items are included in the package.
2. Installation
<Note before installation>
* Before starting installation, check to insure that the data lamp on
the operation panel does not light up or blink.
A. Turn off the power of the main unit
1) Turn OFF the power switch on the operation panel.
No. Names of bundles Quantity
1 Mounting plate upper 2
2 Connection unit 1
3 Fixing screw A (Hexagon with seat, S-tight, M4 x 35) 4
4 Fixing screw B (Hexagon with seat, S-tight, M4 x 12) 2
5 Fixing screw C (screw 4 x 8 cup) 1
NOTE:
Before turning on the power, check to insure that the fixing
screw of the tray is removed. If the power is turned on
without removing the fixing screw, a trouble may be
resulted.
134
25
