Sharp FO-2150 User manual

Table of Contents
Part I:
Printing, Faxing, and Copying with the Color MFP
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
Using Print Cartridges. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Sending Paper Faxes From the Sharp MFP . . . . . . . . . 2-1
Receiving Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Printing With the Sharp Color MFP . . . . . . . . . . . . . . . . 4-1
Making Copies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Printing by Infrared Transfer . . . . . . . . . . . . . . . . . . . . . 6-1
Using as a Telephone
and Connecting an Answering Machine . . . . . . . . . . . . 7-1
Special Fax Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
Option Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
Printing Lists and Reports . . . . . . . . . . . . . . . . . . . . . . 10-1
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Setup Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
Index to Part I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Index-1

Part II:
Using the Sharp Multifunction Interface for
Windows® 95
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Software Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Windows Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Copying Paper Documents. . . . . . . . . . . . . . . . . . . . . . 4-1
Scanning Documents . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Fax/Image E-mail Application. . . . . . . . . . . . . . . . . . . . 6-1
Sharp Message Center . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Address Book. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
Viewing Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
Optical Character Recognition. . . . . . . . . . . . . . . . . . 10-1
Annotating Documents . . . . . . . . . . . . . . . . . . . . . . . . 11-1
IR Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Entering and Changing Color MFP Settings from
Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
Index to Part II . . . . . . . . . . . . . . . . . . . . . . . . . . . . Index-1

Part III:
Using the Sharp Multifunction Interface for
Windows® 3.1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Saving Paper Documents to a File. . . . . . . . . . . . . . . . 4-1
Creating Image Files from Windows Applications. . . 4-9
Finding Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Viewing Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Optical Character Recognition. . . . . . . . . . . . . . . . . . 6-49
Annotating Images. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-59
Address Book. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Using Your Sharp MFP as a Scanner. . . . . . . . . . . . . . 8-1
Faxing from Windows Applications. . . . . . . . . . . . . . . 9-1
Fax Outbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
Stapling Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12
Receiving Faxes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
Entering and Changing Color MFP Settings from
Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Index to Part III . . . . . . . . . . . . . . . . . . . . . . . . . . . . Index-1

Introduction
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Important safety information. . . . . . . . . . . . . . . . . . . . . . . . . vii

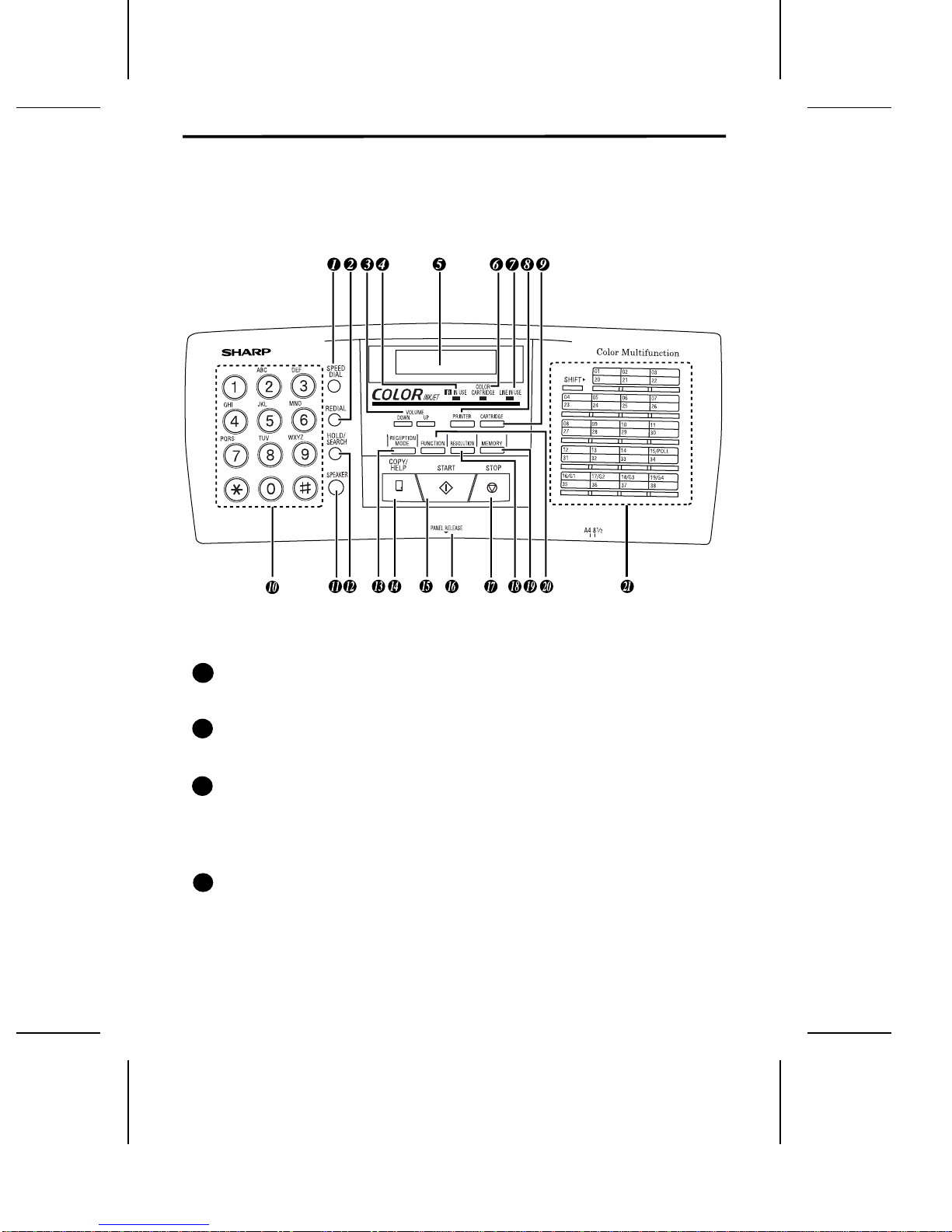

A Look at the Operation Panel . . . . . . . . . . . . . . . . . . . . . . . . x
i

Introduction
Welcome to the Sharp Color MFP! Faxing, printing, copying,
scanning—the Color MFP does it all.
What would you like to
do? For instructions,
just click on a topic.
•Print from a software application
•Send a paper fax from the Color MFP
•Send a fax directly from your computer
•Fax to an E-mail address
•Set up fax reception
•Make a copy
•Scan a document or picture
•Print from a notebook computer by infrared wireless
communication
•Send data from a digital camera or notebook computer to your PC
via the Color MFP’s infrared port
•Use as a telephone
For a more detailed list of the topics in this manual, go to the
Table of Contents.
ii

Specifications
Printing specifications
Print cartridges Color: Sharp FO-25CC
Black: Sharp FO-21BC
Print resolution High: 600 x 600 dpi (both color and black)
Normal: 300 x 300 dpi
Print speed Color: 1 page per minute
Black: Up to 3 pages per minute
Paper types Index cards, envelopes, labels, transparen-
cies, glossy film, greeting cards, iron-on
transfers, plain, coated, and glossy paper.
Paper margins Left/right: 3.4 mm (A4 paper)
Top: 5.5 mm
Bottom: 20.6 mm
Fax specifications
Automatic dialling Rapid Key Dialling: 38 numbers
Speed Dialling: 61 numbers
Memory size*: 512 KB (approx. 42 average pages in recep-
tion mode, 32 pages in transmission mode)
Automatic document
feeder 20 sheets max.
Modem speed 14400 bps with automatic fallback to 12000,
9600, 7200, 4800, or 2400 bps
Transmission time* Approx. 6 seconds (Sharp special mode)
Display 16-digit LCD display
Reception modes FAX, TEL, TEL/FAX, ANS.
* Based on ITU-T Test Chart #1 at standard resolution in Sharp
special mode, excluding time for protocol signals (i.e., ITU-T phase C
time only).
Note: The Sharp Color MFP is Year 2000 compliant.
iii

Resolution Horizontal:
8 lines/mm
Vertical:
Standard: 3.85 lines/mm
Fine/Halftone: 7.7 lines/mm
Super fine (transmission only):
15.4 lines/mm
Halftone (greyscale) 64 levels
Applicable telephone line Public switched telephone network
Compatibility ITU-T (CCITT) G3 mode
Configuration Half-duplex, desktop transceiver
Compression scheme MH, MR, MMR
Scanning method Sheet-feeder CIS (Contact Image Sensor)
Effective printing width 203 mm max.
Paper margins Top: 5.5 mm
Bottom: 23.7 mm
Input document size Automatic feeding:
Width: 148 to 216 mm
Length: 140 to 297 mm
Manual feeding:
Width: 148 to 216 mm
Length: 140 to 1000 mm
Effective scanning width 210 mm max.
Contrast control Automatic/Dark selectable
Specifications
iv

Copying specifications
Resolution Horizontal:
8 pels/mm
Vertical:
7.7 lines/mm
Multiple copies Up to 99
Copy reduction/
enlargement 50%, 75%, 120%, 150%
PC monochrome scanning specifications
Resolution Enhanced 400 dpi
Halftone (greyscale) 64 levels
General specifications
Power requirements 230-240 V AC, 50 Hz
Operating temperature 10 to 35°C
Operating humidity 30 - 80%RH
Power consumption Stand-by: 8.5 W
Maximum: 40 W
Dimensions Width: 406 mm
Depth: 306 mm
Height: 255 mm
(Without attachments)
Weight Approx. 5.9 kg
(Without attachments)
As a part of our policy of continuous improvement, SHARP reserves the
right to make design and specification changes for product improvement
without prior notice. The performance specification figures indicated are
nominal values of production units. There may be some deviations from
these values in individual units.
Specifications
v

Important:
•• This facsimile machine is not designed for use on a line which has
call waiting, call forwarding, or certain other special services offered
by your telephone company. If you attempt to use the fax machine on
a telephone line using any of these services, you may experience
errors during transmission and reception of facsimile messages.
•• This facsimile machine is not compatible with digital telephone
systems.
•• This facsimile machine is designed to operate in Australia and New
Zealand only.
Specifications
vi

Important safety information
•For your safety, if any of your equipment is not operating properly or
should any physical damage occur to the equipment where internal parts
may become exposed, the equipment should be immediately discon-
nected from the phone line and then the power line and returned to a
SHARP authorised Service Centre for inspection, repair, or disposal.
•In Australia,installing or modifying telephone lines should only be done
byanACAlicensedserviceman.InNewZealand,installingormodifying
telephone lines should be done in accordance with Telecom wiring
practices.
•Donotdisassemblethismachineorattemptanyproceduresnotdescribed
in this manual. Refer all servicing to qualified service personnel.
•This machine must only be connected to a 230-240 V, 50 Hz, grounded
(3-prong) outlet. Connecting it to any other kind of outlet may damage
the machine.
•Do not install or use the machine near water, or when you are wet. Take
care not to spill any liquids on the machine.
•Unplug the machine from the power outlet and telephone socket and
consultaqualifiedservicerepresentativeifanyofthefollowingsituations
occur:
- Liquid has been spilled into the machine or the machine has been
exposed to rain or water.
- The machine produces odors, smoke, or unusual noises.
- The power cord is frayed or damaged.
- The machine has been dropped or the housing damaged.
•Do not allow anything to rest on the power cord, and do not install the
machine where people may walk on the power cord.
vii

•Never insert objects of any kind into slots or openings on the machine.
This could create a risk of fire or electric shock. If an object falls into the
machine that you cannot safely remove, unplug the machine and consult
a qualified service representative.
•Donotplacethismachineonanunstablecart,standortable.Themachine
could be seriously damaged if it falls.
•Never install telephone wiring during a lightning storm.
•Never install telephone sockets in wet locations unless the socket is
specifically designed for wet locations.
•Never touch uninsulated telephone wires or terminals unless the tele-
phone line has been disconnected at the network interface.
•Use caution when installing or modifying telephone lines.
•Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.
•Do not use a telephone to report a gas leak in the vicinity of the leak.
•Thesocket-outletmust be installednear the equipmentand mustbeeasily
accessible.
•To make emergency calls, any other calls in progress must first be
released.
Important Safety Information
viii

WARNING NOTICE:
NO calls can be made to or from this fax during a mains power failure.
WARNING Australian Communications Authority (ACA)
regulations state that no unauthorised changes or modifications to this
equipment are permitted.
Note: Complies with ACA and NZ TELECOM standard AS/NZS3548
regarding emission of electromagnetic interference.
These limits are designed to provide reasonable protection against
interference in an installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause interference. However,
there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a different circuit to that
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
For Australia: The Ringer Equivalence Number (REN) for this
equipment is written on the back of the machine.
The sum of all the Ringer Equivalence Numbers (REN’s) on your
telephone line should not exceed 3 to assure correct service from your
telephone company.
Important Safety Information
ix

A Look at the Operation Panel
FAX
TEL
ANS.
TEL/FAX
SPEED DIAL key
Press this key to dial a 2-digit Speed Dial number.
REDIAL key
Press this key to automatically redial the last number dialled.
VOLUME keys
Press these keys to adjust the volume of the speaker when the
SPEAKER key has been pressed, or the volume of the ringer at all
other times.
IR IN USE light
This blinks while the Sharp Color MFP is receiving data by infrared
transmission from a notebook computer, digital camera, or Zaurus.
(Note: During infrared transmission, incoming calls will be signaled
by a special ringing sound. Fax reception will not be possible.)
1
2
3
4
x

Display
This displays messages and prompts during operation and
programming.
COLOR CARTRIDGE light
This lights when a color print cartridge is installed. Faxes are received
to memory when this light is on.
LINE IN USE light
This lights while the Sharp Color MFP is using the telephone line.
PRINTER key
Press this key to eject paper from the machine, or reset the machine
after clearing a paper jam or other printer error.
CARTRIDGE key
Press this key to change a print cartridge or install a new print cartridge.
Number keys
Use these keys to dial numbers, and enter numbers and letters during
number/name storing procedures.
SPEAKER key
Press this key to hear the line and fax tones through the speaker before
sending a document, or dialling a voice number.
Note: This is not a speakerphone. You must pick up the handset to
talk with the other party.
HOLD/SEARCH key
Press this key to search for an automatic dialling number, or, during a
phone conversation, press this key to put the other party on hold.
RECEPTION MODE key
Press this key to select the reception mode. An arrow in the display
will point to the currently selected reception mode.
COPY/HELP key
When a document is in the feeder, press this key to make a copy. At
any other time, press this key to print out the Help List, a quick
reference guide to the operation of your fax.
12
13
14
11
5
6
7
8
9
10
A Look at the Operation Panel
xi

START key
Press this key to send or receive a document manually when off hook.
PANEL RELEASE
Pull this release up to open the operation panel.
STOP key
Press this key to stop operations before they are completed.
RESOLUTION key
Press this key to adjust the resolution and contrast before sending or
copying a document.
MEMORY key
Press this key to scan a document into memory before transmitting it.
FUNCTION key
Press this key to select various special functions.
Rapid Dial Keys
Press one of these keys to dial a fax or voice number automatically. To
dial the bottom number on a Rapid Key, press the SHIFT key before
pressing the Rapid Key. (Note that you must attach the Rapid Key
labels.)
17
18
19
20
21
15
16
A Look at the Operation Panel
xii

Using Print Cartridges
Using Print Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Replacement print cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Monitoring the ink level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Changing Print Cartridges. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Changing a cartridge with the CARTRIDGE key . . . . . . . . . . . . . 1-3
Changing a cartridge from the Color MFP Printer Manager. . . . . 1-9
Aligning the Printhead. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
Checking alignment with the panel keys . . . . . . . . . . . . . . . . . . 1-14
Aligning the printhead from Printer Manager . . . . . . . . . . . . . . . 1-16
Selecting Black Print Quality for Faxes . . . . . . . . . . . . . . . 1-18
Maintaining Print Cartridges . . . . . . . . . . . . . . . . . . . . . . . . 1-19
Disposing of used print cartridges . . . . . . . . . . . . . . . . . . . . . . . 1-19
Cleaning Print Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
Cleaning the print nozzles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
Cleaning the print nozzles with the panel keys. . . . . . . . . . . . . . 1-20
Cleaning the print nozzles from Printer Manager. . . . . . . . . . . . 1-21
Checking the test pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
Wiping the print nozzles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
Cleaning the print cartridge carrier contacts. . . . . . . . . . . . . . . . 1-25
1-1

1-2
Using print cartridges
Using Print Cartridges
Your Sharp Color MFP can use either a color print cartridge or a
blackprintcartridge.
We recommend that you keep a black cartridge installed for normal
use, and change to a color cartridge only when you need to print a
color job.
Note:
If you receive a fax when a color print cartridge is installed, the fax
will be held in memory and printed out when a black cartridge is
installed.
Replacement print cartridges
When the display of the Sharp Color MFP shows the following
alternating messages, the print cartridge is low on ink and must be
replaced.
Usethefollowingreplacementprintcartridges,whichare available
from your dealer or retailer.
Color:SharpFO-25CC
Black:SharpFO-21BC
Monitoring the ink level
From the Color MFP Printer Manager, click the Status or the
Cartridges tab. The ink cartridge image shows the amount of ink
remaininginthecartridge.
LOWINK!
CHANGECARTRIDGE

1-3
Using print cartridges
Changing Print Cartridges
To change or replace a print cartridge, you can use either the Color
MFP Printer Manager on your computer or the CARTRIDGE key
on the Sharp Color MFP.
Important!
To change a print cartridge, you must first move it to the center of
the compartment using the CARTRIDGE key or the Color MFP
Printer Manager. Moving the cartridge by hand may damage the
machine.
Note:
Do not replace a print cartridge when there are print jobs
waiting to be printed.
Changing a cartridge with the CARTRIDGE key
1 Press the CARTRIDGEkey.
Important:
When you press the CARTRIDGE key, the print cartridge moves
to the center of the compartment. It will dry out if left in this
position, so complete the replacement procedure promptly.

1-4
Using print cartridges
3 Pull the knob of the currently installed print cartridge toward you
until you hear a click. Remove the cartridge.
4 If the print cartridge just removed is still useable, insert it into the
cartridge holder on the back of the machine. Push back on the
cartridge until it snaps into place.
•To prevent the used print cartridge from drying out, be sure to
store it in the cartridge holder on the back of the machine.
2 Open the front cover of the Sharp Color MFP.

1-5
Using print cartridges
5 If you are installing a new print cartridge, remove it from its
packaging. Gently remove the sticker and transparent tape covering
the copper printhead.
6 Insert the print cartridge into the cartridge carrier.
Donot touchthecop-
per-coloredarea!
