1-BIT PORTABLE MINIDISC RECORDER
MD-DR470H
MODEL
TINSE0513AWZZ
03C R AO 1 E
MD-DR470H(E) (TINSE0513AWZZ)
Thank you for purchasing this SHARP product.
For the best performance, read this manual carefully.
It will guide you in operating your SHARP product.
0101
If you require any advice or assistance regarding
your Sharp product, please visit our web-site
www.sharp.co.uk/customersupport.
Customers without Internet access may telephone
08705 274277 during office hours (or [phone]
if telephoning from Ireland).
OPERATION MANUAL

03/3/25 MD_DR470H_UK_1.fm
2
MD-DR470H
MD-DR470H(E) TINSE0513AWZZ
Important Introduction
-Special Notes-
Special Notes
!Warnings
"The supplied AC adaptor contains no user serviceable
parts. Never remove covers unless qualified to do so.
It contains dangerous voltages, always remove the
mains plug from the main outlet socket before any
service operation or when not in use for a long period.
"The AC adaptor supplied with the MD-DR470H must
not be used with other equipment.
"To prevent fire or shock hazard, do not expose this
appliance to dripping or splashing liquids. No objects
filled with liquids, such as vases, shall be placed on
the apparatus.
"Never use an AC adaptor other than the one specified.
Otherwise, problems or serious hazards may be cre-
ated.
!Caution
"When recording important selections, make a prelimi-
nary test to ensure that the desired material is prop-
erly recorded.
"SHARP is not liable for damage or loss of your record-
ing arising from malfunction of this unit.
NOTES FOR USERS INTHE U.K. AND
IRELAND
SERVICE INFORMATION
In the unlikely event of your equipment requiring re-
pair, please use the supplied postage paid label to
send your unit to the Sharp repair centre or contact
the dealer or supplier from whom it was purchased.
Where this is not possible, please visit our web-site
www.sharp.co.uk/customersupport.
Customers without internet access may telephone
08705 274277 during office hours (or [phone]
if telephoning from Ireland).
Please note; all calls will be charged at local rate.
Certain replacement parts and accessories may be
obtained from our main parts distributor.
WILLOWVALE ELECTRONICS LTD.
0121 766 5414
In the unlikely event of this equipment requiring re-
pair during the guarantee period, you will need to
provide proof of the date of purchase to the repairing
company. Please keep your invoice or receipt, which
is supplied at the time of purchase.
0303

3
MD-DR470H
1
2
3
4
5
6
03/3/25 MD_DR470H_UK_1.fmMD-DR470H(E) TINSE0513AWZZ
1
2
3
4
5
6
7
8
9
Important Introduction
-Special Notes-
"At full volume, prolonged listening to a personal stereo
may damage the user's hearing. This model complies
with the law if used with the correct earphones (model
number RPHOH0021AWZZ). If the earphones are
damaged in any way, please order using the model
number given above.
"This product is classified as a CLASS 1 LASER
PRODUCT.
"Use the Portable MiniDisc Recorder only in accord-
ance with the instructions given in this manual and do
not attempt to interfere with the interlock switch or
make any other adjustment as this may result in expo-
sure to hazardous radiation.
Laser Diode Properties
"Material: GaAIAs
"Wavelength: 785 nm
"Pulse time:
Read mode: 0.8 mW Continuous
Write mode: max 10 mW 0.5S
min cycle 1.5S
Repetition
!Notes
"Recording and playback of any material may require
consent, which SHARP is unable to give. Please refer
particularly to the provisions of the Copyright Act
1956, the Dramatic and Musical Performers Protection
Act 1958, the Performers Protection Acts 1963 and
1972 and to any subsequent statutory enactments
and orders.
"This equipment complies with the requirements of
Directives 89/336/EEC and 73/23/EEC as amended
by 93/68/EEC.
"US and foreign patents licensed from Dolby Laborato-
ries.
"The letters in brackets contained in the model number
indicate the colour of the product only. Operation and
specifications are unaffected.

03/3/25 MD_DR470H_UK_1.fm
4
MD-DR470H
MD-DR470H(E) TINSE0513AWZZ
Important Introduction
-Contents-
Contents
Page
!Important Introduction
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 6
Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Names of Controls and Indicators . . . . . . . . . . . . 8 - 9
!Preparation
Using with the Rechargeable Battery. . . . . . . . 10 - 11
Using with the AC Adaptor . . . . . . . . . . . . . . . . . . . . 11
Using with the Alkaline Battery . . . . . . . . . . . . . . . . 12
Inserting a MiniDisc. . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 15
!Basic Operation
Selecting Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Long Time Recording and Group Recording . . . . . 17
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 - 22
Sound Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 - 26
Page
!Useful Features
Group Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
My Entry Playback (favourite track playback) . 28 - 29
Advanced Playback. . . . . . . . . . . . . . . . . . . . . . .30 - 33
Advanced Recording . . . . . . . . . . . . . . . . . . . . .34 - 38
Recording from a Microphone . . . . . . . . . . . . . .39 - 42
Checking Displays . . . . . . . . . . . . . . . . . . . . . . .43 - 45
!Advanced Features
Titling a MiniDisc. . . . . . . . . . . . . . . . . . . . . . . . . 46 - 50
Editing a Recorded MiniDisc . . . . . . . . . . . . . . .51 - 56
Setting the Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Changing Default Settings . . . . . . . . . . . . . . . . .58 - 59
Hold Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Listening through Another System. . . . . . . . . . . . . 61
!References
Other Features and Caution. . . . . . . . . . . . . . . . . . . 62
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 63 - 64
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
MiniDisc System Limitations . . . . . . . . . . . . . . . . . . 65
Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . 66 - 67
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 - 69
TERMS OF GUARANTEE . . . . . . . . . . . . . . Back cover

5
MD-DR470H
1
2
3
4
5
6
03/3/25 MD_DR470H_UK_1.fmMD-DR470H(E) TINSE0513AWZZ
1
2
3
4
5
6
7
8
9
Important Introduction
-Features-
Features
!A Portable MD player with "Mobile 1-bit
digital amplifier"
"The 1-bit digital signal is sent to a constant voltage cir-
cuit directly from a high-order (Delta Sigma) modu-
lation circuit. The amplifier transmits and amplifies the
signal, and allows extremely natural and clear sound
with little deterioration.
"High-quality sound is achieved by vast improvements
in the sound resolution. The speed and the smooth-
ness of rise of the sound are consequently ensured.
!122-hour* playback and 57-hour*
recording
The low power consumption LSI, consisting of the
ATRAC LSI and the high-order (Delta Sigma) modula-
tion circuit, enables extended hours of playback.
!"4-pole plug headphone" optimizes
"Mobile 1-bit digital amplifier"
SHARP has adopted "4-pole plug" headphones and a
remote control that completely separate right and left
sound. Enjoy the high quality sound of the "Mobile 1-bit
digital amplifier".
(* Refer to "Specifications" on page 69.)
L+ R+ L- R-
L R GND
4-pole plug for mobile
1-bit digital amplifier
Conventional 3-pole plug
2
MD-DR470H(E) TINSE0513AWZZ

03/3/25 MD_DR470H_UK_1.fm
6
MD-DR470H
MD-DR470H(E) TINSE0513AWZZ
Important Introduction
-Accessories/Optional Accessories-
Accessories
Optional Accessories
Remote control x 1 Battery carrying case x 1 Battery case x 1 Carrying bag x 1
AC Adaptor
(RADPA8058AWZZ) x 1 Rechargeable nickel-met- al hydride battery
(AD-N55BT) x 1
Earphones (inner ear
type) x 1 Connection cable (for digital recording) x 1
Connection cable
(for analogue recording) x 1 Connection cable (for PC analogue recording) x 1 Output conversion cable (4-pole to 3-pole plug conversion) x 1
4-pole
plug
4-pole
plug
Notes:
"You can hear the sound only from one earphone if you use the supplied earphones with other equipment.
"Parts and equipment mentioned in this operation manual other than those detailed above are not included.
"The AC adaptor may be different from the one in the drawing.
"Optical digital cable: AD-M2DC (3.5 mm optical plug to plug)
"Cassette adaptor (AD-CT14)
"Car adaptor (AD-CA20X)

7
MD-DR470H
1
2
3
4
5
6
03/3/25 MD_DR470H_UK_1.fmMD-DR470H(E) TINSE0513AWZZ
1
2
3
4
5
6
7
8
9
Important Introduction
-Precautions-
Precautions
!Important
"Do not wear your earphones when you are crossing
streets or near traffic.
"Do not play the unit at a high volume. Hearing experts
advise against extended listening at high volume lev-
els.
"If you experience ringing in your ears, reduce the vol-
ume or discontinue use.
"No naked flame sources, such as lighted candles,
should be placed on the apparatus.
"Attention should be drawn to the environmental
aspects of battery disposal.
"The apparatus is designed for use in moderate cli-
mate.
"This portable MD should only be used within the range
of 0°C - 40°C (32°F - 104°F).
To avoid accidental electric shock or other possible
problems, observe the precautions listed below.
"Do not disassemble or modify the unit.
"Do not drop or subject the unit to shock.
"Do not use the unit near open flames.
"Do not spill liquid on the unit.
"Do not use an external power supply, other than the
5V DC supplied with this unit, as it may damage it.
"SHARP is not responsible for damage due to improper
use. Refer all servicing to a SHARP authorised serv-
ice centre.
!Storing the unit
Avoid using or leaving the unit in the following
places.
"Places exposed to direct sunlight for many hours
(especially in cars with the doors and windows closed)
or near heaters. (The cabinet may deform, change
colour or the unit may malfunction.)
"Places exposed to excessive dust.
"Places exposed to water.
"Places where temperatures are excessively high or
low.
"Places (bathrooms) where the humidity is extremely
high.
"Places with strong magnetic fields such as near TVs
or loudspeakers.
"Places exposed to vibration.
"Places where sand can easily enter the inside of the
unit (beaches etc.).
"If the unit is used near radio tuners or TVs, noise and/
or picture interference may result. If you experience
these problems, move the unit away from such
devices.
"Do not use your earphones whilst driv-
ing a motor vehicle, it may create a traf-
fic hazard and may be illegal.
Remember to obey all of the safety
rules in your area.
It is not recommended to put the
portable MD into a rear pocket, as
this may damage the product when
sitting.
Using this unit near mobile phones
may cause noise pickup. If it oc-
curs, move it away from them.

03/3/25 MD_DR470H_UK_1.fm
8
MD-DR470H
MD-DR470H(E) TINSE0513AWZZ
Important Introduction
-Names of Controls and Indicators-
Names of Controls and Indicators
!Main unit Reference page
1. Stop/Power Off/Hold Button. . . . . . . . . . 19, 25, 60
2.Group Button. . . . . . . . . . . . . . . . . . . . . . . . . 17, 27
3.Fast Forward/Fast Reverse/Recording Level/
Name Select Buttons . . . . . . . . . . . . . . . 20, 26, 46
4. Play/Pause Button . . . . . . . . . . . . . . . . . . . . . 19, 25
5.Record Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.Menu Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.Volume Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . 23
9.5 V DC Input Socket . . . . . . . . . . . . . . . . . . . . . . 10
10.Battery Connection Terminals . . . . . . . . . . . . . . 12
11.Optical/Line Input Socket . . . . . . . . . . . . . . . . . 14
12.Microphone Input Socket . . . . . . . . . . . . . . . . . . 39
13.Remote Control/Earphones/
Line Output Socket . . . . . . . . . . . . . . . . . . . . 24, 61
14.Open Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
15.Rechargeable Battery Cover . . . . . . . . . . . . . . . 10
16.Record Indicator
17.TOC Indicator
18.Level Meter
19.Repeat/Random Indicators
20.Synchro Recording Indicator
21.Disc/Group/Track Information Indicators
22.Battery Indicator
23.Alarm Indicator
24.Disc Mode Indicator
25.Character/Time Information Indicator
26.Recording Mode Indicators
27.Group Indicator
28.My Entry Indicator
1
2
3
4
5
6
7
8
10
9
11
12 13 14 15
16 17 18 19
20
21
26 27 28
22
23
24
25

9
MD-DR470H
1
2
3
4
5
6
03/3/25 MD_DR470H_UK_1.fmMD-DR470H(E) TINSE0513AWZZ
1
2
3
4
5
6
7
8
9
Important Introduction
-Names of Controls and Indicators-
!Remote control unit Reference page
1.Earphones Socket . . . . . . . . . . . . . . . . . . . . . . . . 24
2.Bass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4.Mode Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.Group Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.Volume Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.Stop/Power Off Button . . . . . . . . . . . . . . . . . 19, 25
8.Fast Reverse Button . . . . . . . . . . . . . . . . . . . . . . 26
9.Play/Pause Button . . . . . . . . . . . . . . . . . . . . . . . . 25
10.Fast Forward Button . . . . . . . . . . . . . . . . . . . . . . 26
11.Hold Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
12.Disc Mode Indicator
13.Total Track Number Indicator
14.Track Number Indicator
15.Character/Time Information Indicator
16.Random Indicator
17.Repeat Indicator
18.Synchro Recording Indicator
19.Record Indicator
20.Group Indicator
21.My Entry Indicator
22.Battery Indicator
23.Recording Mode Indicators
11
1
8
67910
2345
12
18
13 14 15 16 17
19 20 21 22 23

03/3/25 MD_DR470H_UK_2.fm
10
MD-DR470H
MD-DR470H(E) TINSE0513AWZZ
Preparation
-Using with the Rechargeable Battery-
Using with the Rechargeable Battery
!Charging the rechargeable battery
When the rechargeable battery is used for the first time
or when you want to use it after a long period of disuse,
be sure to charge it fully.
Notes:
"After the rechargeable battery is charged or used, it
will get slightly warm. This is normal.
"When the portable MD is turned on or operating, the
battery will not be charged.
"For information about the battery life, see the battery
item in the "Specifications" on page 69.
"The battery will not be charged whilst the alarm is set.
2
1
AC 230 V,
50/60 Hz

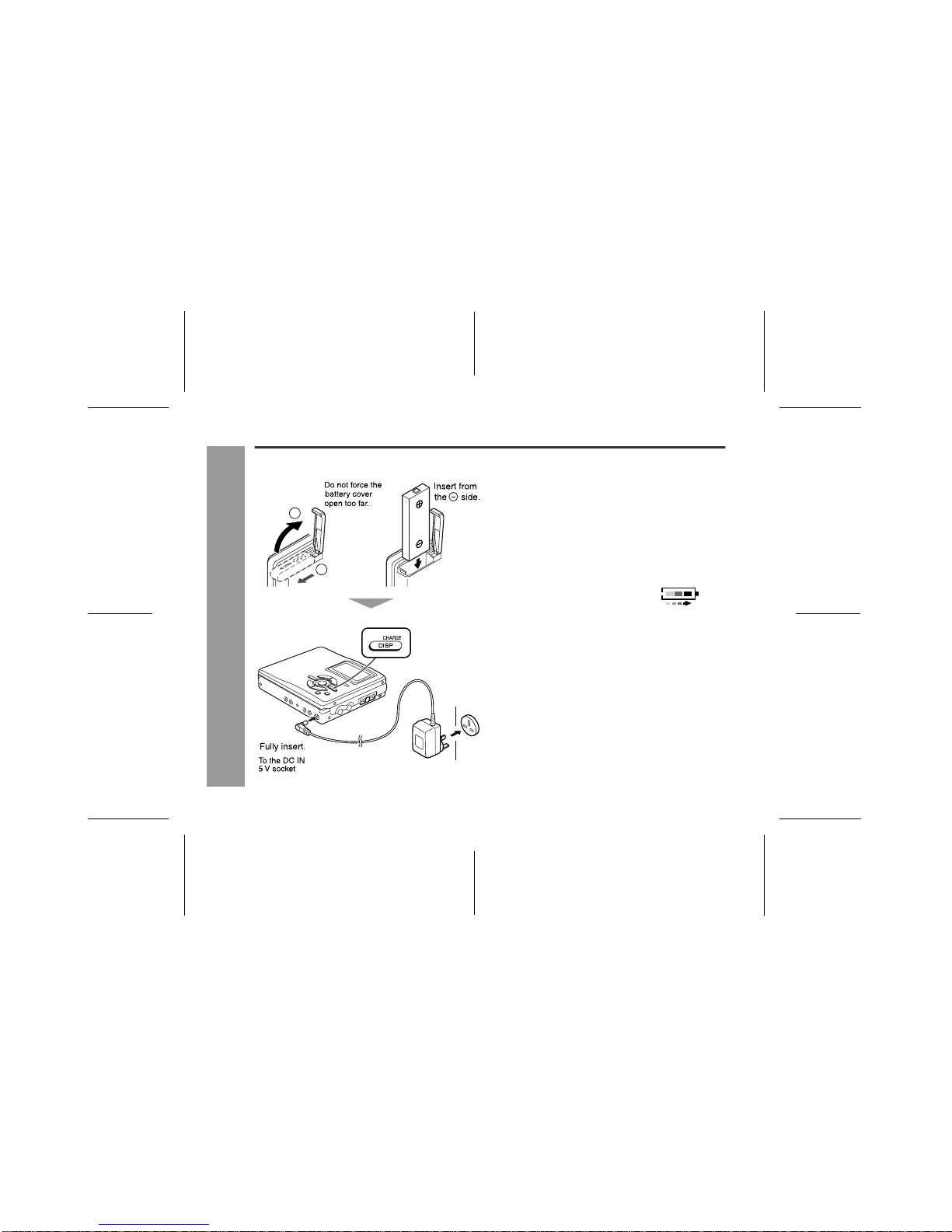

1Insert the rechargeable battery.
A rechargeable battery other than the AD-N55BT
cannot be charged.
2Plug the AC adaptor into the wall socket,
and then insert the plug on the other end
into the DC IN 5V socket.
3Press the CHARGE but-
ton.
The battery indicator will scroll,
and battery will begin charging. Scrolling

11
MD-DR470H
1
2
3
4
5
6
03/3/25 MD_DR470H_UK_2.fmMD-DR470H(E) TINSE0513AWZZ
1
2
3
4
5
6
7
8
9
Preparation
-Using with the AC Adaptor-
!About charging time
After about 3.5 hours have passed, " " will
go out. The battery is charged up to 90% if it is
completely discharged.
To charge the battery fully, continue charging for about 2
more hours. In this case, you do not need to press the
CHARGE button. Even if the CHARGE button is pressed,
" " will not appear.
Notes:
Caution:
Using with the AC Adaptor
Plug the AC adaptor into the wall socket, and then insert
the plug on the other end into the DC IN 5V socket.
Caution:
"Insert the plugs firmly.
"When the unit is not in use for extended periods,
remove the AC adaptor from the wall socket.
Note:
If power failure occurs whilst playing a disc using the AC
adaptor, disconnect it from the wall socket. Otherwise,
playback may start automatically when electricity
resumes.
"Charge the battery within the
range of 5°C - 35°C (41°F - 95°F).
"The unit can be left in the charg-
ing state after it is completed.
"Carry the battery in the supplied
case. Apply the case on the
end.
"Use the specified battery AD-N55BT only. Do not
charge a battery (nickel-cadmium, alkaline, etc.) other
than that specified.
"Do not remove the outer cover of
the rechargeable battery. It may
cause heat generation, fire, or ex-
plosion.
"Do not dip the battery in water or
dispose of it in a fire.
"Do not disassemble the battery.

03/3/25 MD_DR470H_UK_2.fm
12
MD-DR470H
MD-DR470H(E) TINSE0513AWZZ
Preparation
-Using with the Alkaline Battery-
Using with the Alkaline Battery
Use one commercially available alkaline battery (LR6,
"AA" size). When using the alkaline battery, be sure to insert the
rechargeable battery also.
Caution:
"Whilst you are using the rechargeable battery and the
alkaline battery at the same time, do not remove either
of them. If you do, when the unit is in the play mode,
playback will stop. When in the recording mode, the
recorded contents will be erased, and the power may
be disconnected.
"Do not replace the battery or the rechargeable battery
during operation.
"Do not use a rechargeable battery (nickel-cad-
mium battery etc.) in the battery case.
"If the unit is not used for a long period of time, remove
the battery. (Even if the power is turned off, the battery
will be drained slowly but continuously.)
RELEASE LOCK
1
2
Back of the
portable MD
1Open the case cover.
2Insert an alkaline battery into the battery
case.
3Attach the battery case to the portable MD.

13
MD-DR470H
1
2
3
4
5
6
03/3/25 MD_DR470H_UK_2.fmMD-DR470H(E) TINSE0513AWZZ
1
2
3
4
5
6
7
8
9
Preparation
-Inserting a MiniDisc-
Inserting a MiniDisc
Notes:
"Do not place the MiniDisc under the holder.
"If any resistance is felt, do not force the MiniDisc into
the unit, as it may cause damage to the unit. If resist-
ance is felt, remove the MiniDisc and reload it.
"The lid cannot be opened if "TOC" is displayed; refer
to the instruction on page 21.
1Slide the OPEN lever to release the com-
partment door.
2Insert a MiniDisc as shown.
3Close the compartment door.
3
MD-DR470H(E) TINSE0513AWZZ

03/3/25 MD_DR470H_UK_2.fm
14
MD-DR470H
MD-DR470H(E) TINSE0513AWZZ
Preparation
-Connections-
Connections

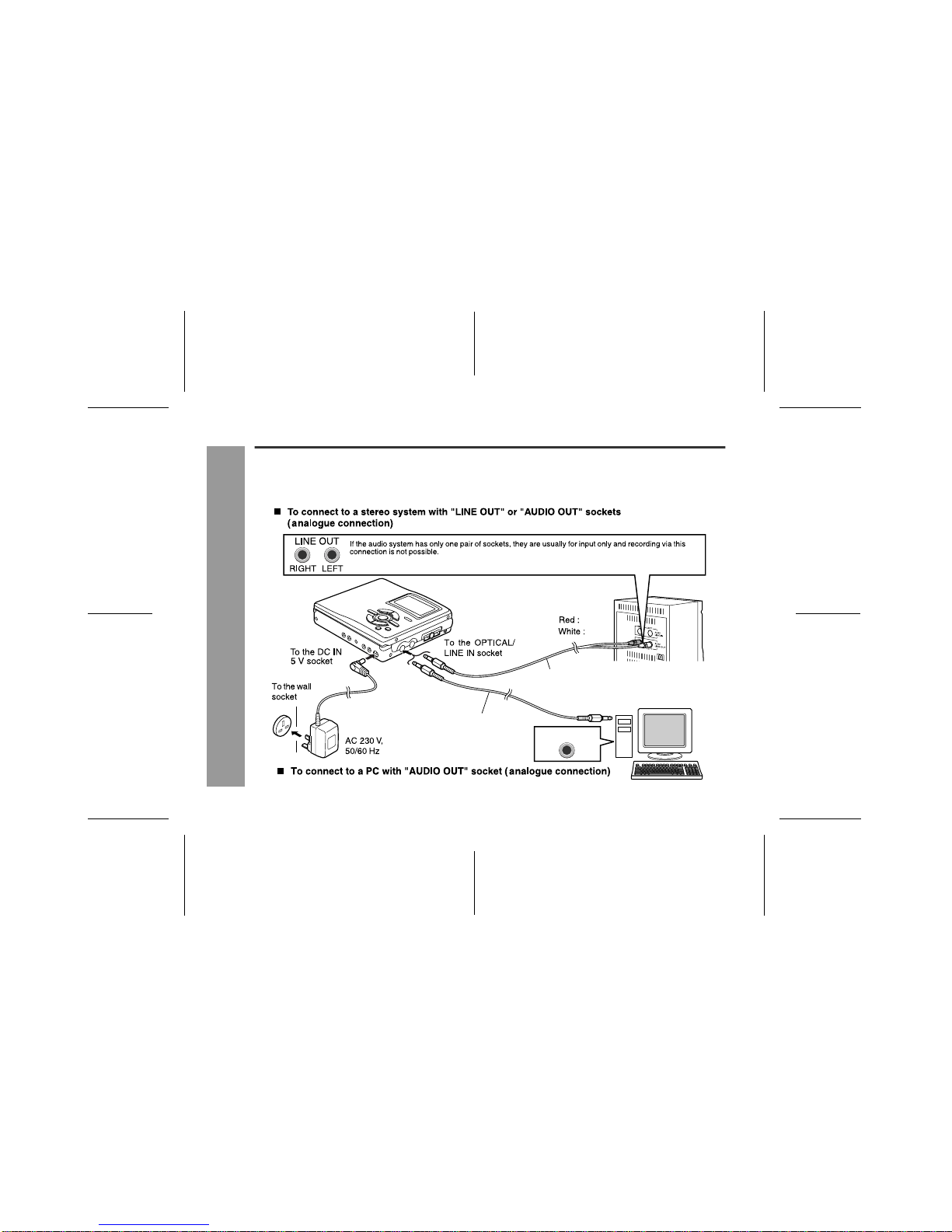

You can record your favourite CDs or tapes to MD.
When recording, it is recommended to use the AC adaptor and also install the battery. Should the power failure occur,
the power source would be automatically switched to the battery.
Supplied connection cable
(for PC analogue recording)
Supplied connection cable
(for analogue recording)
to right
to left
AUDIO OUT

15
MD-DR470H
1
2
3
4
5
6
03/3/25 MD_DR470H_UK_2.fmMD-DR470H(E) TINSE0513AWZZ
1
2
3
4
5
6
7
8
9
Preparation
-Connections-
DIGITAL OUT
Supplied
connection cable
(for digital recording)
Optionally available
connection cable (AD-M2DC)
DIGITAL OUT
Compared to analogue connection recording, it allows high-quality recording.

03/3/25 MD_DR470H_UK_3.fm
16
MD-DR470H
MD-DR470H(E) TINSE0513AWZZ
Basic Operation
-Selecting Menu-
Selecting Menu
You can set or check each function by selecting from the
menu.
How to select Menu
[On the main unit]
" " mark indicates the item selected and available direc-
tions.
Notes for selecting menus:
!Complete the operation within 30 seconds whilst
selecting the menus.
!If you press the GROUP button during the operation,
the previous display appears.
mark Item
Setting
1Press the MENU button.
Press the MENU button to enter the menu select
mode. Item name is displayed in the first line and
menu settings in the second line.
2Select the item by pressing the or but-
ton and press the MENU button.
An item is selected.
3Select a setting option by pressing or
button and press the MENU button.
An option is set and "[ ]" mark will be indicated at both
ends.
Items on the left and right.
No item on the left and right.
Items on the left.
Items on the right.
When "MENU CANCEL?" appears, select "YES" (can-
cel) or "NO" (continue) and press the MENU button.
!To cancel the operation, press the button.

17
MD-DR470H
1
2
3
4
5
6
03/3/25 MD_DR470H_UK_3.fmMD-DR470H(E) TINSE0513AWZZ
1
2
3
4
5
6
7
8
9
Basic Operation
-Long Time Recording and Group Recording-
Long Time Recording and Group Recording
"Long time recording
Since this MD portable recorder adopts the 4 times long
recording mode, you can record many tracks on one MD
(supporting MDLP).
Up to 320 minutes of recording is possible on one MD (of
80 minutes).
"Group recording
You can record tracks by the group of artists or albums,
etc. That MD can be played by selecting the group.
When the group mode is selected for recording, tracks
are played by the group, starting with the first track of the
group.
When the group mode is cancelled, tracks will be num-
bered sequentially from the beginning.
Setting the group mode
To cancel the group mode
Hold down the GROUP button for 2 seconds or more so
that "GR" goes out.
Caution:
The group-recorded MD may not be properly
recorded or edited with other equipment.
1. Press the REC button.
Recording is paused.
2. Hold down the GROUP button for 2 seconds or
more so that "GR" is lit.

03/3/25 MD_DR470H_UK_3.fm
18
MD-DR470H
MD-DR470H(E) TINSE0513AWZZ
Basic Operation
-Recording-
Recording
[ ]
[ GROUP ]
[ MENU ]
[ REC ]
[ ]
[ ]
60
1Press the REC button.
Recording is paused.
!Even when the power is off, you can start record-
ing by pressing the REC button.
!"DISCONNECT" will appear for 1 second if noth-
ing is connected.
2
To perform group record-
ing, hold down the GROUP
button for 2 seconds or
more so that "GR" is lit.
!The unit is ready to record a new group. (To select
a group, refer to page 21.)
!When group recording is not performed, hold
down the GROUP button for 2 seconds or more so
that "GR" goes out.
!Setting for group recording will not be changed un-
til a new setting is entered.
3Start playback on the external equipment
and adjust the recording level by pressing
the or button (page 20).
Adjust the recording level so that the maximum
sound volume from the source makes the reading
swing somewhere between -4 dB and 0 dB.
4Press the PAUSE button on the stereo sys-
tem to enter the playback pause mode.
Here you can search for the track to record.

19
MD-DR470H
1
2
3
4
5
6
03/3/25 MD_DR470H_UK_3.fmMD-DR470H(E) TINSE0513AWZZ
1
2
3
4
5
6
7
8
9
Basic Operation
-Recording-
Notes:
!Changing the volume level whilst recording does not
affect the recording.
!You cannot adjust the bass or treble level whilst
recording.
!When recording, it is recommended to use the AC
adaptor and also install the battery. Should the power
failure occur, the power source will be automatically
switched to the battery.
To interrupt recording
Press the button.
!To resume recording, press the button again.
!The track number will be increased by one each time
the recording is interrupted.
To stop recording
Press the button.
!When recording stops, "TOC" appears. Whilst "TOC"
appears, the MiniDisc recorded contents have not yet
been updated.
!To prevent the new recording from being lost, it is not
possible to remove the MiniDisc whilst "TOC" is dis-
played.
To update the recorded contents of the
MiniDisc
Press the button whilst in the stop mode.
The power turns off after recorded contents have been
updated on the MiniDisc.
5Press the MENU button.
The unit enters the menu select mode.
6Select "REC MODE" by pressing the or
button and press the MENU button
again.
7Select the recording mode (step 3, page 35)
and press the MENU button.
SP/STEREO Stereo recording.
LP2 2 times long recording.
LP4 4 times long recording.
SP/MONO Monaural recording.
8Press the button.
9Begin playback on the stereo system, the out-
put will be recorded.
TOC display

03/3/25 MD_DR470H_UK_3.fm
20
MD-DR470H
MD-DR470H(E) TINSE0513AWZZ
Basic Operation
-Recording-
Recording (continued)
"Recording level
Analogue recording
Adjust the recording level so that the maximum sound
volume from the source makes the reading swing some-
where between -4 dB and 0 dB.
The sound is interrupted momentarily when switching
between "MIC L 20" and "MIC H 21". This is not a mal-
function.
Digital recording
You can adjust the level in 1 dB increments between -10
dB and +10 dB.
Once you adjust the digital recording level, the setting is
retained even after the recording stops. (For cancellation
instructions, see page 58.)
The sound from the earphones does not change even if
the digital recording level is adjusted.
1Whilst recording or recording is paused,
start playback on the external equipment.
2Adjust the recording level by pressing the
or button.
[ ]
[ GROUP ]
[ MENU ]
[ REC ]
- 12 dB
- 4 dB 0 dB
0-30
- 10 dB to +10 dB
