REPLACEMENT MODEL
MODEL EL-6710S
Parts marked with " " is important for maintaining the safety of the set. Be sure to replace these parts with specified
ones for maintaining the safety and performance of the set.
SHARP CORPORATION This document has been published to be used
for after sales service only.
The contents are subject to change without notice. TS
STANDARD FUNCTION 12 digits 1M
D
I
S
P
L
A
Y
S
E
C
T
I
O
N
ELEMENT : TN-LCD PARTSNAME : CH-70189
NUMERAL : UPPERLINE : 12digits
LOWERLINE : 12digits
KEYSYSTEM : Rubberkey
L
S
I
Name : LI-359003 OTHER SPECIFICATIONS
Type : CHIP
POWERSUPPLY AC : X DC : O
POWERSUPPLIES CR2032 x 1pc
ACADAPTOR
0.003W
Approx.7minutes
MEMORYPROTECT Yes
DIMENSIONS(mm) (When OPEN)
149.6(W) 176.5(D) 9.0(H)
(When CLOSED)
149.6(W) 91.0(D) 13.0(H) (mm)
CALCULATIONS
Fourarithmeticcalculation, Constantcalculation, Power
calculation, Chain calculation, Reciprocalcalculation, %
calculation, Add-on(discount)calculation
E-m ail
S
URL
4.25
5.3
Display: 3linesof12digits
Memorycapacity: 34,440bytes
Clockmode:
Accuracy: +
–30seconds/monthat25°C/77°F
Display: Year,month,date,day ofthe week, hour, minute,
seconds,AM/PM
Clocksystem: 12 hour /24-hour format(switchable),worldclock
function, daylightsavingtime /summertimedisplay,
dailyalarm
Telephonemode
(Business,Personal,
Other) Entry and recalloftelephonelisting(name,number,
E-mailaddress,URL)
Schedulemode: Entry andrecall ofschedule(year,month,day,hour,
minuteanditem), day oftheweekconfirmation,
schedulealarm
Calculatormode: 12digits (with calculation statussymbols)arithmetic
calculations,percentage,squareroot,memory
calculation,etc.
Currency/unit
Conversion: Akindsofcurrenciesandunit(editableonthedisplay)
Operatingtemperature: 0to40 °C(32°Fto104°F)
Powersupply: 3V... (DC)(LithiumbatteryCR2032 x 1)
Batterylife: Approx.2yearatambienttemperatureof25°C(77°F),
assumingthefollowingdailyuse:30minutesdisplay,
alarmsoundingfor 20secondsandkeytouchtone
turnedon/off100times.
Weight: Approx.115g(includingbattery)
Accessories: 1lithiumbattery(installed),operationmanual
SERVICE MANUAL

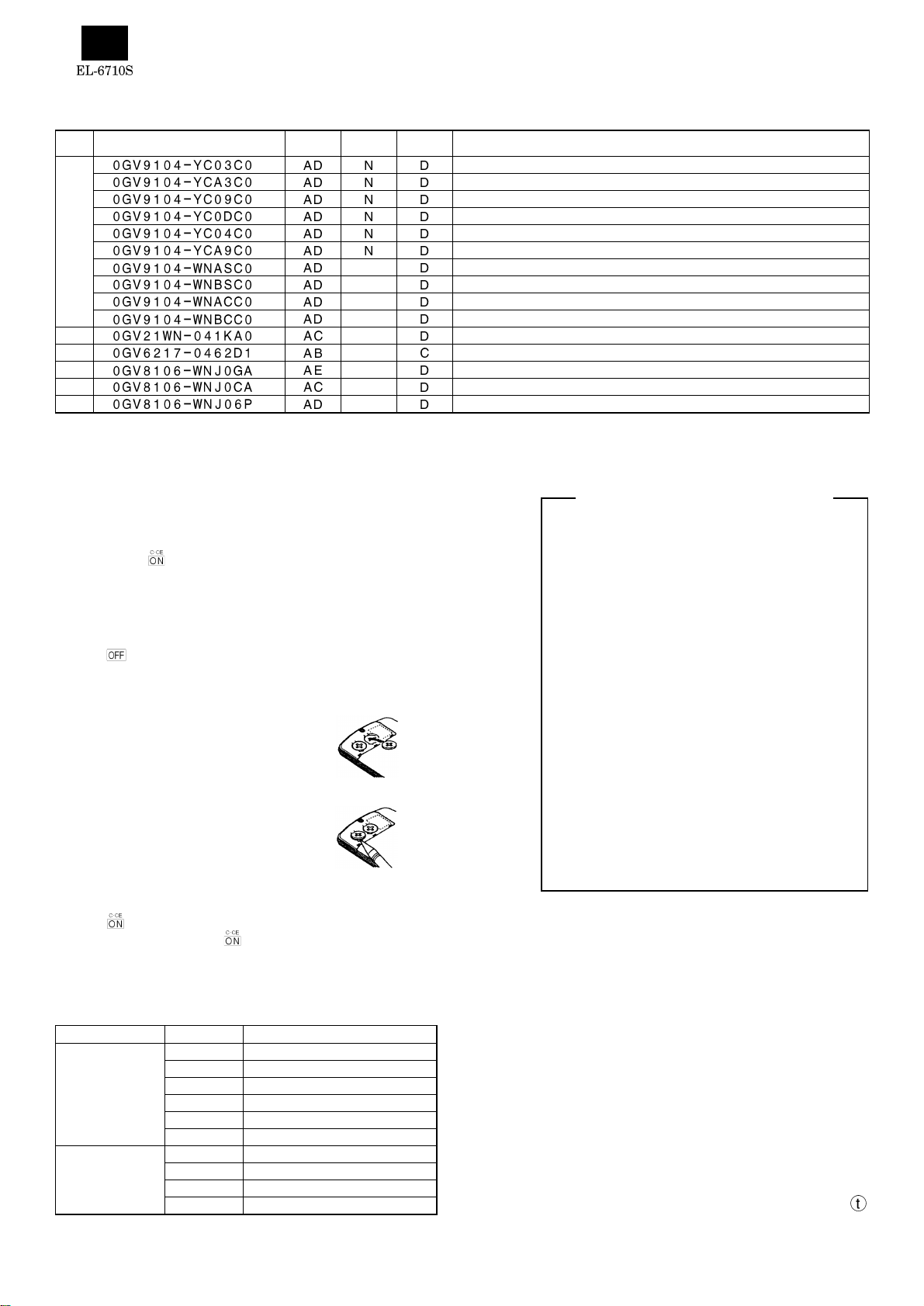

Parts List
No. PARTSCODE PRICE
RANK NEW MARK PART RANK DESCRIPTION
1
Manual(ENGLISH) [U1U, Y12, LL0, LP0, LD0, LQ0]
Manual(SPANISH) [U1U, LL0, LP0]
Manual(FRENCH) [Y12, LM0, LN0, LO0, LE0]
Manual(PORTUGUESE) [LL0, LP0]
Manual(GERMAN) [LM0, LN0]
Manual(ITALIAN) [LM0, LN0]
Manual(SWEDISH) [LO0]
Manual(NETHERLAND) [LO0]
Manual(CHINESE) [LD0, LQ0]
Manual(ARABIC) [LD0, LQ0]
2Batterydoor
3Screw (forBATT.DOOR)
4Importlabel [LL0]
5Chineselabel [LD0]
6Oparationlabel(French) [Y12]
Battery Replacement
(1) Battery replacement time
Ifthe displaybecomesdim anddifficulttoread,immediatelyreplacethe
batterywithanewone.ContinueduseoftheOrganizerwithanexhausted
batterycanalterorclearthememorycontents.
·Make sure the power is turned off before replacing the batteries.
·Do not press until the battery replacement procedure is com-
pleted.
·Do not leave the Organizer installed with the exhausted and new
batteries simultaneously.
(2) Replacing the battery
1. Press toturnthepoweroff.
2. Loosenthescrew and removethebatteryholdercoveronthebackof
theunit.
3. Installa newbattery withthe(+)sidefacingup
intotheupperor loweremptybatteryholder.
(Fig.1)
4. Remove the exhausted battery by prying it out
withaball-pointpen.(Fig.2)
5. Replacetheholdercoverandsecureitwiththescrew.
6. Press toturnthepoweron.Ifnothingappearsonthescreen,press
theRESETswitchandpress again.
7. Settheclock.
Note)
Packing form
Form SPEC Country
Blister U1U SEC, LAG
Y12 SECL
LL0 SDB
LN0 SEIS, SEF
LP0 SUK, SCA, SEES, SRS, STCL
LE0 SEF
Universal LM0 SEEG, SEA, SEZ
LO0 SEB, SES
LQ0 Agent
LD0 SRH
CAUTION FOR BATTERY REPLACEMENT
(Danish) ADVARSEL!
Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri
af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandoren.
(English) Caution!
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the equipment manufacturer.
Discard used batteries according to manufacturer’s instructions.
(Finnish) VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan
tyyppiin. Hävitå käytetty paristo valmistajan ohjeiden
mukaisesti.
(French) ATTENTION
Il y a danger d’explosion s’ il y a remplacement incorrect
de la batterie. Remplacer uniquement avec une batterie du
même type ou d’un type recommandé par le constructeur.
Mettre au rébut les batteries usagées conformément aux
instructions du fabricant.
(Swedish) VARNING
Explosionsfare vid felaktigt batteribyte.
Använd samma batterityp eller en ekvivalent
typ som rekommenderas av apparattillverkaren.
Kassera använt batteri enligt fabrikantens
instruktion.
COPYRIGHTã1999BYSHARPCORPORATION
Allrightsreserved.
PrintedinJapan.
Nopartofthispublicationmaybereproduced,
storedinaretrievalsystem,ortransmitted.
Inanyformorbyanymeans,
electronic,mechanical,photocopying,recording,orotherwise,
withoutpriorwrittenpermissionofthepublisher.
SHARP CORPORATION
Information Systems Group
Quality & Reliability Control Center
Yamatokoriyama, Nara 639-1186, Japan
1999 June Printed in Japan
(F ig .1 )
(F ig .2 )
