– 1 –
XL-30H/30W
CONTENTS Page
SAFETY PRECAUTION FOR SERVICE MANUAL .......................................................................................................... 2
IMPORTANT SERVICE NOTES (XL-30H FOR U.K. ONLY)............................................................................................ 3
VOLTAGE SELECTION (FOR XL-30W)........................................................................................................................... 3
AC POWER SUPPLY CORD AND AC PLUG ADAPTOR (FOR XL-30W)....................................................................... 3
SPECIFICATIONS ............................................................................................................................................................ 4
NAMES OF PARTS .......................................................................................................................................................... 5
OPERATION MANUAL..................................................................................................................................................... 6
DISASSEMBLY............................................................................................................................................................... 10
REMOVING AND REINSTALLING THE MAIN PARTS.................................................................................................. 11
ADJUSTMENT................................................................................................................................................................ 13
TEST MODE ................................................................................................................................................................... 14
ERROR LIST .................................................................................................................................................................. 18
NOTES ON SCHEMATIC DIAGRAM ............................................................................................................................. 19
TYPES OF TRANSISTOR AND LED.............................................................................................................................. 19
BLOCK DIAGRAM .......................................................................................................................................................... 20
SCHEMATIC DIAGRAM ................................................................................................................................................. 24
WIRING SIDE OF P.W.BOARD...................................................................................................................................... 30
WAVEFORMS OF CD CIRCUIT..................................................................................................................................... 37
TROUBLESHOOTING .................................................................................................................................................... 38
FUNCTION TABLE OF IC .............................................................................................................................................. 44
LCD SEGMENT .............................................................................................................................................................. 52
PARTS GUIDE/EXPLODED VIEW
PACKING METHOD (XL-30H FOR U.K. ONLY)
XL-30H
SERVICE MANUAL
SHARP CORPORATION
No. S5046XL30HW//
• In the interests of user-safety the set should be restored to its original
condition and only parts identical to those specified should be used.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
XL-30H Micro Component System consisting of XL-30H (main unit)
and CP-XL40H (speaker system).
Illustration: XL-30H
XL-30WMicroComponent SystemconsistingofXL-30W (mainunit)
and CP-XL40H (speaker system).
Illustration: XL-30W
• Note for users in U.K.
Recording and playback of any material may require consent,
which SHARP is unable to give. Please refer particularly to the
provisions of Copyright Act 1956, the Dramatic and Musical
Performers Protection Act 1956, the Performers Protection Acts
1963 and 1972 and to any subsequent statutory enactments and
orders.
XL-30W
MODEL
MICRO COMPONENT SYSTEM
MODEL

XL-30H/30W
– 2 –
Precaution to be taken when replacing and servicing the Laser Pickup.
The AEL (Accessible Emission Level) of Laser Power Output for this model is specified to be lower than Class I Requirements.
However, the following precautions must be observed during servicing to protect your eyes against exposure to the Laser beam
(1) When the cabinet has been removed, the power is turned on without a compact disc, and the Pickup is on a position outer than
the lead-in position, the Laser will light for several seconds to detect a disc. Do not look into the Pickup Lens.
(2) TheLaserPowerOutputofthePickupinsidetheunitandreplacementservicepartshavealreadybeenadjustedpriortoshipping.
(3) No adjustment to the Laser Power should be attempted when replacing or servicing the Pickup.
(4) Under no circumstances look directly into the Pickup Lens at any time.
(5) CAUTION - Use of controls or adjustments, or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
SAFETY PRECAUTION FOR SERVICE MANUAL
(FOR XL-30W)
(XL-30H for Europe)
CAUTION
●This Micro Component System is classified
as a CLASS 1 LASER product.
●The CLASS 1 LASER PRODUCT label is lo-
cated on the rear cover.
●Use of controls or adjustments or perform-
ance of procedures other than those speci-
fied herein may result in hazardous radiation
exposure.
As the laser beam used in this compact disc
player is harmful to the eyes, do not attempt to
disassemble the cabinet. Refer servicing to
qualified personnel only.
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO
BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA
EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I
STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.
VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE.
ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD.
STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT
INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE
INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.
CAUTION
Useof controls, adjustmentsor performanceofpro-
cedures other than those specified herein may re-
sult in hazardous radiation exposure.
As the laser beam used in this compact disc player
is harmful to the eyes, do not attempt to disassem-
blethecabinet. Refer servicingtoqualified person-
nel only.
LASER KLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
(XL-30H for U.K.)
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA
KUIN TÄSSÄ KÄYTTÖOHJEESSA MAI NI TULLA
TAVALLA SAATTAA ALTI STAA KÄYTTÄJÄN
TURVALLI SUUSLUOKAN 1 YLITTÄVÄLLE
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.
VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT
SÄTT ÄN I DENNA BRUKSANVI SNI NG SPECI FI
CERAS. KAN ANVÄNDAREN UTSÄTTAS FÖR
OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER
GRÄNSEN FÖR LASERKLASS 1.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO
BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA
EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I
STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.
VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE.
ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD.
STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT
INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE
INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.

– 3 –
XL-30H/30W

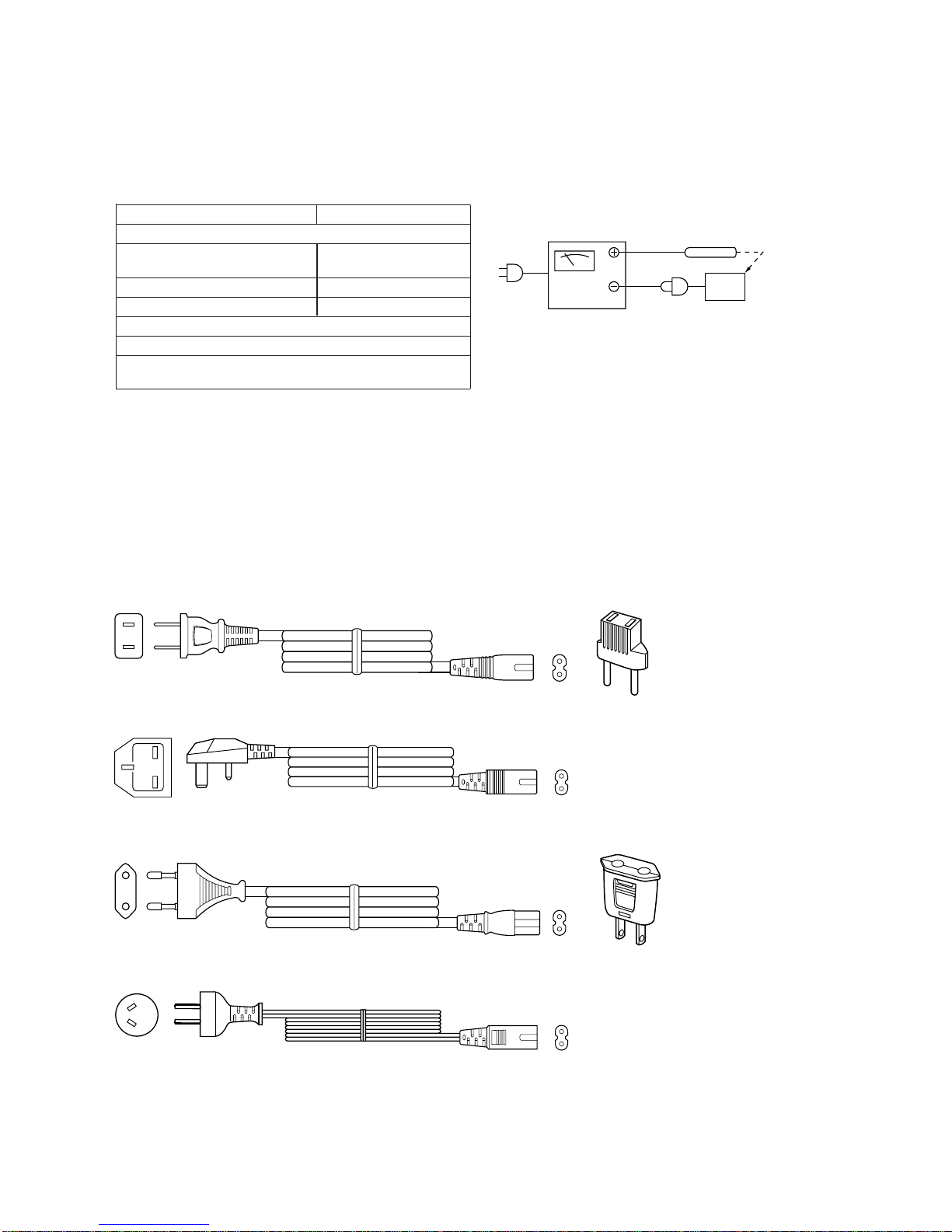

IMPORTANT SERVICE NOTES (XL-30H FOR U.K. ONLY)
Beforereturningthe unitto thecustomer aftercompletion ofa
repairoradjustmentitisnecessary forthefollowingwithstand
voltage test to be applied to ensure the unit is safe for the
customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Test voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current(Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzer sounds.
VOLTAGE SELECTION (FOR XL-30W)
Thevoltageselectorislocatedontherearpaneloftheunit.Ifadjustmentisnecessary,useascrewdriverinordertoturntheselector
in either direction until the correct voltage figure is displayed in the window.
QACCE0001SJ00
QACCA0001SJ00
QACCB0001SJ00
QPLGA0253AFZZ
PROBE
AC OUT UNIT
SHORT-CIRCUT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND OF CHASSIS
SCREW TERMINAL
WITHSTANDING
VOLTAGE TESTER
AC POWER SUPPLY CORD AND AC PLUG ADAPTOR (FOR XL-30W)
QPLGA0250AFZZ
QACCL0002AW00

XL-30H/30W
– 4 –
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
SPECIFICATIONS
XL-30H/30W
Specifications for this model are subject to change without
prior notice.
●Cassette deck section
Frequency response: 50 - 14,000 Hz (Normal tape)
Signal/noise ratio: 50 dB
Wow and flutter:
(XL-30H for Europe) 0.3 % (DIN 45 511)
Type: Full range speaker system
Speakers: 10 cm (4") full-range speaker
Rated input power: 5 W
Maximum input power: 10 W
Impedance: 4 ohms
Dimensions: Width; 145 mm (5-3/4")
Height; 240 mm (9-1/2")
Depth; 191 mm (7-1/2")
Weight: 1.3 kg (2.9 lbs.)/each
●General
Power source:
(For XL-30H) AC 230 V, 50 Hz
Power consump-
tion: (For XL-30H)
Power consump-
tion: (For XL-30W) 28 W
26 W
Dimensions: Width; 160 mm (6-5/16")
Height; 241 mm (9-1/2")
Depth; 249 mm (9-13/16")
Weight: 2.7 kg (6.0 lbs.)
●Amplifier section
Output power:
(XL-30H for Europe) PMPO; 28 W (total)
MPO; 14 W (7 W + 7 W)
(DIN 45 324)
RMS; 10 W (5 W + 5 W)
(DIN 45 324)
Output terminals: Speakers; 4 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
● Tuner section
Frequency range:
(For XL-30H) FM; 87.5-108 MHz
AM; 522-1,620 kHz
●Compact disc player section
Type: Compact disc player
Signal readout: Non-contact, 3-beam semi-
conductor laser pickup
D/A converter: 1-bit D/A converter
Filter: 8-times oversampling digital
filter
Frequency response: 20 - 20,000 Hz
Wow and flutter: Unmeasurable
(less than 0.001% W. peak)
Output power:
(XL-30H for U.K.) RMS; 10 W (5 W + 5 W)
(10 % T.H.D.)
Wow and flutter:
(XL-30H for U.K./XL-30W) 0.25 % (WRMS)
Power source:
(For XL-30W) AC 110 - 127/220 - 240 V,
50/60 Hz
Output power:
(For XL-30W) MPO; 14 W (7 W + 7 W)
(10 % T.H.D.)
RMS; 10 W (5 W + 5 W)
(10 % T.H.D.)
Frequency range:
(For XL-30W) FM; 88-108 MHz
AM; 531-1,602 kHz
CP-XL40H

– 5 –
XL-30H/30W

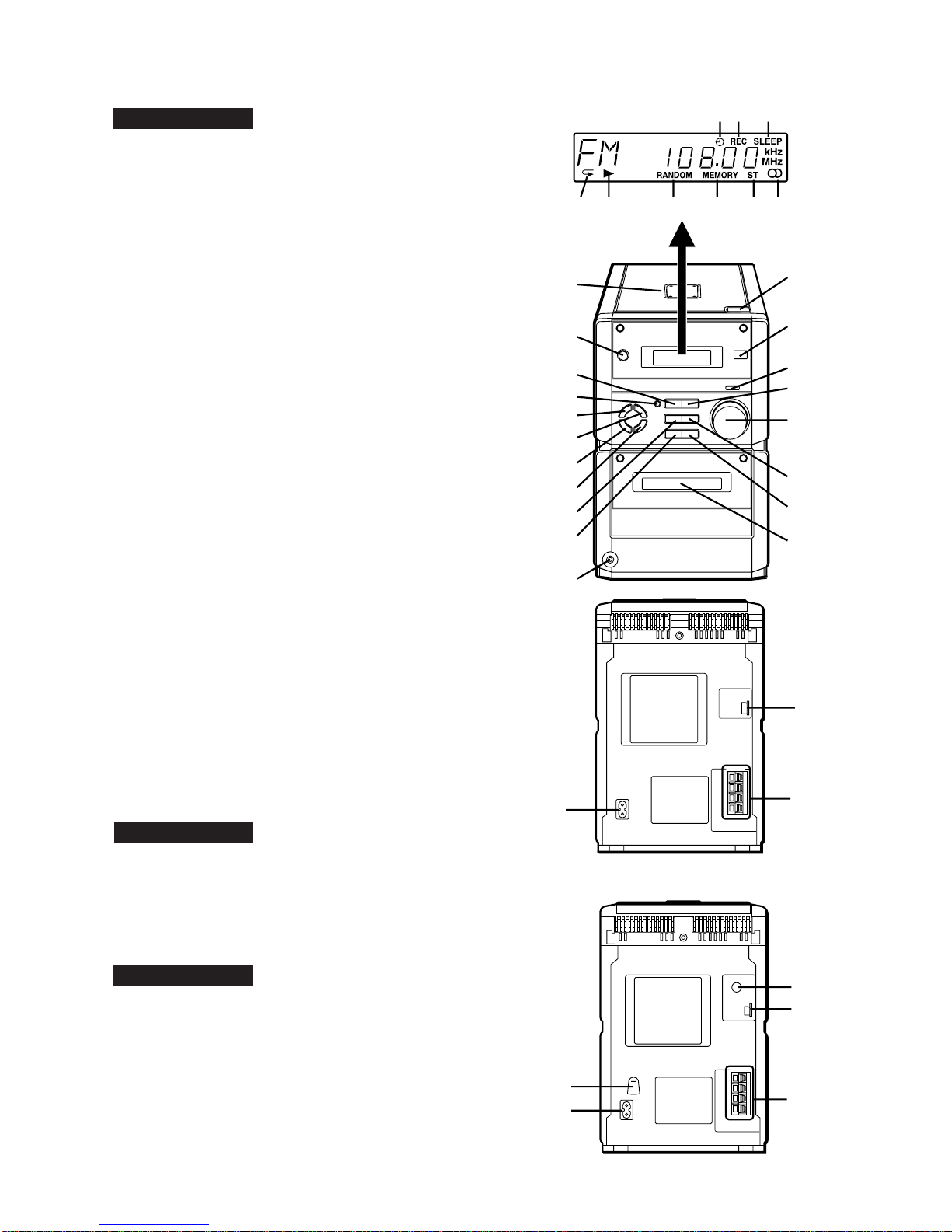

NAMES OF PARTS
XL-30H/30W
123
46789
5
10
11
12
13
14
15
16
21
22
23
24
25
26
27
28
17
18
19
20
1
2
3
2
1
4
3
5
XL-30H
XL-30W
■Front panel
1. Timer Indicator
2. Record Indicator
3. Sleep Indicator
4. (CD) Repeat Indicator
5. (CD) Play Indicator
6. (CD) Random Indicator
7. (CD/TUNER) Memory Indicator
8. FM Stereo Mode Indicator
9. FM Stereo Indicator
10. CD Compartment
11. On/Stand-by Button
12. (CD/TAPE) Stop Button
(TUNER) Memory Clear Button
13. Record Pause Button
14. Bass/Treble Selector Button
15. Memory/Set Button
16. Clock/Timer/Sleep Button
17. Band Selector Button
18. (CD) Review Button
(TAPE) Rewind Button
(TUNER) Tuning Down Button
19. Function Selector Button
20. Headphone Socket
21. CD Eject Button
22. Remote Control Sensor
23. Volume Select Button
24. (CD) Play/Pause Button
(TAPE) Play Button
25. Jog Dial
26. (CD) Cue Button
(TAPE) Fast Forward Button
(TUNER) Tuning Up Button
27. Volume/Jog Dial Selector Button
28. Cassette Compartment
■Rear panel
1. AC Power Input Socket
2. FM/AM Loop Aerial Socket
3. S
p
eaker Terminals
■Rear panel
1. Voltage Selector
2. AC Power Input Socket
3. FM 75 ohms Aerial Socket
4. AM Loop Aerial Socket
5. Speaker Terminals

XL-30H/30W
– 6 –
1. Bass Reflex Duct
2. Full-Range Speaker
3. Speaker Wire
■Remote control
1. Remote Control Transmitter LED
●Tuner control section
2. Preset Up/Down Buttons
●CD control section
3. Clear Button
4. Random/Repeat Button
5. Memory Button
6. Stop Button
7. Play/Pause Button
8. Track Down/Review Button
9. Track Up/Cue Button
●Tape control section
10. Record Pause Button
11. Rewind Button
12. Stop Button
13. Play Button
14. Fast Forward Button
●Common section
15. Sleep Button
16. Bass Up/Down Buttons
17. Function Selector Buttons
18. On/Stand-by Button
19. Timer Button
20. Clock Button
21. Treble Up/Down Buttons
22. Volume Up/Down Buttons
PREPARATION FOR USE
15
15
Notes concerning use: ●Replacethe batteries ifthe operating distanceis
reduced or if the operation becomes erratic.
●Periodically clean the transmitter LED on the re-
mote control and the sensor on the main unit with a soft cloth.
●Exposing the sensor on the main unit to strong
light may interfere with operation. Change the lighting or the direction of the unit.
●Keep the remote control away from moisture,
excessive heat, shock, and vibrations.
0.2m - 6m (8” - 20”)
■Remote control
CP-XL40H
1
2
3
3
4
5
10
11
2
6
7
8
9
12
13
14
20
22
15
16
17
18
19
21
1
OPERATION MANUAL
XL-30H/30W
RESETTING THE MICROCOMPUTER
1
33
2,3
AC INPUT
Reset the microcomputer under the following conditions: ●To eraseall ofthe storedmemory contents(clock
and timer settings, and tuner and CD presets).
●If the display is not correct. ●If the operation is not correct.
1Press the ON/STAND-BY button to enter the
stand-by mode.
2Unplug the AC power lead from the AC INPUT
socket on this unit.
3Whilst pressing down the MEMORY/SET but-
ton and the button, plug the AC power lead into the AC INPUT socket on this unit.
Caution: ●Theoperation explainedabove willerase all data
stored in memory, such as clock and timer set- tings, and tuner and CD presets.

– 7 –
XL-30H/30W
SETTING THE CLOCK
1
Press the CLOCK/TIMER/SLEEP button to en- ter the time check mode.
2
Within3 seconds, presstheMEMORY/SETbut- ton.
3
Turnthejogdial to select thetimedisplay mode.
0:00 AM 12:00
“0:00” →The 24-hour display will appear.
(0:00 - 23:59)
“AM 12:00” →The 12-hour display will appear.
(AM 12:00 - PM 11:59)
●Note that this can only be set when the unit is
first installed or it has been reset.
4
Press the MEMORY/SET button.
5
Adjust the hour by turning the jog dial.
●When the jog dial is turned one click clockwise,
thetimewill increaseby1 hour.Whenit isturned one click anti-clockwise, the time will decrease by 1 hour. Keepturningthe jog dialtochange the timecon- tinuously.
●When the 12-hour display is selected, “AM” will
change automatically to “PM”.
(Main unit operation) In this example, the clock is set for the 24-hour (0:00) system.
CLOCK/TIMER/ SLEEP
MEMORY/SET
Jog dial
6
Press the MEMORY/SET button.
7
Adjust the minutes by turning the jog dial.
●When the jog dial is turned one click clockwise,
the time will increase by 1 minute. When it is turned one click anti-clockwise, the time will de- crease by 1 minute. Keepturningthe jog dialtochange the timecon- tinuously.
●The hour setting will not advance even if min-
utes advance from “59” to “00”.
8
Press the MEMORY/SET button.
●Theclock startsoperatingfrom “0”second.(Sec-
onds are not displayed.)
Note: ●In the event of a power failure or when the AC
powerleadis disconnected, theclockdisplay will go out. WhentheACpowersupply is restored, the clock display will flash on and off to indicate the time when the power failure occurred or when the AC power lead was disconnected. If this happens, follow the procedure below to change the clock time.
To change the clock time: Perform steps 1, 2 and 4 - 8 above. To change the time display mode:
1
Perform steps 1 - 3 in the section “RESETTING THE MICROCOMPUTER”,.
2
Perform steps 1 - 8 above.
PREPARATION FOR USE (FOR XL-30W Only)
■AM/FM interval (span) The International Telecommunication Union (ITU) has established that member countries should maintain either a 10 kHz or a 9 kHz interval be- tween broadcasting frequencies of anyAM station. The illustration shows the 9 kHz interval zones (re- gions 1 and 3), and the 10 kHz interval zone (re- gion 2). This product is not equipped with a span selector. However, it will be adjusted to 9 kHz AM interval (50 kHz FM interval) when shipped from the fac- tory. Before using the unit, be sure to set it for the AM tuning interval (span) used in your area. To check the tuning span currently selected:
1
Press the ON/STAND-BY button to turn the power on.
2
Press the FUNCTION button until “FM” or “AM” appears in the display.
3
Press the BAND button to select the AM band.
●If “AM 531 kHz” is displayed, it means that the
radio has been adjusted for a 9 kHz span. If “AM 530 kHz” is displayed, it means that the radio has been adjusted for a 10 kHz span.
To change from a 9 kHzAM (50 kHz FM) interval to a 10 kHz AM (100 kHz FM) interval:
1
Press the ON/STAND-BY button to enter the stand-by mode.
2
Hold down the button and the MEMORY/ SET button for at least 4 seconds. Release the buttons when “AM SP 10 kHz” and “FM SP 100 kHz” are displayed alternately.
●The unit will return to the clock display. To return to a 9 kHz AM (50 kHz FM) interval:
1
Press the ON/STAND-BY button to enter the stand-by mode.
2
Hold down the button and the MEMORY/ SET button for at least 4 seconds. Release the buttons when “AM SP 9 kHz” and “FM SP 50 kHz” are displayed alternately.
●The unit will return to the clock display. Caution: ●When the unit is left for a few hours after the
span has been switched andAC power lead dis- connected, it will be automatically returned to a 9 kHz span. If this happens, set the span again.
●Whenthespanisswitched, any stations that are
memorised will be cancelled.
MEMORY/
SET
FUNCTION
BAND
ON/ STAND-BY
kHz
kHz kHz
kHz
kHz
kHz kHz
kHz

XL-30H/30W
– 8 –
Placing the system
20 cm (8")
10 cm (4")
10 cm (4") 10 cm (4")
3
1
Check the supplied accessories
Remote control ×1 AC power lead
(For U.K.) ×1
FM/AM loop aerial ×1
2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar)
3
Replace the battery cover.
2
Putting batteries into the remote control
1
Remove the battery cover.
2
Insert the batteries.
AC power lead (For Europe) ×1
FM aerial ×1
(For-XL30W)
Remote control ×1 AC power lead ×1
AM loop aerial ×1
(For-XL30H)
4Connections
1 Connect the AM and FM aerials. 2 Connect the speaker system.
3Connect the AC power lead.
2
13
1
2
FM aerial
AM loop aerial
White line
Right speaker Left speaker
1
2
RATED
LINE VOLTAGE
220V
ı
240V
AC 230 V, 50 Hz
(XL-30H for Europe)
AC 110V - 127V or 220V - 240V, 50/60 Hz
ANTENNA
LOOP
FM
75
OHMS
123
AM loop aerial
FM aerial
(For XL-30W)
AC 230 V, 50 Hz
(XL-30H for U.K.)
(For XL-30H)
To an AC socket
(For XL-30W)
(For XL-30H/ XL-30W)

– 9 –
XL-30H/30W
6
Listening to a tape
3
2
14
5
1
2
5
3
4
6
1
2
6
7
5
PUSH CLOSE
3
CD EJECT
4
Label side up
1
Press the ON/STAND-BY button to turn the power on.
2
Press the FUNCTION button until “FM” or “AM” appears.
3
Press the BAND button to select FM ST, FM or AM.
4
PresstheTUNING( or )buttonto tune into a station.
5
Adjust the VOLUME control.
1
Press the ON/STAND-BY button to turn the power on.
2
Press the FUNCTION button until “Cd” or “no dISC” appears.
3
Press the CD EJECT button to open the CD compartment.
4
Place a CD on the spindle.
5
Closethe CDcompartmentby pushingthe corner marked “PUSH CLOSE”.
6
Press the /CD button.
7
Adjust the VOLUME control.
5
Listening to a CD Listening to the radio
7
1
Press the ON/STAND-BY button to turn the power on.
2
Press the FUNCTION button until “TP” appears.
3
Open the cassette door by pushing the area marked “ PUSH EJECT”
4
Load a cassette.
5
Press the button.
6
Adjust the VOLUME control.
8
Recording from a CD
1
Press the ON/STAND-BY button to turn
the power on.
2
Press the FUNCTION button until “Cd” or
“no dISC” appears.
3
Load a CD and a recordable cassette.
4
Press the REC PAUSE button.
5
Press the button.
●Donot touch the laser pickup lens. If fingerprints
or dust accumulate on the pickup, clean it gently with a dry cotton swab.
● CD pickup cleaning
1
25
3
4

XL-30H/30W
– 10 –
1 Side Panel (Left/Right) 1. Screw .................. (A1) x8 10-1
2 Top Cabinet 1. Screw .................. (B1) x1 10-1
Switch PWB 2. Socket ................. (B2) x2
3 Rear Panel 1. Screw .................. (C1) x1 10-1
2. Screw .................. (C2) x1
(XL-30W ONLY)
4 Main PWB/ 1. Screw .................. (D1) x3 10-2
Headphones PWB 2. Screw .................. (D2) x2
3. Bracket ................ (D3) x1
4. Socket ................. (D4) x3
5. Flat wire............... (D5) x1
6. Socket ................. (D6) x1
5 Jog Switch PWB 1. Socket ................. (E1) x1 10-2
2. Screw .................. (E2) x2
3. Knob .................... (E3) x1
6 Display PWB/ 1. Screw .................. (F1) x2 10-2
LED PWB 2. Screw .................. (F2) x3
(With Jog Motor 3. Bracket ................ (F3) x1
Holder) 4. Socket ................. (F4) x1
5. Hook .................... (F5) x2
6. Hook .................... (F6) x2
7 Front Panel 1. Screw .................. (G1) x1 10-2
2. Socket ................. (G2) x1
3. Screw .................. (G3) x1
8 Power PWB 1. Screw .................. (H1) x4 10-2
2. Screw .................. (H2) x1
3. Screw .................. (H3) x1
4. Bracket ................ (H4) x1
9 Tape Mechanism 1. Open the cassette holder 10-3
2. Screw .................. (J1) x4
10 CD PWB/ 1. Screw .................. (K1) x3 10-4
Open Close Switch 2. Hook .................... (K2) x2
PWB (Note) 3. Socket ................. (K3) x3
11 CD Mechanism 1. Screw .................. (L1) x3 10-5
DISASSEMBLY
Figure 10-2
Figure 10-3
STEP REMOVAL PROCEDURE FIGURE
Figure 10-1
XL-30H/30W
XL-30H/30W
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3.Take offnylonbandsorwireholderswheretheyneedto
beremovedwhendisassemblingtheunit.Afterservicing
theunit,besureto rearrangethe leadswhere theywere
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 10-4 Figure 10-5
CD Mechanism
(L1)x3
ø2.5x10mm
PWB Washer x3
Top Cabinet
(A1)x2
ø3x10mm
(B2)x1
(C2)x1
ø3x10mm
Side Panel
(Right)
Front
Panel
RearPanel (C1)x1
ø3x10mm
Side Panel
(Lift)
(B2)x1
(A1)x4
ø3x10mm
(A1)x1
ø3x10mm
(A1)x1
ø3x10mm
(B1)x1
ø3x10mm
Top Cabinet
CD PWB
Display
PWB
Main PWB
XL-30W Only
(F2)x2
ø2.5x10mm
(F2)x1
ø2.5x10mm
(F1)x3
ø2.5x14mm
(E2)x2
ø2.5x12mm
(D2)x1
ø3x8mm
Main PWB
Power PWB
Main Power Transformer
Front Panel
Display PWB
LED
PWB
(H1)x4
ø3x6mm
(D2)x1
ø3x8mm
(D3)x1
(G2)x1
(H2)x1
ø3x10mm
(G1)x1
ø3x8mm
(G3)x1
ø3x6mm
(D4)x1
(D4)x1
(F3)x1
(D5)x1
(F5)x2
(F6)x2
(E3)x1
(D4)x1
Tape
Mechanism
PWB
(F4)x1
Headphones
PWB
(E1)x1
(D1)x2
ø3x10mm
Sub Power Transformer
Jog Motor
Holder
Jog Switch
PWB
(D6)x1
(D1)x1
ø3x10mm
Power PWB
Sub Power
Transformer
(H3)x1
ø3x6mm
(H4)x1
Tape
Mechanism
Open
(J1)x4
ø2.5x10mm
Front Panel
Cassette
Holder
(K1)x3
ø2.5x14mm
(K3)x1
(K2)x2
(K3)x2
Top Cabinet
CD PWB
Open/Close
Switch PWB
CD Motor PWB CD Mechanism

– 11 –
XL-30H/30W
TAPE MECHANISM SECTION
Perform steps 1 to 7 and 9 of the disassembly method to
remove the tape mechanism. (See page 10.)
How to remove the record / playback and erase
heads (See Fig. 11-2.)
1. Remove the screws (A1) x 2 pcs., to remove the erase
head.
2. Remove the screws (A2) x 2 pcs., to remove the record/
playback head.
Note:
After replacing the heads and performing the azimuth
adjustment, be sure to apply screwlock.
How to remove the pinch roller (See Fig. 11-3.)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (B1) x 1 pc.,
upwards.
How to remove the belts (See Fig. 11-4.)
1. Remove the main belt (C1) x 1 pc., from the motor pulley.
2. Remove the FF/REW belt (C2) x 1 pc., from the REW/FF
roller.
3. Put on the belts in the reverse order of removal.
Note:
Whenputtingonthebelt,ascertain thatthebeltisnottwisted,
and clean it.
How to remove the motor
(See Figs. 11-5.)
1. Remove the main belt.
2. Remove the screws (D1) x 2 pcs., to remove the motor
bracket.
3. Remove the screws (D2) x 3 pcs., to remove the motor.
Note:
Whenmountingthemotor,payattentiontothemotormounting
angle.
Figure 11-2
Figure 11-3
Figure 11-4
Figure 11-5
<A>
Pinch Roller
(B1)x1 Pinch Roller
Pawl
REMOVING AND REINSTALLING THE MAIN PARTS
Main Belt
(C1)x1
FF/REW Belt
(C2)x1
REW/FF
Clutch
Motor
1 Speaker 1. Front panel .......... (A1) x1 11-1
2. Screw .................. (A2) x4
STEP REMOVAL PROCEDURE FIGURE
CP-XL40H
Figure 11-1
(A2)x4
ø4x12mm
(A1x1) Woofer
Speaker Box
Driver
Direction of handle
Driver should be
pried away from
speaker Box.
Erase Head
Record/
Playback Head
(A1)x2
ø2x8mm
(A2)x1
ø2x3mm
(A2)x1
ø2x7mm
(D1)x1
ø2x4mm
(D2)x3
Special
Screw
Motor
Bracket
Motor
Motor
(D1)x1
ø2x4mm
Note:
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector remove to protect the optical pickup
from electrostatic damage.

XL-30H/30W
– 12 –
Figure 12-4
How to remove the pickup (See Fig. 12-4)
1. Remove the mechanism cover, paying attention to the
pawls (A1) x 4 pcs.
2. Remove the screws (A2) x 2 pcs., to remove the shaft (A3)
x 1 pc.
3. Remove the stop washer (A4) x 1 pc., to remove the gear
(A5) x 1 pc.
4. Remove the pickup.
CD MECHANISM SECTION
Perform steps 1, 2 and 10, 11 of the disassembly method to
remove the CD mechanism.
Pickup Unit
(A2) x2
ø2.6 x6mm
(A1) x2
CD Mechanism
Shaft
(A3) x1
Gear
(A5) x1
StopWasher
(A4) x1
Mechanism Cover
(A1) x2
How to remove the tape mechanism PWB
(See Fig. 12-2.)
1. Remove the screws (F1) x 1 pc., to remove the tape
mechanism PWB.
2. Remove the screws (F2) x 1 pc.
3. Remove the solder joints (F3) x 2 pcs., to remove the tape
mechanism PWB.
How to remove the jog motor
(See Figs. 12-3.)
1. Remove the side panel and top cabinet.
2. Remove the jog belt (G1) x 1 pc., from the motor pulley.
3.Remove thescrews (G2)x 2pcs., toremove thejog motor.
Note:
Whenputtingonthebelt,ascertain thatthebeltisnottwisted,
and clean it.
Figure 12-2
Figure 12-3
(G2)x2
ø2x5mm
Worm
Gear Jog Belt
(G1)x1 Jog Motor
Holder
Jog Motor
Display PWB
Figure 12-1
How to remove the flywheel (See Fig. 12-1.)
1. Remove the belt.
2.Removethestopwasher(E1)x1pc.,withasmallprecision
screwdriver to extract the flywheel from the capstan metal.
Note:
When the stop washer is deformed or damaged, replace it
with a new one.
How to reinstall the parts
Installeach partin thereverse orderof theremoval withcare.
Stop
Washer Driver
(E1)x1
Stop Washer
Mechanism
Chassis
Washerx2
Flywheel
Tape
Mechanism
PWB Tape
Mechanism
PWB
(F3)x2
Solder
Joint
(F2)x1
ø2x8mm
(F1)x1
ø2x3mm
Note:
After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of connector remove to protect the optical pickup
from electrostatic damage.

– 13 –
XL-30H/30W
MECHANISM SECTION
• Driving Force Check
Torque Meter Specified Value
Play: TW-2412 Over 80 g
• Torque Check
Torque Meter
Play: TW-2111 30 to 60 g. cm
Fast forward: TW-2231 55 to 140 g.cm
Rewind: TW-2231 55 to 140 g.cm
Specified
Value
Adjusting
Point Instrument
Connection
Test Tape
ADJUSTMENT
Specified Value
• Tape Speed
TUNER SECTION
MTT-111 Variable 3,000 ±Headphone
resistor in 90 Hz terminal
motor.(M901)
Adjusting
Parts
Display
Frequency
• FM Mute Level (For XL-30W)
Signal generator: 1 kHz, 40 kHz dev., FM modulated
*1. Adjust so that an output signal appears.
Check Point Instrument
Connection
Display
Frequency
87.5 MHz 87.5 MHz 3.4 V ±1.0 V TP301
108 MHz 108 MHz 7.8 V ±1.0 V TP301
• Check FM VT (XL-30H/30W)
Signal generator: 1 kHz, 40 kHz dev., FM modulated
98.00 MHz 98.00 MHz VR351*1 Input: SO301
(25 dBµV) Output: Speaker
Terminal
Instrument
Connection
Frequency Frequency Display Setting/
Adjusting
Parts
Instrument
Connection
IF 450 kHz 1,620 kHz T351 *1
AM Band — 522 kHz (fL): T306 *2
Coverage 1.1 ±0.1 V
AM 990 kHz 990 kHz T302 *1
Tracking
fL: Low-renge frequency
fH: High-renge frequency
Signal generator: 400 Hz, 30%, AM modulated
• AM IF/RF (For XL-30H)
AM IF 450 kHz 1,602 kHz T351 *1
AM Band — 531 kHz (fL): T306 *2
Coverage 1.1 ±0.1 V
AM Tracking 990 kHz 990 kHz T302 *1
Test Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
Adjusting
Parts Instrument Connection
Display
Frequency
98.00 MHz 98.00 MHz VR351*1 Input: CNP301
(30 dBµV) Output: Speaker
Terminal
• FM RF (XL-30H/W)
Signal generator: 1 kHz, 75 kHz dev., FM modulated
FM Band — 87.50 MHz (fL): L303 *1
Coverage 3.4 ±0.1 V
FM RF 98.00 MHz 98.00 MHz L302 *2
(10~30 dB)
Test Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
*1. Input: Antenna, Output: TP301
*2. Input: Antenna, Output: Speaker Terminal
• FM Detection (XL-30H/W)
Signal generator: 10.7 MHz, FM sweep generator
FM IF 10.7 MHz 98.00 MHz T304(Turn Input: Pin 1 of
the core of IC301
T304 fully
counter-
clockwise).
Test
Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
*1. Input: Antenna, Output: Speaker Terminal
*2. Input: Input is not connected, Output: TP301
• FM Mute Level (For XL-30H)
Signal generator: 1 kHz, 40 kHz dev., FM modulated
*1. Adjust so that an output signal appears.
• AM IF/RF (For XL-30W)
Signal generator: 400 Hz, 30%, AM modulated
Span selectors are to be 9 kHz (AM), 50 kHz (FM).
Figure 13-1 ADJUSTMENT POINT
Figure 13-2 ADJUSTMENT POINTS
TAPE MECHANISM
M901
Tape
Motor
Variable
resistor
in motor
IC303
IC302
CF352
R336
T306
VR351
T302
T304
L303
IC301
L302
BF301
T351
1
9
MAIN PWB
ANTENNA
SOCKET
FM Mute
Level
AM IF
TP301
CNP301
AM
Tracking
AM Band
Coverage fL
FM Band
Coverage fL
FM RF
FM IF
SO301
ANTENNA
SOCKET
(XL-30W
Only)

XL-30H/30W
– 14 –
2. CD Test Mode (TEST 1)
In the CD test mode the operation of each step is enabled even when the LID-SW is off. However, if focus cannot be set in step
3 or any error processing is started, it is impossible to proceed to the next step. When the error processing is started, operations
otherthanterminationoftestmodebypressingthePOWERbuttonorreturntothestep1bypressingtheSTOPbuttonareinhibited.
1. Step 1 Mode
When the CD test mode is turned on, the following indication lights, the processing (until turning-off of CD STB terminal of CD
initialization operation flow) is executed, and the next button input is waited.
After lighting for one second
If the following operation buttons are pressed in this state, the operation is performed as follows.
"POWER".................The test mode is turned off, the power is turned off, and the ordinary stand-by mode is set.
"FF/FWD".................After the pickup returns once to the innermost periphery, it slides toward the outer periphery while this
button is held down.
"REW/REV"..............After the pickup returns once to the innermost periphery, it slides toward the inner periphery while this
button is pressed. However, if PU-IN is on, input is invalid.
"PLAY" .....................Shift to step 2
"STOP".....................Invalid
"REC PAUSE"..........Shift to step 5
TEST MODE
The test mode applied to this microcomputer has three modes, namely ordinary test mode to be used for adjustment or
measurement, aging test mode to be used for aging test, and self-diagnosis test mode for self-inspection in case of final product
inspection.
1. Turning on the test mode
To turn on the specific test mode, press the POWER button, holding down the following two buttons in the ordinary stand-by
mode (power off state). In this case only the main unit button is valid. Even when the POWER of remote control button is set
to on, the test mode is not turned on.
[Ordinary test mode]
1. CD Test Mode (TEST 1)…………………… Volume/JOG Dial Selector + FF/FWD
2. Tuner Test Mode (TEST 2)………………… Volume/JOG Dial Selector + Volume Select
3. Electronic volume Test Mode (TEST 3)……REW/REV + FF/FWD
4. Timer Test Mode (TEST 4)………………… FUNCTION + Volume Select
5. LCD Test Mode (TEST 5)……………………FUNCTION + FF/FWD
REW/REV + Volume Select
[Self-diagnosis Test Mode]
1. Button input diagnosis test mode (TEST6).…
• Setting the Test Mode (For XL-30H)
Keeping the FF/FWD button and MEMORY/SET button
pressed, turn on POWER. Then, the frequency is initially set
in the memory as shown in Table. Call it with the JOG DIAL
knob to use it for adjustment and check of tuner circuit.
Preset No. FM STEREO Preset No. AM
1 87.50 MHz
2 108.00 MHz
3 98.00 MHz
4 90.00 MHz
5 106.00 MHz
11~25 ––––
• Setting the Test Mode (For XL-30W)
Keeping the FF/FWD button and MEMORY button pressed,
turn on POWER. Then, the frequency is initially set in the
memory as shown in Table. Call it with the Jog volume button
by pressing the VOLUME/JOG button to use it for adjustment
and check of tuner circuit.
Preset No. FM STEREO Preset No. AM
1 87.50 MHz 6 531 kHz
2 108.00 MHz 7 1,602 kHz
3 98.00 MHz 8 990 kHz
4 90.00 MHz 9 603 kHz
5 106.00 MHz 10 1,404 kHz
11~25
Preset No. FM MONO
26 106.00 MHz
27 90.00 MHz
28 98.00 MHz
29 108.00 MHz
30 87.50 MHz
6 522 kHz
7 1,620 kHz
8 990 kHz
9 603 kHz
10 1,404 kHz
Preset No. FM MONO
26 106.00 MHz
27 90.00 MHz
28 98.00 MHz
29 108.00 MHz
30 87.50 MHz

– 15 –
XL-30H/30W
The time display indicates always "0:00".
When the following buttons are pressed in this state, the operation is executed as follows.
"POWER" ................The test mode is turned off, the power is turned off, and the ordinary standby mode is set.
"FF/FWD" ................The pickup slides toward the outer periphery while this button is held down.
"REW/REV" .............The pickup slidestoward theinner peripherywhile thisbutton isheld down.However, ifPU-IN ison, input
is invalid.
"PLAY".....................Shift to step 5
"STOP" ....................Return to step 1
"REC PAUSE" .........Shift to step 5
*If the focus is disturbed, the process returns to step 1.
4. Step 4 Mode
TheCLV servoONcommand (8600)sendingoperationisperformed, andthenext buttoninputiswaited.(The discisrotated
to perform CLV locking.)
When the following operation buttons are pressed in this state, the operation is executed as follows.
"POWER" ................The test mode is turned off, the power is turned off, and the ordinary standby mode is set.
"FF/FWD" ................The pickup slides toward the outer periphery while this button is held down.
"REW/REV" .............The pickup slidestoward theinner peripherywhile thisbutton isheld down.However, ifPU-IN ison, input
is invalid.
"PLAY".....................Ifthe focushas beenset, shiftto step4 isexecuted. Ifthefocushasnotbeenset,acceptanceisinhibited.
"STOP" ....................Return to step 1
"REC PAUSE" .........Shift to step 5
*If the focus is disturbed after it has been set, the process returns to step 1.
3. Step 3 Mode
The laser is kept lighting. The processing (until turning-on of CLV servo of CD initialization operation flow) is executed, and
the next button input is waited. (The focus servo is turned on, and focus search is performed.)
The focus search is repeated until the focus is set.
If the following buttons are pressed in this state, the operation is performed as follows.
"POWER" ................The test mode is turned off, the power is turned off, and the ordinary stand-by mode is set.
"FF/FWD" ................The pickup slides toward the outer periphery while this button is held down.
"REW/REV" .............The pickup slidestoward theinner peripherywhile thisbutton isheld down.However, ifPU-IN ison, input
is invalid.
"PLAY".....................Shift to step 3
"STOP" ....................Return to step 1
"REC PAUSE" .........Shift to step 5
2. Step 2 Mode
When the "PLAY" button is pressed in this mode, the laser lighting command LDON (8400) is sent, and the laser is turned on.
Other operations are not performed.
* In case of initialization the pickup is moved toward the inner periphery. Any buttons other than "POWER" button are not
accepted until the shift of pickup to the inner periphery is completed at this time. If PU-IN SW ON cannot be detected within
10 seconds, the slide motor is stopped, and the following error indication appears. Press the POWER button to end the test
mode, or press the STOP button to return to step 1. Any other operations are inhibited.

XL-30H/30W
– 16 –
3. Tuner Test Mode (TEST 2)
1. Outline of tuner (radio) test mode
The tuner test mode is intended to store the adjustment and measurement frequencies in the preset memory CH without
frequency setting by adjusting personnel when the tuner section is adjusted in the production line.
2. Details of tuner test mode
When the power is turned on by using the "POWER" button while the "Volume/JOG Dial Selector" and "Volume Select"
buttonsare helddowninPOWEROFFstate,thefrequencyforadjustmentandmeasurementof destinationspecified bythe
AREAterminal ispresetandstoredinthepresetmemoryCH.However, Ordinary1and Ordinary2are settothe designation
(destinationselectedbySPANswitchingoperation)setwhenthetestmodeisset.(Asforfrequenciestobepresetandstored
for each destination, refer to item 3.)
The tuner test mode is started from preset No.1.
The operations of test mode are identical with the ordinary operations of TUNER function. However, FUNCTION switching
is invalid.
Since it is necessary to discard the content of preset memory when the tuner test mode is ended, "0000" or "1111" bits are
writteninthememorytobecheckedincaseofmemorycheck(incaseofinitialsetting)sothatmemoryabnormalityisdetected
in case of initial setting so as to ensure memory initialization.
When the tuner test mode is turned on, the following indication lights for one second.
• The TUNER TEST2 mode is set as a result of Volume Select + POWER. -> IF AC is set to OFF in the TEST2 mode, the initial
state is restored.
When POWER is set to OFF, the memory of TEST2 mode is protected.
When the power is turned on again, the ordinary operation is enabled while the data is stored in the
memory (besides TUNER).
If AC OFF state is maintained in this state for about 1/2 day, start is executed in the initial state.
• To clear the whole memory, insert the AC cord, holding down MEMORY + PLAY.
When the following operation buttons are pressed in this sate, the operation is executed as follows.
"POWER".................The test mode is turned off, the power is turned off, and the ordinary standby mode is set.
"FF/FWD".................The pickup slides toward the outer periphery while this button is held down.
"REW/REV"..............Thepickup slidestoward theinner peripherywhile thisbuttonishelddown. However,if PU-INis on,input
is invalid.
"PLAY" .....................Invalid
"STOP".....................Return to step 1
"FUNCTION"............Shift to step 6
"BAND" ....................Shift to step 7
*If the focus is disturbed, the process returns to step 1.
Other cautions
• TOC IL is not executed in the test mode.
• As for button operations other than those shown above, only the sound volume operation (with JOG) is accepted.
5. Step 5 Mode
The CD initialization operation flow is executed to the end, the mute is set to off, and playback is started. Even when the
playback reaches the outermost periphery of disc, the operation does not stop. The LCD display indicates the playback past
time as in case of ordinary CD playback.

– 17 –
XL-30H/30W
3. Preset frequencies for various destinations (random preset memory)
BAND
16-25
26 FM106.00 MHz
27 FM 90.00 MHz
28 FM FM 98.00 MHz
29 MONO FM108.00 MHz
30 FM 87.50 MHz
Europe 2, 4
CH
BAND
1 FM 87.50 MHz
2 FM108.00 MHz
3 FM FM 98.00 MHz
4 STEREO FM 90.00 MHz
5 FM106.00 MHz
Europe 2, 4
CH BAND
6 AM 522 kHz
7 AM1620 kHz
8 AM AM 990 kHz
9 AM 603 kHz
10 AM1404 kHz
11-15 LW
Europe 2, 4CH
(For XL-30W)
• The hatched sections of the table are not stored in memory.
BAND
16-20
21-25
26 FM106.00 MHz
27 FM 90.00 MHz
28 FM MONO FM 98.00 MHz
29 FM108.00 MHz
30 FM 87.50 MHz
Ordinary 1,ChinaCHBAND
1 FM 87.50 MHz
2 FM108.00 MHz
3 FM STEREO FM 98.00 MHz
4 FM 90.00 MHz
5 FM106.00 MHz
6 AM 531 kHz
7 AM1602 kHz
8 AM AM 990 kHz
9 AM 603 kHz
10 AM1404 kHz
11-15 LW
Ordinary 1,ChinaCH
4. Electronic volume Test Mode (TEST 3)
When the test mode is set, the following indication lights for one second.
When this mode is set, BASS/TREBLE is set to 0 (0 dB) and SURROUND mode is set to off, and start-up function is set to CD
whenvolumeis-14dB(STEP17).Thebuttonoperationsinthetestmodearethesameasthoseofordinaryoperationexcepting
sound volume UP/DOWN.
(1) The indication is the same as that of ordinary operation excepting test mode setting.
(2) The sound volume control with the sound volume UP/DOWN button is only the following 3 steps unlike the ordinary state.
Volume- ∞(STEP 0) <-> Volume-14 dB (STEP 23) <-> Volume-0 (STEP 30)
(3) BASS/TREBLE and SURROUND are switched when button operation is performed.
The current time and timer time are set in the following procedure to perform the timer playback.
1.Setthecurrenttimeto1:00,setthetimertoONtime1:02,setthefunctiontoTape,andsetvolumeSTEP8.Oneminuteiscounted
as one second, and the timer playback operation is performed. The fade-in (when playback is started) is executed at a rate of
one step for 0.5 sec. After completion of fade-in the fade-out is executed at a rate of one step for 0.5 sec (WAIT 1 sec inserted).
After completion of fade-out the power is turned off (after WAIT 1 sec), and the mode is changed to the standby mode.
The indication during operation is the same as that of ordinary timer operation.
5. Timer test Mode (TEST 4)
When the test mode is set, the following indication lights for one second.
(For XL-30H)
6. LCD Test Mode (TEST 5)
When the LCD test mode is set, all the LCD segments are lighted. After that the indication is changed as follows according to
the "PLAY" button input.
Lighting of all segments Lighting of odd segments Lighting of even segments

XL-30H/30W
– 18 –
7. Key input diagnosis Test Mode (TEST 6)
When the test mode is set, the following indication appears.
ERROR LIST
PU-IN SW detection error
CD read error
Error content ........... Disc data cannot be read properly or
even if it can be read, the disc is not a
playable one.
Probable cause....... The discisloadedupside down,notCD-
DA, scratches, stains, etc.
Action ...................... Open the CD lid, then reload the disc
correctly.Removethescratchesorstains
on the disc.
NO DISC
Tape mechanism error 1
Tape mechanism error 2
Error content ............The detection SW cannot detect ON
after a fixed period of time even if the
microcomputer controls the CD pickup
to return to the innermost position.
Probable cause........Defective or poorly connected PU-IN
SW or slide motor.
Action .......................Solvetheproblemandturnonthepower
again.
Error content ........... Focusing is impossible.
Probable cause....... The discisloadedupside down,notCD-
DA, scratches, stains, etc.
Action ...................... Open the CD lid, then reload the disc
correctly.Removethescratchesorstains
on the disc.
Error content ........... The detection SW "CAM-SW" cannot
detectON(mechanisminoperation)even
if the motor and solenoid are controlled
to play back, fast forward, rewind, or
record the tape.
Probable cause....... Mechanism is in operation when this
message appears: Defective or poorly
connectedCAM-SW.Mechanismstops:
Defective or poorly connected motor or
solenoid.
Action ...................... Solvetheproblemandturnonthe power
again.
Error content ........... Initialization cannot be completed when
the microcomputer controls the motor
and solenoid to initialize the tape
mechanism(tosetthemechanismtothe
stop mode). The detection SW "CAM-
SW" cannot detect OFF While the
mechanism is in operation.
Probable cause....... Mechanism is in operation when this
message appears: Defective or poorly
connectedCAM-SW.Mechanismstops:
Defective or poorly connected motor or
solenoid.
Action ...................... Solvetheproblemandturnonthe power
again.
This test mode is intended to check whether all the main unit buttons can be detected. Accordingly, in this test mode checking
as to whether the "POWER" button was pressed after all the buttons shown below were pressed is performed. If the result is
OK,OK isindicated. Evenany oneof keyswasnotpressed,an erroris indicated.In caseof OKterminationorerrortermination
exit from this mode occurs when the "POWER" button is pressed next time, and the standby mode is set.
1. In case of "FF/FWD" + "REC PAUSE"
Since SURROUND and RDS are not provided, the following 11 buttons are detected as all buttons.
PLAY, JOG MODE, BAND, BASS/TREBLE, FUNCTION, MEMORY/SET, REC PAUSE, REW, FF, STOP, CLOCK/TIMER/
SLEEP.
The OK/NG indication of test result is as follows.

– 19 –
XL-30H/30W
SW651 VOLTAGE SELECTOR 220-240V
(XL-30W Only)
NSW801 PICKUP IN ON—OFF
SW700 JOG ON—OFF
SW709 ON/STAND-BY ON—OFF
SW710 CLOCK/TIMER/SLEEP ON—OFF
SW711 TUNING UP ON—OFF
SW712 PLAY/CD PAUSE ON—OFF
SW713 VOLUME SELECT ON—OFF
SW721 MEMORY/SET ON—OFF
SW722 BASS/TREBLE ON—OFF
•The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
•Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
•Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
•Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolyticcapacitor,theexpression“capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
•Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION POSITIONREF. NO DESCRIPTION
Figure 19 TYPES OF TRANSISTOR AND LED
SW723 BAND ON—OFF
SW724 REC. PAUSE ON—OFF
SW725 STOP/CLEAR ON—OFF
SW726 TUNING DOWN ON—OFF
SW727 FUNCTION ON—OFF
SW728 VOLUME JOG ON—OFF
SW801 OPEN/CLOSE ON—OFF
SW901 FOOL PROOF ON—OFF
SW902 CAM ON—OFF
ECB
(1) (2) (3)
FRONT
VIEW
FRONT
VIEW
BCE
FRONT
VIEW
2SB562 C
2SC2001 K
2SC535 C
2SD468 C
KRA102 M
KRC102 M
KRC104 M
KRC107 M
KTA1266 GR
KTC3199 GR 2SD2012 Y MPG3372X
HY2043 SVC348S
KDV147B
1 2 3

XL-30H/30W
– 20 –
Figure 20 BLOCK DIAGRAM (1/4)
REC MUTE
Q105
Q106 REC
150K
150K
MUTE ALC
+
-
-
+
3 1
5
11 12
8
10
2
IC102
BA3311L
6 7
9
NF
L-IN
R-IN
NF
L-OUT
ALC
R-OUT
Q151 Q152
L151
Q153
Q171 Q172 REC
SWITCHING
Q101-Q104
SWITCHING
1
IC101
IC101
HEAD SELECTOR
BA3126N
2
3
4
5
6
9
REC SW
P/B SW
CONT
P/B SW
REC SW
8
7
A-12V
L-CH
R-CH
R-CH
L-CH
L-CH
L-CH
A-GND
A-GND
A-GND
R-CH
R-CH
ERASE
CNP101
CNS101
CNS901
P.F
CAM SW
Q906
BIAS
REC
RUN_PLS
MOT SOL U_CON 5V D-GND
M_12V A_12V TAPE SW
1
2
3
4
5
6
7
CNP901
PH901
PHOTE INTERRUPTER
SW901
FOOL
PROOF
SW902
CAM
1
CFW901
2
+
- 2
1
M
M901
TAPE MOTOR
SOLENOID
SOL901
TO DISPLAY PWB
Q904
Q902
A_12V
A_12V
SWITCHING
B-CAN(NC)
10
1 2 3 4 56789
CNP703
M_GND
Q903
Q905
Q901
CF352 CF351
FM IF
24 22 21 20 19 18 17 16 15 14 13
12
11
10
9
8
7
6
5
4321
IC303
LA1832
22 21 20 19 18 17 16 15 14 13 12
1 2 3 4 5 6 7 8 9 10 11
IC302
LC72131
X352
X351
456kHz
X IN NC CE DI CL
MO/ST
FM
FM
DO
FM IN
X OUT
VSS
AOUT
AIN
PD
VDD
AM IN
NC
IF IN
IF REQ
SW
VCC
AM ANT
AM OSC.
VD301-1
SVC348S
VD301-2
SVC348S
VR351
10K(B)
FM MUTE LEVEL
23
T351
+5V
AM IF
MUTE
R-MUTE
MO/ST
L-CH OUT
R-CH OUT
MPX VCO
AM LOW CUT
FM/AM OUT
MPX IN
AM OSC OUT
FM AFC
AM RF IN
VSM
AM OSC INAM MIX OUT
AM IF IN GND REG FM IF IN
SD
STEREO
FM DET
PHASE
(AM/FM)
IF OUT
PHASE
FM IF DET./FM MPX./AM IF
4.5MHz
Q351
SWITCHING
R_MUTE
PLL CONTROLLER
ZD351
MTZJ5.1B
Q360
FM RIPPLE
FM+B A_12V
FILTER
3
1
VT
CF302
FM IF
1 L341
BALUN
2
AM
ANTENNA
TERMINALS
CNP301
AM OSC OUT
AM MIX OUT
A_GND
+5V A_12V
D_GND
REC BIAS
CONT
SWITCHING
SWITCHING
RUN PLS
SOL
M_12V
11
U_CON5V
MOT
SWITCHING
SWITCHING
SWITCHING
TAPE MOTOR
DRIVER
SOLENOID
DRIVER
BIAS OSC SWITCHING
AM IF IN
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
L-CH
R-CH
ERASE
HEAD
RECORD/
PLAYBACK
HEAD
T302
T306
1
2
3
IC102
REC./P.B.
EQUALIZER
AMP.
9
78654323211
VT
Q306
Q305
CF303T304
BF301
10.7MHz
IC301
FM FRONT END
TA7358AP
BAND
PASS
FILTER
L303
VD302
L302
VD303
FM RF
FM IF FM IF FM IF AMP.
FM OSC
VT
SO301
FM ANTENNA
TERMINALS
XL-30W
ONLY
TP301
1
2
AM/FM
ANTENNA
TERMINALS
CNP301
3
FOR XL-30H
FOR XL-30W
