Sharp 14A1-RU User manual

1
14A1-RU
14A2-RU
1-21-1
SERVICE MANUAL
(14A1-RU) (14A2-RU)
COLOUR TELEVISION
Chassis No. UA-1
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.
14A1-RU
14A2-RU
MODELS
SHARP CORPORATION
WARNING
Thechassisinthisreceiverispartiallyhot. Useanisolationtransformerbetweenthelinecordplugandpower
receptacle,whenservicingthischassis. Topreventelectricshock,donotremovecover. Nouser–serviceable
parts inside. Refer servicing to qualified service personnel.
CONTENTS
»SPECIFICATIONS .............................. 2
»IMPORTANT SERVICE NOTES ......... 2
»ADJUSTMENT PRECAUTIONS ......... 3
»TROUBLE SHOOTING TABLE.........19
»HOTEL MODE APPLICATION .......... 21
»SOLID STATE DEVICE BASE
DIAGRAM ......................................... 22
»WAVEFORMS................................... 23
»CHASSIS LAYOUT ........................... 24
»DESCRIPTION OF SCHEMATIC DIA-
GRAM ............................................... 26
»SCHEMATIC DIAGRAM
■CRT Unit ....................................... 27
■MAIN Unit ..................................... 28
»BLOCK DIAGRAM ............................ 32
»PRINTED WIRING BOARD ASSEM-
BLIES................................................ 37
»REPLACEMENT PARTS LIST
■ELECTRICAL PARTS ................... 42
■MISCELLANEOUS PARTS........... 46
■SUPPLIED ACCESSORIES ......... 46
■PACKING PARTS ......................... 46
■CABINET PARTS.......................... 46
Page Page
FEATURE
ËMulti 18 Systems
ËFull Auto Channel Preset and Auto Channel Skip
Ë100-CH Program Memory
ËHigh Contrast Picture
ËBlack Stretch Circuit
ËCATV (Hyper Band) Ready < Used Frequency Synthesizer
Tuner>
ËAVL (Sound Keeper) Function
ËHotel Mode
ËOn Timer / Sleep Timer / Reminder Timer
ËColour Comb Filter Function (NTSC only)
ËBlue Back Noise Mute
ËRear AV-In/Out Terminals and Front AV-In
ËEnglish and Russian OSD
SX0M114A1-RU/

2
14A1-RU
14A2-RU
2-2
2-1
IMPORTANT SERVICE NOTES
Maintenance and repair of this receiver should be done by qualified service personnel only. SERVICE OF HIGH VOLTAGE SYSTEM AND PIC- TURE TUBE When servicing the high voltage system, remove static charge from it by connecting a 10K ohm Resistor in series with an insulated wire(such as a test probe) between picture tube dag and 2nd anode lead. (AC line cord should be disconnected from AC outlet.)
1. Picture tube in this receiver employs integral implosion protection. 2. Replace with tube of the same type number for continued safety. 3. Do not lift picture tube by the neck. 4. Handle the picture tube only when wearing shatterproof goggles and after discharging
the high voltage completely.
X-RAY This receiver is designed so that any X-Ray radiation is kept to an absolute Minimum. Since certain malfunctions or servicing may produce potentially hazardous radiation with prolonged exposure at close range, the followin precautions should be observed:
1. When repairing the circuit, be sure not to increase the high voltage to more than 23.5kV(at
beam 0.1
µ
A) for the set.
2. To keep the set in a normal opeartion , be sure to make it function on 22.0kV
±
1.5kV(at
beam 800
µ
A) in the case of the set. The set has been factory - Adjusted to the above-
mentioned high voltage.
*If there is a possibility that the high voltage fluctuates as a result of the repairs, never
forget to check for such high voltage after the work.
3. Do not substitute a picture tube with unauthorizerd types and/or brands which may
cause excess X-ray radiation.
BEFORE RETURNING THE RECEIVER Before returning the receiver to the user, perform the following safety Checks. 1. Inspect all lead dress to make certain that leads are not pinched or that hardware is not
lodged between the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic control knobs, insulating fishpapers,
cabinet backs, adjustment and compartment covers or shields, isolation resistor- ca- pacity networks, mechanical insulators etc.
SPECIFICATIONS
Convergence................................................................. Self Convergence System Focus ............................................................Electrostatic Focus High Bi-Potential Sweep Deflection ..................................................................................... Magnetic Intermediate Frequencies
Picture IF Carrier.................................................................................. 38.9MHz Sound IF Carrier Frequency
5.5MHz ............................................................................................. 33.4MHz 6.0MHz ............................................................................................ .32.9MHz 6.5MHz ............................................................................................. 32.4MHz
Colour Sub-Carrier Frequency ........................................................... 34.47MHz
Power Input..................................................................... 110 ~ 240V AC 50/60 Hz Power Consumption
14A1-RU .................................................................................................. 65W 14A2-RU .................................................................................................. 68W
Audio Power Output Rating 14A1-RU ......................................................................................... 3.0W (at Max.) 14A2-RU ......................................................................................... 5.0W (at Max.) Speaker
Size
14A1-RU .......................................................................5 x 9 cm Elliptic (1 pc) 14A2-RU ....................................................................5 x 9 cm Elliptic (2 pcs.)
Voice Coil Impedance ...........................................................16 ohms at 400 Hz
Aerial Input Impedance
VHF/UHF ..........................................................................75 ohms Unbalanced Receiving System ..................................................... PAL B/G, D/K, I / SECAM
NTSC 3.58/4.43 MHz (AV)
Tuner Ranges
• VHF-Channels ..................................... E1 (48.25MHz) thru E12 (224.25MHz)
C1 (49.75MHz) thru C12 (216.25MHz)
S1 (105.25MHz) thru S41 (463.25MHz)
• UHF-Channels ................................. E21 (471.25MHz) thru E69 (855.25MHz)
C13 (471.25MHz) thru C57 (863.25MHz)
Dimensions
14A1-RU ...................................................................................Width: 357.0mm
Height: 361.0mm
Depth: 368.7mm
Weight (approx.): 9.2 kg
14A2-RU ...................................................................................Width: 446.0mm
Height: 333.0mm
Depth: 365.0mm
Weight (approx.): 9.4 kg
Cabinet Material.................................................................................... All Plastics
Specifications are subject to change without prior notice.

3
14A1-RU
14A2-RU
3-23-1
ADJUSTMENT PRECAUTIONS
This model's setting are adjusted in two different ways: through the I
2
C bus control and in the conventional
analog manner. The adjustments via the I
2
C bus control include preset-only items and variable data.
1. Setting the service mode by the microprocessor.
1. Short JA 122 & JA 124 for 1 second and release to switch to the service mode position, and the
microprocessor is in input mode. (Adjustment through the I
2
C bus control). (Use JWS Key to set as
well).
2. Press the CH DOWN / UP key on the remote controller to get ready to select the mode one by one. 3. Press the CH DOWN / UP key on the remote controller to select the modes reversibly one by one. 4. Using the VOLUME UP/ DOWN key on the remote controller, the data can be modified. 5. Short JA 122 & JA 124 for 1 second and release to switch to the normal mode (OFF) position, and the
microprocessor is in out of the service mode.
2. Factory Presetting.
1. Short JA 122 & JA 124 for 1 second and release to switch to the service mode position and turn on the
main power switch.Initial values are automatically preset, only when a new EEPROM is used (Judge with the first 4 bytes ).
2. The initial data are preset as listed in page 5 & 6. 3. Make sure the data need modify or not (Initial data).
Note: Once the chassis has been assembly together and ready to be POWER ON for the FIRST TIME,
make sure to short JA122 & JA124 to switch to the service mode position first and then turn on the main power switch (See 2-(1) above). Precaution: If haven't done this initiation, it may possibly generate excessive Beam current.
3. For reference please check with memory map
(UA1 Series type RH-IX3368CE Attachment)
SERVICE MODE
(1) In the Service Mode, Key is used to select the mode in the following order.
AGC &
GEOMETRIC
MODE
↓
AGC TAKE OVER POINT (AGC)
↓
VERTICAL SLOPE (V-LIN)
↓
VERTICALAMP (V-AMP)
↓
VERTICAL SHIFT (V-CENT)
↓
HORIZONTAL SHIFT (H-CENT)
↓
S-CORRECTION (S-COR)
WHITE POINT
ADJ.
MODE
↓
W,P RED STD. W.T. (DRI-RS)
↓
W.P. GREEN STD. W.T.(DRI-GS)
↓
W.P.BLUE STD. W.T. (DRI-BS)
↓
W.P. RED COOL W.T.(DRI-RC)
↓
W.P. GREEN COOL W.T.(DRI-GC)
↓
W.P. BLUE COOL W.T. (DRI-BC)
↓
W.P. RED WARM W.T.(DRI-RW)
↓
W.P. GREEN WARM W.T.(DRI-GW)
↓
W.P. BLUE WARM W.T.(DRI-BW)
SUB
ADJ.
MODE
↓
MAX VOLUME (SUB-VOL)
↓
SUB CONTRAST (SUB-CON)
↓
SUB COLOUR (SUB-COL)
↓
SUB BRIGHTNESS (SUB-BRI)
↓
SUB TINT (SUB-TINT)
↓
SUB SHARPNESS (SUB-SHP)
↓
MAX HOTEL VOLUME (HTL-VOL)
↓
HOTEL PROGRAM NO(HTL-PRG)
↓
OSD GRB REFERENCE (RGB)
↓
BLACK LEVEL OFFSET R(CUT-R)
↓
BLACK LEVEL OFFSET G(CUT-G)
↓
CATHODE DRIVE LEVEL(CDL)
FORWARD : CH DOWN KEY REVERSE : CH UP KEY * ( ) means OSD display.
FORWARD : CH DOWN KEY REVERSE : CH UP KEY
AGC &
GEOMETRIC
MODE
WHITE POINT
ADJ.
MODE
SUB
ADJ.
MODE
Y-DELAY
ADJ.
MODE
MISC.
OPTION
MODE
IC
OPTION
MODE
OFFSET
ADJ.
MODE

4
14A1-RU
14A2-RU
4-2
4-1
Y-DELAY
ADJ.
MODE
↓
Y-D TIME FOR PAL (TV) (DL-PT)
↓
Y-D TIME FOR SECAM (TV) (DL-ST)
↓
Y-D TIME FOR N358 (TV) (DL-3T)
↓
Y-D TIME FOR N443 (TV) (DL-4T)
↓
Y-D TIME FOR B/W (TV) (DL-TV)
↓
Y-D TIME FOR PAL (AV) (DL-PA)
↓
Y-D TIME FOR SECAM (AV) (DL-SA)
↓
Y-D TIME FOR N358 (AV) (DL-3A)
↓
Y-D TIME FOR N443(AV) (DL-4A)
↓
Y-D TIME FOR B/W (AV) (DL-AV)
*(Y-D : Y-DELAY)
OFFSET
ADJ.
MODE
↓
COLOUR OFFSET (PAL) (COL-OP)
↓
COLOUR OFFSET (SECAM) (COL-OS)
↓
COLOUR OFFSET (NTSC358) (COL-O3)
↓
COLOUR OFFSET (NTSC443) (COL-O4)
↓
SHARPNESS OFFSET (PAL) (SHP-OP)
↓
SHARPNESS OFFSET (SECAM) (SHP-OS)
↓
SHARPNESS OFFSET (NTSC358) (SHP-O3)
↓
SHARPNESS OFFSET (NTSC443) (SHP-O4)
IC
OPTION
MODE
↓
VERTICAL SCAN DISABLE(VSD)
↓
BLACK STRETCH (BKS)
↓
AUTO VOLUME LEVELING(AVL)
↓
FAST FILTER IF-PLL(FFI)
↓
ENABLE VERTICAL GUARD (EVG)
↓
EHT TRACKING MODE (EHT)
↓
OVERSCAN SWITCH OFF(OSO)
↓
AUTO COLOUR LIMIT(ACL)
↓
FORCED COLOUR LIMIT(FCO)
MISC.
OPTION
MODE
↓
SOUND SYSTEM M (S-M)
↓
SOUND SYSTEM DK (S-DK)
↓
SOUND SYSTEM I (S-I)
↓
SOUND SYSTEM BG (S-BG)
↓
PLAYBACK SECAM (P-SECAM)
↓
FE (RF) NTSC 3.58 (F-N358)
↓
FE (RF) NTSC 4.43 (F-N443)
↓
FE (RF) SECAM (F-SECAM)
↓
VIDEO MUTE AT IDENT LOSS (VMI)
↓
VIDEO MUTE AT PROGRAM
/SOURCE CHANGE (VMC)
↓
HOTEL MODE (HTL)
↓
REDUCED FM DEMODULATION
GAIN FOR BTSC SIGNAL (BTSC)
↓
A
A
↓
NUMBER OF EXTAV SOURCE (AV)
↓
FM WINDOW SEVECTION (FMWS)
↓
SOUND MUTE BIT 0 (SM0)
↓
SOUND MUTE BIT 1 (SM1)
↓
THAI LANGUAGE (THA)
↓
ARABIC LANGUAGE (ARA)
↓
MALAY LANGUAGE (MAL)
↓
CHINESE LANGUAGE (CHI)
↓
FRENCH LANGUAGE (FRE)
↓
RUSSIAN LANGUAGE (RUS)
↓
FORCED V-SYNC SLICING LEVEL(FSL)
↓
SYNC OF OSD (HP2)
↓
TUNER SELECTION (CPT)
↓
B
B
↓
BILINGUAL(BIL)
↓
IF AGC SPEED BIT 0 (AGC0)
↓
IF AGC SPEED BIT 1 (AGC1)
↓
FOATime Constant-RF (FOA-FE)
↓
FOB Time Constant-RF (FOB-FE)
↓
FOATime Constant-AV (FOA-AV)
↓
FOB Time Constant-AV (FOB-AV)
USER DATA IN SERVICE MODE
* While SERVICE mode ON, EEPROM DATA will switch to the service data.
Also, once SERVICE mode OFF, EEPROM will switch back to previous USER DATA.
* In the service mode, the user data establish as below,
MODE USER DATA
CONTRAST MIN (1/60) COLOUR MIN (1/60)
BRIGHTNESS MIN (1/60) TINT MIN (1/60) SHARPNESS MIN (1/60) WHITE TEMP STANDARD S-VOLUME MIN (1/60) BLUE BACK OFF C SYSTEM AUTO S SYSTEM *1
*1 : For each CH, before changing
service mode setting.
The flow of Mode lists as following,
* Direct Key-in Step1 Mode
RC COMMAND SERVICE-ITEM
FUNCTION AGC
CONTRAST DOWN V-LIN
COLOUR DOWN V-AMP
BRIGHTNESS DOWN V-CENT
TINT DOWN H-CENT
SHARPNESS DOWN EW / /
SYSTEM HB
BLUEBACK S-COR
TIMER SUB-VOL
CONTRAST UP SUB-CON
COLOUR UP SUB-COL
BRIGHTNESS UP SUB-BRI
TINT UP TINT SUB TINT
SHARPNESS UP SUB-SHP

5
14A1-RU
14A2-RU
5-25-1
EEPROM ITEMS OSD DATA LENGTH
INITIAL DATA
FIX/ADJ REMARK
VERTICAL SCAN DISABLE VSD
0(DISABLE)/1(ENABLE)
0 FIX
BLACK STRETCH BKS
0(DISABLE)/1(ENABLE)
1 FIX
AUTOMATIC VOLUME LEVELING AVL
0(DISABLE)/1(ENABLE)
1 FIX
FAST FILTER IF-PLL FFI
0(DISABLE)/1(ENABLE)
0 FIX
ENABLE VERTICAL GUARD (RGB BLANKING)
EVG
0(DISABLE)/1(ENABLE)
1 FIX ONLY BLK
EHT TRACKING MODE (HCO) EHT
0(DISABLE)/1(ENABLE)
1 FIX
OVERSCAN SWITCH OFF OSO
0(DISABLE)/1(ENABLE)
0 FIX
AUTO COLOUR LIMIT ACL
0(DISABLE)/1(ENABLE)
0 FIX
FORCED COLOUR LIMIT FCO
0(DISABLE)/1(ENABLE)
0 FIX
SOUND SYSTEM M S-M
0(DISABLE)/1(ENABLE)
0 FIX
SOUND SYSTEM DK S-DK
0(DISABLE)/1(ENABLE)
0 FIX
SOUND SYSTEM I S-I
0(DISABLE)/1(ENABLE)
0 FIX
SOUND SYSTEM BG S-BG
0(DISABLE)/1(ENABLE)
1 FIX
PLAYBACK SECAM P-SECAM
0(DISABLE)/1(ENABLE)
1 FIX
FE (RF) NTSC 3.58 F-N358
0(DISABLE)/1(ENABLE)
0 FIX
FE (RF) NTSC 4.43 F-N443
0(DISABLE)/1(ENABLE)
1 FIX
FE (RF) SECAM F-SECAM
0(DISABLE)/1(ENABLE)
1 FIX
VIDEO MUTE AT IDENT LOSS VMI
0(DISABLE)/1(ENABLE)
1 FIX
VIDEO MUTE AT PROGRAM/SOURCE CHANGE
VMC
0(DISABLE)/1(ENABLE)
1 FIX
HOTEL MODE HTL
0(DISABLE)/1(ENABLE)
0 FIX
REDUCED FM DEMODULATOR GAIN FOR BTSC SIGNAL
BTSC
0(DISABLE)/1(ENABLE)
0 FIX
NUMBER OF EXTERNALAV SOURCE AV
0 FOR1 AV/1 FOR 2AV
1 FIX
FM WINDOW SELECTION FMWS
0(DISABLE)/1(ENABLE)
0 FIX
SOUND MUTE BIT 0 SM0
0(DISABLE)/1(ENABLE)
1 FIX
SOUND MUTE BIT 1 SM1
0(DISABLE)/1(ENABLE)
0 FIX
THAI LANGUAGE THA
0(DISABLE)/1(ENABLE)
1 FIX *1
ARABIC LANGUAGE ARA
0(DISABLE)/1(ENABLE)
1 FIX *1
MALAY LANGUAGE MAL
0(DISABLE)/1(ENABLE)
1 FIX *1
CHINESE LANGUAGE CHI
0(DISABLE)/1(ENABLE)
1 FIX *1
FRENCH LANGUAGE FRE
0(DISABLE)/1(ENABLE)
1 FIX *1
RUSSIAN LANGUAGE RUS
0(DISABLE)/1(ENABLE)
1 FIX
FORCED V-SYNC SLICING LEVEL FSL
0(DISABLE)/1(ENABLE)
0 FIX
SYNC OF OSD HP2
0(DISABLE)/1(ENABLE)
0 FIX
TUNER SELECTION (0:SHARP/ALPS; 1:MURATA)
CPT
0(BRAZIL)/1(ARGENTINA)
0 FIX
BILINGUAL BIL
0(DISABLE)/1(ENABLE)
0 FIX
IF AGC SPEED BIT 0 AGC0
0(DISABLE)/1(ENABLE)
1 FIX
IF AGC SPEED BIT 1 AGC1
0(DISABLE)/1(ENABLE)
0 FIX
PHI-1 TIME CONSTANT (RF) FOA-FE
0(DISABLE)/1(ENABLE)
0 FIX
PHI-1 TIME CONSTANT (RF) FOB-FE
0(DISABLE)/1(ENABLE)
0 FIX
PHI-1 TIME CONSTANT (OFF AIR) FOA-AV
0(DISABLE)/1(ENABLE)
1 FIX
PHI-1 TIME CONSTANT (OFF AIR) FOB-AV
0(DISABLE)/1(ENABLE)
1 FIX
NOTE :
FIXED DATA,PLEASE DO NOT CHANGE WITHOUT SPECIFIC INSTRUCTION." *1: MANUALLY CHANGE 1 TO 0.
EEPROM ITEMS OSD DATA LENGTH
INITIAL DATA
FIX/ADJ REMARK
AGC TAKE OVER POINT AGC 0~63 14 ADJ VERTICAL SLOPE V-LIN 0~63 32 ADJ
VERTICAL AMPLITUDE V-AMP 0~63 32 ADJ VERTICAL SHIFT V-CENT 0~63 32 ADJ HORIZONTAL SHIFT H-CENT 0~63 32 ADJ S-CORRECTION S-COR 0~63 0 FIX WHITE POINT RED STD WHITE TEMP DRI-RS 0~63 32 FIX WHITE POINT GREEN STD WHITE TEMP DRI-GS 0~63 32 ADJ WHITE POINT BLUE STD WHITE TEMP DRI-BS 0~63 32 ADJ WHITE POINT RED COOL WHITE TEMP DRI-RC 0~63 32 FIX
WHITE POINT GREEN COOL WHITE TEMP DRI-GC 0~63 32 FIX (DRI-GS)-7 DATA WHITE POINT BLUE COOL WHITE TEMP DRI-BC 0~63 32 FIX (DRI-BS)DATA WHITE POINT RED WARM WHITE TEMP DRI-RW 0~63 25 FIX WHITE POINT GREEN WARM WHITE TEMP DRI-GW 0~63 32 FIX (DRI-GS)-7 DATA WHITE POINT BLUE WARM WHITE TEMP DRI-BW 0~63 32 ADJ (DRI-BS)-7 DATA MAX VOLUME SUB-VOL 0~63 63 FIX SUB CONTRAST SUB-CON 0~63 63 (50 *3) FIX SUB COLOUR SUB-COL 0~63 32 ADJ SUB BRIGHTNESS SUB-BRI 0~63 32 ADJ
SUB TINT SUB-TINT 0~63 32 ADJ SUB SHARPNESS SUB-SHP 0~63 32 ADJ MAX HOTEL VOLUME HTL-VOL 0~63 32 ADJ HOTEL PROGRAM NUMBER HTL-PRG
0~99 OR>99FOR NONE
255 FIX
OSD GRB REFERENCE RGB 0~15 15 FIX BLACK LEVEL OFF-SET R CUT-R 0~15 8 FIX BLACK LEVEL OFF-SET G CUT-G 0~15 8 FIX CATHODE DRIVE LEVEL CDL 0~15 0 FIX
Y-DELAY TIME FOR PAL(TV) [YD] DL-PT 0~15 12 FIX Y-DELAY TIME FOR SECAM(TV) [YD] DL-ST 0~15 15 FIX Y-DELAY TIME FOR N358 (TV) [YD] DL-3T 0~15 12 FIX Y-DELAY TIME FOR N443 (TV) [YD] DL-4T 0~15 12 FIX Y-DELAY TIME FOR B/W (TV) [YD] DL-TV 0~15 12 FIX Y-DELAY TIME FOR PAL (AV) [YD] DL-PA 0~15 12 FIX Y-DELAY TIME FOR SECAM (AV) [YD] DL-SA 0~15 15 FIX Y-DELAY TIME FOR N358 (AV) [YD] DL-3A 0~15 12 FIX
Y-DELAY TIME FOR N443 (AV) [YD] DL-4A 0~15 12 FIX Y-DELAY TIME FOR B/W (AV) [YD] DL-AV 0~15 12 FIX COLOUR OFFSET (PAL) COL-OP 0~15 8 FIX COLOUR OFFSET (SECAM) COL-OS 0~15 8 FIX COLOUR OFFSET (NTSC358) COL-03 0~15 4 FIX COLOUR OFFSET (NTSC443) COL-O4 0~15 4 FIX SHARPNESS OFFSET (PAL) SHP-OP 0~15 8 FIX SHARPNESS OFFSET (SECAM) SHP-OS 0~15 4 FIX
SHARPNESS OFFSET (NTSC358) SHP-O3 0~15 12 FIX SHARPNESS OFFSET (NTSC443) SHP-O4 0~15 8 FIX
AFTER SHORT JA 122 & JA 124 ,AND TURN ON THE MAIN POWER SWITCH,READ DATA FROM EEPROM ADDRESS 00H ~ 03H,AND COMPARE TO THE LIST BELOW, IF DIFFERENT, INITIALIZE THE EEPROM.
Address : Data Address : Data
00H : 55H 02H : 43H 01H : 4FH 03H : A1H

6
14A1-RU
14A2-RU
6-2
6-1
INITIAL SETTING
(1). In service mode, After execute select POS 1, store the following tuning data in EEPROM.
MCL1
CH-NO Fv (MHz) SOUND SYS
MCL1
CH-NO Fv (MHz) SOUND SYS
0 1 48.25 B/G
2 62.25 B/G 3 77.25 D/K 4 175.25 B/G 5 182.25 B/G 6 183.25 D/K 7 191.25 D/K 8 196.25 B/G
9 199.25 M
10 210.25 B/G
11 224.25 B/G
12 471.25 B/G
13 487.25 I 14 503.25 B/G 15 575.25 B/G 16 583.25 B/G 17 599.25 B/G 18 621.25 M 19 639.25 D/K
20 703.25 B/G 21 735.25 I 22 767.25 B/G 23 815.25 B/G 24 855.25 I 25 855.25 B/G 26 55.25 M
27 83.25 M 28 183.25 M 29 193.25 M 30 217.25 M 31 471.25 M 32 477.25 M 33 693.25 M
34 885.25 M 35 112.25 B/G 36 168.25 B/G 37 38 294.25 B/G 39 463.25 B/G 40
41 647.25 B/G 42 663.25 B/G 43 679.25 B/G
44 174.95 B/G 45 175.55 B/G
ITEMS DATA SETTING
LAST PROGRAM/CHANNEL 1
FLASHBACK PROGARM/CH 1
DIGIT 1
C-SYSTEM AUTO
S-SYSTEM D/K
SKIP OFF
AFC ON
VOLUME 1
CONTRAST 60 (MAX)
COLOUR 0 (CENTER)
BRIGHTNESS 0 (CENTER)
TINT 0 (CENTER)
SHARPNESS 0 (CENTER)
WHITE TEMP STANDARD
REMINDER TIMER In-active, "--:--"
ON TIMER In-active, "--:--"
OFF TIMER In-active, "--:--"
LAST POWER POWER-ON
LANGUAGE RUSSIAN
BLUE BACK MUTE OFF
HOTEL MODE OFF
0 CHANNEL SKIP ON
SHIPPING SETTING & CHECKING
(1) The following default data has been factory-set for the E
2
PROM.
*1: Please refer defaults for LANGUAGE and SOUND SYSTEM per MODEL as follows,
MODEL LANGAUGE SOUND SYSTEM
RU RUSSIAN D/K
MODEL Geomagnetism (H,V) nT Background Lang. S-SYS
J (RU) "45,000" "20,000" 7500K RUSSIAN D/K
FACTORY SETTINGS BY MODELS (Reference: Geomagnetism Adjustment) *OSD LANG MUST BE SET IN SERVICE MODE,BUT IT'S BETTER TO WRITE IN EEPROM.
LANGUAGE QUANTITIES:ENGLISH/RUSSIAN

7
14A1-RU
14A2-RU
7-27-1

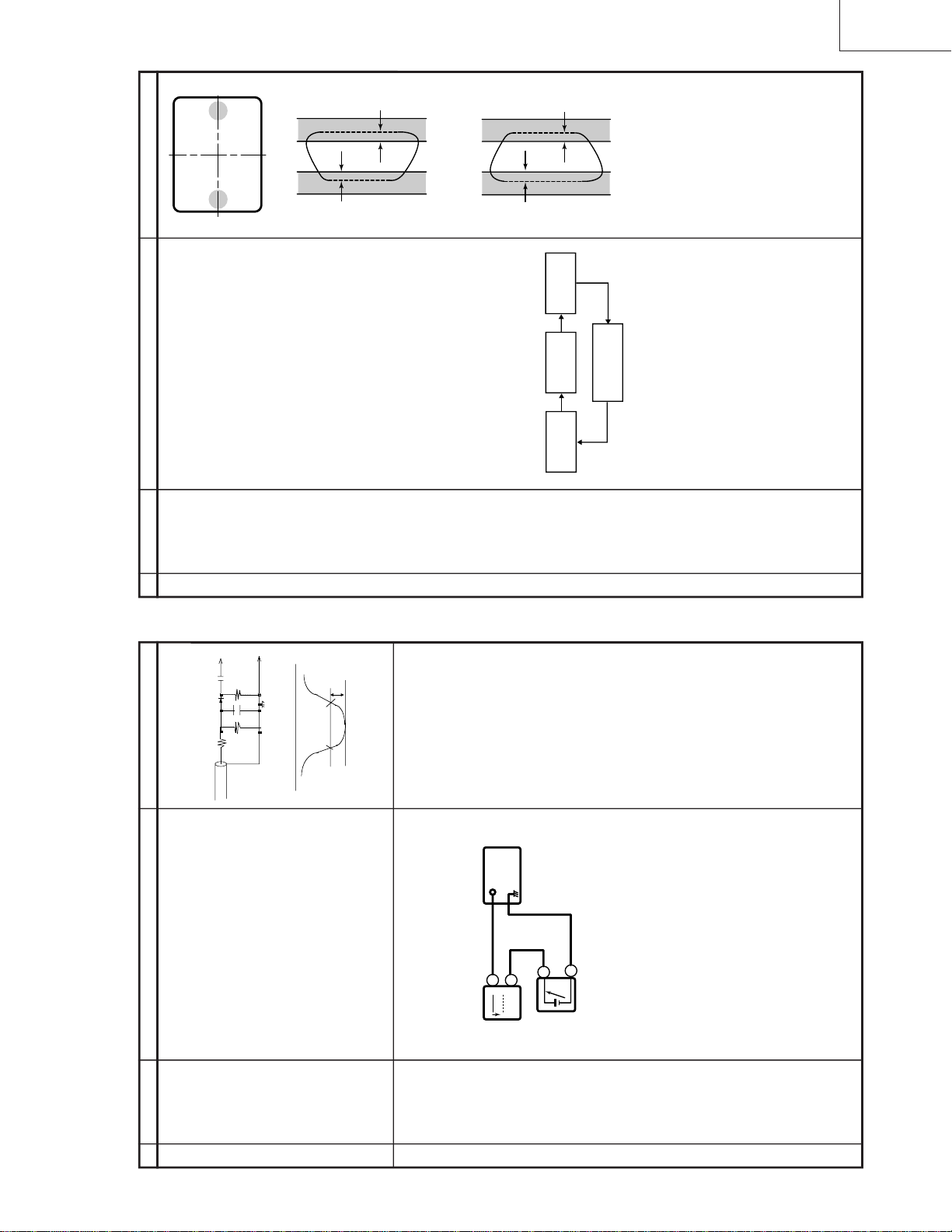

PURITY ADJUSTMENT
No. Adjusting point Adjusting procedure/conditions Waveform and others
PURITY ADJ. 1. Receive the GREEN-ONLY signal. Adjust the
beam current to about 500 µA.
2. DegausstheCRTenough withthe degausingcoil.
Note: Follow the Job Instruction Sheet to ad-
just the magnetic field. Vertical Bv : +0.040 mT (0.40 gauss) Horizontal Bh: +0.020 mT (0.20 gauss) (See page 6.)
3. Maintain the purity magnet at the zero magnetic
field and keep the static convergence roughly adjusted.
4. Observe the points a, b as shown in Fig. 4-1
through the microscope.Adjust the landing to the rank A requirements.
5. Orient the raster rotation to 0 eastward. 6. Tighten up the deflection coil screws.
»Tightening torque: 108 ±20 N (11 ±2 kgf)
7. Make sure the CRT corners landing meet the A
rank requirements. If not, stick the magnet sheet to correct it. Note: This adjustment must be done after
warming up the unit for 30 minutes or longer with a beam current over 500
µ
A.
Note: Set the service mode by TP1001 &
TP1002 (short) then press factory proc- ess R/C RGB key to change to RGB mono colour mode.
* Forthefollowing colours pressR/CRGB key to
change.
1
* Press R/C RGB key for 1 sec-
ond in NORMAL MODE, the colourwill changeto RGBmono colour mode. The TEXT Key "R. G. Cy" Key can be directly use to change to other colours screen.
ab
A
B
A
B
A = B A = B
Rank "A"
(on the right of the CRT)
Rank "A"
(on the left of the CRT)
Fig. 4-1
Fig. 4-2
Fig. 4-3
Green-only Blue-only Red-only
Signal-colour
screen cleared
PIF ADJUSTMENT
No. Adjusting point Adjusting procedure/conditions Waveform and others
Tuner IFT ( PRESET )
11. Get the tuner ready to receive the CH. E - 9
signal,but with no signal input. Adjust the PLL data.
2. Connect the sweep generator's output cable to
the tuner antenna. ( RF SWEEP )
3. Adjust the sweep generator's to 80dBuV. 4. Connect the response lead ( use LOW IMPED-
ANCE probe with wave detector ; see Fig.1 ) to the tuner's IF output terminal. ( This terminal must have the probe alone connected ).
5. Set the RF AGC to 0 - 6 V with no saturation with
the waveform.
6. Adjust the tuner IF coil to obtain the waveform as
shown in Fig. 2.
Note:Be sure to keep the tuner cover in position
during this adjustment.
RF-AGC TAKE OVER POINT AD- JUSTMENT (I
2
C BUS
CONTROL)
1. Receive "PAL COLOUR BAR" signal.
»Signal Strength: 57 ±1 dBµV (75 ohm open)
2. Connecttheoscilloscope toTP201 (Tuner’sAGC
Terminal) as shown in Fig. 3.
3. Call "AG" mode in service mode. Adjust the "AG"
bus data to obtain the Tuner output pin drop 0.1V below maximum voltage.
4. Change the antenna input signal to 63~67dBµV,
and make sure there is no noise.
5. Turnuptheinput signalto90~95 dBµVto besure
that there is no cross modulation beat.
Note: For the 50 ohm signal
strength gauge, when not using 50/75 impedance adapter, signal strength is 52
±
1dB
µ
V(75 ohm open), in-
stead of 57
±
1dB
µ
V (75 ohm
open).
Precaution: The loss of using
impedance adapter
2
»Bias box: About 4.5 V
Oscilloscope
0.1V
TV Set
Bias box
TP201+
+
–
–
Fig. 3
E-9 CH
P C
10k 100k
1n60
75ohm
IF OUT
-1.5+/-0.8dB
1000p
Oscilloscope
Fig.1
Fig.2

8
14A1-RU
14A2-RU
8-2
8-1
CRT CUT-OFF, BACKGROUND AND SUB-CONTRAST ADJUSTMENT
No. Adjusting point Adjusting procedure/conditions Waveform and others
CRT CUTOFF ADJUSTMENT (I
2
C BUS
CONTROL)
1. SwitchTV toVIDEO mode,BLUEBACK OFF, with
NO VIDEO signal.
2. Press R/C to set Picture Normal condition. 3. Connect the oscilloscope to Red OUT from
IC801.(TP851)
Range : 1 V/Div (DC) Sweep : 5 msec/Div
4. AdjustSCREENVR ,sothat thetip ofsignal reach
3.0 Vdc + 0.1 Vdc.
1
1 V
3.0Vdc 0
Maximum beam check 1. Receive the "Monoscope Pattern" signal.
2. Press R/C to set Picture NORMAL condition. 3. Connect the DC miliammeter between TP603 (+)
and TP602 (–). (Full Scale: 3 mA Range)
4. Beam current must be within 800 ±100 µA.
4
SUB-BRIGHT- NESS ADJUSMENT (I
2
C BUS
CONTROL)
1. Call"SUB-BRI" inservice mode.(Receive Cross-
hatch pattern with 5 black level windows)
2. Adjust the " SUB BRIGHT " bus data in order that
the line 1, 2 and 3 have the same darkness wherelse line 4 is slightly brighter than line 1, 2 and 3 and finally line 5 will be the brighter than line 4.
2
1, 2, 3 are in same black level.
1 2 3 4 5
WHITE BAL- ANCE SERV- ICE MODE ADJ. (I2C BUS CONTROL)
3Refer to Page 6.
# 7500°K X : 0.300
Y : 0.310
( MINOLTACOLOURANALYZER CA-100) *NOTE: Above DATA can be UP/ DOWN by volume key.
LOW HIGH
14" 10cd/m2 200cd/m2 20"/21" 10cd/m2 120cd/m2 * 7500°K DRI-GW="DRI-GS"DATA-5 DRI-BW="DRI-BS" DATA-5
1. Receive the "Monoscope Pattern" signal. 2. Press R/C to set Picture NORMAL condition. 3.Connect the DCmiliammeter between theTP602
( - ) TP 603 ( + ).
4. Check Beam current should be around 800µA) 5. Set it to service mode and adjust the DRI-GS, &
DRI-BS data to have a colour temperature of 7500°K ( white ).
6. Receive "WHITE" pattern, WITH BURST signal,
and set BRIGHTNESS Y by generator, to ** 10 cd/m2 (MINOLTA CA-100) by reducing LUMINATE Y signal.
7.Adjust "CUT-R" & "CUT-G" to get 7,500.Then go
backNORMALmode (HIGHBRIGHT**)to check colour temperature. If out of range, back to (1). Note: This adjustment must be done after
warming up the unit for 30 minutes or longer with a beam current over 500
µ
A.
* ADJUST DRI-GC/GW, DRI-BC/BW as following
DATA, after finishing DRI-BS and DRI-GS DATA ADJUSTMENT. DRI-RW=32 (FIXED), DRI-GW="DRI-GS"-7*, DRI-BW="DRI-BS"-7*DRI-RC=25*, DRI- BC="DRI-BS", DRI-GC="DRI-GS"-7*
CONVERGENCE ADJUSTMENT
No. Adjusting point Adjusting procedure/conditions Waveform and others
CONVERGENC ADJ. ( To be done after the purity adjustment.
1. Receive the "Crosshatch Pattern" signal. 2. Using the remote controller, call NORMALmode. STATIC CONVERGENCE 1. Turn the 4-pole magnet to a proper opening an-
gle in order to superpose the blue and red col- ours.
2. Turn the 6-pole magnet to a proper opening an-
gle in order to superpose the green colour over the blue and red colours.
DYNAMIC CONVERGENCE 1. Adjust the convergence on the fringes of the
screen in the following steps. a) Fig.5-1:Drive thewedge atpoint"a" andswing
the deflection coil upward.
b) Fig. 5-2: Drive the wedge at points "b" and "c"
and swing the deflection coil downward.
c) Fig.5-3: Drive the"c" wedge deeperand swing
the deflection coil rightward.
d) Fig.5-4:Drive the"b"wedge deeperand swing
the deflection coil leftward.
2. Fix all the wedges on the CRT and apply glass
tape over them.
3. Apply lacquer to the deflection yoke lock screw,
magnet unit (purity, 4-pole, 6-pole magnets) and magnet unit lock screw. Finally received the Red-only and Blue-only sig- nalstomake sure thereis no othercolourson the screen.
1
RGB
BGR
R G B
R G B
B G R
B G R
RGB BGR
Lacquer
Wedge "a"
Wedge "b" Wedge
"c"
About 100°
About 100°
4-pole magnet
6-pole magnet
CRT neck
40cm
Lacquer
Purity magnet
Fig. 5-1
Fig. 5-2
Fig. 5-3 Fig. 5-4

9
14A1-RU
14A2-RU
9-29-1
No. Adjusting point Adjusting procedure/conditions Waveform and others
SUB-TINT (I
2
C
BUS CON- TROL)
1. Receive the "NTSC3.58 Colour Bar" signal
through AV in.
2. Connect the oscilloscope to TP853 (Pin (5) of
P882) BLUE-OUT. »Range :100mV/div. (AC)(UseProbe 10:1) »Sweep time : 10 µsec/div.
3. Call the "SUB-TINT" mode in service mode. Ad-
just the "SUB-TINT" bus data to obtain the wave- form shown as Fig. 9.
4. Clear the SERVICE mode.
1
NTSC CHROMA ADJUSTMENT
No. Adjusting point Adjusting procedure/conditions Waveform and others
BEAM PRO- TECTOR 1. Receive "Monoscope Pattern" signal.
2. Set CONTRAST MAX. 3. Set BRIGHT MAX. 4. During the Collector & Emitter of Q883/5/7 short,
makesure the protectorON andswitch tostandby mode.
1* Select one of Q883/5/7 to do
each short test.
H, V PROTEC- TOR 1. Receive "Monoscope Pattern" signal.
2. Connect output of Bias Box to D607 cathode
(R606 side).
3. Set voltage of Bias Box to 18V and make sure
the protector is not work.
4. Set voltage of Bias Box to 27V, and make sure
the protector is work.
2
Other protectors 1. Once finish rectified Electrolytic Capacitor short
testing in +B line, check all possible damaged components on +B line. (Use random selected set for inspection)
3
PROTECTOR OPERATION CHECKING
No. Adjusting point Adjusting procedure/conditions Waveform and others
VIDEO AND AUDIO OUTPUT CHECK
1. Receive the "PAL Color Bar" signal (100% White
Color Bar, Sound 400 Hz 100% Mod.)
2. Terminate the Video output with a 75 ohm imped-
ance. Make sure the output is as specified (1.0 Vp-p ±3 dB).
3. Terminate the Audio output with a 10k ohm im-
pedance. Make sure the output is as specified (1.76 Vp-p ±3 dB).
1
VIDEO AND AUDIO INPUT CHECK
1. Using the TV/AV key on the remote controller,
make sure that the modes change in order of TV, AV1, AV2 & TV again and the video & audio out- put are according to the input terminal for each mode.
2
A/V INPUT AND OUTPUT CHECKING
WYCy G Mg R B
SAME LEVEL
Fig. 9
HORIZONTAL AND VERTICAL DEFLECTION LOOP ADJUSTMENT
No. Adjusting point Adjusting procedure/conditions Waveform and others
V-SLOPE(I
2
C
BUS CON- TROL) V-CENTER (I
2
C
BUS CON- TROL) V - AMP (I
2
C
BUS CON- TROL) S-CORREC- TION (I
2
C BUS
CONTROL) H - CENTER
1. Receive Monoscope Pattern Signal. 2. Call the "V-LIN" mode. 3. Increase or decrease "V-LIN" by Volume key till
the horizontal line in the center of monoscope is just at the position where the blanking starts.
1. Call the "V-CENT" mode. 2. Increase or decrease "V-CENT" by Volume key
till the picture is centered.
1. Call the "V-AMP" mode. 2. Increase or decrease "V - AMP" by Volume key
to set overscan of 9.5% typical. Adjustment Spec 9.5% range +1% -0%.
FIXED DATA, NO NEED TO ADJUST. 1. Call the "H-CENT" mode. 2. Increase or decrease "H-CENT" by Volume key
to center the picture horizontal.
1
2 3 4 5
Focus adjustment 1. Receive the "Monoscope Pattern" signal.
2. Press R/C to set Picture NORMAL condition. 3. Adjust the focus control to get the best focus.
6
PAL CHROMA ADJUSTMENT
No. Adjusting point Adjusting procedure/conditions Waveform and others
SUB COLOUR (I
2
C BUS
CONTROL)
1. Receive the "PAL Colour Bar" signal. 2. Press R/C to set Picture Normal condition. 3. Connecttheoscilloscope toRed cathode(TP854).
»Range : 20 V/div. (AC) (Using 10:1 probe) »Sweep time : 10 µsec/div.
4. UsingtheR/C call"SUB COL"in SERVICEmode.
Adjust SUB COLOUR bus data, so that the 75% White & Red portions of PALColour Bar be at the same level shown as Fig. 8.
5. Clear the SERVICE mode.
1
Cy GB
WY 100%W
75% Mg R
Fig. 8

10
14A1-RU
14A2-RU
10-2
10-1
FUNCTION OPERATION CHECKING (VIDEO AND AUDIO)
(Continued)
No. Adjusting point Adjusting procedure/conditions Waveform and others
COLOUR SYSTEM 1. Receive the "PAL COLOUR BAR" signal, press
the COLOUR SYSTEM key to select modes ex- ceptPAL, checkthe COLOURis notworking prop- erly. Then, select the "PAL" mode. Check again its colour so that it is working properly.
2. Receive "NTSC 4.43/3.58 COLOUR BAR" signal
thru AV, press COLOUR SYSTEM key to select modes except N4.43/3.58, check the COLOUR is not working properly. Then, select the "NTSC 4.43/3.58" mode. Check again its colour so that it is working properly.
9
SOUND SYSTEM
10 1. Receive "PAL-D/K" signal, press the "SOUND
SYSTEM" to select B/G, I. Check the sound out- put is not working properly. Select D/K and check the sound output to make sure it is working prop- erly.
2. Receive "PAL-I" signal, press the "SOUND SYS-
TEM"toselect B/G, D/K.Check the sound output is not working properly. Select I and check the sound output to make sure it is working properly.
3. Receive "PAL-B/G" signal, press the "SOUND
SYSTEM"to select I, D/K. Check the sound out- put is not working properly. Select B/G and check the sound output to make sure it is working prop- erly.
1. Receive "PAL COLOUR BAR" signal. 2. Turn up the volume control to maximum, make
sure the sound is heard from the speakers. Then put the unit in no signal state.
3. Check the sound mute is effective. 4. Finally turn sound level of CTV to minimum.
NOISE MUTE CHECKING
11
OSD LAN- GUAGE QUANTITY CHECK
Check OSD LANGUAGE quantity and type as Eng- lish and Russian.
12
FUNCTION OPERATION CHECKING (VIDEO AND AUDIO)
No. Adjusting point Adjusting procedure/conditions Waveform and others
CONTRAST key 1. Receive "Monoscope Pattern" signal.
2. Set P-Mode to select CONTRAST. 3. PressVolumeUp/Down keytocheck whetherthe
CONTRAST effect is OK or not.
1
1. Receive "Color Bar" signal. 2. Set P-Mode to select COLOUR. 3. Press Volume Up/Down key to check whether
the COLOUR effect is OK or not.
2COLOUR key
BRIGHTNESS key 1. Receive "Monoscope Pattern" signal.
2. Set P-Mode to select BRIGHTNESS. 3. Press Volume Up/Down key to check whether
the BRIGHTNESS effect is OK or not.
3
TINT key 1. Receive the "NTSC Colour Bar" signal thru AV in.
2. Set P-Mode to select TINT. 3. Press Volume Up/Down key to check TINT, UP
for GREEN direction and DOWN for PURPLE di- rection whether is OK or not.
4
SHARPNESS Key 1. Receive "Monoscope Pattern" signal.
2. Set P-mode to select SHARPNESS. 3. Press Volume Up/Down key to check whether
the SHARPNESS effect is OK or not.
5
WHITE TEMP 1. Receive "Monoscope Pattern" signal.
2. Set FUNCTION to select WHITE TEMP. 3. Press Volume Up/Down key to check WHITE
TEMP Option, STANDARD: NORMAL SETTING, WARM for more REDDISH direction changing, COOL for more BLUISH di- rection changing.
8
NORMAL Key71. Once in PICTURE Mode, and theNORMAL key
is pressed, all the settings will be present to nor- mal setting. (Normal setting value for every mode). »CONTRAST : MAX »COLOUR : CENTER »BRIGHTNESS : CENTER »TINT : CENTER »SHARPNESS : CENTER
Notes:If nothing is display
mean contrast, colour, bright, tint, sharpness are all in nor- mal setting.
CH DISPLAY COLOUR 1. All Ch (1~99) will have an OSD display of the
channel number in green colour under AFT ON condition.
6

11
14A1-RU
14A2-RU
11-211-1
MEMORY MAP
ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL
(HEX) D7 D6 D5 D4 D3 D2 D1 D0 DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK
00 PASS WORD 55 00-FF
01 PASS WORD 4F 00-FF
02
PASS WORD 43 00-FF
03 PASS WORD A1 00-FF
04
05
06
AGC TAKE-OVER 0E 00-3F
07
V-SLOPE 20 00-3F
08
V-AMPLITUDE 20 00-3F
09 V-CENTER 20 00-3F
0A H-CENTER 20 00-3F
0B
H-SIZE 20 00-3F
0C EW-PARALLELOGRAM 20 00-3F
0D EW-PARABOLA/WIDTH 20 00-3F
0E
EW-UPPER CORNER 20 00-3F
0F EW-LOWER CORNER 20 00-3F
10 EW-TRAPEZIUM 20 00-3F
11 HORIZONTAL-BOW 20 00-3F
12
S-CORRECTION 00 00-3F
13
14
15
16
DRIVE-R (STANDARD) 20 00-3F
17 DRIVE-G (STANDARD) 20 00-3F
18
DRIVE-B (STANDARD) 20 00-3F
19
DRIVE-R (COOL) 20 00-3F
1A DRIVE-G (COOL) 20 00-3F
1B DRIVE-B (COOL) 20 00-3F
1C
DRIVE-R (WARM) 20 00-3F
1D DRIVE-G (WARM) 20 00-3F
1E DRIVE-B (WARM) 20 00-3F
1F
20
21
22
SUB-VOLUME 3F 00-3F
23
SUB-CONTRAST 3F 00-3F
24
SUB-COLOUR 20 00-3F
25
SUB-BRIGHTNESS 20 00-3F
26
SUB-TINT 20 00-3F
27
SUB-SHARPNESS 20 00-3F
28
HTL-VOLUME 20 00-3F
29
HTL-PROGRAM-NUM FF 00-FF
2A
2B
2C
2D
OSD-RGB-REFERENCE 0F 00-0F
2E
CUTOFF LEVEL -OFFSET R 08 00-0F
2F
CUTOFF LEVEL -OFFSET G 08 00-0F
30
CATHODE DRIVE LEVEL 00 00-0F
31
Y-DELAY (TV PAL) 0C 00-0F
32
Y-DELAY (TV SECAM) 0F 00-0F
33
Y-DELAY (TV N358) 0C 00-0F
34
Y-DELAY (TV N443) 0C 00-0F
35
Y-DELAY (TV BW) 0C 00-0F
36
Y-DELAY (AV PAL) 0C 00-0F
37
Y-DELAY (AV SECAM) 0F 00-0F
38
Y-DELAY (AV N443) 0C 00-0F
39
Y-DELAY (AV N358) 0C 00-0F
3A
Y-DELAY (AV BW) 0C 00-0F
3B
COLOUR-OFFSET (PAL) 08 00-0F
3C
COLOUR-OFFSET (SECAM) 08 00-0F
3D
COLOUR-OFFSET (N358) 04 00-0F
3E
COLOUR-OFFSET (N433) 04 00-0F
3F
SHARPNESS-OFFSET (PAL) 08 00-0F
MODEL MODEL
LETTER NO. LETTER NO.

12
14A1-RU
14A2-RU
12-2
12-1
ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL
(HEX) D7 D6 D5 D4 D3 D2 D1 D0 DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA SETTING DATA REMARK
40 SHARPNESS-OFFSET (SECAM) 04 00-0F
41
SHARPNESS-OFFSET (N358) 0C 00-0F
42
SHARPNESS-OFFSET (N433) 08 00-0F
43
44
FCO ACL OSO EHT EVG FFI AVL BKS 00-FF
45
SCM N443 N358 PB-SEC BG I DK M 00-FF
46
SM FMWS AV BTSC HTL VMC VMI 00-FF
47
HP2 FSL RUS FRA CHN MLY ARB THA 00-FF
48
AGC BIL CPT 00-FF
49
4A
4B
4C
VOLUME 01 00-3C
4D
CONTRAST 3C 00-3C
4E
COLOUR 1E 00-3C
4F
BRIGHTNESS 1E 00-3C
50
TINT 1E 00-3C
51
SHARPNESS 1E 00-3C
52
53
54
55
POSITION/AV1/AV2 01 00-FF
56
FAV-POS A 0A 00-FF
57
FAV-POS B 14 00-FF
58
FAV-POS C 1E 00-FF
59
FAV-POS D 28 00-FF
5A
5B
5C
POWER 00 00-01
5D
WHITE-TEMP 00 00-02
5E
BLUE BACK 00 00-01
5F
LANGUAGE 00 00-07
60
DIGIT 00 00-01
61
62
SKIP 0 SKIP 1 SKIP 2 SKIP 3 SKIP 4 SKIP 5 SKIP 6 SKIP 7 80 00-FF
63
SKIP 8 SKIP 9 SKIP 10 SKIP 11 SKIP 12 SKIP 13 SKIP 14 SKIP 15 00 00-FF
64
SKIP 16 SKIP 17 SKIP 18 SKIP 19 SKIP 20 SKIP 21 SKIP 22 SKIP 23 00 00-FF
65
SKIP 24 SKIP 25 SKIP 26 SKIP 27 SKIP 28 SKIP 29 SKIP 30 SKIP 31 00 00-FF
66
SKIP 32 SKIP 33 SKIP 34 SKIP 35 SKIP 36 SKIP 37 SKIP 38 SKIP 39 00 00-FF
67
SKIP 40 SKIP 41 SKIP 42 SKIP 43 SKIP 44 SKIP 45 SKIP 46 SKIP 47 00 00-FF
68
SKIP 48 SKIP 49 SKIP 50 SKIP 51 SKIP 52 SKIP 53 SKIP 54 SKIP 55 00 00-FF
69
SKIP 56 SKIP 57 SKIP 58 SKIP 59 SKIP 60 SKIP 61 SKIP 62 SKIP 63 00 00-FF
6A
SKIP 64 SKIP 65 SKIP 66 SKIP 67 SKIP 68 SKIP 69 SKIP 70 SKIP 71 00 00-FF
6B
SKIP 72 SKIP 73 SKIP 74 SKIP 75 SKIP 76 SKIP 77 SKIP 78 SKIP 79 00 00-FF
6C
SKIP 80 SKIP 81 SKIP 82 SKIP 83 SKIP 84 SKIP 85 SKIP 86 SKIP 87 00 00-FF
6D
SKIP 88 SKIP 89 SKIP 90 SKIP 91 SKIP 92 SKIP 93 SKIP 94 SKIP 95 00 00-FF
6E
SKIP 96 SKIP 97 SKIP 98 SKIP 99 00 00-FF
6F
70
71
72
73
74
TUNING FREQUANCY (HIGHER PART) S-SYS POS 0
75 TUNING FREQUANCY (LOWER PART) 000:BG
76
S-SYS AFT (auto) C-SYS 001:I
77
TUNING FREQUANCY (HIGHER PART) O1O:DK POS 1
78 TUNING FREQUANCY (LOWER PART) 011:M
79
S-SYS AFT (auto) C-SYS
7A TUNING FREQUANCY (HIGHER PART) AFT POS 2
7B TUNING FREQUANCY (LOWER PART) 0:OFF
7C
S-SYS AFT (auto) C-SYS 1:ON
7D
TUNING FREQUANCY (HIGHER PART) POS 3
7E TUNING FREQUANCY (LOWER PART)
7F S-SYS AFT (auto) C-SYS
MODEL MODEL
LETTER NO. LETTER NO.

13
14A1-RU
14A2-RU
13-213-1
ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL
(HEX) D7 D6 D5 D4 D3 D2 D1D1 D0 DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK
80 TUNING FREQUANCY (HIGHER PART) POS 4
81 TUNING FREQUANCY (LOWER PART)
82 S-SYS AFT (auto) C-SYS
83 TUNING FREQUANCY (HIGHER PART) POS 5
84 TUNING FREQUANCY (LOWER PART)
85 S-SYS AFT (auto) C-SYS
86 TUNING FREQUANCY (HIGHER PART) POS 6
87 TUNING FREQUANCY (LOWER PART)
88 S-SYS AFT (auto) C-SYS
89 TUNING FREQUANCY (HIGHER PART) POS 7
8A TUNING FREQUANCY (LOWER PART)
8B S-SYS AFT (auto) C-SYS
8C TUNING FREQUANCY (HIGHER PART) POS 8
8D TUNING FREQUANCY (LOWER PART)
8E S-SYS AFTAFT (auto) C-SYS
8F TUNING FREQUANCY (HIGHER PART) POS 9
90 TUNING FREQUANCY (LOWER PART)
91 S-SYS AFT (auto) C-SYS
92 TUNING FREQUANCY (HIGHER PART) POS 10
93 TUNING FREQUANCY (LOWER PART)
94 S-SYS AFT (auto) C-SYS
95 TUNING FREQUANCY (HIGHER PART) POS 11
96 TUNING FREQUANCY (LOWER PART)
97 S-SYS AFT (auto) C-SYS
98 TUNING FREQUANCY (HIGHER PART) POS 12
99 TUNING FREQUANCY (LOWER PART)
9A S-SYS AFT (auto) C-SYS
9B TUNING FREQUANCY (HIGHER PART) POS 13
9C TUNING FREQUANCY (LOWER PART)
9D S-SYS AFT (auto) C-SYS
9E TUNING FREQUANCY (HIGHER PART) POS 14
9F TUNING FREQUANCY (LOWER PART)
A0 S-SYS AFT (auto) C-SYS
A1 TUNING FREQUANCY (HIGHER PART) POS 15
A2 TUNING FREQUANCY (LOWER PART)
A3 S-SYS AFT (auto) C-SYS
A4 TUNING FREQUANCY (HIGHER PART) POS 16
A5 TUNING FREQUANCY (LOWER PART)
A6 S-SYS AFT (auto) C-SYS
A7 TUNING FREQUANCY (HIGHER PART) POS 17
A8 TUNING FREQUANCY (LOWER PART)
A9 S-SYS AFT (auto) C-SYS
AA TUNING FREQUANCY (HIGHER PART) POS 18
AB TUNING FREQUANCY (LOWER PART)
AC S-SYS AFT (auto) C-SYS
AD TUNING FREQUANCY (HIGHER PART) POS 19
AE TUNING FREQUANCY (LOWER PART)
AF S-SYS AFT (auto) C-SYS
B0 TUNING FREQUANCY (HIGHER PART) POS 20
B1 TUNING FREQUANCY (LOWER PART)
B2 S-SYS AFTAFT (auto) C-SYS
B3 TUNING FREQUANCY (HIGHER PART) POS 21
B4 TUNING FREQUANCY (LOWER PART)
B5 S-SYS AFTAFT (auto) C-SYS
B6 TUNING FREQUANCY (HIGHER PART) POS 22
B7 TUNING FREQUANCY (LOWER PART)
B8 S-SYS AFT (auto) C-SYS
B9 TUNING FREQUANCY (HIGHER PART) POS 23
BA TUNING FREQUANCY (LOWER PART)
BB S-SYS AFT (auto) C-SYS
BC TUNING FREQUANCY (HIGHER PART) POS 24
BD TUNING FREQUANCY (LOWER PART)
BE S-SYS AFT (auto) C-SYS
BF TUNING FREQUANCY (HIGHER PART) POS 25
MODEL MODEL
LETTER NO. LETTER NO.

14
14A1-RU
14A2-RU
14-2
14-1
ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL
(HEX) D7 D6 D5 D4 D3 D2 D1 D0 DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK
C0 TUNING FREQUANCY (LOWER PART) POS 25
C1 S-SYS AFT (auto) C-SYS
C2 TUNING FREQUANCY (HIGHER PART) POS 26
C3 TUNING FREQUANCY (LOWER PART)
C4 S-SYS AFT (auto) C-SYS
C5 TUNING FREQUANCY (HIGHER PART) POS 27
C6 TUNING FREQUANCY (LOWER PART)
C7 S-SYS AFT (auto) C-SYS
C8 TUNING FREQUANCY (HIGHER PART) POS 28
C9 TUNING FREQUANCY (LOWER PART)
CA S-SYS AFT (auto) C-SYS
CB TUNING FREQUANCY (HIGHER PART) POS 29
CC TUNING FREQUANCY (LOWER PART)
CD S-SYS AFT (auto) C-SYS
CE TUNING FREQUANCY (HIGHER PART) POS 30
CF TUNING FREQUANCY (LOWER PART)
D0 S-SYS AFT (auto) C-SYS
D1 TUNING FREQUANCY (HIGHER PART) POS 31
D2 TUNING FREQUANCY (LOWER PART)
D3 S-SYS AFT (auto) C-SYS
D4 TUNING FREQUANCY (HIGHER PART) POS 32
D5 TUNING FREQUANCY (LOWER PART)
D6 S-SYS AFT (auto) C-SYS
D7 TUNING FREQUANCY (HIGHER PART) POS 33
D8 TUNING FREQUANCY (LOWER PART)
D9 S-SYS AFT (auto) C-SYS
DA TUNING FREQUANCY (HIGHER PART) POS 34
DB TUNING FREQUANCY (LOWER PART)
DC S-SYS AFT (auto) C-SYS
DD TUNING FREQUANCY (HIGHER PART) POS 35
DE TUNING FREQUANCY (LOWER PART)
DF S-SYS AFT (auto) C-SYS
E0 TUNING FREQUANCY (HIGHER PART) POS 36
E1 TUNING FREQUANCY (LOWER PART)
E2 S-SYS AFT (auto) C-SYS
E3 TUNING FREQUANCY (HIGHER PART) POS 37
E4 TUNING FREQUANCY (LOWER PART)
E5 S-SYS AFT (auto) C-SYS
E6 TUNING FREQUANCY (HIGHER PART) POS 38
E7 TUNING FREQUANCY (LOWER PART)
E8 S-SYS AFT (auto) C-SYS
E9 TUNING FREQUANCY (HIGHER PART) POS 39
EA TUNING FREQUANCY (LOWER PART)
EB S-SYS AFT (auto) C-SYS
EC TUNING FREQUANCY (HIGHER PART) POS 40
ED TUNING FREQUANCY (LOWER PART)
EE S-SYS AFT (auto) C-SYS
EF TUNING FREQUANCY (HIGHER PART) POS 41
F0 TUNING FREQUANCY (LOWER PART)
F1 S-SYS AFT (auto) C-SYS
F2 TUNING FREQUANCY (HIGHER PART) POS 42
F3 TUNING FREQUANCY (LOWER PART)
F4 S-SYS AFT (auto) C-SYS
F5 TUNING FREQUANCY (HIGHER PART) POS 43
F6 TUNING FREQUANCY (LOWER PART)
F7 S-SYS AFT (auto) C-SYS
F8 TUNING FREQUANCY (HIGHER PART) POS 44
F9 TUNING FREQUANCY (LOWER PART)
FA S-SYS AFTAFT (auto) C-SYS
FB TUNING FREQUANCY (HIGHER PART) POS 45
FC TUNING FREQUANCY (LOWER PART)
FD S-SYS AFT (auto) C-SYS
FE POS 46
FF
MODEL MODEL
LETTER NO. LETTER NO.

15
14A1-RU
14A2-RU
15-215-1
ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL
(HEX) D7 D6 D5 D4 D3 D2 D1 D0 DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK
100 POS 46
101 TUNING FREQUANCY (HIGHER PART) POS 47
102 TUNING FREQUANCY (LOWER PART)
103 S-SYS AFT (auto) C-SYS
104 TUNING FREQUANCY (HIGHER PART) POS 48
105 TUNING FREQUANCY (LOWER PART)
106 S-SYS AFT (auto) C-SYS
107 TUNING FREQUANCY (HIGHER PART) POS 49
108 TUNING FREQUANCY (LOWER PART)
109 S-SYS AFT (auto) C-SYS
10A TUNING FREQUANCY (HIGHER PART) POS 50
10B TUNING FREQUANCY (LOWER PART)
10C S-SYS AFT (auto) C-SYS
10D TUNING FREQUANCY (HIGHER PART) POS 51
10E TUNING FREQUANCY (LOWER PART)
10F S-SYS AFT (auto) C-SYS
110 TUNING FREQUANCY (HIGHER PART) POS 52
111 TUNING FREQUANCY (LOWER PART)
112 S-SYS AFT (auto) C-SYS
113 TUNING FREQUANCY (HIGHER PART) POS 53
114 TUNING FREQUANCY (LOWER PART)
115 S-SYS AFT (auto) C-SYS
116 TUNING FREQUANCY (HIGHER PART) POS 54
117 TUNING FREQUANCY (LOWER PART)
118 S-SYS AFT (auto) C-SYS
119 TUNING FREQUANCY (HIGHER PART) POS 55
11A TUNING FREQUANCY (LOWER PART)
11B S-SYS AFT (auto) C-SYS
11C TUNING FREQUANCY (HIGHER PART) POS 56
11D TUNING FREQUANCY (LOWER PART)
11E S-SYS AFT (auto) C-SYS
11F TUNING FREQUANCY (HIGHER PART) POS 57
120 TUNING FREQUANCY (LOWER PART)
121 S-SYS AFT (auto) C-SYS
122 TUNING FREQUANCY (HIGHER PART) POS 58
123 TUNING FREQUANCY (LOWER PART)
124 S-SYS AFT (auto) C-SYS
125 TUNING FREQUANCY (HIGHER PART) POS 59
126 TUNING FREQUANCY (LOWER PART)
127 S-SYS AFT (auto) C-SYS
128 TUNING FREQUANCY (HIGHER PART) POS 60
129 TUNING FREQUANCY (LOWER PART)
12A S-SYS AFT (auto) C-SYS
12B TUNING FREQUANCY (HIGHER PART) POS 61
12C TUNING FREQUANCY (LOWER PART)
12D S-SYS AFT (auto) C-SYS
12E TUNING FREQUANCY (HIGHER PART) POS 62
12F TUNING FREQUANCY (LOWER PART)
130 S-SYS AFT (auto) C-SYS
131 TUNING FREQUANCY (HIGHER PART) POS 63
132 TUNING FREQUANCY (LOWER PART)
133 S-SYS AFT (auto) C-SYS
134 TUNING FREQUANCY (HIGHER PART) POS 64
135 TUNING FREQUANCY (LOWER PART)
136 S-SYS AFT (auto) C-SYS
137 TUNING FREQUANCY (HIGHER PART) POS 65
138 TUNING FREQUANCY (LOWER PART)
139 S-SYS AFT (auto) C-SYS
13A TUNING FREQUANCY (HIGHER PART) POS 66
13B TUNING FREQUANCY (LOWER PART)
13C S-SYS AFT (auto) C-SYS
13D TUNING FREQUANCY (HIGHER PART) POS 67
13E TUNING FREQUANCY (LOWER PART)
13F S-SYS AFT (auto) C-SYS
MODEL MODEL
LETTER NO. LETTER NO.

16
14A1-RU
14A2-RU
16-2
16-1
ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL
(HEX) D7 D6 D5 D4 D3 D2 D1D1 D0 DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK
140 TUNING FREQUANCY (HIGHER PART) POS 68
141 TUNING FREQUANCY (LOWER PART)
142 S-SYS AFT (auto) C-SYS
143 TUNING FREQUANCY (HIGHER PART) POS 69
144 TUNING FREQUANCY (LOWER PART)
145 S-SYS AFT (auto) C-SYS
146 TUNING FREQUANCY (HIGHER PART) POS 70
147 TUNING FREQUANCY (LOWER PART)
148 S-SYS AFT (auto) C-SYS
149 TUNING FREQUANCY (HIGHER PART) POS 71
14A TUNING FREQUANCY (LOWER PART)
14B S-SYS AFT (auto) C-SYS
14C TUNING FREQUANCY (HIGHER PART) POS 72
14D TUNING FREQUANCY (LOWER PART)
14E S-SYS AFT (auto) C-SYS
14F TUNING FREQUANCY (HIGHER PART) POS 73
150 TUNING FREQUANCY (LOWER PART)
151 S-SYS AFT (auto) C-SYS
152 TUNING FREQUANCY (HIGHER PART) POS 74
153 TUNING FREQUANCY (LOWER PART)
154 S-SYS AFT (auto) C-SYS
155 TUNING FREQUANCY (HIGHER PART) POS 75
156 TUNING FREQUANCY (LOWER PART)
157 S-SYS AFT (auto) C-SYS
158 TUNING FREQUANCY (HIGHER PART) POS 76
159 TUNING FREQUANCY (LOWER PART)
15A S-SYS AFT (auto) C-SYS
15B TUNING FREQUANCY (HIGHER PART) POS 77
15C TUNING FREQUANCY (LOWER PART)
15D S-SYS AFT (auto) C-SYS
15E TUNING FREQUANCY (HIGHER PART) POS 78
15F TUNING FREQUANCY (LOWER PART)
160 S-SYS AFT (auto) C-SYS
161 TUNING FREQUANCY (HIGHER PART) POS 79
162 TUNING FREQUANCY (LOWER PART)
163 S-SYS AFT (auto) C-SYS
164 TUNING FREQUANCY (HIGHER PART) POS 80
165 TUNING FREQUANCY (LOWER PART)
166 S-SYS AFT (auto) C-SYS
167 TUNING FREQUANCY (HIGHER PART) POS 81
168 TUNING FREQUANCY (LOWER PART)
169 S-SYS AFT (auto) C-SYS
16A TUNING FREQUANCY (HIGHER PART) POS 82
16B TUNING FREQUANCY (LOWER PART)
16C S-SYS AFT (auto) C-SYS
16D TUNING FREQUANCY (HIGHER PART) POS 83
16E TUNING FREQUANCY (LOWER PART)
16F S-SYS AFT (auto) C-SYS
170 TUNING FREQUANCY (HIGHER PART) POS 84
171 TUNING FREQUANCY (LOWER PART)
172 S-SYS AFT (auto) C-SYS
173 TUNING FREQUANCY (HIGHER PART) POS 85
174 TUNING FREQUANCY (LOWER PART)
175 S-SYS AFT (auto) C-SYS
176 TUNING FREQUANCY (HIGHER PART) POS 86
177 TUNING FREQUANCY (LOWER PART)
178 S-SYS AFT (auto) C-SYS
179 TUNING FREQUANCY (HIGHER PART) POS 87
17A TUNING FREQUANCY (LOWER PART)
17B S-SYS AFT (auto) C-SYS
17C TUNING FREQUANCY (HIGHER PART) POS 88
17D TUNING FREQUANCY (LOWER PART)
17E S-SYS AFT (auto) C-SYS
17F POS 89
MODEL MODEL
LETTER NO. LETTER NO.

17
14A1-RU
14A2-RU
17-217-1
ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL
(HEX) D7 D6 D5 D4 D3 D2 D1 D0 DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK
180 POS 89
181
182
TUNING FREQUANCY (HIGHER PART) POS 90
183 TUNING FREQUANCY (LOWER PART)
184 S-SYS AFT (auto) C-SYS
185 TUNING FREQUANCY (HIGHER PART) POS 91
186 TUNING FREQUANCY (LOWER PART)
187 S-SYS AFT (auto) C-SYS
188 TUNING FREQUANCY (HIGHER PART) POS 92
189 TUNING FREQUANCY (LOWER PART)
18A S-SYS AFT (auto) C-SYS
18B TUNING FREQUANCY (HIGHER PART) POS 93
18C TUNING FREQUANCY (LOWER PART)
18D S-SYS AFT (auto) C-SYS
18E TUNING FREQUANCY (HIGHER PART) POS 94
18F TUNING FREQUANCY (LOWER PART)
190 S-SYS AFT (auto) C-SYS
191 TUNING FREQUANCY (HIGHER PART) POS 95
192 TUNING FREQUANCY (LOWER PART)
193 S-SYS AFT (auto) C-SYS
194 TUNING FREQUANCY (HIGHER PART) POS 96
195 TUNING FREQUANCY (LOWER PART)
196 S-SYS AFT (auto) C-SYS
197 TUNING FREQUANCY (HIGHER PART) POS 97
198 TUNING FREQUANCY (LOWER PART)
199 S-SYS AFT (auto) C-SYS
19A TUNING FREQUANCY (HIGHER PART) POS 98
19B TUNING FREQUANCY (LOWER PART)
19C S-SYS AFT (auto) C-SYS
19D TUNING FREQUANCY (HIGHER PART) POS 99
19E TUNING FREQUANCY (LOWER PART)
19F S-SYS AFT (auto) C-SYS
1A0 AV1
1A1
1A2
(auto) C-SYS
1A3 AV2
1A4
1A5
(auto) C-SYS
1A6
1A7
1A8
1A9
1AA
1AB
1AC
1AD
1AE
1AF
1B0
1B1
1B2
1B3
1B4
1B5
1B6
1B7
1B8
1B9
1BA
1BB
1BC
1BD
1BE
1BF
MODEL MODEL
LETTER NO. LETTER NO.

18
14A1-RU
14A2-RU
18-2
18-1
ADDRESS DATA MICON EEPROM EEPROM CHASSIS CTV FINAL LAST INITIAL
(HEX) D7 D6 D5 D4 D3 D2 D1 D0 DEFAULT RANGE WRITE(CPU) CHECK DATA CHECK TYPE CHECK DATA CHECK TYPE SETTING DATA REMARK
1C0
1C1
1C2
1C3
1C4
1C5
1C6
1C7
1C8
1C9
1CA
1CB
1CC
1CD
1CE
1CF
1D0
1D1
1D2
1D3
1D4
1D5
1D6
1D7
1D8
1D9
1DA
1DB
1DC
1DD
1DE
1DF
1E0
1E1
1E2
1E3
1E4
1E5
1E6
1E7
1E8
1E9
1EA
1EB
1EC
1ED
1EE
1EF
1F0
1F1
1F2
1F3
1F4
1F5
1F6
1F7
1F8
1F9
1FA
1FB
1FC
1FD
1FE
1FF
MODEL MODEL
LETTER NO. LETTER NO.

19
14A1-RU
14A2-RU
19-219-1
TROUBLE SHOOTING TABLE
(Continued)
NO PICTURE, NO SOUND
Does noise signal appear at pin (44) of IC801 ?
NO SOUND
No snow noise.
Does noise or signal appear at pin (40) of IC801 ?
Noise increases but no signal is received.
Check the tuner supply voltage LB must be approx. 5V. BT must be approx, 32V. And CH preset data check.
Check the tuner AGC (TP201).
Does noise or signal appear at pin (38) of IC801 ?
Check IC801 and its related circuit.
Check Q205 and related circuit.
Check pin (1) of SF201 and Tuner related circuit. Check pin (37)of IC801 and related circuit.
CheckIC801.
Check C356 and its peripheral circuit.
Check pin (27) of IC801, Tuner and related circuit.
Check pin(38) of IC801.
Does the noise level increase at max. Contrast, Brightness and Sound controls ?
CIRCUITS TO BE CHECKED: »Tuner. »PIF. »Automatic Gain Control.
»(5V), (32V) Power Source. CIRCUITS TO BE CHECKED: »Sound system pins (28) and (44) of IC801. »Sound Detector Circuit. »Sound Switch and Att. Control. »Audio Output Circuit.
Does signal appear at pins (6) and (8) of IC301 ?
Check P301 connector of IC301 and peripheral circuit. Check Q301, pins(4) and (6)
of IC801 and peripheral circuit.
Does signal appear at pins(28) and (29) of IC801?
TROUBLE SHOOTING TABLE
NO RASTER
Blown out.
Replace the fuse.
Check IC701, D701 and C707.
The fuse is again blown out.
Does horizontal circuit oscillate ?
Check IC651, IC751 and IC801.
D1001 (Power LED Red) turns on or turns ON/OFF.
Check T701 pin (7) voltage (Approx. 310V at 220V AC)
Check F701.
Check Secondary Main+B (Approx. 115V)
Check CRT connector K1- K5 bias.
Check C787. Check
IC801. Checking the
protector circuit.
Check R618 and R615.
D1001 (Power LED Green) turns on.
Check D758, IC702, IC753 and D762. Check R701, R707 and D709.

20
14A1-RU
14A2-RU
20-2
20-1
TROUBLE SHOOTING TABLE
(Continued)
NO SPECIFIC COLOUR
Is some colour produced in B/W broadcast reception ?
Is the white balance properly adjusted ?
Readjust the white balance.
The picture colour is yellow.
The picture colour is magenta.
The picture colour is cyan.
Check Q871, Q883 and their adjacent circuits. Check Q870, Q885 and their
adjacent circuits. Check Q872, Q887 and their
adjacent circuits.
Check IC801 and bias control circuit.
NO SPECIFIC COLOUR
“PAL”/“SECAM”
(NO COLOUR SYNCHRONIZATION)
Check IC801, R801, R802, R803, D804, D805, D806 and Q801.
Check X1001.(12MHz)
TROUBLE SHOOTING TABLE
(Continued)
NEITHER VERTICAL NOR
HORIZONTAL SYNCHRONIZATION
CIRCUIT TO BE CHECKED: »Sync. Separator Circuit.
NO VERTICAL SCAN
Vertical linearity and size is abnormal.
Check pins(16), (17) and (34) of IC801.
DEFECTIVE VERTICAL AMP.
AND VERTICAL LINEARITY
Readjust vertical size. (Bas Data)
Check IC501.
Check C503 and C507.
Check IC501.
Check R504, R503, R506, R513, C517 and D501.
