Sharp 26SL72 User manual

1
POWER POWER
PUSHOPEN
MTSSTEREO
COLOR TELEVISION
OPERATION MANUAL
MODELS
26SL72
29SL82
29SL82M
7381 GJ
READ THIS OPERATION MANUAL
COMPLETELY BEFORE OPERATING
THIS PRODUCT.
CONTENTS
PAGE
• IMPORTANT INFORMATION ........................ 2
• Supplied Accessories .................................. 2
• IMPORTANT SAFEGUARDS ............. 3~ 4
• Before Operating Your Television ............... 5
• Antenna Connections ....................... 5~ 6
• Quick Reference Control Operation ........... 7
• EZ SETUP during First Use ......................... 8
• Demo Mode ................................................... 9
• Language ..................................................... 10
• Sleep Timer ................................................. 10
• Video Adjust ................................................ 11
• Audio Select ................................... 12 ~ 13
MTS (Multichannel TV Sound) ............... 12
INTERNAL SPEAKER SWITCH .............. 12
FAO (Fixed Audio Output) ...................... 12
• Closed Caption ........................................... 14
• Parent Control ................................ 15 ~ 17
View Timer .................................. 15 ~ 17
• Energy Save ................................................ 17
• Set Up ............................................. 18 ~ 23
EZ SETUP ................................................ 18
Channel Setting .......................... 19 ~ 21
Blue Screen ............................................. 21
Personal Preference ............................... 22
Universal Plus Function ......................... 23
• Using the Video and Audio Input
Jacks .............................................. 24 ~ 25
• Using the Audio Output Jacks .................. 26
•
Operation of Remote Control .......... 27 ~ 31
• Specifications ............................................. 32
• Before Calling for Service .......................... 34
• Calling for Service ...................................... 34
01 26SL72/29SL82[E].p6.5e 14/5/01, 11:19 AM1

2
1 2 3 4 5 6 7 8 9
0
100
POWER
TV
DVD VCR
MENU MUTE
CATV
PAU SE
TV
DVD VCR
FLASHBACK
DISPLAY
INPUT
TV •CATV• VCR • DVD
STOP REC
REW PLAY FF
CH/SKIP
VOL
—
CH CH
VOL
+
ENTER
A B C D
PERSONAL PREFERENCE
Infrared Remote Control
Part Number : RRMCG1639CESA
Size AA
Dry Batteries
AC Plug Adaptor
(Except for 29SL82M)
Welcome to the SHARP Family. We are pleased that you are now the owner of a SHARP Color Television
– built for outstanding quality, reliability and performance.
Every SHARP Color Television set is tuned and adjusted for proper color and sound, and has passed
through the most stringent quality control tests at the factory. We have prepared this OPERATION MANUAL
so that you may adjust the picture and color to your personal viewing preference.
We sincerely hope that you receive the greatest satisfaction and enjoyment from your new SHARP Color
Television set for years to come.
Please read these instructions carefully, and keep them handy for your future reference.
IMPORTANT
To aid reporting in case of loss or theft, please record the TV’s
model and serial numbers in the space provided. The numbers
are located at the rear of the TV.
IMPORTANT INFORMATION
Model No.:
Serial No.:
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO WET LOCATIONS.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with
arrowhead within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.
Supplied Accessories
02-08 26SL72/29SL82[E].p6.5e 9/5/01, 10:22 AM2

3
CAUTION: Please read all of these instructions before you operate your television and save
these intructions for later use.
Electricalenergycan perform manyusefulfunctions. This unithasbeen engineered and manufacturedto
assureyourpersonalsafety.BUTIMPROPERUSECANRESULTINPOTENTIALELECTRICALSHOCK
OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this equipment, observe the
following basic rules for its installation, use and servicing.
1. Unplug this television equipment from the wall outlet before cleaning.
2. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
3. Do not use attachments not recommended by the television equipment manufacturer as they may
cause hazards.
4. Donotusethistelevisionequipmentnearwater—forexample,nearabathtub,washbowl,kitchensink
or laundry tub, in a wet basement, or near a swimming pool, etc.
5. Do not place this equipment on an unstable cart, stand, or table. The television equipment may fall,
causing serious injury to a child or an adult, and serious damage to the equipment.
Use only with a cart or stand recommended by the manufacturer or sold with the
television equipment.
Televisionequipment andcartcombinationshouldbe movedwith care.Quick stops,
excessiveforce,andunevensurfacesmaycausetheequipmentandcartcombination
to overturn.
6. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit
approved by the manufacturer.
7. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure
reliable operation of the television equipment and to protect it from overheating, these openings must
notbe blocked orcovered. This televisionequipment should notbe placed ina built-ininsulationsuch
as a bookcase unless proper ventilation is provided.
8. Theopenings shouldnever be coveredwith acloth orother material, andthe bottomopenings should
not be blocked by placing the television equipment on a bed, sofa, rug, or other similar surface. This
television equipment should never be placed near or over a radiator or heat register.
9. This television equipment should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supplied to your home, consult your television
dealer or local power company.
For television equipment designed to operate from battery power, refer to the operating instructions.
If the plug does not fit, ask your electrician to replace your obsolete outlet. Do not modify the plug and
defeat this safety feature.
10. Donotallowanythingtorestonthepowercord.Donotlocatethistelevisionequipmentwherethecord
will be abused by persons walking on it.
11. As a safety feature, television equipment is equipped with a 2-wire polarized plug (one plug blade
bigger than the other.) The 2-wire polarized plug will fit only one way into the power outlet.
If the plug does not fit, ask your electrician to replace your obsolete outlet. Do not modify the plug and
defeat this safety feature.
12. Follow all warnings and instructions marked on the television equipment.
13. Ifanoutsideantennaisconnectedtothetelevisionequipment,besuretheantennasystemisgrounded
so as to provide some protection against voltage surges and built-up static charges.
IMPORTANT SAFEGUARDS
02-08 26SL72/29SL82[E].p6.5e 4/25/01, 11:50 AM3

4
EXAMPLE OF ANTENNA GROUNDING
ACCORDING TO NATIONAL ELECTRICAL CODE.
ANTENNA LEAD-IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT
GROUND CLAMPS
14. Foraddedprotectionforthistelevisionequipmentduringalightningstorm,orwhenitisleftunattended
and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This
will prevent damage to the equipment due to lightning and power-line surges.
15. Anoutsideantennasystemshouldnotbelocatedinthevicinityofoverheadpowerlinesorotherelectric
light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits as
contact with them might be fatal.
16. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
17. Neverpushobjects of any kindinto this television equipment throughcabinet slots as theymay touch
dangerousvoltagepointsorshortoutparts thatcouldresultin afireorelectric shock.Neverspillliquid
of any kind on the television equipment.
18. Do not attempt to service this television equipment yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
19. Unplugthistelevisionequipmentfrom thewalloutlet andrefer servicingtoqualified servicepersonnel
under the following conditions:
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the television equipment.
C. If the television equipment has been exposed to rain or water.
D. Ifthetelevisionequipmentdoesnotoperatenormallybyfollowingtheoperatinginstructions.Adjust
onlythose controls thatare covered bytheoperating instructions asimproper adjustment ofother
controls may result in damage and will often require extensive work by a qualified technician to
restore the television equipment to normal operation .
E. If the television equipment has been dropped or the cabinet has been damaged.
F. When the television equipment exhibits a distinct change in performance — this indicates a need
for service.
20. Upon completion of any service or repairs to this television equipment, ask the service technician to
perform routine safety checks to determine that the television is in safe operating condition.
21. When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer that have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
GROUNDING CONDUCTORS
ELECTRIC
SERVICE
EQUIPMENT
POWER SERVICE GROUNDING ELECTRODE
SYSTEM
IMPORTANT SAFEGUARDS (Continued)
02-08 26SL72/29SL82[E].p6.5e 4/25/01, 11:50 AM4

5
Location
• Fornormal operation,yourTV shouldbe locatedin anarea oftheroom wherecool adequateventilation
is provided. Do not place the back of the television set in a place where free airflow will be restricted.
• Any magnetic force may disturb the color picture. Make sure that magnets, electric clocks, toys using
magnets or any other magnetic substance, such as iron are kept well away from the TV set.
Power
YourTV operates on 120Volts, 60 Hz (29SL82M)/110-220Volts, 50/60 Hz (26SL72/29SL82) (normal
household current).
Note:
• If the set will not be used for a long period, such as during a vacation, unplug the set from the wall
outlet to economize power. (If the TV set is plugged in, a slight current still flows, even with the
POWER BUTTON in the OFF position.)
• Lines and other noise may appear inTV broadcast images when an FM tuner or radio is located near
the TV and both radio and TV broadcasts are being received. Should such noise appear, turn off
either the TV or the radio.
• If you are listening to an AM broadcast, turn the TV off. AM broadcast signals may not be received
due to interference from theTV.
LBefore using the television, prepare the Remote Control
To use the remote control, insert batteries first.
Insert the batteries
• With your thumb nail, pull up the slit as indicated by the arrow to remove the back cover. Insert two
batteries (size “AA”). Be sure to match the battery e/dterminals with the e/dmarks inside the
compartment.
Before Operating Your Television
Battery
Cover
Pull up
Antenna Connections
1. A75ohm system isgenerallya round cablewithF-
type connector that can easily be attached to a
terminal without tools (not supplied).
2. A 300 ohm system is a flat “twin-lead” cable that
can be attached to a 75 ohm terminal through a
300-75 ohm ADAPTOR (not supplied).
Antennas
• The antenna requirements for good color television reception are more important than those for
black & white television reception. For this reason, a good quality outdoor antenna is strongly
recommended.
The following is a brief explanation of the type of connections that are provided with the various
antenna systems:
F-type connector
75-ohm coaxial cable (round)
300-ohm twin-lead cable (flat)
02-08 26SL72/29SL82[E].p6.5e 4/25/01, 11:50 AM5

6
OUT
A
IN
B
75-ohm
coaxial
cable
300-ohm
twin-lead
VHF/UHF
ANTENNA
VHF/UHF ANTENNA
REAR OF TV
300/75-ohm
ADAPTOR
(not supplied)
or
300-ohm
twin-lead
300-ohm
twin-lead
75-ohm coaxial
cable
IN OUT
VHF
ANTENNA
UHF
ANTENNA
COMBINER
(not supplied)
or
REAR OF TV
A. Combination VHF/UHF Antennas
OUTDOOR ANTENNA CONNECTION
• Use one of the following two diagrams if you connect an outdoor antenna.
A: Using a VHF/UHF combination outdoor antenna.
B: Using separate VHF and/or UHF outdoor antenna.
• Connect an outdoor antenna cable lead-in to the COAXIAL CABLE CONNECTOR on the rear of the
TV set.
CABLE TV (CATV) CONNECTION
• A 75 ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75 ohm
coaxial cable to the set, screw the 75 ohm cable to the COAXIAL CABLE CONNECTOR.
• Some cable TV companies offer “premium pay channels”. Since the signals of these premium pay
channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber
by the cable TV company. This converter/descrambler is necessary for normal viewing of the scrambled
channels. (Place your TV on channel 3 or 4, typically one of these channels is used. If this is unknown,
consult your cable TV company.) For more specific instructions on installing cable TV, consult your
cable TV company. One possible method of utilizing the converter/descrambler provided by your
cable TV company is explained below.
Please note: RF switch equipped with position A/B (not provided) is required.
“A” position on the RF switch (not supplied) : You can view all unscrambled channels using the TV’s
channel keys.
“B” position on the RF switch (not supplied) : You can view the scrambled channels via the converter/
descrambler using the converter’s channel keys.
Note:
• Consult your SHARP Dealer or Service Center for the type of splitter, RF switch or combiner that
might be required.
B. Separate VHF/UHF Antenna
Antenna Connections (Continued)
Cable TV converter/
descrambler
(not supplied)
Two-set
signal
splitter
(not
supplied)
Cable TV Line
RF switch (not supplied)
OUT IN
02-08 26SL72/29SL82[E].p6.5e 9/5/01, 3:38 PM6

7
POWER POWER MTSSTEREO
VIDEO IN 2 L-AUDIO-R– VOL +? CH >MENU
POWER POWER – VOL +? CH >MENU
Quick Reference Control Operation
LLocation of Controls
Front Panel
CHANNEL UP/DOWN
(8) Selects next higher channel.
(9) Selects next lower channel.
SENSOR AREA FOR
REMOTE CONTROL
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
POWER
Press →On.
Press again →Off.
MENU
Press →Accesses MAIN
MENU.
Press again →Exits MAIN
MENU.
Note:
•The above shaded buttons on the Remote Control glow in the dark. To use the glow-in-the-dark display on the
remote control, place it under a fluorescent light or other lighting.
•The phosphorescent material contains no radioactive or toxic material, so it is safe to use.
•The degree of illumination will vary depending on the strength of lighting used.
•The degree of illumination will decrease with time and depending on the temperature.
•The time needed to charge the phosphorescent display will vary depending on the surrounding lighting.
•Sunlight and fluorescent lighting are the most effective when charging the display.
Infrared Transmitter Window
DISPLAY
Press →Displays receiving channel for
four seconds.
Press again →Removes display.
•Temporarily displays receiving
channel when in Closed Caption
mode.
INPUT
Press →Switch to external video
INPUT 1 mode.
Press 2 times →Switch to external video
INPUT 2 mode.
Press 3 times →Switch to external
COMPONENT mode.
Press 4 times →Switch back to the
original TV mode.
See page 25.
ENTER
Used in some instances where a Cable
Converter Box requires an “enter”
command after selecting channels,
when using the REMOTE KEYPAD
button. (See page 27)
CHANNEL UP/DOWN
(8) Selects next higher channel.
(9) Selects next lower channel.
•See pages 19 ~ 21 for channel
presetting.
•Moves the “a”mark of the MENU
screens.
MUTE
Press →Mutes sound.
Press again →Restores sound.
•CLOSED CAPTION appears when
sound is muted.
1 2 3
4 5 6
7 8 9
0 100
POWER
TV
DVD
VCR
MENU MUTE
PAUSE
FLASHBACK
DISPLAY INPUT
TV • CATV • VCR • DVD
STOP REC
REW PLAY FF
CH/SKIP
VOL
—
CH
CH
VOL
+
ENTER
A B C D
PERSONAL PREFERENCE
CATV TV
DVD VCR
POWER
Press →On.
Press again →Off.
REMOTE KEYPAD
Accesses any channel from keypad.
FLASHBACK
Returns to previous channel.
PERSONAL PREFERENCE
With the Personal Preference buttons,
you can program your favorite
programs by using the 4 categories A,
B, C and D. The channels can be
accessed quickly by using these
buttons. (See page 22.)
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
•In menu mode, changes or selects
the TV adjustments.
MENU
Press →Accesses MAIN MENU.
Press again →Exits MAIN MENU.
CATV/DVD-TV/VCR MODE SELECT
SWITCH
In TV/VCR position, sends power and
channel select commands (Channel
up/down and Random Access buttons)
to the TV and VCR control.
In CATV/DVD position, sends power
and channel select commands to a
cable TV converter and DVD control.
DVD/VCR CONTROL
See page 27.
Basic Remote Control Functions
VIDEO/AUDIO TERMINALSIN2
02-08 26SL72/29SL82[E].p6.5e 15/5/01, 3:52 PM7

8
POWER
POWER
TV
FR NCA I S
ENGL I SH
ESPAÑOL
LANGUAGSELECT E
A
SE ECT :CH8/9
VO
L
SE :TL+–/
FR NCA I S
ENGL I SH
ESPAÑOL
LANGUAGSELECT E
A
SE ECT :CH8/9
VO
L
SE :TL+–/
OR CABLE .
TSART SETUP?ZE
ANTENNCONNECT A
YE :VOL+
VOL–
S
NO :
AU
18
TO RGGAMM I NORP
WA I TPLE EAS
VOL–
TSOP:
2
VOL
—VOL +
VOL
+
1 2 3
4 5 6
7 8 9
0 100
FLASHBACK ENTER
PERSONAL PREFERENCE
POWER
TV
DVD
VCR
MENU MUTE
CATV TV
DVD VCR
DISPLAY INPUT
VOL
—
CH
CH
VOL
+
ABCD
→
VOL
—VOL +
CH
CH

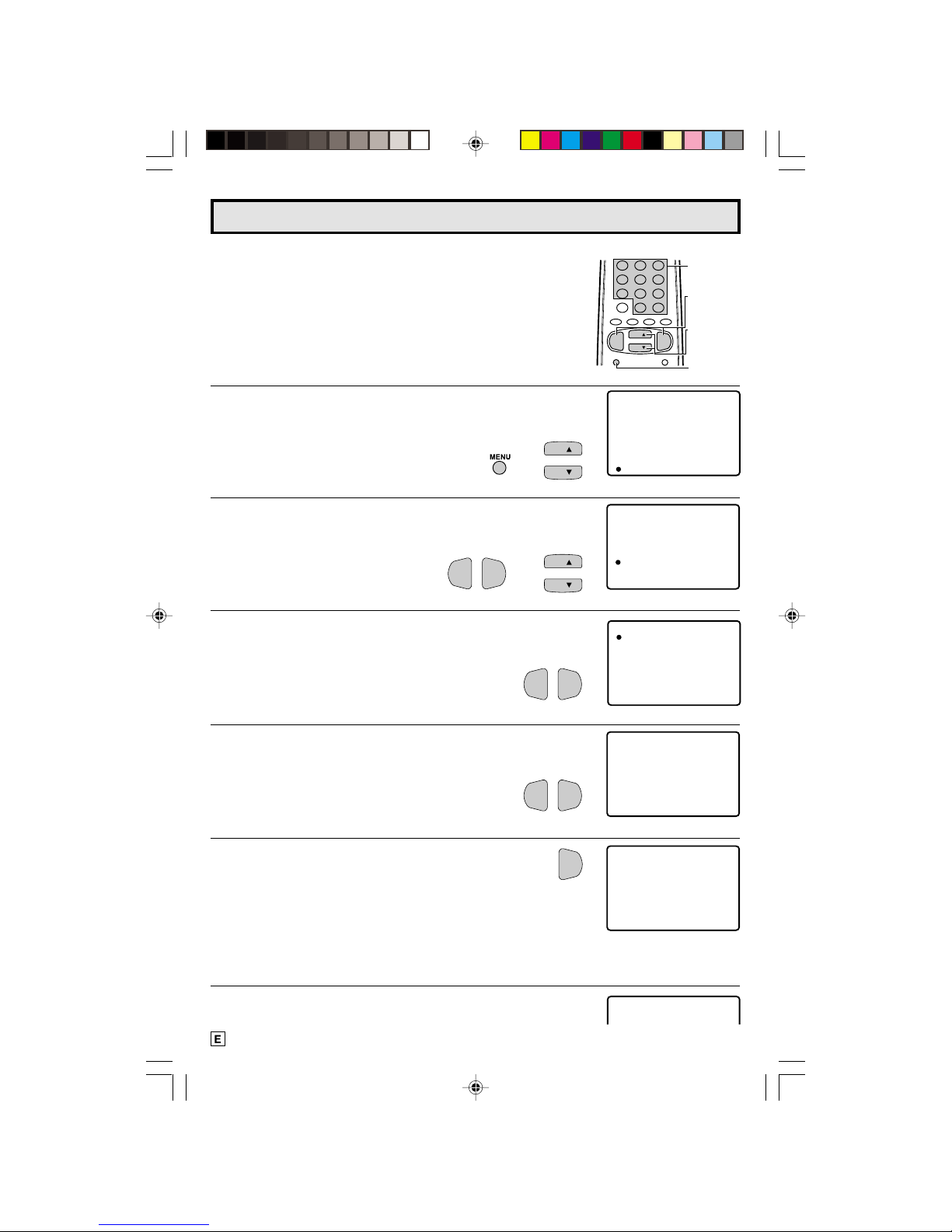

LWhen you turn on the TV for the first time, it will automatically
memorize the broadcast channels.
Please perform the following instructions before pressing the
power button.
(1) Insert the batteries into the remote control. (See page 5)
(2) Connect the antenna cable to the TV set. (See page 5 ~ 6)
(3) Plug in the AC POWER cord to the wall outlet.
1Press the POWER button on theTV set or on the Remote Control
to turn on the TV. The SELECT LANGUAGE mode will be
displayed.
2Press CH UP ( 8 ) or DOWN ( 9 ) to select “ENGLISH”, “SPANISH
(ESPAÑOL)”or “FRENCH (FRANÇAIS)”.Then press
VOL (+) or
(–) to SET LANGUAGE.
3Press VOL (+) or (–) to access EZ SETUP mode.
4Press VOL (+) .
The tuner will automatically search for the
broadcast and cable TV channels. (The CH No.
will automatically increase when it appears.)
If you want to stop the EZ SETUP process once it
hasstarted, press
VOL (–) anditwill be cancelled.
If you want to SETUP again, please refer to page
18 on SETUP.
To cancel EZ SETUP
Press
VOL (–) .
5Once EZ SETUP is completed, the lowest channel number
memorized will be displayed.
Note:
•If EZ SETUP does not memorize all the channels in your region, please refer to page 19 for more
information on manually memorizing the channels using CHANNEL SETTING.
•It may be difficult to PRESET when the broadcast signals are weak, the channel cycle frequency is
incorrect or frequency jamming is occuring around the area. Please refer to pages 19~ 21 for
more information on manually memorizing the channels using CHANNEL SETTING.
(Remote Control)
POWER
CHANNEL
UP (8)/
DOWN (9)
MENU
VOLUME
(+)/(–)
(On the Set)
(EZ SETUP mode)
EZ SETUP during First Use
(SELECT LANGUAGE mode)
02-08 26SL72/29SL82[E].p6.5e 4/25/01, 11:50 AM8

9

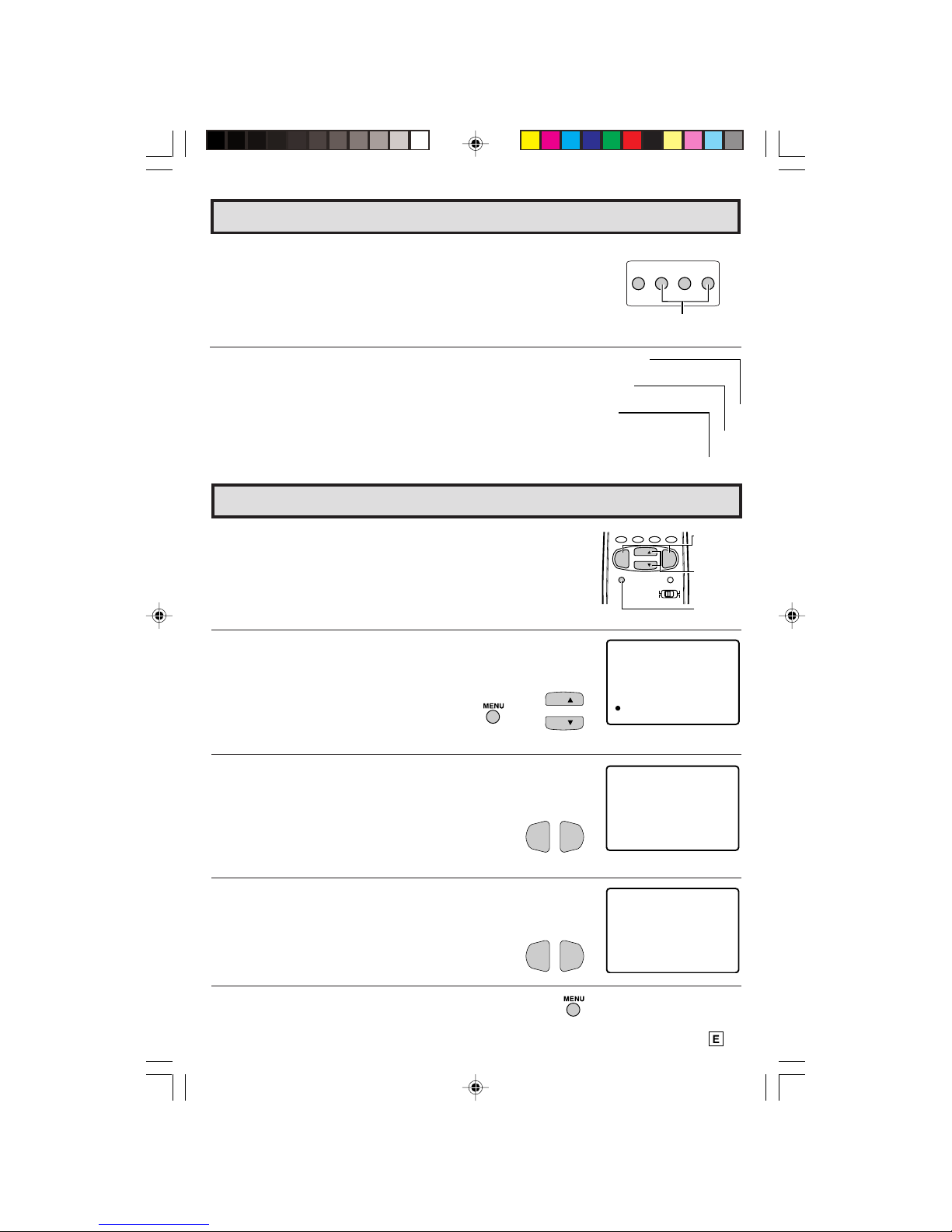

Demo Mode
• To quickly learn more about the TV set, press and hold for more than
three seconds MENU or both CH UP (
88
88
8 ) and DOWN (
99
99
9 ) on the TV
set. The TV set will go into DEMO mode and briefly explain the various
features.
• To cancel DEMO mode, again press MENU or both CH UP (
88
88
8 ) and
DOWN (
99
99
9 ) on the TV set.
Example:
DEMO mode display
Accessing the MAIN MENU screen without Remote Control
• If you misplaced your Remote Control you can still access most settings
via the MAIN MENU screen when you press MENU or both CH UP
(
88
88
8 ) and DOWN (
99
99
9 ) on the TV set.
• Some features of your TV set will not be accessible without the Remote
Control. If you lost your Remote Control, contact a Sharp Service
Center for a replacement.
(On the Set)
S i e m p r e
S i e m p r e
M e j o r,
Sha r p
? CH >
MENU
or
MENU
button CHANNEL
UP ( 8 )/
DOWN( 9 )
buttons
(On the Set)
? CH >
MENU
or
MENU
button CHANNEL
UP ( 8 )/
DOWN( 9 )
buttons
09-14 26SL72/29SL82[E].p6.5e 14/5/01, 11:58 AM9

10

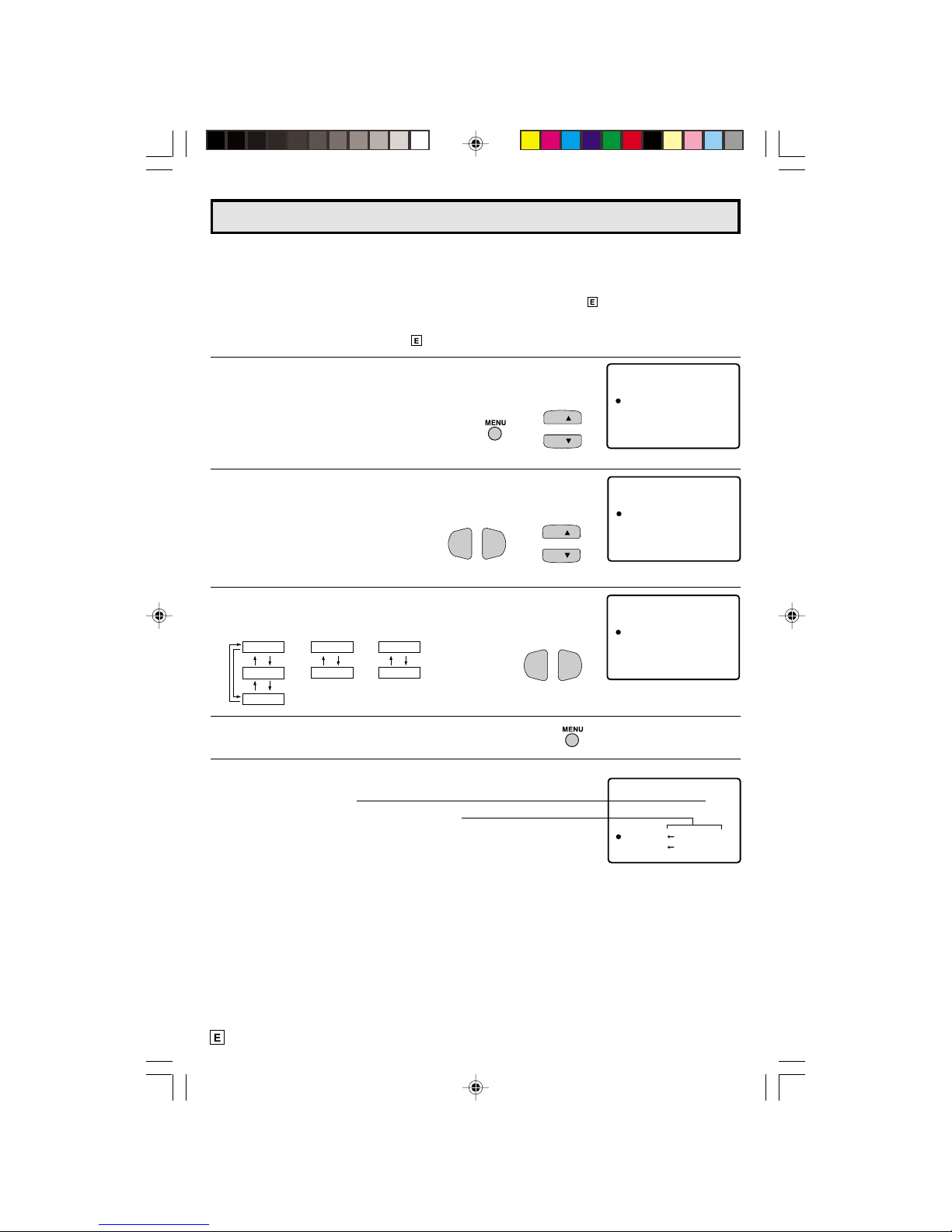

LThe language for the ON SCREEN DISPLAY can be set to ENGLISH, SPANISH or FRENCH.
LSetting the ON SCREEN DISPLAY Language.
1Press MENU to access the MAIN MENU screen.
2Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to “SET UP”.
3Press VOL (+) or (–) to access SET UP mode, then press CH UP ( 8 )
or DOWN ( 9 ) to move the “a”mark to “LANGUAGE”.
4Press VOL (+) or (–) to access LANGUAGE change mode.
5Press CH UP ( 8 ) or DOWN ( 9 ) to select “ENGLISH”, “SPANISH
(ESPAÑOL)”or “FRENCH (FRANÇAIS)”.
6Press MENU to exit.
Sleep Timer
LYou can preset your Television to turn off automatically in increments of 30, 60, 90 or 120
minutes.
1Press MENU to access the MAIN MENU screen.
2Press VOL (+) or (–) to access sleep timer mode.
3Press VOL (+) or (–) to set a sleep time of 30, 60, 90 or 120 minutes.
4Press MENU to exit.
Note:
•To turn off the Sleep Timer, repeat the above SLEEP TIMER steps and select“– ––REMAIN”during
step 3.
•While SLEEP TIMER is active, the time remaining will be briefly displayed on-screen at regular
intervals or when the remote’s Display key is pressed.
Language
(MAIN MENU screen)
(TIMER SET mode)
(LANGUAGE change mode)
(MAIN MENU screen)
→
→
(SET UP mode)
→
TI ERM
VIDEO ADJUST
ELECTAUDIO S
SET UP
CAPT IONCLOSED CONTROLPARENT
ENERGY SAVE
SEPE
L
TI ERM
VIDEO ADJUST
ELECTAUDIO S
SET UP
CAPT IONCLOSED CONTROLPARENT
ENERGY SAVE
SEP
E
L
TI ERM
VIDEO ADJUST
ELECTAUDIO S
SET UP
CAPT IONCLOSED CONTROLPARENT
ENERGY SAVE
SEPE
L
FR NCA IS
ENGL I SH
ESPAÑOL
LANGUAGE
A
FR NCAIS
ENGL I SH
ESPAÑOL
IDIOMA
A
SL EP TIMERE120 RE AIMN
BL E SCREENU
PE SONAL PREF .R
UN VERSAL PLUSI
LANGUAGE
INGCH SETT
CH
CH
VOL
—VOL +
CH
CH
VOL
—VOL +
CH
CH
VOL
—VOL +
VOL
—VOL +
09-14 26SL72/29SL82[E].p6.5e 4/25/01, 11:51 AM10

11
Description of Adjustment Items

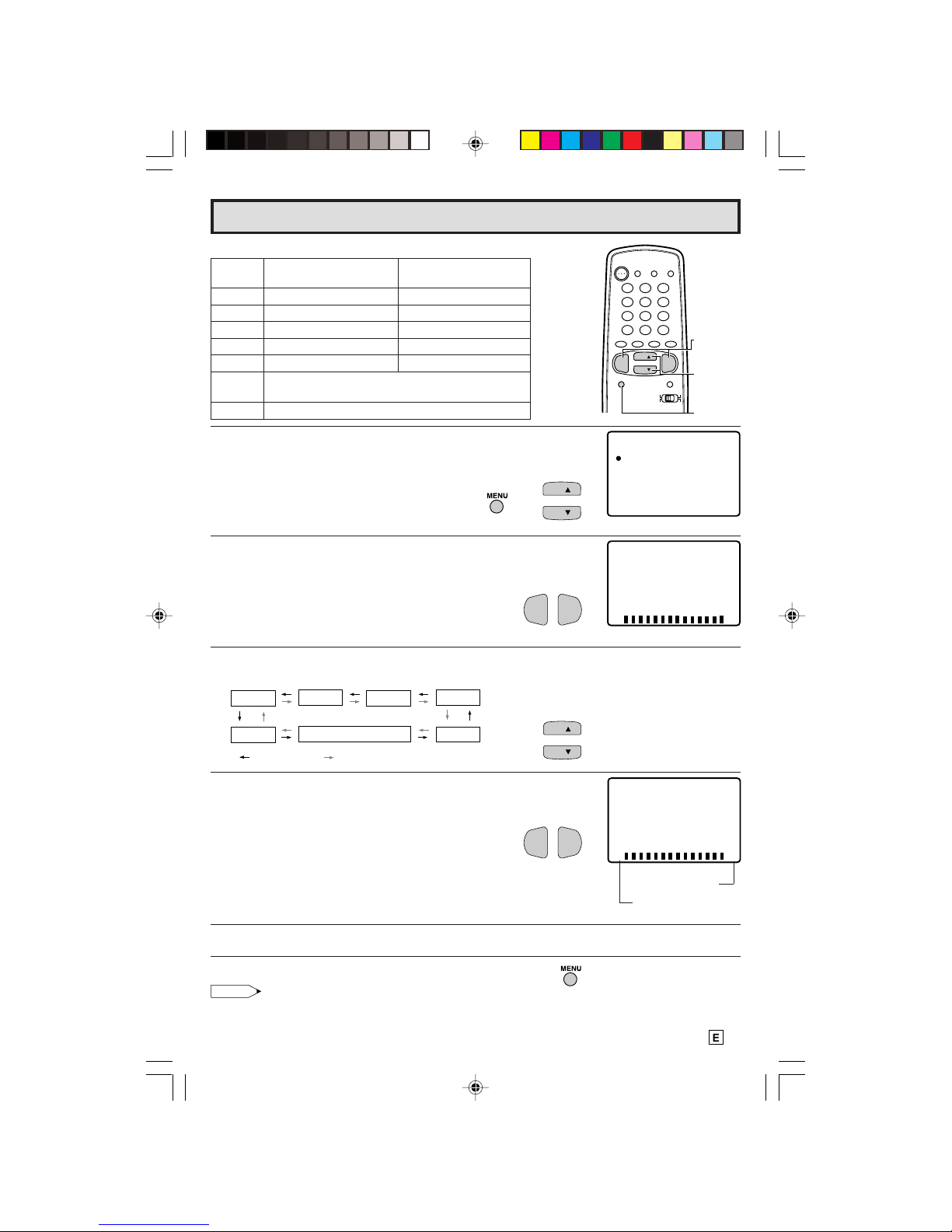

1Press MENU to access the MAIN MENU screen.
2Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a” mark to “VIDEO
ADJUST”.
3Press VOL (+) or (–) to access PICTURE adjust mode.
4Press CH UP ( 8 ) or DOWN ( 9 ) to select the desired mode.
(Refer to the diagram below.)
5Press VOL (+) or (–) to adjust the setting.
6Repeat steps 4to 5to adjust other settings.
7Press MENU to exit.
Note:
• VIDEO ADJUST setting is available for AIR or CABLE/INPUT 1/INPUT 2 and COMPONENT
respectively.
(PICTURE adjust mode)
→
VOL UP (+)
increase contrast
VOL DOWN (–)
decrease contrast
(MAIN MENU screen)
Video Adjust
VOLUME
(+)/(–)
CHANNEL
UP (8)/
DOWN (9)
MENU
PICTURE TINT COLOR
SHARP
COLOR TEMP
RESET
: CH DOWN (9)
: CH UP (8)
BRIGHT
ICTUR
E
–+
P50
ICTUR
E
–+
P50
TI ERM
VIDEO ADJUST
ELECTAUD I O S
SET UP
CAPT I ONCLOSED
CONTROLPARENT
ENERGY SAVE
SEPE
L
Selected VOL UP (+) button VOL DOWN (–) button
item
PICTURE To increase contrast To decrease contrast
TINT To make skin tones greenish To make skin tones purplish
COLOR To increase color intensity To decrease color intensity
BRIGHT To increase brightness To decrease brightness
SHARP To increase sharpness To decrease sharpness
COLOR To choose a LOW, ML, MH or HIGH COLOR TONE.
TEMP.
RESET To return all adjustments to factory preset levels.
1 2 3
4 5 6
7 8 9
0 100
POWER
TV
MENU MUTE
FLASHBACK
DISPLAY INPUT
VOL
—
CH
CH
VOL
+
ENTER
A B C D
PERSONAL PREFERENCE
DVD
VCR
CATV TV
DVD VCR
VOL
—
VOL
+
CH
CH
CH
CH
VOL
—
VOL
+
09-14 26SL72/29SL82[E].p6.5e 16/5/01, 8:59 AM11

12
SL EP TIMERE
VIDEO ADJUST
ELECTAUDIO S
SET UP
CAPT IONCLOSED CONTROLPARENT
ENERGY SAVE
VOL
—VOL +
CH
CH
SELECT
:SAPMTS
AUDIO
:OFFFAO :ONSPEAKER
SELECT
:STEREOMTS
AUDIO
:ONF FAO :OFSPEAKER
MTS
STEREO
SAP
MONO
SPEAKER
ON
OFF
FAO
ON
OFF
CH
CH
VOL
—VOL +
LMTS (MultichannelTV Sound)
This circuit allows reception of stereo or bilingual TV sound.
LINTERNAL SPEAKER SWITCH
This function turns the TV’s internal speakers “ON”or “OFF”when listening to sound from
external speakers by using the AUDIO OUTPUT JACKS on page 26.
LFAO (Fixed Audio Output)
This function turns the TV’s internal speakers “OFF”and allows fixed audio output from the
AUDIO OUTPUT JACKS on page 26.With FAO, theTV’s volume control is disabled.
1Press MENU to access the MAIN MENU screen.
2Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to “AUDIO
SELECT”.
3Press VOL (+) or (–) to access AUDIO SELECT mode.
4Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to “MTS”,
“SPEAKER”or “FAO”.
5Press VOL (+) or (–) to select “STEREO”,“SAP”or“MONO”when
the “a”mark is at “MTS”position.
6Press MENU to exit.
Ex: Actual screen indicating ON AIR when receiving STEREO broadcasts
Actual channel number
“←ON AIR”will appear next to STEREO or
SAP when receiving STEREO or SAP
broadcasts.
Audio Select
(MAIN MENU screen)
→
(AUDIO SELECT mode)
→
(AUDIO SELECT mode)
MO O
S
SAE P
NIR
12
REO ON A
TIRON A
(CHANNEL call on screen)
09-14 26SL72/29SL82[E].p6.5e 4/25/01, 11:51 AM12

13
LYou can enjoy Hi-Fi stereo sound or SAP broadcasts where available.
•Stereo broadcasts
Livetelevisiontransmissionof sports, shows,concerts, etc.can be receivedindynamic stereo sound.
•SAP broadcasts
Television broadcast can be received with either MAIN or SAP sound.
MAIN sound:The normal program soundtrack.(Monaural or stereo where available.)
SAP sound: Second language, supplementary commentaries, etc.(SAP sound is monaural.)
LIf stereo sound is difficult to hear.
•You can obtain clearer sound by manually switching to the fixed monaural mode.
Note:
•Once MONO mode is selected, theTV sound remains monaural even if the TV set receives a stereo
broadcast.You must switch the mode back to STEREO if you want to hear stereo sound again.
•Selecting MTS while in the INPUT mode does not change the type of sound; in this case, sound is
determined by the video source.
•If the “FAO”mode is selected “ON”, the “SPEAKER”mode will automatically turn “OFF”.
“SPEAKER”selecting will not affect “FAO”mode.
Audio Select (Continued)
09-14 26SL72/29SL82[E].p6.5e 4/25/01, 11:51 AM13

14
CAPT IONCLOSED
MODE : CAP
DATA :CH 1
TION
CAPT IONCLOSED
MODE : CAP
DATA :CH 1
TION
CAPT IONCLOSED
MODE : CAP
DATA :CH 1
TION
CAPTION
TEXT
OFF
CH 1
CH 2
→
TI ERM
VIDEO ADJUST
ELECTAUDIO S
SET UP
CAPT IONCLOSED CONTROLPARENT
ENERGY SAVE
SEPE
L
PERSONAL PREFERENCE
MENU MUTE
CATV TV
DVD VCR
VOL
—
CH
CH
VOL
+
ABCD
VOL
—VOL +
CH
CH
CH
CH
VOL
—VOL +
LHOWTO SET CLOSED CAPTION
•YourTV is equippedwith an internal Closed Captiondecoder.“Closed
Caption”isa systemwhich allowsyoutoview conversations, narration,
and sound effects inTV programs and home videos as subscript on
yourTV screen as shown on the right.
•Not all the programs and videos will offer closed caption.Please look
for the “ ” symbol to ensure that captions will be shown.
•Closed Caption broadcast can be viewed in two modes: CAPTION
andTEXT.Foreachmode,twochannels are available, CH1 andCH2:
The [CAPTION] mode subscripts dialogues and commentaries of TV
dramas and news programs while allowing clear view of the picture.
The [TEXT] mode displays over the picture other various information
(such as TV program schedule, weather forecast, etc.) that is
independent of the TV programs.
1Press MENU to access the MAIN MENU screen.
2Press CH UP ( 8 ) or DOWN ( 9 ) tomove the“a”mark to“CLOSED
CAPTION”.
3Press VOL (+) or (–) to access CLOSED CAPTION setting mode.
4Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to either
“MODE”or “DATA”.
5Press VOL (+) or (–) to change the CLOSED CAPTION setting.
6Press MENU to exit.
Note:
•If a broadcast has CLOSED CAPTION and the MUTE button is pressed, the set enters [CAPTION]
mode automatically. Pressing MUTE again will return the set to its previous condition.
•Closed Caption may malfunction (white blocks, strange characters, etc.) if signal conditions are poor
or if there are problems at the broadcast source. This does not necessarily indicate a problem with
your TV.
•If any button is pressed to call up the ON SCREEN DISPLAY while viewing a CLOSED CAPTION
broadcast, the closed captions will disappear momentarily.
•When viewing inTEXT mode, if noTEXT broadcast is being received, for some programs the screen
may become dark and blank.Should this occur, set the Closed Caption mode to “OFF”.
Closed Caption
VOLUME
(+)/(–)
CHANNEL
UP (8)/
DOWN (9)
MENU
(MAIN MENU screen)
(CLOSED CAPTION setting mode)
MODE : DATA :
09-14 26SL72/29SL82[E].p6.5e 4/25/01, 11:51 AM14

15
(MAIN MENU screen)
(PARENT CONTROL mode)
VEWT
––H
IIMER
––M
OFF
STATU
VEWINGITIME
TIME
––H ––M
S:OFF
TI ERM
VIDEO ADJUST
ELECTAUD I O S
SET UP
CAPT I ONCLOSED
CONTROLPARENT
ENERGY SAVE
SLEEP
TIMER
VIE
W
PARENT CONTROL
VI W TIMER
ST TAUS
E
VI
W ITIME
:OFF
EGN
––––H
––––H
OFF TIME
M
M
→
→
VOL
—
VOL
+
CH
CH
VOL
—
VOL
+
CH
CH
→
VOL
—
VOL
+
CH
CH
→
VOL
—
VOL
+
CH
CH
VEWT
2H
IIMER
00M
OFF
STATU
VEWINGITIME
TIME
––H––M
S:OFF
VEWT
2H
IIMER
00M
OFF
STATU
VEWINGITIME
TIME
5H 00M
S:ON
– – –
–
NI PUT SECRET No .
Parent Control (VIEW TIMER)
LVIEW TIMER
This function allows you to restrict TV viewing time and also allows you to control TV usage.
This function is to prevent your children from watching too much TV.
VIEWING TIME (an accumulative timer: counts only the time
duration acquired while the TV is on.)
•VIEWING TIME can be set from 30M (30 minutes) to 10H00M (10
hours) in 30 minutes intervals.
OFF TIME (Restricts TV watching after the VIEWING TIME reaches
zero.)
•OFF TIME can be set from 30M (30 minutes) to 10H00M (10 hours)
in 30 minutes intervals.
STATUS (ON/OFF setting of VIEW TIMER)
LHow to set VIEW TIMER.
1Press MENU to access the MAIN MENU screen.
2Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to “PARENT
CONTROL”.
3Press VOL (+) or (–) to access PARENT CONTROL mode.
4Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to “VIEW
TIMER”.
5Press VOL (+) or (–) to access “VIEW TIMER”.
6Press CH UP ( 8 ) or DOWN ( 9 ) to select “VIEWING TIME”and
“OFF TIME”. For each selection, press the
VOL (+) or (–) to set
the time duration.
7Press CH UP ( 8 ) or DOWN ( 9 ) to select “STATUS”. Press the
VOL (+) or (–) to turn ON the “VIEWING TIMER”. (If STATUS is
OFF, VIEW TIMER will not operate.)
8Press MENU . “INPUT SECRET No.”will be displayed.
15-20 26SL72/29SL82[E].p6.5e 14/5/01, 11:21 AM15

16
Parent Control (VIEW TIMER Continued)
→
9Enter the 4-digit SECRET No. using the REMOTE KEYPAD .
10 Press MENU , and SECRET No. is registered.
Example
• To restrict anybody from watching the TV for 5 hours, after watching
the TV for 2 hours, your settings would look like this:
• They can choose to watch the 2 hours of TV however they wish. For
example, they could watch 1 hour of TV, turn TV off for 30 minutes,
then turn TV on and watch the remaining 1 hour on the VIEWING
TIMER.
LTo change the VIEW TIMER settings. (SECRET No. is registered)
1Repeat “How to set VIEW TIMER” steps and select
“PARENT CONTROL VIEW TIMER” during step 3.
Press
VOL (+) or (–) , and “INPUT SECRET No.” will
be displayed.
2Enter the 4-digit SECRET No. using the REMOTE
KEYPAD
, and the VIEW TIMER access screen will
be displayed. Repeat step 5~6.
Note:
• When you choose the correct SECRET No., the VIEW TIMER access
screen is displayed. If the wrong SECRET No. is chosen, “SECRET
No. IS INCORRECT” is displayed. Input the SECRET No. again in
this case.
LTo cancel the VIEW TIMER (While the TV set is OFF but the VIEW
TIMER is set)
1Turn on TV; a blue screen message “TIME OVER” will appear. If
you do nothing, the TV will turn off in approximately 30 seconds.
2Enter the 4-digit SECRET No. using the REMOTE
KEYPAD
. When you choose the correct SECRET No.,
the VIEW TIMER is canceled. If the wrong SECRET
No. is chosen, “SECRET No. IS INCORRECT” is
displayed. Input the SECRET No. again in this case.
LTo cancel the VIEW TIMER setting or change the SECRET No.
(When you forget the SECRET No.)
1Repeat “How to set VIEW TIMER” steps and select
“PARENT CONTROL VIEW TIMER” during step 3.
Press
VOL (+) or (–) , and “INPUT SECRET No.” will
be displayed.
VEWT
2H
IIMER
00M
OFF
STATU
VEWINGITIME
TIME
5H 00M
S:ON
1 2 3
4 5 6
7 8 9
0 100
ENTER
1 2 3
4 5 6
7 8 9
0 100
ENTER
1 2 3
4 5 6
7 8 9
0 100
ENTER
– – –
–
NI PUT SECRET No .
VOL
—
VOL
+
VOL
—
VOL
+
2 3 4
1
NI PUT SECRET No .
– – –
–
NI PUT SECRET No .
I PUT ESN CRET No .
****
RRECT
INC
O
S ECRET No . I S
TMEO
–
I VER
I PUT ESN CRET No .
–––
TMEOI VER
I PUT ESN CRET No .
****
15-20 26SL72/29SL82[E].p6.5e 9/5/01, 9:59 AM16

17
Parent Control (VIEW TIMER Continued)
2Press and hold both VOL (+) and CH UP ( 8 ) on the TV set
simultaneously until the VIEW TIMER access screen is displayed.
Now you can cancel the VIEW TIMER settings or change the
SECRET No. while “INPUT SECRET No.”is displayed.
LNotice of Remaining VIEWING TIME
•For every 30 minute interval, the “remaining time”will be displayed for
4 seconds. For the last 5 minutes, the “remaining time”will be displayed
every minute.
•“0 REMAIN”will be displayed for 10 seconds just before the VIEWING
TIME is complete.
–VOL +? CH >
REMAIN
30M
VIEWING TIME
0H
REMAIN
05M
VIEWING TIME
0H
REMAIN
0
VIEWING TIME
Energy Save
LThis feature lets you lower the power consumption of your TV
set which in turn saves you money and minimizes the impact on
the environment. When this feature is turned on, it reduces the
brightness of the TV to a level that consumes approximately 20
percent less energy than when the feature is turned off.
The reduction in brightness will be less noticeable under low
room lighting conditions.
1Press MENU to access the MAIN MENU screen.
2Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to “ENERGY
SAVE”.
3Press VOL (+) or (–) to access ENERGY SAVE select mode.
4Press VOL (+) or (–) to select “ON”.
5Press MENU to exit.
VOLUME
(+)/(–)
CHANNEL
UP (8)/
DOWN (9)
MENU
(MAIN MENU screen)
(ENERGY SAVE select mode)
→
VOL
—
VOL
+
VOL
—
VOL
+
CH
CH
(On the Set)
VOL (+)/CHANNEL
UP ( 8 ) buttons
PERSONAL PREFERENCE
MENU MUTE
CATV TV
DVD VCR
VOL
—
CH
CH
VOL
+
ABCD
:ON
EN REGYSAVE
:OFF
EN REGYSAVE
TI ERM
VIDEO ADJUST
ELECTAUD I O S
SET UP
CAPT I ONCLOSED
CONTROLPARENT
ENERGY SAVE
SLEEP
15-20 26SL72/29SL82[E].p6.5e 9/5/01, 9:59 AM17

18
LEZ SETUP
By operating the channel preset functions, you can preset your
TV to the desired channels for viewing.
1Press MENU to access the MAIN MENU screen.
2Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to “SET
UP”.
3Press VOL (+) or (–) to access SET UP mode, then press CH UP
(
8 ) or DOWN ( 9 ) to move the “a”mark to “CH SETTING”.
4Press VOL (+) or (–) to access CH SETTING mode.
5Press VOL (+) or (–) to access EZ SETUP mode.
6Press VOL (+) .
The tuner will automatically search for the
broadcastingandcableTV channels.(The CH No.
will automatically increase when it appears.)
If you want to stop the EZ SETUP process once it
has started, press
VOL (–) . Search will be
canceled.
To cancel EZ SETUP
Press
VOL (–) .
7Once EZ SETUP is completed, the lowest channel number
memorized will be displayed.
Set Up
(MAIN MENU screen)
→
VOLUME
(+)/(–)
CHANNEL
UP (8)/
DOWN (9)
MENU
REMOTE
KEYPAD
(EZ SETUP mode)
(CH SETTING mode)
(SET UP mode)
→
2
BL E SCREENU
LANGUAGE
INGCH SETT
PE SONAL PREF .R
UN VERSAL PLUSI
AI /CABLER
EZ SETUP
CH SEARCH
CH MEMORY
AU
18
TO RGGAMM I NORP
WA I TPLE EAS
VOL–
TSOP:
OR CABLE .
TSART SETUP?ZE
ANTENNCONNECT A
YE :VOL+
VOL–
S
NO :
1 2 3
4 5 6
7 8 9
0 100
MENU MUTE
FLASHBACK
A B C D
ENTER
PERSONAL PREFERENCE
VOL
—VOL +
CH
CH
TI ERM
VIDEO ADJUST
ELECTAUDIO S
SET UP
CAPT IONCLOSED CONTROLPARENT
ENERGY SAVE
SLEEP
VOL
—VOL +
CH
CH
CH
CH
VOL
—VOL +
VOL
—VOL +
VOL
+
15-20 26SL72/29SL82[E].p6.5e 4/25/01, 12:04 PM18

19
Set Up (Continued)
LCHANNEL SETTING
If EZ SETUP does not memorize all the channels in your region, follow the instructions below
to manually memorize the channel.
1Press MENU to access the MAIN MENU screen.
2Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to “SET
UP”.
3Press VOL (+) or (–) to access SET UP mode.
4Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to “CH
SETTING”.
5Press VOL (+) or (–) to access CH SETTING mode.
6Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to “AIR/
CABLE”, then press
VOL (+) or (–) to access AIR/CABLE mode.
7Press CH UP ( 8 ) or DOWN ( 9 ) to move the “a”mark to the
desired mode.
A
8Press MENU to exit.
Note:
•Receivable channels of your TV set are:
AIR channels: CABLE channels:
VHF: 2 through 13. 1 (HRC and IRC mode only)
UHF: 14 through 69. 2 through 125 (STD, HRC and IRC)
(MAIN MENU screen)
(CH SETTING mode)
(SET UP mode)
(AIR/CABLE mode)
→
→
→
LA
BL E NSCREE
NGUAGE
U
CH SETT I NG
PE SONAL PREF .R
UN VERSAL PLUSI
AI /CABLER
EZ SETUP
CH SEARCH
CH MEMORY
AI
ABLE STD
R
AI /CABLER
CABLE HRCCABLE IRCC
AIR CABLE STD CABLE HRC CABLE IRC
H SEARCH
EZ SETUP
AI /CABLER
CHMEMORYC
TI ERM
VIDEO ADJUST
ELECTAUDIO S
SET UP
CAPT IONCLOSED CONTROLPARENT
ENERGY SAVE
SLEEP
VOL
—VOL +
CH
CH
CH
CH
VOL
—VOL +
VOL
—VOL +
CH
CH
CH
CH
15-20 26SL72/29SL82[E].p6.5e 4/25/01, 12:04 PM19

20
(CH SETTING mode)
(CH SETTING mode)
(CH SEARCH mode)
AI /CABLER
EZ SETUP
CH SEARCH
CH MEMORY
2
AR +T:
TO –P:
AIR
CH SEARCH
ST
S
1
AI /CABLER
EZ SETUP
CH SEARCH
CH MEMORY
LSaving broadcastTV channels into memory.
1.1 Press MENU to access the MAIN MENU
screen, then press
CH UP ( 8 ) or DOWN
(
9 ) to move the “a”mark to “SET UP”.
1.2 Press VOL (+) or (–) to access SET UP
mode, then press
CH UP ( 8 ) or DOWN
(
9 ) to move the “a”mark to “CH
SETTING”.
1.3 Press VOL (+) or (–) to access CH
SETTING screen.
1.4 Press CH UP ( 8 ) or DOWN ( 9 ) to move
the“a”mark to“CH SEARCH”, then press
VOL (+) or (–) to access CH SEARCH
screen.
START
2.1 Press VOL (+) . The tuner will search
through all available channels in your area
and add them into the TV’s memory.
STOP
2.2 Press VOL (–) . CH SEARCH will stop at
the current channel and will not add any
higher channels.
2.3 Press MENU to exit.
Note:
•If you press VOL (+) again while in the CH SEARCH mode, auto-
program will start again, and the previously memorized channels will
be lost.
LAdding weak or additional channels or erasing unwanted channels fromTV memory.
1.1 Press MENU to access the MAIN MENU
screen, then press
CH UP ( 8 ) or DOWN
(
9 ) to move the “a”mark to “SET UP”.
1.2 Press VOL (+) or (–) to access SET UP
mode, then press
CH UP ( 8 ) or DOWN
(
9 ) to move the “a”mark to “CH
SETTING”.
1.3 Press VOL (+) or (–) to access CH
SETTING mode, then press
CH UP ( 8 ) or
DOWN ( 9 ) to move the “a”mark to “CH
MEMORY”.
2.1 Press VOL (+) or (–) to access CH
MEMORY.
2.2 Use CH UP ( 8 ) or DOWN ( 9 ) or REMOTE
KEYPAD
to select each desired channel
to add or erase.
2.3 Press VOL (+) toaddachannel to theTV’s
memory or press
VOL (–) to erase a
channel from the TV’s memory.
→
(START)
(STOP)
or
→
→
→
→
→
1 2 3
4 5 6
7 8 9
0 100
ENTER
CH
CH
CH
CH
VOL
—VOL +
VOL
—VOL +
VOL
—VOL +
CH
CH
VOL
+
VOL
—
CH
CH
CH
CH
CH
CH
VOL
—VOL +
VOL
—VOL +
VOL
—VOL +
CH
CH
VOL
—VOL +
Set Up (Continued)
15-20 26SL72/29SL82[E].p6.5e 4/25/01, 12:04 PM20
