LC-13S1H
LC-15S1H
LC-20S1H
LCD COLOUR TELEVISION
OPERATION MANUAL
ENGLISH
CONTENTS
Page
DEAR SHARP CUSTOMER ................................ 2
IMPORTANT SAFETY PRECAUTIONS ......... 2, 3
SUPPLIED ACCESSORIES ................................ 4
PREPARATION ........................................... 5, 6, 7
Preparing and Using the Remote Control .. 5
Batteries for Remote Control ....................... 5
Removing the Terminal Cover ..................... 6
Bundling Cables with Clamp ........................ 6
Power Connection ......................................... 7
Antenna Connection ...................................... 7

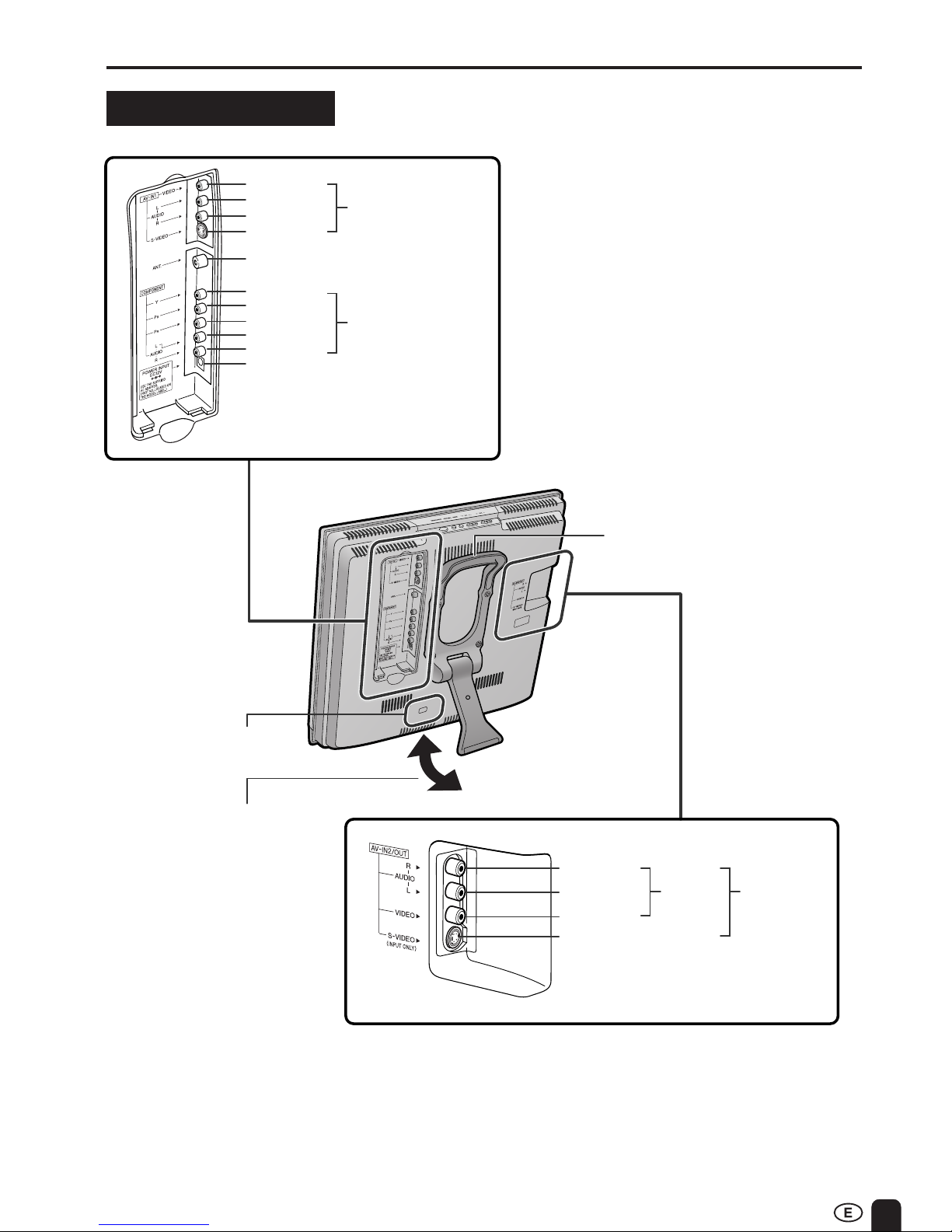

LOCATION OF USERS CONTROL ......... 8, 9, 10
BASIC OPERATION ....................... 11, 12, 13, 14

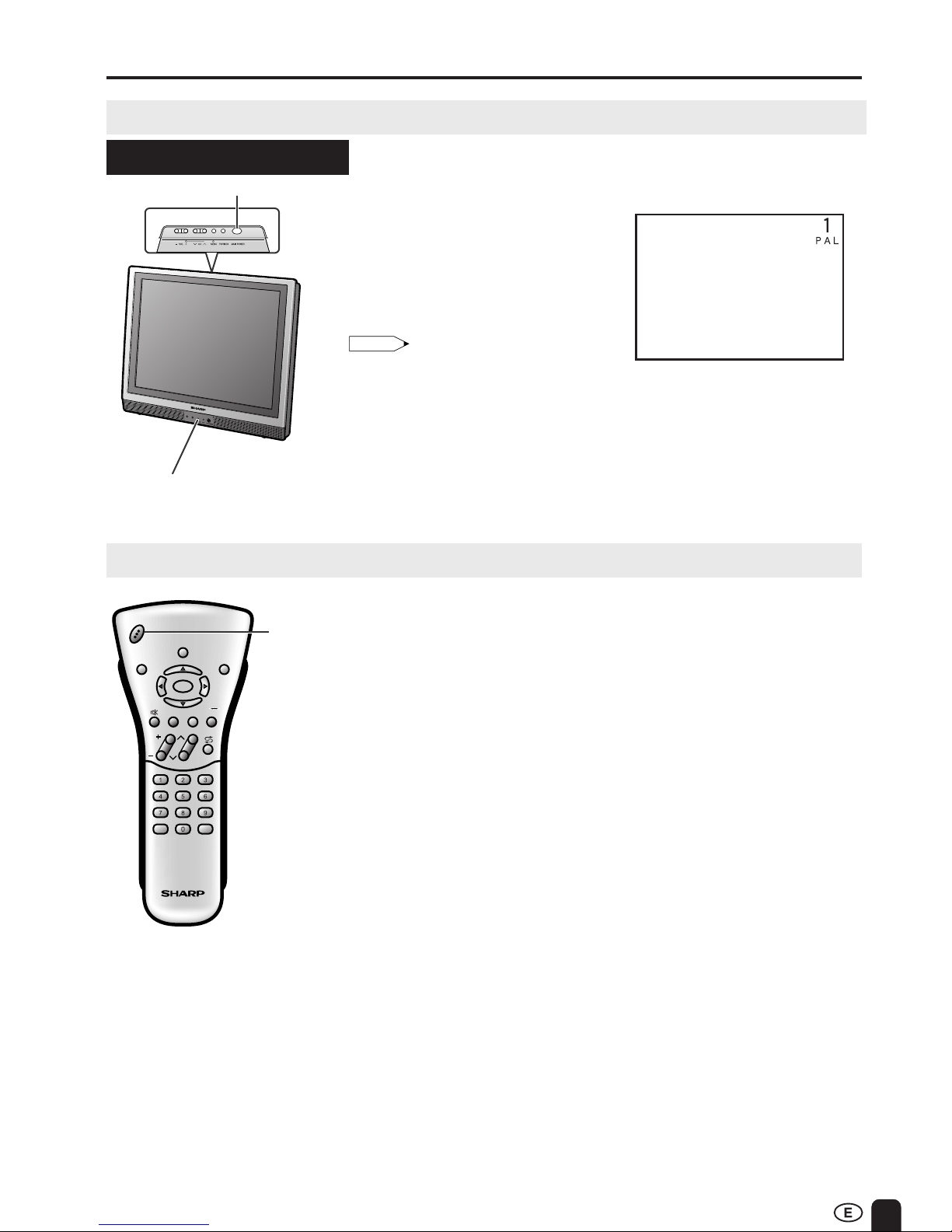

Turning on POWER...................................... 11
Standby ......................................................... 11
Switching TV/VIDEO AV1/AV2/
COMPONENT/TV Mode ............................. 12

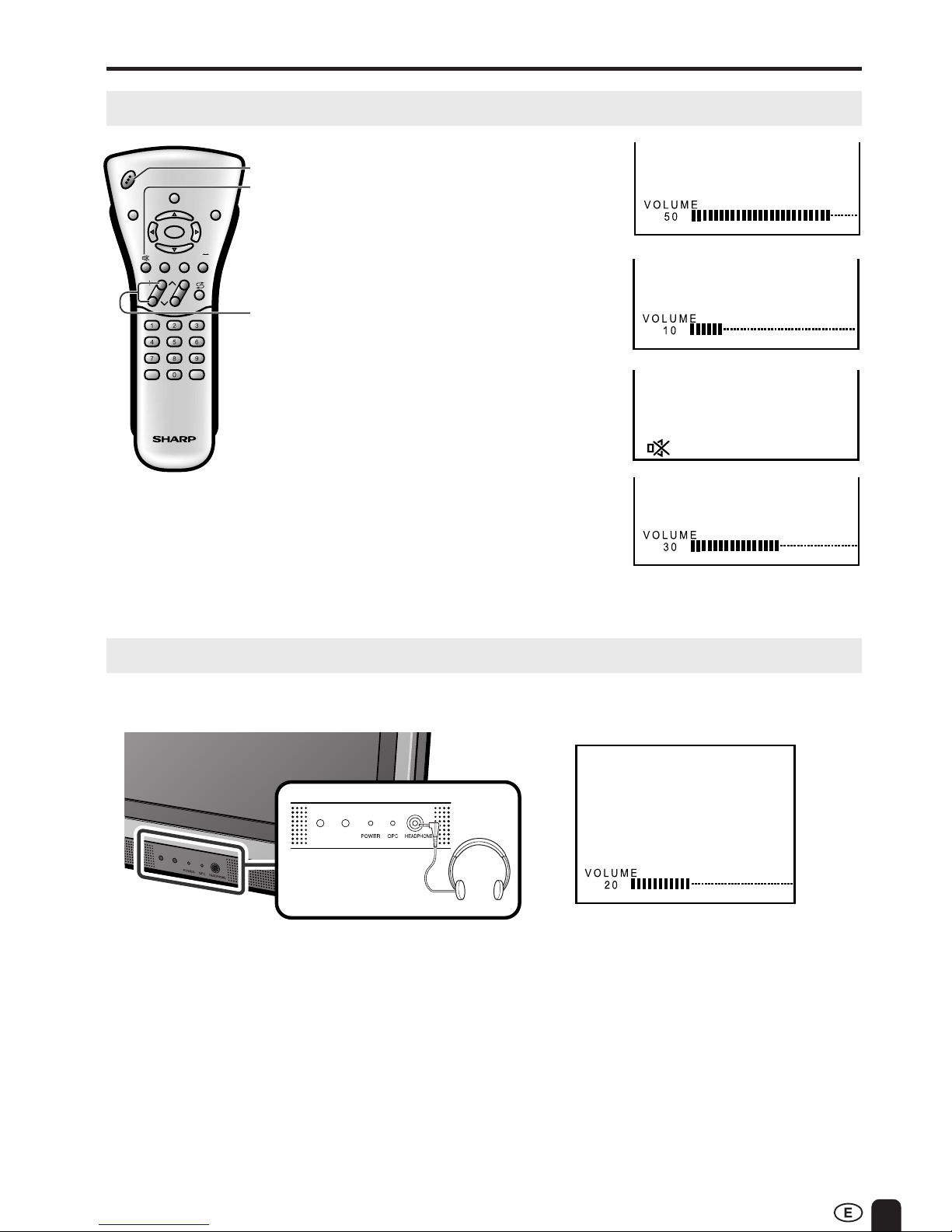

Sound Volume .............................................. 13
Listening with Headphones ........................ 13
Changing the Channels ............................... 14
SELECTING THE MENU ITEMS ....................... 15

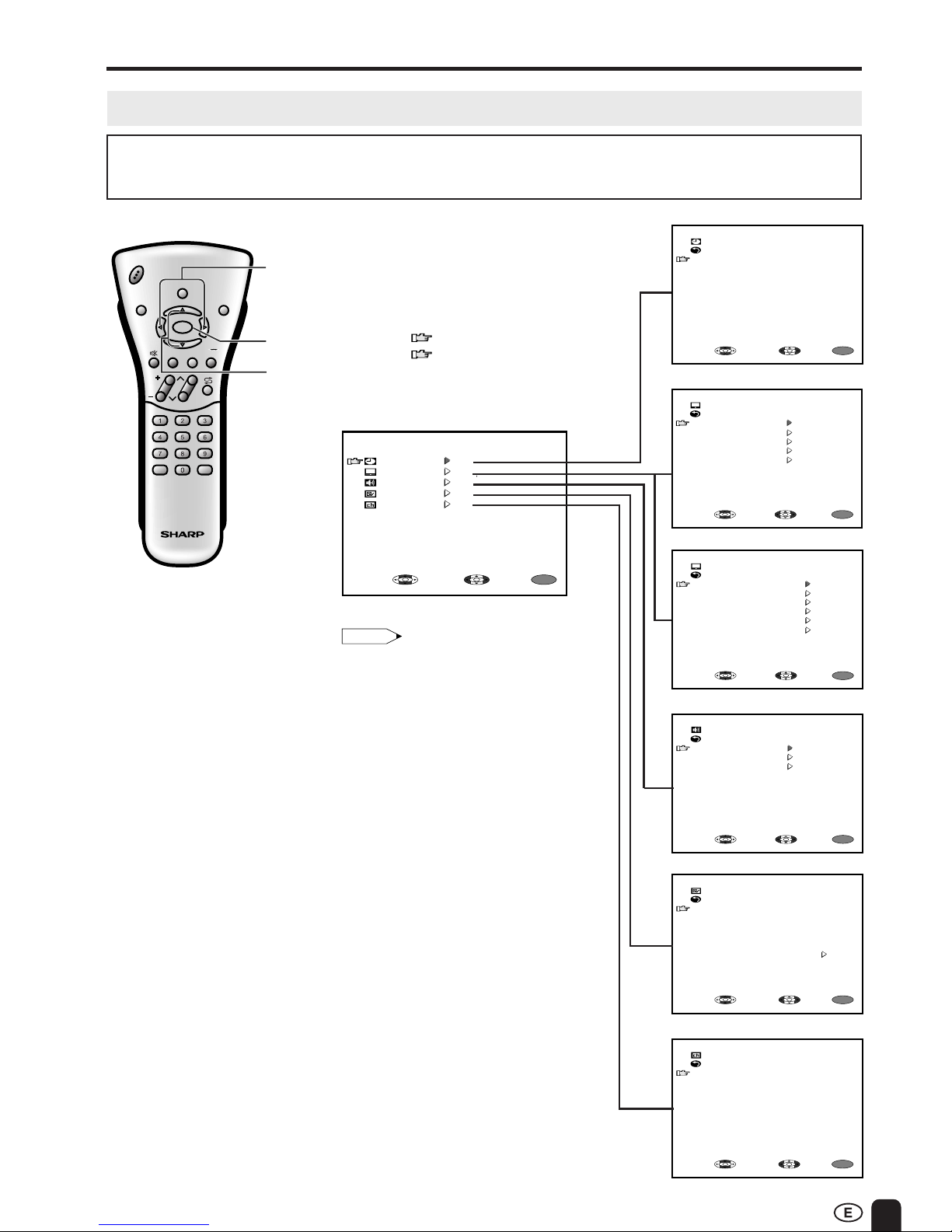

Selecting a Menu Item ................................. 15
Page
PRESET ........................................... 16, 17, 18, 19

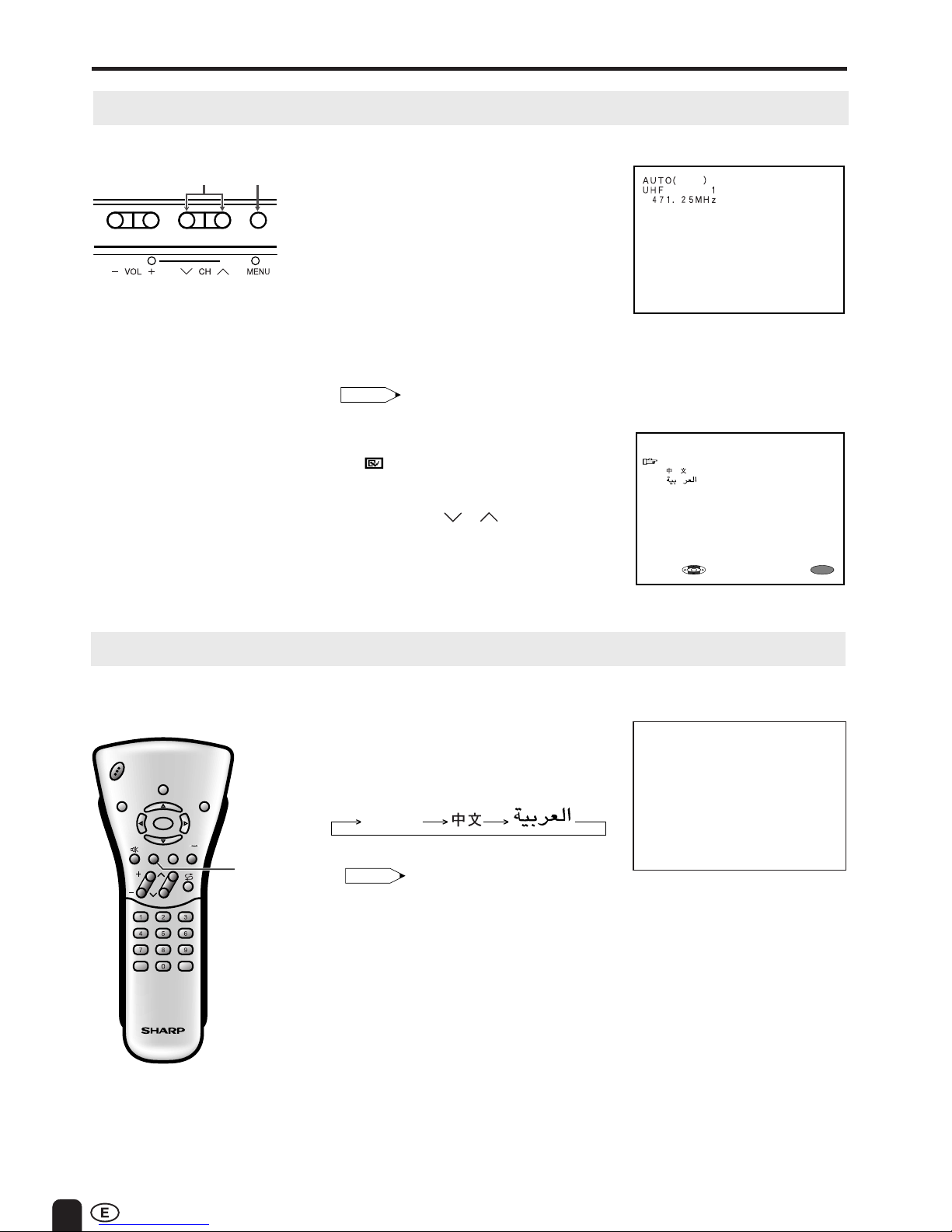

On-Screen Display Language Selection ... 16
Adjusting the LANGUAGE Settings ........... 16

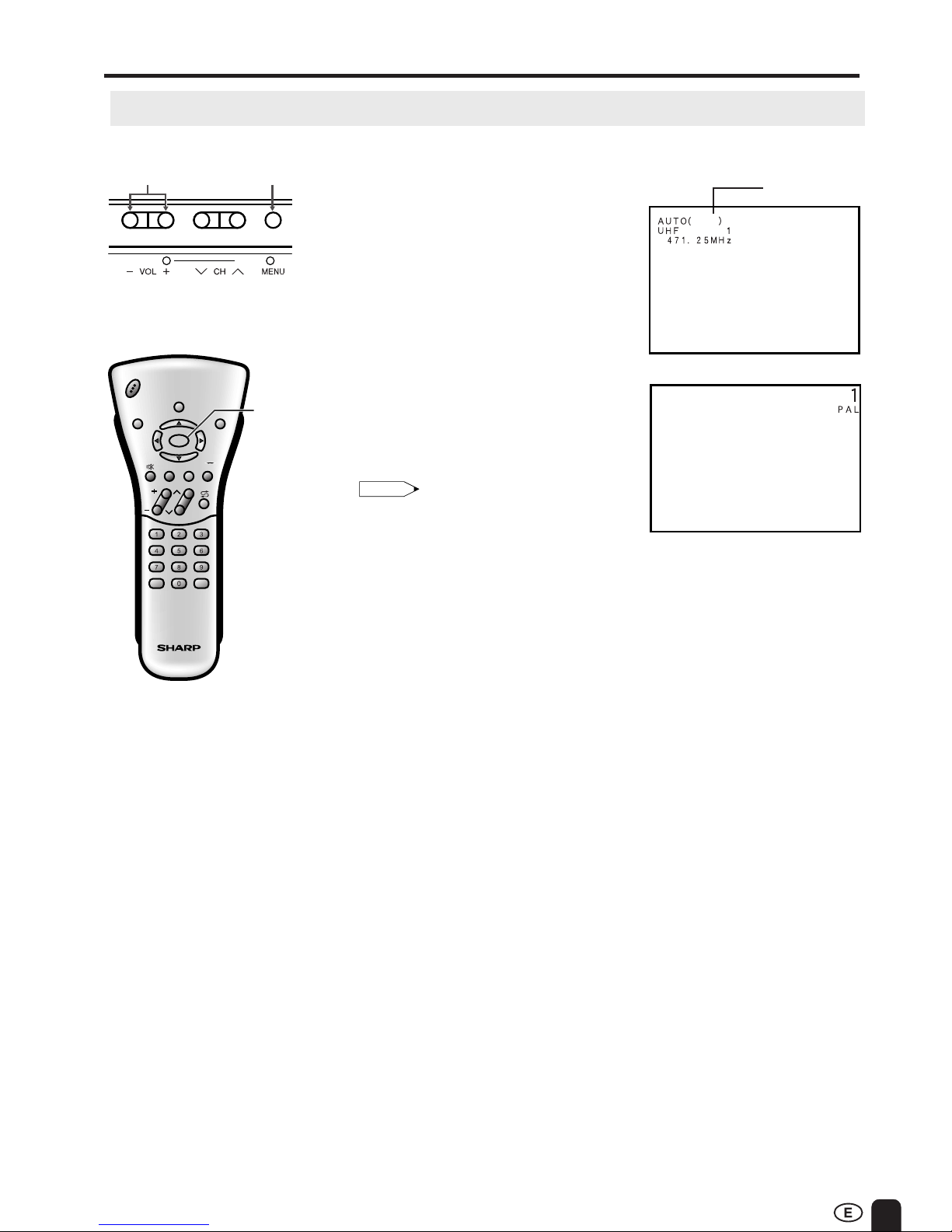

Presetting the Channels (AUTO) ................ 17
Presetting the Channels (MANUAL) .......... 18
Channel Setting ............................................ 19
ADJUSTMENT ............. 20, 21, 22, 23, 24, 25, 26
Adjusting the SLEEP TIMER Setting ......... 20
Adjusting the PICTURE Settings ............... 21
Adjusting the SOUND Settings .................. 22
Adjusting the FEATURE Settings ....... 23, 24
Adjusting the BRIGHTNESS Settings........ 25
Adjusting the DISPLAY MODE Settings .... 26
NICAM BROADCASTS SELECTION ............... 27
A2 STEREO BROADCASTS................................. 28
CONNECTING WITH EXTERNAL
DEVICES ............................................. 29, 30, 31
TROUBLESHOOTING ................................ 32, 33
SPECIFICATIONS.............................................. 34
DIMENSIONAL DRAWINGS ................ 35, 36, 37
ENGLISH

2
DEAR SHARP CUSTOMER
Thank you for your purchase of the Sharp LCD Colour TV product. To ensure safety
and many years of trouble-free operation of your product, please read the IMPORTANT
SAFETY PRECAUTIONS carefully before using this product.
IMPORTANT SAFETY PRECAUTIONS
Electricity is used to perform many useful functions, but it can also cause personal injuries and
property damage if improperly handled. This product has been engineered and manufactured with the
highest priority on safety. However, improper use can result in electric shock and/or fire. In order to
prevent potential danger, please observe the following instructions when installing, operating and
cleaning the product. To ensure your safety and prolong the service life of your LCD colour TV
product, please read the following precautions carefully before using the product.
■Read instructions—All operating instructions must be read and understood before the product is
operated.
■Keep this manual in a safe place—These safety and operating instructions must be kept in a safe
place for future reference.
■Observe warnings—All warnings on the product and in the instructions must be observed closely.
■Follow instructions—All operating instructions must be followed.
■Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate
attachments can result in accidents.
■Power source—This product must operate on a power source specified on the specification label. If
you are not sure of the type of power supply used in your home, consult your dealer or local power
company. For units designed to operate on batteries or another power source, refer to the
operating instructions.
■Power cord protection—The power cords must be routed properly to prevent people from stepping
on them or objects from resting on them. Check the cords at the plugs and product.
■Overloading—Do not overload AC outlets or extension cords.
Overloading can cause fire or electric shock.
■Entering of objects and liquids—Never insert an object into the product through vents or openings.
High voltage flows in the product, and inserting an object can cause electric shock and/or short
internal parts. For the same reason, do not spill water or liquid on the product.
■Servicing—Do not attempt to service the product yourself. Removing covers can expose you to
high voltage and other dangerous conditions. Request a qualified service person to perform
servicing.
■Repair—If any of the following conditions occurs, unplug the power cord from the AC outlet, and
request a qualified service person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper
adjustment of controls not described in the instructions can cause damage, which often re-
quires extensive adjustment work by a qualified technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable abnormality in the product
indicates that the product needs servicing.
■Replacement parts—In case the product needs replacement parts, make sure that the service
person uses replacement parts specified by the manufacturer, or those with the same characteris-
tics and performance as the original parts. Use of unauthorized parts can result in fire, electric
shock and/or other danger.
■Safety checks—Upon completion of service or repair work, request the service technician to
perform safety checks to ensure that the product is in proper operating condition.
■Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the
product according to the method recommended by the manufacturer.

3
IMPORTANT SAFETY PRECAUTIONS (Continued)
■To prevent fire or shock hazard, do not expose this product to dripping or
splashing. No objects filled with liquids, such as vases, should be placed on
the product.
■To prevent fire, never place any type of candle or naked flames on the top or
near the TV set.
■Heat sources—Keep the product away from heat sources such as radiators,
heaters, stoves and other heat-generating products (including amplifiers).
■The LCD panel used in this product is made of glass. Therefore, it can break
when the product is dropped or applied with impact. Be careful not to be
injured by broken glass pieces in case the LCD panel breaks.
■Ventilation—The vents and other openings in the cabinet are designed for
ventilation. Do not cover or block these vents and openings since insufficient
ventilation can cause overheating and/or shorten the life of the product. Do not
place the product on a bed, sofa, rug or other similar surface, since they can
block ventilation openings. This product is not designed for built-in installation; do
not place the product in an enclosed place such as a bookcase or rack, unless
proper ventilation is provided or the manufacturer’s instructions are followed.
■When relocating the product placed on a cart, it must be moved with
utmost care. Sudden stops, excessive force and uneven floor surface can
cause the product to fall from the cart.
■Stand—Do not place the product on an unstable cart, stand, tripod or
table. Placing the product on an unstable base can cause the product to
fall, resulting in serious personal injuries as well as damage to the
product. Use only a cart, stand, tripod, bracket or table recommended by
the manufacturer or sold with the product. When mounting the product on
a wall, be sure to follow the manufacturer’s instructions. Use only the
mounting hardware recommended by the manufacturer.
■Water and moisture—Do not use the product near water, such as bathtub,
washbasin, kitchen sink and laundry tub, swimming pool and in a wet
basement.
■Cleaning—Unplug the power cord from the AC outlet before cleaning the
product. Use a damp cloth to clean the product. Do not use liquid clean-
ers or aerosol cleaners.
■The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine
picture details.
Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red.
Please note that this does not affect the performance of your product.

4
ENGLISH

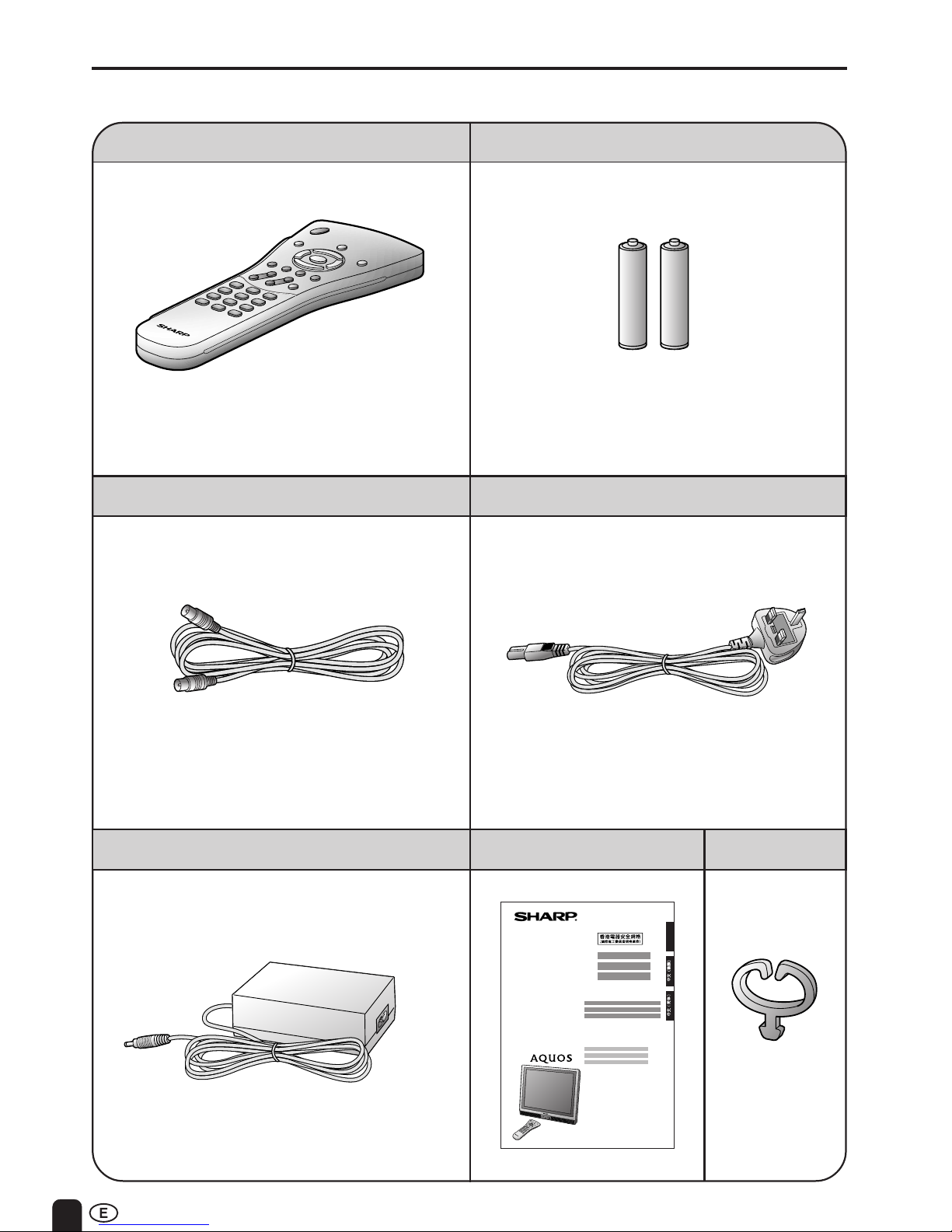

Make sure the following accessories are provided with the product.
SUPPLIED ACCESSORIES
AC Cord
Antenna Cable
“AAA”size (UM/SUM-4) Dry Battery (×2)
AC Adapter
UADP-0212CEZZ
Cable Clamp
Operation Manual
Remote Control

5
PREPARATION
Batteries for Remote Control
Before using the LCD TV set for the first time, install two (“AAA”size, UM/SUM-4) batteries (supplied).
When the batteries become depleted and the remote control fails to operate, replace the batteries with
new (“AAA”size, UM/SUM-4) batteries.
Caution!
Cautions regarding batteries
Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the
instructions below.
•Place batteries with their terminals corresponding to the (+) and (–) indications.
•Different types of batteries have different characteristics. Do not mix batteries of different types.
•Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new
batteries and/or cause old batteries to leak chemicals.
•Remove batteries as soon as they are non-operable.
Chemicals that leak from batteries can cause a rash. If chemical leakage is found, wipe with a
cloth.
•The batteries supplied with the product may have a shorter life expectancy due to storage conditions.
•If the remote control is not used for an extended period of time, remove batteries from the remote
control.
Preparing and Using the Remote Control
■Use the remote control by pointing it towards the remote
sensor window. Objects between the remote control and
sensor window may prevent proper operation.
Cautions regarding use of remote control
■Do not expose the remote control to shock.
In addition, do not expose the remote control to liquids, and
do not place in an area with high humidity.
■Do not install or place the remote control under direct
sunlight.
The heat may cause deformation of the unit.
■The remote control may not work properly if the remote sensor
window of the main unit is under direct sunlight or strong lighting. In
such case, change the angle of the lighting or LCD TV set, or
operate the remote control closer to the remote sensor window.
1Open the battery
cover.
2Insert two (“AAA”size,
UM/SUM-4) batteries.
3Close the battery
cover.
■Slide the cover while
pressing the (Y) part.
■Position the positive and
negative ends of the
batteries as indicated in the
compartment.
■Engage the claw on the
cover into the battery
housing and slide shut.
OPCPOWER
HEADPHONE
HEADPHONE jack
POWER indicator
Remote control
sensor
OPC sensor
OPC indicator

6
LC-20S1H
■Before connecting cables and cords to the rear terminals, remove
the terminal cover. Push in the tab and pull out the terminal cover
carefully.
■To mount the cover, insert the 2 hooks on the bottom of the cover
into the cabinet and press on the upper part of the terminal cover
until the tab locks in place with a click.
Removing the Terminal Cover
Bundling Cables with Clamp
•Secure cables and cords with the supplied
cable clamp so that they do not get caught
when mounting the cover.
Cable clamp
PREPARATION (Continued)
LC-13/15S1H
■Before connecting cables and cords to the rear
terminals, remove the terminal cover. Push in the 2
tabs on the right side of the terminal cover and pull it
out carefully to the left.
■To mount the cover, insert the 2 hooks on the left side
of the cover into the cabinet and press on the right part
of the cover until the tabs lock into place with a click.

7
Power Connection
Antenna Connection
Note:
•Use a commercially available AC plug adapter, if necessary, depending on the design of the wall outlet.
•Always turn the main power switch of the LCD TV set to OFF when connecting the AC adapter.
•Always unplug the AC adapter from the product and power outlet when not using for long periods of time.
PREPARATION (Continued)
•Using the supplied antenna cable, connect the room
antenna terminal to the antenna terminal on the TV set.
(Refer to the figure below.)
AC adapter
AC cord
Plug into power
outlet.
Household
power outlet
POWER INPUT terminal
(DC 12V)
Antenna cable (supplied)
Room antenna terminal
(75-ohm type)
To antenna terminal
ANT. (Antenna terminal)

8
LOCATION OF USERS CONTROL
Main unit (front view)
12°
35°
PRESET 1
2
CHVOL
MENU TV/VIDEO MAIN POWER
PRESET 12
Note:
•TV/VIDEO, CH ( )/( ), VOL (–)/(+), and MENU on the main unit have the same functions as the same buttons
on the remote control. Basically, this operation manual provides a description based on operation with the remote
control.
MAIN POWER
TV/VIDEO
MENU
CH ( )/( )
VOL (–)/(+)
LC-20S1H
Speaker
* The examples used throughout this manual are based
on the LC-20S1H model.
HEADPHONE jack
Plug the headphone mini-plug into the HEADPHONE
jack located on the front of the TV set.
The screen can be adjusted
backwards to an angle be-
tween 12 degrees and 35
degrees. The screen cannot
be set up straight. When
changing the angle, make sure
to hold the stand and adjust
the screen to the best viewable
angle.
OPC sensor
Remote control sensor
OPC indicator (Optical Picture Control)
The Optical Picture Control indicator lights up green
when the BRIGHTNESS is set to AUTO. (See page 25.)
POWER indicator
A green indicator lights when the power is on and a red
indicator lights when in the standby mode (the indicator
will not light when the main power is off).
Adjustable
range
LC-13/15S1H
Upper control panel

9
LOCATION OF USERS CONTROL (Continued)
Main unit (rear view)
S-VIDEO
PR
AUDIO (L)
PB
VIDEO
AUDIO (R)
AUDIO (L)
COMPONENT
AUDIO (L)
AUDIO (R)
VIDEO
Y
AV-IN1
Carrying handle
AUDIO (R)
S-VIDEO
ANT. (Antenna terminal)
POWER INPUT
(DC12V)
AV-IN2/OUTAV-OUT
Stand
* Be careful to prevent the
product from falling over
when adjusting the angle.
Also place the product on
a stable base.
●The screen can be
adjusted backwards to
an angle between 12
and 35 degrees.
When changing the
angle, make sure to hold
the stand and adjust to
the best viewable angle.
Round lock for Kensington
Security Standard Slot.

10
LOCATION OF USERS CONTROL (Continued)
Remote control
CH
VOL
LANGUAGE DIS.MODE
DISPLAY
BRIGHTSLEEP
MENU
POWER
MPX -/--
TV
VIDEO
MENU (P.15)SLEEP
(P.20)
MENU cursor
(Right/Left Selection) (P.15)
VOL (+)/(–) (P.13)
LANGUAGE (P.16)
POWER
(P.11)
TV VIDEO (P.12)
DIS.MODE (P.26)
MENU cursor
(Upward/Downward Selection)
(P.15)
CHANNEL SELECT (P.14)
CH ( )/( ) (P.14)
Selects next higher channel.
Selects next lower channel.
A (FLASHBACK) (P.14)
Returns to previous channel.
DISPLAY
Press: Displays received channel for 10 seconds.
Channel indicator reduces in size after
about 10 seconds.
Press again: Display disappears.
Press: Stops sound.
Press again: Returns
sound to previous level.
MPX (P.27)
Switches Audio mode.
BRIGHT (P.25)
The brightness can be
switched between 4 levels.
MUTE (P.13)

11
PRESET 1
2
I
BASIC OPERATION
Control section of main unit
1Press MAIN POWER, located on
the upper part of the main unit to
ON.
2The POWER indicator instantane-
ously changes from red to green
and the main unit is turned on.
▼ On-Screen Display
Turning on POWER
Note:
•Input mode indication disappears after
several seconds.
POWER indicator
MAIN POWER
Standby
To turn off the LCD TV
Press POWER on the remote control.
The POWER indicator will turn red.
(Standby position)
To turn the LCD TV back on
Press POWER again.
The POWER indicator will turn green.
CH
VOL
LANGUAGE DIS.MODE
DISPLAY
BRIGHTSLEEP
MENU
POWER
MPX
-/--
TV
VIDEO
POWER

12
TV
VIDEO
CH
VOL
LANGUAGE DIS.MODE
DISPLAY
BRIGHTSLEEP
MENU
POWER
MPX
-/--
TV
VIDEO
I
I
COMPONENT
I

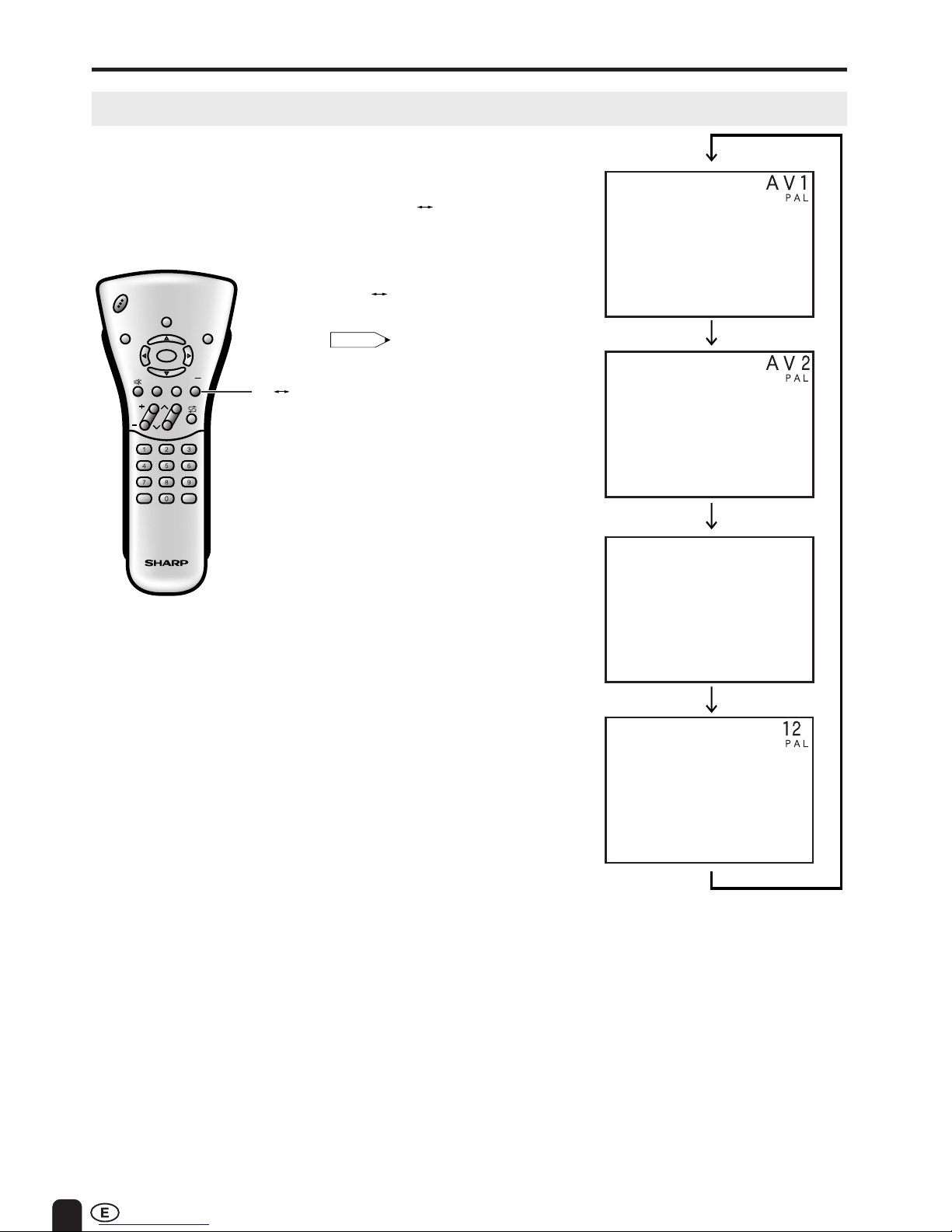

Switching TV/VIDEO AV1/AV2/COMPONENT/TV Mode
AV1 mode
AV2 mode
1Turn on the power of the
connected video equipment.
2Press TV VIDEO and select
the applicable input source. The
screen displays AV1, AV2,
COMPONENT or TV mode at
the upper right corner each time
TV VIDEO is pressed.
•AV input mode indication remains for
5 seconds.
• AV1: Video equipment connected to
the AV1 input terminals.
The S-video input terminal is
additionally provided for the
AV1 input. If both S-video
terminal and normal video
terminals are connected with
cables, the S-video input
terminal takes priority.
• AV2: AV2 mode is used to adjust
the preset settings and IN or
OUT can be selected. AV2
indication is not displayed
when OUT is selected. (For
details on setting AV-OUT, see
page 24.)
The S-video input terminal is
additionally provided for the
AV-IN2 input. If both the S-
video terminal and normal
video terminals are connected
with cables, the S-video input
terminal takes priority, only
when IN is selected.
• COMPONENT:
Video equipment connected to
the COMPONENT input
terminals.
Note:
COMPONENT mode
TV mode
BASIC OPERATION (Continued)

13
Sound Volume
To mute sound
BASIC OPERATION (Continued)
1Press VOL (+) to increase sound
volume. The segment of indicator
increases.
2Press VOL (–) to decrease sound
volume. The segment of indicator
decreases.
1Press MUTE to temporarily turn off
the sound.
Screen displays the MUTE mark.
2Press MUTE or VOL (+)/(–) to turn
the sound back to the previous level.
MUTE is automatically cleared when
one of the following buttons are
pressed: POWER, VOL (+)/(–) or
MUTE.
CH
VOL
LANGUAGE DIS.MODE
DISPLAY
BRIGHTSLEEP
MENU
POWER
MPX
-/--
TV
VIDEO
MUTE
POWER
VOL(+)/(–)
■ Plug the headphone mini-plug into the HEADPHONE jack located on the front of the TV set.
A
•Headphones are not included in the supplied accessories.
•No sound is heard from the main unit speakers when a headphone mini-plug is connected into the HEADPHONE
jack.
▼ On-screen display
Adjust the sound volume
using VOL (e)/(f).
Listening with Headphones
Headphones

14
I
I
CH
VOL
LANGUAGE DIS.MODE
DISPLAY
BRIGHTSLEEP
MENU
POWER
MPX
-/--
TV
VIDEO
CHANNEL
SELECT
A(Flash-
back)
CH ( )/
( )
1Press the button.
2If “5-” is indicated and the picture
does not change, press the
-/--
button to switch over to the 1-digit
select mode and press again.
BASIC OPERATION (Continued)

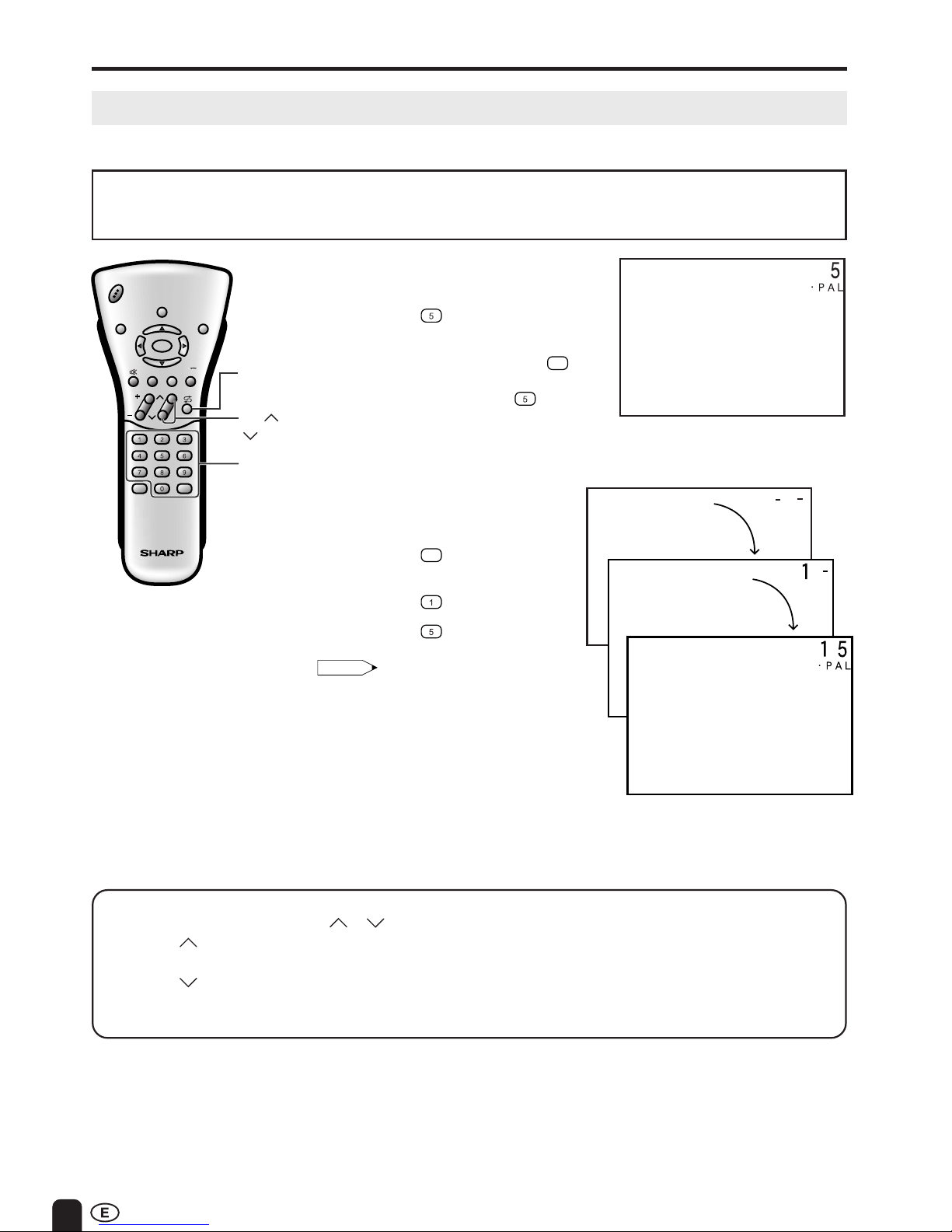

Changing the Channels
Changing channels using CHANNEL SELECT on the remote control.
To select a one-digit channel
(e.g., Channel 5):
•To handle the increasing number of channels available, this LCD TV set allows you to select up to
100 positions (Channels 0 to 99). One-digit and two-digit methods of selection can be used. Follow
the procedure shown below to select channels.
1Press the
-/--
button to set the
2-digit select mode.
2Press the button.
3Press the button.
Note:
•Complete this procedure within 4
seconds, otherwise the selection will
not be made.
•Press A(Flashback) to show the
previous channel.
To select a two-digit channel
(e.g., Channel 15):
Changing channels with CH ( )/( ) on the remote control.
Press CH ( )and the channels change in the order shown below:
1 →2 →3 →. . . →98 →99 → 0 → 1 →2 →3 →. . .
Press CH ()and the channels change in the order shown below:
3 →2 →1 →0 → 99 →98 →. . . →3 →2 →1 →. . .

15
CH
VOL
LANGUAGE DIS.MODE
DISPLAY
BRIGHTSLEEP
MENU
POWER
MPX
-/--
TV
VIDEO
MENU
a/b
c/d
MENU
MENU
SLEEP TIMER
FEATURE
CH-SETTING
SELECT: ENTER: EXIT:
SOUND
MENU
SELECT: ADJUST: EXIT:
I
CH-SETTING
RETURN
POSITION [CH15 ]
COLOUR SYSTEM [AUTO ]
SOUND SYSTEM [ ]
SKIP [OFF ]
FINE [783 25MHz]
NICAM [ON ]
A2 [ON ]
PICTURE (TV)
RETURN
CONTRAST [ 50]
COLOUR [ 0]
BLACK LEVEL [ 0]
SHARPNESS [ 0]
RESET
MENU
SELECT: ENTER: EXIT:
0
0
TINT [ 0]
0
0
0
SOUND
RETURN
TREBLE [ 0]
BALANCE [ 0]
CLEAR TONE [OFF]
RESET
MENU
SELECT: ENTER: EXIT:
0
0
BASS [ 0]
0
FEATURE
RETURN
BRIGHTNESS [BRIGHT ]
AUTO POWER OFF [OFF ]
DISPLAY MODE [NORMAL ]
AV2 IN/OUT [IN ]
BLUE BACK [ON ]
LANGUAGE [ENGLISH]
MENU
SELECT: ADJUST: EXIT:
SLEEP TIMER
RETURN
SLEEP TIMER [---REMAIN]
MENU
SELECT: ADJUST: EXIT:
SELECTING THE MENU ITEMS
•This LCD TV set allows you to adjust the picture and sound, and set the channels and other features
using the On-Screen Display. Select the desired menu item by following the steps below and then refer
to the indicated page for details.
SLEEP TIMER menu (Page 20)
PICTURE menu (TV mode) (Page 21)
FEATURE menu (Page 23)
CH-SETTING menu (Page 19)
1Press MENU to display the MENU
screen.
2Press a/bto select the desired
menu item.
• The “ ” mark moves up or down.
• The “ ” mark indicates the selected
menu item.
3Press c/dto enter.
•The displayed items differ depending
on the setting conditions.
•The selected item changes to yellow.
•Items in purple cannot be selected.
(AV mode) (Page 21)
Selecting a Menu Item
Note:
* The illustrations and on-screen displays in this operation manual are for
explanation purposes and may vary slightly from the actual operations.
PICTURE (AV1)
RETURN
CONTRAST [ 50]
COLOUR SYSTEM [AUTO]
COLOUR [ 0]
BLACK LEVEL [ 0]
SHARPNESS [ 0]
RESET
MENU
SELECT: ENTER: EXIT:
TINT [ 0]
0
0
0
0
0
SOUND menu (Page 22)

16
CH
VOL
LANGUAGE DIS.MODE
DISPLAY
BRIGHTSLEEP
MENU
POWER
MPX
-/--
TV
VIDEO
LANGUAGE
On-Screen Display Language Selection
PRESET
NORMAL
SCREEN
■MENU on the LCD TV set can also
be used to select the language.
Upper control panel
1Press MENU (PRESET-1) on the
upper part of the LCD TV set for
more than 2 seconds to display the
PRESET mode screen.
2Press MENU (PRESET-1) twice
to display the LANGUAGE select
mode screen. Press MENU
(PRESET-1) again to change the
PRESET mode as shown below.
AUTO →MANUAL →LANGUAGE →
3Press CH ()/( )to select the
language you wish to display.
4Press MENU (PRESET-1) to
return to the normal screen.
Note:
• Instead of pressing MENU for more than
2 seconds, you can display the
LANGUAGE select mode by selecting
FEATURE → LANGUAGE on the
Menu screen.
ENGLISH
MENU
SELECT: EXIT:
I
Adjusting the LANGUAGE Settings
1Press LANGUAGE to display the
LANGUAGE screen.
2Press LANGUAGE to change the
setting.
Note:
•The LANGUAGE screen automatically
disappears in 3 seconds.
LANGUAGE [ENGLISH]
ENGLISH
Directly setting the LANGUAGE
12
PRESET
3 1, 2, 4

17
Note:
• When starting PRESET after setting the
SOUND SYSTEM with MENU of the
Remote Control, the SOUND SYSTEM
for all channels are stored into memory.
• Unused channels are automatically
skipped.
• The Preset mode is only available in the
TV mode and cannot be operated in the
AV mode.
Sound System
Presetting the Channels (AUTO)
■Automatically tunes in and presets
receivable TV stations.
Make sure the antenna cable is
properly connected.
(Auto mode screen)
1Press MENU (PRESET-1) on the
upper part of the LCD TV set for
more than 2 seconds. The AUTO
mode screen appears.
2Press VOL (–)/(+) (PRESET-2)
on the upper part of the LCD TV
set.
All the TV stations in your area
that can be received by the LCD
TV set are automatically preset.
3The screen shows whatever is on
channel 1 when full auto channel
preset is finished.
I
I
Upper control panel
CH
VOL
LANGUAGE DIS.MODE
DISPLAY
BRIGHTSLEEP
MENU
POWER
MPX
-/--
TV
VIDEO
MENU
PRESET (Continued)
12
PRESET
21

18
CH
VOL
LANGUAGE DIS.MODE
DISPLAY
BRIGHTSLEEP
MENU
POWER
MPX
-/--
TV
VIDEO
MENU
VOL(+)/(–)
CH ( )/( )
CHANNEL
SELECT
1Press MENU (PRESET-1) on the
upper part of the LCD TV set for
more than 2 seconds. The AUTO
mode screen appears.
2Press MENU (PRESET-1) to
display the MANUAL mode screen.
Press MENU (PRESET-1) again
to change the MANUAL mode as
shown below.
3Select the channel position using
CHANNEL SELECT or CH ( )/
().
4Press VOL (+)/(–)to locate the
channel you want to preset to the
position. Search is initiated and
when a TV signal is received
during the search, the search
stops.
5Repeat steps 3and 4above, to
preset the channel positions for
other broadcasts, etc.
6Press MENU (PRESET-1) to
return to the normal screen.
Note:
• SYSTEM may not have been set correctly,
if noise can be heard or if there is no
sound.
In such case, reset to SOUND SYSTEM
using MENU.
PRESET (Continued)
AUTO →MANUAL →LANGUAGE →NORMAL
SCREEN
■Setting a channel to a desired TV
station:
Presetting the Channels (MANUAL)
Upper control panel
Sound System
Auto mode screen
Manual mode screen
I
I
I
Channel position
number
■In a weak reception area, or under
bad reception conditions.
1Press MENU (PRESET-1) on the
upper part of the LCD TV set for
more than 2 seconds. The AUTO
mode screen appears.
2Press MENU (PRESET-1) to
display the MANUAL mode screen.
3While the MANUAL mode screen
is displayed, press MENU (PRE-
SET-1) for more than 2 seconds.
The channel position number
remains in green.
Note:
•While the MANUAL mode screen is
displayed, press MENU (PRESET-1).
(The LANGUAGE mode screen will
appear.)
4Adjust for good reception using
VOL (+)/(–).
5After finishing the adjustment,
press MENU (PRESET-1) to
continue channel presetting.
I
I
➡➡
MENU
SELECT: EXIT:
ENGLISH
Upper control panel
12
PRESET
4 3 1, 2, 6
12
PRESET
4 1, 2, 3, 5

19
CH
VOL
LANGUAGE DIS.MODE
DISPLAY
BRIGHTSLEEP
MENU
POWER
MPX
-/--
TV
VIDEO
MENU
a/b
c/d
CHANNEL
SELECT
PRESET (Continued)
Channel Setting
1Press MENU to display the MENU
screen.
2Press aa
aa
a/bb
bb
bto move the cursor to
CH-SETTING.
3Press cc
cc
c/dd
dd
dto display
CH-SETTING screen.
4Press aa
aa
a/bb
bb
bto select the desired
function mode.
5Each time you press cc
cc
c/dd
dd
d, the
setting for individual items is as
mentioned under Selected item:
6Press MENU to return to the
normal screen.
Note:
•Switching COLOUR SYSTEM
Set the system to AUTO for normal TV reception. The AUTO mode automatically detects the receiving signal
system and changes the reception system of the LCD TV set. When the picture or sound is not stable, switching to
an appropriate system may improve the picture or sound quality.
•When using FINE tuning, the channel number changes from green to yellow.
•To return the channel to its original frequency setting, follow the manual channel preset procedure. (Please see
page 18 “Presetting the Channels (MANUAL)” for details.)
•In AV mode, items in purple cannot be selected.
(MENU screen)
(CH-SETTING screen)
MENU
MENU
SLEEP TIMER
FEATURE
CH-SETTING
SOUND
SELECT: ENTER: EXIT:
MENU
SELECT: ADJUST: EXIT:
I
CH-SETTING
RETURN
POSITION [CH15 ]
COLOUR SYSTEM [AUTO ]
SOUND SYSTEM [ ]
SKIP [OFF ]
FINE [783 25MHz]
NICAM [ON ]
A2 [ON ]
I D/K M B/G
Selected item Description
POSITION The channel position changes to the upper or lower number.
COLOUR SYSTEM The mode changes in the following order:
SOUND SYSTEM The mode changes in the following order:
SKIP The mode changes in the following order:
ON ←→ OFF
Channel numbers with a “● (RED)”mark on the left are set to SKIP.
To turn off SKIP, press CHANNEL SELECT to select the desired channel,
and then set the SKIP mode on the CH-SETTING menu to “OFF”.
FINE The frequency changes to allow fine tuning.
NICAM The broadcast sound system changes in the following order:
ON (NICAM sound) ←→ OFF (Monaural TV sound)
A2 Stereo system changes in the following order:
ON (A2 sound) ←→ OFF (Monaural TV sound)
AUTO
N358
N443
PAL SECAM
